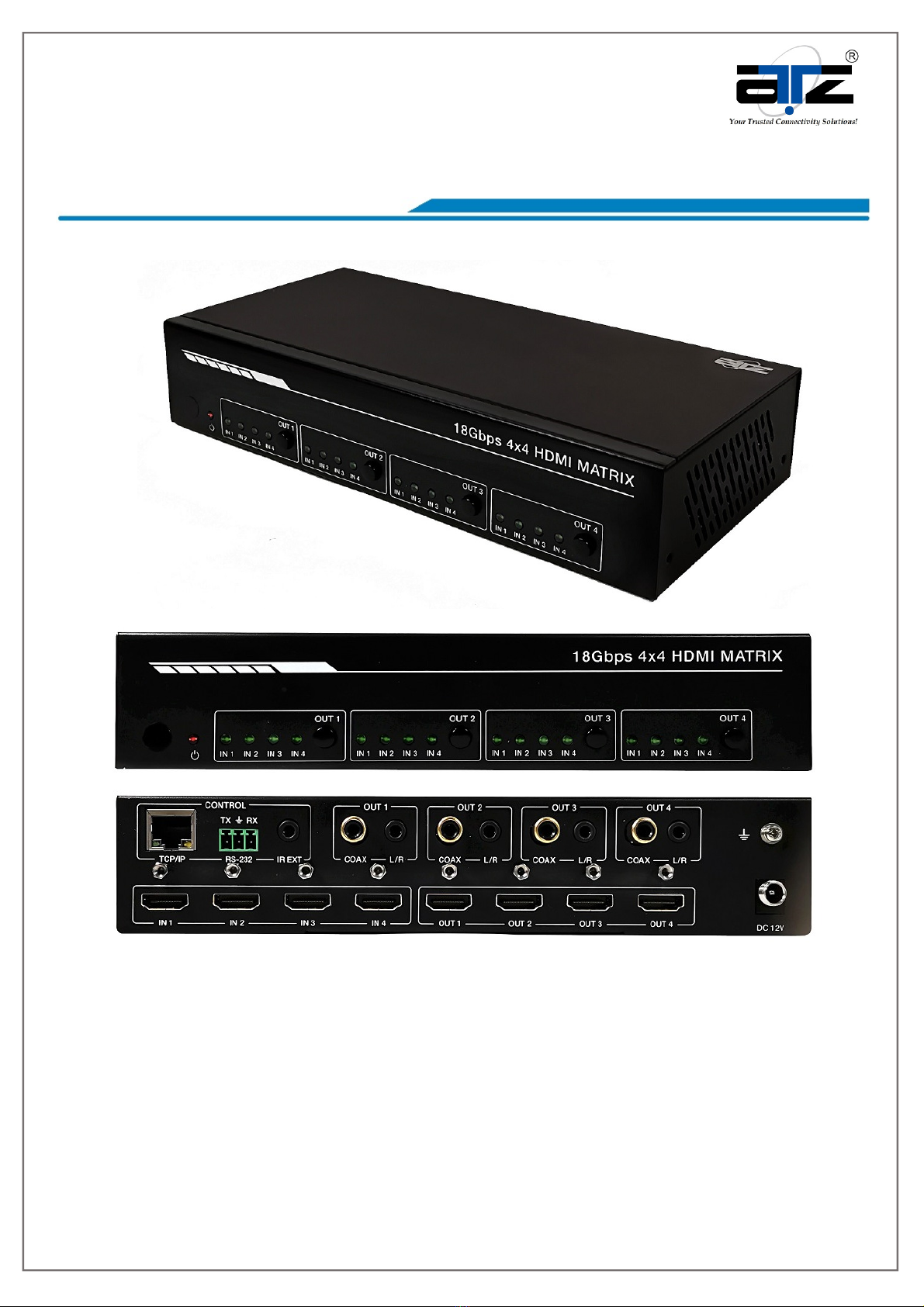

ATZ HDMI-V2-44P Manuale utente

pg. 1

Notes

: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered

from time to time.

All specifications are subject to change without prior notice.

Model : ATZ HDMI-V2-44P

Description: 4x4 HDMI2.0 Matrix Switch 18Gbps 4K 60Hz 4:4:4 w/Audio Extractor/

RS232+Web GUI

This high performance HDMI Matrix Switcher can switch any of these four HDMI 2.0

sources to four HDMI 2.0 displays. Each input and output supports up to 4K60 444

resolution and HDCP 2.2. The outputs can be individually scaled for 1080p. De-

embedded audio as analog L/R and coaxial is available for both outputs. The ARC

function can return display device audio to coaxial port output only. Advanced EDID

management is supported. With its 18Gbps bandwidth and the additional features

with latest HDMI standards. This switcher can be controlled from the front panel, RS-

232, IR remote, or TCP/IP.

pg. 2

Notes

: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered

from time to time.

All specifications are subject to change without prior notice.

Model : ATZ HDMI-V2-44P

Description: 4x4 HDMI2.0 Matrix Switch 18Gbps 4K 60Hz 4:4:4 w/Audio Extractor/

RS232+Web GUI

Features:

•HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant

•Four 18G HDMI 2.0 video inputs support up to 4K60 444 resolution

•Four outputs can be individually scaled for 4K→1080p

•De-embedded audio to analog L/R and Coaxial ports output

•ARC audio return to the coaxial ports output only

•Built-in Web GUI for TCP/IP control

•Advanced EDID management supported

•Four methods of control: Front panel, RS-232, IR remote and TCP/IP

Specifications:

Technical

HDMI Compliance

HDMI 2.0

HDCP Compliance

HDCP 2.2 and HDCP 1.4

Video Bandwidth

18 Gbps

Video Resolution

4K2K 50/60Hz 4:4:4

4K2K 50/60Hz 4:2:0

4K2K 30Hz 4:4:4

1080p, 1080i, 720p, 720i, 480p, 480i

All HDMI 3D TV formats

All PC resolutions including 1920 x 1200

Output Scaling

4K to 1080p

3D Support

Yes

Color Space

RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0

Color Depth

8

-

bit, 10

-

bit, 12

-

bit [1080P, 4K30Hz, 4K60Hz (YCbCr

4:2:0)] 8-bit [4K60Hz (YCbCr 4:4:4)]

HDMI Audio Formats

PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD,

DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master

Audio, DSD

Coaxial Audio Formats

PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1

L/R Audio Formats

PCM2.0CH

HDR Support

HDR10, HDR10+. Dolby Vision,

HLG

ESD Protection

Human

-

body Model: ±8kV (Air

-

gap discharge),

±4kV (Contact discharge)

pg. 3

Notes

: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered

from time to time.

All specifications are subject to change without prior notice.

Model : ATZ HDMI-V2-44P

Description: 4x4 HDMI2.0 Matrix Switch 18Gbps 4K 60Hz 4:4:4 w/Audio Extractor/

RS232+Web GUI

Connections

Input Ports

4×HDMI Type A [19

-

pin female]

Output Ports

4×HDMI Type A [19

-

pin female]

4×L/R audio out [3.5mm Stereo Mini-jack]

4×COAX audio out [RCA]

Control ports

1x TCP/IP [RJ45]

1x RS-232[3-pin phoenix connector]

1x IR EXT [3.5mm Stereo Mini-jack]

Mechanical

Housing Metal Enclosure

Color

Black

Dimensions

220mm (W)×105mm (D)×44mm (H)

Weight

792g

Power Supply

Input: AC100~240V 50/60Hz

Output: DC12V/2.5A (Locking connector)

Power Consumption

10W (max), 1.56W (Standby)

Operating

Temperature 0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature

-

20°C ~ 60°C /

-

4°F ~ 140°F

Relative Humidity

20~90% RH (non

-

condensing)

Resolution /

Cable Length

4K6

–

Feet / Meters

4K3

-

Feet / Meters

1 8 P6

-

Feet / Meters

HDMI IN / OUT

10ft / 3M

30ft / 10M

42ft / 15M

The use of “Premium High Speed HDMI” cable is highly recommended.

pg. 4

Notes

: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered

from time to time.

All specifications are subject to change without prior notice.

Model : ATZ HDMI-V2-44P

Description: 4x4 HDMI2.0 Matrix Switch 18Gbps 4K 60Hz 4:4:4 w/Audio Extractor/

RS232+Web GUI

Operation Controls and Functions

Front Panel:

Name

Function

description

IR Sensor

IR input for remote control of the switcher.

POWER LED

Red LED indicates that the unit is powered.

OUT 1 / OUT 2 / OUT 3 /

OUT 4 Button Press to select the desired input.

IN 1 IN2 / IN3 / IN4 LED

Green LED indicates when the input

is selected for

respective output.

Rear Panel:

Name

Function description

TCP/IP (RJ45)

Control port for TCP/IP control or accessing the built

-

in Web GUI.

RS-232

3

-

pin pluggable connector for RS

-

232 control of the

Switcher.

IR EXT

IR eye input for

IR control of the Switcher.

Coaxial Audio OUT 1 / OUT

2 / OUT 3 / OUT 4

RCA connector for coaxial audio output from HDMI

OUT 1/ OUT 2 / OUT 3 / OUT 4.

L/R Audio OUT 1 / OUT 2 /

OUT 3 / OUT 4

3.5mm Mini

-

jack connector for stereo audio output

from HDMI OUT 1 / OUT 2 / OUT 3 / OUT 4.

Earthing Point

Screw terminal for earthing the Switcher.

HDMI Input 1 to 4

HDMI Source inputs 1 to 4.

HDMI Output 1 to 4

HDMI outputs for displays 1 to 4.

pg. 5

Notes

: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered

from time to time.

All specifications are subject to change without prior notice.

Model : ATZ HDMI-V2-44P

Description: 4x4 HDMI2.0 Matrix Switch 18Gbps 4K 60Hz 4:4:4 w/Audio Extractor/

RS232+Web GUI

DC 12V IN

DC 12V input for 12V 2.5A PSU.

Connecting to the Switcher

1. Connect the desired HDMI input sources.

2. Connect the desired HDMI display devices.

3. Connect any CONTROL inputs that may be required: TCP/IP, RS-232 or IR IN.

4. Connect any audio devices to either the Coaxial or L/R outputs.

5. Connect the 12V DC PSU.

Using the Switcher

Power LED and Standby Mode:

The Power LED provides the following indications:

Color Description

Red

The Switcher is active and fully controllable

Off

The Switcher is in standby mode, this state can be changed

by

using API commands or IR Remote, or from the Web GUI

interface.

Selecting Inputs:

Manual Selection of the inputs is done by briefly pressing the OUT 1 / OUT 2 / OUT 3

/ OUT 4 button repeatedly for that channel until the desired input is selected.

pg.

Notes

: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered

from time to time.

All specifications are subject to change without prior notice.

Model : ATZ HDMI-V2-44P

Description: 4x4 HDMI2.0 Matrix Switch 18Gbps 4K 60Hz 4:4:4 w/Audio Extractor/

RS232+Web GUI

IR Remote

Power on the Switcher or set it to standby mode.

Output 1 (Output 2 / 3 / 4)

1/2/3/4

Select the desired input source to Output 1 port output, the

corresponding green LED on the front panel illuminates.

SD

Switch downscale or bypass mode to

the Output 1 port

output.

Select the last or next the desired input source to Output 1

port output, the corresponding green LED on the front panel

illuminates.

Using the Bulit-In Web GUI Interface

The Switcher has a built-in Web interface to provide a means of controlling or

configuring various settings. There are six pages available, each of which will be

outlined in detail in the following sections:

The six pages are:

pg. 7

Notes

: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered

from time to time.

All specifications are subject to change without prior notice.

Model : ATZ HDMI-V2-44P

Description: 4x4 HDMI2.0 Matrix Switch 18Gbps 4K 60Hz 4:4:4 w/Audio Extractor/

RS232+Web GUI

1. Status – Display information about the firmware and IP setting.

2. Video – Switch the desired input source to output and set the preset.

3. Input – Display information about the input signal and EDID setting.

4. Output – Display information about the output signal and scaler option.

5. Network – Allow basic network setting management and login options.

6. System – Panel lock, beep, serial baudrate setting and firmware update.

Note these six pages are only accessible in Admin mode, when User mode

is used only the Status and Video pages are available.

To access the Web interface, enter the IP address of the switcher into the

address bar of any web brower. The default IP address is 192.168.1.1 .

Please see the following operation method.

Note that if the IP address of the switcher is not know, use the RS-232 Command

given in the Network Setting section “r ip addr!” to discover the current IP address

or set the switcher to factory default status and IP address restores to default

192.168.1.100.

Step 1: The TCP/IP port on the rear panel is directly connected a PC with an UTP

cable.

Step 2: Set your PC IP address to the same network segment with Switcher,

for instance set PC IP address to 192.168.1.200 and Subnet mask to 255.255.255.0.

pg. 8

Notes

: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered

from time to time.

All specifications are subject to change without prior notice.

Model : ATZ HDMI-V2-44P

Description: 4x4 HDMI2.0 Matrix Switch 18Gbps 4K 60Hz 4:4:4 w/Audio Extractor/

RS232+Web GUI

Step 3: Enter the Switcher’s IP address into your brower on the PC to enter

Web GUI page.

After entering the IP address the following log in screen will appear:

Select the Username from the list and enter the password. The default

pg. 9

Notes

: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered

from time to time.

All specifications are subject to change without prior notice.

Model : ATZ HDMI-V2-44P

Description: 4x4 HDMI2.0 Matrix Switch 18Gbps 4K 60Hz 4:4:4 w/Audio Extractor/

RS232+Web GUI

passwords are:

Username User Admin

Password user admin

After entering the log in details, click the LOGIN button and the following Status page

will appear.

■ Status page

The Status page provides basic information about the product Model name, the

installed firmware version and the network setting. This page is visible in both User

and Admin modes.

The buttons at the top right of the web interface are always available and provide the

following function:

• The Log out button will disconnect the current user from display the

log in screen.

• The Power on button changes the power status of the Switcher

between On and Stand-by mode.

■ Video page

The Video page allows selection of the inputs source and set the presets.

pg. 10

Notes

: - All brand names and trademarks are properties of their respective holders and are referred to here for descriptive purpose only. Photo attached is for reference only, it may be slightly varied in items of colour, shape from the actual item delivered

from time to time.

All specifications are subject to change without prior notice.

Model : ATZ HDMI-V2-44P

Description: 4x4 HDMI2.0 Matrix Switch 18Gbps 4K 60Hz 4:4:4 w/Audio Extractor/

RS232+Web GUI

To this preset setting, first you need to select the desired input source to four output

ports. Then click the Save button to save the setting. When you click the line Set

button, this preset you have saved will be used. The Clear button will clear the

preset. There are four presets setting available.

■ Input page

The Input page provides information about which inputs are connected and have a

signal present. The inputs can be giving more meaningful names, if desired. The EDID

column provides a list of EDID options for each individual input.

The following EDID options are available in any of the EDID drop-down lists:

1080P, Stereo Audio 2.0

1080P, Dolby/DTS 5.1
