EConnect™ Wireless Thermostat Kit TA7210

With Equipment Interface Module

Installation guide for:

• Wireless equipment interface module

• EConnect™ wireless thermostat

• Wireless remote control

• Wireless outdoor air sensor

IMPORTANT INSTRUCTIONS

Need Help?

For assistance with this product please visit www.aubetech.com

or call Honeywell Customer Care toll-free at 1-800-831-2823.

ELECTRICAL HAZARD

Can cause electrical shock or equipment damage. Disconnect power

before beginning installation.

Must be installed by a certified electrician. Read these instructions

carefully. Failure to follow these instructions can damage the product or

cause a hazardous condition.

System

Installation

Guide

69-2472EF-01 (Aube TA7210 System Installation Guide).book Page 1 Wednesday, June 29, 2011 1:15 PM

Installation Guide

The equipment interface module (EIM) allows you to control a baseboard heater, a

convector or a fan-forced heater in a 120-volt, 208-volt or 240-volt application from a

EConnect™ wireless thermostat.

Installation procedure

Install the equipment interface module (EIM)............................................... Pages 3 - 6

Install batteries in wireless devices..................................................................... Page 7

Link all devices to wireless network........................................................... Pages 7 - 10

Exit wireless setup .............................................................................................Page 11

Customize thermostat (installer setup)......................................................Pages 11 - 18

Mount thermostat and outdoor sensor..................................................... Pages 19 - 20

For error codes, see page 20.

To verify the signal strength, see page 21.

To replace a wireless device, see pages 21-22.

For specifications and replacement parts, see page 23.

SAVE THESE INSTRUCTIONS

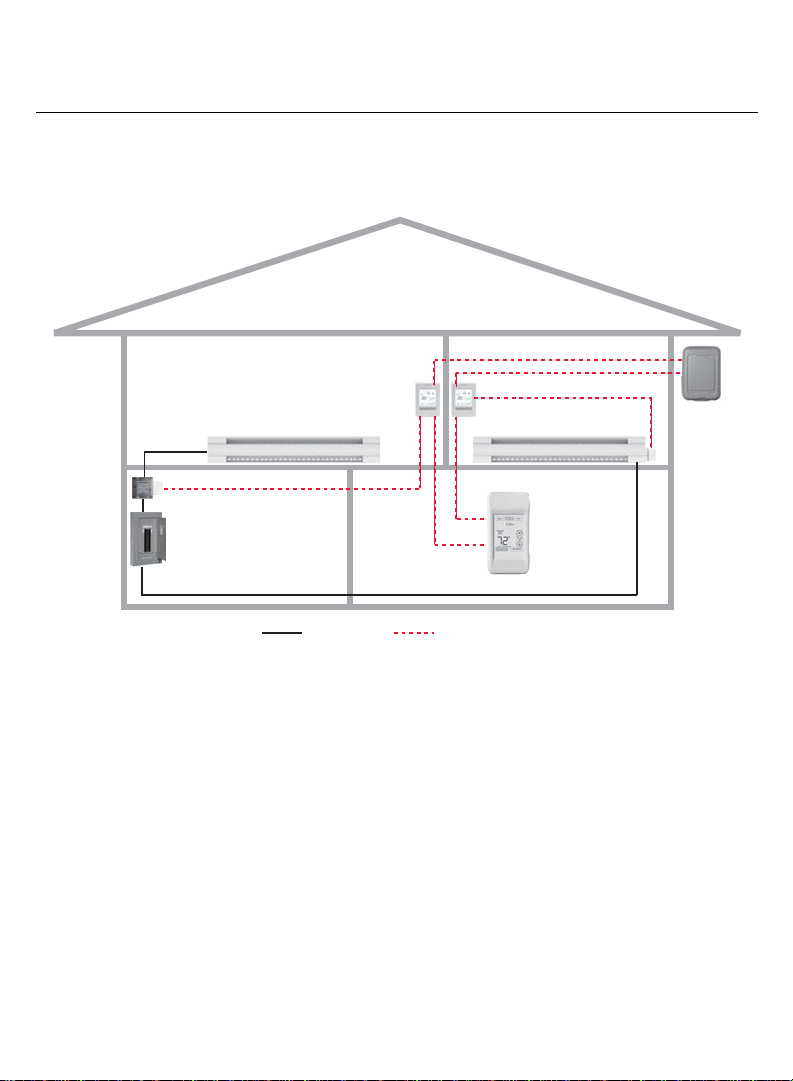

System installation at a glance

Remote

control

Thermostat

Outdoor

air sensor

Thermostat

EIM in remote

junction box

EIM in heater

Electrical

panel

Heater

Supply wires Wireless connection

69-2472EF-01 (Aube TA7210 System Installation Guide).book Page 2 Wednesday, June 29, 2011 1:15 PM

EConnect™ TA7210

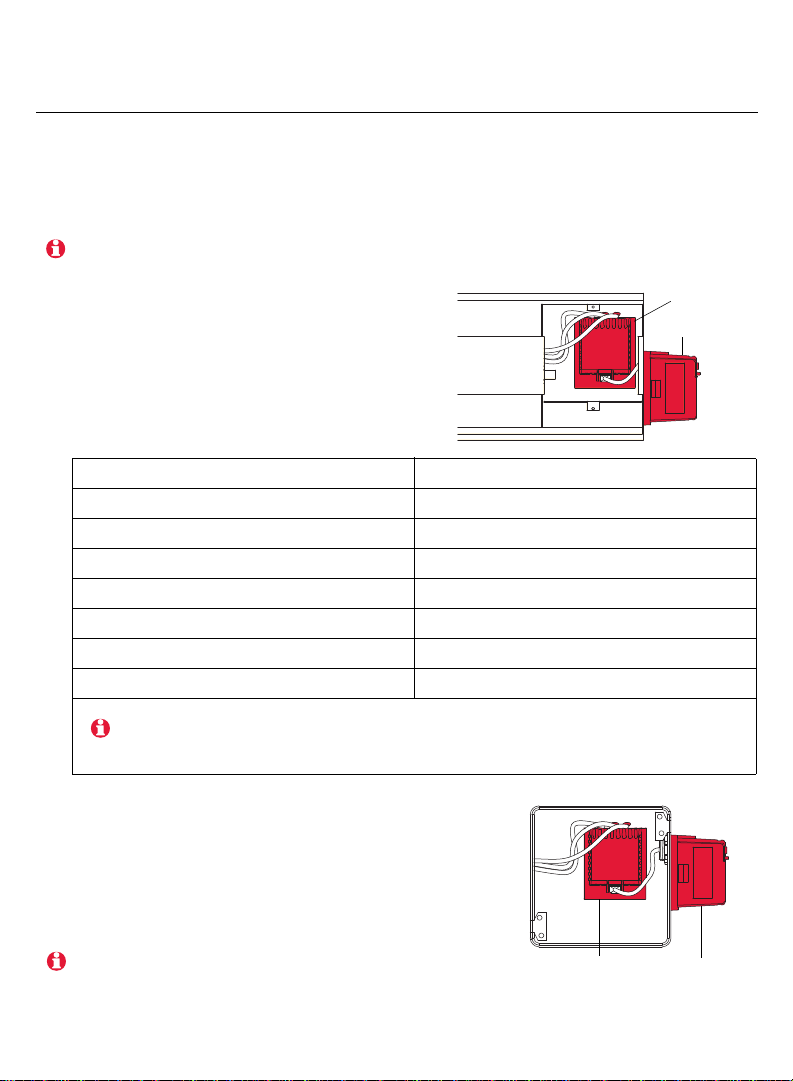

Determine the location

The equipment interface module (EIM) consists of a relay and an antenna. They can be

installed either in the wiring compartment of the baseboard heater or in a 4-11/16” square

junction box.

• Installing the EIM in a baseboard heater

You can install the EIM in the wiring

compartment of the baseboard heater if you

have any of the heaters listed in the following

table:

• Installing the EIM in a 4-11/16” square junction box

You can use a 4-11/16” square junction box in either of

the following conditions:

• You have a convector or fan-forced heater.

• You cannot install or do not wish to install the EIM in

the wiring compartment of the baseboard heater.



Install the Equipment Interface Module (EIM)

Install EIMs at a minimum distance of 2 feet (0.6 m) of each other. This minimum

distance still applies even if the EIMs are on opposite sides of a wall.

Manufacturer / brand Series

Cadet F

Global Commander CCB

King Electrical K, CB, KP, M

Marley 2500, BKOC, QMKC

Ouellet ODBA, ODI, ODIA, OFM, OPR

Stelpro CBB, N, SCA, SCAS

TPI 2900C, 2900S, 3700, 3900

The product has been tested for compatibility with the heaters listed above. If your

heater is not on the list, install the EIM on a 4-11/16” square junction box or replace

it with one listed.

The junction box can be installed anywhere in the

house; for example, near the main electrical panel.

Relay

Antenna

Relay Antenna

69-2472EF-01 (Aube TA7210 System Installation Guide).book Page 3 Wednesday, June 29, 2011 1:15 PM

Installation Guide

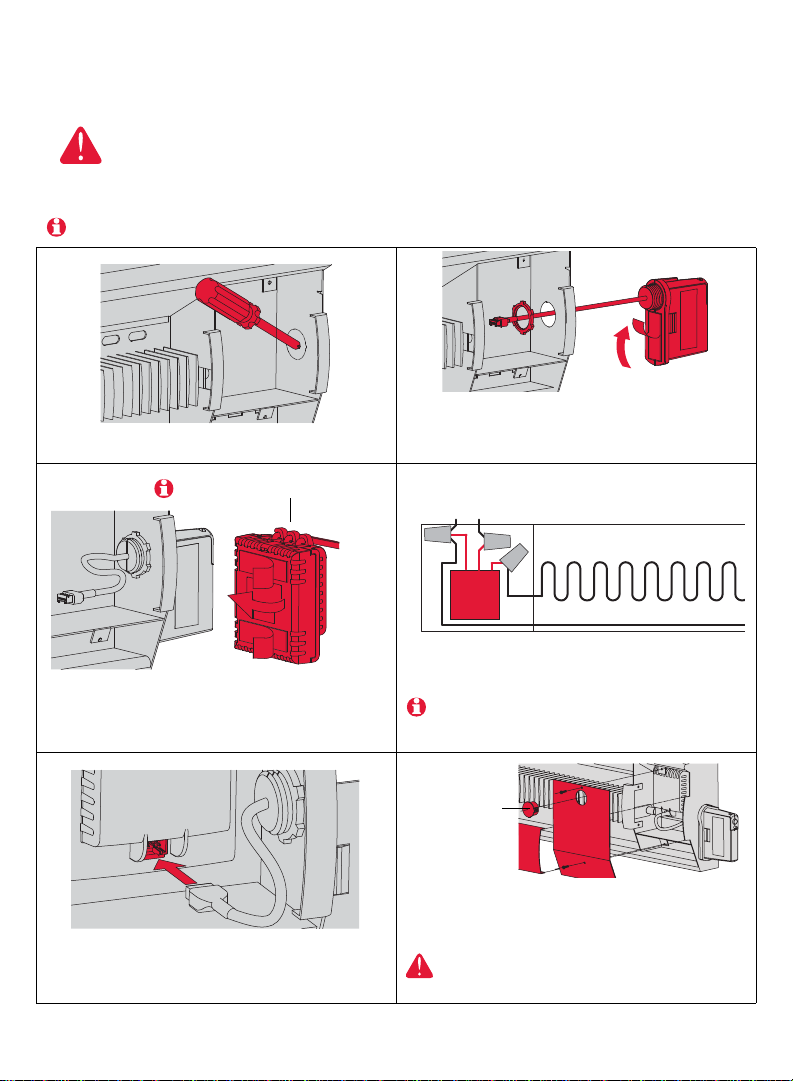

Installation in a baseboard heater

ELECTRICAL HAZARD

Can cause electrical shock or equipment damage. Disconnect AC power before

beginning installation.

Wiring must comply with local electrical codes. Use special CO/ALR solderless connectors if

supply wires are made of aluminum.

Disconnect the heater wires from the supply wires. If the heater has a built-in thermostat, remove it.

1) Remove the knockout on the side of the heater.

2) Remove the locknut from the antenna and peel off

the adhesive backing. Feed the antenna cable

through the knockout and install the antenna

vertically as shown. Put the locknut and tighten.

3) Clean the back panel inside the wiring

compartment where the relay will be installed. Peel

the adhesive backing off the relay and stick the

relay on the back panel.

4) Connect the heater wires and the supply wires to

the relay.

See page 6 if you are connecting more than one

heater.

5) Insert the antenna plug into the relay receptacle

until you hear a click.

6) Put the heater cover back. (If a built-in thermostat

was removed, install one of the supplied plugs to

cover the hole on the existing cover.) Apply power

to the heater. Do not install the antenna cover yet.

ELECTRICAL HAZARD

Can cause electrical shock. Install heater cover

plate before applying power.

Relay wires must be at the top

L2 L1 : For 240V application

N L : For 120V application

BlueBlue

BlackBlack

RedRed

Install plug if

applicable.

69-2472EF-01 (Aube TA7210 System Installation Guide).book Page 4 Wednesday, June 29, 2011 1:15 PM

EConnect™ TA7210

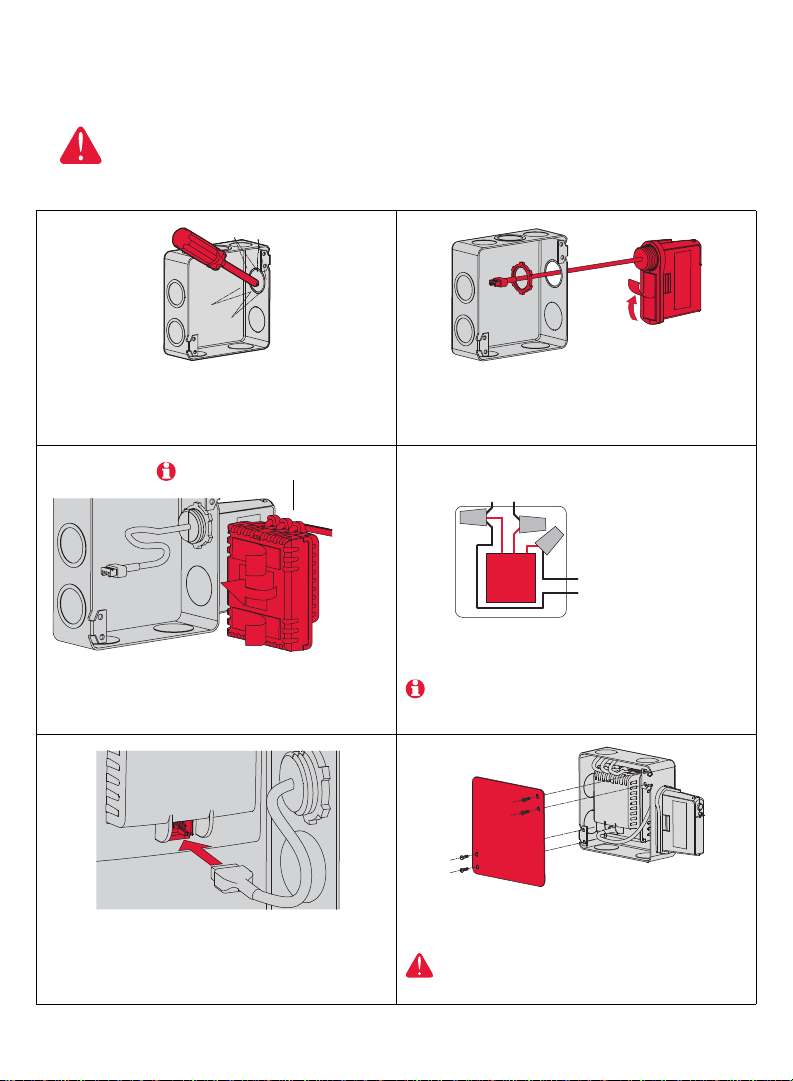

Installation in a 4-11/16'' square junction box

ELECTRICAL HAZARD

Can cause electrical shock or equipment damage. Disconnect AC power before

beginning installation.

Wiring must comply with local electrical codes. Use special CO/ALR solderless connectors if

supply wires are made of aluminum.

1) Mount the junction box on the wall. Punch out

knockout(s), install strain relief bushing(s)and feed

the supply wires and the heater wires. Punch out

another knockout to install the antenna (step 2).

2) Remove the locknut from the antenna and peel off

the adhesive backing. Feed the antenna cable

through the knockout opening and mount the

antenna. Put the locknut and tighten.

3) Clean the interior side of the junction box where the

relay will be installed. Peel off the adhesive backing

of the relay module and stick the relay inside the

junction box.

4) Connect the supply wires and heater wires to the

relay.

See page 6 if you are connecting more than one

heater.

5) Insert the antenna plug in the relay receptacle until

you hear a click.

6) Install a cover plate on the junction box and

apply power to the heater. Do not put the antenna

cover back yet.

ELECTRICAL HAZARD

Can cause electrical shock. Install junction box

cover plate before applying power.

Relay wires must be at the top

To heater

L2 L1 : For 240V application

N L : For 120V application

Blue

Black

Red

69-2472EF-01 (Aube TA7210 System Installation Guide).book Page 5 Wednesday, June 29, 2011 1:15 PM

Installation Guide

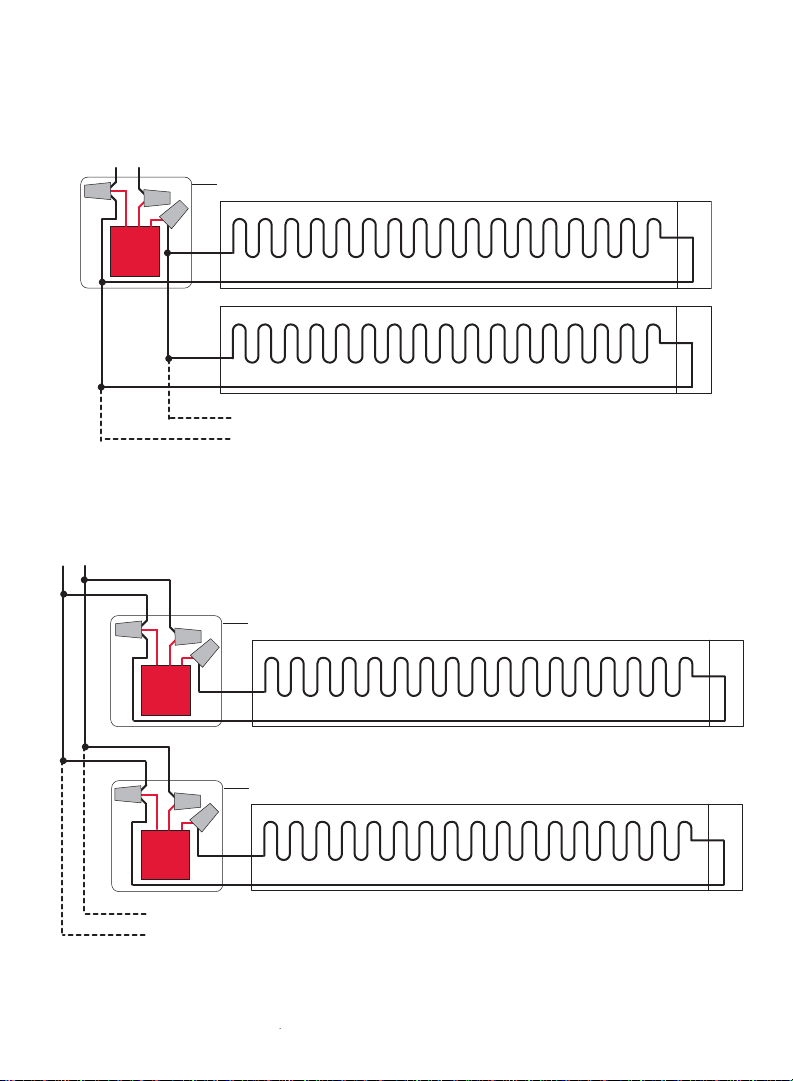

Connecting multiple heaters to the same EIM

Connecting multiple EIMs on the same circuit

L2 L1 : For 240V application

N L : For 120V application

Blue

Black

Red

The maximum number of heaters per EIM

is limited to a maximum load of 12.5 A

Remote junction box or

heater wiring compartment

L2 L1 : For 240V application

N L : For 120V application

Blue

Black

Red

Blue

Black

Red

The maximum number of EIMs is 8 per thermostat.

Remote junction box or

heater wiring compartment

Remote junction box or

heater wiring compartment

69-2472EF-01 (Aube TA7210 System Installation Guide).book Page 6 Wednesday, June 29, 2011 1:15 PM

EConnect™ TA7210

Start wireless setup

Press the EIM Connect button to place it in wireless setup. When the amber light changes

to a green flashing light, you can begin to link devices to the wireless network (see pages

7-10).



Install batteries in wireless devices

Thermostat Remote control

(optional) Outdoor air sensor

(optional)

Install 2 AA alkaline batteries Install 3 AA alkaline batteries Install 2 AA lithium batteries



Link all devices to wireless network

If the amber light changes to a red light

instead, there is another EIM currently in

wireless setup. Press the Connect button

on the other EIM to exit its wireless setup.

If the green flashing light disappears (after

a delay of 15 minutes) before you have

time to link all your devices, press the

Connect button again.

Connect button

* Flashing green: Ready for connection

Steady green: Connection established

Steady red: Connection failure

Connect LED *

69-2472EF-01 (Aube TA7210 System Installation Guide).book Page 7 Wednesday, June 29, 2011 1:15 PM

Installation Guide

Link thermostat and EIM to wireless network

Perform the following steps on the thermostat:

# Display Button Step

1) The Connexion (link)

menu appears when you

connect the thermostat to

wireless network for the

first time. Press Ok to

select Zone.

2) Press or to change

the zone name (optional;

see page 17) and press

Ok.

3) Press Ok to select

Connecter (connect).

4) SUCC (success) confirms

the connection is

successful. Press Sortir

(exit) once to link another

EIM (see page 9) or 3

times to return to home

screen.

If an error code (E followed by a number) appears on the screen, see its explanation

on page 20.

69-2472EF-01 (Aube TA7210 System Installation Guide).book Page 8 Wednesday, June 29, 2011 1:15 PM

EConnect™ TA7210

Link additional EIM to wireless network (optional)

1) If the green light on the previously-linked EIM is flashing, press its Connect button. The

green light will become steady.

2) Press the Connect button on the next EIM you wish to link and wait for its green

flashing light.

Perform steps 1 to 6 for each additional EIM. You can link a maximum of 8 EIMs to

the wireless network.

Skip steps 3 and 4 if the thermostat is displaying the Connexion menu (as

shown in step 5).

# Display Button Step

3) Press and hold the right

center button for 5 secs.

4) From the installer’s setup

menu, press to select

Connexion (link) and

press Ok.

5) Press to select

Connecter autre (connect

more) and press Ok.

6) SUCC (success) confirms

the connection is

successful. Press Sortir

(exit) once and go back to

step 1 to link another EIM

or press Sortir (exit) 3

times to return to home

screen.

69-2472EF-01 (Aube TA7210 System Installation Guide).book Page 9 Wednesday, June 29, 2011 1:15 PM

Installation Guide

Link outdoor sensor to wireless network (optional)

1) Make sure the Connect light on the EIM is

flashing (see page 7).

2) Press the Connect button on the back of the

sensor.

3) After 15 seconds, check if the thermostat is displaying a value for the outdoor

temperature reading.

Link remote control to wireless network (optional)

1) Make sure the Connect light on the EIM is flashing (see page 7).

2) Press CONNECT at the remote

control.

3) When the remote control displays

Connected (after a short delay),

press DONE.

4) Press NO at the next screen to save

and exit. (Or press YES and repeat

steps 1-4 to link to another network).

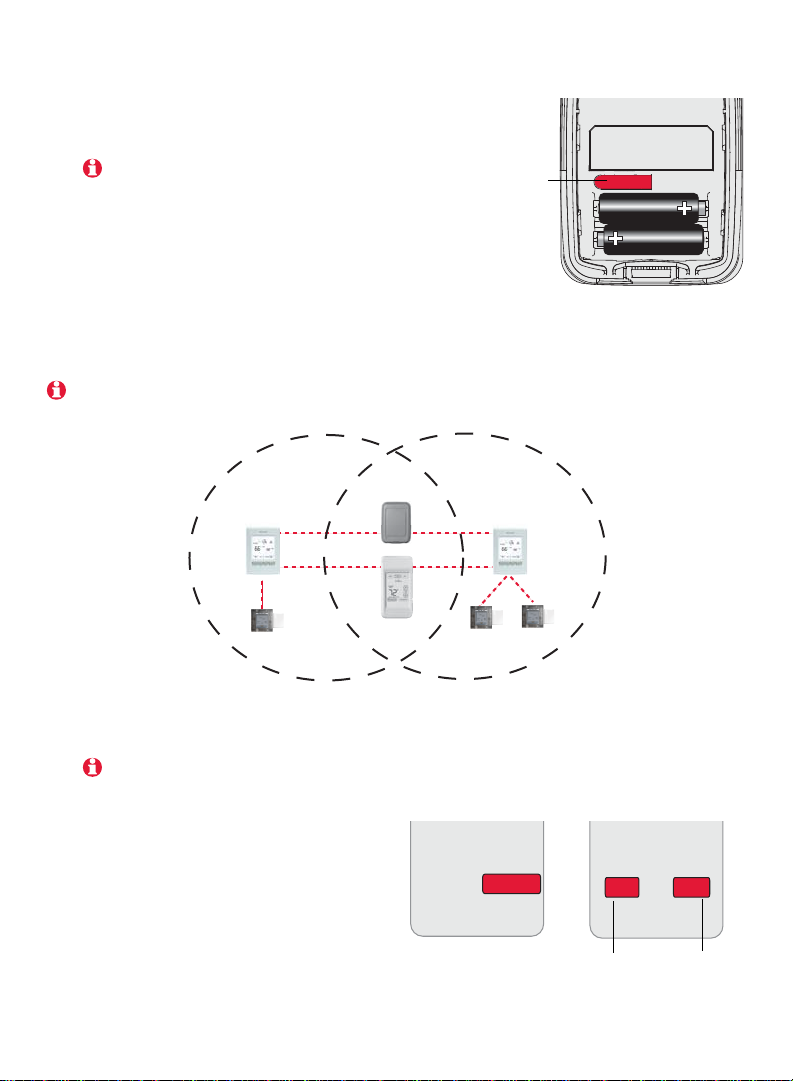

If you have more than one wireless thermostat,

make sure to activate the wireless setup from

an EIM linked to the thermostat. For example,

to display the outdoor temperature on

thermostat Y, you must activate the wireless

setup from either EIM B or C, not A.

If you have more than one wireless thermostat, repeat steps 1 and 3 for each thermostat.

If you have more than one wireless thermostat, make sure to activate the wireless setup

from an EIM linked to the thermostat. For example, to link the remote control to thermostat

Y, you must activate the wireless setup from either EIM B or C, not A.

Press and

release

Remote

control

Thermostat X Thermostat Y

EIM A EIM B EIM C

Outdoor

sensor

Bathroom

wireless network

Bedroom

wireless network

CONNECT

WIRELESS SETUP

NOYES

CONNECT MORE?

Press to link to

another network Press to

save and exit

69-2472EF-01 (Aube TA7210 System Installation Guide).book Page 10 Wednesday, June 29, 2011 1:15 PM

Altri manuali per EConnect Wireless Thermostat Kit TA7210

Indice

Lingue:

Altri manuali Aube Technologies Termostato

Aube Technologies

Aube Technologies TH115 A Manuale utente

Aube Technologies

Aube Technologies TH147-P Manuale utente

Aube Technologies

Aube Technologies TH123 Manuale utente

Aube Technologies

Aube Technologies TH110 Manuale utente

Aube Technologies

Aube Technologies TH115-A Manuale utente

Aube Technologies

Aube Technologies TH104 Guida rapida

Aube Technologies

Aube Technologies TH147-P Manuale utente

Aube Technologies

Aube Technologies TH115 A/F/AF Manuale utente

Aube Technologies

Aube Technologies TH109PROPLUS Manuale utente

Aube Technologies

Aube Technologies TH104PLUS Manuale utente

Aube Technologies

Aube Technologies TH141-HC-28 Manuale utente

Aube Technologies

Aube Technologies TH135-02 Manuale utente

Aube Technologies

Aube Technologies TH132 F Manuale utente

Aube Technologies

Aube Technologies TH150 Series Manuale utente

Aube Technologies

Aube Technologies TH108 Manuale utente

Aube Technologies

Aube Technologies TH115 A/F/AF Manuale utente

Aube Technologies

Aube Technologies Pilot-wire Programmer TH134 Manuale utente

Aube Technologies

Aube Technologies TH109PLUS Manuale utente

Aube Technologies

Aube Technologies TH132 A/F/AF Manuale utente

Aube Technologies

Aube Technologies TH136 Manuale utente

Aube Technologies

Aube Technologies TH209 Manuale utente

Aube Technologies

Aube Technologies TH144 Manuale utente

Aube Technologies

Aube Technologies TH110A-SP-P Manuale utente

Aube Technologies

Aube Technologies TH141A-HC-28 Manuale utente

Manuali Termostato popolari di altre marche

EWELLY

EWELLY EW-181 Manuale utente

Prolon

Prolon T1100 Istruzioni per l'installazione

Computherm

Computherm Q20 Manuale utente

Heatmiser

Heatmiser neoStat Manuale utente

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuale utente

Saswell

Saswell SAS920XWHB-7-S-RF Guida

Aircalo

Aircalo TFP1-ET85P2 Manuale utente

Honeywell

Honeywell CM721 Manuale utente

Carrier

Carrier DEBONAIR 33CS Manuale utente

Lennox

Lennox iHarmony Zone Thermostat Istruzioni per il montaggio

Gemtech

Gemtech GT7000 Manuale di istruzioni

Rollei

Rollei Smartes 45000 Manuale utente

Sinope

Sinope TH1300RF Manuale utente

Honeywell

Honeywell RLV4305 Manuale utente

Honeywell

Honeywell Prestige 2.0 THX9421 Manuale utente

NuTone

NuTone NTBZ48 Istruzioni operative originali

Stelpro

Stelpro MAESTRO ASMT402AD Manuale utente

Honeywell

Honeywell T6811 Manuale utente
