INSTRUCTION MANUAL

Electronic thermostat

for heating system

MODEL TH135-01

We thank you for trusting Aube technologies and hope that you

will be entirely satisfied.

For any questions concerning the TH135 electronic thermostat,

please call our Technical Support Department at:

Montréal Area:

1-800-831-AUBE (2823)

(450) 358-4600

www.aubetech.com [email protected]

TABLE OF CONTENTS

1. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

1.1 Installing a new thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

1.2 Thermostat installation and electrical hook-up . . . . . . . . . . . . . . . . . . . . .2

1.3 Thermostat configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

a) Cycles of 15 or 20 minutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

b) Regulation modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

c) Pump protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

d) Temperature in °C or °F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

1.4 Battery installation

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

2. SETTING THE COMFORT, ECONOMIC AND VACATION TEMPERATURES . . . . . .8

3. TELEPHONE CONTROLLER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

3.1 Connection to the CT240 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

3.2 Connection to a house automation system . . . . . . . . . . . . . . . . . . .11

3.3 Operating the telephone interface . . . . . . . . . . . . . . . . . . . . . . . . . .11

4. BATTERY REPLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

5. TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

1. INSTALLATION

1.1 INSTALLING ANEW THERMOSTAT

For a new installation, select a position about 5 feet (1.5 m) above the floor, where

there is good air circulation. The thermostat must be installed on an inside partition

wall.

Avoid places where there are:

a) air draughts (the top of a staircase, an air outlet,...)

b) dead air spots (behind a door,...)

c) direct sun rays

d) chimneys or hidden pipes

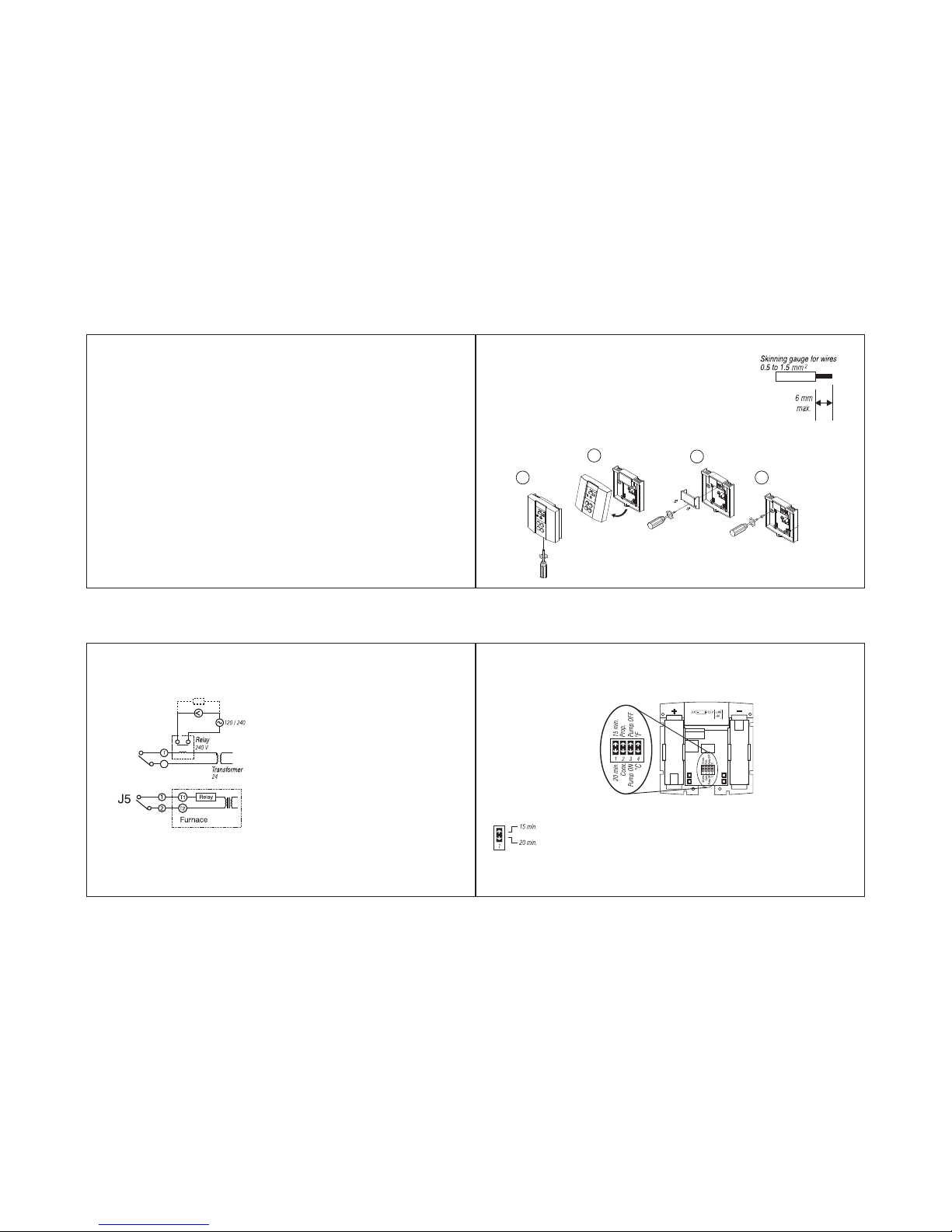

1.2 THERMOSTAT INSTALLATION AND ELECTRICAL HOOK-UP

Remove the mounting plate from the thermostat.

A) Undo the screw holding the mounting plate to the thermostat.

B) Lift the lower part of the plate to remove it from the thermostat.

C) Undo the screw holding the wire cover, and remove it.

D) Secure the mounting plate to the wall and do the appropriate connection

(refer to section 2).

A D

A) Refer to the diagram below for the 2-wire hook-ups. Please note that the

connection can be made on either terminal.

Note: If you have a CT240 telephone remote control, refer to section 3.1 for hook-up.

WIRES CONNECTION

Hook-up at the furnace thermostat input for hot

water heating, or at the furnace for hot air system

B) Put the wire cover back on.

VAC

Hook-up of the circulator for a hot water system or

for a baseboard through a 24 V relay

1.3 THERMOSTAT CONFIGURATION

Before installing the thermostat on the wall, it must be set using the dip switches at

the back.

A) Cycles of 15 or 20 minutes

The TH135 offers you heating cycles of 15 or 20 minutes. The

shorter the cycles, the bigger your comfort. However, your system

will be solicited more often.

If you want 15 minute cycles, slide switch #1 upward. If you want

20 minute cycles, slide switch #1 downward.

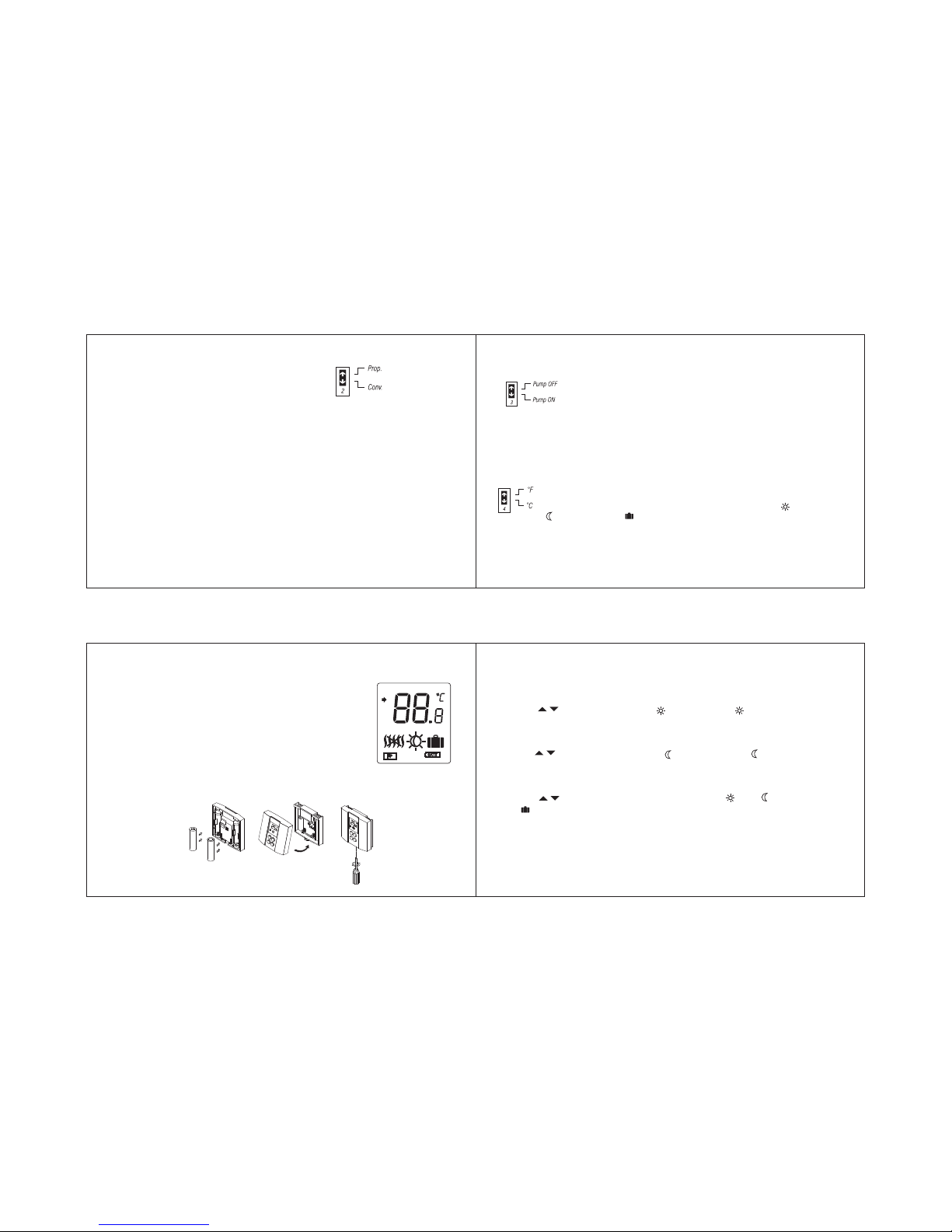

B) Regulation Modes

You have a choice between two regulation modes:

1. Proportional adaptive mode

This mode analyses previous cycles in order to define the length of the upcoming

cycle. This mode guarantees an optimal regulation of 3 cycles (switch #1 to 20

min.) or 4 cycles (switch #1 to 15 min.) per hour, regardless of the season.

2. Conventional mode with anticipation

This mode commands the system's On and Off cycles when the temperature

read by the thermostat reaches pre-set levels. This mode is compatible with all

heating systems. It is recommended for a multi-zone system or for cases

where a thermostat directly controls a furnace equipped with a combustion gas

purge cycle of more than 30 seconds.

Ideal for:

• Radiant or convection electrical heating system

• Circulator control in a hot water system

C) Pump protection

For hot water installations, it is recommended to activate

the pump at least one minute every 24 hours in order to

avoid any seizing. Slide switch #3 downward to activate

this function.

For all other installations, let the switch #3 in Off position (or else your system will

be activated 1 minute every 24 hours).

D) Temperature in °C or °F

The TH135 is factory-set in °C. If you wish to change the temperature

display to °F, slide switch #4 upward. Please note that if you change

from °C to °F or vice versa, you must reset the Comfort ( ), Economic

( ) and Vacation ( )settings accordingly.

1.4 BATTERY INSTALLATION

When you first install the batteries in the TH135, the unit runs a

sequence of tests which last approximately 5 seconds. After

the tests, the screen should display the current temperature.

It is normal for the displayed temperature to be higher than the

room temperature if your are holding the TH135 in your hands.

It will return to normal about one hour after installation on

the wall.

Mount the thermostat on the wall plate and screw it in place.

Even if the thermostat indicates that the batteries are good, it is recommended to

replace them once a year

at the beginning of the cold season.

1 2 3

2. SETTING THE COMFORT, ECONOMIC AND VACATION

TEMPERATURES

1- To set the Comfort temperature, select the desired degree using

the buttons and push the button until the icon is displayed

(about 3 seconds).

2- To set the Economic temperature, select the desired degree using

the buttons and push the button until the icon is displayed

about 3 seconds).

3- To set the Vacation temperature, select the desired degree using

the buttons and push simultaneously the and buttons until the

icon is displayed (about 3 seconds). This setting is used by the

telephone remote control only.

3. TELEPHONE CONTROLLER ( )

The TH135 incorporates a telephone controller interface which allows you to switch

from the or setting to the Vacation setting ( ), and vice versa, using the

telephone keypad (stationary or portable). You can, for example, start the heating of

your country house from your office on Friday, or your house from the airport or from

your car on your way back from vacation.

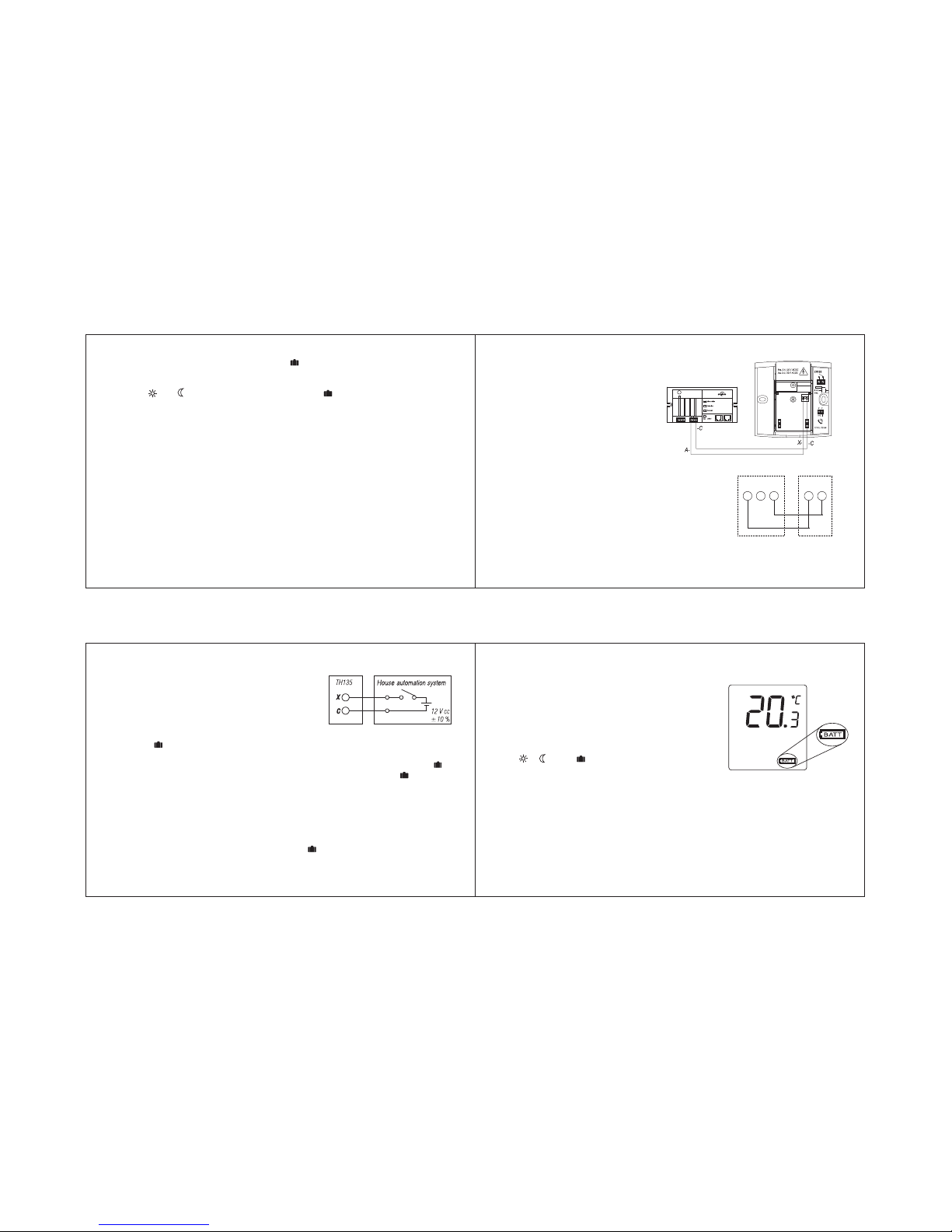

3.1 CONNECTION TO THE CT240

The TH135 is designed to connect

directly to the CT240 telephone

controller. This combination allows

the activation and deactivation of the

Vacation setting from the CT240 or

the telephone.

Connect the CT240’s terminals A

and C to the TH135's terminals X and

C respectively. You must respect the

polarity.

For details on operating the telephone controller, refer

to the CT240’s Instruction Manual.

A B C CX

CT240 TH135

3.2 CONNECTION TO AHOUSE AUTOMATION SYSTEM

The Vacation setting can also be activated from

a house automation system.

3.3 OPERATING THE TELEPHONE INTERFACE

You can activate the Vacation setting using the Vacation button of the telephone

controller ( ) or using a telephone from outside of the house.

1- To activate the Vacation setting, press the Vacation button of the CT240 ( ).

The Vacation setting will be displayed during 5 seconds and the ( ) icon will

flash on the screen. You no longer have access to the TH135 keypad if

this function is activated by the telephone controller.

2- To deactivate the function and return to the previous setting, press the Vacation

button of the telephone controller again or use a phone from outside of the

house. The red light will go off and the ( ) icon will disappear within a

maximum of 5 seconds.

4. BATTERY REPLACEMENT

The TH135 will display an icon indicating that the

batteries must be replaced. This icon will flash for 60

days. After this delay, the thermostat will shut down

your heating unit.

After the battery replacement, you have to reprogram

the , and settings (refer to section 2).

Even if the thermostat indicates that the batteries are good, it is

recommended to replace them once a year.

5. TECHNICAL SPECIFICATIONS

Model : TH135-01

Power supply : 2 AA size alkaline batteries

Max. resistive load : 5A @ 30 VAC

5A @ 30 Vdc

Max. inductive load : 2A @ 30 VAC

2A @ 30 Vdc

Auxiliary input : 12 Vcc, +/- 10 %, 2.5 mA

(telephone interface)

Control device : Electronic

Automatic action: Type 1 B

Storage temperature : -20 °C to 50 °C (-4 °F to 122 °F)

Operating temperature : 0 °C to 50 °C (32 °F to 122 °F)

( 95 % relative humidity without condensation )

Temperature setting range in heating : 5° C to 30 °C (40 °F to 85 °F)

Temperature display scale : 0.1 degree

Temperature reading accuracy : +/- 0.5 °C (+/- 0.9 °F)

Software : class A

Insulation : class

Protection degree: IP 20

The terminals are designed for a range up to 2.5 mm2of conductors’section.

WARRANTY

This product is guaranteed against workmanship defects for a two-year period

following the initial date of purchase in an authorized retail store. During this period,

AUBE technologies inc. will repair or replace, at its option and without charge, any

defective product which has been used under normal conditions.

The warranty does not cover delivery costs and does not apply to products badly

installed or damaged by accident.

This warranty cancels and replaces any other manufacturer's express or tacit

warranty as well as any other company commitment. AUBE technologies inc.

cannot be held liable for related or random damages following the installation of this

product.

The defective product as well as the purchase invoice must be returned to the place

of purchase or mailed, prepaid and insured, to the following address:

AUBE TECHNOLOGIES INC.

SERVICE CENTER

705, Montrichard

Iberville (Quebec)

Canada J2X 5K8

Tel. : (450) 358-4600

Fax : (450) 358-4650

www.aubetech.com

[email protected]

18/10/02 920-135-005-00-1-A

Indice

Altri manuali Aube Technologies Termostato

Aube Technologies

Aube Technologies TH115 A Manuale utente

Aube Technologies

Aube Technologies TH132 A/F/AF Manuale utente

Aube Technologies

Aube Technologies EConnect Wireless Thermostat Kit TA7210 Guida utente

Aube Technologies

Aube Technologies TH114 Manuale utente

Aube Technologies

Aube Technologies TH209 Manuale utente

Aube Technologies

Aube Technologies TH109PLUS Manuale utente

Aube Technologies

Aube Technologies TH135-01 Manuale utente

Aube Technologies

Aube Technologies TH147-P Manuale utente

Aube Technologies

Aube Technologies TH115 A/F/AF Manuale utente

Aube Technologies

Aube Technologies TH147-P Manuale utente

Aube Technologies

Aube Technologies TH305 Manuale utente

Aube Technologies

Aube Technologies TH135-01-B Manuale utente

Aube Technologies

Aube Technologies TH115 120S Manuale utente

Aube Technologies

Aube Technologies TH115 A Manuale utente

Aube Technologies

Aube Technologies TH115 A/F/AF Manuale utente

Aube Technologies

Aube Technologies TH106 Manuale utente

Aube Technologies

Aube Technologies TH111GFCI-P Manuale utente

Aube Technologies

Aube Technologies TH102D Manuale utente

Aube Technologies

Aube Technologies TH113-R Manuale utente

Aube Technologies

Aube Technologies TH108PLUS-P10 Manuale utente

Aube Technologies

Aube Technologies TH106 Manuale utente

Aube Technologies

Aube Technologies TH115-AF-GA Manuale utente

Aube Technologies

Aube Technologies TH144 Manuale utente

Aube Technologies

Aube Technologies EConnect Wireless Thermostat Kit TA7210 Manuale utente

Manuali Termostato popolari di altre marche

EWELLY

EWELLY EW-181 Manuale utente

Prolon

Prolon T1100 Istruzioni per l'installazione

Computherm

Computherm Q20 Manuale utente

Heatmiser

Heatmiser neoStat Manuale utente

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuale utente

Saswell

Saswell SAS920XWHB-7-S-RF Guida

Aircalo

Aircalo TFP1-ET85P2 Manuale utente

Honeywell

Honeywell CM721 Manuale utente

Carrier

Carrier DEBONAIR 33CS Manuale utente

Lennox

Lennox iHarmony Zone Thermostat Istruzioni per il montaggio

Gemtech

Gemtech GT7000 Manuale di istruzioni

Rollei

Rollei Smartes 45000 Manuale utente

Sinope

Sinope TH1300RF Manuale utente

Honeywell

Honeywell RLV4305 Manuale utente

Honeywell

Honeywell Prestige 2.0 THX9421 Manuale utente

NuTone

NuTone NTBZ48 Istruzioni operative originali

Stelpro

Stelpro MAESTRO ASMT402AD Manuale utente

Honeywell

Honeywell T6811 Manuale utente
