Model 1394A 1x4 Distribution Ampli er

v 1.3

3/13/08

Release

DAF

1394A

1394A Front and Back Artwork

3/13/08

1/1

DAF

Table Of Contents

1.0

Introduction

. . . . . . . . . . . . . . . . . . . . .

. .

2.0

Getting the Best Results

. . . . . . . . . . . . . . . . .

3.0

Checking Package Contents

. . . . . . . . . . . . . . .

4.0

Connecting The Hardware

. . . . . . . . . . . . . . .

5.0

Operating The Unit

. . . . . . . . . . . . . . . . . . .

6.0

Troubleshooting

. . . . . . . . . . . . . . . . . . . . .

7.0

Limited Warranty

. . . . . . . . . . . . . . . . . . .

8.0

Regulatory Compliance

. . . . . . . . . . . . . . . .

9.0

Contact Information

. . . . . . . . . . . . . . . . . .

Liability Statement

Every effort has been made to ensure that this product is free of defects. Audio Authority

cannot be held liable for the use of this hardware or any direct or indirect consequential

damages arising from its use. It is the responsibility of the user of the hardware to check

No parts of this manual may be reproduced or transmitted by any form or means electronic

or mechanical, including photocopying, recording or by any information storage or retrieval

system without the written consent of the publisher.

Audio Authority reserves the right to revise any of its hardware and software following its

policy to modify and/or improve its products where necessary or desirable. This statement

does not affect the legal rights of the user in any way.

Audio Authority and the Double-A Symbol are registered trademarks of Audio Authority

are recognized.

HDMI, the HDMI logo and High-De nition Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing LLC.

1.0 INTRODUCTION

Thanks for purchasing this Model 1394A or 1398A distribution ampli er

from Audio Authority. These distribution ampli ers are designed to split

an HDMI signal from one source to multiple HDMI displays without signal

degradation or loss of encryption. The 1394A and 1398A are HDCP

1.1 compliant, and HDMI v1.3 compliant, supporting deep color video

and Dolby TureHD and DTS-HD Master Audio. Ultra high bandwidth,

equalized inputs, and ampli ed outputs insure a  awless installation

even with long cable runs. Audio Authority also offers an extensive line of

audio and video switchers, converters and distribution amps available for

purchase online at www.audioauthority.com.

1.1 FEATURES

•

Distributes one HDMI source signal to multiple destinations

•

Equalizer/extender circuitry allows up to 30m (100’) input cable length

•

Ampli ed outputs allow up to 30m (100’) cable runs to HDMI sink

•

Outputs may be cascaded to create an extensive distribution network

•

Supports 10/12 bit color depth display

•

Supports 480i, 480p, 720p, 1080i, 1080p and many PC resolutions

•

Supports Dolby Digital +, Dolby® Digital TrueHD and DTS-HD Audio

•

HDMI version 1.3 compliant, HDCP 1.1 compliant

•

Individual HDCP keys allow each output to handshake with a display

sink independently

•

Originates EDID for the source or can re-transmit the EDID from a

downstream HDMI sink

•

Supports automatic discovery of display EDID

•

Accepts locking HDMI cables

1.2 SPECIFICATIONS

Compliance

HDMI

1.3 compliant

HDCP

1.1 compliant

Video Inputs

HDMI (all models)

1x via HDMI connector

Video Output

1394 HDMI

4x via HDMI connector

1398 HDMI

8x via HDMI connector

Audio Output

HDMI

HD-Audio, including Dolby® TrueHD & DTS-HD

Audio bandwidth

20Hz to 20 KHz

General

Frequency bandwidth

2.25Gbps (single link)

Color depth

10/12 bit color depth display

Supported PC/DVI resolutions

Up to 1920x1200

Supported HDTV formats

480i, 480p, 576i, 576p, 720p, 1080i and 1080p

Compliance

HDMI V1.3, HDCP V1.1, DVI V1.0

Signal equalization

Internal

Maximum Distances

Source to DA

20m (60’) for 1080p/8-bit, 15m (45’) for 1080p/12-bit

DA to display

15m (45’) for 1080p/8-bit, 10m (30’) for 1080p/12-bit

Warranty

Limited warranty

2 years parts and labor

Mechanical

1394 (H-W-D)

1.6x8.6x5.8” (41.5x218x147mm)

1398 (H-W-D)

1.75”19.0”x6.3” (44x436x160mm)

1394 weight

1.88lbs (0.85kg) net

1398 weight

4.4 lbs (2kg) net

Environmental

Operating temperature

0° to +50°C (+32° to +122°F)

Operating humidity

10% to 90%, non-condensing

Storage temperature

0° to +50°C (+32° to +122°F)

Storage humidity

10% to 90%, non-condensing

Power Requirement

External power supply

5VDC@2A (1394), 5VDC@5A (1398)

Regulatory Approvals

HDMI DAs

FCC, CE, RoHS

Power supply

UL, CUL, CE, PSE, GS, RoHS

Accessories Included

AC power adapter

USA

Instruction manual

2.0 GETTING THE BEST RESULTS

Many factors in uence the quality and reliability of HDMI signal

distribution installations. The following are the main factors to consider,

and basic precautions that will ensure the best possible performance.

•

Output display device.

The quality of the output signal depends

largely upon the type and quality of the HDMI display device used.

For instance, some televisions just look better than others.

•

Distance between the DA sources and the display.

Long distances

are possible, but premium quality cables and advanced HDMI

extenders with DDC correction may be necessary for the longest runs.

•

Input/output connection cables.

Low quality cables are susceptible

to interference. They degrade signal quality due to poor conductor

matching and can cause elevated noise levels. Cables should be of

the best quality.

•

Interference from nearby electrical devices

can have an adverse

effect on signal quality. For example, an older computer monitor often

emits very high electromagnetic  elds that can interfere with the

performance of video equipment in its proximity.

2.1 Resolution Tracking

Since HDTV can be output from the source at any of several different

resolutions, the 1390 series DA can sense and accept any standard

resolution; however, on the outputs, the DA must sense the resolution

capabilities of all of the display devices connected to it and then set

the resolution of all outputs to the resolution of the display having the

lowest

resolution response characteristics. This behavior insures that all

lowest resolution response characteristics. This behavior insures that all lowest

displays can produce a picture. It is best to use display devices having

the same maximum resolution; just one display with lower resolution

capabilities causes all of the other displays connected to the DA to

receive that same low resolution.

3.0 CHECKING PACKAGE CONTENTS

Before attempting to use this DA, please check the packaging and make

certain the following items are contained in the shipping carton:

• HDMI Distribution Ampli er

• 5 VDC Power Adapter

• User Manual

ote: please keep the original packing material in case the unit ever needs to be

returned. If you  nd any items are missing, contact Audio Authority immediately. Have

the model number and invoice available for reference when you call.

4.0 CONNECTING THE HARDWARE

Please study the front and rear panel drawings and become familiar with

the signal input, outputs and power inputs.

The 1394 and 1398 are functionally identical with the exception of the

number of outputs. Both have a single HDMI input and a 5 VDC power

input socket. LEDs on the front panel indicate when the DA is furnishing

a signal to an HDMI compliant device.

•

Connect an HDMI approved cable from the HDMI source to the input

of the DA. Cable length can be up to 30 meters – preferably shorter.

•

Connect the outputs of the DA to their destination devices using HDMI

approved cables no more than 30 meters long.

•

Connect the power adapter to the AC source and then to the DA.

•

Turn on the HDMI source and HDMI destination devices and observe

the source signal on the inputs of all of the destination devices. The

DA’s front panel LEDs will light indicating which outputs are active.

•

Make certain that the HDMI cables are securely plugged into the

source and display devices as well as the HDMI DA. Always use high

quality cables, and the shortest length possible, for best results.

The unit begins to function as soon as the AC adapter is connected to

the unit and AC power. There is no power switch. There are no other

operator interventions required with the possible exception of the EDID

jumper (see 5.0 Operating the Unit).

4.1 Using the Positive Cable Securing Feature

If HDMI cables are used that are equipped with locking type connectors,

remove the Philips head screws from the rear of the unit just above the

HDMI connectors and replace them with the hex nut/screws included

with the accessory pack. After screwing these into the threaded holes

vacated by the Philips head screws, the hex nut provides a threaded

receptacle for the screw that is part of the locking HDMI connector on the

cable. Plug in the cable’s locking HDMI connector and secure it to the

unit with its integral screw.

4.2 Optional Rack Mount Kit

The distribution ampli ers can be mounted in a standard 19” equipment

rack. Attach the furnished rack ears the sides of the unit and then attach

the unit to the 19” rack using the furnished hardware. To mount the 1394

DA in a rack, the rack mount kit must be used.

Model 1394A HDMI Distribution Ampli er, rear view. Model 1398A is similar.

CLUX-14S(TVONE)

2008.03.03

1:1

陳秋文

膜面向上

MRN-1TDA654-2

MMC-1TDA654-U

MRN-1TDA654-2

HDMI / DVI HDCP SYNC 4 3 2 1 POWER

v1.3

MMC-1TDA654-U

HDMI IN HDMI OUT1 2 3 4

EDID

INT AUTO 5V DC

DATE LTR REVISION RECORD AUTH DR CK

  



 







Model 1394A 1x4 Distribution Ampli er

v 1.3

3/13/08

Release

DAF

1394A

1394A Front and Back Artwork

3/13/08

1/1

DAF

Model 1394A HDMI Distribution Ampli er, front view. Model 1398A is similar.

CLUX-14S(TVONE)

2008.03.03

1:1

陳秋文

膜面向上

MRN-1TDA654-2

MMC-1TDA654-U

MRN-1TDA654-2

HDMI / DVI HDCP SYNC 4 3 2 1 POWER

v1.3

MMC-1TDA654-U

HDMI IN HDMI OUT1 2 3 4

EDID

INT AUTO 5V DC

DATE LTR REVISION RECORD AUTH DR CK

  



 







Model 1394A 1x4 Distribution Ampli er

v 1.3

3/13/08

Release

DAF

1394A

1394A Front and Back Artwork

3/13/08

1/1

DAF

5.0 OPERATING THE UNIT

*Note: Proper operation of HDMI distribution ampli ers depends on the

use of high quality HDMI cables that provide low loss, high bandwidth

signal handling. The distance speci cation cannot be guaranteed unless

cables used throughout the system meet these high standards.

5.1 Noti cation LEDs

There are LEDs for each output which show whether or not the output

has successfully made a connection with the destination device. In

addition to these, four more LEDs provide the following information:

•

HDMI / DVI

LED shows whether an HDMI or DVI signal is being

received.

•

HDCP

LED shows if the signal is encoded with HDCP (High-bandwidth

Digital Content Protection) signals.

•

SYNC

LED shows if the HDMI signal has synchronized.

•

POWER

LED shows the unit is receiving power.

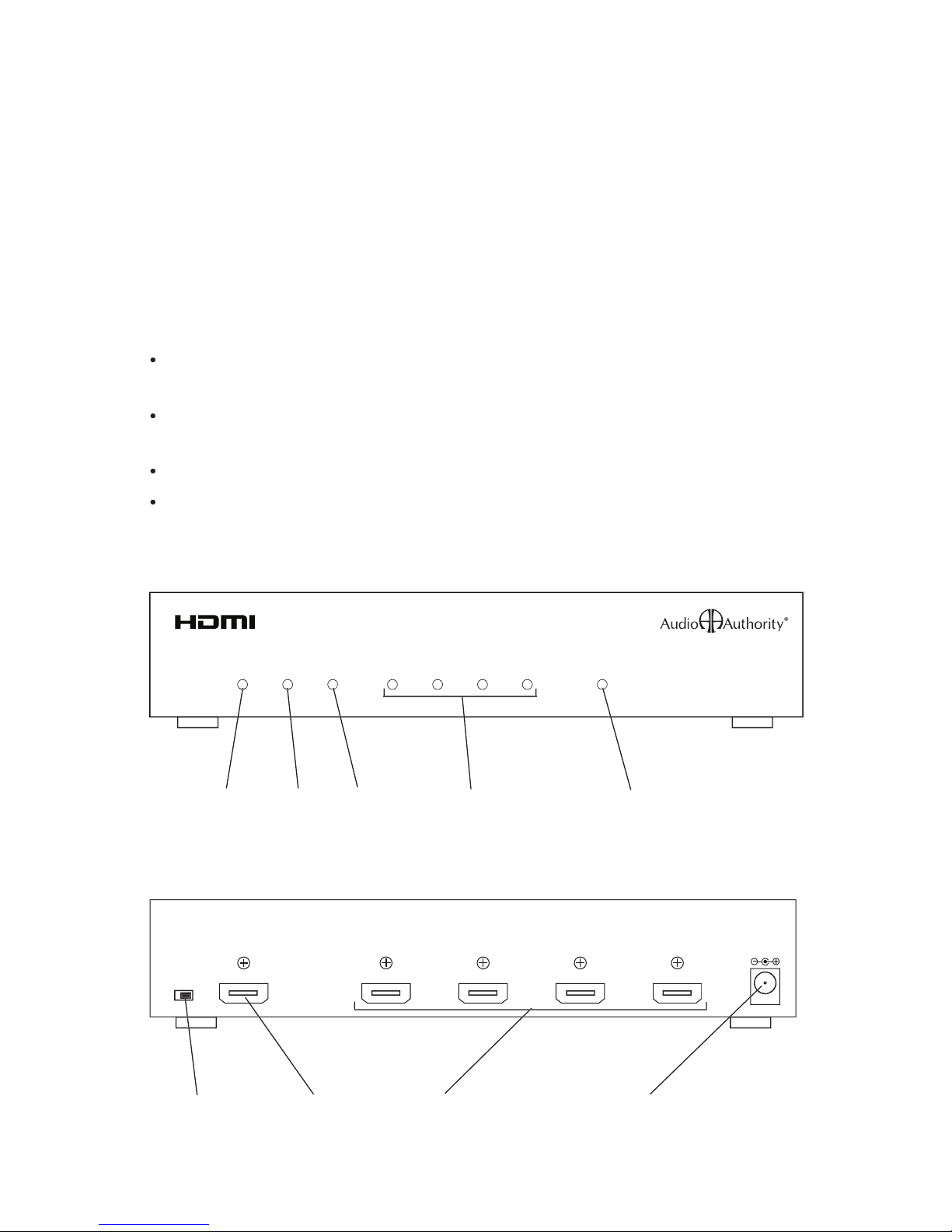

HDMI / DVI HDCP SYNC OUTPUT POSITIONS POWER

EDID SWITCH HDMI INPUT HDMI OUTPUTS

POWER JACK

5.2 EDID Jumper Operation

On the rear of the unit you’ll  nd an EDID* Jumper. The default factory

setting for the EDID Control Jumper is

AUTO

and you should leave it as

it is if the display is operating properly.

The EDID jumper controls whether the DA determines the connected

devices’ EDID information automatically or uses an internal information

table. Switch to

INT

(Internal) to use the built-in EDID information table if

communication problems occur.

When the EDID control jumper is in AUTO position, the unit detects the

 rst destination HDMI device’s EDID and records the value in the DA. If

the  rst detected output device is DVI, it passes on to the next device in

sequence until the  rst HDMI compliant device has been detected.

If the DA cannot reliably determine the destination device’s EDID through

the information exchange, switching to the internal table (INT) allows the

DA to run through a range of pre-de ned resolutions and refresh rates so

that a reliable connection can be made.

* The Extended Display Identi cation Data (EDID) is a data structure

provided by a display to describe its capabilities. It’s what enables the

DA to know what kind of video display is connected to the unit. EDID

is de ned by a standard published by the Video Electronics Standards

Association (VESA). The EDID includes manufacturer name, product

type, phosphor or  lter type, timings supported by the display, display

size, luminance data and (for digital displays only) pixel mapping data.

6.0 TROUBLESHOOTING

•

For 1080p resolution,  rst make certain that the input cable is as short

as possible and none of the output cables are more than 30 meters

long. HDMI cable design and quality are extremely important in long

cable runs where capacitance can severely effect performance. Our

1391A Extender/DDC Corrector may be a necessary accessory to use

in extreme length applications.

•

Make certain that the Distribution Ampli er is receiving power by

looking at the power LED. It should be illuminated and not  ickering

on and off. Intermittent operation generally means a problem with the

DC power adapter or low AC voltage being applied to the DC adapter’s

input.

•

If you still experience problems using the distribution ampli er, you

should attempt to determine what is wrong by  rst attaching the source

device directly to each of the destination devices in turn using the

same cables you are using with the expanded system. This is a way of

determining if the problem is due to bad cables or a problem with the

other devices. If you are unable to obtain a signal using this simpli ed

path, suspect the cables, the source device or the destination device.

•

Remember that HDMI devices communicate with one another so the

source device and all destination devices must be fully HDMI capable.

In addition, HDCP encryption requires processing dependent on the

equipment you have connected to both the source and destination

devices.

If the problem still persists after trying the above suggestions, contact the

Audio Authority Technical Service department via email: support@audioa

uthority.com, or call 800-322-8346 or 859-233-4599.

7.0 LIMITED WARRANTY

Should any consumer use product from Audio Authority fail due to

defects in materials or workmanship within one year from the date of

the original sale to the end-user, Audio Authority guarantees that we

will replace the defective product at no cost. Freight charges for the

replacement unit will be paid by Audio Authority (Ground service only).

A copy of the invoice showing the item number and date of purchase

(proof-of-purchase) must be submitted with the defective unit to

constitute a valid in-warranty claim.

Units that fail after the warranty period has expired may be returned to

the factory for repair at a nominal charge, if not damaged beyond the

point of repair. All freight charges for out-of-warranty returns for repair

are the responsibility of the customer. Units returned for repair must

have a Return Authorization Number assigned by the factory.

This is a limited warranty and is not applicable for products which, in our

opinion, have been damaged, altered, abused, misused, or improperly

installed. Audio Authority makes no other warranties either expressed

or implied, including limitation warranties as to merchantability or  tness

for a particular purpose. Additionally, there are no allowances or credits

available for service work or installation performed in the  eld by the end

user.

Warranty Service Procedures

If you suspect a product defect, contact Audio Authority’s Technical

Service Department at 800-322-8346 or 859-233-4599 for assistance

in verifying the problem. If a defect or potential defect is suspected, a

replacement unit will be shipped immediately on a defect-exchange basis

and a Return Authorization Number will be issued for the return of the

defective product. Replacement units are sent out at the Manufacturer’s

Suggested Retail Price which is debited to the Customer’s Credit

Card at the time of shipment. Once we receive the defective unit

back at the factory, it will be evaluated under the conditions of this

warranty and if found to be in-warranty, a full credit will be issued to the

Customer’s Credit Card. Return freight charges for the defective unit

are the customer’s responsibility. Please contact our Technical Service

Department for complete details concerning all in and out of warranty

service matters.

We appreciate your con dence in our products and services and will

always strive to meet or exceed your needs.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Audio Authority Amplificatore

Audio Authority

Audio Authority SonaFlex SF-16M Manuale utente

Audio Authority

Audio Authority HDMI 1398B Manuale utente

Audio Authority

Audio Authority Distribution Amplifiers 985DTO Istruzioni operative

Audio Authority

Audio Authority 1710 Manuale utente

Audio Authority

Audio Authority ADX-1616 Manuale

Audio Authority

Audio Authority 985DTV Istruzioni operative

Audio Authority

Audio Authority 1185ci Manuale utente

Audio Authority

Audio Authority High Definition Cat 5 Matrix AVX-562 Manuale utente

Audio Authority

Audio Authority Sona Flex SF-16B Istruzioni operative

Audio Authority

Audio Authority 9850 Istruzioni operative

Audio Authority

Audio Authority ADX-0808 Manuale utente

Audio Authority

Audio Authority SF-16M Manuale

Audio Authority

Audio Authority 1398D Manuale utente

Audio Authority

Audio Authority 1398D Manuale utente

Audio Authority

Audio Authority SF-16M Manuale utente

Audio Authority

Audio Authority Ascentic 1399 Manuale utente

Audio Authority

Audio Authority 1710A Manuale utente

Audio Authority

Audio Authority CMX-144 Manuale del proprietario

Audio Authority

Audio Authority 1398E Manuale utente

Audio Authority

Audio Authority SF-16M Istruzioni operative

Audio Authority

Audio Authority 975A Manuale utente

Audio Authority

Audio Authority AMP-1235 Manuale del proprietario

Audio Authority

Audio Authority 1710A Manuale utente

Audio Authority

Audio Authority 985U Istruzioni operative

Manuali Amplificatore popolari di altre marche

ASTRO

ASTRO HVO V40 P Manuale utente

Marantz

Marantz SUPERSCOPE BLA-545 Istruzioni per il montaggio

NAD

NAD CI980 Manuale utente

Technics

Technics SE-CH770 Manuale utente

Harman Kardon

Harman Kardon HK6300 Manuale utente

NAD

NAD T975 Manuale utente

McIntosh

McIntosh MA6850 Manuale utente

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuale utente

Viatron

Viatron Autrix Manuale utente

GME

GME GA9800 Manuale utente

Atlas

Atlas CP700 Manuale utente

Roland

Roland KC-1000 Manuale utente

Pyle

Pyle PFMRA350BW Manuale utente

Advantage

Advantage S-250 Manuale utente

IRT Electronics

IRT Electronics DVA-3007 Manuale utente

Dimavery

Dimavery BA-100 Series Manuale utente

Sony

Sony XM-S400D Manuale utente

Schertler

Schertler ROY X Manuale utente
