User Manual
MediaHub
Model MH2-4K
2
4K@60
3
Introduction
With a BrightSign player built-in, the Model MH2-4K produces native 4K@60
video and high delity audio, with all the custom behaviors made possible by
BrightAuthor software. Multiple ports on the MH2-4K link interactive peripherals like
push-buttons and serial control devices including touch screens and touch panels.
Update media content and BrightAuthor programming via Ethernet, or update the
SD card locally.
Features
• BrightSign®Digital Signage Module
• HDMI®output (4096x2160@60Hz)
• Discrete digital and analog audio outputs
• Customizable push-button ports (RJ9 x8)
• Control ports for peripherals (RJ45 x3)
• USB port for touch screen or other peripherals
• Ethernet port for remote updates

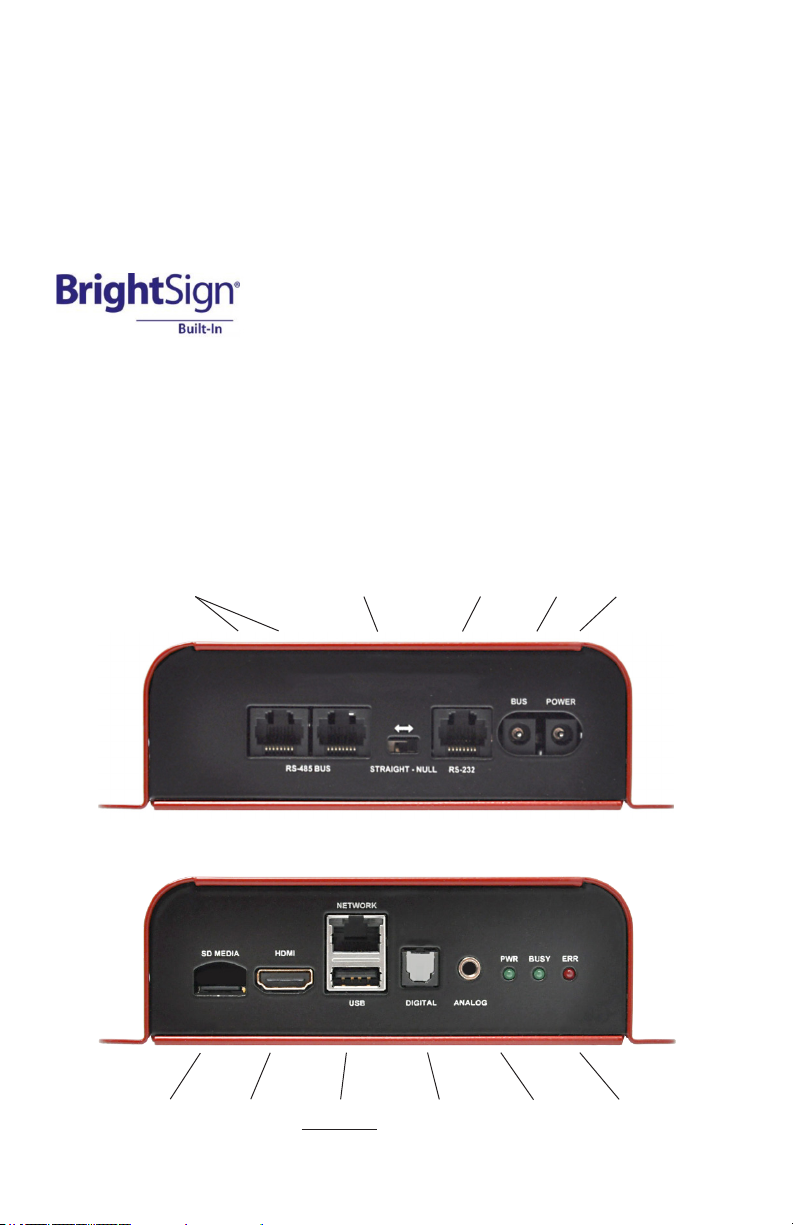

MICRO SD
CARD
STATUS
LIGHTS
DIGITAL
AUDIO
OUTPUT
ETHERNET
HDMI
USB
ANALOG
AUDIO
OUTPUT
12V POWER
BUS INPUT
NULL MODEM
SWITCH
RS-485
CONTROL BUS
RS-232
CONTROL
4
HDMI Output
The MH2-4K HDMI output delivers 4K@60 video via an HDMI cable to HDMI
display screens, AVRs or sound bars. CEC commands can be used to control the
sync device.
Video File Information
The MH2-4K supports MPEG-4 encoded videos with maximum video resolution
up to 4K@60. Test all les before deployment. See BrightSign specications for
details: www.brightsign.biz/application/les/7715/5111/4033/HS4-02252019.pdf
Audio Output
The MH2-4K can output digital and/or analog audio simultaneously, as directed by
BrightAuthor settings. The digital Toslink jack outputs optical audio signals, and the
3.5mm jack provides stereo analog audio. The audio signals on the HDMI output
may be turned off and on via software.
Push-Buttons

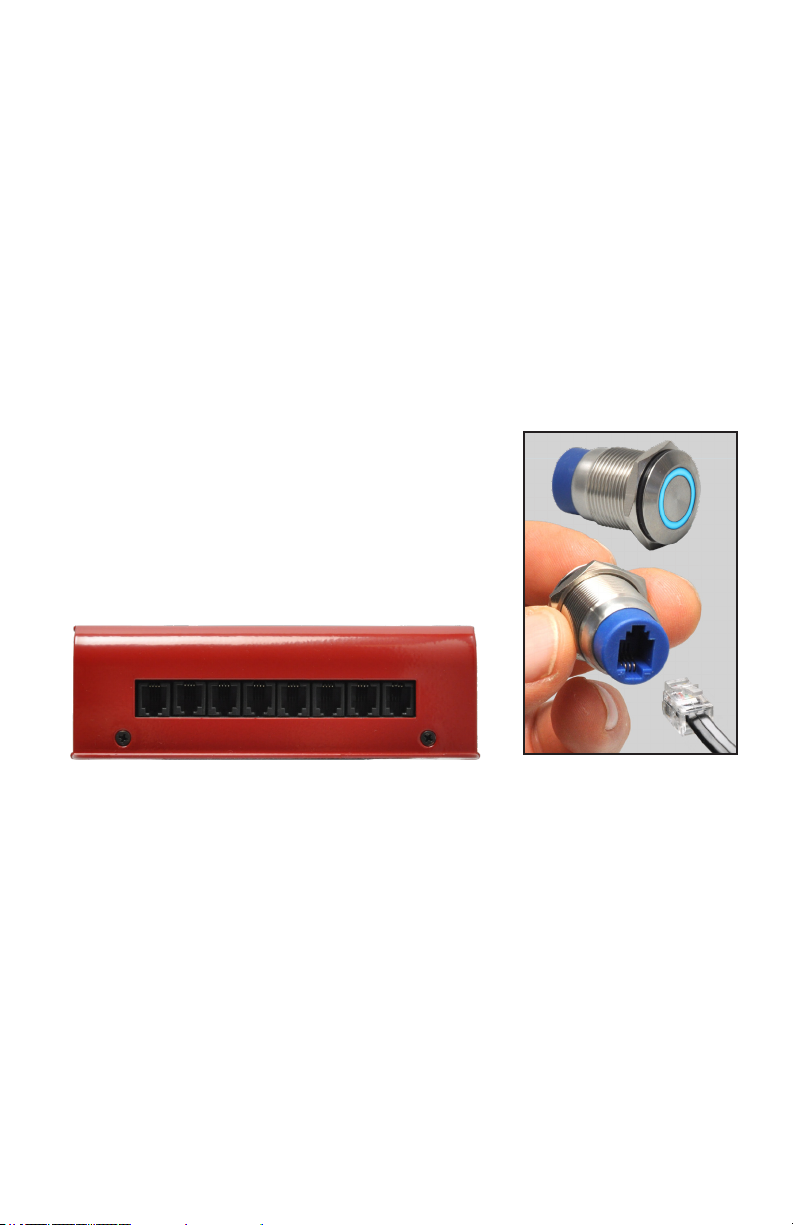

To control media using push-buttons, connect
EasyPlug push-buttons to each position. Compatible
push-buttons are available in several colors; blue LED
ring is shown, Model 013-100.
The EasyPlug push-button has an RJ9 connector for easy
installation and long term reliability.
Micro SD Card Slot
The programming instructions for custom functionality are stored on a Micro SD
card with the video and audio les. Media les placed on the root of the Micro SD
card autoplay on power up. If the Micro SD card is updated to add new video les,
check to make sure any custom programming remains on the card.
5
Serial Communications
Control Port (RS-232)
The MH2-4K can send and receive serial commands via RS-232 at any Baud rate
selected via BrightAuthor. The port is a modular RJ-45 jack; adapter cables are
available for 3.5mm or DB-9 serial ports. The port may be set for Null or Straight
using the switch located beside the RS-232 port.
Control Bus (RS-485)
The RS-485 control bus allows the MH2-4K to interact with devices such as the
Audio Authority TouchSelect panels or the 1895 Visual Volume knob. The MH2-4K
can also control switch modules or ampliers that are linked by the Control Bus.
The MH2-4K is unit ID 0, all on-board push-button positions respond to commands
addressed to ID 0. All commands are echoed on the RS-232 control port and
RS-485 control bus, regardless of ID.
External Settings - RS-232
Baud rate may be changed via
BrightAuthor.
Default Baud Rate 115200
Data Bits 8
Parity None
Stop Bits 1
Changing the Baud Rate (RS-232)
In BrightAuthor, select the proper Baud rate to communicate to external serial
devices. The MH2-4K is always ID 0.
STRUCTURE EXAMPLE RESULT
[BAUD#_#] [BAUD0_9600] MH2-4K ID 0 BAUD RATE SET TO 9600
[BAUD#_#] [BAUD0_115200] MH2-4K ID 0 BAUD RATE SET TO 115200
[BAUD#_#] [BAUD0_19200] MH2-4K ID 0 BAUD RATE SET TO 19200
[BAUD#_#] [BAUD0_57600] MH2-4K ID 0 BAUD RATE SET TO 57600
[BAUD#_#] [BAUD0_38400] MH2-4K ID 0 BAUD RATE SET TO 38400
Internal Settings
Port 0
Baud Rate 115200
Data Bits 8
Parity None
Stop Bits 1
Protocol ASCII
Send EOL CR
Receive EOL CR
Control Bus Settings (RS-485)
Baud Rate 57600
Protocol Control Bus (RS-485)
6
Sample Button Commands
STRUCTURE EXAMPLE RESULT
[PRESS#=#] [PRESS0_2] MH2-4K PSB 2 PRESS SENT
[RELEASE#] [RELEASE0_2] MH2-4K PSB 2 RELEASE SENT
[BLINK#_#] [BLINK0_4] MH2-4K PSB 4 LED BLINKS
[BLINK#_#,#,#,#] [BLINK0_1,2,3,4] MH2-4K PSB 1,2,3,4 LEDS BLINK
[LEDON#_#] [LEDON0_6] MH2-4K PSB 6 LED ACTIVATES
[LEDON#_#,#,#,#] [LEDON0_3,4,5,6] MH2-4K PSB 3,4,5,6 LEDS ACTIVATE
[LEDOFF#_#] [LEDOFF0_6] MH2-4K PSB 6 LED DEACTIVATES
[LEDALLOFF] [LEDALLOFF] DEACTIVATES ALL LEDS ON ALL DEVICES
Firmware Update
Visit www.audioauthority.com/MH2-4K for rmware update instructions.
Installation
• Attach the player to a at surface with the screws provided.
• Load programming and media les onto a compatible and properly formatted
micro SD card.
• Connect EasyPlug push-buttons, touch panels or touch screen.
• Connect power adapter to AC power, then to the MH2-4K power port.
• Connect audio output(s) to an amplier and/or switcher if desired.
• Connect HDMI cable from display device to MH2-4K HDMI port.
• For more information check our website: audioauthority.com/MH2-4K.
7

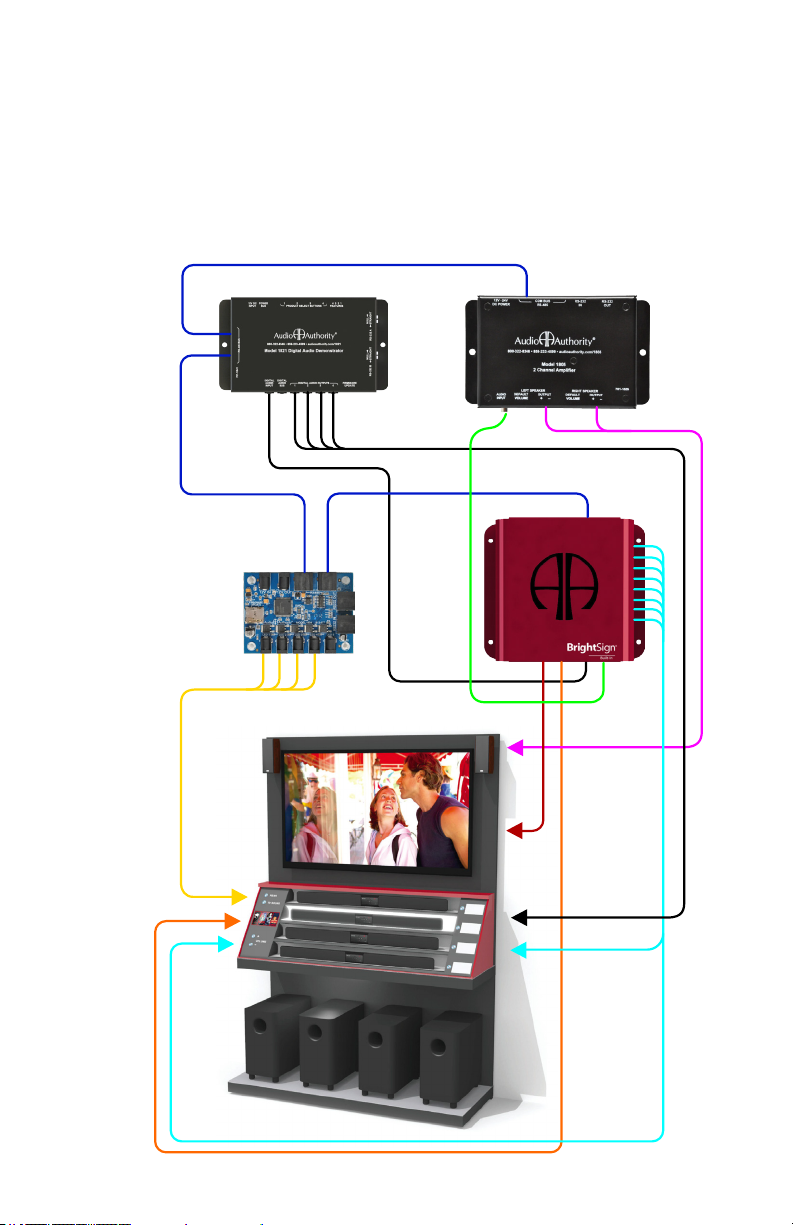

Example System: Sound Bars
The MH2-4K does more than play media in this engaging sound bar demo - it coordinates a complex
audio demo with video and lighting effects. Customers can audition sound bars, select media, add
rear speakers, compare TV speakers to sound bars, and adjust volume. Push a button on the right to
hear a sound bar, which also triggers the rst media le to play, and the shelf to light up. Lights under
the shelf also highlight the selected subwoofer. The user selects media using a small touch screen.
The rear speakers are powered via a smart amplier that tracks volume control with the selected
sound bar. After a period of inactivity, the display returns to a silent state, ready for the next customer.
1804
1821
MH2-4K
1805
LIGHTING
CONTROL BUS
ANALOG AUDIO
DIGITAL
AUDIO
USB FOR
TOUCH
SCREEN
PUSH-
BUTTONS
SPEAKERS
HDMI
E-185
Rev.20190628
2048 Mercer Road, Lexington, KY 40511-1071 USA
800-322-8346 • 859-233-4599 • Fax: 859-233-4510
support@audioauthority.com • www.audioauthority.com
