VIEWpath Blend
User & Assembly Manual
Classroom Blended Learning System
REV – 1.0
NE-8151
2
Welcome to the Blend System by Audio Enhancement®. The Blend is a comprehensive
all-in-one classroom audio and video system. The Blend System combines Audio En-
hancement’s award-winning BEAM classroom audio system, with the latest in classroom
video and the VIEWpath® (Video Interactive Education Window) user interface to provide
the best teacher user experience available on the market today.

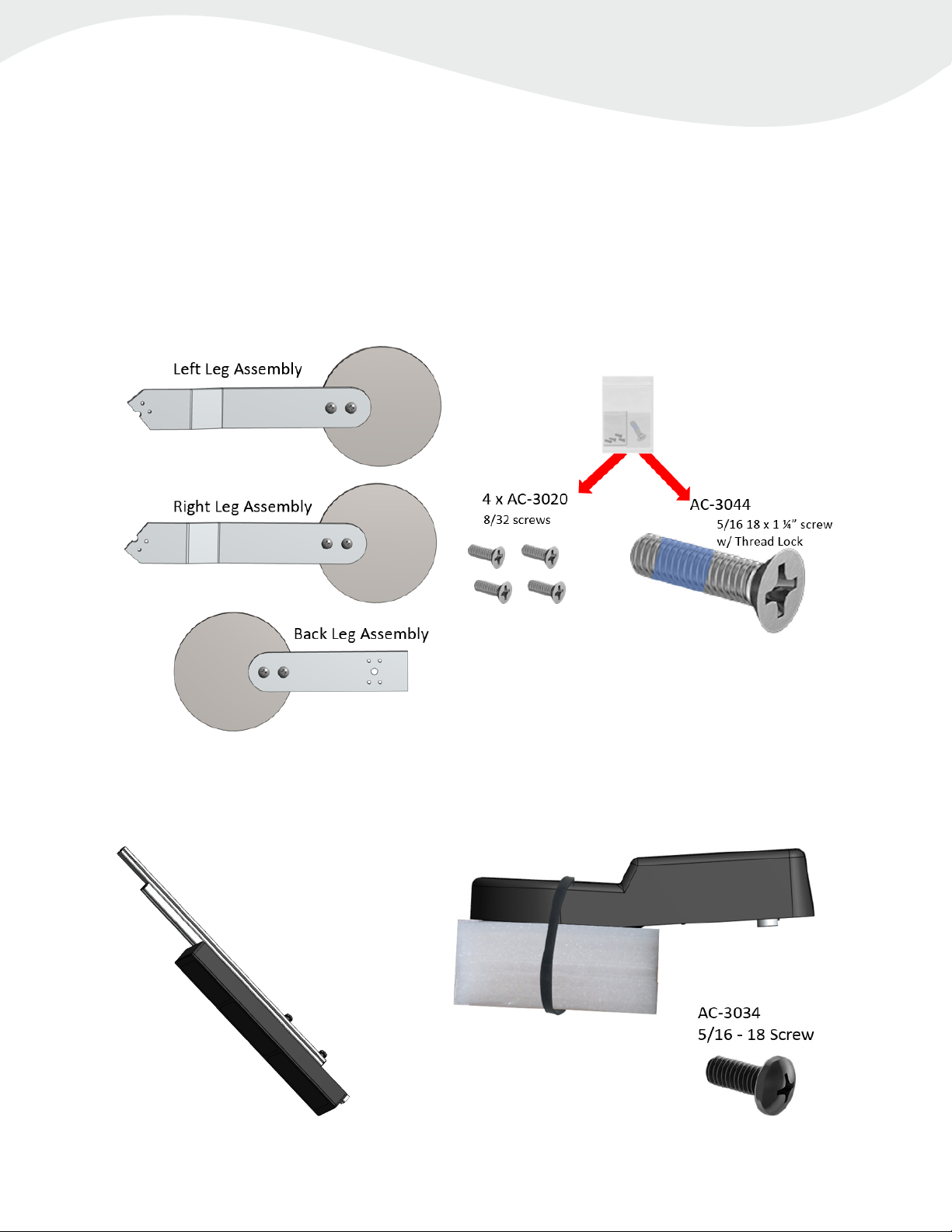

What is in the Box:
Leg Assembly:
BEAM Classroom Audio System
& Vertical Upright Assembly:
Camera Assembly:
3
Assembly:
Standard Accessories:
1. Locate the Instruction manual in Box A
2. Locate the rear leg and hardware located in Box B
3. Locate the Left and Right legs – packaged together in Box C
4
4. Assemble the Legs
a. Use the 4 small Philips head screws, packaged with the rear leg in Box B to
assembly all three legs together
b. Locate the Adjustable Vertical Upright Assembly, with the BEAM
Classroom Audio System attached
c. Use the 4 small Philips head screws, packaged with the rear leg in Box B to
assembly all three legs together
c
b
a
5
d. Stand System up to install the camera assembly
e. Locate the camera assembly & the camera attachment screw
f. Remove foam protection from the camera assembly
d
g. Place Camera Assembly on top of Vertical Pole, and attach with screw
f
e
g
6
h. Remove plastic cable channel covers
h
7

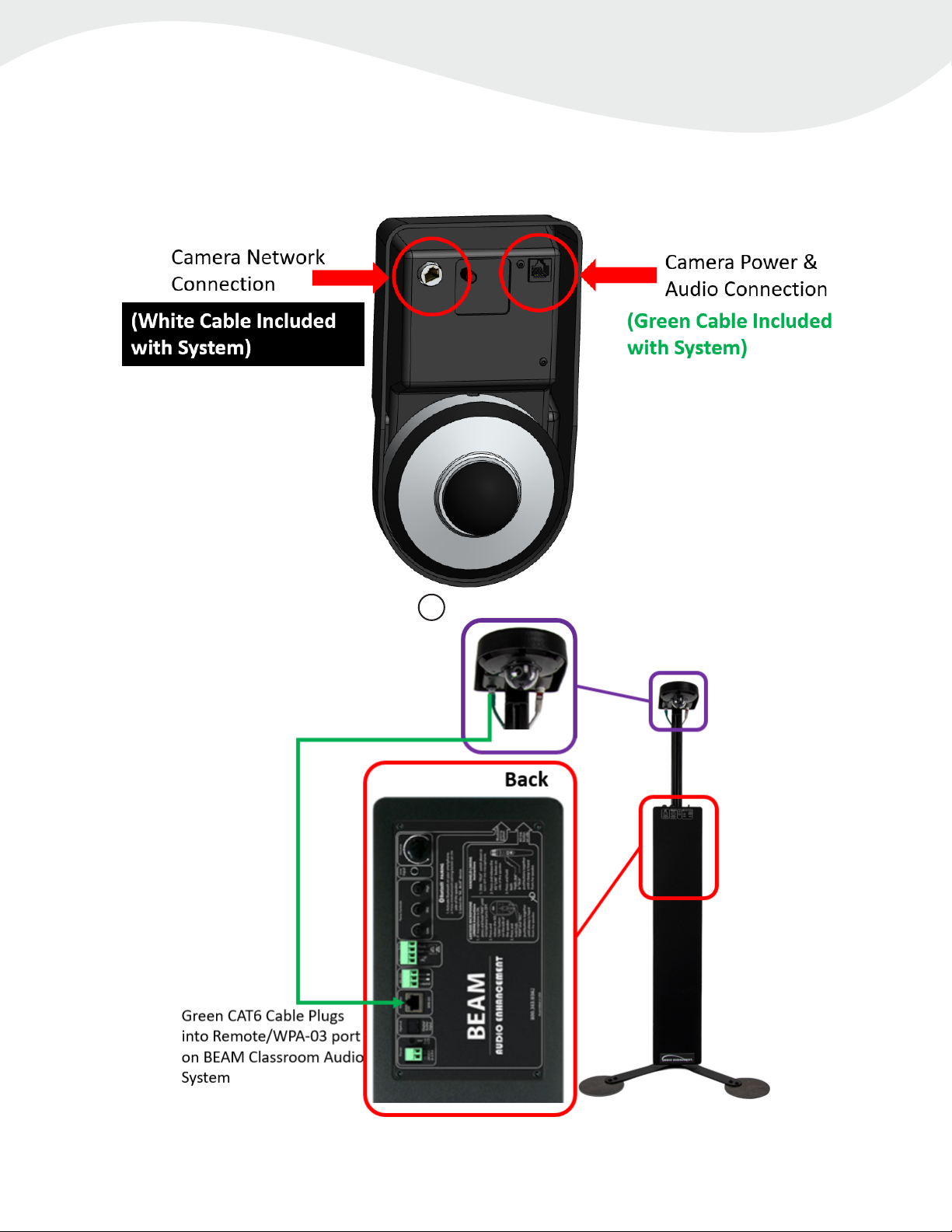

i. Connect Green Power/Audio Cable between the Camera Assembly and the BEAM
Classroom Audio System
i
DC - 40832.01
AudioEnhancement.com 800.383.9362
8
j. Remove plastic cable channel covers
j
k. Connect the network cable from the Camera Assembly,
route the cable through the channel opposite of the
power/audio cable, and re-install the channel cover.
k. Attach the Safety Cable - Please ensure that the VIEWpath Blend System is
secured to structure when extended
k
1. Identify structure being used
2. Assemble cable and attach-
ment Ring
3. Attach Mounting Barrell to
structure with appropriate
hardware for structure type
4. Remove screw from top of
camera mount, put screw
through the attachment ring
and re-attach to top of camera
mount
5. Remove excess slack from the
cable with the spring-loaded
adjustment before inserting
the threaded fitting into the
mounting barrel
