Audio Pro Powered AirPlay Manuale utente

YOUR MUSIC WIRELESSLY IN YOUR WHOLE HOME

Allroom Air One

it’s magic

AIrPlAY - PlAY Your musIc on Your wIreless network

Apple’s AirPlay®technology allows you to stream your music wirelessly from your

Mac or PC to Allroom Air One. You can even stream high quality audio directly from

your iPhone®, iPad®or iPod touch®. Removing cables with AirPlay gives you the

freedom to carry and control all your music in the palm of your hand. The Allroom

Air One system takes advantage of AirPlay to the fullest, giving you great sound

quality and ease-of-use from a single, beautifully compact speaker.

Premium design

The Allroom Air One offers you quality inside and out. It’s a fully active stereo

speaker system in a single stylish enclosure. All four drive units are individu-

ally powered by dedicated class D ampliﬁers, optimised by advanced DSP

technology to generate a room-ﬁlling 100W in total. Wrapped in a choice of

red, white or black hand-stitched leather, the Allroom Air One’s elegant Scan-

dinavian design will blend effortlessly with any home environment.

simPlicity

PlAY wIrelesslY from AnY Ios devIce

Apple’s handheld devices have revolutionised the way we enjoy music and

video: everything is in the palm of your hand. Through the Allroom Air One

with AirPlay, you can listen to your music simply by selecting a track on your

handheld. And it’s not only music: sound from movies and apps get to play

their part with AirPlay.

eAsY setuP wIth the AudIo Pro APP

Download the free Audio Pro AirPlay app from the App Store, and your

setup will be a breeze. Simply search for “Audio Pro” on App Store.

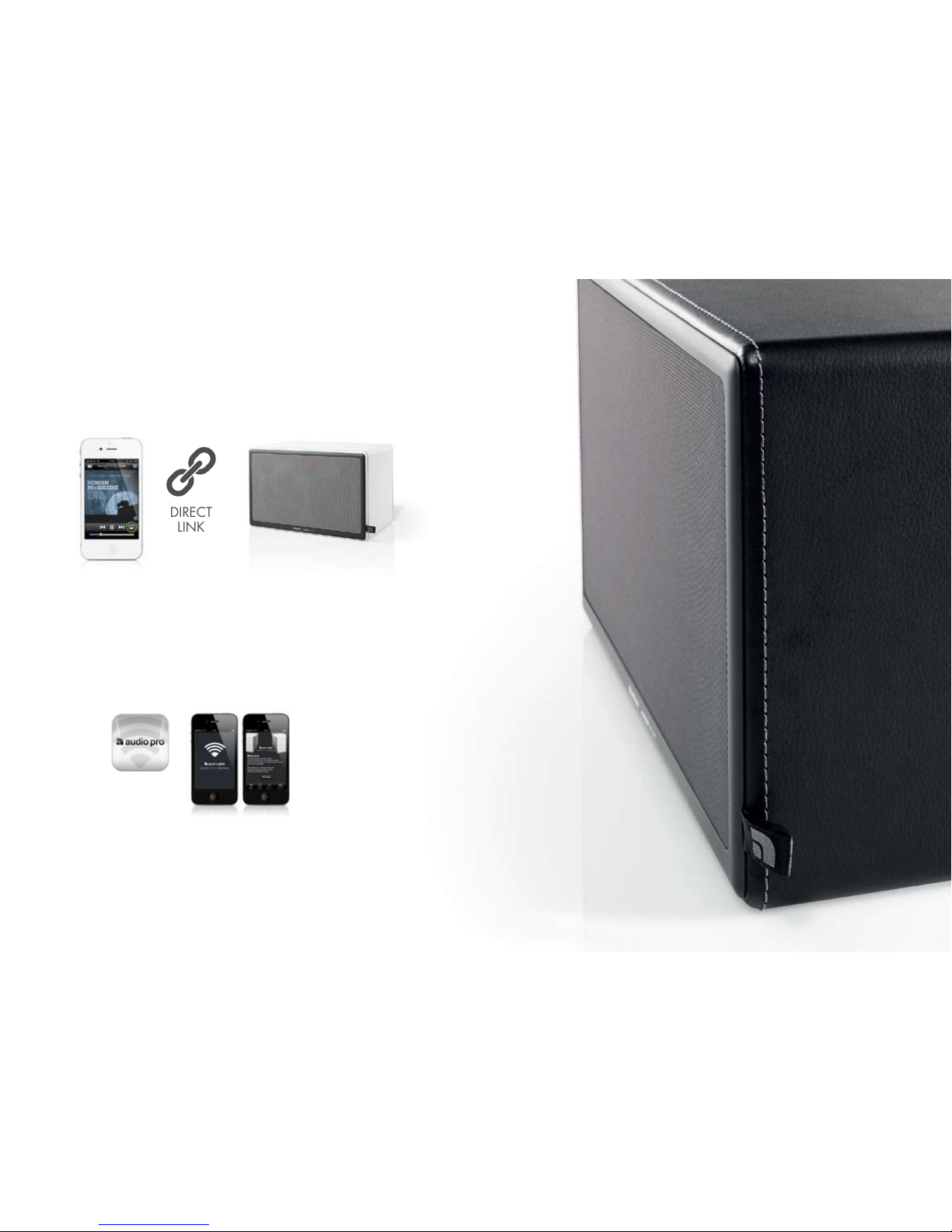

dIrect lInk - wIreless AudIo wIthout A network

With the Allroom Air One’s ‘Direct Link’ feature you can stream stored

music and ofﬂine playlists wirelessly to the Allroom Air One, without a

wireless network. This means that even when you’re out of network range

- on holiday for instance - you’re never without great sound!

DIRECT

LINK

convenient

for multI source homes

Allroom Air One is a speaker with many connections. Besides being an ex-

cellent wireless device, we wanted it to give it all-round versatility, so we’ve

equipped the system with a range of hook-up options. Connect any source with

a sound output (such as headphones out) to one of three further inputs: 3.5mm

stereo, USB and for the most demanding listeners, an optical TOS-link input for

sound sources with a similar audio output, such as ﬂat TVs, hard-disk players or

sat/cable receivers. Play your iPod via the USB port, and of course it charges

at the same time. Easily choose desired source with the remote. The remote also

controls volume, next/previous track and play/pause in most music services.

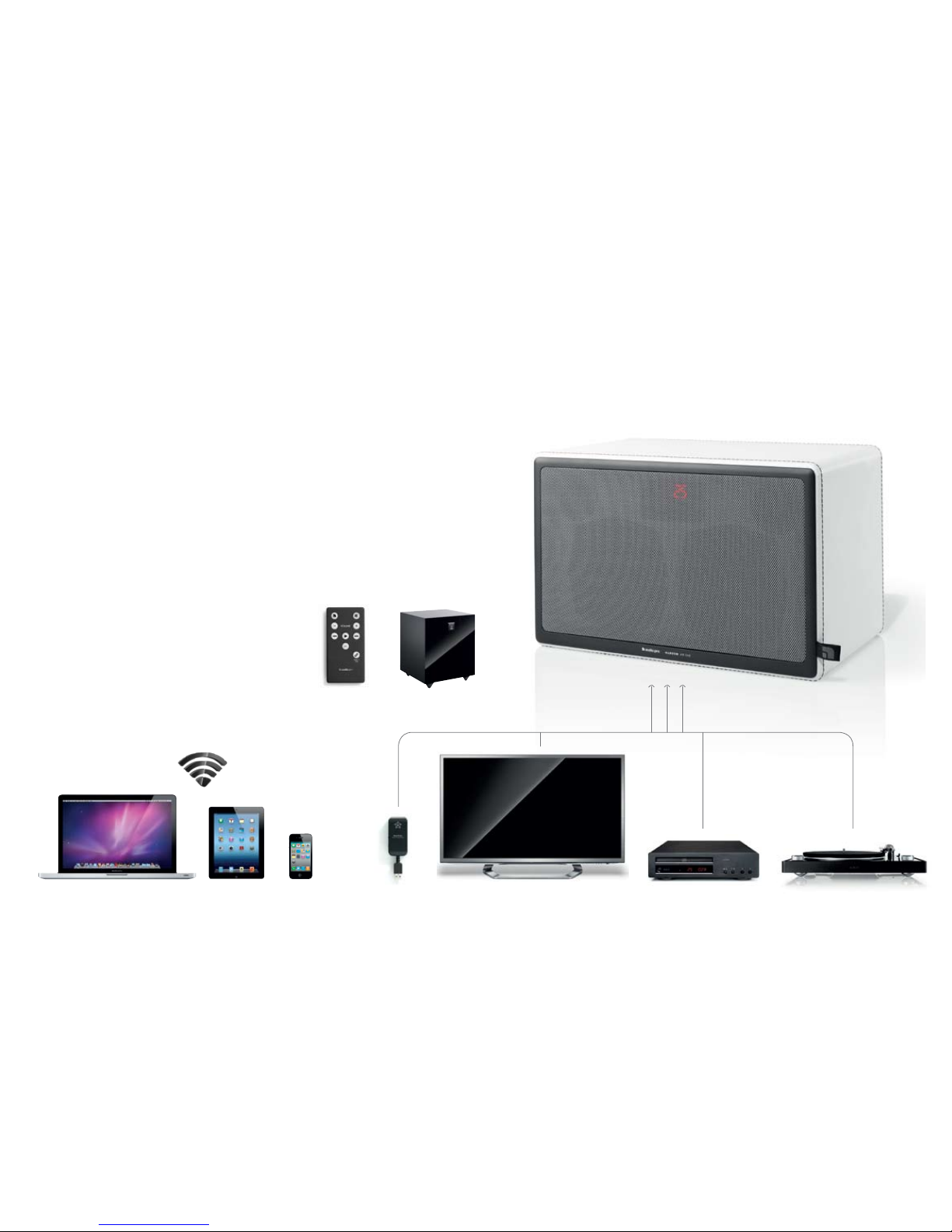

versatile sound

TV CD-player Turntable (with RIAA)Audio Pro

Wireless

Powered subwoofer

iPhone

iPod touch

iPadMac/PC

PlAY wIrelesslY from Your mAc or Pc

Select and play any track from your entire music

collection. In perfect audio quality. Allroom Air One

does this and more. AirPlay allows the Allroom Air

One to wirelessly connect to any PC or Mac running

iTunes. Browse your music there, or use your iPhone,

iPad or iPod touch as the worlds most convenient

remote control.

multIroom musIc - Your musIc,

In Your whole home

One Allroom Air One is extraordinary. But add

more for a simple and user friendly multiroom

system. With minimum of fuss.You can select which

speaker to play at any time or using more speakers

at the same time using your computer and iTunes.

Fill every room with dynamic high quality sound.

Add A Powered subwoofer

for extrA Punch

Complete the full-range power of the Allroom Air

One by connecting any powered subwoofer to the

system’s subwoofer output. Ever since Audio Pro

launched the ﬁrst active subwoofer in 1978, the art

of subwoofer design has been one of our speciali-

ties. Connecting a matching Audio Pro sub to the

Allroom Air One will add a deep bass dimension to

your music. Get ready to party!

uPGrAde Your tv sound

Let Allroom Air One help your ﬂat TV to perform

excellent audio. Simply connect your TV with optical

TOS-link cable or 3.5 mm stereo cable and your TV

experience will be transformed to sound as good

as it looks.

APPle lossless - Your musIc,

uncomPressed In best quAlItY

For wireless audio that sounds as good as wired,

Allroom Air One uses AirPlay. AirPlay streams your

music in Apple Lossless format, which means that

nothing is missing from the sound that comes out

of the Allroom Air One. All details are there, all

nuances, and all dynamics. Uncompressed sound

and perfect hiﬁ quality without wires.

dlnA enAbled - use AndroId devIces

And wIndows PlAY to

Supports locally stored content with DLNA function-

ality. Use your Android phone/tablet, Windows

Play To and play your music wirelessly in your

network. May require third party software.

combIne wIth AudIo Pro

wIreless network

For some time Audio Pro has been pioneering

wireless speakers with the award-winning ‘Living’

speaker range. The Allroom Air One can be used

in combination with our excellent Living wireless

speaker system. Simply connect an Audio Pro

WF100 wireless receiver to Allroom Air One,

and you’re ready for a truly premium multiroom

hi-ﬁ experience.

Possibilities

sPeciFications

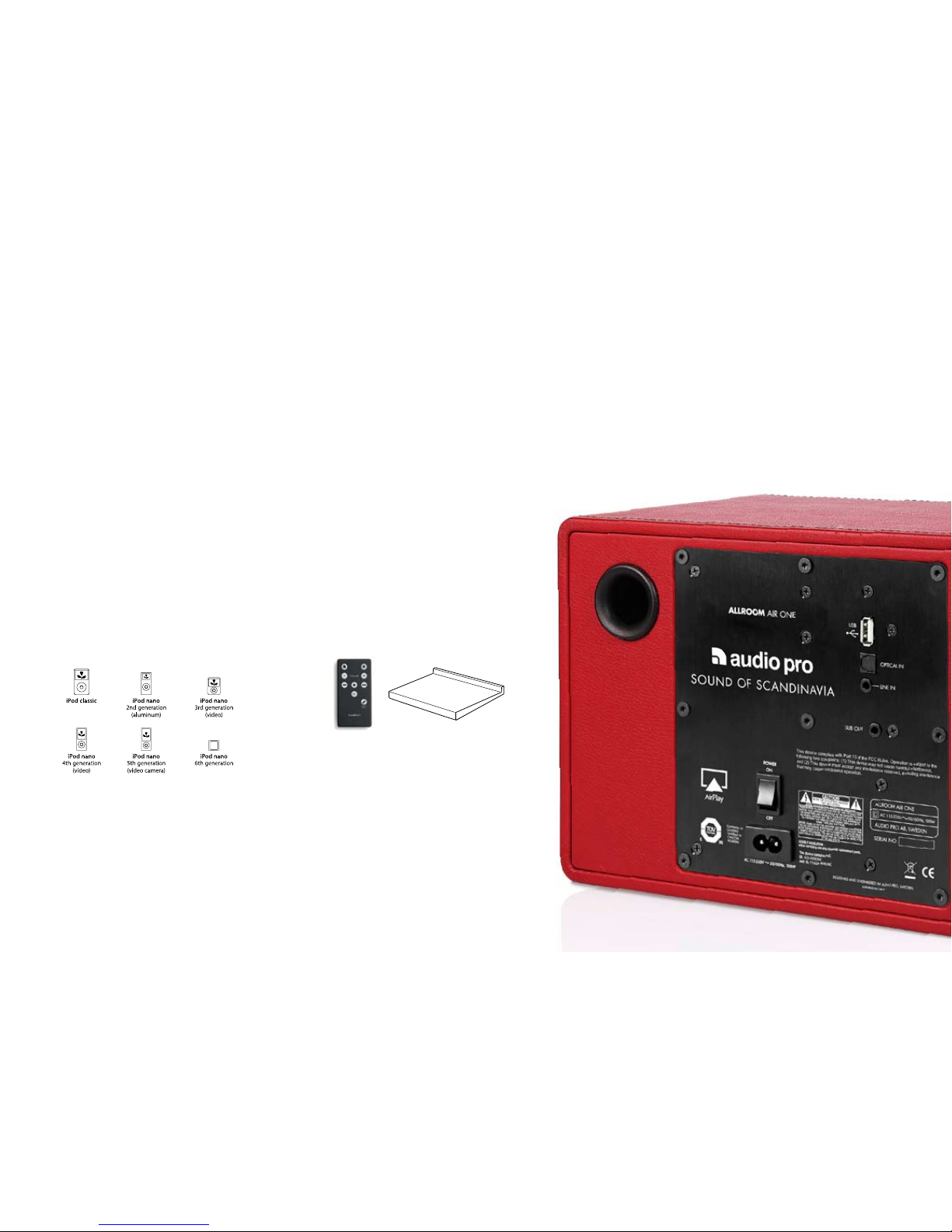

Supports following iPod models:

Type: Powered AirPlay® loudspeaker system with DSP, 2-way bass reﬂex

Ampliﬁer: 100W (4 x 25W) digital Class D ampliﬁers

Tweeter: 2 x 1” soft dome

Woofer: 2 x 4.5”

Frequency range: 45 – 22.000Hz

Crossover frequency: 2500Hz (24dB/octave)

Dimensions HxWxD: 195x310x185 mm

Inputs: AirPlay (& DLNA), 3.5 mm stereo, USB, optical TOS-Link

Output: Subwoofer out

In the box

1 x Allroom Air One speaker

1 x Remote control

1 x Table stand

1 x User manual

1 x Power cord

sYstem requIrements

iTunes 10.1 or later to operate from a MAC or PC. AirPlay

can also operate from an iOS device capable of running

iOS 4.2 or later (iPhone 3G, 3GS, v4 or 4S, iPod touch

2nd, 3rd or 4th gen, iPad, iPad 2 or iPad 3).

www.audiopro.com | www.audiopro.se

www.facebook.com/audiopro

Audio Pro®, the Audio Pro logotype, the ‘a’ symbol, and ace-bass®are all registered

continuous advancement in development. Speciﬁcations may be changed without notice.

Note:

All Apple products are trademarks of Apple Inc.

Android is a trademark of Google Inc.
