Audio Pro SUB Evidence MkII Manuale utente

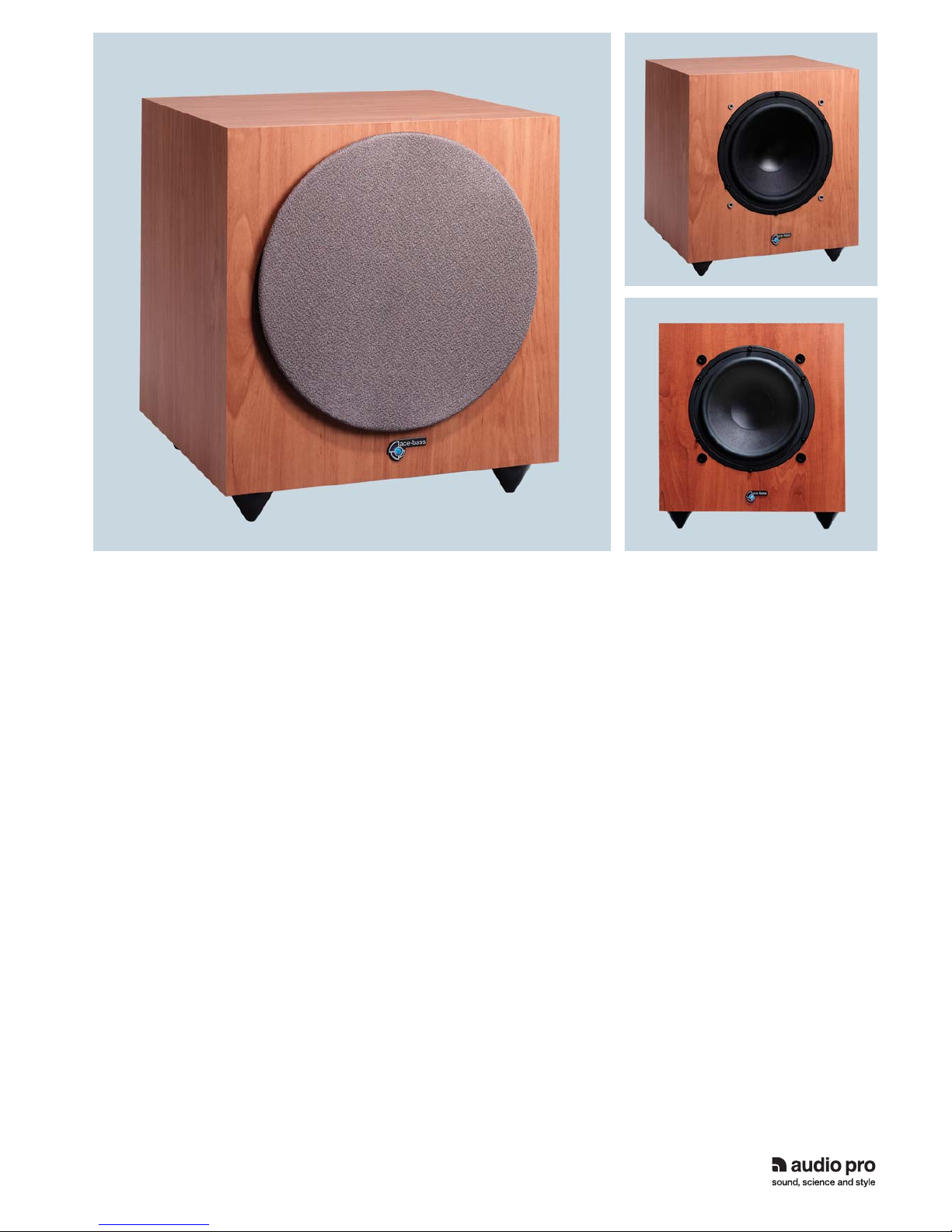

SUB Evidence MKII

With its pure, deep bass reproduction, this powered sub-

woofer will raise your enjoyment of HiFi or home theater to

a whole new level.

Sub Evidence MKII is equipped with an 8” long-throw

bass element driven by a 150W ace-bass® ampliﬁer.

Ace-bass® is Audio Pro’s patented technology that allows

us to deliver deep, powerful bass sound from small

enclosures. Its controls enable you to steplessly adjust

level as well upper frequency limits between 50 Hz and

100 Hz, guaranteeing a well-balanced HiFi and home

theater listening experience.

The bass reﬂex port is down-ﬁred, ensuring good contact

with the listening space. On the back of the speaker you

will ﬁnd both high- and low-level inputs, which makes it

connectible to most ampliﬁers and receivers.

Design-wise, Sub Evidence MKII is matched with all

speakers in the Evidence series.

SUB EVICDENCE MKII

Type: Powered subwoofer with bult-in ace-bass®

ampliﬁer, bass reﬂex

Ampliﬁer: 150 W rms

Woofer: 8” long-throw

Frequency adjustment: 27-100 Hz

Lo-pass ﬁlter: 50-100 Hz, variable 24 dB/octave

Hi-pass ﬁlter: 100 Hz, 6 dB/octave

Dimensions (WxHxD): 320x352x370 mm

Weight: 13 kg

Connectors: Line and speaker level input, clip terminal

and RCA-input

Adjustments: Auto standby, variable level adjustment,

variable frequency adjustment 50-100 Hz

Cabinet: MDF

Finish: Vinyl foil

Colors: Tara-oak, cherry
