Audio Technica ATW-49CB Manuale del proprietario

Professional UHF

Wireless Systems

ATW-49CB Active Antenna Combiner Kit

Installation and Operation

1. Connect one 18" BNC-to-BNC RG 58 coaxial antenna cable (two

supplied) to the OUT connector on one Active Antenna Combiner

(two supplied). Connect the other end of this cable to the ANTENNA

A input on either a receiver or distribution amplifier, as shown below

(See Figure 1).

2. Repeat step 1 for the ANTENNA B input, using the second Active

Antenna Combiner.

3. Use coaxial antenna cables (not included) to connect the N

connectors on each Active Antenna Combiner to a UHF antenna, as

shown below (See Figure 1).

4. NOTE: ATW-A49 antennas o not require power. If you are

using ATW-A49 antennas, skip Step 4. f you have an antenna

system that requires power (such as an antenna preamp or booster)

you must open the ATW-49CB Active Antenna Combiner assembly

and activate a switch on the circuit board. (This enables the

combiner to pass power through to the antenna.) Current

consumption of the preamp or booster should not exceed 100mA.

The unit is shipped with the switch in the “off” position. To flip the

switch to the “on” position, first be certain the combiner is not

attache to any power source. Next, use a Phillips screwdriver to

remove the two screws on the Active Antenna Combiner’s access

panel; remove the access panel; use a tweezers to flip the switch

into the “on” position. Finally, replace the access panel and securely

tighten the two screws. (See Figure 2.)

The Audio-Technica ATW-49CB Active Antenna Combiner Kit includes

two dual-input, one-output Active Antenna Combiners designed for use

with Audio-Technica 4000 and 5000 Series UHF wireless receivers and

ATW-A49 LPDA antennas.* Each Active Antenna Combiner is a

broadband device (frequency range from 440 to 900 MHz) that

combines two incoming RF signals into one outgoing RF signal. One

set of Active Antenna Combiners enables two sets of antennas to feed

one wireless receiver or distribution system. To compensate for RF

signal loss associated with combining signals, the Active Antenna

Combiner provides unity gain. (Note that without the use of an antenna

preamplifier, long antenna-cable length may deteriorate signal.)

Each kit includes: two Active Antenna Combiners and two 18" BNC-to-

BNC RG 58 coaxial antenna cables.

NOTE: The ATW-49CB Antenna Combiner requires +12V DC power

from any Audio-Technica 4000 or 5000 Series receiver or +5 to +14V DC

from any wireless receiver or antenna distribution system that offers

antenna power. A light on each Active Antenna Combiner indicates that

power has been correctly applied.

* The ATW-49CB Active Antenna Combiner Kit is also suitable for use

with other receivers that are in its specified band, use BNC antenna

connectors, and provide antenna terminal voltage; it may also be used

with a variety of other antennas from Audio-Technica and other

manufacturers.

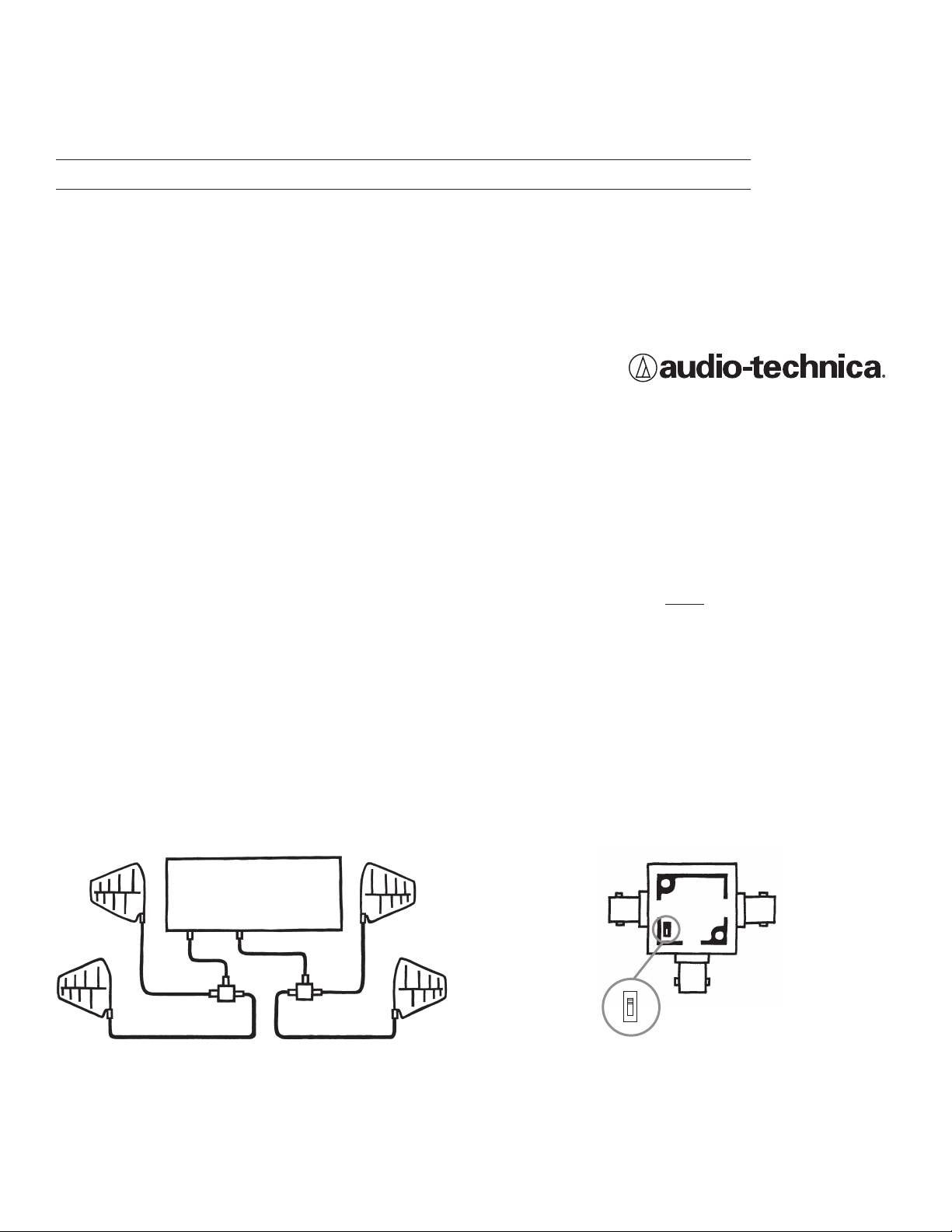

HOW TO INSTALL THE ATW-49CB ACTIVE ANTENNA COMBINERS

Figure 2

Switch

Figure 1

Receiver or Distribution

Amplifier

OUT

N N

OUT

OFF

Active Antenna Combiner with access panel removed.

Au io-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224 330/686-2600

Au io-Technica Limite , Old Lane, Leeds LS11 8AG England 011 3 277 1441

www.audio-technica.com

SPECIFICATIONS†FOR ATW-49CB

DDEESSCCRRIIPPTTIIOONN2-Input Active Combiner

BBAANNDDWWIIDDTTHH440 MHz to 900 MHz

VVSSWWRR< 1.7:1 (within specified bandwidth)

GGAAIINN0 dB typical (within specified band-

width)

IIMMPPEEDDAANNCCEE50 ohms, typical

(within specified bandwidth)

TTEERRMMIINNAATTIIOONN TTYYPPEE3-BNC Female

WWEEIIGGHHTT1.8 oz (51 g)

DDIIMMEENNSSIIOONNSS2.38" (61.0 mm) W x

1.83" (47.0 mm) L x

0.92" (23.0 mm) H

DDCC IINNPPUUTT 5-14V DC

CCUURRRREENNTT 30 mA @ 12V DC

FFIINNIISSHH OONN EENNCCLLOOSSUURREEChemical film per MIL C 5541

MMAATTEERRIIAALL6063 52 extruded aluminum (sides)

5052-H32 aluminum (top and bottom)

PPAASSSS--TTHHRROOUUGGHH CCUURRRREENNTT120 mA (maximum to both inputs

combined)

†Specifications are subject to change without notice.

To reduce the environmental impact of a multi-language printed document, product

information is available online at www.audio-technica.com in a selection of languages.

Afin de réduire l’impact sur l’environnement de l’impression de plusieurs, les informations

concernant les produits sont disponibles sur le site www.audio-technica.com dans une large

sélection de langue.

Para reducir el impacto al medioambiente, y reducir la producción de documentos en varios

leguajes, información de nuestros productos están disponibles en nuestra página del

nternet: www.audio-technica.com.

Para reduzir o impacto ecológico de um documento impresso de várias linguas, a

Audio-Technica providência as informações dos seus produtos em diversas linguas na

www.audio-technica.com.

Per evitare l’impatto ambientale che la stampa di questo documento determinerebbe, le

informazioni sui prodotti sono disponibili online in diverse lingue sul sito

www.audio-technica.com.

Der Umwelt zuliebe finden Sie die Produktinformationen in deutscher Sprache und weiteren

Sprachen auf unserer Homepage: www.audio-technica.com.

Om de gevolgen van een gedrukte meertalige handleiding op het milieu te verkleinen, is

productinformatie in verschillende talen “on-line” beschikbaar op: www.audio-technica.com.
