Audio Technica ATW-A10 Manuale del proprietario

Professional VHF Wireless Systems

ATW-D12a Diversity Antenna Distribution System

ATW-A10 Ground Plane Antenna System

Installation and Operation

ATW-A10 Ground Plane Antenna System

The ATW-A10 consists of two base assemblies and eight

antenna rods. To assemble, screw four antenna rods into

each base assembly as shown in Figure 2.

The 5/8"-27 threads in the end of the base assembly will mate

with any standard microphone stand or 5/8"-27 stand adapter.

Connect the ATW-A10 ground plane antennas to the antenna

inputs of either a wireless receiver or the ATW-D12a antenna

distribution system. Use RG58 cable for cable lengths of up

to 25'. For cable lengths greater than 25', RG8 (low loss)

RF cable is recommended. RG8 cable lengths over 100'

may cause significant signal loss.

For best performance, the two ground plane antennas should

be at least 3' apart. Some experimentation with positioning

may be required. For optimum operation, at least one

antenna should remain within sight of the wireless

microphone transmitter at all times.

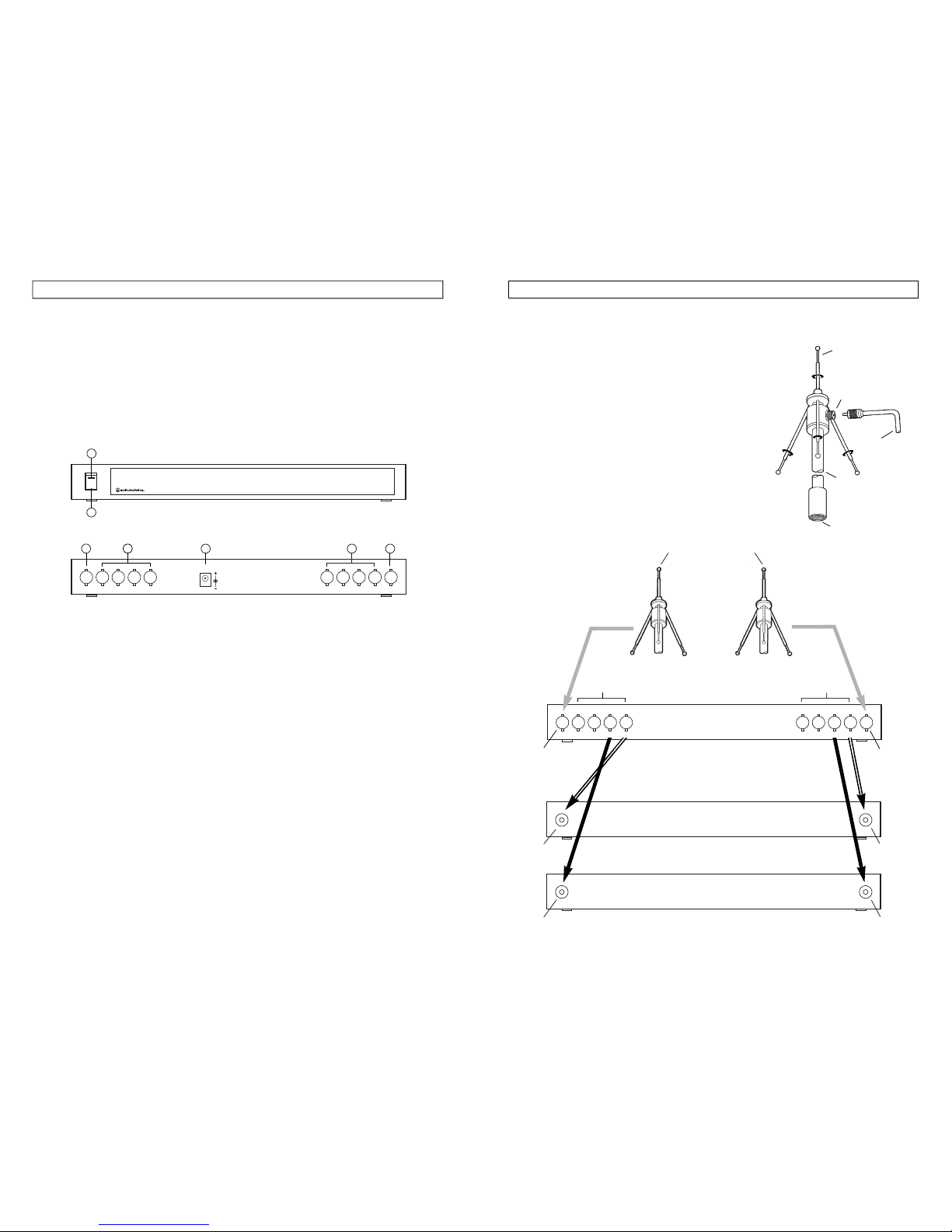

Figure 2

Figure 3. System Configuration

ATW-A10 Ground Plane Antenna System

ATW-A10 Ground Plane

Antenna System

The ATW-D12a feeds up to 4 diversity wireless receivers

ATW-D12a Diversity Antenna

Distribution System

Diversity Wireless Receiver #1

Diversity Wireless Receiver #2

Antenna B Input

B Outputs A Outputs

Base Assembly

Antenna Rod (4 pcs.)

5/8"-27 Threads

PL259 Jack

Antenna

cable

(not included)

Antenna A Input

Antenna

cables not

included

Antenna B Input Antenna A Input

4321 4321

ATW-D12a Installation and Operation

The ATW-D12a is a VHF band antenna distribution system for use with diversity wireless receivers.

It provides isolated antenna feeds for up to four VHF diversity wireless receivers.

Function The ATW-D12a has two BNC antenna inputs, one for each antenna of a diversity

wireless system. Each channel provides amplification to restore the loss due to signal-splitting.

Each nominally unity-gain antenna input/amplifier section has four isolated BNC outputs.

The ATW-D12a is supplied with two extendible antennas, rack adapters for use in standard 19"

racks, two BNC (male) to PL259 (female) adapters, and eight 2.6' BNC to PL259 coaxial

interconnect cables.

Reference

1. Power Switch

2. Power Indicator

3. Channel B Antenna Input Jack (BNC)

4. Channel B Distribution System Output Jacks (BNC)

5. +12V DC Input Jack

6. Channel A Distribution System Output Jacks (BNC)

7. Channel A Antenna Input Jack (BNC)

ATW-D12a System Configuration The ATW-D12a is designed to work with the included VHF

antennas or remote antennas, such as the ATW-A10 ground plane diversity antenna system.

When using remote antennas, RG58 cables of up to 25' may be used with little loss. If antenna

cable lengths are over 25', RG8 cable is recommended.

The ATW-A10 antennas should be mounted in a clear area away from metal obstructions and

spaced at least 3' apart. They may be mounted directly on a microphone stand.

Unused outputs of the ATW-D12a antenna distribution system do not require termination.

ATW-D12a Specifications Accessories Included

Input impedance 50 ohms 1 - AC adapter

Output impedance 50 ohms 2 - Extendible VHF antennas

Usable frequency range 150 MHz-250 MHz 2 - BNC (male) to PL259 (female) adapters

Nominal amplifier gain 0 dB ± 3 dB 8 - Interconnect cables (BNC to PL259)

AC adapter power input 120V AC, 60 Hz, 12 W 1 - Rack-mount kit

AC adapter rated output 12V DC, 500 mA

Dimensions 16.54" W x 7.80" D x 1.75" H

Weight (less accessories) 3 lb 7 oz

Figure 1

ATW-D12a front view

ATW-D12a rear view

ATW-D12a

DIVERSITY VHF ANTENNA DISTRIBUTION SYSTEM

DC IN

12V-15V

4321 4321

5 6 7

One-Year Limited Warranty

Audio-Technica brand products purchased in the U.S.A. are warranted for one year from date of purchase

by Audio-Technica U.S., Inc. (A.T.U.S.) to be free of defects in materials and workmanship. In event of such

defect, product will be repaired promptly without charge or, at our option, replaced with a new product of

equal or superior value if delivered to A.T.U.S. or an Authorized Service Center, prepaid, together with the

sales slip or other proof of purchase date.

Prior approval from A.T.U.S. is required for return.

This war-

ranty excludes defects due to normal wear, abuse, shipping damage, or failure to use product in accordance

with the instructions. This warranty is void in the event of unauthorized repair or modification, or removal

or defacing of the product labeling.

For return approval and shipping information,

contact the Service Dept., Audio-Technica U.S., Inc.,

1221 Commerce Drive, Stow, Ohio 44224.

Except to the extent precluded by applicable state law,

A.T.U.S. will have no liability for any consequential,

incidental, or special damages; any warranty of merchantability or fitness for particular purpose

expires when this warranty expires.

This warranty gives you specific legal rights, and you may have other rights which vary from state to state.

Outside the U.S.A., please contact your local dealer for warranty details.

Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224 330/686-2600

Audio-Technica Limited, Old Lane, Leeds LS11 8AG England 0113 277 1441
