AT2020USBi

Instruction Manual

AT2020USBi

Cardioid Condenser USB Microphone

Contents

Introduction & features 3

Setting up your microphone with pivot mount & desk stand 4

Preliminary setup with Mac OS X 5

Preliminary setup with Windows 8 6

Selecting software 9

Setting your software levels 9

Positioning your microphone 9

Protecting your microphone 9

Specifications 10

Compliance with FCC rules (USA only)

This device complies with Part 15 of the FCC rules. Operation is subject to the following two

conditions:(1) this device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

FCC WARNING

You are cautioned that any changes or modifications not expressly approved in this manual could

void your authority to operate this equipment.

Canada only

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme á la norme NMB -003 du Canada.

Federal Communications Commission Statement

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of

the following measures:

— Reorient or relocate the receiving antenna.

— Increase the separation between the equipment and receiver.

— Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

— Consult the dealer or an experienced radio/TV technician for help.

Thank you for buying the Audio-Technica AT2020USBi Cardioid Condenser USB Microphone. Equipped

with a digital output, this microphone is designed for digitally capturing music or any acoustic audio

source using your favorite recording software. The AT2020USBi offers studio-quality articulation and

intelligibility perfect for home studio recording, field recording, podcasting, and voiceover use.

The AT2020USBi features a microphone gain control that allows you to adjust the input level directly

on the microphone itself. The microphone’s cardioid pickup pattern delivers excellent off-axis rejection,

while its A/D converter with a 24-bit, up to 96 kHz sampling rate ensures extremely articulate sound

reproduction.

Audio-Technica’s state-of-the-art design and manufacturing techniques ensure that the microphone

complies with the company’s renowned consistency and reliability standards.

Features

• Condenser microphone with digital output for convenient recording

• High quality A/D converter with 24-bit, up to 96 kHz sampling rate for superb audio

• Mic gain control allows you to adjust input level on the mic itself

• Smooth, extended frequency response ideally suited for podcasting, home studio recording,

field recording and voiceover use

• Compatible with Windows 7 and above, Mac OS 10.6 and above and iOS 7.02 and above

(requires Lightning connector)

• Tripod desk stand with folding legs for secure and easily portable tabletop use

• Included USB and Lightning cables provide ready connectivity to computers and iOS devices

Introduction

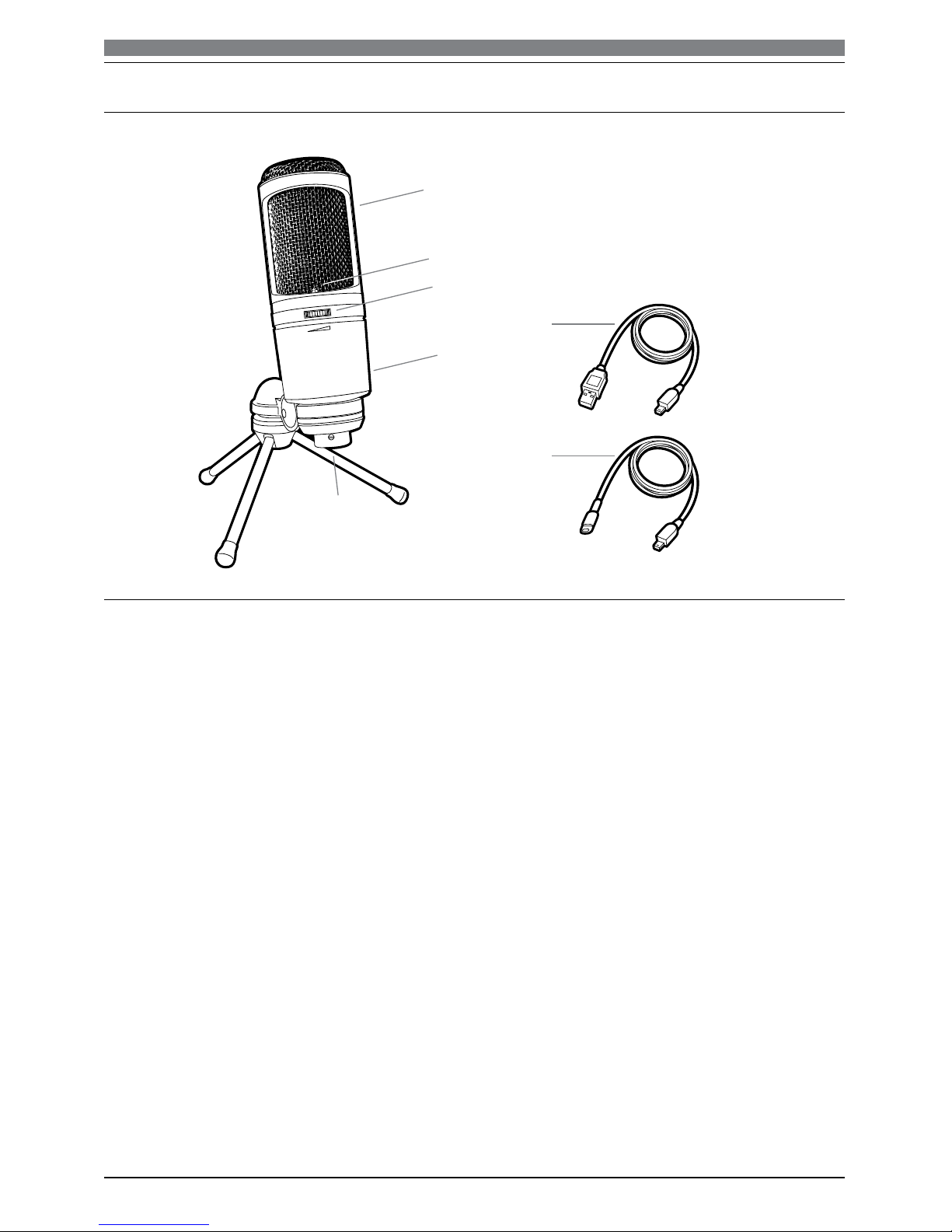

1. Capsule — Condenser microphone element with cardioid polar pattern

2. Blue LED — Blue light shows microphone is receiving USB power

3. Mic Gain Control — Dial controls input level

4. Metal Construction — Tough, durable, resilient design

5. Digital Output Connector — Use the included USB or Lightning cable to connect AT2020USBi

to your Mac, PC, iPad or iPhone

6. USB Cable

7. Lightning Cable

Setting up your microphone with included pivot mount and tripod desk stand

A. Screw the pivot mount onto the top of the tripod desk stand.

B. Place the tripod desk stand on a flat surface. (The tripod legs will extend to provide a wide,

secure base.)

C. Install the AT2020USBi microphone into the threaded collar of the pivot mount and tighten

collar while holding the microphone in place. The front of the microphone should be facing the

sound source. (A blue LED indicate the front of the microphone; the product model number is

displayed on the rear of the microphone.)

D. If necessary, adjust the microphone’s angle with the pivot mount’s thumbscrew.

E. Plug the provided USB or Lightning cable into the digital output at the base of the microphone.

Note: Many recording software programs are available online. Audacity is widely used free software

for recording and editing sounds. It is available online at http://audacity.sourceforge.net/

AT2020USBi

1. Plug the free end of the provided USB cable into the USB port on your computer. The microphone’s

blue LED will illuminate, indicating the microphone is receiving power. Your computer will

automatically recognize the USB device and install a driver.

2. To select the AT2020USBi as your audio input, first, open your System Preferences.

3. Next, click Sound to display the Sound preference pane.

Preliminary setup with Mac OS X

AT2020USBi USB

4. Click the Input tab and select the AT2020USBi as the device for sound input.

Your preferences are now set to use the AT2020USBi on your Mac with GarageBand or another

recording program of your choice.

Note: Use the Lightning cable to connect the AT2020USBi to an iPhone or iPad. No setup is required.

1. Plug the free end of the USB cable into the USB port on your computer. The microphone’s blue

LED light will illuminate, indicating the mic is receiving power. Your computer will automatically

recognize the USB device and install a driver.

2. In the lower right portion of your screen you may get a message that new hardware was found;

or you may see a driver software installation notice.

3. Start menu > Control Panel > Sound

To select the AT2020USBi as your default recording device, begin at your Start menu.

Select Control Panel.

Preliminary setup with Windows 8

Preliminary setup with Windows 8 (continued)

4. Select Sound.

5. The following screen will pop up:

6. Select the Recording tab, and choose AT2020USBi as the default device.

7. Double click on the AT2020USBi icon to open the Microphone Properties window. Select the

Levels tab to adjust microphone level (loudness). It is recommended that you set the gain control

on the microphone to max before adjusting the level in Properties. That way any adjustments

needed during recording can be easily performed from the microphone itself.

Preliminary setup with Windows 8 (continued)

Your preferences are now set to use the AT2020USBi with Windows 8 and the recording program of

your choice.

Additional Information

Selecting software

You have many choices in recording software. Audacity, available for free online at

http://audacity.sourceforge.net/, is a widely used software program that provides basic recording software.

Setting your software levels

Correct adjustment of microphone level is important for optimum performance. Ideally, the microphone

level should be as high as possible without overloading the input of your computer. If you hear

distortion, or if your recording program shows levels that are consistently overloaded (at peak levels),

turn the microphone volume (or level) down, through either the gain control on the microphone, your

control panel (or system preferences) settings or your recording software. If your recording program

shows insufficient level, you can increase the microphone gain via the microphone dial, the control

panel (or system preferences) settings or your recording program.

No further microphone level adjustments should be needed, as long as the acoustic input does not

change significantly.

Positioning your microphone

It is important to position the microphone directly in line (on axis) with the person speaking/singing, the

instrument (or other sound source) to achieve the best frequency response of the microphone.

For use in speaking/singing applications, the ideal placement for the microphone is directly in front of

the person speaking/singing. The same placement is optimal when miking an instrument such as an

acoustic guitar, drums or piano. Experiment with different mic placements to find the best sound for

your particular setup.

Protecting your microphone

Avoid leaving your microphone in the open sun or in areas where temperatures exceed 110° F (43° C)

for extended periods. Extremely high humidity should also be avoided.

Element: Fixed-charge back plate, permanently polarized condenser

Polar Pattern: Cardioid

Frequency Response: 20 – 20,000 Hz

Power Requirements: USB (5V DC); Lightning (3.3V DC)

Bit Depth: 24-bit

Sample Rate: Up to 96 kHz

Controls: Mic gain control

Weight: 350 g (12.3 oz)

Dimensions: 162.0 mm (6.38") long, 52.0 mm (2.05") maximum body diameter

Output Connector: Micro HDMI

Accessories Included: Pivoting stand mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded

adapter; soft protective pouch; tripod desk stand; 4.9' (1.5 m) USB cable; 4.9' (1.5 m) Lightning cable

Compatibility:

Mac OS X v10.6 Snow Leopard and above

USB1.0 or 2.0

Mac computer with an Intel processor

1GB of memory

5GB of available disk space

Windows 7 and above

USB1.0 or 2.0

1 gigahertz (GHz) or faster 32-bit (x86) or 64-bit (x64) processor

1 gigabyte (GB) RAM (32-bit) or 2 GB RAM (64-bit)

The Lightning connector works with iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPad Air 2, iPad Air, iPad (4th generation),

iPad mini 3, iPad mini 2, iPad mini and iPod touch (5th generation).

†In the interest of standards development, A.T.U.S. offers full details on its test methods to other industry professionals on request.

Specifications are subject to change without notice.

AT2020USBi Specifications†

LEGEND

200 Hz

1 kHz

5 kHz

8 kHz

SCALE IS 5 DECIBELS PER DIVISION

240˚

180˚

210˚

270˚

300˚

330˚ 0˚

150˚

120˚

90˚

30˚

60˚

12" or more on axis

LEGEN

Frequency in Hertz

Response in dB

10 dB

100

50 200 10k

500 2k 20k

LEGEND

200 Hz

1 kHz

5 kHz

8 kHz

SCALE IS 5 DECIBELS PER DIVISION

240˚

180˚

210˚

270˚

300˚

330˚ 0˚

150˚

120˚

90˚

30˚

60˚

12" or more on axis

LEGEND

Frequency in Hertz

Response in dB

10 dB

100

50 200 10k

500 2k 20k

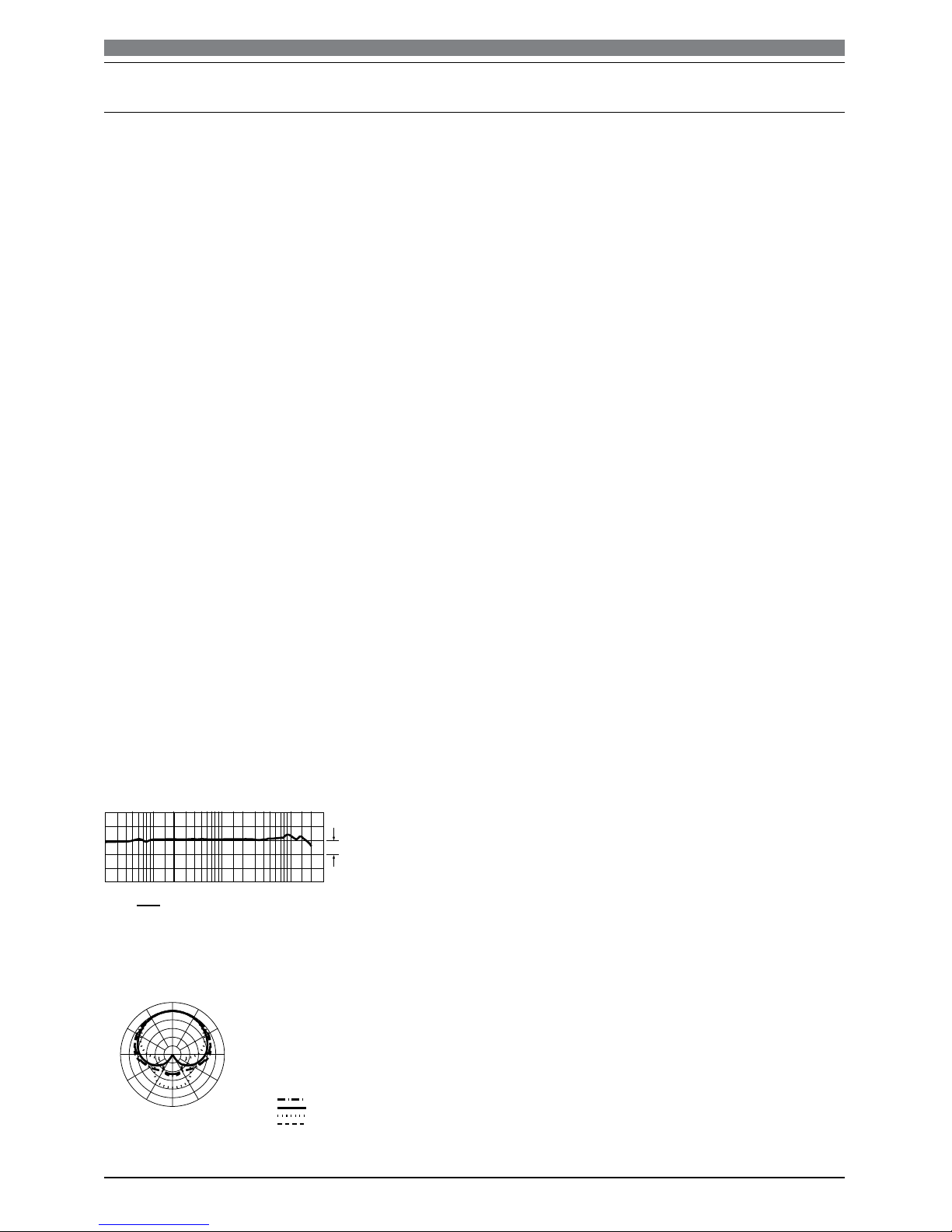

Frequency Response

Polar Pattern
