AudioBahn AW102T Manuale utente

Theile / Small Parameters

7

Model # AW102T AW122T AW152T

Fs 345.1 Hz 33.4 Hz 33.5 Hz

Qts 0.53 0.66 0.881

Qes 0.57 0.71 0.952

Qms 9.89 8.92 8.83

Vas (Liters) 22.13 liters 49 liters 74 liters

Vas(Cu.Ft.) 0.78CuFt. 1.71Cu.Ft. 2.6Cu.Ft.

Re 3.3 3.3 3.31 ohms

Le 2.4 mH 2.42 mH 12.54 mH

Mmd 128 grams 148 grams 245 grams

Xmax +/- 10mm +/- 11 mm +/-11mm

RMS 450 watts 550 RMS 650 watts

Sd 0.031 M2 0.048 M2 0.078 M2

Freq. Resp. 29Hz-1kHz 26Hz-1kHz 22Hz-7kHz

Efficiency 92.3 dB 92.8 dB 94 dB

EBP 59 49 34

Depth 5" 5 5/8" 7 1/8"

Hole 9 1/4" 11 1/8" 14"

Diamater 10 7/8" 12 3/4" 15 1/2"

Displacement 0.1 0.15 0.2

Audiobahn Woofer Parameters

Dimensions

Vas does not represent the volume of a Box. Vas is just a parameter used when calculating a box.

An EBP of less then 45 is SUGGESTED for only a sealed box and greater then 65 for a ported box.

Box Parameters

8

Model # AW102T AW122T AW152T

Ported

Air Space (Cu. Ft.) 0.625 1.3 1.65

PortSize(Inches) 2x6.75 3x7.75 4x10

Port Vel. (%) 31.5 21 21.25

-3dB (Hz) 36.5 35 38

Tune Freq. (Hz) 40 38 40

Sub Disp. (Cu. Ft.) 0.1 0.15 0.23

Port Disp.(Cu. Ft.) 0.011 0.028 0.066

Total Vol. (Cu. Ft.) 0.75 1.5 2

Ported

Air Space (Cu. Ft.) 1.3 2.25 2.65

Port Size (Inches) 3 x 8.0 4 x 8.5 (2) 3 x 8

Port Vel. (%) 15 12.5 17

-3dB (Hz) 30.5 30 31

Tune Freq. (Hz) 37 37 36

Sub Disp. (Cu. Ft.) 0.1 0.15 0.23

Port Disp.(Cu. Ft.) 0.029 0.055 0.058

Total Vol. (Cu. Ft.) 1.5 2.5 3

Ported

Air Space (Cu. Ft.) 2.33 3.2 3.7

Port Size (Inches) 4 x 8 4 x 10.5 (2) 4 x 9.5

Port Vel. (%) 8.75 6.5 10

-3dB (Hz) 29.5 29 29

Tune Freq. (Hz) 36 38 37

Sub Disp. (Cu. Ft.) 0.1 0.15 0.23

Port Disp.(Cu. Ft.) 0.053 0.141 0.128

Total Vol. (Cu. Ft.) 2.5 3.5 4

EBP 61 49 99

Model #

Sealed

Minimum (Cu. Ft.) 0.5 0.75 1.25

Maximum (Cu. Ft.) 1.25 2 3.25

SPL (dB) 85 88 88.5

59All sealed boxes already include the displacment for the subwoofer. NR = (Not Recommended)

Audiobahn Box Specifications

Remember to build your box to the total volume, not just air space, as total volume includes all displacement.

An EBP of less then 45 is SUGGESTED for only a sealed box and greater then 65 for a ported box.

The larger a sealed box is, the lower the sub will play, but the less power it will handle. The smaller a sealed box is,

the higher the frequency the sub will play, and the more power it will handle.

All ports listed are circle ports unless otherwise stated. Surface area of a circle port = (3.14) X (radius) (squared)

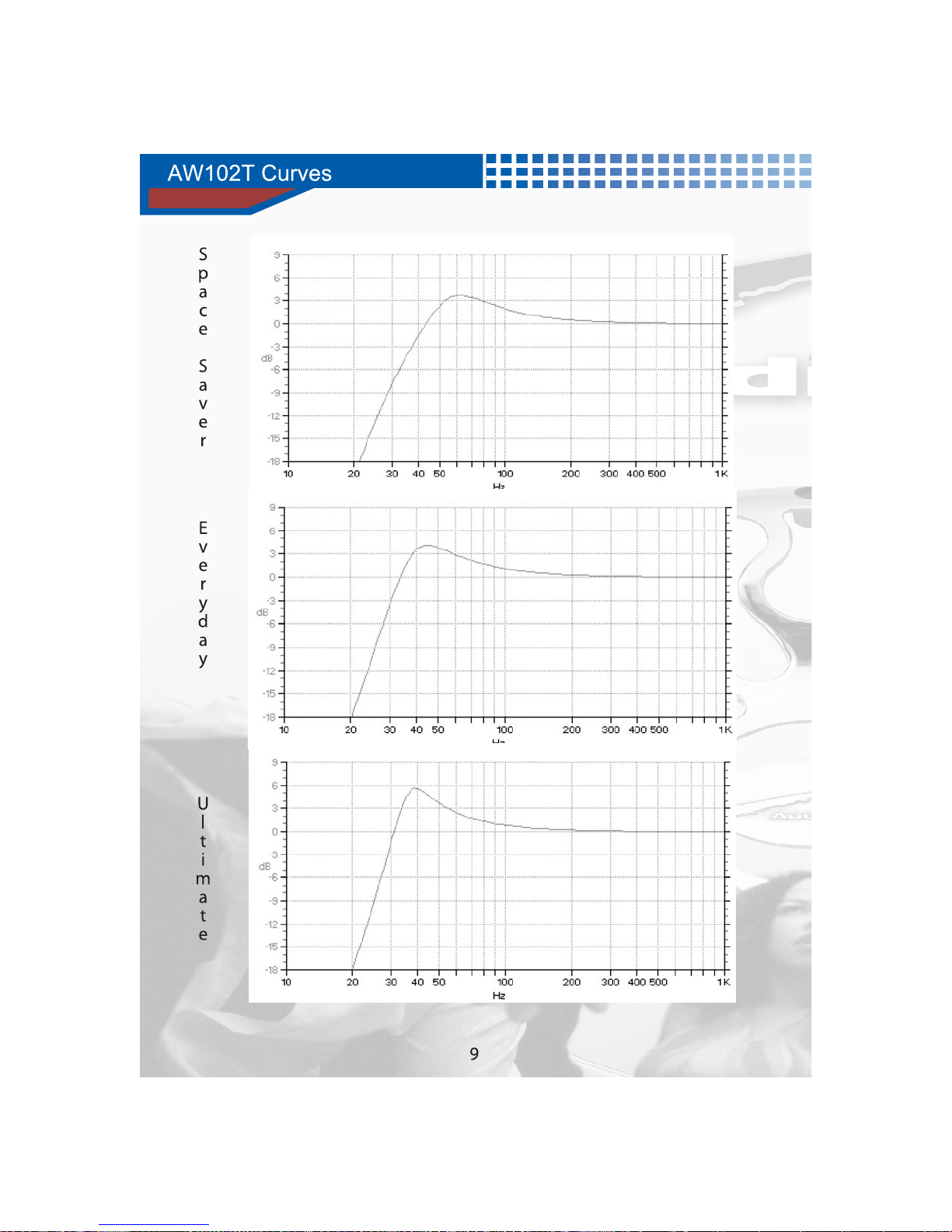

Ultimate SPL Bass Box

(not designed for competition use)

Everyday Bass Performer

Space Saver Bass Design

A port velocity of 20% or under is good for everday use and 5% or under for SPL competition . Port velocity

translates to port noise, so the lower the number, the less port noise you will incur.
