AudioCodes MP-11x Fast Track Manuale utente

MP-11x Fast Track Installation Guide

MGCP, H.323 & SIP

Version 4.6

Document #: LTRT-61504

MP-11x

Fast Track Installation Guide

MGCP, H.323 & SIP

Version 4.6

Document #: LTRT-61504

Published July 2005

Notice

This Fast Track Installation Guide describes the installation of the AudioCodes MediaPack Series MP-11x

VoIP gateways applying to MGCP, H.323 and SIP versions.

Information contained in this document is believed to be accurate and reliable at the time of printing. However,

due to ongoing product improvements and revisions, AudioCodes cannot guarantee the accuracy of printed

material after the Date Published nor can it accept responsibility for errors or omissions.

Updates to this document and other documents can be viewed by registered Technical Support customers at

www.audiocodes.com under Support / Product Documentation.

This document is subject to change without notice.

Date Published:Jul-03-2005 Date Printed: Jul-27-2005

Fast Track Installation Guide Contents

Version 4.6 3 July 2005

Table of Contents

1Quick Start.................................................................................................................................................7

2Installing the MP-11x................................................................................................................................8

2.1 Unpacking ...........................................................................................................................................8

2.2 Package Contents...............................................................................................................................8

2.3 19-inch Rack Installation Package ......................................................................................................9

2.4 Mounting the MP-11x ..........................................................................................................................9

2.4.1 Mounting the MP-11x on a Desktop.................................................................................. 10

2.4.2 Mounting the MP-11x on a Wall ........................................................................................ 10

2.4.3 Installing the MP-11x in a 19-inch Rack............................................................................ 10

2.5 Cabling the MP-11x...........................................................................................................................11

2.5.1 Cables and Cabling Procedure ......................................................................................... 11

3Configuring the MP-11x..........................................................................................................................13

3.1 Assigning the MP-11x IP Address.....................................................................................................13

3.1.1 Assigning an IP Address Using HTTP .............................................................................. 13

3.1.2 Assigning an IP Address Using BootP .............................................................................. 14

3.1.3 Assigning an IP Address Using the CLI ............................................................................ 15

3.1.3.1 Access the CLI..............................................................................................................15

3.1.3.2 Assign an IP Address....................................................................................................16

3.2 Restoring Networking Parameters to their Initial State .....................................................................16

3.3 Accessing the Embedded Web Server .............................................................................................17

3.4 Configuring the MP-11x Basic Control Protocol Parameters............................................................17

3.4.1 Configuring Basic MGCP Parameters............................................................................... 18

3.4.2 Configuring Basic H.323 Parameters................................................................................ 19

3.4.3 Configuring Basic SIP Parameters.................................................................................... 21

3.4.4 Example of Connecting Two MP-118 Devices.................................................................. 23

4Changing the MP-11x Username and Password .................................................................................24

5Restoring and Backing Up the MP-11x Configuration........................................................................25

6Monitoring the MP-11x ...........................................................................................................................26

6.1 Monitoring the MP-11x Front Panel LEDs.........................................................................................26

6.2 Monitoring the MP-11x Channels......................................................................................................27

7Upgrading the MP-11x............................................................................................................................28

7.1 Software Upgrade Wizard .................................................................................................................28

7.2 Updating the Auxiliary Files...............................................................................................................33

8Regulatory Information ..........................................................................................................................35

MP-11x

MP-11x 4 Document #: LTRT-61504

List of Figures

Figure 1-1: Required Steps to Install the MP-11x ............................................................................................. 7

Figure 2-1: 19-inch Rack Shelf .......................................................................................................................... 9

Figure 2-2: View of the MP-11x Base................................................................................................................ 9

Figure 2-3: MP-11x Rack Mount...................................................................................................................... 10

Figure 2-4: MP-118 Rear Panel Connectors ................................................................................................... 11

Figure 2-5: RJ-45 Ethernet Connector Pinout ................................................................................................. 12

Figure 2-6: RJ-11 Phone Connector Pinout .................................................................................................... 12

Figure 2-7: PS/2 Pinout ................................................................................................................................... 12

Figure 3-1: Client Configuration Screen with Blank Parameters..................................................................... 15

Figure 3-2: Embedded Web Server Login Screen .......................................................................................... 17

Figure 3-3: MP-11x MGCP Quick Setup Screen.............................................................................................18

Figure 3-4: MP-11x H.323 Quick Setup Screen .............................................................................................. 19

Figure 3-5: MP-11x SIP Quick Setup Screen.................................................................................................. 21

Figure 3-6: Example of Connecting Two MP-118 Devices.............................................................................. 23

Figure 4-1: Change Password Screen in Administrator Mode ........................................................................ 24

Figure 5-1: Configuration File Screen.............................................................................................................. 25

Figure 6-1: MP-11x Channel Status Screen.................................................................................................... 27

Figure 7-1: Start Software Upgrade Screen .................................................................................................... 28

Figure 7-2: Load a cmp File Screen ................................................................................................................ 29

Figure 7-3: cmp File Successfully Loaded into the Device Notification........................................................... 29

Figure 7-4: Load an ini File Screen ................................................................................................................. 30

Figure 7-5: Load a CPT File Screen................................................................................................................ 31

Figure 7-6: FINISH Screen .............................................................................................................................. 31

Figure 7-7: ‘End Process’ Screen.................................................................................................................... 32

Figure 7-8: Auxiliary Files Screen.................................................................................................................... 34

List of Tables

Table 2-1: View of the MP-11x Base................................................................................................................. 9

Table 2-2: MP-11x Rack Mount....................................................................................................................... 10

Table 2-3: MP-11x Rear Panel Component Descriptions ............................................................................... 11

Table 2-4: Cables and Cabling Procedure ...................................................................................................... 11

Table 3-1: MP-11x Default Networking Parameters........................................................................................ 13

Table 6-1: Definition of MP-11x Front Panel LED Indicators........................................................................... 26

Table 6-2: Channel Status Color Indicators .................................................................................................... 27

Table 7-1: ini and Auxiliary Files Descriptions................................................................................................. 33

Fast Track Installation Guide General

Version 4.6 5 July 2005

Tip: When viewing this manual on CD, Web site or on any other electronic copy,

all cross-references are hyperlinked. Click on the page or section numbers

(shown in blue) to reach the individual cross-referenced item directly. To

return back to the point from where you accessed the cross-reference, press

the ALT and ◄keys.

Trademarks

AC logo, Ardito, AudioCoded, AudioCodes, AudioCodes logo, IPmedia, Mediant, MediaPack, MP-

MLQ, NetCoder, Stretto, TrunkPack, VoicePacketizer and VoIPerfect, are trademarks or

registered trademarks of AudioCodes Limited. All other products or trademarks are property of

their respective owners.

Customer Support

Customer technical support and service are provided by AudioCodes’ Distributors, Partners, and

Resellers from whom the product was purchased. For Customer support for products purchased

directly from AudioCodes, contact support@audiocodes.com.

Abbreviations and Terminology

Each abbreviation, unless widely used, is spelled out in full when first used. Only industry-

standard terms are used throughout this manual. Hexadecimal notation is indicated by 0x

preceding the number.

Related Documentation

Document # Manual Name

LTRT-613xx (e.g., LTRT-61301) MP-11x MGCP User’s Manual

LTRT-616xx MP Series Release Notes

LTRT-651xx MediaPack H.323 User’s Manual

LTRT-652xx MediaPack H.323 Analog Gateways Release Notes

LTRT-654xx MediaPack SIP User’s Manual

LTRT-656xx MediaPack & Mediant 1000 SIP Analog Gateways Release Notes

Note: The MP-112 differs from the MP-114 and MP-118. Its configuration excludes

the RS-232 connector, the Lifeline option and outdoor protection.

Note: MP-11x refers to the MP-118 8-port, MP-114 4-port and MP-112 2-port VoIP

gateways having similar functionality except for the number of channels.

Note: Where “network” appears in this manual, it means LAN, WAN, etc. accessed

via the gateway’s Ethernet interface.

Note: FXS (Foreign Exchange Station) is the interface replacing the Exchange (i.e.,

the CO or the PBX) and connects to analog telephones, dial-up modems, and

fax machines. The FXS is designed to supply line voltage and ringing current

to these telephone devices. An FXS VoIP gateway interfaces between the

analog telephone devices and the Internet.

MP-11x

MP-11x 6 Document #: LTRT-61504

Warning: Ensure that you connect FXS ports to analog telephone or to PBX-trunk

lines only.

Warning: The MP-11x is supplied as a sealed unit and must only be

serviced by qualified service personnel.

Fast Track Installation Guide 1. Quick Start

Version 4.6 7 July 2005

1 Quick Start

This guide provides you with information on how to install the MP-11x for the first time. Prior

knowledge of IP networks is preferred.

Refer to the configuration procedures, outlined in Figure 1-1, for information on how to install,

initialize, configure the device and make calls. For detailed information on how to fully configure

the gateway refer to the MP-11x User’s Manuals.

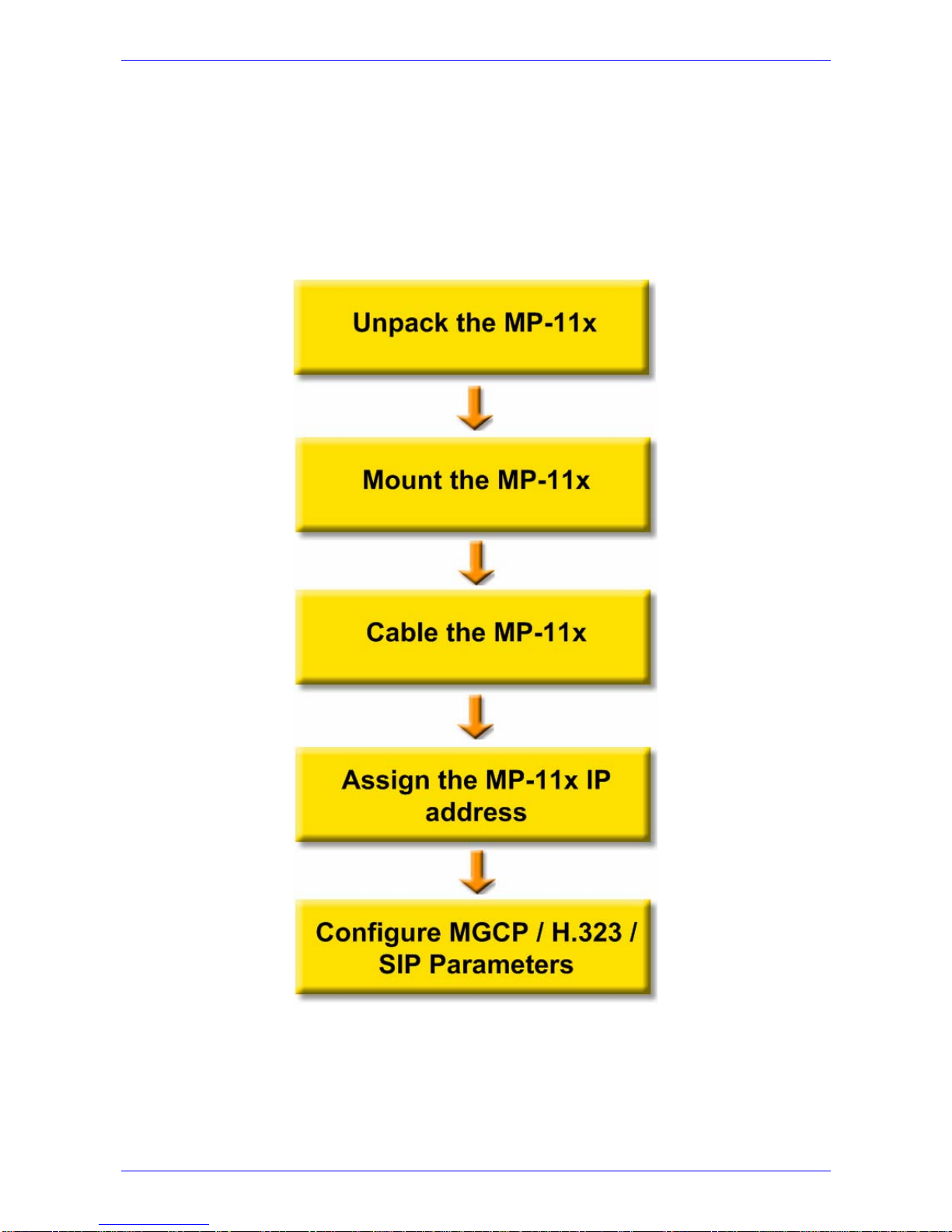

Figure 1-1: Required Steps to Install the MP-11x

Refer to Section 2.4

Refer to Section 2.5

Refer to Section 3.1

Refer to Section 2.1

Refer to Section 3.4

MP-11x

MP-11x 8 Document #: LTRT-61504

2 Installing the MP-11x

Caution Electrical Shock

The equipment must only be installed or serviced by qualified service personnel.

¾To install the MP-11x, take these 3 steps:

1. Unpack the MP-11x (refer to Section 2.1 below).

2. Check the package contents (refer to Section 2.2 below).

3. Mount the MP-11x (refer to Section 2.4 on page 9).

4. Cable the MP-11x (refer to Section 2.5 on page 10).

After connecting the MP-11x to the power source, the Ready and Power LEDs on the front panel

turn to green (after a self-testing period of about 2 minutes). Any malfunction in the startup

procedure changes the Fail LED to red and the Ready LED is turned off (refer to Section 6.1 on

page 26 for details on the MP-11x LEDs).

When you have completed the above relevant sections you are then ready to start configuring the

gateway (Section 3on page 13).

2.1 Unpacking

¾To unpack the MP-11x, take these 6 steps:

1. Open the carton and remove the packing materials.

2. Remove the MP-11x gateway from the carton.

3. Check that there is no equipment damage.

4. Check, retain and process any documents.

5. Notify AudioCodes or your local supplier of any damage or discrepancies.

6. Retain any diskettes or CDs.

2.2 Package Contents

Ensure that in addition to the MP-11x, the package contains:

•AC power cable.

•Small plastic bag containing four anti-slide bumpers for desktop installation.

•A CD with software and documentation may be included.

•This Fast Track Installation Guide.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali AudioCodes Portale

AudioCodes

AudioCodes MP-252 Manuale utente

AudioCodes

AudioCodes Mediant 1000B Istruzioni per il montaggio

AudioCodes

AudioCodes Mediant 1000 Manuale utente

AudioCodes

AudioCodes MP-11 Manuale utente

AudioCodes

AudioCodes MediaPack MP-102 Manuale utente

AudioCodes

AudioCodes Mediant 2000 Manuale utente

AudioCodes

AudioCodes Mediant 800 Manuale utente

AudioCodes

AudioCodes Mediant 800B Manuale

AudioCodes

AudioCodes MediaPack Series Istruzioni per il montaggio

AudioCodes

AudioCodes Mediant 800B Manuale utente

AudioCodes

AudioCodes MP-108 Manuale utente

AudioCodes

AudioCodes Mediant 1000 Istruzioni per il montaggio

AudioCodes

AudioCodes Mediant 600 Manuale utente

AudioCodes

AudioCodes Mediant 500L MSBR Istruzioni per il montaggio

AudioCodes

AudioCodes MediaPack MP-402 Manuale utente

AudioCodes

AudioCodes Mediant 1000 Manuale utente

AudioCodes

AudioCodes Mediant 800C SBC Guida di riferimento rapido

AudioCodes

AudioCodes Mediant 3100 Istruzioni per il montaggio

AudioCodes

AudioCodes MediaPack 1 Series Manuale utente

AudioCodes

AudioCodes Mediant 3000 Manuale utente

AudioCodes

AudioCodes MediaPack MP-124 Manuale utente

AudioCodes

AudioCodes Mediant 4000 SBC Manuale utente

AudioCodes

AudioCodes Mediant 600 Istruzioni per il montaggio

AudioCodes

AudioCodes Mediant 2000 Manuale utente

Manuali Portale popolari di altre marche

LST

LST M500RFE-AS Manuale utente

Kinnex

Kinnex Media Gateway Manuale utente

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuale utente

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuale utente

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuale utente

Telsey

Telsey CPVA 500 - SIP Manuale utente

RTA

RTA 460A-NNA4 Scheda tecnica

Shaw

Shaw Gateway HDPVR Manuale utente

ABB

ABB VSN900 Guida rapida

Commander

Commander Pulse Manuale utente

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuale utente

NETGEAR

NETGEAR C6300BD Manuale utente

Amit

Amit CDW531AM Manuale utente

HMS

HMS Netbiter EasyConnect EC150 Manuale utente

Huawei

Huawei EchoLife HG620 Manuale utente

AT&T

AT&T U-verse 3801 Manuale per l'uso e la cura

Logic IO

Logic IO RTCU MX2 turbo Manuale utente

Suttle

Suttle MediaMAX MXM-521 Manuale utente
