Warnings:
Danger: Certain precautions are always required when using electrical products, including the following:
1) Read all safety instructions before using the product.
2) To reduce the risk of injury, when the product is used in the presence of children, close supervision is
necessary.
3) Do not use the product near water, such as sinks, kitchens, wet floors, swimming pools or the like or in the
rain.
4) The product must be placed away from heat sources such as radiators, or other products that produce
heat.
5) The product must be powered only with the type of power supply envisaged. Always check the condition of
the power cord.
6) If it is necessary to replace the fuse, disconnect the power plug before proceeding. The fuse is near the
power outlet and must be replaced with one of the same type and rating. If the fuse blows again, contact the
after-sales service. DO NOT replace again with a higher value.
7) The product must be checked by qualified persons if:
- The power cord or plug is damaged - Objects or liquids have entered the product
- The product has been exposed to rain - The product has been dropped or the chassis is damaged.
8) DO NOT try to repair the product other than the operations indicated in the manual. All other repairs must
be carried out by qualified personnel.
9) Recharge the battery before and after each use and, in any case, every 3 months.

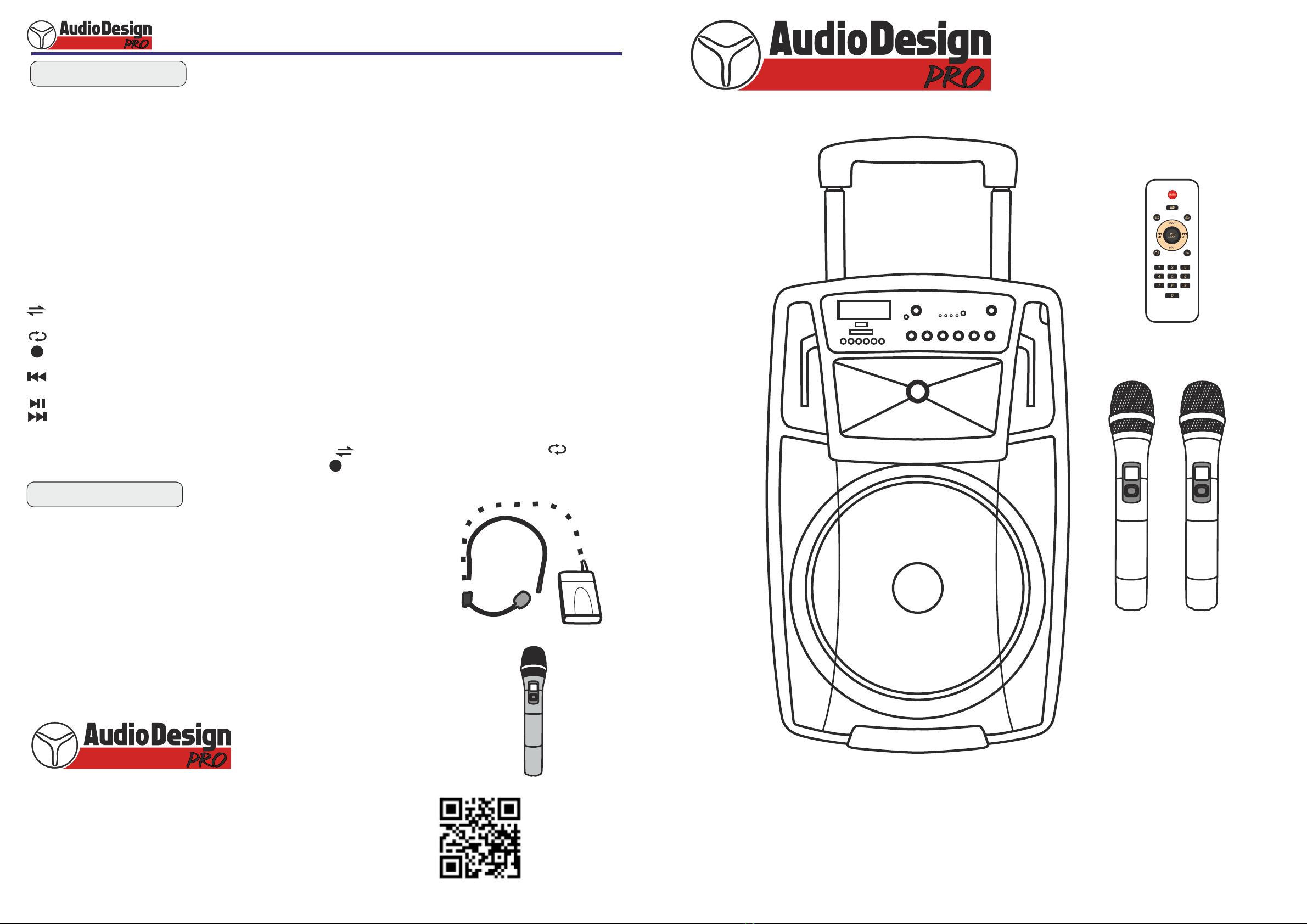

Compliments for choosing a professional enclosure of the M1 - M2 W/L series. This line of product is
completely new and offer a high sound pressure together with a sound rich of details.
Main features are:
* Amplifier in classe D with very high efficiency
* High SPL - Limiter and battery protection
* Echo on microphone inputs
* 1 input for wired microphones - 2 wireless microphones connections - 1 AUX input - 1 stereo
Line input
1 -Mic: wired microphone input (Jack 6.3
unbalanced)
3 -Vol: microphone volume (wired and
wireless)
4 -Echo: adjustment of the ECHO effect on
all microphone inputs
8 -Mic Pri: button for selecting the priority
function of the microphones. If activated,
when using microphones, it lowers the
volume of the multimedia section.
9 -USB-BT: multimedia area with USB / SD /
MMC / Micro SD - BT reader
10-USB/BT control buttons (*)
11-Line IN: stereo Line input (RCA)
12-Treble: adjustment of the high tones of the
USB-BT-Line inputs
13-Bass: adjustment of the bass tones of the
USB-BT-Line inputs
14-Volume: Adjusting the volume of the USB-
BT-Line inputs
15-Aux In: Aux input (Jack 6.3 unbalanced)
16-Vol: Adjusting the volume of the Aux input
18-DC In: connection of the 12 V DC power
supply
19-Power switch
21-Ext DC 12V: connection to external 12 V
battery. Pay attention to polarity !!
22-Output: mono line out connection (RCA)
23-LED: Power = on / Full = battery charged /
Charge = battery under charging / Low =
battery discharged (*)
(*) See next page

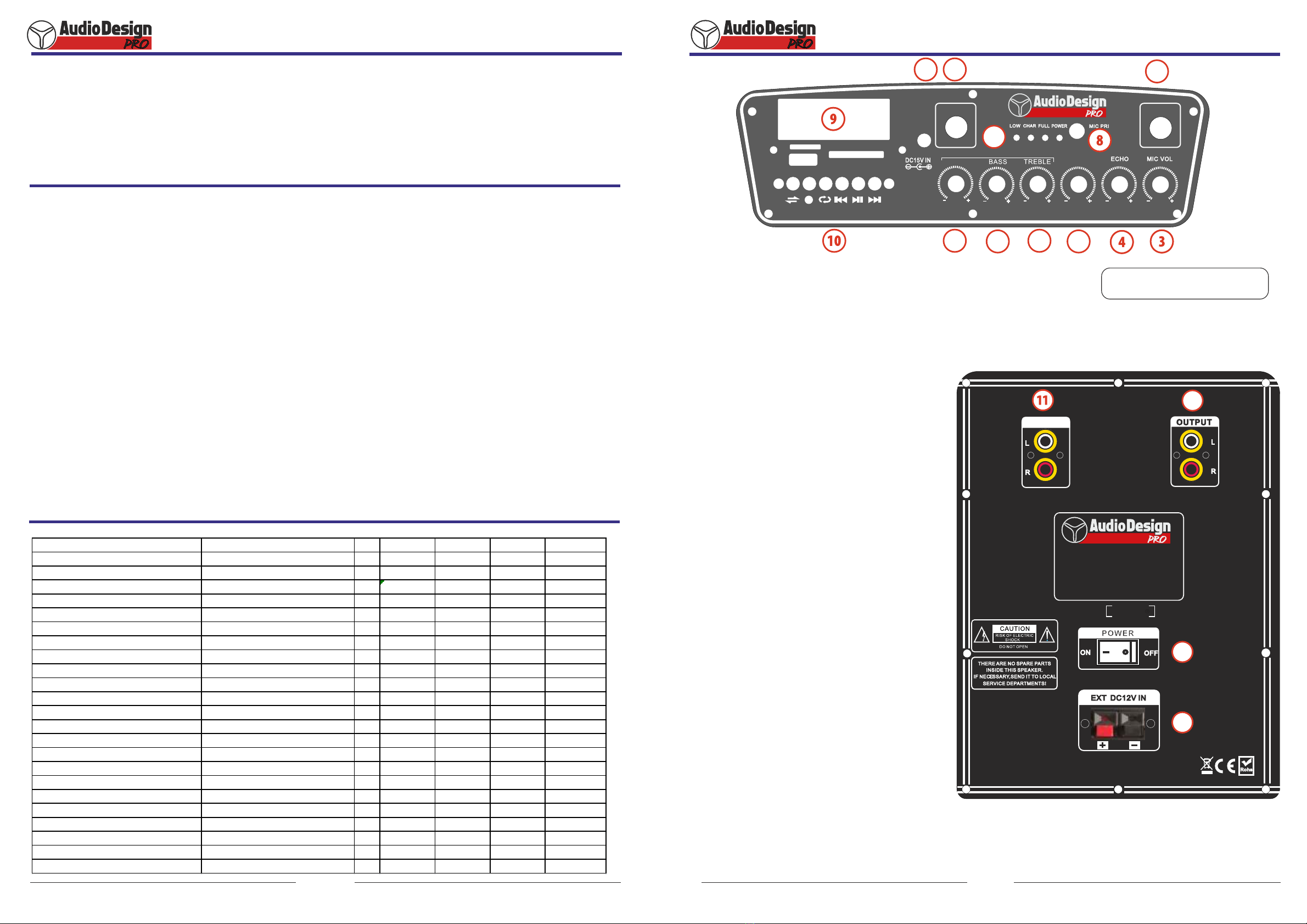

Connections and controls
High Power Battery active enclosures, serie M1 - M2 High Power Battery active enclosures, serie M1 - M2
2
Dati tecnici Specification M2 15W/L M2 12W/L M2 10W/L M1 7W/L
Potenza massima Max Power W 750 450 300 60
Potenza nominale totale Rated Total Power W 250 150 100 20
Distorsione alla potenza nominale Distortion at Rated Power < 0,5% 1% 1% 1%
Risposta in frequenza Frequency response Hz 50÷20.000 55÷20.000 60÷20.000 80÷19.000
Dispersione angolare orizzontale Horizontal Dispersion angle ° 90 90 90 90
Dispersione angolare verticale Vertical Dispersion angle ° 60 60 60 60
Misura Woofer Woofer size mm 380 320 250 170
Bobina del woofer Woofer V/C mm 38 38 38 19
Bobina del driver Compressor driver V/C mm 25 25 25 Piezo
Ingresso Mic 1 Mic 1 Input Jack Jack Jack Jack
Ingresso Mic 2 Mic 2 Input Jack --- --- ---
Ingresso AUX 1 AUX 1 Input Jack Jack Jack Jack
Ingresso Line Line Input RCA RCA RCA RCA
Uscita Output RCA RCA RCA RCA
Frequenza Mic Wireless 1 Wireless Mic 1 frequency Mhz 677 677 677 259,1
Frequenza Mic Wireless 2 Wireless Mic 2 frequency Mhz 660 660 660 ---
Regolazione livello Mic Mic Level Control Si Si Si Si
Effetto Echo sugli ingressi Mic Echo Effect on Mic Input Si Si Si Si
Regolazione livello Aux Aux Level Control Si Si Si Si
Regolazione livello Line USB / Line Level Control Si Si Si No
Reg. toni Alti e Bassi (USB/Line) USB/Line Bass & High control Si Si Si Si
Dimensioni (LxPxA) Dimensions cm 48x39x72 38x3x6 33x30x52 24x20,5x34
Peso Weight Kg 19,3 13,7 9,6 3,1
3
Item: M2.12 W/L
RMS Power: 150 W
Max Power: 450 W
Line IN
Serial Nr
Made in PRC
19
21
22
M2.12W/L
1414
14
17
AUX VOL
VOL
Micro SD
USB - Line
AUX IN Mic IN
USB SD - MMC card
1
13 12
15
16
