Audiolab DSP-4800 W Manuale utente

PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE /

POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR

USER MANUAL / MANUAL DE USUARIO

DSP-4800W

P. 2

OVERVIEW

Specications

 Systemperformance

• Input: 4 ways electronic balanced

• Impedance: >10KOhm

• CMRR: >65dB, 50Hz-10Khz

• Output: 8 ways electronic balanced

• Output impedance: <60-ohm

• Minimum loading impedance: 600-ohm

• Maximum output level: +20dBm (600 ohms loading)

• Frequency response: +/- 0.5dB 20Hz - 20Khz

• Dynamic range: >110dB 20Hz - 20Khz

• Distortion: <0.02% @ 1kHz, +18dBm

• Maximum delay: 650 mS

• (adjustable step distance is 2.6uS)

• Output gain: -40dB to +6dB,Step pitch: ±0.1dB

• Input Gain: 40dB to +15dB,Step pitch: ±0.1dB

Filter: 6-bands/each output, 8-bands/each input

• Filter gain: +15dB to -30dB, the step distance is 0.1dB

 ParameterEqualizer

• Transition frequency (low pass): 20Hz - 20kHz,

1/36 octave. (368 positions)

• Filter: Q value/band width 0.4 to 28.8 / 3 to 0.05

• Selectable low frequency / high frequency:

20Hz - 1kHz / 1kHz - 20kHz

• Gain: ±15dB, adjustable step distance is 0.1dB

• Central frequency: 20Hz - 20kHz, adjustable

step dist.: 1/36 octave (368 pos.)

 HighandLowPassFilter

• Filter: Each output with one lter

• Transition frequency (high pass): 10Hz –

16kHz, adjustable step distance is 1/36 octave

• Transition frequency (low pass): 60Hz – 22kHz,

adjustable step distance is 1/36 octave

• Selectable lter: Linkwitz-Riley, Bessel, Butterworth

 Limiter

• Threshold range: +20dBu to -10dBu

• Start-up time: 0.3 to 90ms

• Release time: Start-up time 4, 8, 16 or 32 times

ENGLISH VERSION

DSP-4800 W is an all-in-one wireless digital processor

with 4 inputs and 8 outputs. The unit uses a high preci-

sion 32 bit oating point and 96Khz sampling rate that

greatly reduces distortion. You can control the processor

via Wi-Fi, USB or LAN with the possibility of linking up

to 250 devices. DSP-4800 W shipswithXLR input and

output connectors.

DSP-4800W

P. 3

ENGLISH VERSION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

- WARNING -

When using electric products, basic precautions should

always be followed, including the following:

1. Read all the instructions before using the product.

2. Do not use this product near water (e.g. near a

bathtub,washbowl,kitchensink,inawetbasement,

near a swimming pool, etc.).

3. This product should be used only with a cart or stand

that will keep it level and stable and prevent wobbling.

4. This product, in combination with headphones or

speakers,maybecapableofproducingsoundlevels

thatcouldcausepermanenthearingloss.Donotop-

erateforalongperiodof timeatahighvolumelevel

oratalevelthatisuncomfortable.Ifyouexperience

any hearing loss or ringing in the ears, you should

consult an audiologist.

5. The product should be located so that its location

or position does not interfere with its proper ventilation.

6. The product should be located away from heat

sourcessuchasradiators,heatvents,orotherdevic-

es (including ampliers) that produce heat.

7. The product should be connected to a power sup-

ply only of the type described in the operating in-

structionsorasmarkedontheproduct.Replacethe

fuse only with one of the specied type and size and

with the correct rating.

8. The power-supply cord should:

1. Be undamaged

2. Never share an outlet or extension cord with

other devices so that the outlet’s or extension

cord’s power rating is exceeded, or,

3. Be left plugged into the outlet when left un

used for a long period of time.

9. Care should be taken so that objects do not fall

into and liquids are not spilled thorugh the enclo-

sure’s openings.

10. The product should be serviced by qualied ser-

vice personnel when:

1. The power supply cord or plug has been damaged;

2. Objects have fallen, or liquid has been spilled

onto the product;

3. The product has been exposed to rain; or,

4. The product does not appear to operate nor-

mally or exhibits a marked change in performance;

5. The product has been dropped, or the enclo-

sured damaged.

11. Do not attempt to service the product beyond that

described in the user-maintenance instructions. All

other servicing should be referred to qualied ser

vice personnel.

IMPORTANTSAFETYINSTRUCTIONS:

This product may be equipped tih a polarized line plug

(one blade wider than the other). This is a safety feature.

If you are unable to insert the plug into the outlet, con-

tact an electrician to replace your obsolete outlet. Do not

defeat the safety purpose of the plug.

(ForuseintheU.S.A.)

IMPORTANT:The wires in the mians lead are colored in

accordance with the following code.

BLUE:Neutral

BROWN:Live

As the colors of the wired in the mains lead of this ap-

paratus may not correspond with the colored markings

identifying the terminals in your plug proceed as follows:

The wire which is colored BLUE must be connected to

the terminal which is marked with the letter N or colored

BLACK. The wire which is colores BROWN must be con-

nected to the terminal which is marked with the letter L

or colored RED. Under no circumstances must either of

the baove wires be connected to the ground terminal of

a three pin plug. (ForuseinEurope)

DSP-4800W

P. 4

ENGLISH VERSION

1.FrontPanelandRearPanelControlsandConnectors

2.PanelOperation

2.1 Input Parameter Setting

2.2 Output Parameter Setting

2.3 System Parameter Setting

3.PCSoftwareOperation

4.Connectingasingleprocessor

5.Connectingmultipleprocessors

CONTENTS

DSP-4800W

P. 5

ENGLISH VERSION

 Features:

• Use 32 bits oating point unit, made the opera-

tion precision more higher.

• Use96KHz sampling frequency, one time higher

than the similar products in the market. Sound

more nicety, less distortion.

• PC long-distance control by use the attached

software: Short distance can be control by con-

necting WIFI, USB connecter or RJ45(LAN) con-

necter. Long-distance control through RJ45(LAN)

connecter. It can control maximium 250 pcs

products, maximnum distance 1000 meters. (It

depends on the electromagnetic environment.)

1.FRONTPANELANDREARPANEL

CONTROLSANDCONNECTORS

1.LCDDisplay:Displaytheparametersandmenu.

2.FunctionSelect.

3.Default:3 Default keyboard shortcuts, mostly

adjust using the PROGRAM.

4.Substitutecontrolkey.

5. Input LED meter from the top to down: MUTE

6dBU0dBu-6dBuSIGNEDIT.

6. Output LED meter from the top to down: MUTE

6dBU0dBu-6dBuSIGNEDIT.

7.USBconnectors:Connect with the PC in close quarters.

8.WIFI: Short distance can be controlled by con-

necting through WIFI.

FRONTPANEL

DSP-4800W

P. 6

ENGLISH VERSION

1.PowerCord.

2.PowerSwitch.

3.VentilationHoles.

4.LANConnector.

5. OUTPUT Connectors: These XLR-3-32 Balanced

connectors output each channel analog audio signals.

6.INPUTConnectors:These XLR-3-31 Balanced con-

nectors input each channel analog audio signals.

REARPANEL

DSP-4800W

P. 7

ENGLISH VERSION

2.PANELOPERATION

INPUTPARAMETERSETTING:

Long press (about 3 second)“INA/INB/INC/IND”,

and then the relevant channel into Edit Status, yellow

light display. (Each channel default for mute), Short press

relevant function key set the parameter setting, press

“<BACK” and “NEXT>” select function setting, short

press ENTER to conrm relevant parameter.

1.NameSetting:

 Example

1. Press A channel key about 3 seconds

till the yellow light display, into Edit Status.

Displaynext:

2. Turn the rst knobof “PARA” select gure

or letter, then, the second knob to select next

one. Press ENTER to conrm and save.

2.InputDelaySetting:

 Parameter Delay, adjust range: 0ms-1000ms,

0Meter-346Meter, 0Feet-1134.88Feet.

Example

1. PressA channel key about 3 seconds till the

yellow light display, into Edit Status.

2. Press “<BACKor“NEXT>”, switch to Delay.

Displaynext:

3.InputPolaritySetting:

 ParameterPolarity, +Normal:Positive, -Invert:

Negative pole. Each channel has unattached

phase control.

Example

1. PressA channel key about 3 seconds till the

yellow light display, into EditStatus.

2. Press “<BACKor“NEXT>”, switch to Polarity.

3. Turn the rst knob of “PARA” to change the Polarity.

Displaynext:

DSP-4800W

P. 8

ENGLISH VERSION

4.InputGainSetting:

 ParameterGain, adjust range: -40.0dB-+6.0dB,

Step pitch is 0.1dB. Each channel has unat-

tached gain control.

Example

1. PressA channel key about 3seconds till the

yellow light display, into EditStatus.

2. Press “<BACKor“NEXT>”, switch to Gain.

Displaynext:

3. Turn the rst knob of “PARA” to change the value.

(Turn the knob clockwise, the value increase:

Turn the knob withershins, the value decrease.)

5.EQsetting:

 ParameterEQ,INA-IND Each channel can set 8

parameter EQ(EQ1-EQ8).

A: At parameter status:

Freq: 20Hz-20KHz

Gain: -30dB-+15dB

Bandwidth: 0.05/Oct-3/Oct

B: At Lo_Shelf, Hi-shelf status:

Freq: 20Hz-20KHz

Gain: -30dB-+15dB

Bandwidth: 0.05/Oct-3/Oct

Example

1. PressA channel key about 3 seconds till the

yellow light display, into EditStatus.

2. Press “<BACKor“NEXT>”, switch to EQ, into

“Parameter” setting status.

Displaynext:

3. Turn the rst knob of “PARA”, switch to “Lo--

 shelf”or“Hi-shelf” setting status, Press EN-

TER to conrm.

Displaynext:

DSP-4800W

P. 9

ENGLISH VERSION

4. PressENTER,conrm select “Lo-shelf” sta-

tus, into parameter setting. Turn the rst knob

of “PARA”to adjust the gain value. Turn the sec-

ond knob to adjust Freq. Turn the third knob to

select slope. (Turn the knob clockwise, the value

increases; Turn the knob withershins, the value

decreases.

Displaynext:

5. Press “<BACK>” or “<NEXT>”, can switch

among EQ1-EQ8, the setting method is the same.

 6.NoisegateSetting:

 Parameter Noisegate, Range: -120.0dBu-+10d-

 Bu. Each channel has unattached Noisegatecontrol.

Example

1. PressA channel key about 3seconds till the

yellow light display, into EditStatus.

2. Press “<BACKor“NEXT>”, switch to Noisegate.

Displaynext:

3. Turn any knob of “PARA” to adjust the settings.

(Turntheknobclockwise,thevalueincreases;Turn

the knob withershins, the value decreases.)

OUTPUTPARAMETERSETTING:

Press long (about 3 second) “OUT1-OUT8”, and then

EditStatus, till the relevant channel yellow light display.

(Each channel default to mute), Short press the rele-

vant function key can set the parameter setting. Press

“<BACK”and“NEXT>” to select function setting, short

press ENTER to conrm relevant parameter.

1.NameSetting:

 Example

1. Press OUT1 channel for 3 seconds till the yel-

low light display, into EditStatus of OUT1.

Displaynext:

2. Turn the rst knob “PARA” to select gure or

letter, the second knob to select next one, and

press ENTER to conrm and save.

DSP-4800W

P. 10

ENGLISH VERSION

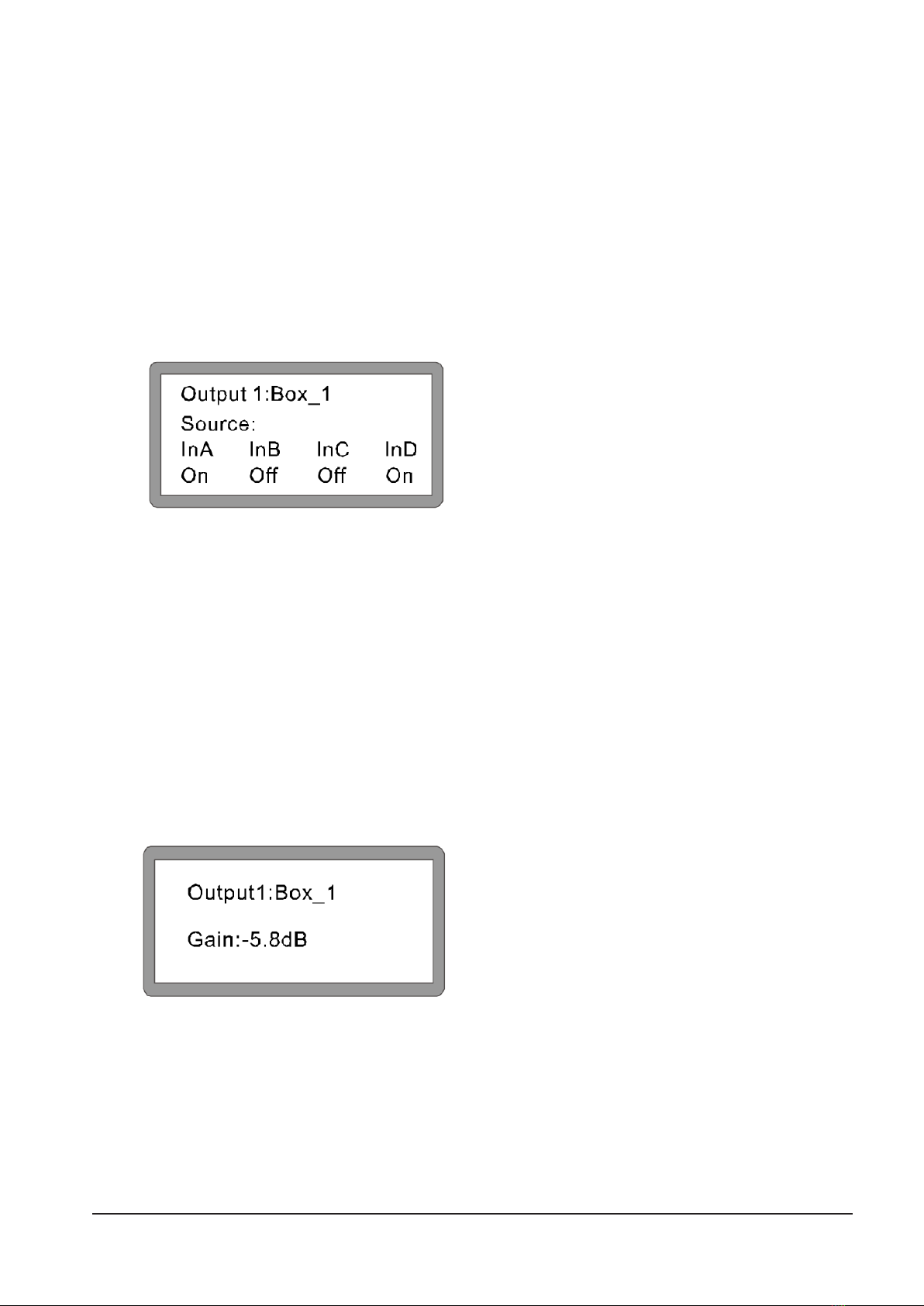

2.SignalSourceSetting:

Example

1. Press OUT1 channel for 3 seconds till the yel-

low light display, into EditStatus of OUT1.

Displaynext:

2. Turn the rst knob “PARA” to select ON or

 OF, then press ENTER to conrm.

3.OutputGainSetting:

 ParameterGain,adjust range: -40.0dB-+15.0dB,

Step pitch is 0.1dB. Each channel has unat-

tached gain control.

Example

1. Press OUT1 channel for 3 seconds till the yel-

low light display, into EditStatus of OUT1.

2. Press “<BACKor“NEXT>”, switch to Gain.

3. Turn the rst knob of “PARA” to change the value.

(Turn the knob clockwise, the value increases:

Turn the knob withershins, the value decreases.)

Displaynext:

Altri manuali per DSP-4800 W

Indice

Lingue:

Altri manuali Audiolab Processore del suono

Audiolab

Audiolab DSP-2600 Manuale utente
