Model PAB-1500D

1000 Watt Monaural Amplifier

INDEX

Specifications...........................................................................1

Precautions ..............................................................................2

Installation Instructions ............................................................3

Wiring Instructions ............................................................. 4 - 5

Mono Input Wiring Diagram ....................................................6

Mono Output Wiring Diagram..................................................7

Operation ........................................................................... 8 - 9

Warranty.................................................................. Back Cover

HIGH PERFORMANCE AMPLIFIER

This power amplifier has been designed to provide high quality performance with

aminimumof maintenance. However,it'sperformance willonlybe asgoodas the

careandqualityofcomponentswith which it is installed. Wethereforeadvisethat

youreadtheseinstructionsverycarefullytofamiliarizeyourselfwiththeproductand

it's features.

Shouldyourequire assistance withtheinstallation or wiringofthisunit, pleasecall

our toll-free "HELP" line at 1-800-645-4994 during the days/hours shown.

Monday - Friday

Saturday

8:30am - 7:00pm Eastern

9:00am - 5:00pm Eastern

1-800-645-4994

HELP!

-1-

SPECIFICATIONS

*Due to continuing improvement, Audiovox reserves the right to change features and design without notice.

Maximum Output Power:

Mono Operation 1000 watts peak x 1

RMS Output Power: 500 watts x 1 @ 2 ohms

300 watts x 1 @ 4 ohms

THD at 4Ohms: 0.3%

THD at 2Ohms: 0.7%

Signal/Noise Ratio: 65dB

Damping Factor: >20

Input Impedance:

Low-Level 10K ohms

Input Sensitivity: 200mV-4V.

Filter Types:

Variable Low Pass 50Hz to 250Hz,

18dB/Oct

Variable Sub-Sonic 20Hz to 50Hz,

18dB/Oct

Bass Boost +12dB @ 45Hz

+18dB @ 60Hz

Supply Voltage: 12 Volts, Negative

Ground

Dimensions (W x H x D): 10-3/4" x 2-3/8" x 9-1/2"

(273mm x 62mm x 240mm)

PRECAUTIONS

-2-

1. Althoughthisunitisdesignedwithbuilt-inself-protectioncircuits, theremaybeapossibilityofdamageifitisnotwired

correctly. Please follow the wiring instructions carefully for the type of system being used.

2. Thelastleadtobeconnectedisthe wire to the positive (++

+)terminalofthebattery. Connectthiswireonlyafterhaving

completed and checked all other connections to the amplifier.

3. By nature of its design, a power amplifier generates heat and requires good air circulation around it to dissipate that

heat. Do not install the amplifier in an enclosed area which does not permit adequate air circulation. Should the

temperature of the unit rise too high, the internal thermal sensors will shut off operation until it has cooled down

sufficiently.

4. If fuse replacement is necessary, use only fuses of the same ampere rating as originally supplied with the unit. The

use of fuses with incorrect ratings may cause serious damage to the amplifier. If fuses blow consistently, carefully

check all electrical connections to the unit.

5. Supply of adequate battery voltage is critical to the proper operation of the power amplifier. The leads to the battery

and chassis ground mustmust

mustmust

must

be of a thick enough gauge to provide this voltage to the amplifier. We recommend #10#10

#10#10

#10

gauge wire or larger (smaller gauge #) for the battery and ground leads.

6. Make certain that the speaker(s) to be used with this amplifier is capable of handling the output power (wattage) of

theunit. Useofaspeaker(s)notratedfortheoutputofthisamplifiermaycausedamageto,orfailureof,thespeaker(s)

for which Audiovox will not be liable.

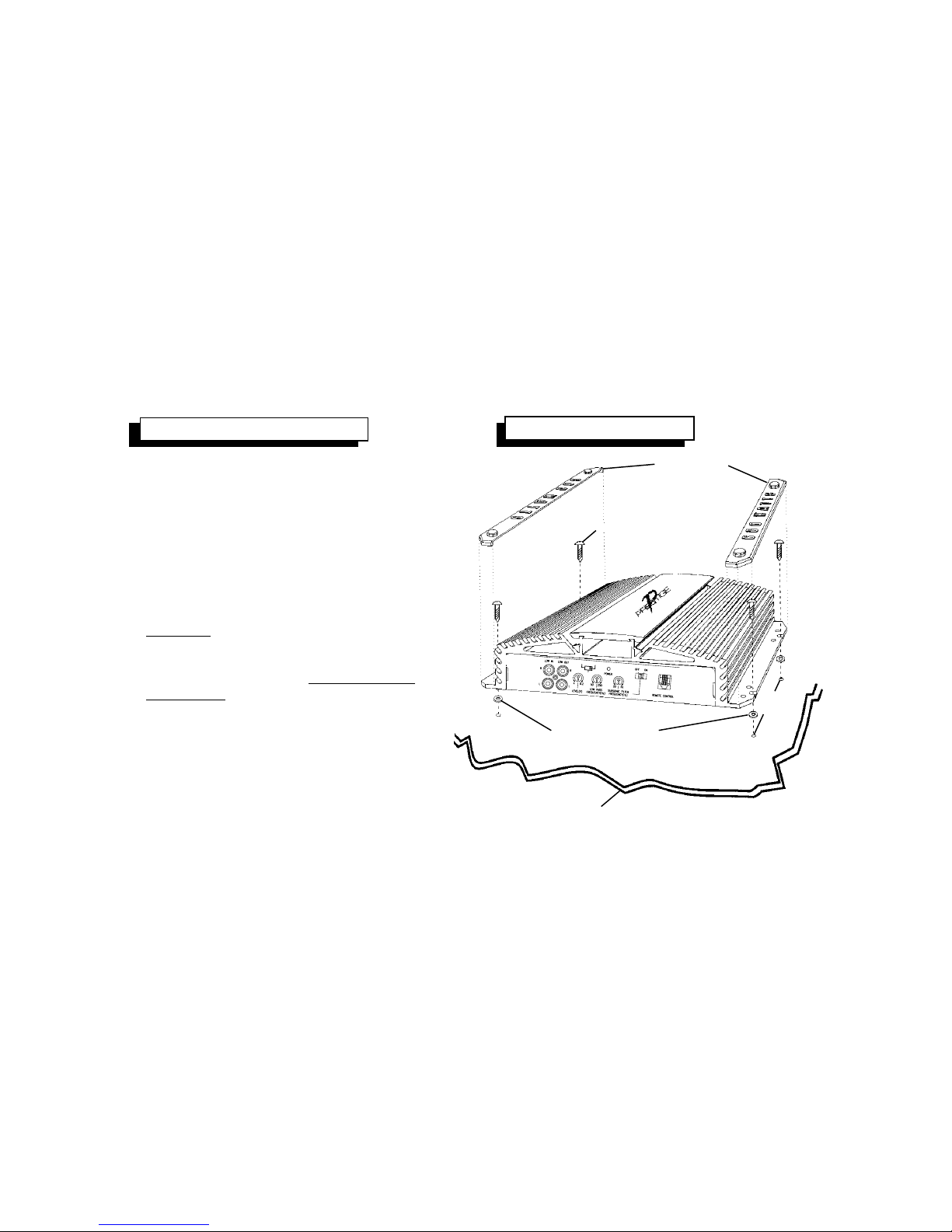

INSTALLATION INSTRUCTIONS INSTALLATION DIAGRAM

1. Select a mounting area where the amplifier will

havesufficientair circulation for proper cooling.

Inadequate air circulation will cause the

temperature of the amplifier to rise and will

trigger the thermal protection mode.

2. Placetheamplifieronthemountingsurfaceand

markthelocationsofthefourmountingholesas

shown in the illustration at the right.

3.Removetheamplifieranddrilla1/8"holeateach

of the four locations.

CAUTION:CAUTION:

CAUTION: Before drilling the holes, look at the

underside of the mounting surface. Always

check carefully to avoid drilling into wiring,

braces, fuel or brake lines. CHECK BEFORECHECK BEFORE

CHECK BEFORECHECK BEFORE

CHECK BEFORE

YOU DRILL !YOU DRILL !

YOU DRILL !

4. Apply a self-adhesive rubber washer to the

bottom of the amplifier at each of the 4 screw

locations. Secure the amplifier to the mounting

surfaceusingtheself-tappingscrewsprovided.

5. Attach the plastic end panels to the amplifier

by pressing them into position on the amplifier.

-3-

MOUNTING SURFACE

1/8" DIA.

HOLE

SELF-TAPPING SCREW

END PANELS

RUBBER WASHERS

REMOTECONTROL

OFF 12dB 18dB

OFF18dB/60Hz

BASS BOOST

12dB/45Hz

-4-

WIRING INSTRUCTIONS

Wiringyouramplifierwilldependon the system and speakers youareusing.Theamplifieriscompatible only with a radio

having a low-level stereo output, thereby instituting a mixed stereo-mono application. The following pages illustrate the

inputandoutputwiringforthistypeofinstallation,andanyothersetupattheuser'soption. Pleaserefertotheappropriate

diagrams for the system configuration.

The power and speaker wire connections for this amplifier are made via screw tightened terminal blocks. Loosen the

screw for the connection to be made and fully insert the wire (strip 1/2" of insulation from the end) under the respective

screw on the side panel (crimp-on "U" terminals are provided to simplify wiring and we recommend their use). Tighten

the screw down to secure the wire.

1. Power Connection1. Power Connection

1. Power Connection

The battery terminal (+12V) must be connected directly to the positive terminal of the vehicle battery to provide an

adequatevoltagesourceandminimizenoise. Connectingthebatteryterminalleadtoanyotherpoint(suchasthefuse

block) willreduce the poweroutput and maycause noise anddistortion. Use only #10#10

#10#10

#10 gaugeorthicker(smallergauge

#) wire for this lead and connect it to the terminal of the battery after all other wiring is completed.

2. Ground Connection2. Ground Connection

2. Ground Connection

The ground terminal (GND) connection is also critical to the correct operation of the amplifier. Use a wire of the same

gaugeasthepower connection(#10#10

#10#10

#10orthicker)andconnectitbetween thegroundterminal(GND)oftheamplifierand

a metal part of the vehicle close to the mounting location. This wire should be as short as possible and any paint or

rust at the grounding point should be scraped away to provide a clean metal surface to which the end of the ground

wire can be screwed or bolted.

3. Remote Turn-On Connection3. Remote Turn-On Connection

3. Remote Turn-On Connection

The amplifier is turned on by applying +12 volts to the remote turn-on terminal (REM). The wire lead to this terminal

should be connected to the "Auto-Antenna" lead from the car stereo which will provide the +12 volts only when the car

stereo is turned on. If the car stereo does not provide an Auto-Antenna lead, the remote turn-on lead may be wired

-5-

WIRING INSTRUCTIONS

toan "Accessory" or "Radio"terminal in thecar's fuse block. Thiswill turn the amplifieron and offwith the ignition key,

regardless of whether the car stereo is on or off. The remote turn-on lead does not carry large currents, so #20#20

#20#20

#20 gauge

wire may be used for this application.

4. Speaker Connections4. Speaker Connections

4. Speaker Connections

Only 4 Ohm or 2 Ohm impedance speaker(s) can be used with the amplifier. Wire it to the speaker terminals as per

the appropriate wiring diagram. For most applications, #18#18

#18#18

#18 gauge wire should be used for the speaker leads but in no

case thinner than #20#20

#20#20

#20 gauge. For leads in excess of 10 feet, #16#16

#16#16

#16 gauge is recommended. When wiring the speaker,

pay careful attention to the polarity of the terminals on the speaker and make certain they correspond to the polarity

ofthecorrespondingterminalsontheamplifier. DONOTDONOT

DONOTDONOT

DONOTgroundeitherofthespeakerleadstothechassisofthevehicle.

5. Input Connections5. Input Connections

5. Input Connections

Thisamplifierfeatureslow-levelinputandoutputcapability,plusremotesub-wooferlevelcontrol. The low-level output

capability can be used if an additional amplifier is installed. When low-level outputs are provided from the car stereo,

this amplifier can be included in the audio system as shown in the associated wiring diagram. The amplifier low-level

inputs provide the lowest distortion and best performance. Use good quality shielded audio cables with RCA plugs at

both ends to connect the stereo to the amplifier and keep the cable lengths to a minimum to avoid noise.

If the car stereo does not provide low-level outputs, the amplifier cannot be used, since high level speaker inputs are

not provided.

6. Remote Sub-Woofer Level Control Connection6. Remote Sub-Woofer Level Control Connection

6. Remote Sub-Woofer Level Control Connection

Remote sub-woofer level control is provided by a PAB-RC control unit, which can be connected to the amplifier using

a REMOTE CONTROL telephone cable (supplied) with RJ-11 connectors at each end. Refer to the amplifier wiring

diagram for details.

CAR STEREO

LOW-LEVEL

RCA OUTPUTS

RCA TYPE

SHIELDED CABLE

(NOT SUPPLIED)

USE THIS INPUT WIRING WITH

OUTPUT WIRING ON PAGE 7

LEFT

RIGHT

REMOTE SUB-WOOFER

CONTROL UNIT PAB-RC

RJ-11 CONNECTOR

STANDARD TELEPHONE

CABLE

RJ-11 CONNECTOR

RCA TYPE

SHIELDED CABLE

(NOT SUPPLIED)

LOW LEVEL RCA OUTPUTS

TO 2ND AMPLIFIER

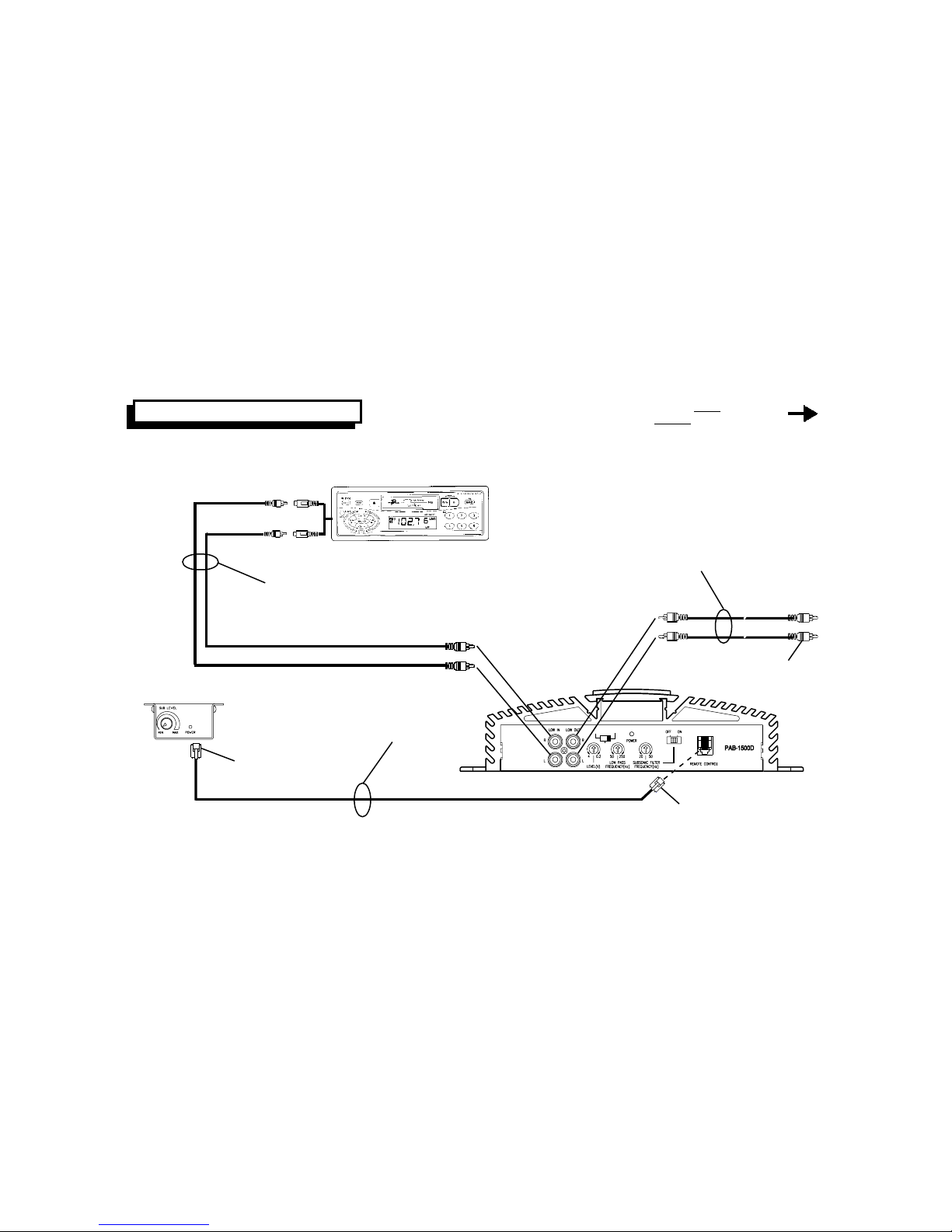

MONO INPUT WIRING DIAGRAM

-6-

OFF 18dB/60Hz

BASS BOOST

12dB/45Hz

USE #10 GAUGE

WIRE (SEE TEXT)

CAR STEREO

MONO

SPEAKER(S)

SUB-WOOFER(S)

2 - 4 OHMS

12 VOLT

VEHICLE

BATTERY

AUTO-ANTENNA

LEAD

CHASSIS

GROUND

USE THIS OUTPUT WIRING WITH INPUT

WIRING ON PAGE 6

CONNECT THIS

WIRE LAST

EXISTINGSCREWORBOLT

CLEAN PAINT, RUST, DIRT

OR GREASE FROM AREA

FOR GOOD CONNECTION

GROUNDED METAL

SECTIONOFVEHICLE

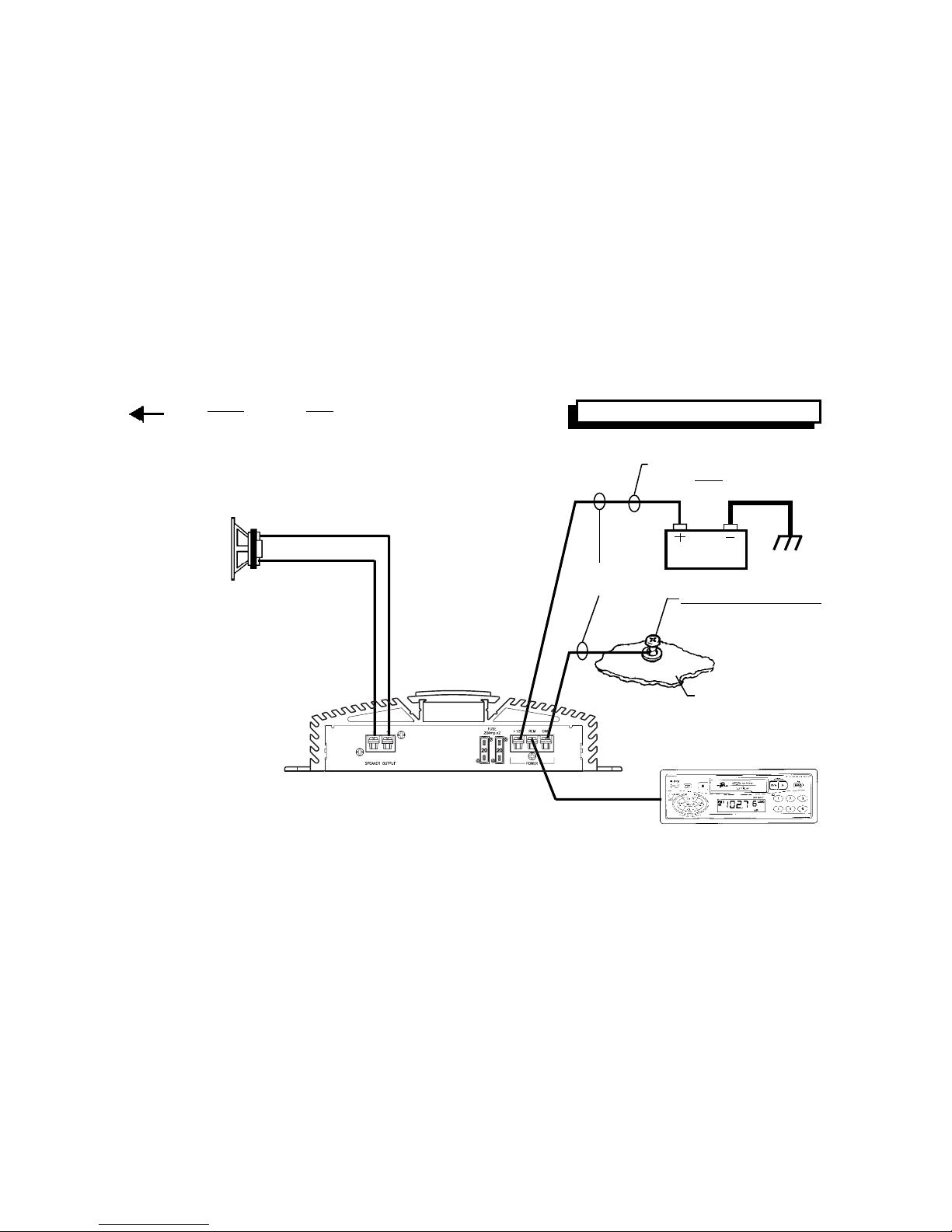

MONO OUTPUT WIRING DIAGRAM

-7-

-8-

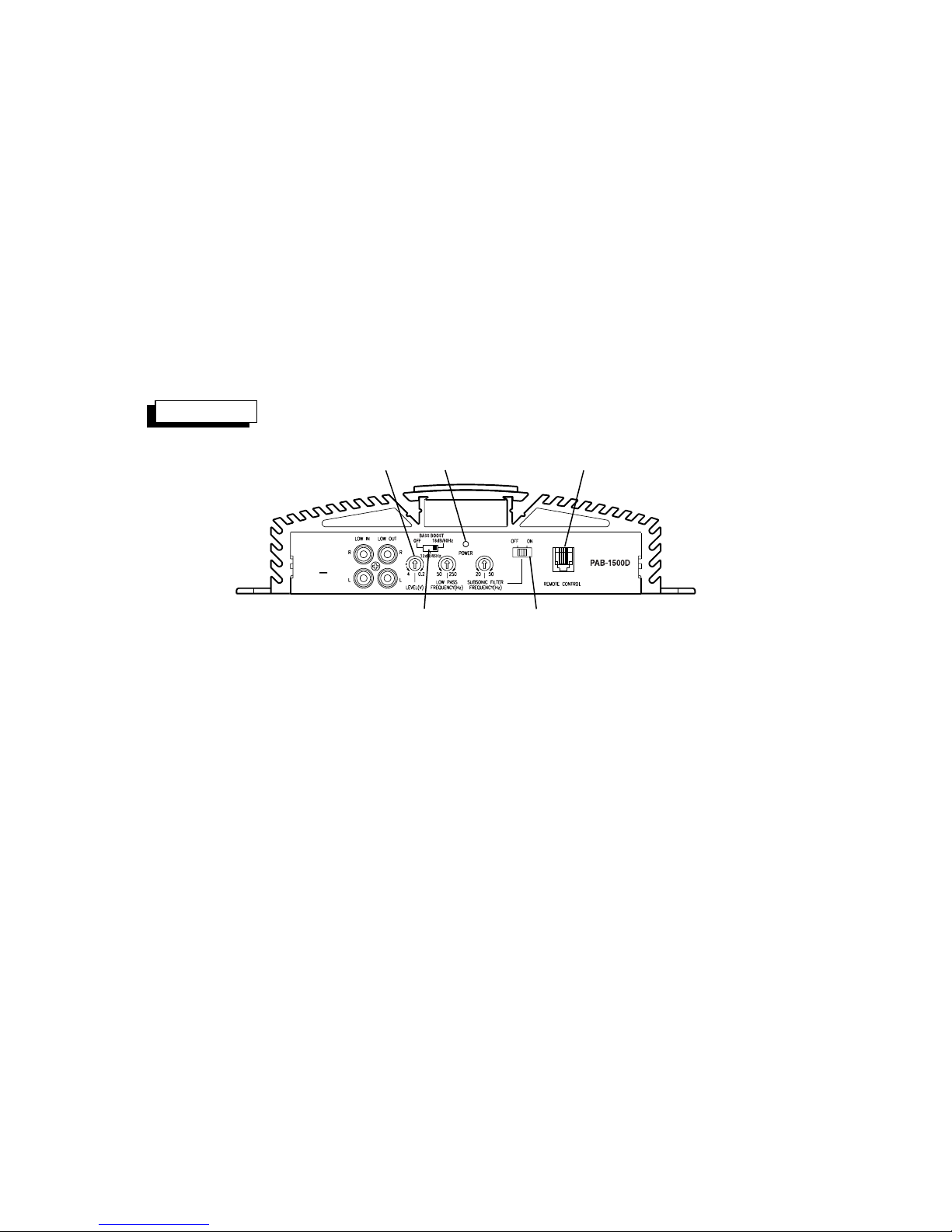

OPERATION

1Power Indicator

The POWER LED functions as both a power and a

warning indicator. When the amplifier is off, the indicator

is inactive and appears white. When power is applied to

the amplifier, the LED indicator illuminates green, provided

no malfunction is present, thus signifying the amplifier is

operating normally. When the LED illuminates red, the

built-in self-protection circuits have been activated and

haveshut downoperation ofthe amplifier. Theprotection

circuits may be triggered by the temperature of the unit

rising above a safe level or by an overload condition. If

activated by a rise in temperature, the unit will resume

operation after cooling off to a normal operating range. If

activated by an overload condition, the source of the

overload must be found and corrected to resume normal

operation of the amplifier. Most overload conditions are

Afterinitialset-up,theamplifiershouldnotrequireanyfurtheradjustmentunlessthereisachangeinthecarstereoorspeaker

system with which it is used. 2

caused by mis-wiring or operation into incorrect speaker

loads. Re-check all wiring and connections if this

situation occurs and correct as necessary.

2Level(V) Control

The amplifier is capable of operating from audio signal

sources supplying a wide range of input levels. The

Level (V) control shouldinitiallybesettothe mid-position.

Ifitisfoundthatthereisnotenoughoutput,evenwhenthe

volumecontrolonthecarstereoisatitsmaximumsetting,

adjust the Level control to increase the output from the

system. If,however,thereisstilloutputfromtheamplifier

when the car stereo volume control is at its minimum

setting, or the output level increases too fast with a small

rotation of the volume control, adjust the Level control to

decrease the output from the system.

Indice

Altri manuali Audiovox Amplificatore

Audiovox

Audiovox Rampage AMP-610 Manuale utente

Audiovox

Audiovox Rampage AXT-500 Manuale utente

Audiovox

Audiovox AMP-590A Manuale utente

Audiovox

Audiovox Prestige PAB-250R Manuale utente

Audiovox

Audiovox Phase Linear UPA224 Manuale utente

Audiovox

Audiovox Rampage AMP-592C Manuale utente

Audiovox

Audiovox AMP-596C Manuale utente

Audiovox

Audiovox POWER PLUS Manuale utente

Audiovox

Audiovox Rampage AMP-602 Manuale utente

Audiovox

Audiovox AXT-550 - Rampage Amplifier Manuale utente

Audiovox

Audiovox Prestige PAB-2100R Manuale utente

Audiovox

Audiovox Jensen PS1220M Manuale utente

Audiovox

Audiovox AMP-591A Manuale utente

Audiovox

Audiovox BTR120 Manuale utente

Audiovox

Audiovox Prestige PAB-2150R Manuale utente

Audiovox

Audiovox Menace PA-S450 Manuale utente

Audiovox

Audiovox AMP-594 Manuale utente

Audiovox

Audiovox Rampage AXT-1200 Manuale utente

Audiovox

Audiovox Menace PA-S2100 Manuale utente

Audiovox

Audiovox Menace PA-S250 Manuale utente

Audiovox

Audiovox Jensen A34XP Manuale utente

Audiovox

Audiovox Menace PAS2150 Manuale utente

Audiovox

Audiovox Jensen Power JPA260 Manuale utente

Audiovox

Audiovox Prestige PAB-450R Manuale utente

Manuali Amplificatore popolari di altre marche

ASTRO

ASTRO HVO V40 P Manuale utente

Marantz

Marantz SUPERSCOPE BLA-545 Istruzioni per il montaggio

NAD

NAD CI980 Manuale utente

Technics

Technics SE-CH770 Manuale utente

Harman Kardon

Harman Kardon HK6300 Manuale utente

NAD

NAD T975 Manuale utente

McIntosh

McIntosh MA6850 Manuale utente

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuale utente

Viatron

Viatron Autrix Manuale utente

GME

GME GA9800 Manuale utente

Atlas

Atlas CP700 Manuale utente

Roland

Roland KC-1000 Manuale utente

Pyle

Pyle PFMRA350BW Manuale utente

Advantage

Advantage S-250 Manuale utente

IRT Electronics

IRT Electronics DVA-3007 Manuale utente

Dimavery

Dimavery BA-100 Series Manuale utente

Sony

Sony XM-S400D Manuale utente

Schertler

Schertler ROY X Manuale utente
