Audiovox CMOLF Manuale utente

128-8104

1 of 8

Model CMOLF

License Plate Rearview Camera

with Selectable Normal/Reverse Image

CMOLF FEATURES:

•Built Into License Plate Frame

•HighResolution,1/4”CMOSColorCamera

•Compact ZincAlloy Die Cast Body

•WaterproofHousing

•WaterproofMicrophone

•130O WideAngleView

•SelectableNormal/ReverseImage

128-8104

2 of 8

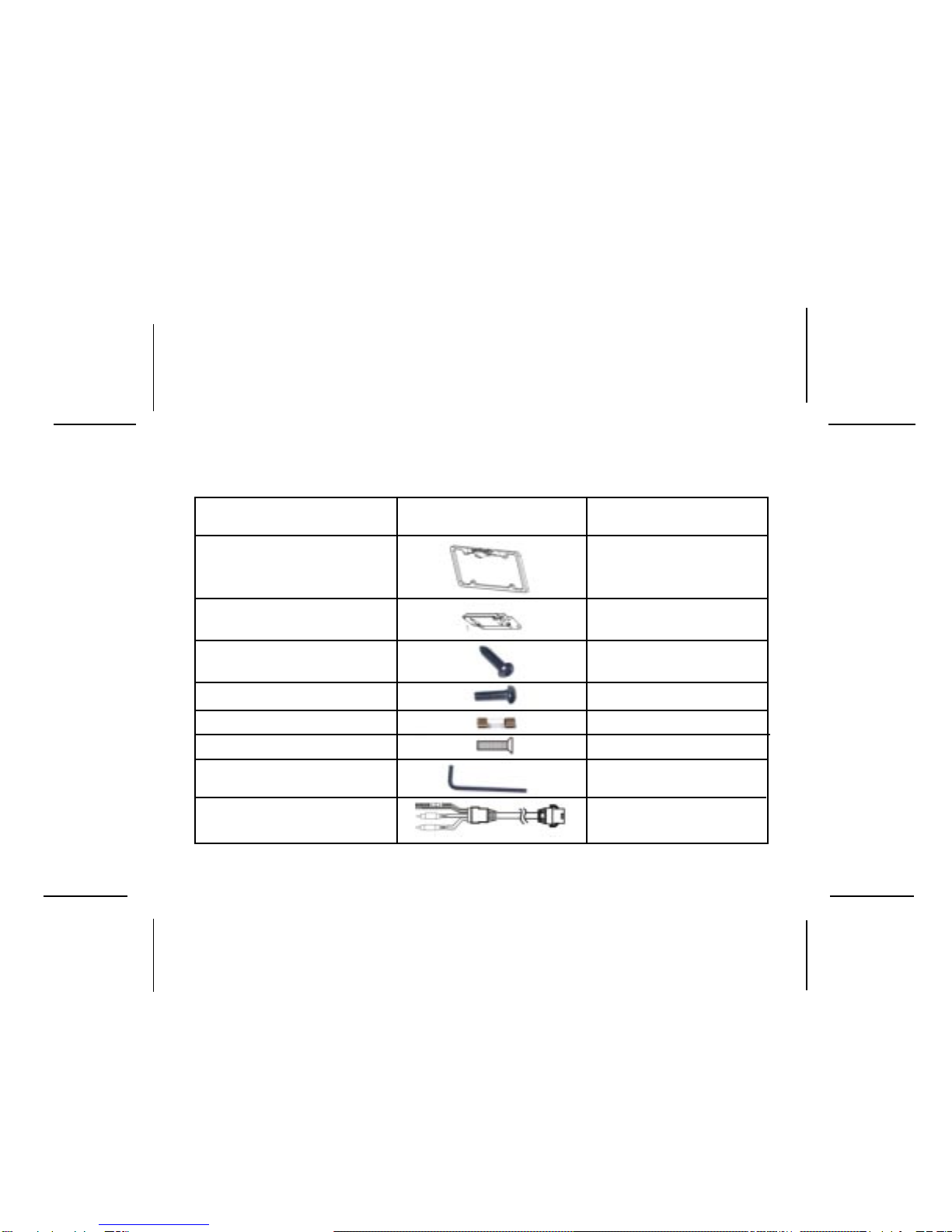

CONTENTS

ITEM FIGURE QUANTITY

LICENSEPLATEWITH 1

CAMERA

CAMERA ANGLE 1

ADJUSTMENTWEDGE

THEFT-PROOF SCREWS 2

FUSE(1A) 1

CAMERAMOUNTINGBOLT 2

ANTI-THEFTALLENKEY 1

EXTENSIONCABLE 1

128-8104

3 of 8

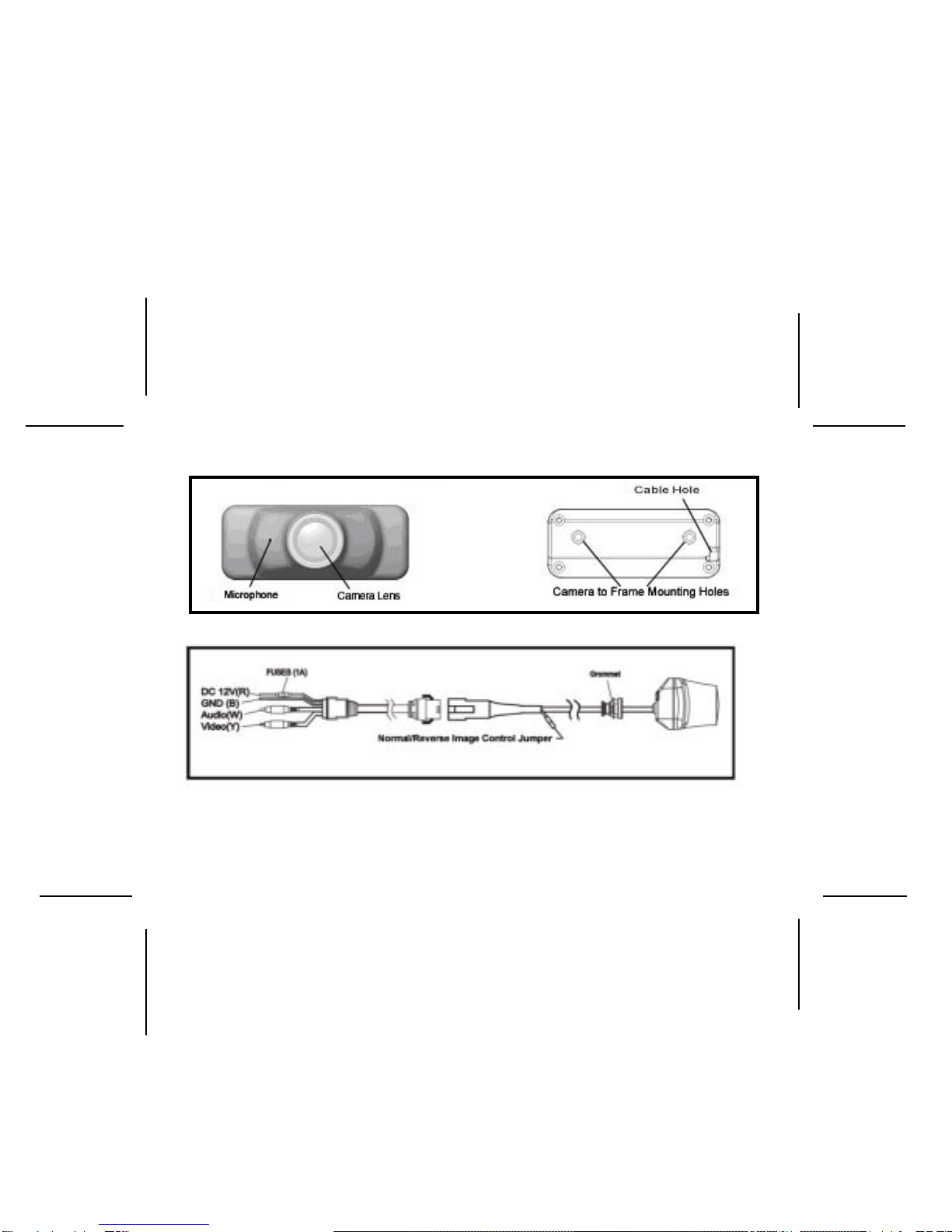

Color Camera View:

Cable Connector End View:

Normal/ReverseImageJumper:

The jumper is located at the camera cable connector. With jumper installed in the harness,

the camera image will be normal. When the jumper is removed from the harness, the

cameraimagewill bereversed.

128-8104

4 of 8

Installation.

1. Locate suitable location near the vehicles rear license plate to route the camera

cable. The camera cable can be routed through an existing grommet or use a

location where a 5/8” hole can be drilled. Be sure to check behind intended drilling

location. Check for camera interference with license plate lights, hatch release

switch and/or mechanism.

2. Remove the screws holding the rear license plate to the vehicle and remove plate.

3. Place the license plate into the camera license plate frame. If routing camera cable

into vehicle behind license plate, drill a 5/8-inch hole at selected location. Coat

edge of hole with rust preventative. Then route the camera cable connector through

the hole and insert grommet into hole. Place the license plate against vehicle and

line up the mounting screw holes. Using the black screws provide, tighten the

screws with the anti-theft tool provided. Pull gently on the camera cable to remove

slack

4. If routing camera cable into vehicle above license plate, remove license plate light

valence. Drill a 5/8-inch hole at selected location. Coat edge of hole with rust

preventative. Then route the camera cable through the hole and insert grommet

into hole. Place the license plate against vehicle and line up the mounting screw

holes. Using the black screws provide, tighten the screws with the anti-theft tool

provided. Pull gently on the camera cable to remove slack

128-8104

5 of 8

View angle adjustment:

This camera frame is designed for universal application. The angle of the image of the

installed frame might have to be adjusted depending on the license plate mounting angle.

There is a 10-degree angle adjustment wedge supplied to change the downward angle

from 40 degrees to either 30 or 50 degrees. The angle wedge goes between the camera

frame and camera body. Longer camera mounting screws are provided for use with the

angle wedge

1. Turn on monitor and look at back up camera image. You should be able to see a

small portion of the vehicles bumper.

2. If you see too much bumper, the downward angle must be decreased. Place the

thin edge of the wedge on top between the camera and frame.

3. If you cannot see the bumper at all, the downward angle must be increased. Place

the thin edge of the wedge on the bottom between the camera and frame.

5. Connect the Camera cable to the extension cable (supplied). Route the extension

cable up to the intended monitor. Connect as follows:

a. Black wire- connect to chassis ground

b. Red wire- connect to 12V accessory wire

c. Yellow RCA- connect to Video input

d. Red RCA- connect to audio input (if equipped)

6. Disregard step 5 if connecting to Audiovox 4-pin camera cable.

128-8104

6 of 8

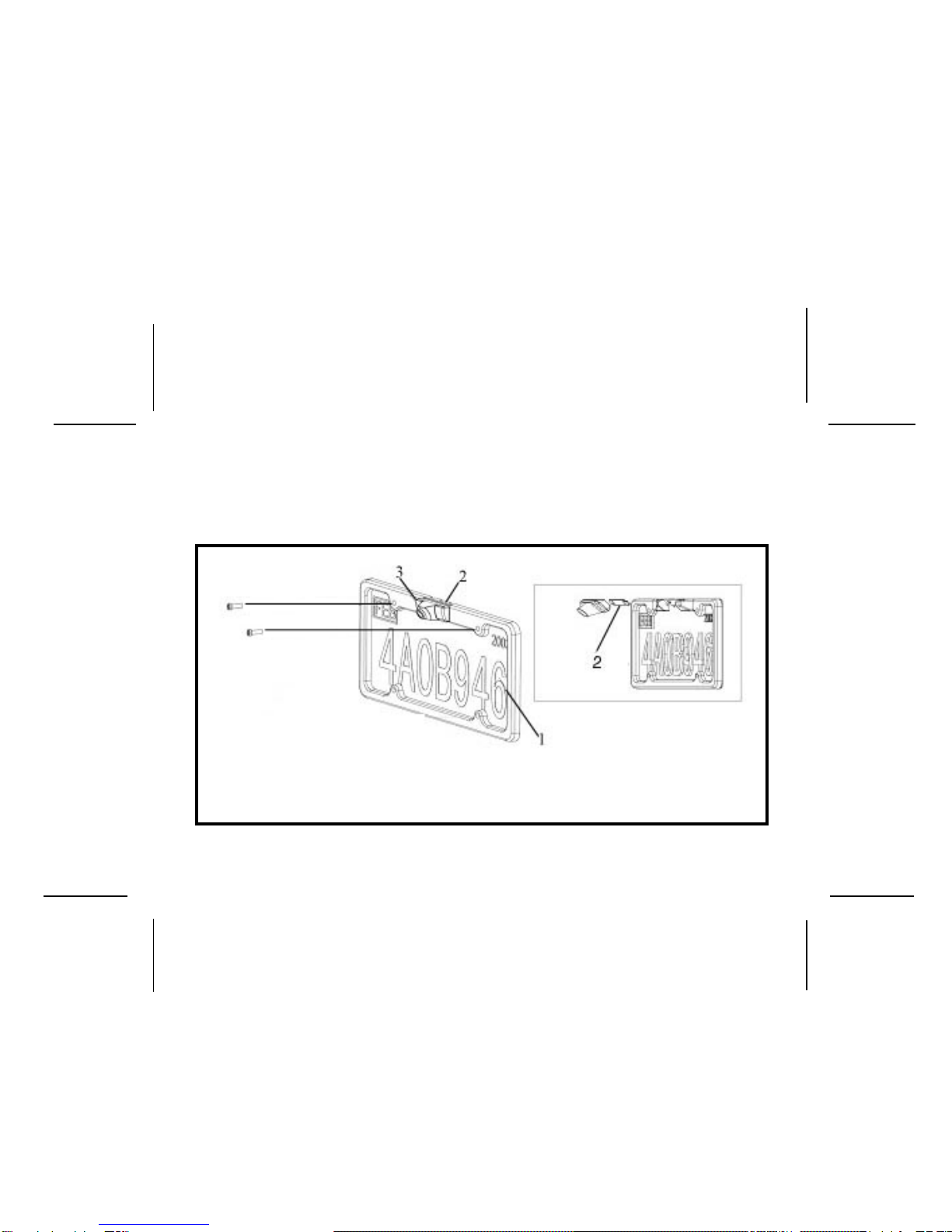

1. LICENSE PLATE

2.CAMERA ANGLEADJUSTMENTWEDGE

3.CAMERA

Camera Installation

128-8104

7 of 8

Specifications:

1. Power source : DC12V

2. Current: 50mA

3. Signal System: NTSC.

4. Image Device : 1/4” CMOS Sensor.

5. Horizontal Resolution: 420 lines.

6. Video Output:1.0Vp-p Composite (75 ohm load).

7. MinimumIllumination: 0.3LUX

8. Image Display: Normal or Reverse (Selectable).

9. WideAngle View : Diagonal 150° (natural state lens declination 40

degrees)

10. Camera Outer Dimensions: 25mm(w) x 30mm(H) x 62mm(D)

128-8104

8 of 8

128-8104
