OWNER’S
MANUAL
WCC100
IN-VEHICLE CHARGING CRADLE
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 1 12/4/2013 10:38:04 AM
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 2 12/4/2013 10:38:04 AM
INTRODUCTION ���������������������������������������������������������������������2
Features ��������������������������������������������������������������������������������������������2
Trademarks��������������������������������������������������������������������������������������2
IMPORTANT NOTICES ����������������������������������������������������������2
ICES-001 and NMB-001 Compliance Statement ����������������2
FCC Compliance Statement�������������������������������������������������������3
CAUTIONS and WARNINGS�������������������������������������������������4
MATERIALS INCLUDED IN THIS PACKAGE�����������������������5
INSTALLATION INSTRUCTIONS������������������������������������������6
OPERATING INSTRUCTIONS�����������������������������������������������8
CHARGING CRADLE STATUS���������������������������������������������11
SPECIFICATIONS �����������������������������������������������������������������11
WARRANTY���������������������������������������������������������������������������12
TABLE OF CONTENTS
1
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 3 12/4/2013 10:38:04 AM
Thank you for choosing the Audiovox WCC100 In-Vehicle
Charging Cradle�
The WCC100 In-Vehicle Charging Cradle utilizes
Qi
®
(pronounced “Chee”) global interface standard for
inductive electrical power transfer� Qi technology makes
it possible to charge a Qi
®
-compatible mobile device via
electromagnetic induction simply by placing the device
into WCC100 Charging Cradle� There is no need to connect
any cables�
Trademarks
INTRODUCTION
2
3
Features
• Nomobiledevicechargingcablestoconnect
• Windshield Suction Mount
• AutomaticrecognitionofaQi
®
-compatible mobile
device
• OperationalstatusLEDindicator
Qi
®
and are registered trademarks of Wireless Power
Consortium (WPC)� All rights reserved�
Canadian Compliance:
This ISM device complies with Canadian ICES-001
Cet appareil ISM est conforme à la norme NMB-001 du
Canada�
IMPORTANT NOTICES
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 4 12/4/2013 10:38:05 AM
IMPORTANT NOTICES
3
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a digital
device, pursuant to Part 18 of the FCC Rules�
The product generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications� However, there is no guarantee that
interference will occur in a particular installation� If the product does cause
harmful interference to radio or television reception, which can be determined
by turning the product on and o, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna�
• Increase the separation between the product and the receiver�
• Connect the product into an outlet on a circuit dierent from that to
which the receiver is connected�
• Consult the dealer or an experienced radio/TV technician for help
FCC Caution: Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment�
Radiation Exposure Statement:The equipment complies with FCC radiation limits
set forth for an uncotrolled environment� This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body�
Declaration of Conformity
Tradename: AUDIOVOX
Model No�: WCC100
ResponsibleParty: AUDIOVOXElectronicsCorp.
Address: 150 Marcus Blvd�, Hauppauge, NY 11788 U�S�A�
ThisdevicecomplieswithPart18oftheFCCRules.Operationissubjecttothe
following two conditions:
1� This device may not cause harmful interference, and
2� This device must accept any interference received, including
interference that may cause undesired operation�
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 5 12/4/2013 10:38:05 AM
CAUTION: The WCC100 In-Vehicle Charging Cradle is
designed for in car use with an input voltage of 9VDC
to16VDCviaavehiclepoweroutlet.Donotconnectto
higher input voltages� Use only the supplied power supply�
CAUTION:Donotplacemetalbetweenthemobiledevice
and the WCC100 In-Vehicle Charging Cradle surface� Metal
between the charging surface and the mobile device will
increase temperature and stop the charging function�
CAUTION: DonotexposetheWCC100 In-Vehicle Charging
Cradle to moisture�
CAUTION: Clean the WCC100 In-Vehicle Charging Cradle
using only a dry soft cloth. Do not use alcohol or other
cleaning solutions�
CAUTION: Ensure that the device cover used is not too
thick and does not contain metal parts� Any distance
between mobile device and charging surface will aect
charging eciency and functionality�
WARNING: Do not mount the WCC100 In-Vehicle
Charging Cradle within the driver’s eld of vision�
WARNING: Do not mount the WCC100 In-Vehicle
Charging Cradle in the deployment path of the vehicle’s
air bags�
CAUTIONS and WARNINGS
4
5
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 6 12/4/2013 10:38:05 AM
MATERIALS INCLUDED IN THIS PACKAGE
1� WCC100 In-Vehicle Charging Cradle P/N 31512250
2� Windshield Suction Mount P/N 31512060
3. CLAPowerCableP/N31512161
4. Owner’sManualP/N31512020
Opentheboxandensurethatthecontentslistedbelow
are present� If any of the parts are missing, please contact:
Audiovox Technical Support 1-800-225-6074�
1 2
3 4

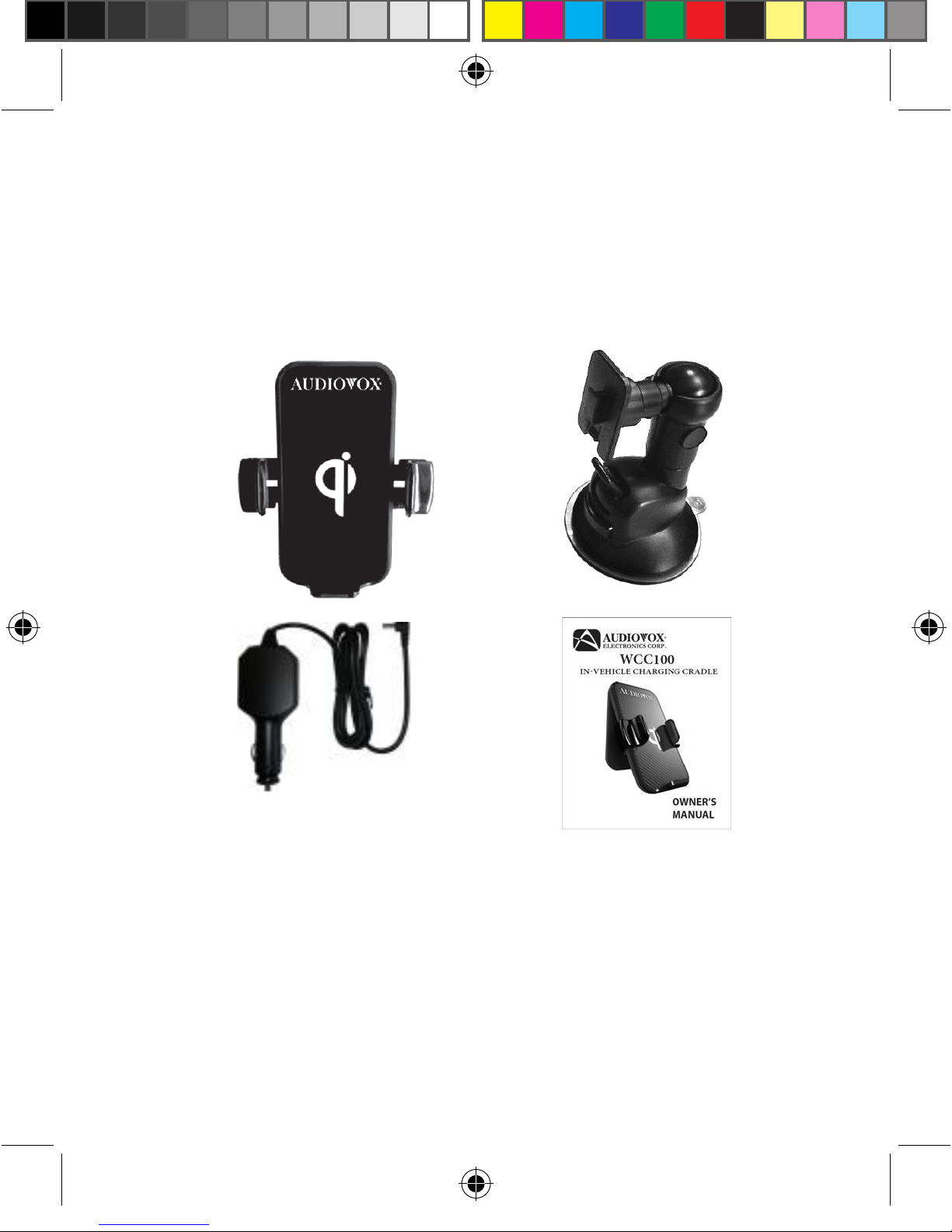

Figure 1� Materials Included
5
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 7 12/4/2013 10:38:05 AM
INSTALLATION INSTRUCTIONS
1� Remove the protective wraps from the windshield
suction mount base (1) of the WCC100 In-Vehicle
Charging Cradle�
2. Locateasmoothlevelareainthevehicleorposition
on the windshield so that it does not obstruct the
driver’s view� Clean the area�
3� Press the windshield suction mount base (1) rmly
against the mounting surface
4� Press the suction lever (2) down to secure the
windshield suction mount to the mounting surface�
NOTE: Observe all local laws and regulations pertaining to
the use of windshield mounted devices.

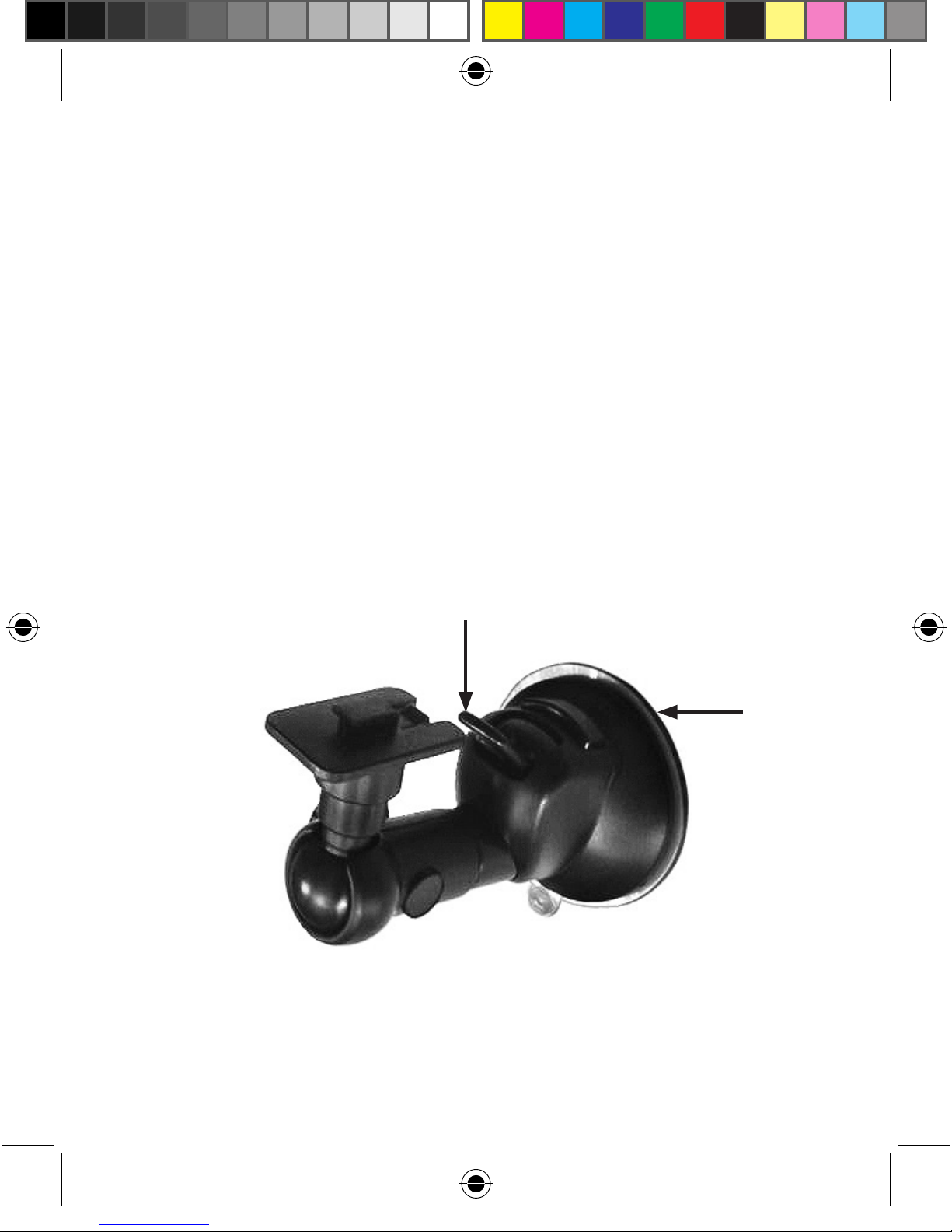

Figure 2� Windshield Suction Mount Base
2
1
6
7
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 8 12/4/2013 10:38:05 AM
5� Remove the protective wraps from the charging
cradle surface (3) and the brackets (4) of the charging
cradle�
6� Mount the charging cradle to the windshield suction
mount by sliding the clip (5) into the slot (6) on the
rear of the wireless charging cradle� Move the wireless
charging cradle upward to secure it to the windshield
suction mount�
7. Adjustthechargingcradlepositionforacomfortable
viewing angle�
8� Connect the power cable to the charging stand (7)
then route the wire carefully to the vehicle power
outlet� Insure that the wire does not interfere with
any vehicle controls or safety devices such as airbags�
9. Toadjustthecharging cradle brackets and to release
the mobile device from the charging cradle surface,
press the release button (8)�

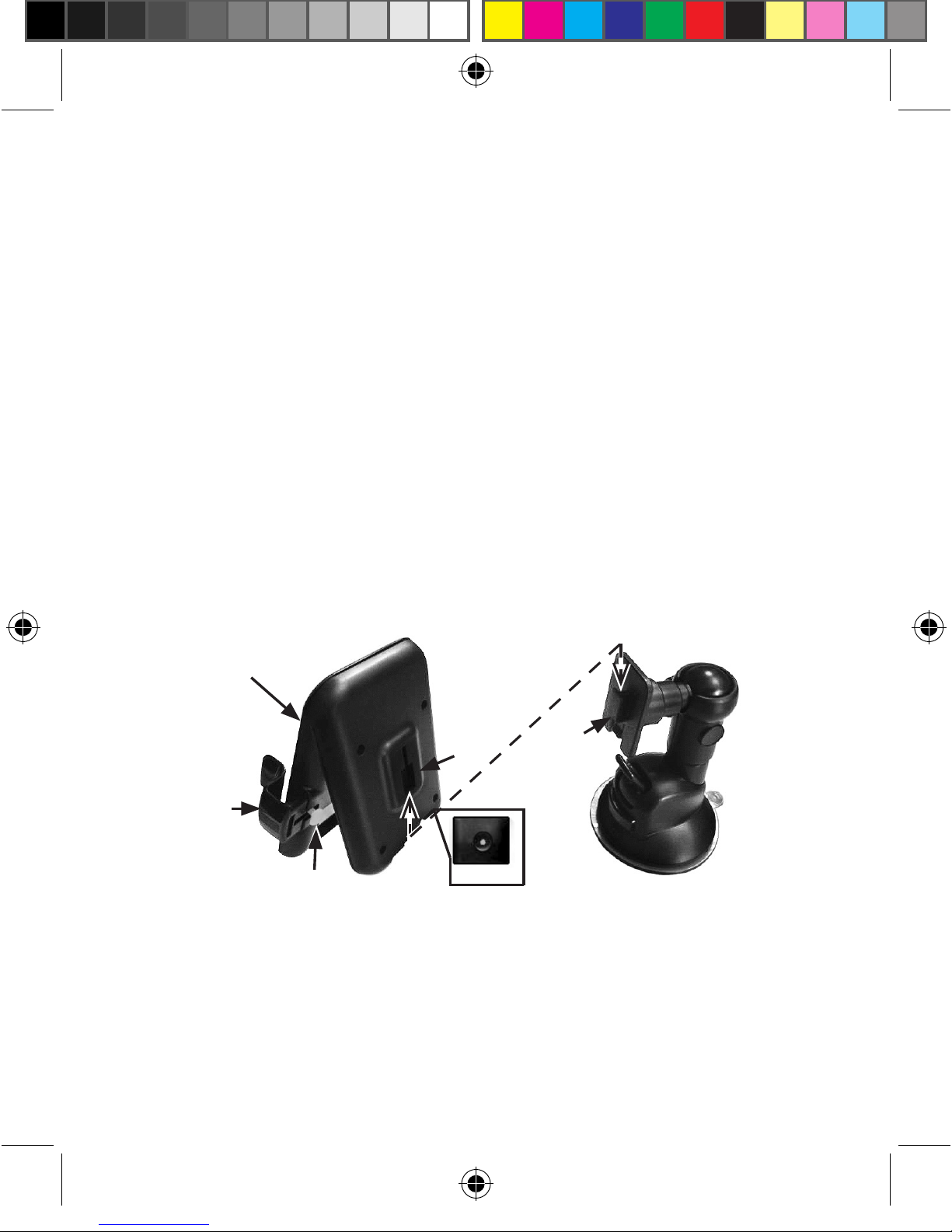

Figure 3� Attaching the Charging Cradle to the
Windshield Suction Mount
4
3
5
6
7
8
7
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 9 12/4/2013 10:38:06 AM
NOTE: Before charging your mobile device please read
the mobile device manual thoroughly for charging
parameters.
1. Open the brackets of the WCC 100 by pressing
the release button (1), located on the backside of the
charger�
2� Place your Qi-compatible mobile device upon the
charger�
OPERATING INSTRUCTIONS
1

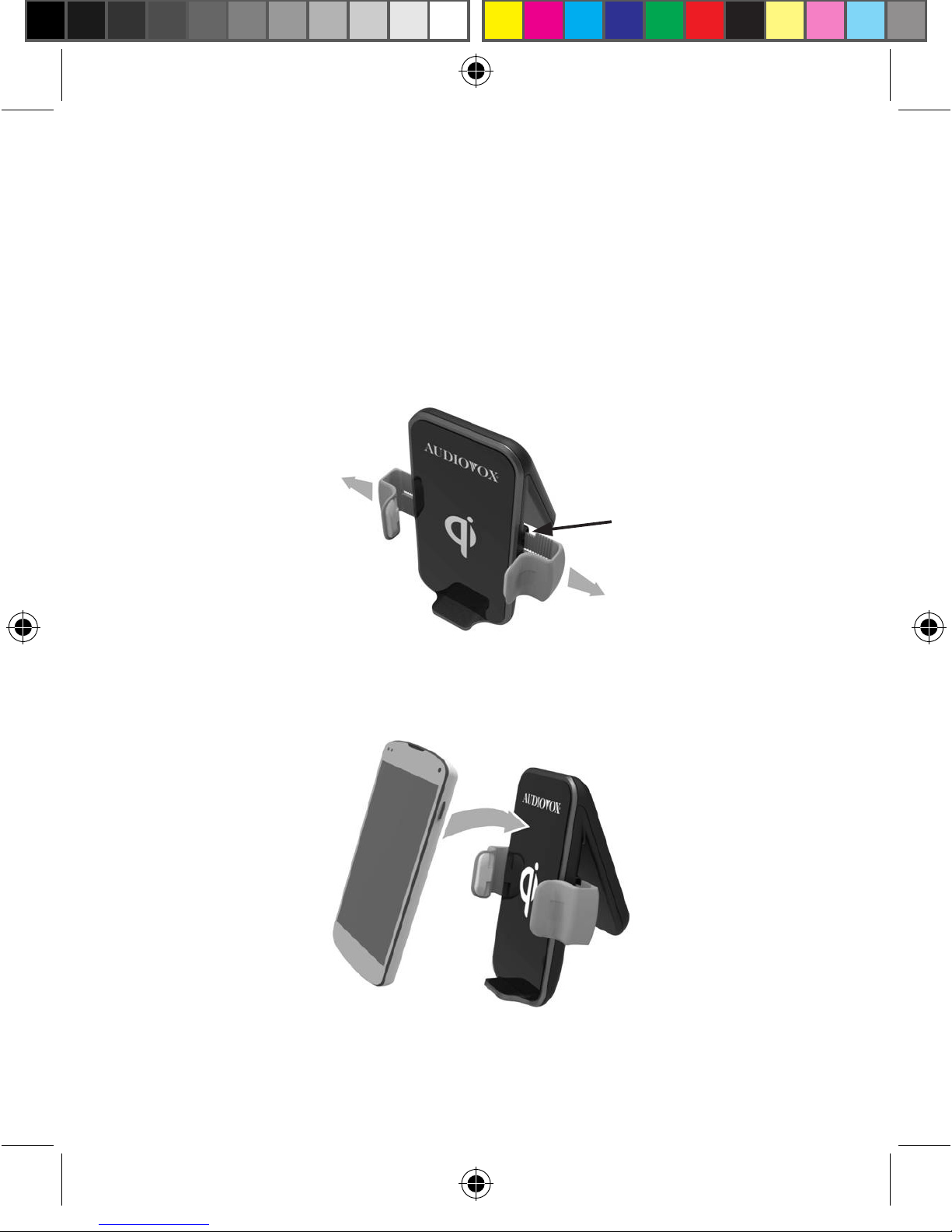

Figure 4� Docking Brackets Open
8
9
Figure 5� Placing Device on Charging Surface
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 10 12/4/2013 10:38:06 AM
