Audiovox Prestige APS-2K4MS Istruzioni operative
Model APS-2K4MS
Programming Guide
The APS-800/875 Models have a configurable receiver that
allows the transmitter to be programmed to operate the Lock
Unlock functions with one transmitter button or with two transmitter
buttons (separate Lock/Unlock). In addition, the receiver also allows
driver priority function. This driver priority function takes place
when ever a particular transmitter is used to unlock the vehicle
regardless of the selection of one button or two button operation.
The following indicates the receiver programmable slots.
1 Lock/Unlock or Lock
2 Unlock if Programmed
3 Trunk Release & or Remote Start (Optional)
4 Auxiliary Output
5 Auxiliary Output
6 Driver 1 Priority or Separate Output
7 Driver 2 Priority or Separate Output
Receiver channels 6 or 7 will accept the programming of transmitter
channel 1 if used as the Lock/Unlock button, or Channel 2 when
separate Lock Unlock buttons are programmed. In this way, whenever
the transmitter is used to unlock the vehicle, channel 6 or 7, when
programmed, will provide a pulsed ground output. This output can be
connecter to the driver priority function of the vehicle to reset preset
user features. Please consult with your installation centers technician
to see if this feature is available in your vehicle.
Note: A total of 4 transmitters may be programmed into any receiver
channel.
Force programming a transmitter, removing a transmitter or reprioritizing
a transmitter is covered later in this manual.
Also, if you do not program a transmitter button into channel 2 which is
the separate unlock/disarm channel, then whatever button is
programmed into channel 1 will serve as both lock/arm & unlock/disarm.
TO ENTER THE PROGRAM MODE:
1. Turn the ignition switch to the “ON” position.
2. Within 10 seconds, Press and release the valet/program switch
three times.
(Siren emits 1 short chirp indicating channel 1 has been entered)
3. Within 10 Seconds, Press and hold the button of the first transmitter
you wish to control the Lock&Arm feature of your security system
until a long chirp is heard from the siren.
(Repeat this for each transmitter you wish to operate the Lock/Arm
feature).
4. Within 10 seconds, press and release the valet program switch one
time.
(Siren emits 2 short chirps indicating channel 2 has been entered)
5. Within 10 Seconds, Press and hold any unused button(s) of the
first transmitter you wish to control the Unlock/Disarm feature of
your security system until a long chirp is heard from the siren.
Note: This channel is used only if you desire separate control of the
Lock/Unlock feature. If you wish to operate the Lock/Unlock
features from a single button, move onto step 6 as whatever
button is programmed into channel 1 will control both Lock &
Arm/Unlock & Disarm.
(Repeat this for each transmitter you wish to operate the Unlock/Dis-
arm feature).
6. Within 10 seconds, press and release the valet program switch one
time.
(Siren emits 3 short chirps indicating channel 3 has been entered)
7. Within 10 Seconds, Press and hold any unused button(s) of the
first transmitter you wish to control Channel 3 output, (Trunk Re-
lease) until a long chirp is heard from the siren.
(Repeat this for each transmitter you wish to operate the Channel 3
output (Trunk Release)
8. Within 10 seconds, press and release the valet program switch one
time.
(Siren emits 4 short chirps indicating channel 4 has been entered)
9. Within 10 Seconds, Press and hold any unused button(s) of the
first transmitter you wish to control Channel 4 output, (Auxiliary
Output 1) until a long chirp is heard from the siren.
2
(Repeat this for each transmitter you wish to operate the Channel 4
output)
10. Within 10 seconds, press and release the valet program switch
one time.
(Siren emits 5 short chirps indicating channel 5 has been entered)
11. Within 10 Seconds, Press and hold any unused button(s) of the
first transmitter you wish to control Channel 5 output, (Auxiliary
Output 2) until a long chirp is heard from the siren.
(Repeat this for each transmitter you wish to operate the Channel 5
output)
12. Within 10 seconds, press and release the valet program switch
one time.
(Siren emits 6 short chirps indicating channel 6 has been entered)
13. Within 10 Seconds, Press and hold the unlock button, (or any un-
used button(s)), of the first transmitter you wish to control Channel
6 output, (Driver Priority 1) until a long chirp is heard from the siren.
(Repeat this for each transmitter you wish to operate the Channel 6
output, Driver Priority 1)
14. Within 10 seconds, press and release the valet program switch
one time.
(Siren emits 7 short chirps indicating channel 7 has been entered)
15. Within 10 Seconds, Press and hold the unlock button (or any
unused button(s)) of the first transmitter you wish to control
Channel 7 output, (Driver Priority 2) until a long chirp is heard from
the siren.
(Repeat this for each transmitter you wish to operate the Channel 7
output, Driver Priority 2)
NOTE: Channels 6 and 7 can be used as a separate output to control a
function other than driver priority. Simply programming any un-
used transmitter button other than the unlock button will allow
complete independent control of these outputs.
ERASING TRANSMITTERS IF THEY HAVE BEEN LOST OR STOLEN:
NOTE: Before you begin to erase the lost or stolen transmitter(s), have
all transmitters available that you wish to remain programmed.
These will be used during the program process to identify
transmitters that will continue to be used.
3
Enter the transmitter program mode:
1. Turn the ignition switch to the “ON” position.
2. Within 10 seconds, press and release the valet/program switch
three times.
(Siren emits 1 short chirp indicating channel 1 has been entered)
3. Within 10 Seconds, Press and hold the ARM or ARM/DISARM
button of the first transmitter you wish to remain stored into the
control unit until a single chirp is heard from the siren.
(Repeat this for each transmitter you wish to remain stored in the
control unit).
The receiver stores up to four transmitters. To be certain all transmitter
slots in the receiver are occupied with transmitters you wish to con-
tinue to use and all others are erased, you will have to fill all four re-
ceiver slots. If in step 3 you identified one transmitter, you will have to
fill the additional 3 slots. If in step 3 you identified two transmitters, you
will have to fill the additional two slots, etc...
4. Press and hold any unused button or combination of buttons until a
long chirp is heard from the siren. Release and press the button or
button combination again and again until all remaining slots are
full.
Repeat this procedure with the appropriate transmitter buttons for all
other receiver channels.
REPRIORITIZING A TRANSMITTER’S
PROGRAMMING:
To reprogram a receiver channel with a differ-
ent transmitter button once a code has been
stored, there will be two options:
1. Enter the transmitter program mode of the
receiver channel to be reprogrammed. Us-
inganyunusedbuttonorcombinationofbut-
tons, push out the stored code by pressing
theunusedbutton until a long chirp is heard,
then repeat 3 additional times. After this,
you can add any desired unused transmit-
ter button. This action erases only that par-
ticular receiver channel, all other codes will
remain stored.
4
800-225-6074
FCC ID ELVA------
APS2K4MS
PhilipsScrew
2. Enter the transmitter program mode. Using any transmitter button
press and hold until a long chirp is heard. If a single chirp or mul-
tiple chirps, (up to 7 chirps), are heard, the unit is indicating that the
transmitterhas already been programmed elsewherein the receiver.
Release the transmitter button and within 5 seconds press and hold
until a long chirp is heard. This action forces the unit to erase all
stored codes of that transmitter.
The unit then exits the program mode the siren emits the program mode
exit chirp pattern. All transmitter buttons for that transmitter must now
be reprogrammed. Any other transmitter stored in the unit’s memory
still remain operational. If the button is released and not pressed again
within the 5 second period, no change in programming has been made
to the receiver channel. The programmer can move onto a different
channel or erase the transmitter codes as described in 1 above.
REPLACING THE BATTERY:
You will notice a decrease in transmitter range as the battery condition
deteriorates. Transmitter battery replacement is recommended at least
every 10 to 12 months, depending upon how frequently the transmitter
is used.
Thetransmitter has a small LEDbuilt into the unit. ThisLED can be used
to indicate battery condition. If the LED does not illuminate, then the
battery is discharged, and must be replaced.
To replace the transmitter battery:

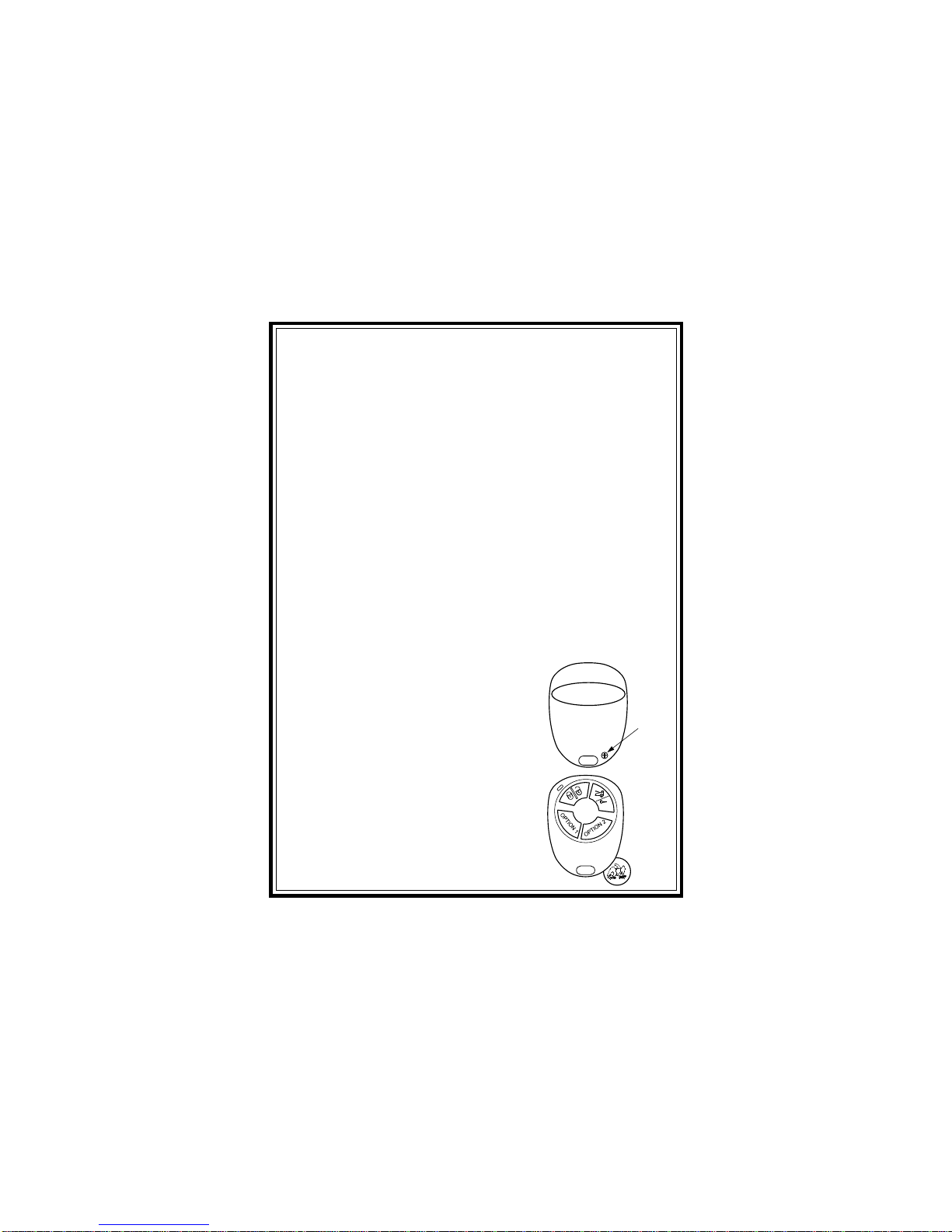

1. Remove the small Phillips head screw from the bottom cover of the
transmitter.
2. Using a coin or flat screwdriver blade, carefully
unsnap the top cover of the transmitter from the
bottom cover.

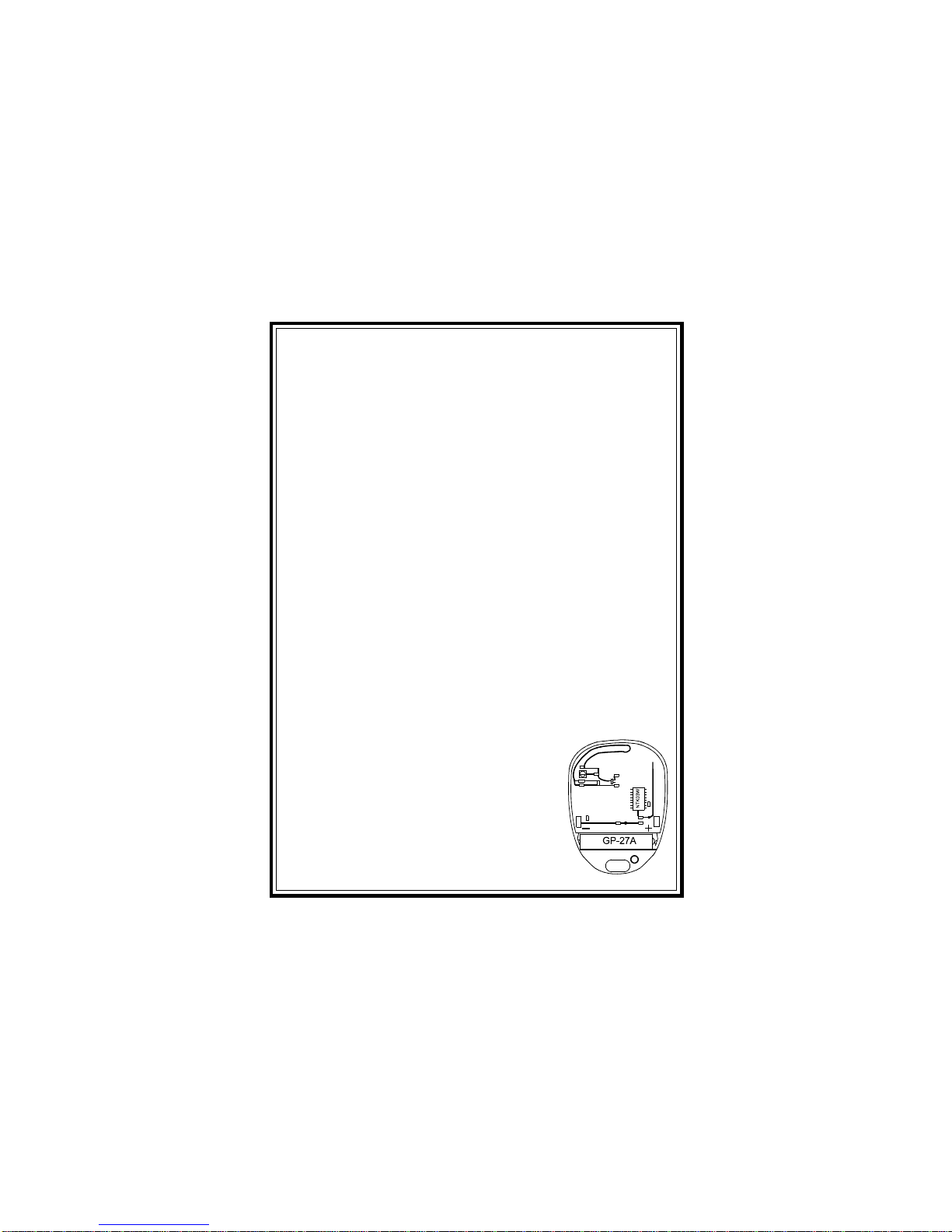

3. Remove the discharged battery, making note of
the location of the + and - contacts, and replace
with a new type GP 27A 12 volt battery.
4. Replace the transmitter cover, taking care not to
damage the circuit board or rubber button pad in
the housing. Secure the cover with the small
Phillips head screw removed in step 1.
5
1) Pad Number: _____________________________________
2) Name: __________________________________________
3) Address: ________________________________________
4) City: ________________ State: _____ Zip Code: ________
5) Telephone Number: (_____) _______________
6) Total Number Of Transmitters Required:
Cost Per Transmitter is: $65.00
Multiply By Number Of Transmitters X ______
7) Enter Total Amount Enclosed _________________
(New York State Residents must include the appropriate sales tax)
8) Method of Payment:
qMastercard qVisa qCheck or Money Order (do not send cash)
Make Checks Payable To Audiovox Corporation
Credit Card Number: _________________________________
Credit Card Expiration Date: ____ / _____ / _____
9) Mail this form along with your payment to:
ORDER FORM FOR TRANSMITTER APS-2K4MS
Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y., 11788
Attn.: TRANSMITTER DEPARTMENT
Attention:
Transmitter Ordering
Department
Important: To help us
expedite yourorder,please
print all of the information
legibly and mail this form
andyourpaymentaccording
to the instructions below.

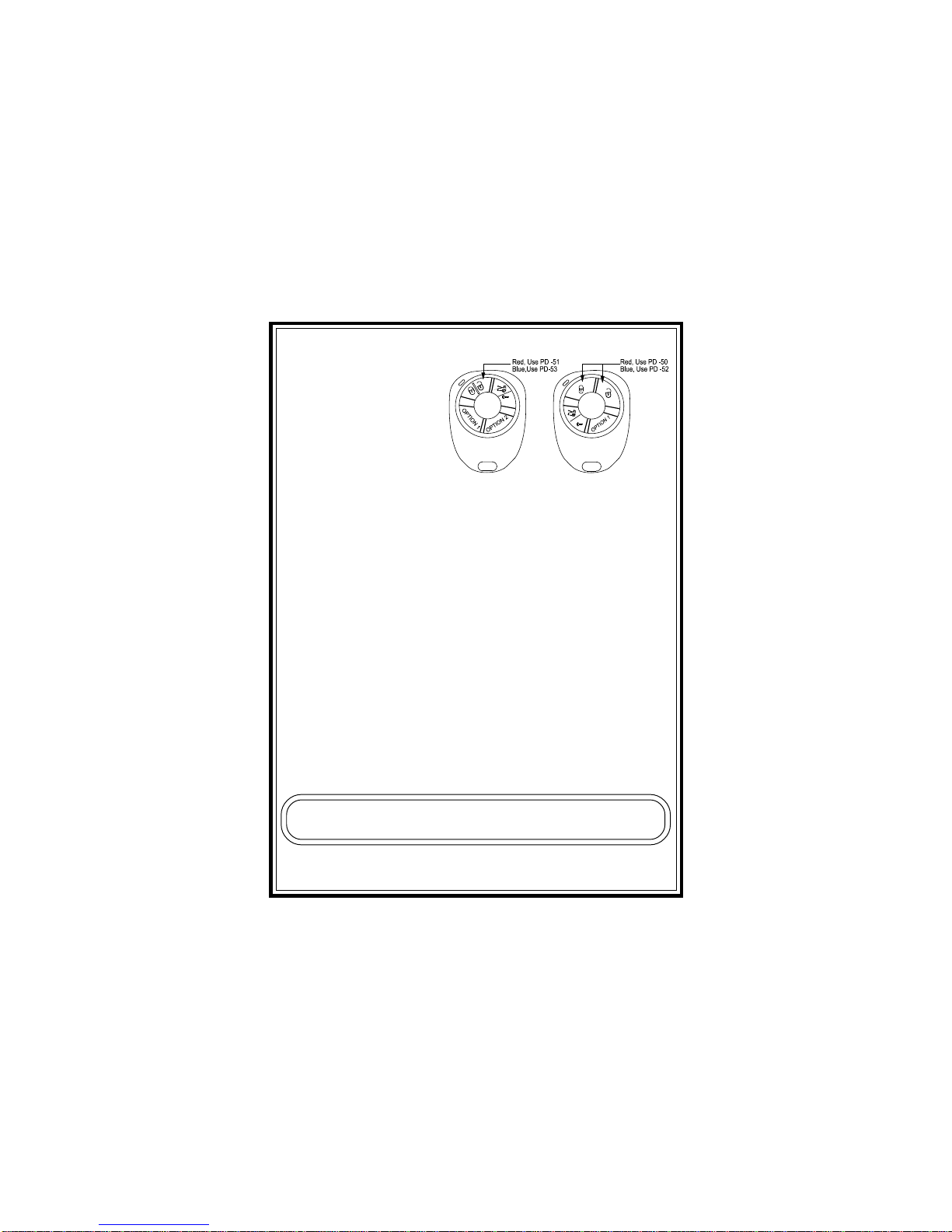

Indicate the pad number of your transmitter selected from the
pads shown above.
(Credit card purchasers can order additional or replacement
transmitters by phone. Simply dial 1 - 800 - 645 - 4994, and
follow the instructions from the operator interface.
© 2000 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, NY, 11788 128-5965
Indice
Altri manuali Audiovox Allarme auto
Audiovox
Audiovox Professional PS-230i Manuale utente
Audiovox
Audiovox Pursuit Pro 9544FT3 Manuale utente
Audiovox
Audiovox PRO-9649a Manuale utente
Audiovox
Audiovox Prestige Platinum APS-255 Manuale utente
Audiovox
Audiovox 128-7404A Manuale utente
Audiovox
Audiovox Prestige Platinum APS-596a Manuale utente
Audiovox
Audiovox Car Security System APS-610 Manuale utente
Audiovox
Audiovox Pursuit PRO 9842 Manuale utente
Audiovox
Audiovox Prestige APS-25KB Manuale utente
Audiovox
Audiovox Auto Security 5BCR Guida alla risoluzione dei problemi
Audiovox
Audiovox Prestige Platinum 128-8117 Manuale utente
Audiovox
Audiovox Car Security System AX-900 Manuale utente
Audiovox
Audiovox Prestige Platinum APS-510a Manuale utente
Audiovox
Audiovox Platinum Prestige APS-610a Manuale utente
Audiovox
Audiovox AS-9234 Manuale utente
Audiovox
Audiovox Car Security System APS-610 Manuale utente
Audiovox
Audiovox Platinum Prestige APS-610a Manuale utente
Audiovox
Audiovox Pursuit 07S3BPr Istruzioni operative
Audiovox
Audiovox Prestige APS99BT3 Manuale utente
Audiovox
Audiovox Prestige APS-15KB Manuale utente
