Audiovox AVDINPC Manuale utente

DVD/CD/MP3/WMA PLAYER

VOL

PLAY

REW

STOP

MUTE

TAP

SEL

TAP

VOL

AVDINPC

40G HD

APP LAUNCH

Power APP LAUNCH

AVDINPC

Installation and Operation Manual

Audiovox Electronics Corporation

150 Marcus Boulevard

Hauppauge, NY 11788

Technical Assistance: 1-800-645-4994

www.Audiovox.com

v.050205

Printed in Korea

AVDINPC

INTRODUCTION

Features

• 40 GB Hard Drive

• 512 MB DDR RAM

•

AVDINPC

PREPARATION

Congratulations on your purchase of the Audiovox AVDINPC Mobile

Multimedia DVD/CD/MP3/WMA personal computer. Please read all of the

instructions before beginning the installation.

Installation Requirements

This unit is designed for installation in vehicles with an existing radio opening.

In many cases, a special installation kit will be required to mount the computer

to the dashboard. These kits are available at electronics supply stores and car

stereo specialty shops. Always check the kit application before purchasing to

make sure the kit works with your vehicle. If you need a kit but cannot locate

one, call our customer support line at 1-800-323-4815. (U.S.A. and Canada

only.)

Tools and Supplies

The following tools and supplies are needed to install the computer.

• Torx type, flathead and Philips screwdrivers

• Wire cutters and strippers

• Tools to remove existing radio (screwdriver, socket wrench set or other

tools)

• Electrical tape

•Crimpingtool

• Volt meter/test light

• Crimp connections

• 18 gauge wire for power connections

• 16-18 gauge speaker wire

Disconnect Battery

Before you begin, disconnect the battery negative terminal (Figure 1)

Toll-Free Installation Assistance

If you require assistance, contact Technical Support at 1-800-323-4815 from

8:30 a.m. to 7:00 p.m. EST Monday through Friday and from 9:00a.m. to 5:00

p.m. EST on Saturday. (U.S.A. and Canada only.)

NOTE: If the AVDINPC is to be installed in a car equipped with an on-

board drive or navigation computer, do not disconnect the battery cable.

If the cable is disconnected, the computer memory may be lost. Under

these conditions, use extra caution during installation to avoid causing

a short circuit.

Figure 1: Battery Terminals

AVDINPC

INSTALLATION

The unit has threaded holes in the chassis side panels which may be used

with the original factory mounting brackets of some Toyota, Nissan,

Mitsubishi, Isuzu, Hyundai and Honda vehicles to mount the computer to the

dashboard. Please consult with your local car stereo specialty shop for

assistance on this type of installation.

1. Remove the existing factory radio from the dashboard or center console

mounting. Save all hardware and brackets as they will be used to mount

the new computer.

2. Remove the factory mounting brackets and hardware from the existing

radio and attach them to the new computer.

CAUTION: Do not exceed M5 X 6 MM screw size. Longer screws may

touch and damage components inside the chassis.

3. Place the computer infront of the dashboard opening so the wiring can be

brought through the mounting sleeve. Follow the wiring diagram carefully

and make certain all connections are secure and insulated with wire nuts

or electrical tape. After completing the wiring connections, plug the

connector into the mating socket on the rear of the chassis and turn the

unit on to confirm operation (vehicle ignition switch must be “on”). If the

unit does not operate, re-check all wiring until the problem is corrected.

4. Connect your monitor (purchased separately) and install any software/

drivers supplied with the monitor. Follow the instructions included with the

monitor to mount the monitor in the vehicle.

NOTE: A PS/2 mouse is required for installing any drivers during initial

setup. DO NOT MOUNT the unit to the dashboard until initial setup is

complete and software is installed.

5. Mount the new computer assembly to the dashboard or center console

using the reverse procedure in step 1.

CAUTION: For proper operation of the DVD player, the chassis must be

mounted within 20° of horizontal. Make sure the unit is mounted within

this limitation.

Figure 2: ISO Installation

AVDINPC

WIRING

Wiring Connections

1. PS/2 Mouse

2. PS/2 Keyboard

3. VGA

4. LAN (RJ-45)

5. USB 1/USB 2

6. S-Video

7. RCA Video

8. Printer

9. COM Port

10. MIC In

11. Line Out

12. Line In

13. AC Adapter (Purchased Separately) – Only use an AC adapter with the

following specifications: Output – 12V, 4.3A; Input – 100-240V~1.5A, 50/

60Hz; Center pin (+) positive

14. Car Power Input

15. Power Supply

16. ILLUMINATION WIRE (yellow)

17. ACC POWER WIRE (red) – Connect to a +12 volt circuit that is only live

when the ignition is on. The best connection point is at the car’s fuse

block at the “RADIO” or “ACCESSORY” identified terminals.

18. CONSTANT POWER WIRE (yellow) – Connect the 12V PLUS constant

power wire to a live 12 volt wire in the vehicle. Before making a

connection, check that the wire you intend to connect it to is always live,

even when the car’s ignition is turned off. If a live wire is not found, route

the wire to the car’s fuse block and connect it to a live circuit there.

19. GROUND WIRE (black) – Securely fasten the Ground wire to a grounded

metal part of the car’s chassis. If you cannot find an existing bolt or screw

to fasten it to, drill a hole in the metal and secure it with a screw. To

ensure a good ground, remove any paint or grease from areas where the

wire will contact the surface.

20. INLINE FUSE (red) – When running the red ACC Power wire directly to

the battery, the inline fuse MUST be connected between the unit and the

battery (within 18” of the battery). If the ACC Power wire is connected to

the fuse block, the inline fuse is not required.

910

11 12 13

Black

Yellow

Red

Yellow

Red

BATTERY

FUSE BOX

Figure 3: Wiring Connections

AVDINPC

Replacing the Fuse

When replacing a fuse, be sure to use the correct type and amperage to avoid

damaging the computer. The AVDINPC uses one 5 amp ATO fuse.

Reconnecting the Battery

When wiring is complete, reconnect the battery negative terminal.

AVDINPC

FRONT PANEL OPERATION

1. POWER: Press to power the unit on/off.

2. SEL: Press to “Enter”.

3. VOL +: Raise the volume level.

4. VOL -: Lower the volume level.

5. MUTE: Silence the system volume.

6. S.TAB: This button functions like the keyboard [Shift]+[TAB] key.

7. TAB: This button functions like the keyboard [TAB] key.

8. Disc Slot

9. Disc Eject Button

10. APP LAUNCHER: Press this button to run the iMON Application

Launcher, which can execute many assigned windows applications.

11. STOP: Press this button to execute the “Stop” command in various media

applications.

12. F.FWD: Press this button to execute the “Fast Forward” command in

various media applications.

13. REW: Press this button to execute the “Rewind” command in various

media applications.

14. NEXT: Press this button to execute the “Next” command in various media

applications. The Next button also functions as the “Channel Up” button in

TV related applications.

15. PREV: Press this button to execute the “Previous” command in various

media applications. The Prev button also functions as the “Channel

Down” button in TV related applications.

16. PLAY/PAUSE: Press this button to execute the “Play” or “Pause”

commands in various media applications.

DVD/CD/MP3/WMA PLAYER

VOL

PLAY

REW

STOP

MUTE

TAP

SEL

TAP

VOL

AVDINPC

40G HD

APP LAUNCH

Power APP LAUNCH

8 9

16 15

Figure 4: Front Panel Operation

AVDINPC

REMOTE CONTROL OPERATION

The RSC (Remote Stick Controller) allows you to control the mouse pointer in

16 directions using the joystick control. The function of each remote control

button is described in the following table.

Figure 5: Remote Control

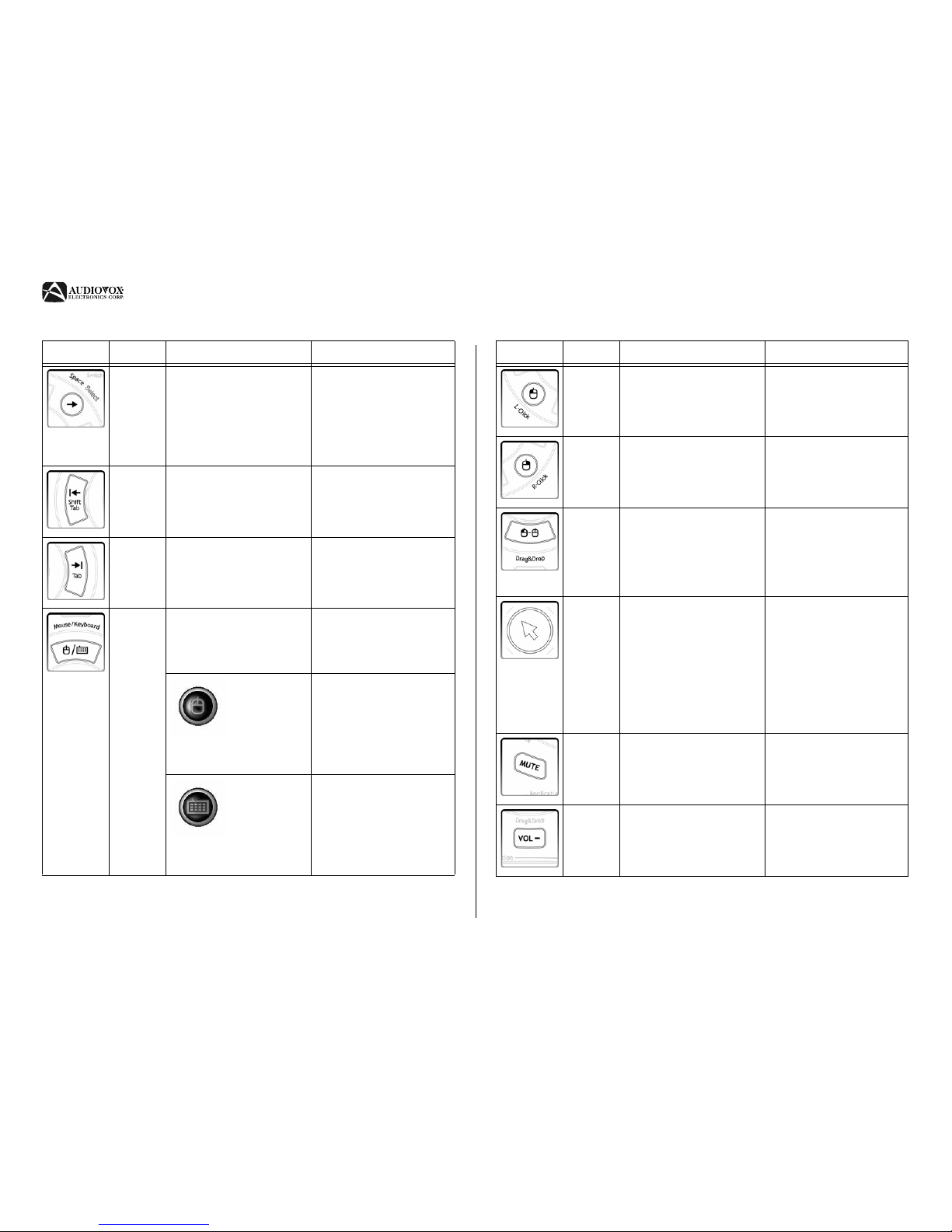

Table 1: Remote Control Functions

Icon Name Basic Functions Multi-Median

Power Press this button to turn the PC

on. Press and hold more than 2

seconds to turn the PC off.

App. Exit Press this button to generate the

[ALT] + [F4] keyboard shortcut,

which is used to closing the

active window.

Screen

Saver Press this button to instantly

activate the screen saver.

Timer Press this button to run the

Remote Manager timer setup

screen. This timer feature can

automatically turn off the PC or

activate an alarm assigned

through the timer setup.

0-9

Numeric

Buttons

The numeric buttons (0 - 9)

function as shortcuts to the

Multi-Medianapplicationprinted

below each button. These

buttons can be customized by

the user (see??? Page _____.)

In full screen TV view, press the

number buttons to input the

channel directly. In “Find View”,

press the number buttons to

enter alphabetic characters.

0 Press this button to show the

control panel (control bar and

shortcut bar). You can use the

up, down, left and right button to

select the control button on the

control bar and shortcut bar.

AVDINPC

1 Press this button to change the

current media to My Music.

2 Press this button to change the

current media to My Movie.

3 Press this button to change the

current media to My Photo.

4 Press this button to change the

current media to My DVD.

5 Press this button to stop the

current media and return to the

Main View.

6 Press this button to change the

current media to My TV.

7 Press this button to search the

media file on the current

playlist.

8 Press this button to call the

setup view.

9 Press this button to call the

current playlist.

Desktop Press this button to toggle

between “show desktop” and

“restore all”. This button has the

same function as the keyboard

shortcut [Windows]+[D].

Max/Res Press this button to toggle

between “maximize” and

“restore” for the active window.

ESC This button functions like the

keyboard [ESC] key. Press this button to return to the

previous view.

Table 1: Remote Control Functions

Icon Name Basic Functions Multi-Median

Windows This button brings up the

Windows start menu and

functions like the keyboard

[Windows] key.

Menu This button brings up the menu

and functions like the keyboard

[menu] key.

App.

Launcher Press this button to run the

iMON Application Launcher,

which can execute many

assigned windows applications.

Multi

Median Press this button to launch the

Multi-Median program provided

with the Remote Manager. Use

Multi-Median to enjoy a variety

of media files including DVD

movies, music, and photos, or to

access a multimedia device like

a TV card, digital camcoder, or

digital camera.

Task

Switcher Press this button to switch

between current running

applications. This feature is

similar to the [ALT]+[TAB]

keyboard command.

Backspace This button functions like the

keyboard [Backspace] key.

Table 1: Remote Control Functions

Icon Name Basic Functions Multi-Median

AVDINPC

Space/

Select This button functions like the

keyboard [Space] key. Press this button to add or

remove the media file in the

current playlist in Media Folder/

File View. This will not delete

the media file, but will just

exclude the file from the playlist.

You an add the media file back

to the playlist at any time.

Shift + Tab This button functions like the

keyboard [Shift]+[TAB] key.

Tab This button functions like the

keyboard [TAB] key.

Mouse/

Keyboard Press this button to toggle the

Remote RSC joystick operation

mode between Mouse and

Keyboard mode. The following

icons indicate the current mode.

The mouse icon

in the Remote

Indicator means

that you can

movethemouse

pointerusingthe

joystick. Press in on the joystick

to “double click”.

The keyboard

icon in the

Remote

Indicator means

that you can use

the joystick like

keyboard arrow keys. Press in

on the joystick to “Enter”.

Table 1: Remote Control Functions

Icon Name Basic Functions Multi-Median

L. Click This button functions like the left

mouse button.

R.Click This button functions like the

right mouse button.

Drag &

Drop This button performs the “Drag

and Drop” function of a mouse.

Push the button at the starting

position to begin “dragging”,

then move to the destination

position using the Joystick. Push

the button again to “drop”.

Joystick Mouse mode: The joystick

functions like a mouse. Press in

on the joystick to “double-click”.

Keyboard mode: The joystick

functions like the four keyboard

arrow keys. Press in on the

joystick to “Enter”.

These buttons are used to

move the focus in the Multi-

Median. After moving the focus,

you can select the icon you

want.

Press in on the joystick button

to enter to the next view. After

moving the focus to the icon

and folder you want, push the

Enter button to move to the

next step.

MUTE Press this button to mute the PC

system volume.

VOL - Press this button to reduce the

PC system volume.

Table 1: Remote Control Functions

Icon Name Basic Functions Multi-Median

Altri manuali per AVDINPC

Indice

Altri manuali Audiovox Impianto stereo per auto

Audiovox

Audiovox MEDIABRIDGE Guida alla risoluzione dei problemi

Audiovox

Audiovox Rampage ACD95 Manuale utente

Audiovox

Audiovox Prestige P-78 Manuale utente

Audiovox

Audiovox CDC-FDF Manuale utente

Audiovox

Audiovox Prestige P-950W Manuale utente

Audiovox

Audiovox CDC-FDC Manuale utente

Audiovox

Audiovox AVXMTG12U Manuale utente

Audiovox

Audiovox CP-250 Manuale utente

Audiovox

Audiovox Prestige Car Stereo System Manuale utente

Audiovox

Audiovox WHS200 Manuale utente

Audiovox

Audiovox Prestige P-953 Manuale utente

Audiovox

Audiovox Prestige P-99A Manuale utente

Audiovox

Audiovox Prestige P-57 Manuale utente

Audiovox

Audiovox Prestige P-950W Manuale utente

Audiovox

Audiovox PAV-9 Manuale utente

Audiovox

Audiovox Prestige P-153 Manuale utente

Audiovox

Audiovox DUO Guida alla risoluzione dei problemi

Audiovox

Audiovox Jensen Phase Linear UMP400 Manuale utente

Audiovox

Audiovox Prestige Detachable Face Stereo Systems Manuale utente

Audiovox

Audiovox Prestige P-98 Manuale utente

Audiovox

Audiovox Phase Linear PCR2500 Manuale utente

Audiovox

Audiovox Prestige P-96 Manuale utente

Audiovox

Audiovox PCD5 Manuale utente

Audiovox

Audiovox Prestige Detachable Face Stereo System Manuale utente

Manuali Impianto stereo per auto popolari di altre marche

JL Audio

JL Audio Stealthbox SB-CAN-G2MVX3D/10TW3 Manuale utente

Clarion

Clarion PU-9836A Manuale utente

Sony

Sony MEX-BT5750U Manuale utente

Mitsubishi Electric

Mitsubishi Electric AR0M Manuale utente

Sony

Sony RM-X7BT Manuale utente

Insignia

Insignia NS-HD5113 Manuale utente

Clarion

Clarion BTD3341 Manuale utente

USA SPECS

USA SPECS PA11-VW6 Manuale utente

Sony

Sony MEX-N4380BT Manuale utente

Kenwood

Kenwood KCD-BT6544U/UY Manuale utente

JVC

JVC KD-DB912BT Manuale utente

Philips

Philips CSQ405/98 Manuale utente

Alpine

Alpine TDM-7544 Manuale utente

Autotek

Autotek TransAm TA 1400 Manuale utente

Clarion

Clarion PN-3124N-A Manuale utente

Denso TEN

Denso TEN FT0108A Manuale utente

Pyle

Pyle PLD57MU Manuale utente

Harman

Harman Chrysler Radio Navigation System RB4 Manuale utente
