Audiovox VM9224 Manuale utente

EJECT

VM9224

Operating Instructions

160 watts peak

40W x 4

iii

VM9224

CONTENTS

Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s

manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to

use all the features of your new Jensen VM9224 Mobile Multimedia Receiver for maximum

enjoyment.

Features................................................................................................................................ 1

Controls and Indicators......................................................................................................... 4

Remote Control..................................................................................................................... 6

Operating Instructions......................................................................................................... 14

Setup Menu......................................................................................................................... 18

Tuner Operation.................................................................................................................. 24

DVD/VCD Video Operation................................................................................................. 28

DVD/CD Audio Operation ................................................................................................... 35

MP3/WMA Operation.......................................................................................................... 38

iPod Operation.................................................................................................................... 43

Bluetooth Operation............................................................................................................ 47

Troubleshooting .................................................................................................................. 54

Specifications...................................................................................................................... 58

VM9224

FEATURES

Congratulations on your purchase of the Jensen VM9224 Mobile Multimedia

Receiver.

It’s a good idea to read all of the instructions before beginning the installation.

We recommend having your Jensen VM9224 installed by a reputable

installation shop.

DVD

• Aspect Ratio - Full and Normal

• Fast Forward - 2X, 4X, 8X and 20X

• Slow Motion - 2X, 4X, 8X and 20X

• Play, Pause, Stop, Next Chapter and Previous Chapter

CD / MP3 / WMA

• CD-Text Compatible

• ID3 Tag Compatible

• Directory Search (MP3 / WMA Only)

• Direct Track Access via Remote Control

• Burn up to 1500 MP3 and WMA Files onto a DVD+R / RW

• Audible Forward / Reverse Track Search (CD-DA Only)

• Random, Repeat and Intro

• Play, Pause, Stop, Next Track and Previous Track

AM-FM

• USA / Europe / Latin America / Asia Frequency Spacing

• 30 Station Presets (18 FM / 12 AM)

• Auto Stereo / Mono

• Local / Distance

• Auto Store / Preview Scan

iPod

• iPod via USB

• High Speed Direct Connect Interface to Access iPod Playlists, Artists,

Albums and Songs. Play music and view video/photo* files from your iPod.

*Video/photo playback requires jLink-USB iPod interface cable (sold

separately).

• Power Management Charges iPod while Connected

Chassis

• 2.0 DIN (Import / ISO-DIN Mountable)

• Fixed Front Panel

• 6.2" High Definition TFT LCD

• 1,152,000 Sub Pixels (800x3 X 480)

• Beep Tone Confirmation (ON-OFF Option)

• Heat Management System - Forced Air-Cooling To Keep The Chip-Sets

Operating at Nominal Temperatures

VM9224

General

• Navigation Ready (NAV102)

• Bluetooth Ready (with purchase of BTM10) providing hands-free profile for

safety / convenience and A2DP profile for streaming music from a PDA /

PMP

• 44-Key Infrared Remote Control

• One Composite Video Output for Additional Screens

• Front Panel Audio/Video Input

• Three-Band Tone control (Bass, Mid and Treble) with Eight Preset EQ

Curves

• Front Panel A/V Aux Input for Portable Media Devices

• Front, Rear and Subwoofer Line Output

• Programmable Volume Control

• Rear Camera Input (Normal and Mirror Image View)

• Touch Screen Calibration Mode

• 2VRMS Line Output - All Channels

• Rotary Encoder Audio Control

• SWC Interface – Compatible with PAC adapter SWI-PS Steering Wheel

Control Interface, sold separately

Optional Equipment

•NAV102

The VM9224 is "navigation ready." Before accessing any navigation

features, you must purchase and install the navigation module (NAV102).

All installation and operating instructions will be included with the

navigation module.

Once the navigation module is connected and operating properly, the NAV

source mode will become active. While the navigation module is not

installed, the NAV option appears gray, indicating the function is not

available.

•BTM10

Before you can connect to a Bluetooth enabled device, you must purchase

and install the Jensen BTM10.

•Bluetooth Phone

See “Bluetooth Operation” on page 47.

•Rear Camera

The VM9224 is "camera ready." Before accessing any camera features,

you must purchase and install a rear video camera. Once the rear camera

is connected and operating properly, the CAMERA source mode will

become active. While the camera is not installed, the CAMERA option

appears gray, indicating the function is not available.

VM9224

WARNING! Never install this unit where operation and viewing could

interfere with safe driving conditions.

WARNING! To reduce the risk of a traffic accident (except when using for

rear view video camera) never use the video display function while

driving the vehicle. This is a violation of federal law.

WARNING! Never disassemble or adjust the unit.

WARNING! To prevent injury from shock or fire, never expose this unit to

moisture or water.

WARNING! Never use irregular discs.

WARNING! To prevent damage to the mechanism inside this unit, avoid

impact to the TFT monitor.

WARNING! The monitor employs an automatic motorized mechanism. To

prevent damage to the core mechanism, please do not push, pull or

swivel the monitor manually.

VM9224

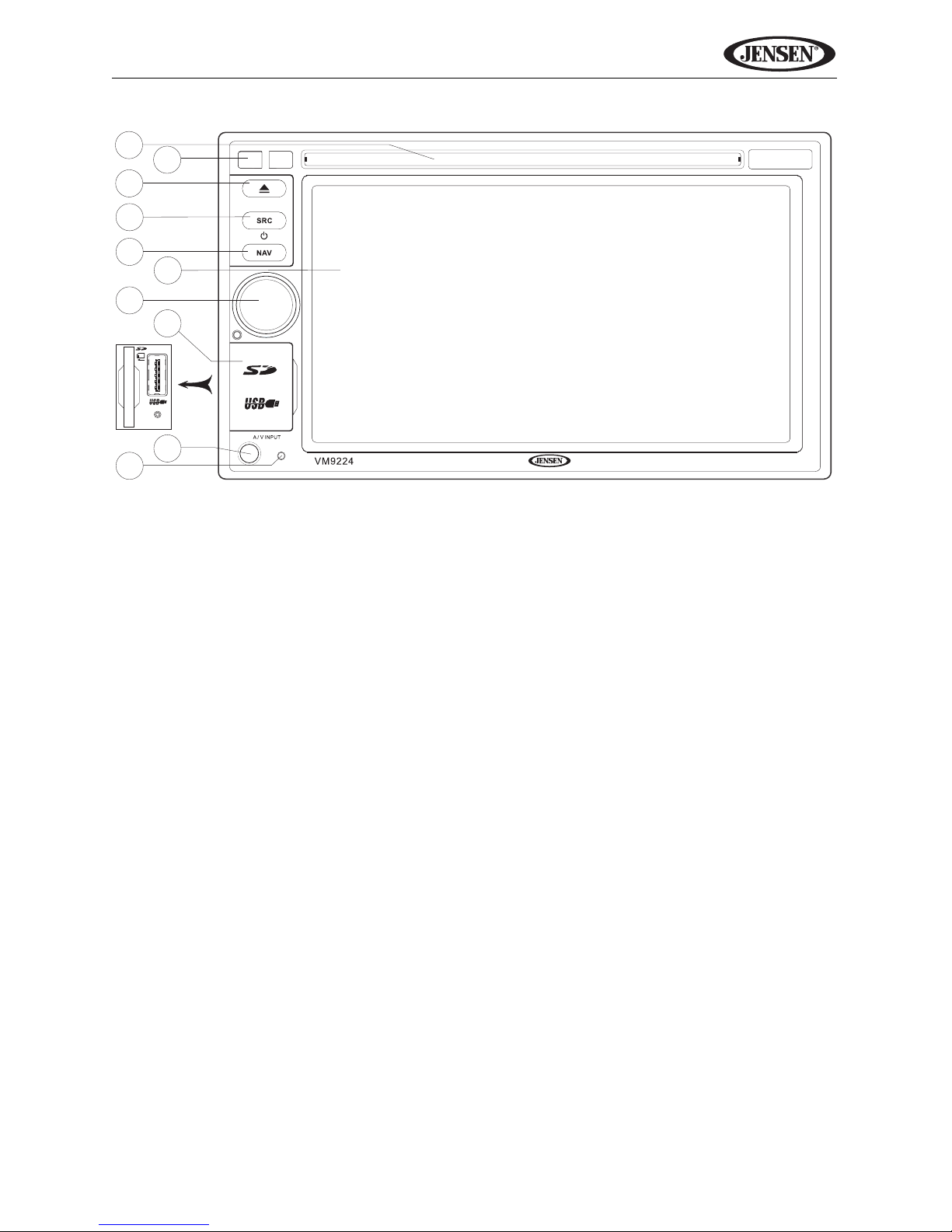

CONTROLS AND INDICATORS

1. Disc Slot

2. IR Remote Control Receiver

3. EJECT

Press to eject a disc.

Press and hold to reset core mechanism position.

4. SRC

Press to turn the unit on. Press and hold to turn the unit off.

When on, press once to select playing mode.

5. NAV

Press to display the navigation user interface.

6. TFT Display

7. Rotary Encoder

Rotate to adjust the volume. While in the audio menu, press and release to

enter and/or confirm audio settings.

Press to activate the MUTE function and silence the receiver. Press again to

resume sound.

Press and hold to activate the Local (LOC) setting. Press and hold again to

turn Local reception off.

8. USB/SD Interface Connector

Connect a USB device or insert an SD card for playback of music/video files.

9. A/V Input

Attach a compatible A/V device.

10. RESET

Press to reset system settings to factory default (except the password and

parental lock setting).

VM9224

EJECT

MUTE

OPEN

VM9224

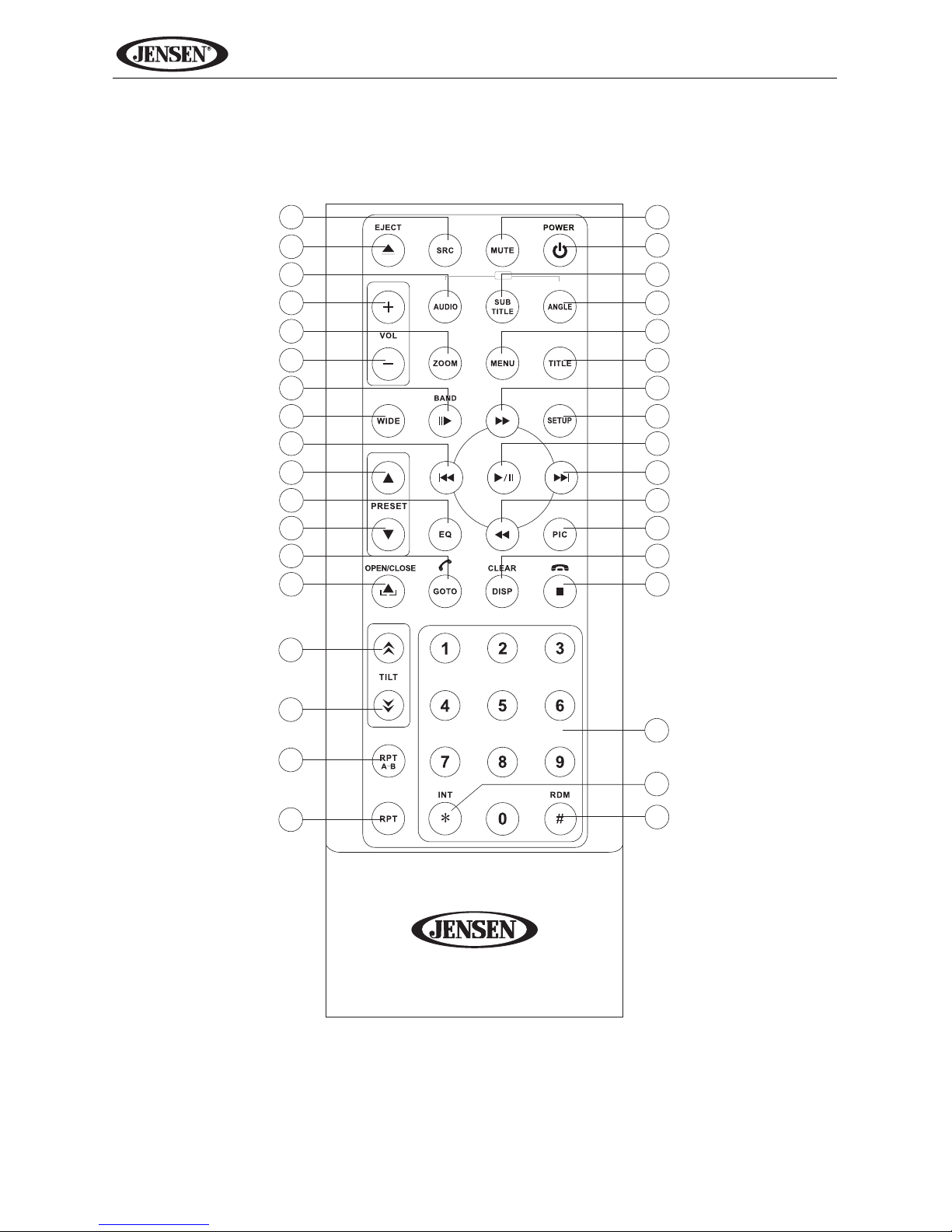

REMOTE CONTROL

See Table 1 for remote control functions.

MUSIC PHOTO VIDEO

iPod
