Audiovox VOH681A Manuale utente

OpeOpe

Operr

ratat

atat

ationion

ionion

ion

ManualManual

Manual

VOH681A

-2-

Important Notice

Itisunlawfulinmostjurisdictionsforapersontodrive

a motor vehicle which is equipped with a television

viewer or screen that is located in the motor vehicle

atanypointforwardofthebackofthedriver’sseat,or

that is visible, directly or indirectly, to the driver while

operating the vehicle. In the interest of safety, the

VOH681A should never be installed where it will be

visible, directly or indirectly, by the operator of the

motor vehicle.

Pleasenotethatthe state of Rhode Island forbids the

installation of such a device in a motor vehicle.

Safety Precaution

For safety reasons, when changing video tapes it is

recommended that the vehicle is not in motion, and

thatyoudonot allow children to unfasten seatbelts to

changetapesormakeanyadjustments to thesystem.

System adjustments can be accomplished using the

remote control unit, while seatbelts remain fastened.

Enjoy your Audiovox entertainment system but

remember-safety of all passengers remains the

number one priority.

-3-

Congratulations on your purchase of the Audiovox

VOH681Adrop-down Video Monitor. The VOH681A

has been designed to give you and your family many

years of video entertainment in the mobile

environment. Please read the directions that follow

to familiarize yourself with the product and to ensure

that you obtain the best results from your equipment.

Pleasenote:Installationoptionsvary,see theindividual

owner’s manuals for each component in your system

to obtain a full understanding of each component’s

operation.

Features

♦6.8” TFT (Thin Film Transistor) Active

Matrix LCD (Liquid Crystal Display)

Monitor

♦IR transmitter for Wireless Headphones

♦Rear Remote Sensor Eye

♦Three Audio/Video Inputs

♦Headphone/Speaker Amplifier

♦Headphone Jack for Wired Headphone

♦ Built-in Forward Remote Sensor Eye

♦Built-in Dome Lights

♦Backlit Controls for Low Light Operation

♦Push button screen Brightness Controls

-4-

-5-

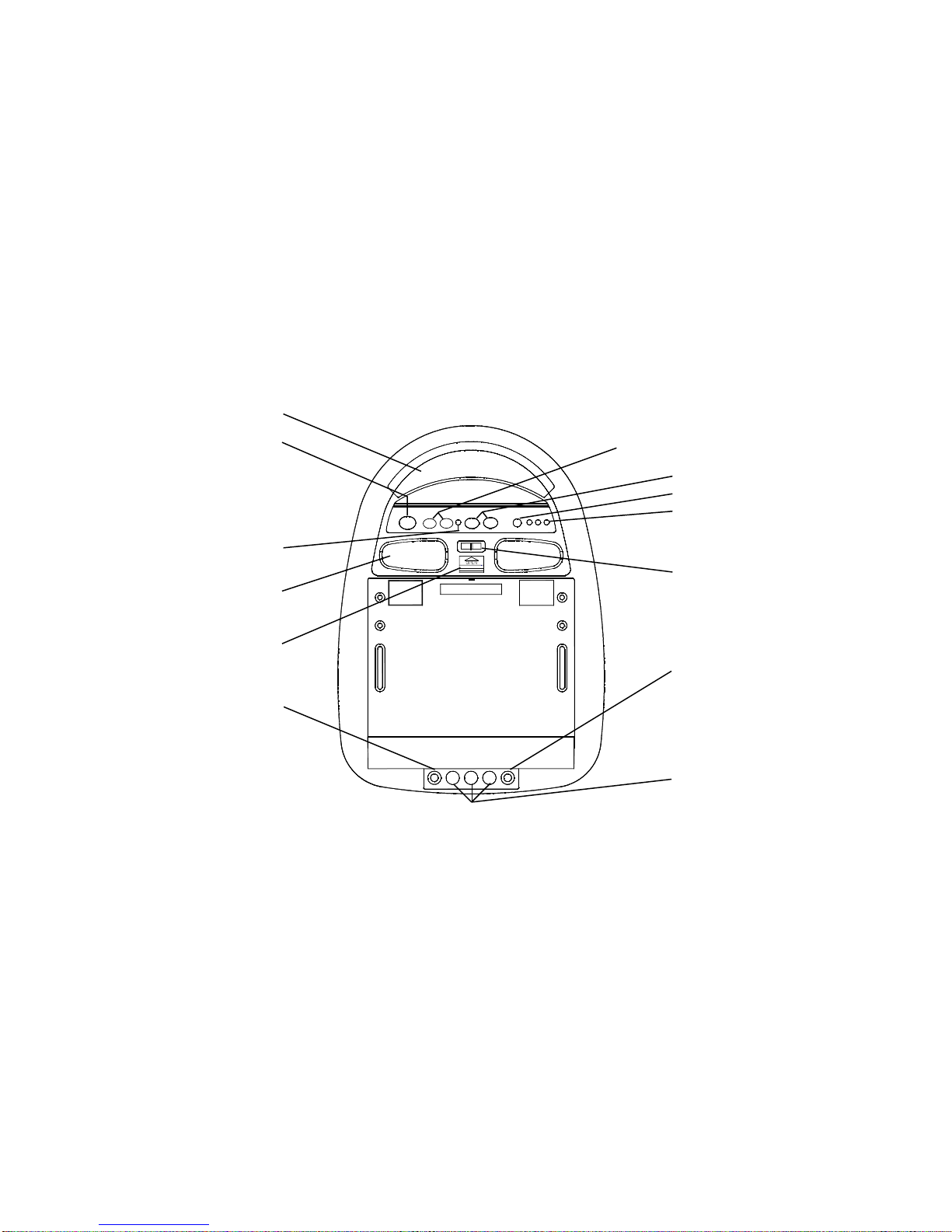

Front Panel

1. Infrared Transmitter - Used to transmit audio to

wireless headphones.

2. Power button – (Bright red when system is On,

dim when Off).

3. Volume Up/Down – Controls volume to

headphone jacks and external speakers if

connected.

4. Source Select – used to select one of the three

A/V sources.

5. Source indicator LEDs - Indicate the current

video source.

6A.Forward Remote Sensor Eye – Receives

signals from infrared remote controls and

relays them to remote mounted equipment.

6B.Rear Remote Sensor Eye - Receives signals

from infrared remote controls and relays them

to remote mounted equipment.

7. Three position Dome Light Switch

•Auto – Automatically switches on the dome

lights in conjunction with the vehicle’s

interiorillumination.

•Off – The Dome lights will not turn on in

this position.

•On – Turns on the Dome lights.

8. Dome lights – provide additional illumination.

9. Screen Release – Slide in direction of arrow to

release the flip down screen.

10. Headphone Jack – allows plug-in of wired

headphone with 1/8” stereo jack.

11. Auxiliary A/V Stereo Input – allows plug-in of

camcorder, game, portable DVD player or other

A/V source with RCA type output connectors.

12. Brightness Up/Down Control - use the

brightness up/down buttons to adjust the picture

to bright or dark.

Turning the VOH681A On or Off

1 Sliding the screen release lock forward will unlock

theLCDscreen and it will dropdownslightly. Pivot

the screen downward until a comfortable viewing

angle is reached. The internal friction detent will

hold the screen in position while the system is in

use.

2 Pressingthe power buttononthe podorthe remote

will turn the system on or off alternately. When in

use the internal backlighting will illuminate the

controls.

3 After the unit has been turned on and is displaying

a picture, adjust the viewing angle and brightness

controls to optimize the picture quality.

4 Remembertoturn the unit off and pivot the LCD to

the locked position when not in use.

-6-

Operation

Overhead Dome Lights

Thelightsintegrated into the VOH681Aarecontrolled

by a three position slide switch. Sliding the switch to

the on position will turn the lights on. The off position

willprevent thelightsfrom turning on at all times, and

theauto position will allow the lights to turn onand off

with the vehicle’s interior lighting. Do not leave the

vehicle unattended with the dome light switch in the

onposition, asthiscould resultina dischargedbattery.

Remote Sensors

The VOH681A incorporates two infrared sensors

which relay signals from any infrared remote control

to allow a remote mounted device to be controlled

simply by pointing its remote control at the remote

sensoreye mounted onthepod. This providescontrol

of auxiliary equipment such as Video Cassette and

DVDplayers. The infrared sensors can relay signals

from any manufacturer’s remote control to its

respective component connected to the AV1 or AV2

inputs.

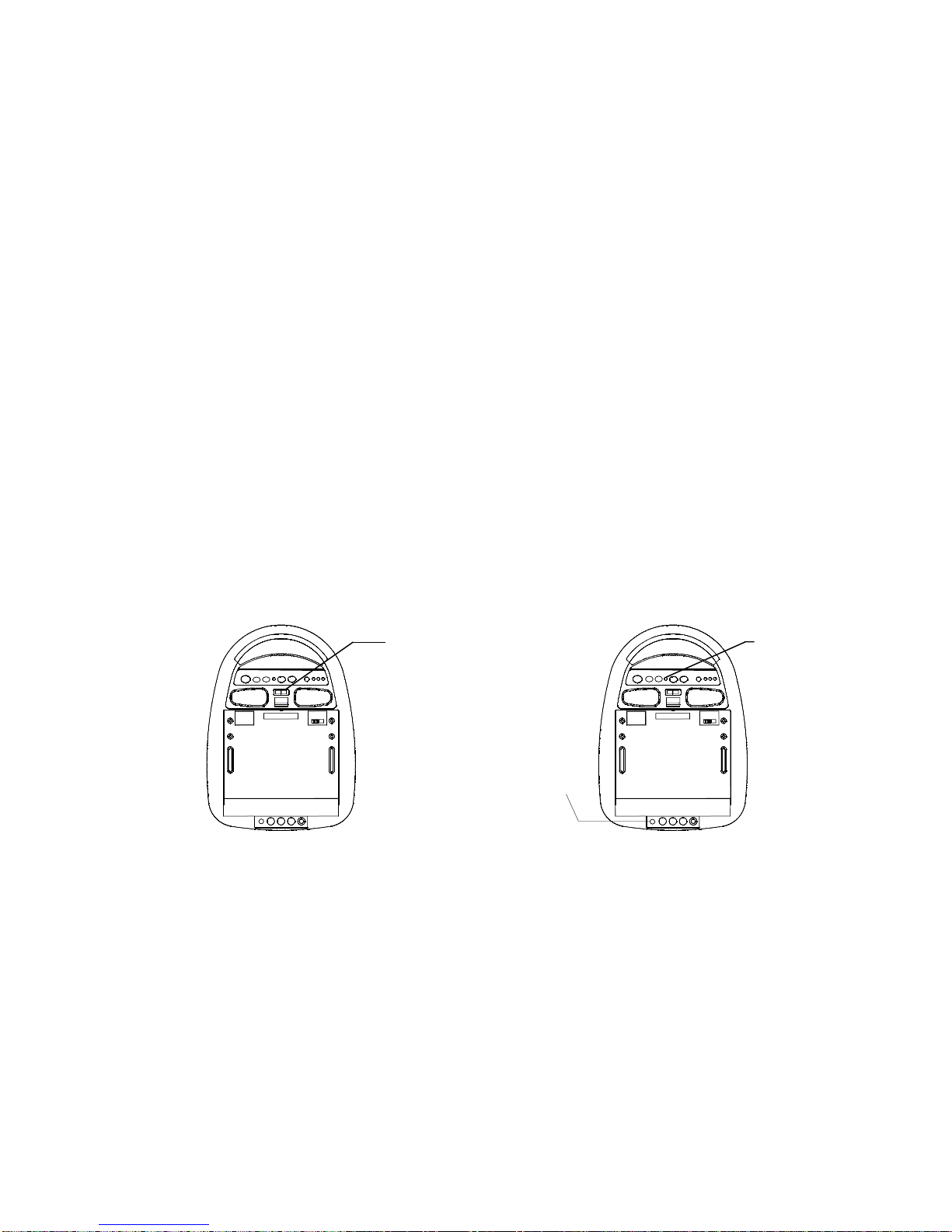

Dome

Light

Switch Remote

Sensor eye

Remote

Sensor eye

-7-

External Auxiliary A/V Stereo inputs (Aux )

These inputs are provided to facilitate the temporary

connection of optional audio / video equipment, such

as a camcorder or video game system. They can be

accessed by removing their protective plastic cover

located behind the LCD hinge. To play a source with

theseinputs, useRCApatch cordtoconnect theaudio

/ video signals to their respective jacks. Mono audio

sources will require the use of an RCA Y cable (PN

0892165)to connecttobothrightand leftinputs. Once

theconnectionshavebeenmade,turntheVOH681A

on and press the source selector button on the pod

until the “AUX” indicator LED illuminates. The unit

will now play the audio and video signals from the

accessory connected.

Optional Accessories

Wired Headphones

There is one 1/8” headphone jack on the VOH681A

thatcan beusedwith anystandardstereo headphone.

This jack is controlled by the volume up / down

buttons on the VOH681A or the remote control.

Remove and save the protective plastic cover to

access the jack. Remember to replace the cover

when the jack is not in use.

Wireless Headphones

The VOH681A includes a built in infrared transmitter

for use with Audiovox wireless headphones (PN

MVSWHS). Turning the headphone switch on, and

wearing them activates the internal micro switch

which will activate the internal IR receiver and the

volume can then be adjusted separately with the

controls on each headset. Any number of wireless

headphones can be used, but all must be within a

line of sight from the transmitter, as infrared

transmissions,likevisiblelighttravel only in a straight

line. See the documentation accompanying your

Audiovoxwireless headphones.

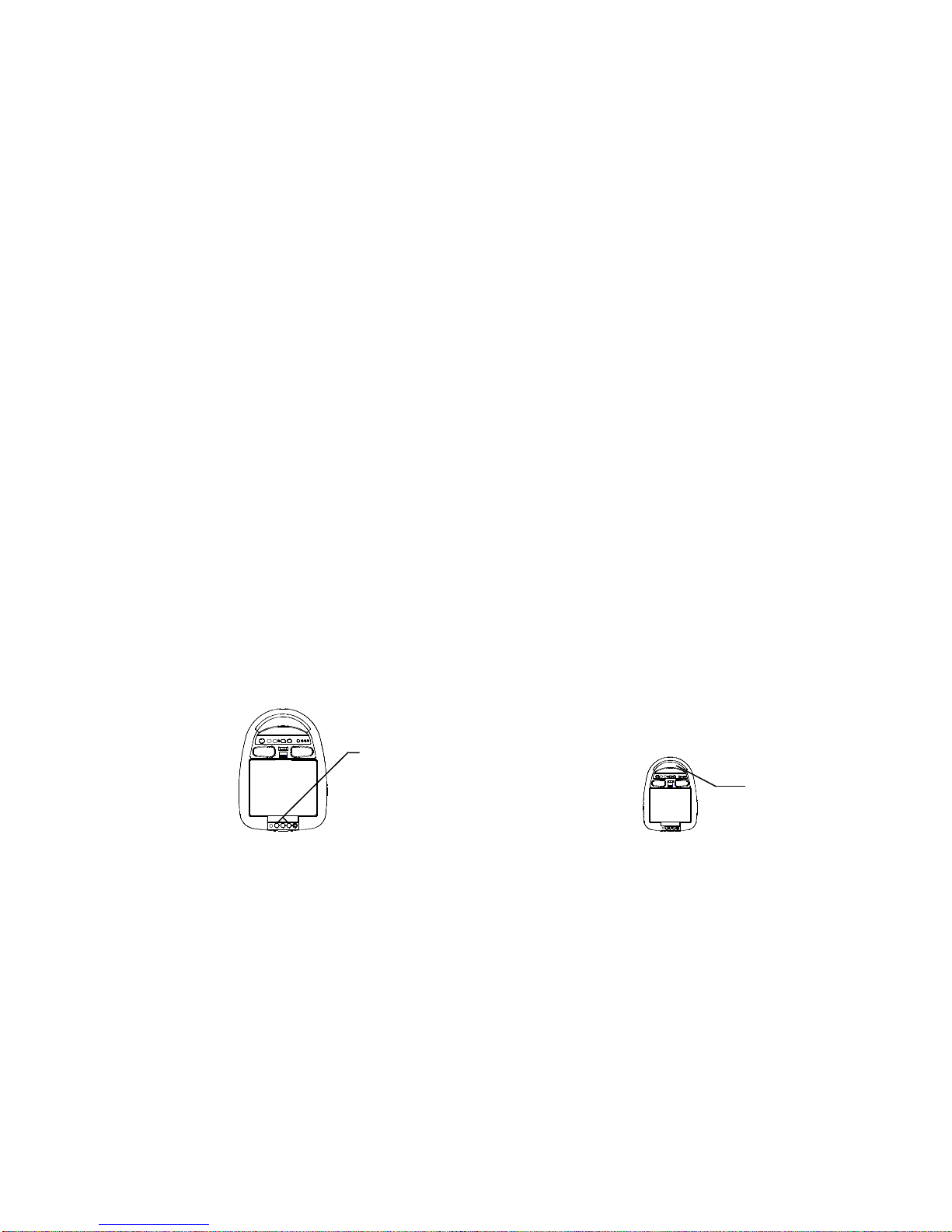

External

AuxiliaryA/V

Stereo

inputs Infrared

Transmitter

-8-

Wired FM Modulator

Your video system may be equipped with an RF

modulator, that allows you to listen totheVOH681A’s

audio signal by tuning your vehicle’s radio to the

selected frequency, (88.7 or 89.1 - Check with your

installer) and turning on the remote mounted RF

modulator switch. (In most cases this toggle switch

will be located underneath the driver’s side of the

dash, check with your installer for the exact location.)

Whenever the RF modulator is on, broadcast radio

reception will be poor. Turning the remote mounted

toggle switch off will allow normal radio reception.

Audiovox Video Cassette Player (AV1)

In most installations a VCP will be connected to the

“AV1” input. To view a video cassette, turn the

VOH681A On and press the source button on its

control pad until the “AV1” indicator LED illuminates.

The VCP may also be operated with a remote or the

buttons on its face. The VOH681A is now ready to

play the audio and video signals from the VCP if it is

connectedtothe “AV1” input. Inserting a tapeintothe

VCP will automaticly turn it on and activate the play

mode. If a rewound tape had already been loaded

into the VCP, prior to its activation, press play on the

VCP or on the remote control to view the tape. For

more information see the operator’s manual

accompanying your VCP.

Video Output

TheVOH681Aprovides a video output for anoptional

video monitor(s). (Refer to page 7 of the installation

guidefor moredetails.) This outputwillprovide avideo

signal that duplicates the signal displayed by the

VOH681A to an additional monitor or video display.

Please see your installer for more information.

-9-

Warnings

Do not use any solvents or cleaning materials

when cleaning the video system.

Do not use any abraisive cleaners, they may

scratch the screen. Use only a lightly dampened

lintfreecloth to wipe thescreenifit becomes dirty.

Lock the LCD screen in the fully closed position

when not in use.

Before putting on headphones always adjust the

volume setting to the lowest position.

Remember to leave the dome light switch in the

off or auto positions when the vehicle is

unattended,as the domelights,if left on,candrain

the vehicle’s battery.

Do not put pressure on the LCD screen.

Caution children to avoid touching or scratching

the screen, as it may become dirty or damaged.

AV2

The second video input may be connected to a DVD

player,videogamesystem,orotheraudio /video input.

To play the AV2 source, turn the VOH681A on and

press the source button on the pod until the “AV2”

indicatorLED illuminates. Turnthesourcecomponent

on with its power button or remote control. The

VOH681A is now ready to play the audio and video

signals from the source connected to AV2 inputs.

-10-

Specifications

•Check the condition of the

vehicle’sradio antenna.

•Verify that the antenna is fully

raised.

•If a wired RF modulator has

been installed, verify that its

switch is turned to the off

position.

•Verify that the batteries in the

suspect remote are fresh.

•Verify that the remote repeater

eye is not obstructed.

•Verify that the infrared

transmitter is affixed over the

sensor eye of the component

to be controlled

Troubleshooting

Poor radio

reception(FM

modulator

installed)

LCD Backlighting EdgeLight Tube

Resolution 1152 x 234

Pixels 269,568

OperationTemperature 0 - 40º C

StorageTemperature -20 - 80º C

Expected Backlight Life 10,000Hours

Video Display System NTSC/PAL

AudioOutput 0.1W @ 16 Ω

IR sensor

inoperative

Replacement Parts

ProtectivePlastic Cover 1023336

OptionalAudiovox VCPRemote Control 0993000

PROBLEM SOLUTION

Altri manuali per VOH681A

Indice

Altri manuali Audiovox Sistema video per auto

Audiovox

Audiovox 50-0246x-015 Series Manuale utente

Audiovox

Audiovox Mobile Video HR7010PKG Manuale utente

Audiovox

Audiovox VOD285S - Dual LCD Monitors Manuale utente

Audiovox

Audiovox 1020640 Manuale di programmazione

Audiovox

Audiovox VOD1021 Manuale utente

Audiovox

Audiovox VOD705DL - DVD Player With LCD Monitor Manuale utente

Audiovox

Audiovox AVXMTG13UHD Manuale utente

Audiovox

Audiovox VMO 5020 V Manuale utente

Audiovox

Audiovox PAV1510DTV Manuale

Audiovox

Audiovox Movies2Go 128-8652 Manuale utente

Audiovox

Audiovox Mobile Video VOD128 Manuale utente

Audiovox

Audiovox VE640 - VE - 640 Manuale utente

Audiovox

Audiovox VOH-641 Manuale utente

Audiovox

Audiovox MMD92 Manuale utente

Audiovox

Audiovox MOVIES 2 GO MMD850 Manuale utente

Audiovox

Audiovox Mobile Video VOD128 Manuale utente

Audiovox

Audiovox MM530 Manuale utente

Audiovox

Audiovox VM9423 Manuale utente

Audiovox

Audiovox VME 9314TS Manuale utente

Audiovox

Audiovox Movies2Go AVXMTGHR1D Manuale utente

Audiovox

Audiovox VOD850 - Car - Overhead LCD Monitor Manuale utente

Audiovox

Audiovox VME 9315 BTA Manuale utente

Audiovox

Audiovox VOD806 - LCD Monitor And TV Tuner Manuale utente

Audiovox

Audiovox 50-0311x-015 Series Manuale utente

Manuali Sistema video per auto popolari di altre marche

Stinger

Stinger HEIGH10 RB10RAM13B Manuale utente

Eonon

Eonon E1057 Manuale utente

Milion

Milion D2223 Manuale utente

Metra Electronics

Metra Electronics 99-8153 Manuale utente

Voxx Electronics

Voxx Electronics HR8MA1 Manuale utente

Axxera

Axxera AV604Bi Manuale utente

Clarion

Clarion NX706E Manuale utente

Pyle view

Pyle view PLDN74BTi Manuale utente

Clarion

Clarion NX602 Manuale utente

PowerAcoustik

PowerAcoustik PTID-5850N Manuale utente

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Guida utente

Lanzar

Lanzar SVDVD5 Manuale utente

Kia

Kia MTXM100YPPE Manuale utente

Eonon

Eonon E1060 Manuale utente

Macrom

Macrom M-AN900 Manuale utente

Hyundai

Hyundai BAPE-L3000N Manuale utente

r.LiNK

r.LiNK RL2-UCON8-SM Manuale utente

Blaupunkt

Blaupunkt DVP 01C Manuale utente
