INSTALLATION MANUAL

MODEL SP-10CD

10-DISC CD CHANGER

SP-10CD

CD Magazine

1 pc.

Index seal sheet

1 pc.

Installation Manual

1 pc.

Owner's guide

1 pc.

Self-tapping screw

(M5 x 12)

4 pcs.

Seals (A)

1 pc.

5 Meter Din Cable

1 pc.

Hexagonal bolt with washer

(M5 x 10)

4 pcs.

INSTALLATION PARTS

OTHER ACCESSORIES

MAIN UNIT

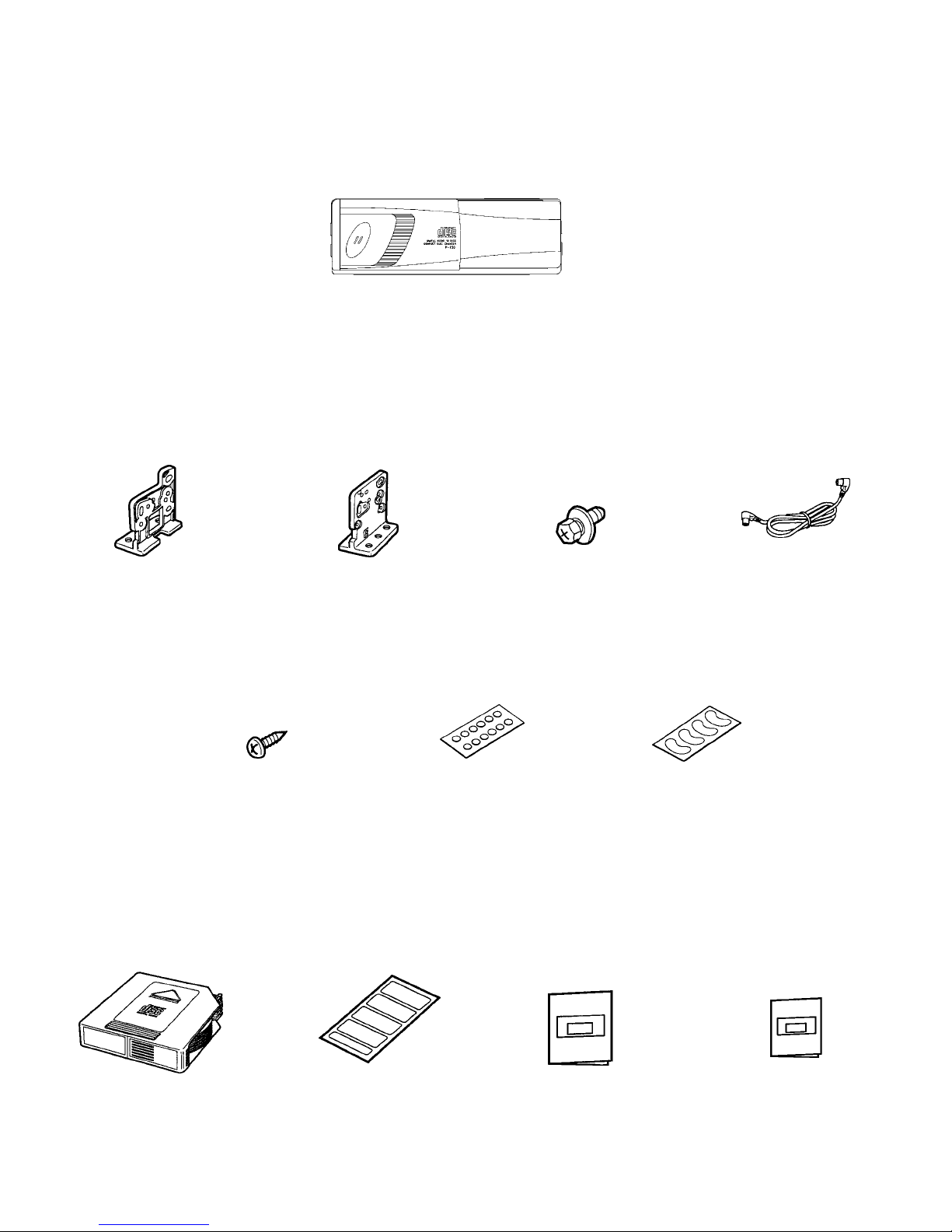

PACKING LIST

Changer

Bracket (L)

1 pc.

Bracket (R)

1 pc.

Seals (B)

1 pc.

Note

If the changer is to be installed in a car that is equipped with an on-board drive or navigation computer, do not disconnect

the battery cable. If the cable is disconnected, the computer memory may be lost. Under these conditions, use extra

caution during installation, not to cause a short circuit.

Do not install the unit in the following locations.

Locations exposed to direct sunlight.

Where hot air is discharged from the car heater.

In areas subject to extreme temperatures.

Incorrect installation can cause the sound to "skip" when playing a disc.

Mount the unit firmly in place, using the supplied brackets and screws.

Be careful not to damage the car wiring.

Be sure to use the supplied screws.

Be careful not to snag any wires when tightening screws.

Do not use any of the screws that are part of the brake or steering system, to install the unit.

This unit cannot be installed on its side, end, or upside down. Installation in such positions will cause malfunctioning

of the mechanism.

Installation and Wiring Precautions

To prevent a short-circuit,

Be sure to turn off the ignition and remove the negative (-) battery cable, prior to installation.

Connect power wires last.

BEFORE INSTALLING THE UNIT

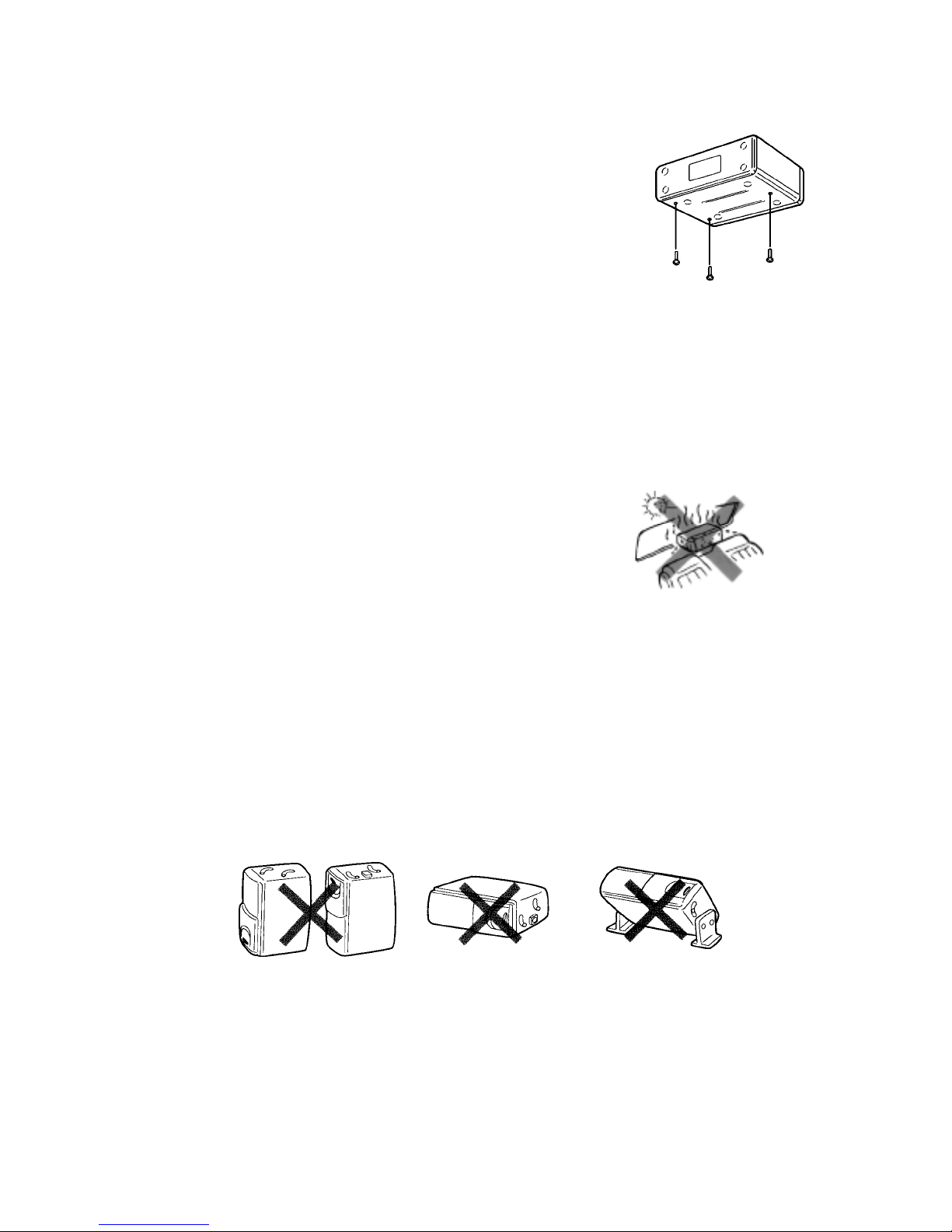

Transport Lock Screws

The mechanism in the CD changer is "locked" into place during shipment by the

transport screws. Be sure to remove the screws prior to installation.

Caution 

After removing the transport lock screws, place the supplied seals (A) over the screw

holes. These seals are used to keep dust out of the unit, which could cause a malfunction.

Drill holes 4mm in diameter.

PROCEDURE FOR HORIZONTAL INSTALLATION

Bracket (R)

Attach bracket (L) and bracket (R) to each side of the unit,

using the hexagonal bolts with washer base (M5 x 8).

Determine the mounting location, and drill four mounting

holes.

Secure the unit in place, using four self-tapping screws

(M5 x 12).

Use RTV (silicone sealer) on screw threads or around

the holes to prevent moisture intrusion.

INSTALLATION

Self-tapping screw (M5 x 12)

Never mount the unit near the fuel tank.

The unit can be installed horizontally, vertically or at a 45° angle. The position of the built-in anti-vibration springs (left and right side), must

correspond to the mounting position chosen. If the springs are not set correctly for the type of installation chosen, the anti-vibration

compensation will not be effective and vibration may cause the disc to skip.

CAUTION

After setting the built-in anti-vibration springs, place the supplied Seals (B) over the holes. These seals are used to keep dust, which could

cause a malfunction, out of the unit.

position "H"

position "V"

position "45°"

Bracket (L)

Bracket (R)

Bracket (L)

Hexagonal bolt

with washer base (M5 x 8)

Anti-vibration

springs position

NOTE: Use seals (A) to cover unused

mounting holes on sides of unit.

HORIZONTAL INSTALLATION

Set the 4 anti-vibration springs to

position "H".

VERTICAL INSTALLAITON

Set the 4 anti-vibration springs to

position "V".

45° ANGLE INSTALLATION

Set the 4 anti-vibration springs to

position "45°".

Hexagonal bolt

with washer base (M5 x 8)

Bracket (R)

Bracket (L)

2Attach bracket (L) and bracket (R) to each side of the unit,

using the hexagonal bolts with washer base (M5 x 8).

Mount the unit in place, using four self-tapping screws

(M5 x 12).

Use RTV (silicone sealer) on screw threads or around

the holes to prevent moisture intrusion.

Set the 4 anti-vibration springs to position "V".

Determine the mounting location, and drill four mounting

holes.

PROCEDURE FOR VERTICAL INSTALLATION

Note

If the anti-vibration spring position has been changed and verified for vertical mounting (as shown on page 3), start with step 2.

Never mount the unit near the fuel tank.

Drill holes 4 mm in diameter.

position "V"

Self-tapping screw

(M5 x 12)

Bracket (R)

Bracket (L)

NOTE: Use seals (A) to cover unused

mounting holes on sides of unit.

2Attach bracket (L) and bracket (R) to each side of the unit,

using the hexagonal bolts with washer base (M5 x 8).

Mount the unit in place, using four self-tapping screws

(M5 x 12).

Use RTV (silicone sealer) on screw threads or around

the holes to prevent moisture intrusion.

Set the 4 anti-vibration springs to position "45°".

Determine the mounting location, and drill four mounting

holes.

PROCEDURE FOR 45° ANGLE INSTALLATION

Note

If the anti-vibration spring position has been changed and verified for 45° angle mounting (as shown on page 3), start with step 2.

Never mount the unit near the fuel tank.

position "45°"

Bracket (L)

Bracket (R)

Hexagonal bolt

with washer base (M5 x 8)

Drill holes 4mm in diameter.

Bracket (R)

Self-tapping screw (M5 x 12)

NOTE: Use seals (A) to cover unused

mounting holes on sides of unit.

Bracket (L)

VEHICLE WIRING

DIN cable (8-pin)

CD changer

Car Stereo with

CD Changer Controls

Mating 8-pin DIN socket on rear of

compatible radio chassis (see note 1 below).

NOTE: 1. Check with your Audiovox car audio dealer to be

sure your stereo is directly compatible with this

CD changer.

2. Wiring instructions for use with FM Modulator/

Commander Systems are included with the

CDC-MC1, CDC-MCR2, P-MC3 and P-MCR4 ac-

cessories.

128-5542
