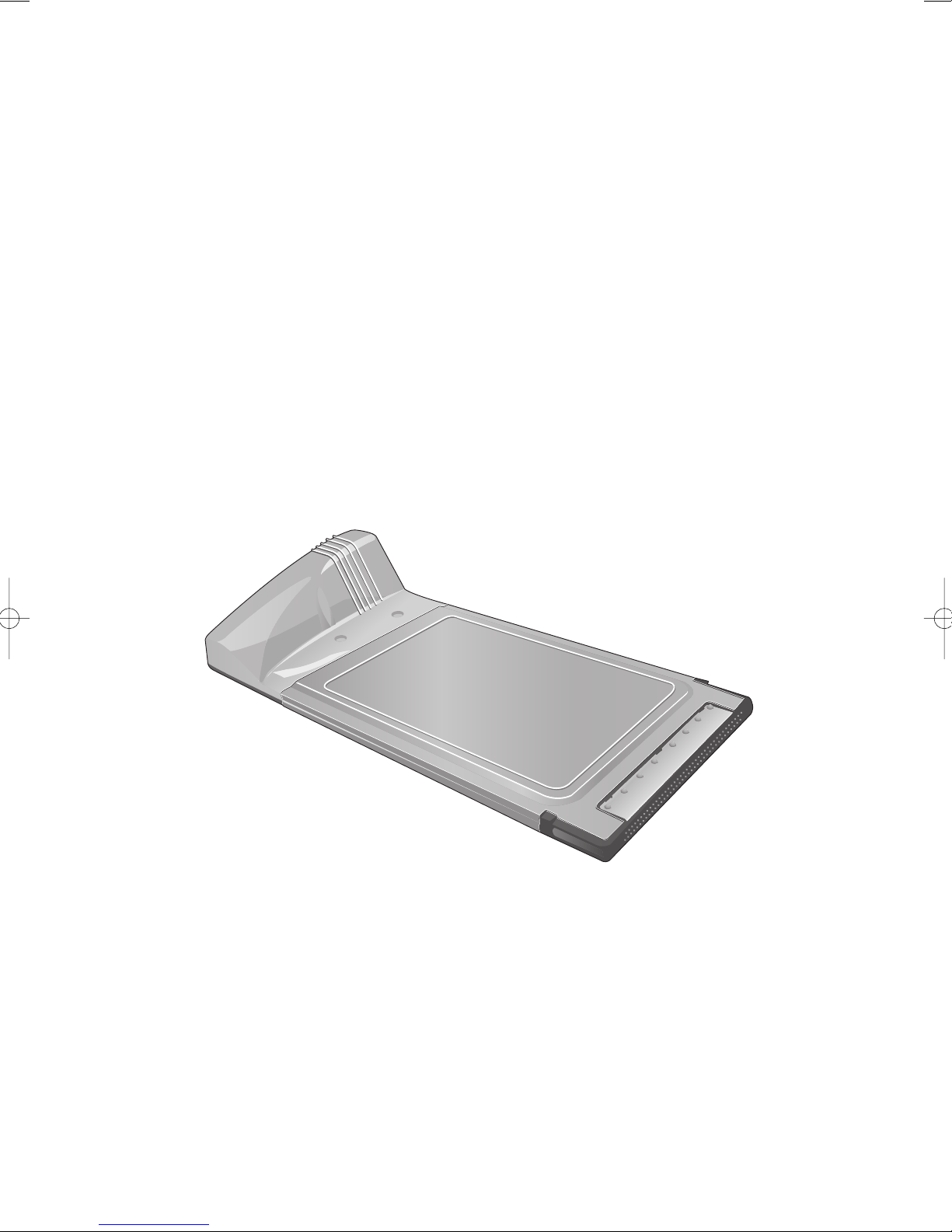

PC5740 User’s Manual
VERIZON WIRELESS VZACCESS MANAGER
CONTENTS
1. BEFORE USING PC5740
1
1.1 About this User’s Manual
1
1.2 Product Overview
1
1.3 What’s Inside the Product Package
1
1.4 Introduction to Verizon Wireless PC5740 PC Card
1
1.5 Product Features
2
1.6 Product Handling
3
1.7 Configuration
3
2. INSTALLATION AND SETUP FOR THE VZACCESS MANAGER
4
2.1
The VZAccess Manager Setup Program 4
2.2
The VZAccess Manager Setup Wizard 7
3. USING VZACCESS MANAGER
11
3.1
Features 11
3.2
Getting Started 12
3.3
Connecting 14
3.4
Warning Message 17
3.5
Using Dial Up Connections 19
3.6
TXT Messaging 20
4. VZACCESS MANAGER PREFERENCES
22
4.1
General Preferences 22
4.2
WWAN Specific Settings 24
4.3
WI-FI Specific Settings 29
4.4
TXT Messaging Settings 33
5. INSTALLING PC5740
34
5.1
Precautions 34
5.2
Recommended System Requirements 34
5.3
Installing Software 35
5.3.1 Installation 35
5.3.2 Warnings 35
5.3.3 Notes 35
5.3.4 Unplugging or Ejecting the Card 36
6. REGULATORY AND SAFETY INFORMATION
42
6.1 Regulatory Notices 42
6.2 Operating Conditions 42
6.3 Warnings and Cautions 42
6.4 Safety Precautions 43
7. LIMITED WARRANTY
45
CONTENTS
1. BEFORE USING PC5740
1.1 About this User’s Manual
You will find all the information you need to install and use the PC5740 in this user’s
manual. Before using PC5740, you must properly install the PC5740 by closely
following the installation instructions.
1.1.1 Instructions
• Install the PC5740 software before inserting the PC5740 card into your laptop.
The installation software is included in the product package. Insert the CD into
your CD-ROM drive. Installation may take a few minutes.
• It is highly recommended that you read the safety precautions described in
this manual before using the PC5740.
1.2 Product Overview
Thank you for purchasing Verizon Wireless PC5740 PC Card.
The PC5740 is a 3G wireless card that enables high-speed wireless communication
from your laptop. PC5740 is simple to install and use.
1.3 What’s Inside the Product Package
Following items are included in the product package. If any of the items listed below
is missing, please contact the retail location where you purchased the product.
- PC5740 Wireless PC Card Modem
- Installation CD that contains software and this user’s manual

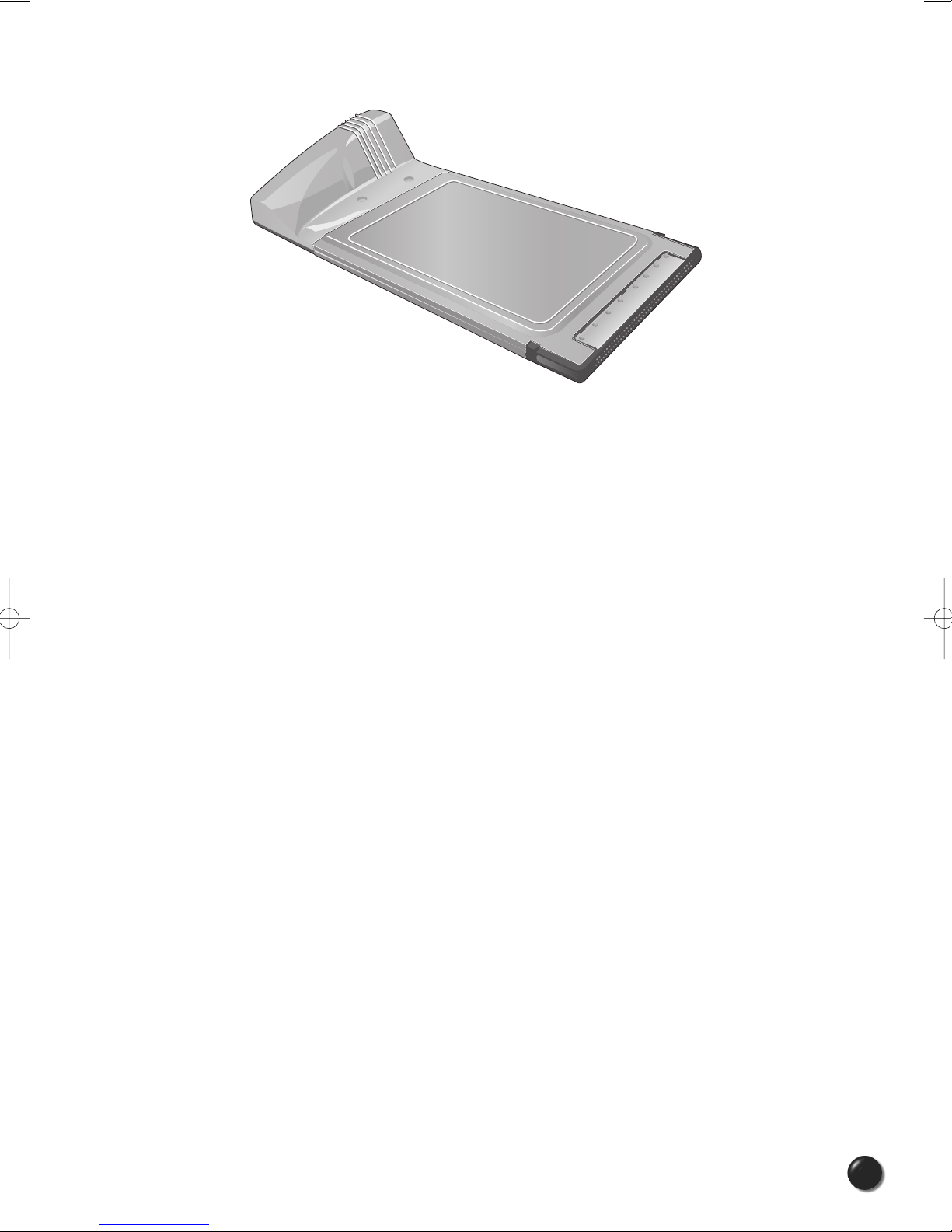

1.4 Introduction to Verizon Wireless PC5740 PC Card
The Verizon Wireless PC5740 is designed for type II PC card slot, which is available
in most laptop models. PC5740 can be used to access the Internet, your company’s
intranet, or you can use it to send and receive email. It is extremely useful when you
are away from the office, on the road, or where ever a wireline Internet access is not
readily available.
1
PC5740 User’s Manual
1.5 Product Features
- Power management: PC5740 utilizes power management and system overhead
reduction functions provided by the standard 32-bit CardBus electrical interface for
maximum power savings.
- Antenna design: Efficient, innovative design optimizes data transfer rate and
sensitivity to network signals.
- Type II PCMCIA format that supports CardBus I/O interface.
- Supports North American PCS (1900 MHz) and Cellular (800 MHz) bands.
- Utilizes QUALCOMM MSM6500 chip set.
- Supports 3G network technologies.
- Optimized data rate: Maximum 2 Mbps receiving speed and maximum 144 kbps
sending speed.
- Supports Win98SE, ME, 2000 and XP systems with installed host software and
driver.
- Provides Verizon Wireless BroadbandAccess and NationalAccess network
service.
2
PC5740 User’s Manual
3
1.6 Product Handling
1) Do not put any adhesive label on the PC5740 card. It may leave a
sticky residue that can cause problems inside the laptop PC card slot.
2) PC5740 card should easily slide into the PC card slot.
Do not force the PC5740 into the slot as it may cause damage to the
card and/or the slot.
3) Keep PC5740 in a dry and clean place.
(Storage temperature: - 30° to 65°C [86° to 149°F]). Keep your card
away from liquids, dust and excessive heat.
1.7 Configuration
To use the PC5740, you should install the software included in the installation CD
and configure the PC5740 card. See the next section for more infomration on
software installation and PC card configuration.
PC5740 User’s Manual
2. INSTALLATION AND SETUP FOR THE VZACCESS MANAGER
This section will guide you through the installation and setup process for the
VZAccess Manager. Before getting started, you should become familiar with the
documentation that came with your mobile phone or PC Card.
CD's
1. If VZAccess Manager was obtained in a Mobile Office kit, install the USB drivers
for your phone from Disc 1 before installing VZAccess Manager that is on Disk 2.
2. If you purchased a PC Card, there is only one CD that contains VZAccess
Manager and PC Card drivers.
Getting Started
Follow these steps to install VZAccess Manager:
1. Turn on your computer and close all applications.
2. Insert the CD-ROM into your CD drive.
3. If set up does not automatically start, click the Start button on the taskbar and
choose Run. Type D:\Start (where D is the letter of your CD-ROM drive) and click
OK.
4. Follow the steps in the next section...
* VZAccess Manager software must be installed before you insert the PC Card in to
the computer for the first time. Only after the software has been installed can
Windows successfully install and configure the PC Card.
2.1 The VZAccess Manager Setup Program

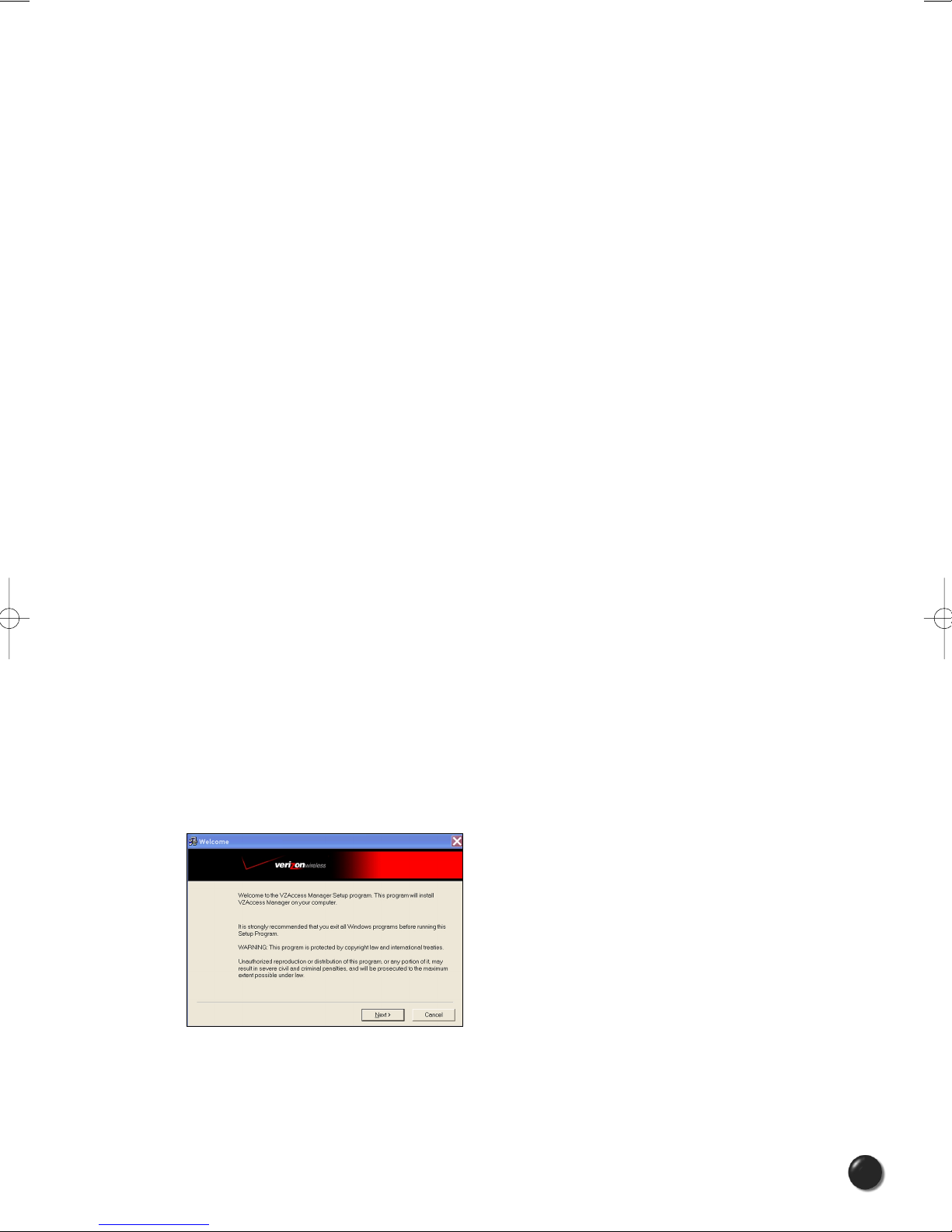

STEP 1: Double-click the VZAccess Manager setup program. You will be presented with a
“Welcome” screen. Click the Next button to continue with the installation process.
4
PC5740 User’s Manual
STEP 2: After the Welcome screen you will see the VZAccess Manager License Agreement. In
order to install and use this product you must agree with the terms of this agreement. Select “I
agree with this software license agreement”, then click the Next button to continue. If you do
not agree with this agreement, click the Cancel button to exit.
STEP 3: You are now ready to select the location on your computer where the VZAccess
Manager should be installed. It is recommended that you do not modify the default destination
folder. Click the Next button to continue.
STEP 4: You are now ready to begin installing VZAccess Manager components onto your
computer. Click Next to continue.
5
PC5740 User’s Manual

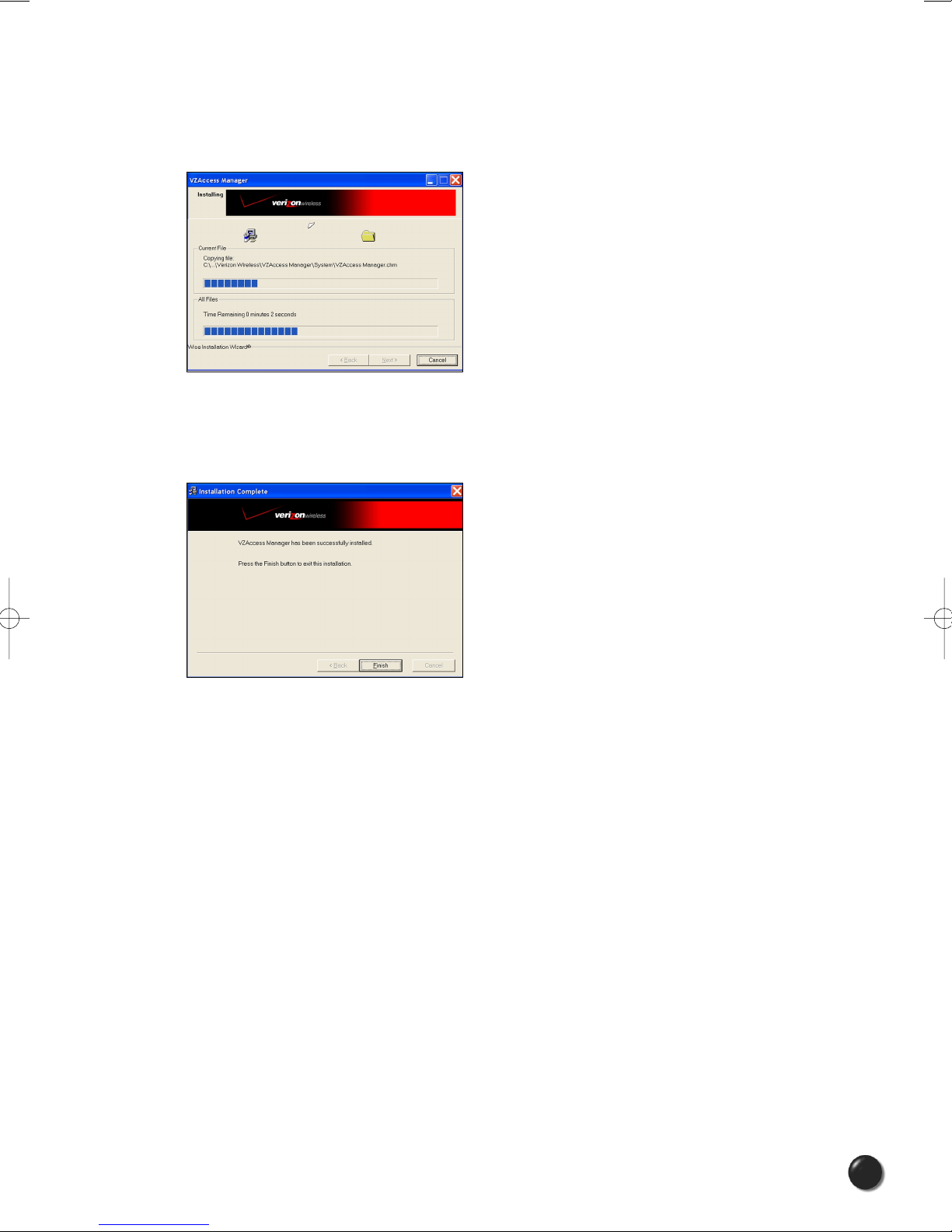

STEP 5: During this step the components of the VZAccess Manager product are being
installed onto your computer. Installation will occur to the destination folder specified in Step 3
above.
STEP 6: Installation is now complete. Click the Finish button to leave the VZAccess Manager
setup program and begin using your new software
* The setup program will automatically create a VZAccess Manager shortcut on
your desktop.
6
PC5740 User’s Manual
2.2 The VZAccess Manager Setup Wizard
After you have successfully completed the installation process of VZAccess
Manager, you are ready to start the VZAccess Manager program and begin your
initial setup. The steps in the Setup Wizard are critical to the proper operation of
VZAccess Manager when using your WWAN or Wi-Fi device to connect to the
Internet wirelessly.
STEP 1: Click the Start button, select the Programs menu and choose the VZAccess Manager
menu item to start the VZAccess Manager program.

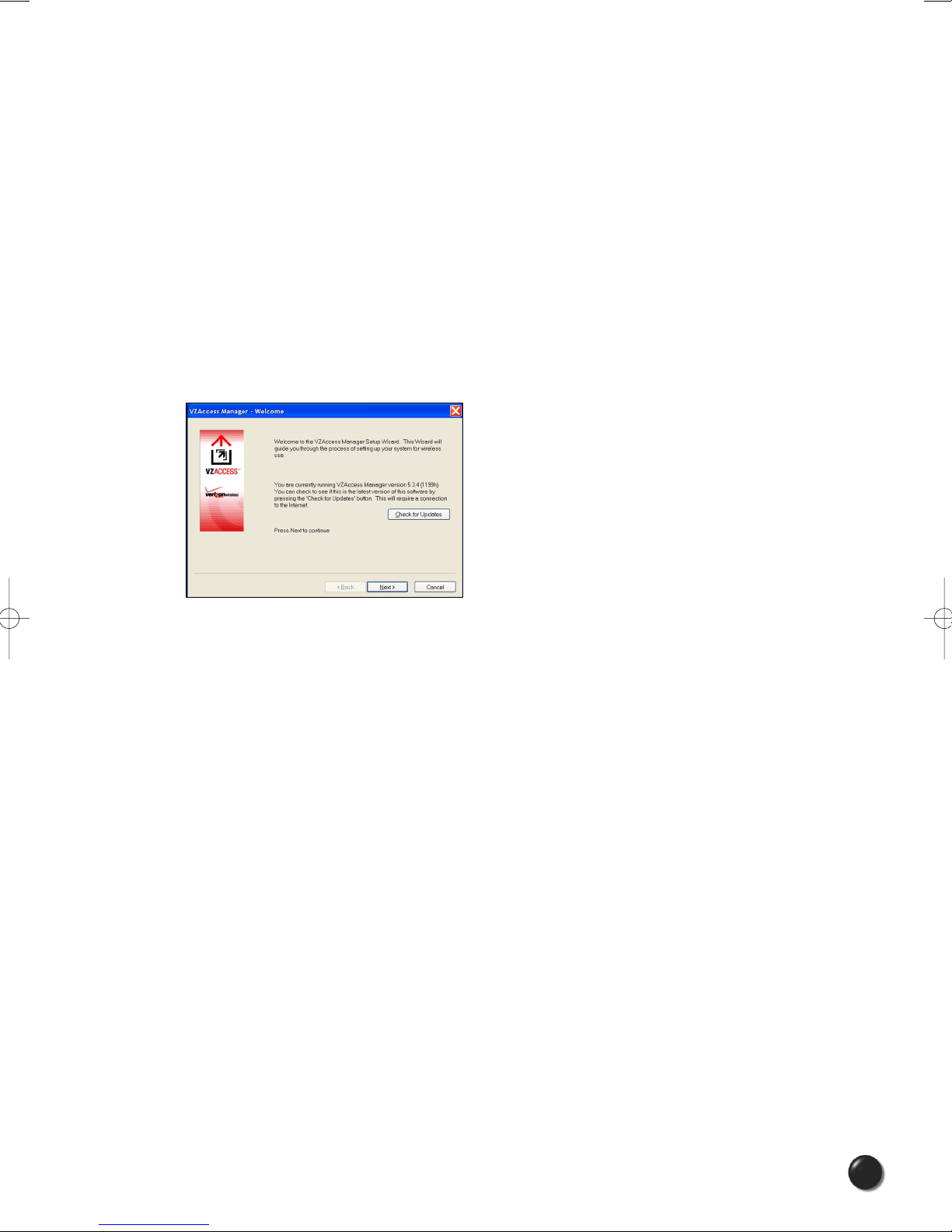

STEP 2: On first-run of VZAccess Manager the Setup Wizard will automatically run. You will be
presented with a Welcome screen.
If you have an Internet connection, it is recommend that you check to see if you are running the
latest version of VZAccess Manager. Click the Check for Updates button to perform this check.
Click Next to continue.
STEP 3: In this step of the Setup Wizard you must specify the type of wireless device that you
intend to use with VZAccess Manager. Select “Detect both Wi-Fi and WWAN”, “Detect WWAN
device only (1xEV-DO/1xRTT/CDMA)”. For the purposes of this guide, “Detect both Wi-Fi and
WWAN” will be used. Please note that your experience in Step 4 may be different if you use a
different selection. After making the appropriate selection, click Next to continue.
7
PC5740 User’s Manual
STEP 4: In this step VZAccess Manager will detect the Wi-Fi adapters on your computer. If
your computer has a built-in Wi-Fi adapter, you do not need to do anything and can proceed to
the next step. Otherwise, please insert your Wi-Fi PC Card now. You will need the drivers for
the card if not already installed on the computer. Once complete, click Next to continue.
* WWAN (Wireless Wide Area Network) denotes any 1xEVDO, 1xRTT or CDMA
connection to the Verizon Wireless network such as BroadbandAccess,
NationalAccess or Quick 2 Net.
STEP 5: The VZAccess Manager will now detect and setup your WWAN device.
STEP 6: In this step you need to select the type of connectivity you wish to use with your
wireless device. For the purposes of this guide, we will select “PC Card”.
Please note that this selection may not be appropriate for your type of wireless device. Once
you have selected your connectivity option, click Next to continue.
8
PC5740 User’s Manual
