Model: CAM300/CAM310
Full or Partial
Frame Camera
Installation Manual
Features
•Camera Fully Adjustable on all 3 Axis for off centre mounting.
•Frame may be mounted above or below license plate.
•High Resolution, ¼ inch CMOS Color Camera
•Waterproof Housing
•160 Degree Wide View Angle
•Selectable Image: Normal/Reverse
•12v – 24v
2
Table of Contents
Warnings......................................................................................3
Product Description .....................................................................4
Packing List .................................................................................4
Camera Installation......................................................................5
Camera Wiring Diagram..............................................................8
Specifications ..............................................................................9
Troubleshooting...........................................................................9
3
Warnings
The product is intended to assist in safe driving and to allow the driver to
have a broader rear view while the vehicle is in reverse. You, as the
driver, are solely responsible for the safe operation of your vehicle and
the safety of your passengers according to local traffic regulations. Do not
use any features of this system to the extent it distracts you from safe
driving. Your first priority while driving should always be the safe
operation of your vehicle. Audiovox Electronics Corporation cannot
accept any responsibility whatsoever for accidents resulting from failure
to observe these precautions or safety instructions.
1. This product utilizes high voltage. Any unauthorized modifications or
damage to the product may result in electrical shock. Handle all
components with care. Inspect regularly for damage to components
and cabling.
2. You are responsible for ensuring that the installation of this product
does not void or affect the vehicle manufacturer’s warranty.
Audiovox Electronics Corporation or its subsidiaries are not liable in
full or in part for improper installation resulting in loss or damage to
your property, or for voiding all or part of the vehicle manufacturer’s
warranty.
3. Do not apply excessive force to any of the components contained
within this kit. Excessive force used before, during or after
installation that results in a damaged or non-functional part will void
all warranties.
4. Please follow the procedures in this installation manual. Improper
installation or modification of this product will void all warranties.
4
Product Description

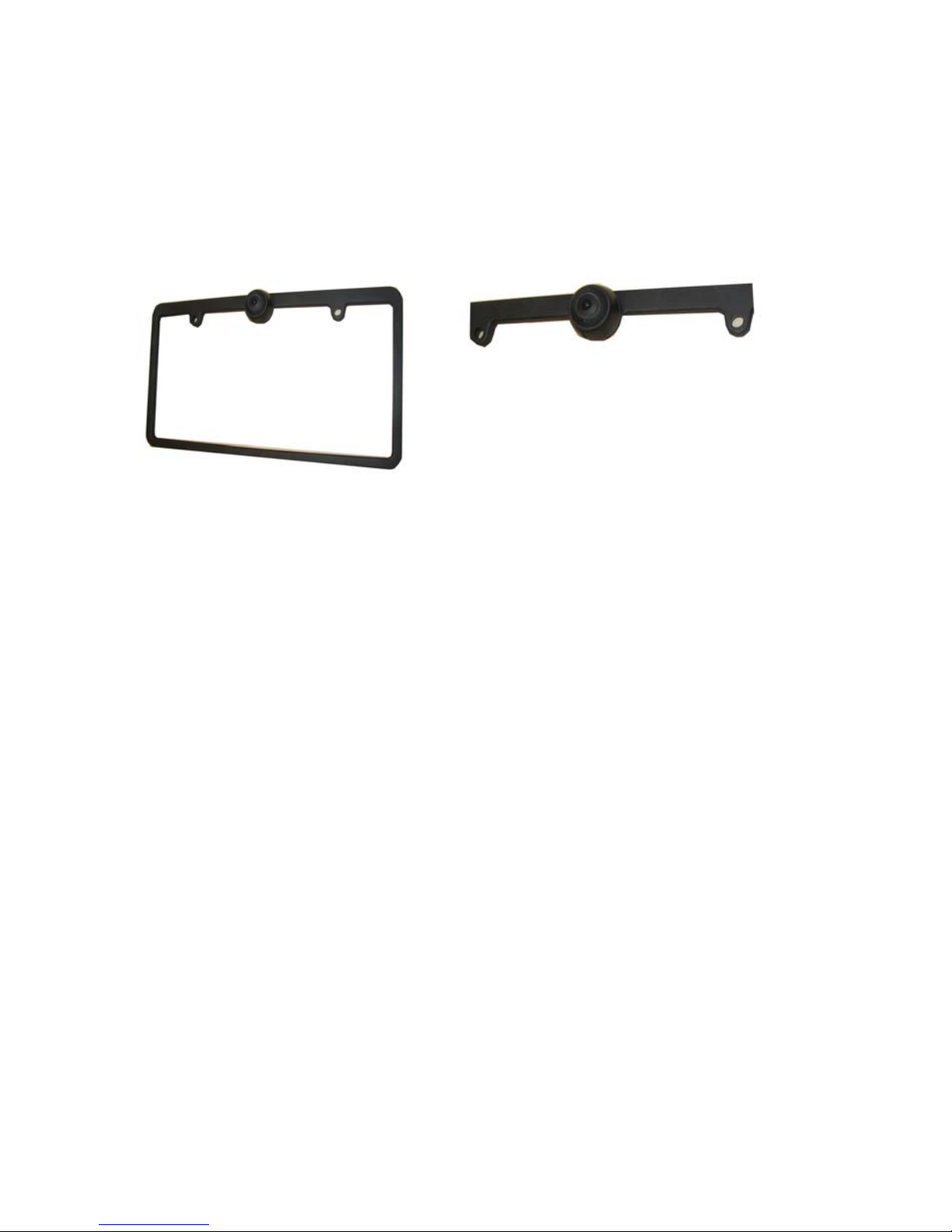

This fast and easy to mount back up camera allows you to use the license
frame mounting bolts to securely attach a high quality, fully adjustable
reversing camera. The camera is perfect for use on your car, truck, or van.
This Wired Camera is designed for use with an Advent monitor but is
compatible with most monitors/TFT screens and can be connected using a
standard RCA connector.
Packing List
•CMOS Camera – 1qty
•Mounting Screw – 1 qty
•Power & Adaptor Cables – 1 qty
•Owner’s Manual – 1 qty
Part Numbers
Description Barcode
Quantity
CAM 300B 1
Black Full Frame Camera 30192390 1
Power Cable & Adaptor Cable 30192160 1
Mounting Screw 30192010 1
Manual 30192020 1
CAM 300C 1
Chrome Full Frame Camera 30202390 1
Power Cable & Adaptor Cable 302020160 1
Mounting Screw 30202010 1
Manual 30202020 1
CAM 310B 1
Black Partial Camera 30212390 1
Power Cable & Adaptor Cable 30212160 1
Mounting Screw 30212010 1
Manual 30212020 1
CAM 310C 1
Chrome Partial Camera 30222390 1
Power Cable & Adaptor Cable 30222160 1
Mounting Screw 30222010 1
Manual 30222020 1
5
Camera Installation
1. Remove the rear license plate.
2. Examine the vehicle to determine the best way to run the power wires
to the reverse lights and the extension cable through the car.
3. The Camera can be mounted above or below the plate. Determine the
mounting location that best suits your needs. Be sure to verify that
your installation plan complies with local laws and requirements.
Some states require that the state name, registration stickers, and
license number are not obstructed in any way.
4. Place the frame camera in front of the license plate and line up the
holes. Fasten the camera mounting bracket and the license plate to the
vehicle using the anti-theft screws provided. After installation of
screws with the tool provided, place the tool in the glove
compartment or other safe place for future use.
NOTE: To adjust the viewing angle, loosen the locking ring on the front
of the camera around the lens and then move the ‘camera ball’ to the
suitable angle and tighten the locking ring back up.
There is an alignment mark on the camera to show the top of the image.
5. Route the camera wiring into the vehicle. The wire can be run through
an existing grommet, behind a tail lamp, under the trunk molding, or
if necessary, through a 5/8 inch hole drilled near the vehicle’s rear
6
license plate. When choosing a wiring path, make sure the cable
will not be damaged or pinched, as this may cause a short circuit
that is not covered by the warranty. If drilling a hole, perform the
following steps:
a) Acquire a 5/8 inch drill bit, rust preventive, all of which can be
purchased at a hardware store.
b) Check behind the intended drilling location before drilling to
verify that no wires or mechanisms can interfere with or be
damaged during drilling.
c) Check for interference with license plate lights and the hatch
release switch and/or mechanism.
d) Drill a 5/8 inch hole at the selected location.
e) Coat the edge of the hole with rust preventative.
f) Route the camera cable through the grommet and then through
the hole.
g) Insert the grommet in the hole to keep water from entering the
vehicle.
6. Assemble camera and mount on the vehicle.
7
7.
Wiring the Camera to the Vehicle’s Reverse Lamp
1. Locate the reverse lamp in the tail light assembly.

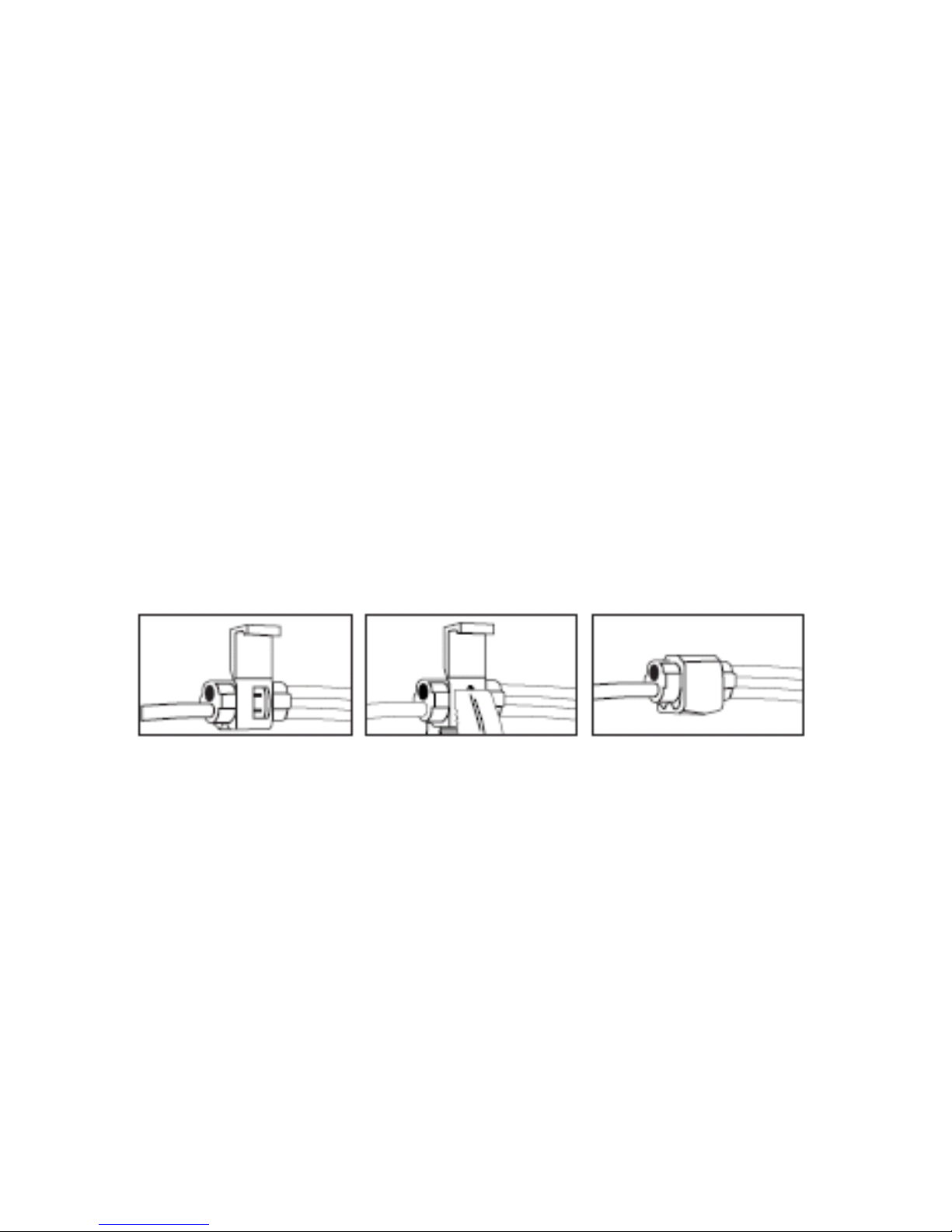

2. Using the tap connector supplied, perform the following steps:
a) Place the un-stripped positive lead from the tail lamp in the run
channel, which runs completely through the connector.
b) Insert the un-stripped red power wire from the camera
completely into the other channel in the connector.
c) Make the connection between the wires by crimping down the
metal connector with a pair of pliers, making sure the metal is
flush with the plastic insulator.
d) Close the top plastic hinged cover until latched.
3. Attach the black wire to the ground (negative).
4. Repeat the above steps for the red wire.
Connecting the Video Signal
5. If used with an Advent LCD Monitor such as LCD4WM or LCDM42
the camera power and signal will be provided through a single cable
to the monitor (supplied with the monitor).
6. If using an alternative monitor, use the adaptor harness to split the
signal to RCA connections then connect to the female RCA input on
the alternative monitor.
Reverse/Normal Image Adjustment
The camera comes standard with a reversed image, designed for mounting
at the rear of the vehicle. If you need to change to a forward or normal
8
image view, clip the blue jumper wire loop on the wiring cable (labeled
“Mirror Selection” below) to change the camera image to normal. Secure
the clipped wires with electrical tape. To change back to reverse image
view, reconnect the blue wires and secure with electrical tape.
Camera Wiring
Note: If used with an Advent LCD Monitor such as LCD4WM or
LCDM42 the camera power and signal will be provided through a single
cable to the monitor (supplied with the monitor).
9
Specifications
1. Voltage: DC9V-DC28V
2. Current: 50 mA
3. Signal System: NTSC
4. Image Sensor: ¼” CMOS Sensor
5. Horizontal Resolution: 480 lines
6. Viewing Angle: 160 degrees
7. Minimum Illumination: 0.7 Lux
8. Image Display: Selectable Normal/Reverse Image
9. Adjustable Viewing Angle
10. Dimensions:
•Camera: 26mm W x 30mm L
Troubleshooting
Symptom Solution
No video signal appears while
reversing the vehicle 1. Check the rear view camera
lens and clean if needed.
2. Check the rear view camera
wiring connection and RCA
connection.
3. Check the Fuse – if blown
replace ONLY with fuse of
equal amperage.
Video image is not sharp enough Clean the camera lens.
7
