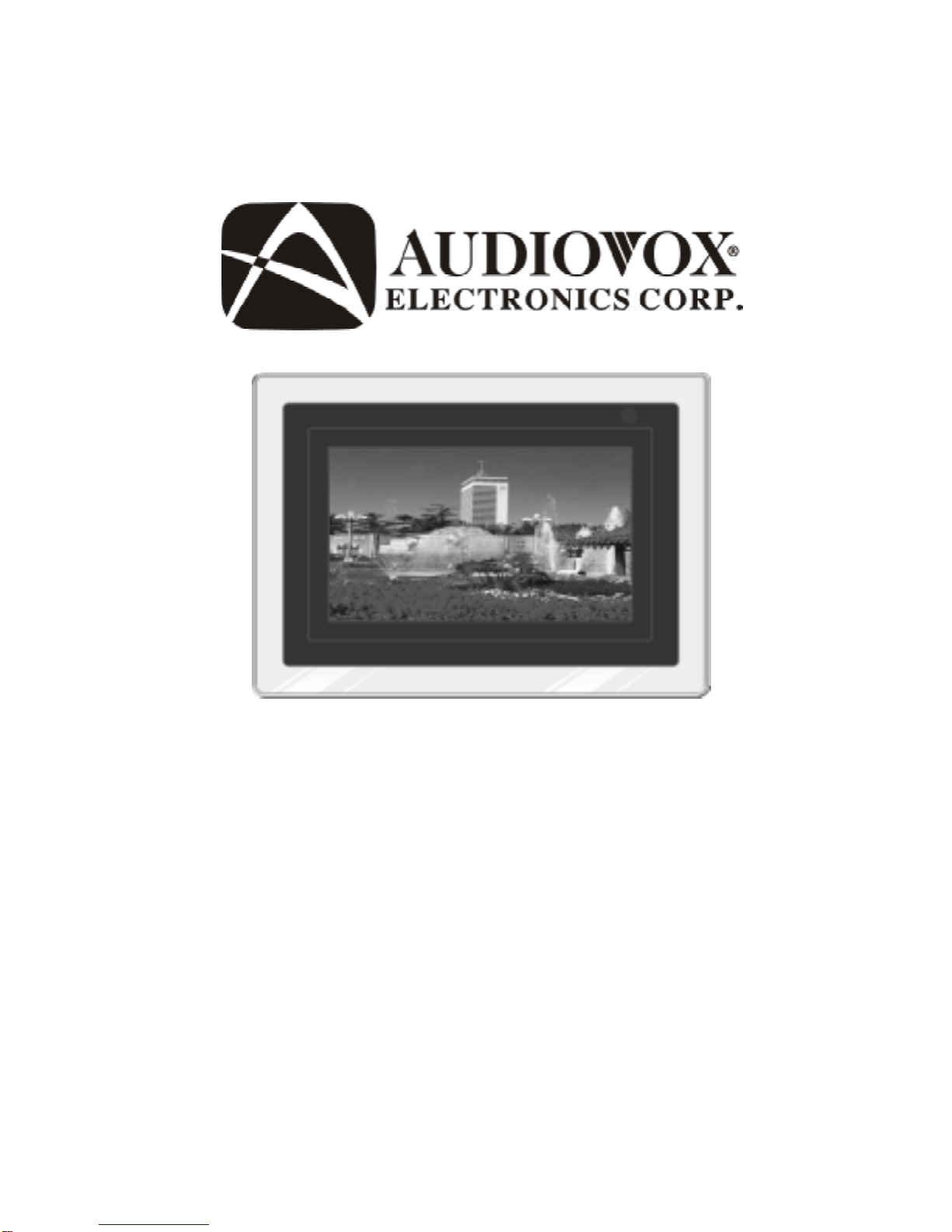

OWNER’S MANUAL
DPF701
Digital Photo Frame
2
Important safety instructions
1. All the safety and operation instructions should be read before the
product is operated.
2. Do not place this product in direct sunlight or near a heat source.
Excessive heat may cause the Digital Photo Frame to malfunction,
or change color.
3. Do not use this product near water (e.g., near a swimming pool ).
4. If you are unable to insert the plug fully into the power outlet, try
reversing the direction of the plug. If the plug still fails to fit, contact
an electrician to replace the outlet.
5. Power supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them.
6. For added protection for this product, unplug it from the wall outlet
during a lightning storm or when it is left unattended and unused for
long periods of time. This will prevent damage to the product due to
lightning or power-line surges.
7. Do not attempt to service this product yourself as opening or remov-
ing covers may expose you to dangerous voltage or other hazards.
Refer all servicing to qualified service personnel.
3
Package Contents
1 Digital Picture Frame
1 Remote Control
1 AC/DC Power Adaptor
(+9V, 1A, Support 110/240VAC 50 -60Hz)
1 User Manual
QTY Item Image
Getting Started
1.ConnecttheACpoweradapterintothedigitalphotoframeandplug
it into a power outlet.
2. Insert your memory card with photos or music, into the memory
slot (MultiMediaCardTM/ Secure DigitalTM/ Compact FlashTM/xD
Memory CardTM/ Memory StickTM) or USB storage device into the
USB port. (Note: If no memory card is available, there are some
demo images preloaded in the internal memory*)
3. Adjust the digital photo frame stand to its extended position and
push the POWER button located on top.
*To delete preloaded images, please refer to the “Delete images from
InternalMemory”section.d
4
Photo Frame Controls and Indicators Functions
Top View
PLAY/PAUSE/SELECTbutton
UP/COPY/DELETE button
POWER button
MENUbutton
DOWN/ROTATE button
NEXTbutton
PREV. button
POWER LED
Left View Right View
Volume
Control
CF Memory
Slot
SD/MMC/xD/
MS Card Slot
USB Port
PowerInput
5
Remote Control Functions
Pull plastic tab from remote control to
activate. (Note: replacement battery
model #CR2025)
CLOCK: Press to cycle through clock calendar and side show.
NOTE: Onlyavailablewhenin slideshowmode.
REPEAT: Press to switchbetweendifferent repeat modes foraudioplay-
back. NOTE: Control of the repeat function is unavailable in slideshow
with MP3 mode. The slideshow with MP3 is set to the default mode Re-
peat all.
MENU: Press to access menu.
ZOOM: Presstoenlargephotodisplayinpause mode.
UP or COPY/DEL: Press to move up or copy/delete in Pause mode.
LEFT/PREV or RETURN: Pressto move left, orreturn to previousscreen
inslideshow mode.
PLAY/PAUSE OR SELECT: Pressto playor pause photo,or music files.
Press to make selections in menu or setting mode.
RIGHT/NEXT: Press to move right, or move to next screen in slideshow
mode.
SOURCE: Press to select which external memory card or USB storage
device, which will be used to retrieve data for the DPF.
NOTE:Internal memory can only be accessed by removing all external
memorysources!
DOWN or ROTATE: Pressto advancetothe nextpage wheninthumbnail
mode,move picturedown when inzoom mode.
6

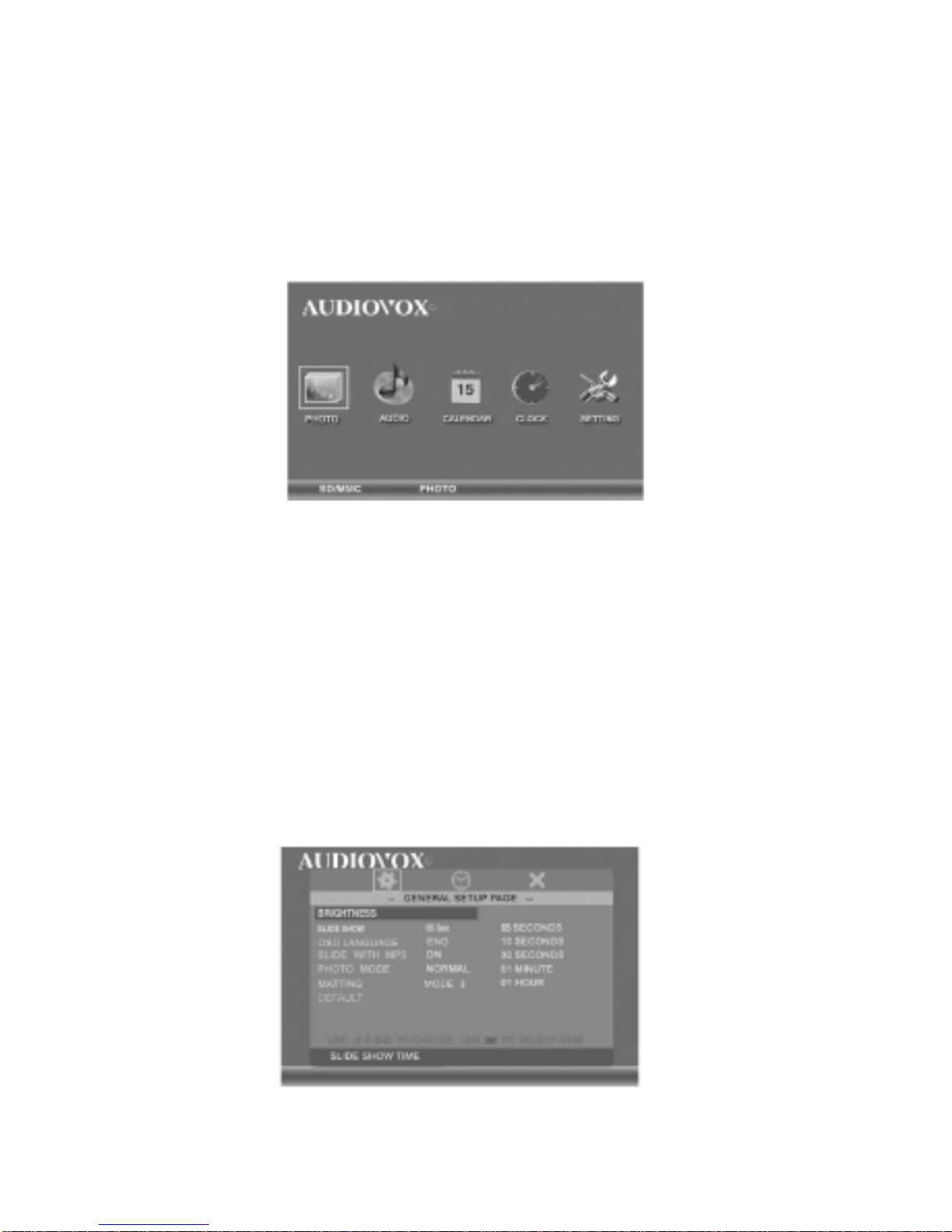

Changing Settings
Press the MENU button and use the arrow keys to highlight the
“SETTING” icon. Press the SELECT button to gain access to the GEN-
ERAL SETUP PAGE. Once at the GENERAL SETUP PAGE press Se-
lect to enter the the adjustment mode.
General Setup Page
Press the MENU button and use the arrow keys to highlight the
“SETTING” icon. Press the SELECT button to gain access to the GEN-
ERAL SETUP PAGE. Once at the GENERAL SETUP PAGE press SE-
LECT to enter the adjustment mode.
BRIGHTNESS: UsethearrowkeystopositionthehighlightoverBRIGHT-
NESS . Press select to enter the adjustment mode. Upon finding the
desired setting, press select to exit and save your selection.
7

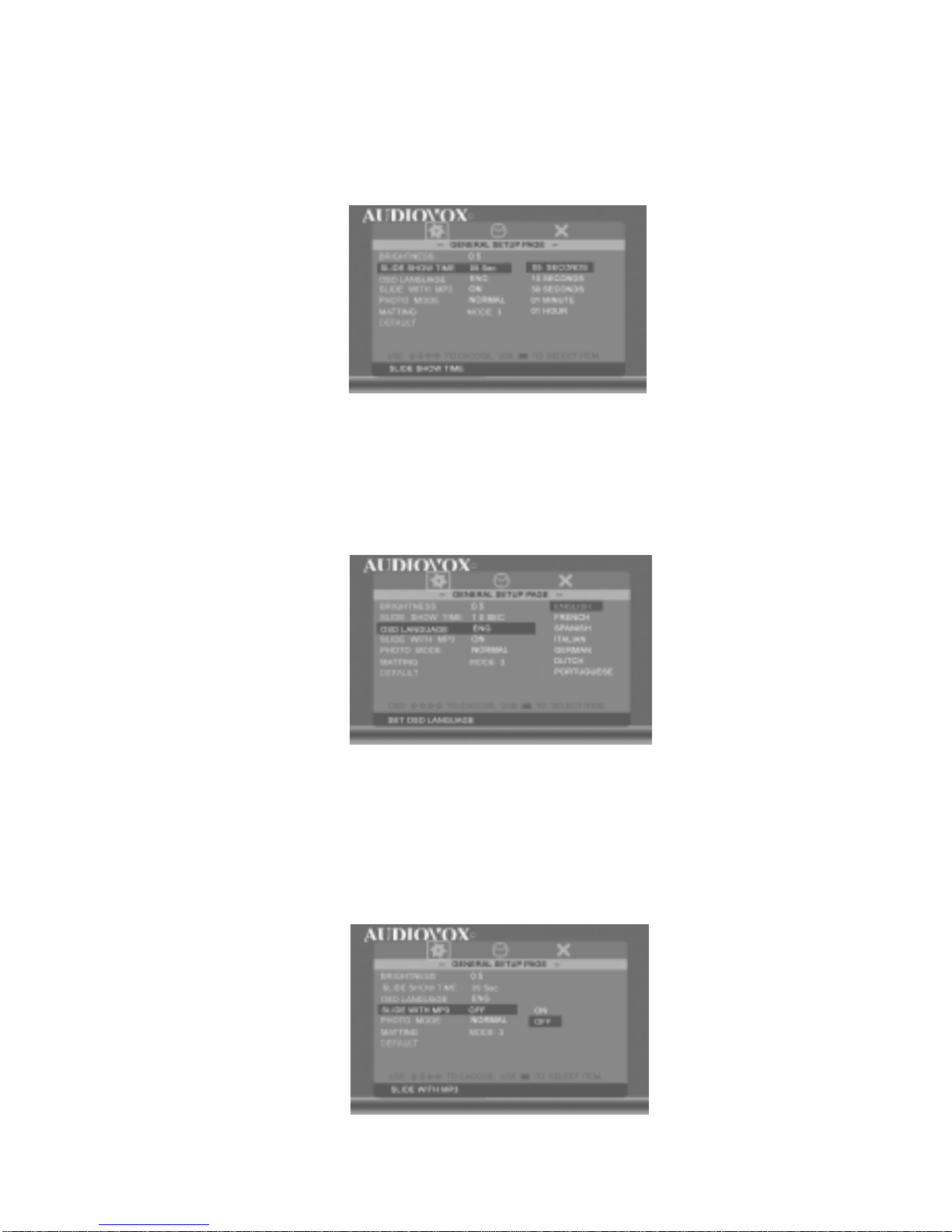

SLIDESHOW TIME: Allows the user to select how long an image is
displayed in slide show mode. Use the arrow keys to position the high-
lightoverSLIDESHOWTIME. PressSELECTtoentertheselectionmode.
Upon finding the desired setting, press SELECT to exit and save your
selection.
OSD LANGUAGE: Allowsthe user toselectwhat the OSDLANGUAGE
willbe.UsethearrowkeystopositionthehighlightoverOSDLANGUAGE.
Press SELECT to enter the selection mode. Upon finding the desired
setting, press SELECT to exit and save your selection.
SLIDE WITH MP3: Controls whether MP3 music will play during the
slide show. Option is only available for use with external memory de-
vices. Use the arrow keys to position the highlight over SLIDE WITH
MP3. Press SELECT to enter the selection mode. Upon finding the de-
sired setting, press SELECT to exit and save your selection.
8

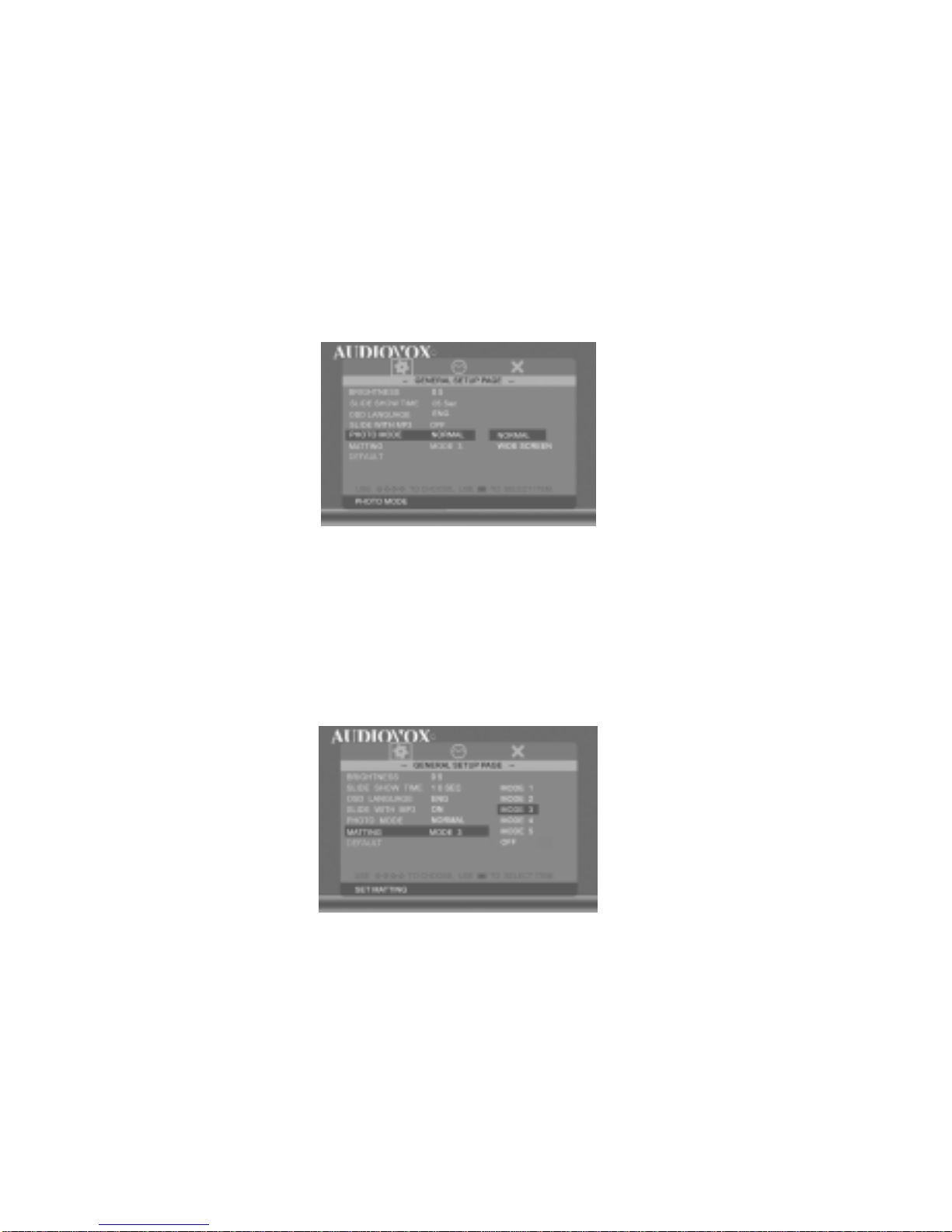

PHOTO MODE: Select normal mode to display the photo in its native
format or widescreen mode to fit photos to the full width of the screen.
Option is only available for use with external memory devices.
Note: In widescreen mode, a portion of the photo may be cropped.
Use the arrow keys to position the highlight over PHOTOMODE. Press
SELECT to enter the selection mode. Upon finding the desired setting,
press SELECT to exit and save your selection.
MATTING: This feature lets you place a decorative border around the
photo displayed during slideshow. Use the arrow keys to position the
highlight over MATTING. Press SELECT to enter the selection mode.
Upon finding the desired setting, press SELECT to exit and save your
selection.
MattingThemeoptions:
Mode1= Balloon
Mode 2= Beach Theme
Mode 3= Party Cake
Mode 4= Merry Christmas
Mode 5= Valentines’s Day
9

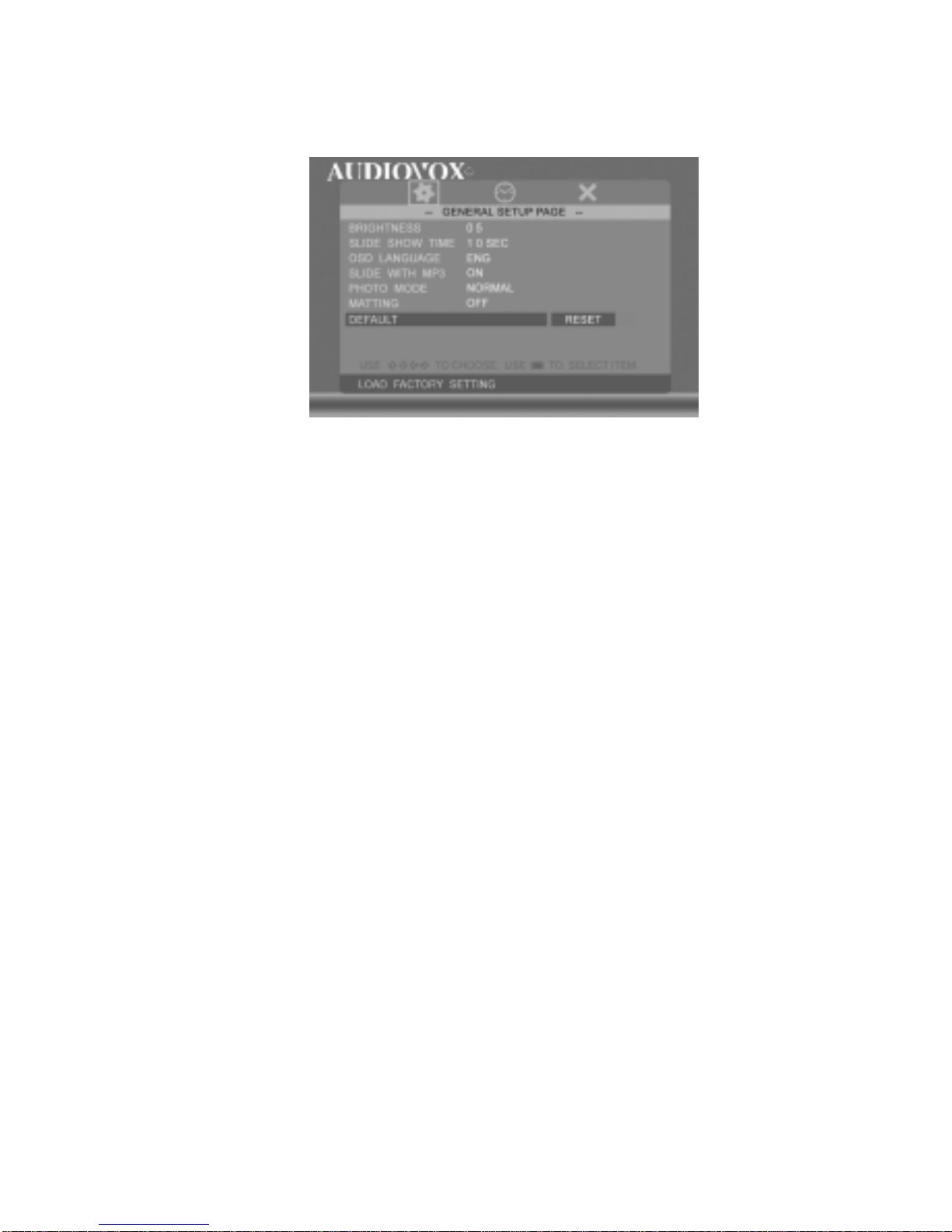

DEFAULT: Use the arrow keys to position the highlight over DEFAULT
and press SELECT twice to restore factory defaults.
Clock Setup Page
Press the MENU button and use the arrow keys to highlight the
“SETTING” icon. Follow by pressing the SELECT button to bring up
the GENERAL SETUP PAGE. Then press the right arrow key to high-
light the clock icon and press select to enter the adjustment mode.
Clock Mode: Clock mode allows the operator to select whether the
time will be displayed in 12 or 24 hour mode. To enter your selection
use the arrow keys to position the highlight over CLOCK MODE and
press the SELECT key. Follow by using the arrow keys to select the
desired setting and then press the SELECT key to exit and save your
choice.
Clock Setting: This option provides the operator with the means for
settingthetime.Usethe arrowkeystopositionthe highlightoverCLOCK
SETTINGand press the SELECTkeyto enter the currenttime. Use the
Up/Down arrow keys to change the time and use the Left/Right keys to
select which parameter you will set. Once the desired time is entered
press SELECT key to exit and save your choice.
10

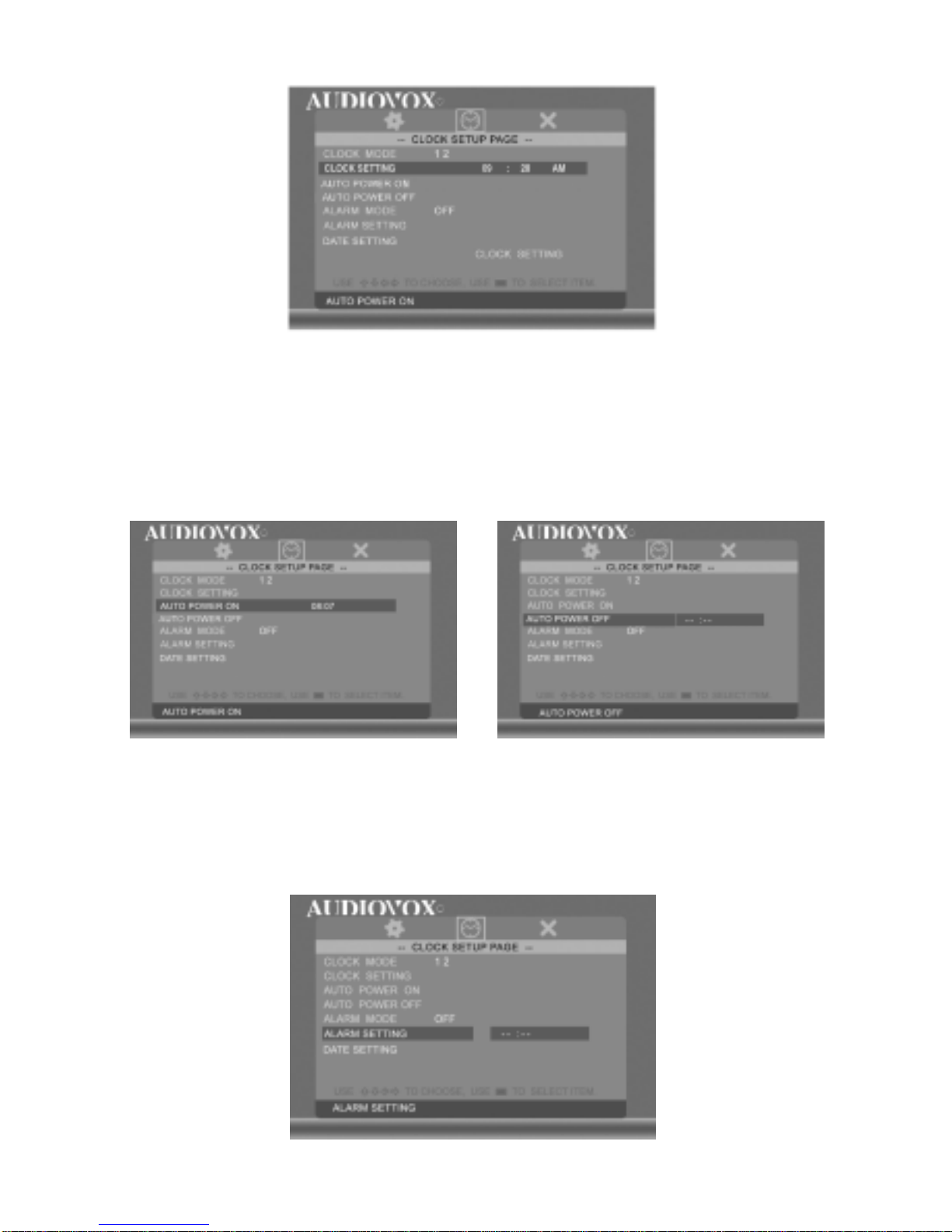

AUTO POWER ON/OFF: Set desired time for digital photo frame to
automaticallypoweron or off.To disable this function,returnto“AUTO
POWER ON”, then use the UP or DOWN arrow keys to select ”-:-:-” .
Repeat above steps to disable the “AUTO POWER OFF” function.
When the unit turns on it will be at the Menu screen.
ALARM SETTING: Use the arrow keys to set the Alarm Mode “ON”.
Thenhighlight ALARM SETTINGand enterdesired alarmturn ontime.
Note: The photo frame must be powered “ON” for the alarm to work.
When the alarm triggers press any key to turn off alarm.
