Audiovox HOMEBASE DPF710K Manuale utente

DPF710K

2DPF710K

Table of Contents

Important Safety Instructions ---------------------------------------------------------------------------------------------------------- 3

Introduction ---------------------------------------------------------------------------------------------------------------------- 4

Product Features ---------------------------------------------------------------------------------------------------------------------- 5

What’s in the Box? ---------------------------------------------------------------------------------------------------------------------- 6

Installation ---------------------------------------------------------------------------------------------------------------------- 7

homebase Refrigerator Installation --------------------------------------------------------------------------------------------- 7

homebase Countertop Installation ---------------------------------------------------------------------------------------------- 8

homebase Wall Mount Installation Using the Wall Mount Bracket ---------------------------------------------------- 9

homebase Wall Mount Installation Using the Angle Mount Brackets ------------------------------------------------- 10

Internal Battery Activation and/or Replacement ---------------------------------------------------------------------------- 11

Controls, Indicators and Connectors ------------------------------------------------------------------------------------------------12

Accessory Placement -------------------------------------------------------------------------------------------------------------------- 13

Operating the Homebase --------------------------------------------------------------------------------------------------------------- 14

Preliminary Connections ----------------------------------------------------------------------------------------------------------14

Connecting the Power ------------------------------------------------------------------------------------------------------- 14

Inserting the Memory Card/USB Device ------------------------------------------------------------------------------- 14

Power On/Main Menu -------------------------------------------------------------------------------------------------------------------- 15

Preliminary Checks ----------------------------------------------------------------------------------------------------------------- 15

Power On/Main Menu -------------------------------------------------------------------------------------------------------------- 15

Memo Feature ---------------------------------------------------------------------------------------------------------------------- 16

Calendar Memos -------------------------------------------------------------------------------------------------------------------- 17

Recording Calendar Memos ----------------------------------------------------------------------------------------------- 17

Reviewing Calendar Memos ----------------------------------------------------------------------------------------------- 18

Countdown Timer ---------------------------------------------------------------------------------------------------------------------- 19

Photo Menu ---------------------------------------------------------------------------------------------------------------------- 20

Photo Library Menu ---------------------------------------------------------------------------------------------------------------------- 21

External Media Menu --------------------------------------------------------------------------------------------------------------------- 22

Settings ---------------------------------------------------------------------------------------------------------------------- 23

1. General Setup - Photo Mode Selection --------------------------------------------------------------------------------- 23

2. General Setup - Time/Date Setting --------------------------------------------------------------------------------------- 24

3. General Setup - Alarm Setting --------------------------------------------------------------------------------------------- 25

4. General Setup - Clock Display -------------------------------------------------------------------------------------------- 26

Technical Data ---------------------------------------------------------------------------------------------------------------------- 27

Warranty ---------------------------------------------------------------------------------------------------------------------- 28

DPF710K 3

Important Safety Instructions

Please read all safety and operating instructions carefully before installation, and keep these instructions handy for

future reference. Take special note of all warnings listed in these instructions and on the unit.

1. Water and Moisture: The unit should not be used near water. For example: near a bathtub, swimming pool, etc.

2. Ventilation: The unit should be situated so that its location or position does not interfere with its proper ventila-

tion.

3. Heat: The unit should be situated away from heat sources such as radiators, heat registers, stoves, or other

appliances (including amplifiers) that produce heat.

4. Power Source: The unit should be connected to a power supply only of the type described in the operating

instructions or as marked on the appliance.

5. Power Cord Protection: Power cords should be routed so that they are not likely to be walked on or pinched by

items placed up or against them. It always best to have a clear area from where the cord exits the unit to where

it is plugged into an AC outlet.

6. Cleaning: The unit should be cleaned as needed with a soft, non-abrasive cloth.

7. Object and Liquid Entry: Care should be taken so that objects do not fall and liquids are not spilled into any

openings or vents located on the product.

8. Attachments: Do not use attachments not recommended by the product manufacturer.

9. Lightning and Power Surge Protection: Disconnect the unit from AC power during any electrical storm in the

immediate vacinity. This will prevent damage to the product due to lightning and power-line surges.

10. Overloading: Do not overload wall outlets, extension cords, or integral convenience receptacles as this can

resulting in a risk of fire or electric shock.

11. Damage Requiring Service: This unit should be serviced by qualified service personnel when:

a. The power supply cord or plug has been damaged.

b. Objects have fallen into or liquid has been spilled in the product enclosure.

c. The unit has been exposed to rain.

d. The unit has been dropped or the enclosure damaged.

e. The unit exhibits a marked change in performance or does not operate normally.

12. Servicing: The user should not attempt to service the unit beyond those methods described in the User's

Manual. Service methods not covered in the operating instructions should be referred to qualified service

personnel.

4DPF710K

Your homebase allows you to:

Display your digital photos from its internal memory, a memory card, or USB memory devices

Record and retrieve audio messages

Use the calendar to set audio and/or event reminders

Display time and date

Use a timer, set an alarm

Leave a written message on the front of the unit or the Post-it ®pad.

Introduction

DPF710K 5

Product Features

Overall Description :

•7-inch color LCD displays photos, calendar and clock

•512 MB of memory-enough for more than 100 pictures depending on image size

•Internal microphone for recording digital voice messages

•Internal speakers with volume control

•Magnetic border for posting notes, coupons, etc.

•LED indicator lights when there's a message

•Erasable white board and dry erase marker for quick notes and messages

•Post-it ®notes for lists and reminders

•3-key navigation for simple operation

•Multiple mounting options: refrigerator, wall and countertop.

•Supports SD/MMC, MS, xD, and CF memory cards and USB flash drives

•Interactive Calendar and Digital Clock

•Digital clock with alarm

•Countdown timer

6DPF710K

What’s in the Box?

Angle Mount Bracket (2)

Button Magnet (2)

homebase Wall Mount Bracket (1)

Adhesive Foam Pad (2)

Post-It ®Note Pad (1)

Dry Erase Marker (1)

Flat-Head Self-Tapping

Screw (2)

AC to DC Power Adapter (1)

Double-Sided Tape (1)

Wire Management System (3)

(Black, White, Clear)

Plastic Wall Anchor (2)

Mounting Hole Template (1)

DPF710K 7

Installation

homebase Refrigerator Installation

1. Remove the protective backing from one side only of the two adhesive pads and position them on the back of the wall

mount bracket as shown.

2. Clean the homebase mounting area on the refrigerator with isopropyl alcohol; do not use a glass cleaner.

3. Place the wall mount bracket in the desired area and level the top of the bracket.

Note: Before removing the remaining protective backing from the two adhesive pads, be sure of the homebase

mounting location as the adhesive pads are not designed to be removed and repositioned once they are

applied to the refrigerator surface.

4. Remove the protective backing from the two adhesive pads, line up the top of the bracket, and firmly press and hold the

bracket in place on the refrigerator surface to ensure the pads adhere securely.

Note: 3M™ recommends waiting 24 hours for maximum adhesion prior to mounting your homebase to the mounting

bracket.

5. Connect the power adapter plug to the DC input connector at the rear of the homebase.

6. Choose the direction of the adapter wire in reference to the AC wall outlet. Place the DC wire in the corresponding wire

notch.

7. Check the amount of wire required to reach the AC outlet. Spool excess wire on the four posts inside the rear cavity of

the homebase.

8. Attach the homebase to the bracket by lining up the homebase bracket mounting holes with the wall bracket mounting

tabs, and slide the homebase down until the mounting tabs engage the mounting hole slots.

9. Cover the power adapter wire with the clear, black or white wire cover; seal the cover using the double-sided tape and

dress the wire, adhering it to the refrigerator surface.

Caution: The power adapter wire routing follows the right angle contour of the refrigerator door. Do NOT cover the DC power

adapter wire using the double-sided tape after the 90 degree transition from the front refrigerator surface to the side

surface and for at least one inch rearward of the refrigerator seal. This will allow movement of the power adapter wire as

the refrigerator door opens and closes.

Adhesive

Foam Pads

DC Input

Connector

homebase Bracket Mounting Holes

Wall Mount Bracket

Power Adapter

Wire Notches

Wire Post(s)

Power Adapter

Wire Notch

Refrigerator

Door Seal

homebase

Wire Cover

1inch

DC Power Wire

Refrigerator Door Front Surface

See Step 9

Caution

Below

8DPF710K

Installation (Cont)

homebase Countertop Installation

1. Find a suitable location on the countertop adjacent to an AC wall outlet.

2. Connect the power adapter plug to the DC input connector at the rear of the homebase.

3. Choose the direction of the adapter wire in reference to the AC wall outlet. Place the DC wire in the correspond-

ing wire notch.

4. Check the amount of wire required to reach the AC outlet. Spool excess wire on the four posts inside the rear

cavity of the homebase.

5. Attach each angle mount bracket to the homebase by lining up the individual angle mount bracket upper

mounting tab with the associated homebase mounting hole.

6. Push each angle mount bracket towards the top of the homebase until the upper mounting tab engages the

mounting hole slot; when the bottom of the angle bracket contacts the homebase, the tab on the bottom of the

angle bracket snaps into place.

7. Place the homebase in the desired location.

DC Input Connector

Power Adapter

Wire Notches

Angle Bracket Mounting Holes

Wire Post(s)

Angle Mount

Brackets

homebase

Unit

Bracket Upper

Mounting Tabs

Bracket Lower

Mounting Tabs

DPF710K 9

Installation (Cont)

homebase Wall Mount Installation Using the Wall Mount Bracket

Note: If the wall bracket is to be mounted using the foam adhesive pads, the procedure will be the same as that

for the refrigerator mount as described on page 7.

If the wall bracket is to be mounted using screws, proceed as follows:

1. Position the mounting hole template at the desired place on the wall; level the template and mark the

position of the two upper holes.

2. Drill two holes using a 1/4" (6mm) drill bit. If a wall stud is not present, insert the plastic anchors into the holes

until flush with the wall surface .

Caution: Do not over tighten the screws; otherwise, the wall bracket could be damaged

3. Align the wall bracket with the two holes and/or wall anchors; insert two flat-head screws and secure the wall

bracket to the wall.

4. Connect the power adapter plug to the DC input connector at the rear of the homebase.

5. Choose the direction of the adapter wire in reference to the AC wall outlet. Place the DC wire in the correspond-

ing wire notch.

6. Check the amount of wire required to reach the AC outlet. Spool excess wire on the four posts inside the rear

cavity of the homebase.

7. Attach the homebase to the bracket by lining up the homebase bracket mounting holes with the wall bracket

mounting tabs, and slide the homebase down until the mounting tabs engage the mounting hole slots.

8. Cover the power adapter wire with the clear, black or white wire cover; seal the cover using the double-sided

tape and dress the wire, adhering it to the wall surface.

Drill 1/4" Hole

(2 Places)

Wall Surface

Plastic Wall

Anchor (2) if

Needed

Flat-Head Self-Tapping

Screw (2)

Wall Bracket

Mounting Tabs

Wall Mount

Bracket

Mounting Hole

Template

10 DPF710K

Installation (Cont)

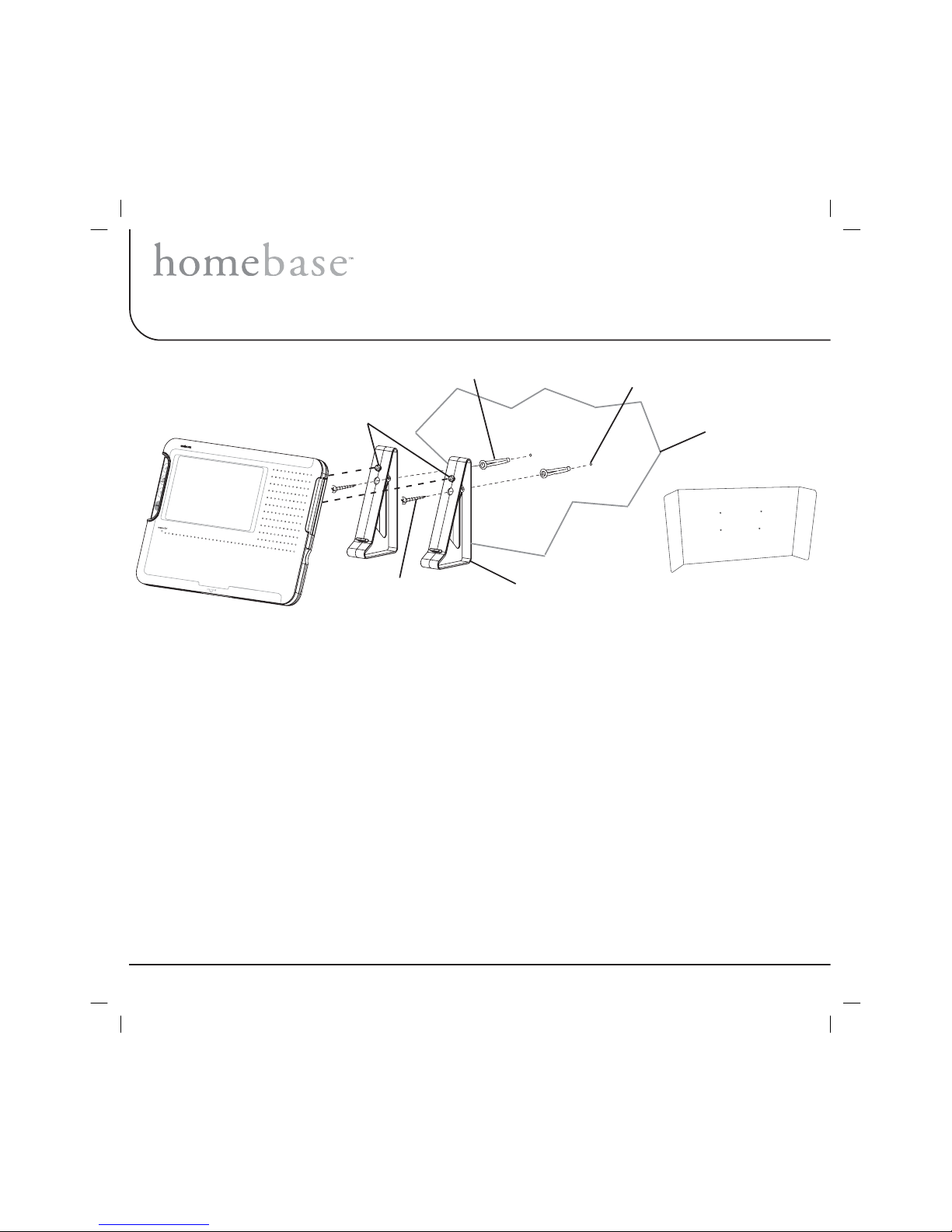

homebase Wall Mount Installation Using the Angle Mount Brackets

Note: Foam adhesive pads are not recommended when mounting the angle mount brackets to a wall surface.

Mount the brackets to the wall surface as follows:

1. Position the mounting hole template at the desired place on the wall; level the template and mark the

position of the two lower holes.

2. Drill two holes using a 1/4” (6mm) drill bit. If a wall stud is not present, insert the plastic anchors into the holes

until flush with the wall surface .

Caution: Do not over tighten the screws; otherwise, the angle mount bracket could be damaged.

3. Align each angle mount bracket with the respective hole and/or wall anchors; insert a flathead screw through

each bracket and secure the bracket to the wall.

4. Connect the power adapter plug to the DC input connector at the rear of the homebase.

5. Choose the direction of the adapter wire in reference to the AC wall outlet. Place the DC wire in the correspond-

ing wire notch.

6. Check the amount of wire required to reach the AC outlet. Spool excess wire on the four posts inside the rear

cavity of the homebase.

7. Attach the homebase to each bracket by lining up the homebase bracket mounting hole with the associated

bracket mounting tabs, and slide the homebase down until each mounting tab engages the mounting hole slot.

8. Cover the power adapter wire with the clear, black or white wire cover; seal the cover using the double-sided

tape and dress the wire, adhering it to the wall surface.

Mounting Hole

Template

Plastic Wall Anchor (2)

if Needed Drill 1/4” Hole

(2 Places)

Angle Mount

Bracket (2)

Angle Mount Bracket

Mounting Tabs

Flat-Head Self-Tapping

Screw (2)

Wall Surface

Indice

Altri manuali Audiovox Sistema di interfono

Audiovox

Audiovox VE103IM Manuale utente

Manuali Sistema di interfono popolari di altre marche

Bticino

Bticino LINEA 3000 Manuale utente

MSI

MSI MSI-140 Manuale utente

golmar

golmar Stadio Plus Manuale utente

CyberData

CyberData 011211 series Manuale

Vidos

Vidos duo M1021 Manuale utente

Vimar

Vimar ELVOX 7539/E Manuale utente

SSS Siedle

SSS Siedle BTSV 850-03 Manuale utente

Dahua

Dahua VTO Series Manuale utente

Elvox

Elvox 5651 Manuale utente

Videx

Videx VIDEOKIT Series Manuale utente

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuale utente

Viking

Viking E-35-EWP Manuale utente

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuale utente

SSS Siedle

SSS Siedle BFCV 850 Series Manuale utente

GRD

GRD MAX V2 Manuale utente

Alecto

Alecto ADI-250 Manuale utente

Aiphone

Aiphone IE-8MD Manuale utente

Perel

Perel EDB4 Manuale utente
