Audiovox VBP70 Manuale utente

VBP70VBP70

VBP70

PORTABLE 7" LCD MONITOR AND DVD PLAYER

IN A BAG

Notice:

ThisProductincorporatescopyrightprotectiontechnologythatispro-

tectedbymethodclaimsofcertainU.S.Patentsandotherintellectual

propertyrightsownedbyMacrovisionCorporationandotherrights

owners.Use of thiscopyrightprotectiontechnology must be autho-

rizedbyMacrovisionCorporation,andisintendedforhomeandother

limitedviewingusesonlyunlessotherwiseauthorizedbyMacrovision

Corporation.Reverseengineeringordisassemblyisprohibited.

A. Introduction

ThankyouforselectingtheVBP70portableDVDplayerinabag. The

mainfeaturesincludea7" Screen(16:9AspectRatio)LiquidCrystal

Display (LCD)monitorandaDVDplayer.Theunitappliesthelatest

stateof the art electronics andisdesignedforusein hotels, offices

homeorvehicle.Theunit is constructedtoprovideyearsofreliable,

trouble-freeservice,andiscompact sothatyou cantakeit withyou

anywhereandisdesignedforquickandeasyinstallation.Pleaseread

theentireinstructionmanualsuppliedwiththisproductpriortoopera-

tion.Thedocumentationwillassistyouin installingthe systemprop-

erlyto obtainthe best equipment performance. All manualsshould

bestoredforlater use.

B. Cautions and Warnings

1. Placement

Topreventfireorelectric shock, do not expose this appliance to

rain or moisture. Do not place the set on an unstable cart,

stand,tripod, bracket or table to prevent it from falling. Keep the

unitawayfromstrongmagnets,heat sources,directsunlight,ex-

cessivedust. If the unit isbrought directlyfroma cold to a warm

location,moisturemaycondenseinsidetheunit. Whenyoumove

it from a cold to a warm location, wait for about one hour before

operatingtheunit,orremovethediscandleavetheunitturnedon

untilthemoistureevaporates.

2. Installation

EnsurethattheVBP70isinstalledinaccordancewiththeinstruc-

tionsandillustrationsprovidedinthismanual.

3. Object and Liquid

Donotpushobjectsofanykindintotheunitthroughopenings;do

not spill or spray liquid of any kind on or in the system (this may

resultin afireorelectric shock). Do notplaceanythingheavy on

theunit.Toensureproperventilationandproperoperation,never

coverorblocktheslotsandopeningswith a cloth or other mate-

rial.

4. Disassembly

Do not attempt to disassemble the cabinet. There is a risk of elec-

tric shock and/or exposure to Laser Radiation. Contact qualified

service personnel if your system is in need of repair.

5. Cleaning Unit

Whencleaning,make surethe system isunplugged fromthe power

source. Do not use liquid cleaners or aerosol cleaners. Use a

cloth lightly dampened with water for cleaning the exterior of the

system only.

6. Disc

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick pa-

per, tape or glue on the disc. Do not expose the disc to direct sun-

light or heat sources such as hot air ducts. Do not touch the sur-

face of disc. Handle the disc by its edge. Clean the disc by wiping

the disc from the center out with a cleaning cloth. Remove the disc

from the unit and store it in its case after playing. Some playback

operations of discs may be intentionally fixed by software produc-

ers. Since this unit plays discs according to the disc contents the

software producers designed, some playback features may not be

available.Also refer to the instructions supplied with the discs.

C. Contents

1. 1 x 7’’ LCD Monitor & DVD Player Combo

2. 1 x AC to DCAdapter

3. 1 x Remote Control w/Battery

4. 1 x InstructionManual

5. 1 x Audio/VideoInput Cable

6. 1 x Audio/Videooutput Cable

7. 1 x DCAdapter

8. 1 x Mounting Bag w/Straps

9. 1 x Carrying bag

10.1x Optional Rechargeable Battery Pack - No. VBB70

D. Powering and installation

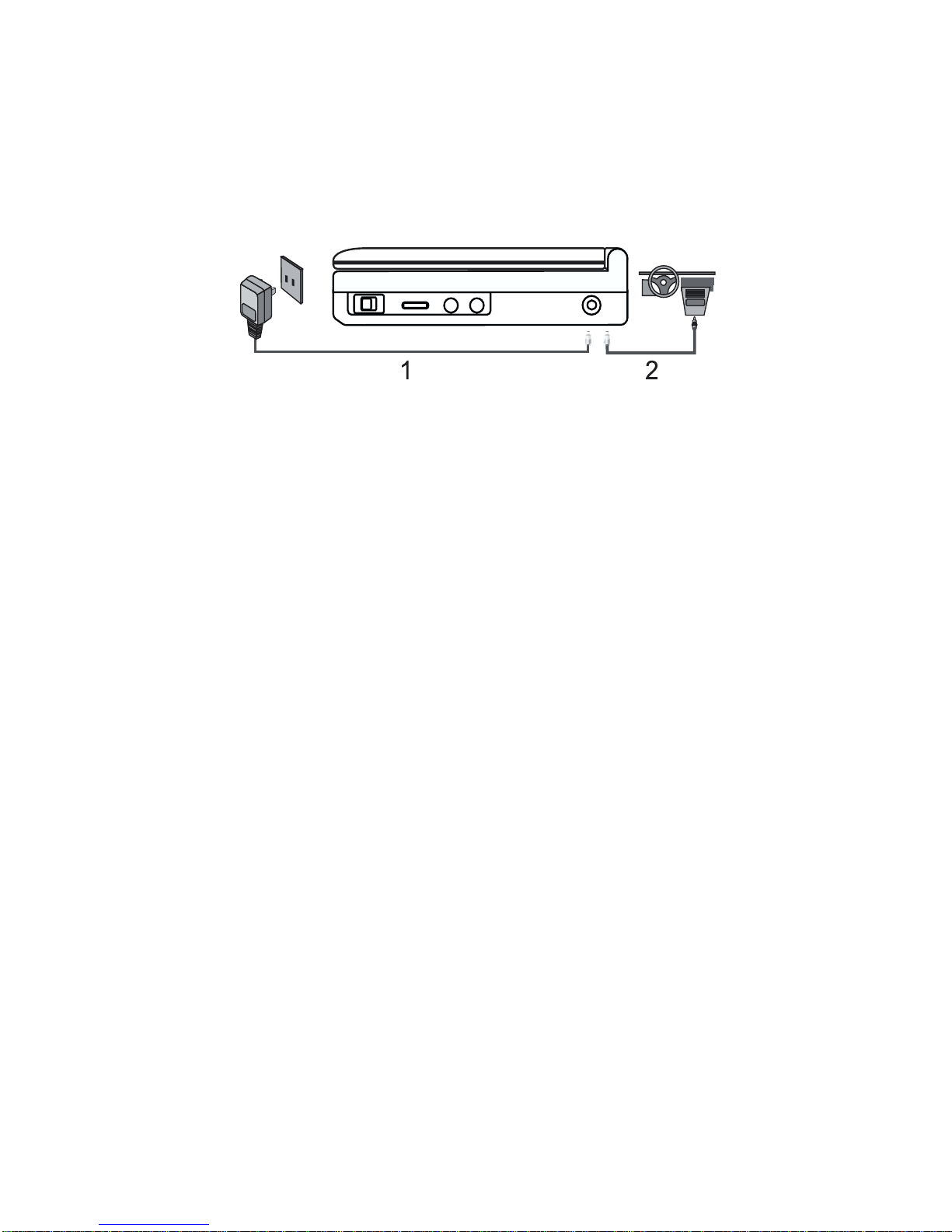

1. Powering the system indoors (Refer to Figure 1)

Plug one end of the AC to DC adapter into the DC 9V jack on the

rightside ofthe mainunit, then plug the otherend intothe 120VAC

power receptacle.

2. Powering the system in a car

Plug one end of the cigarette lighter adapter into the DC 9V jack on

the unit, then plug the other end into the lighter socket.

Figure 1

3. Powering the system with optional rechargeable Battery

Please refer to L. * Rechargeable Battery Installation and Use

(Page 33 and 34).

E. Installation Prior to installation

Make sure that the unit is placed into the bag with the clear plastic

coveringaround DVD door, Load disc into theDVD compartmentand

then fasten the Velcro strap across the top portion of the unit. If

youare installingthe bag onto the seatbackyou willneed toattach the

supplied Seat Standoff to the back of the mounting bag with the

Velcro bands to obtain the proper viewingangle as shown in Figure.2

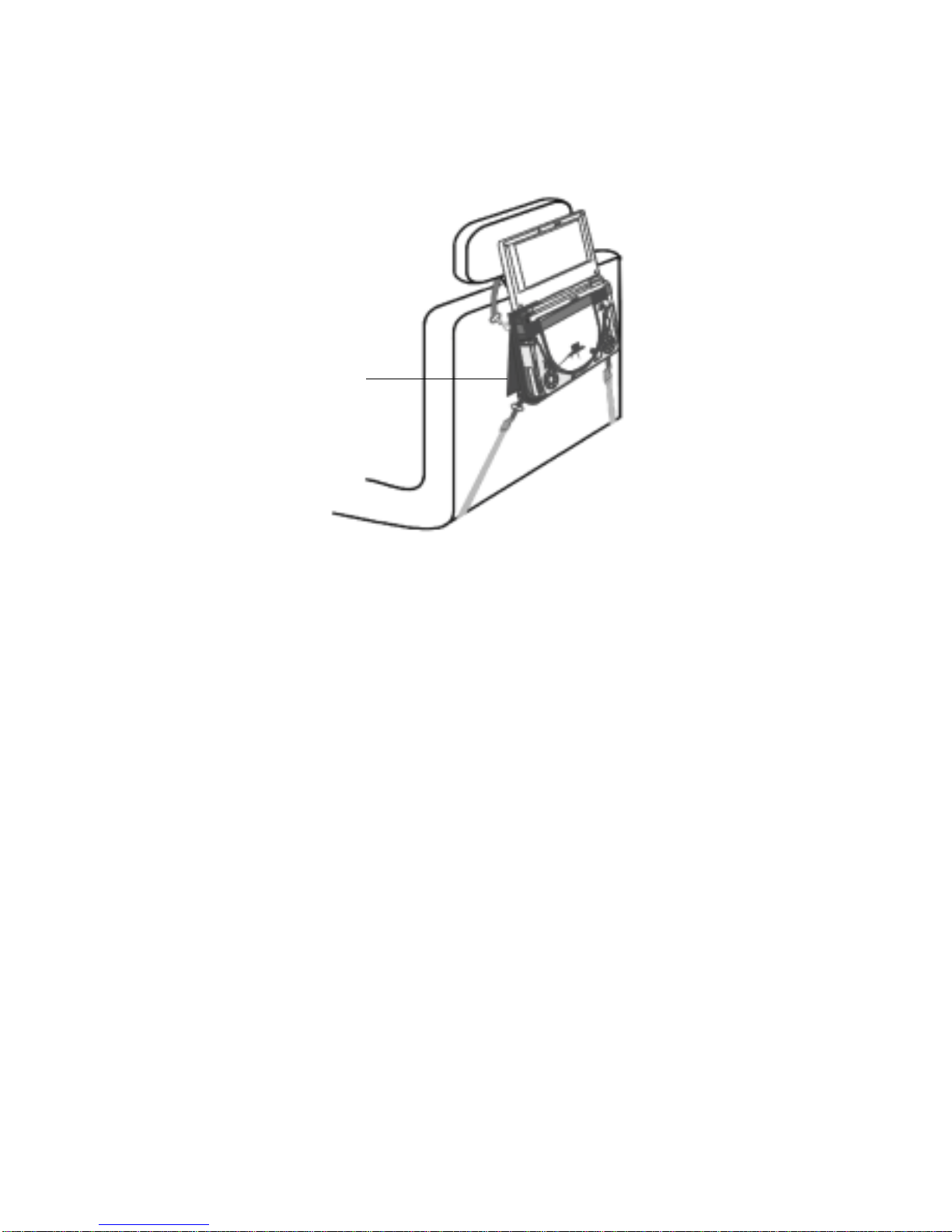

1.Installing the System onto the seat back in a car

(Refer to Figure 2)

Figure 2

1). Take one of the supplied straps from the carrier bag. Connect

the latch to one of the upper metal rings on the mounting bag.

Connect the “S” hook to the other upper metal ring and place the

loop over the headrest. Adjust the strap until the bag is firmly

secured.

2). Take another strap from the carrier bag, and connect the latch to

the lower metal ring on the left side of the bag. Attach the “S”

hookto the samering after loopingthe strap aroundthe seat rail.

Repeat this process for the right side. In some vehicles, it may

be necessary to attach the “S” connector to the rail directly, as it

may not be long enough to reach back to the ring.

3). Adjust the straps tightly so that the bag is secured.

Seat Standoff

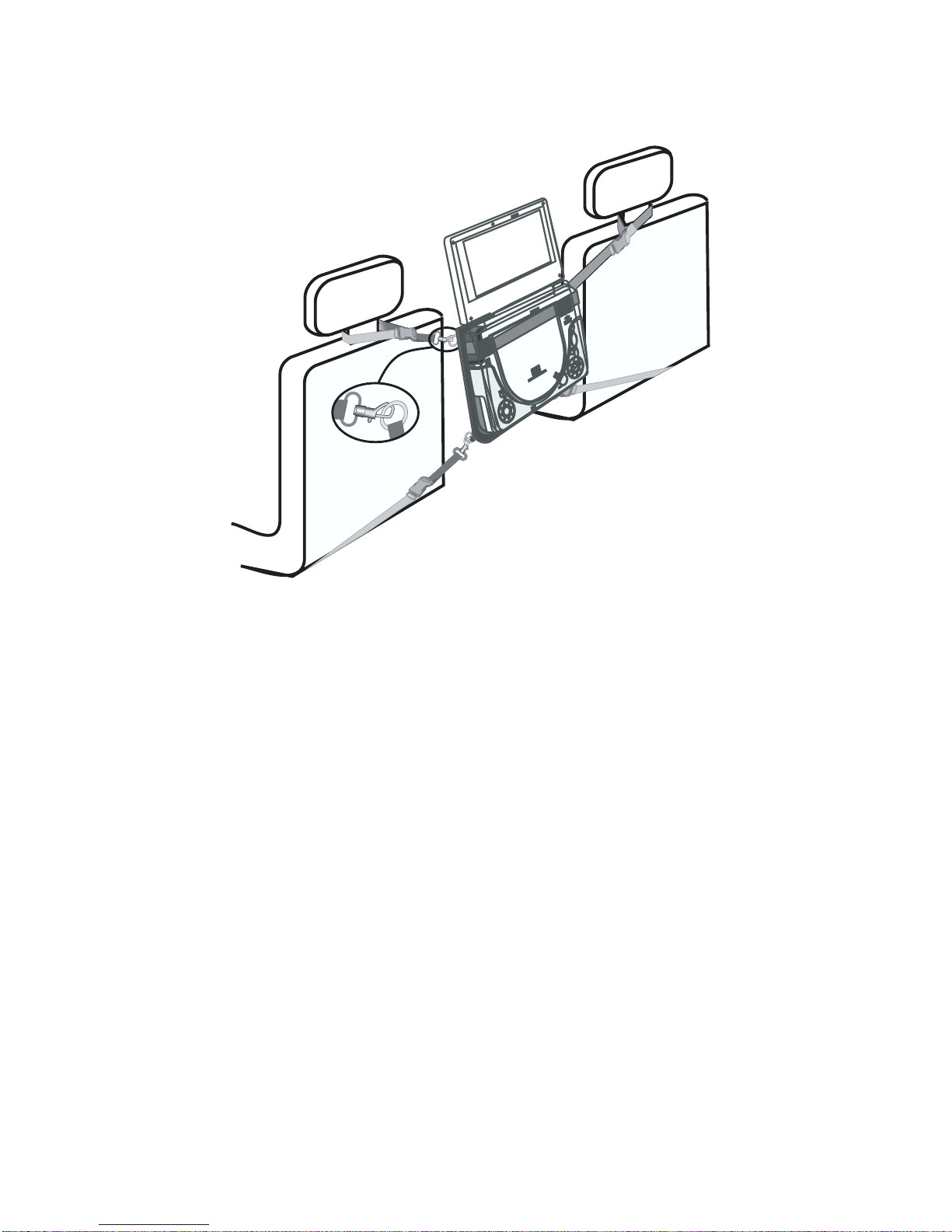

2. Installing the system between the driver/passenger seat

(Refer to Figure 3)

Figure 3

1). Take one strap and connect the latch to the upper metal ring on

the left side of the bag. Attach the “S” hook to the same ring

after looping the strap around the headrest of the driver’s seat.

Repeat this process for the right side (Passenger Seat).

2). Take another strap and connect the latch to lower metal ring on

the left side of the bag. Attach the “S” hook to the same ring

after looping the strap around the driver’s seat rail. Repeat this

process for the right side. In some vehicles, it may be neces-

sary to attach the “S” connector directly to the rail, as it may not

be long enough to reach back to the ring.

3). Adjust the straps tightly so that the bag is secured.

E. Controls, Indicators, and Connectors

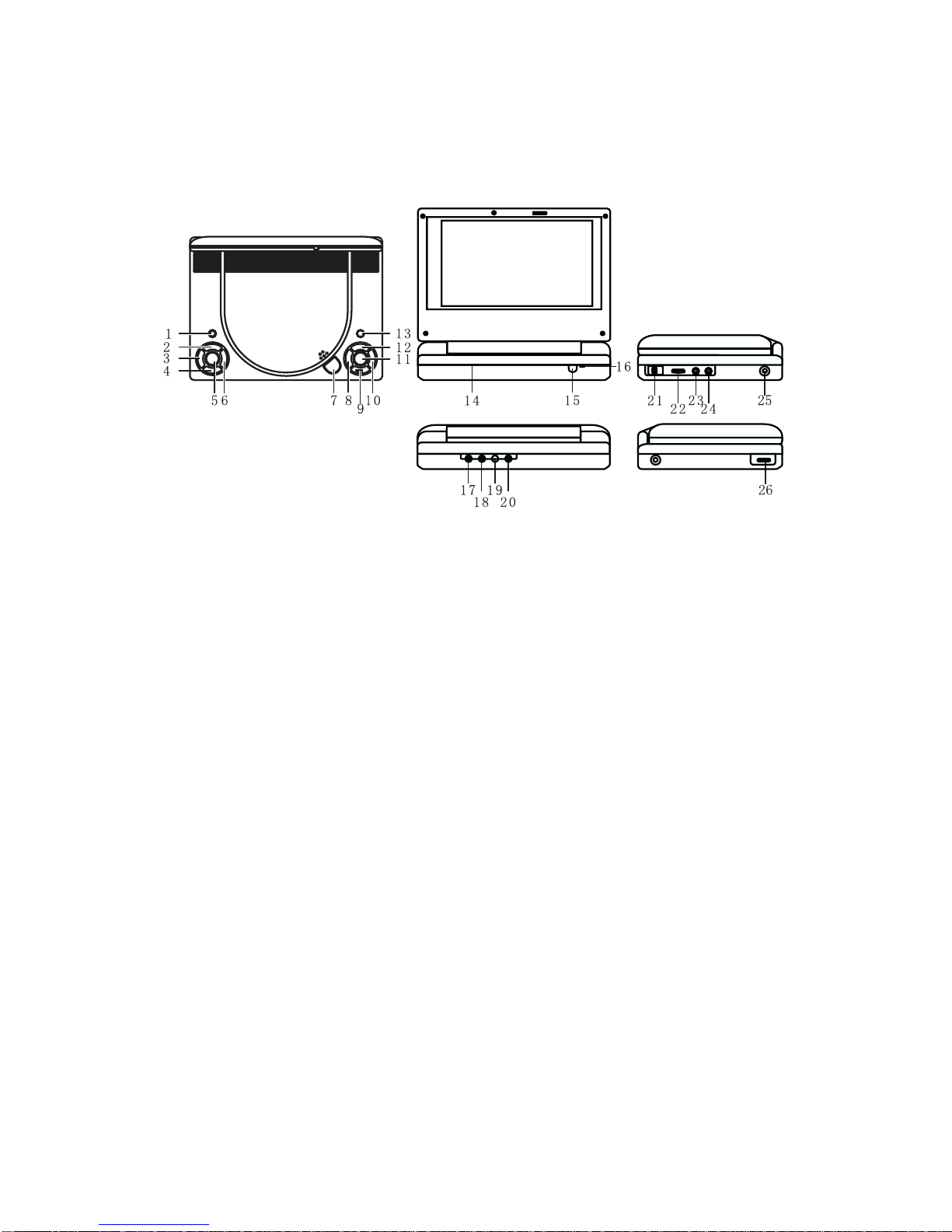

1. Unit View (Refer to Figure 4)

Figure 4

1)Menu

2) UP Button

3) Left Button

4) Down Button

5) OK Button

6) Right Button

7) Open Button

8) Previous Button

9) Stop Button

10) Next Button

11) Play button

12) Pause

13) Screen Mode (WIDE) Button

14) Monitor Off Button

15) Remote Control Sensor

16) Power LED

17) DVD Video Output Jack

18) DVDAudio L+R Output Jack

19)Video Input Jack

20)Audio L+R Input Jack

21) Power On/Off Switch

22) Volume Up/Down control

23) Headphone Jack 1

24) Headphone Jack 2

25) DC 9V Input Jack

26) Brightness Up/Down control

2. Remote Control View (Refer to Figure 5)

1) DisplayButton

2) AngleButton

3) SubtitleButton

4) AudioButton

5) ZoomButton

6) UP/DOWN/LEFT/RIGHT/

ENTER Buttons

7) ReturnButton

8) A-BButton

9) ForwardButton

10) ReverseButton

11) Slow Button

12) StopButton

13) NumericKeypad

14) SetupButton

15) MenuButton

16) RepeatButton

17) SKIP-

18) SKIP+

19) Play Button Figure 5

20) PauseButton

F. Loading and Playing a Disc

a. Afterconnectingpowertotheunit,poweronthe“DVDplayer”with

thepowerswitch. Thepowerindicatorwilllight.

b. Openthedisctray by pressing OPEN , and place a disc into the

traywiththelabelsidefacing up.

c. Close thetraybypressingthe “PRESS” button.The unitwillload

thediscandstartplaying.

d. Rotate the BRIGHTNESS and VOLUME controls to adjust the

LCD’sbrightnessand theDVDplayer’svolume.

e. Tostopplayingadisc,press STOP.

f. To turn off the DVD player, slide the POWER ON/OFF to OFF.

The DVD player’s POWER indicator turns off.

G. SETUP

Press ‘SETUP’ to display the Main screen of the SETUP Menu on the

screen. Press ‘SETUP’ again to exit the SETUP Menu and the unit

will resume it’s last playback mode.

Figure 6. Main SETUP Menu Screen

1) Press“Setup”,the‘GENERALSETUPPAGE’willdisplayonscreen.

Figure 7. General SETUP Menu Screen

a).Select TV DISPLAY using the DOWN button, and then press

RIGHT toenterthe submenu.Selectthe TVdisplaymode onthe

screen using UP/DOWN, and press ENTER to confirm the

setting. Press LEFT to return.
