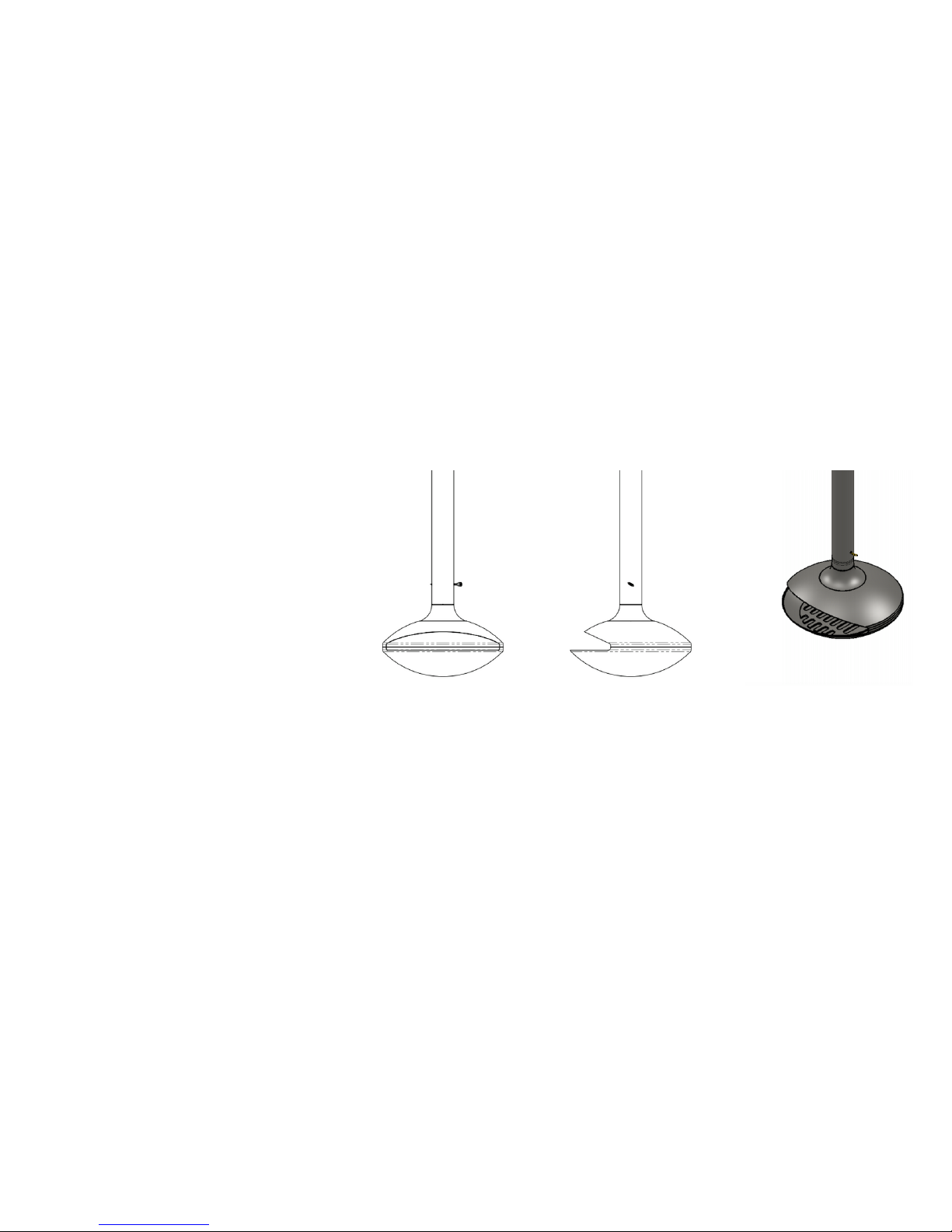

We would like to thank you for your purchase of The Aether.The care and craftsmanship we put into each fire will give you trouble free
heating for many years to come."
For your safety, ensure you have read the operation guidelines prior to use. The Aether should be installed by a qualified professional.
Contact us for help finding an installer in your area. "
!
Installation Process:
– Choose the position of firebox and flue ensuring that you follow the clearances described within this section"
– Install the suspension bracket "
– Install the external flue"
– Install the internal flue and engage the firebox"
– Ensure the floor has adequate protection"
!
CAUTION: "
MIXING OF APPLIANCE OR FLUE-SYSTEM COMPONENTS FROM DIFFERENT SOURCES OR MODIFYING THE DIMENSIONAL SPECIFICATION OF COMPONENTS MAY RESULT IN
HAZARDOUS CONDITIONS. WHERE SUCH ACTION IS CONSIDERED, AURORA WOODFIRES SHOULD BE CONSULTED IN THE FIRST INSTANCE."
!
!
!
1. PLANNING
WARNING:
•THE APPLIANCE AND FLUE-SYSTEM SHALL BE INSTALLED IN ACCORDANCE WITH AS/NZS 2918 AND THE APPROPRIATE REQUIREMENTS OF THE
RELEVANT BUILDING CODE OR CODES.
!
•APPLIANCES INSTALLED IN ACCORDANCE WITH THIS STANDARD SHALL COMPLY WITH THE REQUIREMENTS OF AS/NZS 4013 WHERE REQUIRED BY
THE REGULATORY AUTHORITY, I.E. THE APPLIANCE SHALL BE IDENTIFIABLE BY A COMPLIANCE PLATE WITH THE MARKING ‘TESTED TO AS/NZS 4013’.
!
•ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN WRITING BY THE TESTING AUTHORITY IS CONSIDERED TO BE IN BREACH
OF THE APPROVAL GRANTED FOR COMPLIANCE WITH AS/NZS 4013.
AURORA WOODFIRES INSTALLATION AND USER MANUAL +61 266 874880 PO 347 BOX BYRON BAY NSW 2481 !
Clearance Distance"
!
Wall
Heat Shielding"
1. PLANNING CONTINUED
Clearance Distance"
!
Wall
WALL MATERIAL
POSTION OF FIREBOX
CLEARANCE DISTANCE
Non combustible
Fixed
100mm
Non combustible
Rotating
100mm
Combustible
Fixed
700mm
Combustible
Rotating
1200mm
A combustible surface is anything that can burn (i.e. plaster, wall
paper, wood, fabrics etc.)These surfaces are not limited to those that
are visible and also include materials that are behind non-combustible
material. Timber frames behind gyprock are considered combustible."
!
IMPORTANT:
Frames must also be considered. Timber window frames must be treated as
combustible surfaces. Aluminium frames can be treated as non-
combustible surfaces
MINIMUM CLEARANCE – INTERNAL
AURORA WOODFIRES INSTALLATION AND USER MANUAL +61 266 874880 PO 347 BOX BYRON BAY NSW 2481 !
WEIGHT & DIMENSIONS
!
THE AETHER"
•Stainless steel ball bearing 360
degree rotation system"
•Flue custom length with damper"
•Material: 4mm Steel"
•Finish: high temperature coating
system. Resistant to 650 degrees"
!
!
!
!
MATTE BLACK
A range of other colours are available on
request. For more information visit our
website: www.aurorawoodfires.com.au
Firebox diameter
900mm
Firebox weight
55kg
Flue diameter
165mm
Flue weight
12kg/meter
Standard bracket
weight
23kg
External flue kit
Triple skin
152/203/254
mm
2. DIMENSIONS & SPECIFICATIONS
AURORA WOODFIRES INSTALLATION AND USER MANUAL +61 266 874880 PO 347 BOX BYRON BAY NSW 2481 !
3.1 Installing the suspension bracket
•The bracket must be structurally secured within the roof as
shown in the diagram "
!
•The largest cylinder must project down from the ceiling by at
least 150mm (BCA requirement) unless the ceiling is made
from a non-combustible material such as concrete."
!
•You must leave a 25mm clearance gap between the bracket
and the ceiling. This gap will be covered by the ceiling
Flange."
!
•12mm ventilation gap between the plasterboard and the
ceiling flange"
!
•25mm minimum clearance from the triple skin flue to any
combustible material within the roof space"
!
•50mm minimum overlap of the stainless steel 6” flue into the
connector "
•Engage smallest diameter of the triple skinned flue, minimum
50mm into the connector in the lower active flue."
!
3. INSTALLATION
FLAT ROOF INSTALLATION
AURORA WOODFIRES INSTALLATION AND USER MANUAL +61 266874880 PO 347 BOX BYRON BAY NSW 2481 !
PITCHED ROOF INSTALLATION (Custom Made Bracket)
3. INSTALLATION (CONTINUED)
AURORA WOODFIRES INSTALLATION AND USER MANUAL +61 266874880 PO 347 BOX BYRON BAY NSW 2481 !
PITCHED ROOF INSTALLATION
3.2 Installing the external flue
!
1. The connection piece is welded into the top of the active lower flue. The upper triple
skinned flue will slot into it."
!

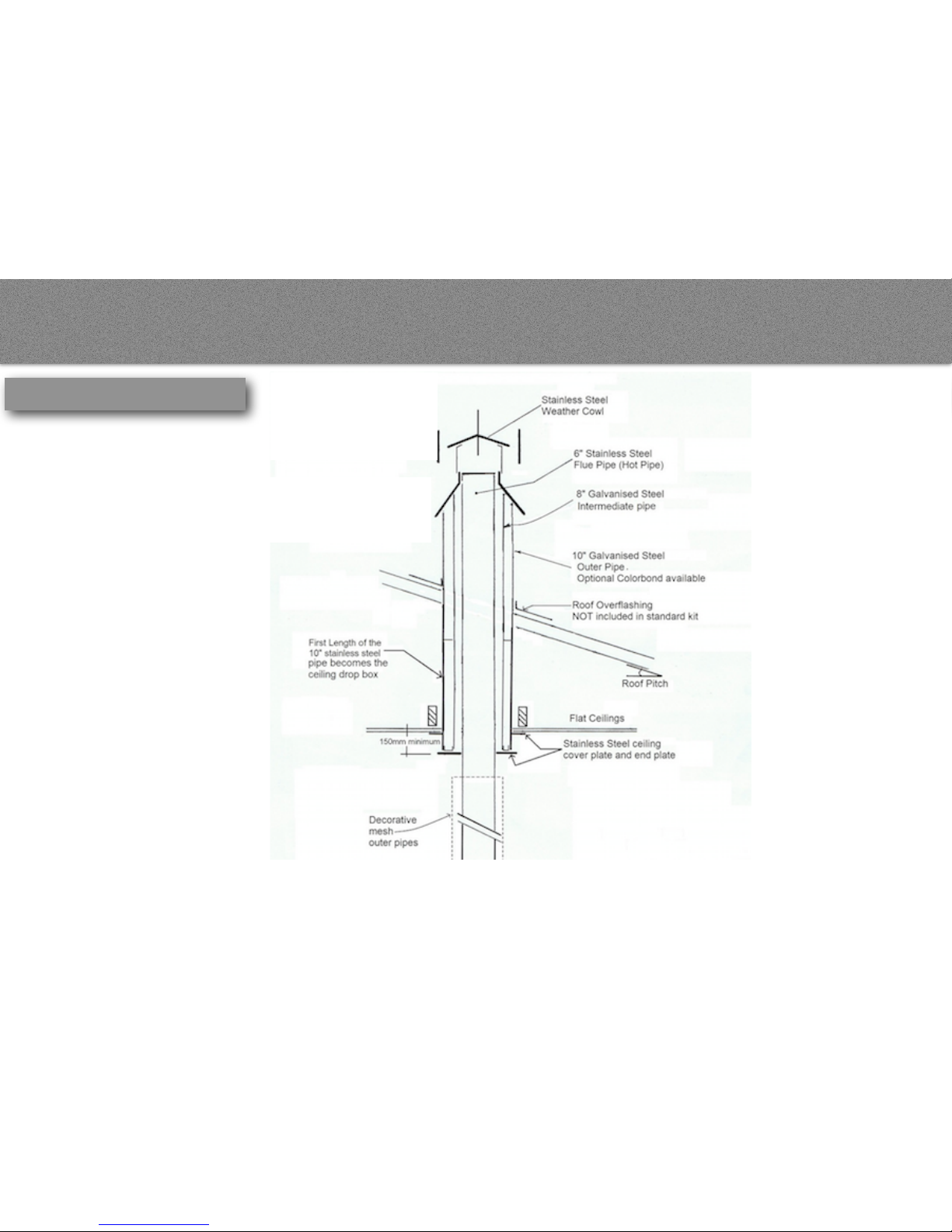

2. Ensure the triple skin flue is installed as per Australian standards (see diagrams below).
3. INSTALLATION (CONTINUED)
60cm"
60cm"
1 meter"
5 m"
The top of the flue must be 60cm higher than the
highest point of the roof. Alternatively, there must be a
minimum distance of 5 meters from any higher section
of roof.
The minimum height of the flue
system further than 5 meters from
the highest point of the roof shall
be 1 meter above roof penetration.
AURORA WOODFIRES INSTALLATION AND USER MANUAL +61 266874880 PO 347 BOX BYRON BAY NSW 2481 !
The top of the flue must be 60cm above the roofline. Alternatively, there must be a
minimum distance of 5 meters from any higher section of roof.
FLAT ROOF INSTALLATION (LESS THAN 5% PITCH)
60cm
60cm
3. INSTALLATION (CONTINUED)
1 meter
5m
The minimum height of the flue
system further than 5 meters from
the highest point of the roof shall
be 1 meter above roof penetration.
AURORA WOODFIRES INSTALLATION AND USER MANUAL +61 266874880 PO 347 BOX BYRON BAY NSW 2481 !
3. INSTALLATION (CONTINUED)
FLAT ROOF INSTALLATION
3.3 Assembling the external flue
IMPORTANT
•CRIMPS (MALE ENDS) ON
STAINLESS STEEL PIPES TO
POINT DOWN INTO THE
HEATER"
!
•POP RIVET ALL JOINTS WITH 1/8 “
MONEL RIVETS
IMPORTANT
•CRIMPS (MALE ENDS)
ON OUTER PIPES TO
POINT UPWARDS
AURORA WOODFIRES INSTALLATION AND USER MANUAL +61 266874880 PO 347 BOX BYRON BAY NSW 2481 !
