Austin Hughes Electronics Cyberview D-117 Manuale utente

User Manual

1U Dual Slides LCD Keyboard Drawer

17", 19" screen size

- 1U dual slide

- 17", 19" screen size

- With KVM Options

- 1U dual slide

- 17", 19" screen size

- With KVM Options

- Designed for SUN Solaris

Chapter 1 Getting Started

1.1 Important Safeguards..........................................................1

1.2 Regulatory Notice................................................................2

1.3 Package Contents...............................................................3

1.4 Before Installation...............................................................4

1.5 Unpacking...........................................................................4

1.6 OptionalAccessories...........................................................4

1.7 Peripheral Products.............................................................5

1.8 Structure Diagram...............................................................5

1.9 How to Use The Slides.......................................................6

1.10 Locking Bracket...................................................................7

1.11 How to Use The Dual Slides...............................................8

1.12 How to Install “One Man” Installation Slides..................9-10

1.13 DS-117 / 119 (Single console)

- Use CB-6 to connect to server via USB interface........................11

1.14 DS-117 / 119 (Single console)

- Use CB-6 to connect to KVM via USB interface..........................11

1.15 D-117 / 119 (Single console)

- Use CE-6 to connect to server via PS/2 interface........................12

1.16 D-117 / 119 (Single console)

- Use CE-6 to connect to KVM via PS/2 interace..........................12

1.17 D-117 / 119 (Single console)

- Use CE-6 to connect to server via USB interface........................13

1.18 D-117 / 119 (Single console)

- Use CE-6 to connect to KVM via USB interface..........................13

Chapter 2 Operation

2.1 On-screen Display Operation............................................14

2.2 On-screen Menu...............................................................15

Chapter 3 Standard Speciﬁcation

3.1 Speciﬁcations.....................................................................16

3.2 Keyboard & Mouse......................................................17-18

3.3 How to Use “NS” keyboard ..............................................19

Contents

Chapter 4 Optional Speciﬁcation

4.1 KVM Options.....................................................................20

4.2 DVI-D Input Option............................................................20

4.3 BNC + S-Video Option.......................................................20

4.4 AudioOption......................................................................21

4.5 DC power Options.............................................................22

Chapter 5 Troubleshooting...........................................................23

Chapter 6 Dimensions.......................................................................24

1.1 Important Safeguards Chapter 1

P. 1

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

■Any product, on which the serial number has been defaced, modiﬁed or removed.

■Damage, deterioration or malfunction resulting from:

□Accident, misuse, neglect, ﬁre, water, lightning, or other acts of nature, unauthorized product modiﬁ-

cation, or failure to follow instructions supplied with the product.

□Repair or attempted repair by anyone not authorized by us.

□Any damage of the product due to shipment.

□Removal or installation of the product.

□Causes external to the product, such as electric power ﬂuctuation or failure.

□Use of supplies or parts not meeting our speciﬁcations.

□Normal wear and tear.

□Any other causes which does not relate to a product defect.

■Removal, installation, and set-up service charges.

P. 2

Legal Information

First English printing, October 2002

Information in this document has been carefully checked for accuracy; however, no guarantee is

given to the correctness of the contents. The information in this document is subject to change without no-

tice. We are not liable for any injury or loss that results from the use of this equipment.

Safety Instructions

■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.

■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned envi-

ronment with temperatures not exceeding 40º Celsius (104º Fahrenheit).

■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and

causing damage to other equipment or injury to persons nearby.

■When the drawer is in an open position, do not cover, block or in any way obstruct the gap between it

and the power supply. Proper air convection is necessary to keep it from overheating.

■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.

■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage

and current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be

higher than the one listed on the equipment’s ratings label.

■Observe all precautions and warnings attached to the equipment.

■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent

being damaged by transient over-voltage.

■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to

the power supply or on other hardware may cause damage, ﬁre or electrical shock.

■Only qualiﬁed service personnel should open the chassis. Opening it yourself could damage the equip

ment and invalidate its warranty.

■If any part of the equipment becomes damaged or stops functioning, have it checked by qualiﬁed service

personnel.

Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interfer-

ence in a residential installation.

Any changes or modiﬁcations made to this equipment may void the user’s authority to operate this equip-

ment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the follow-

ing measures:

■Re-position or relocate the receiving antenna.

■Increase the separation between the equipment and receiver.

■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

1.2 Regulatory Notice Chapter 1

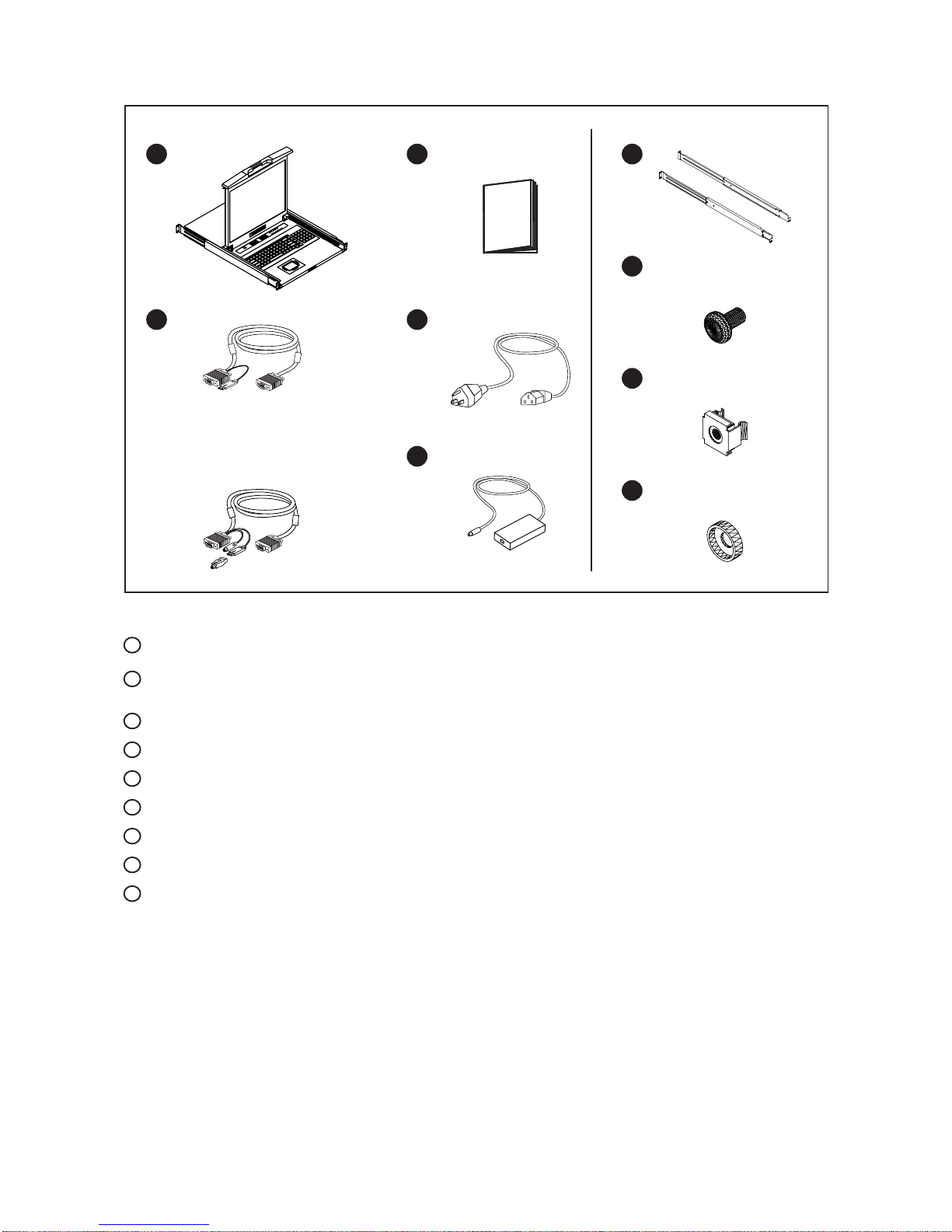

1.3 Package Contents Chapter 1

P. 3

LCD keyboard drawer x 1 pc

CB-6 USB 2-in-1 KVM cable x 1 pc (for DS series) or

CE-6 Combo 4-in-1 KVM cable x 1 pc (for D series)

User manual x 1 pc

Power cord x 1 pc

Auto switch power adapter x 1pc

Mounting bracket x 2 pcs

M6*15mm screw x 8 pcs

M6 cage nut x 8 pcs

M6 washer x 8 pcs

User

Manual

1 6

1.6 Optional Accessories

■It is very important to locate the LCD Keyboard Drawer in a suitable environment.

■The surface for placing and ﬁxing the LCD Keyboard Drawer should be stable and level or mounted into a suitable

cabinet.

■Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat,

water, moisture and vibration.

■Position LCD Keyboard Drawer with respect to related facilities.

The LCD keyboard drawer comes with the standard parts shown on the package contents. Check and make sure they

are included and in good condition. If anything is missing, or damage, contact the supplier immediately.

1.5 Unpacking

1.4 Before Installation Chapter 1

P. 4

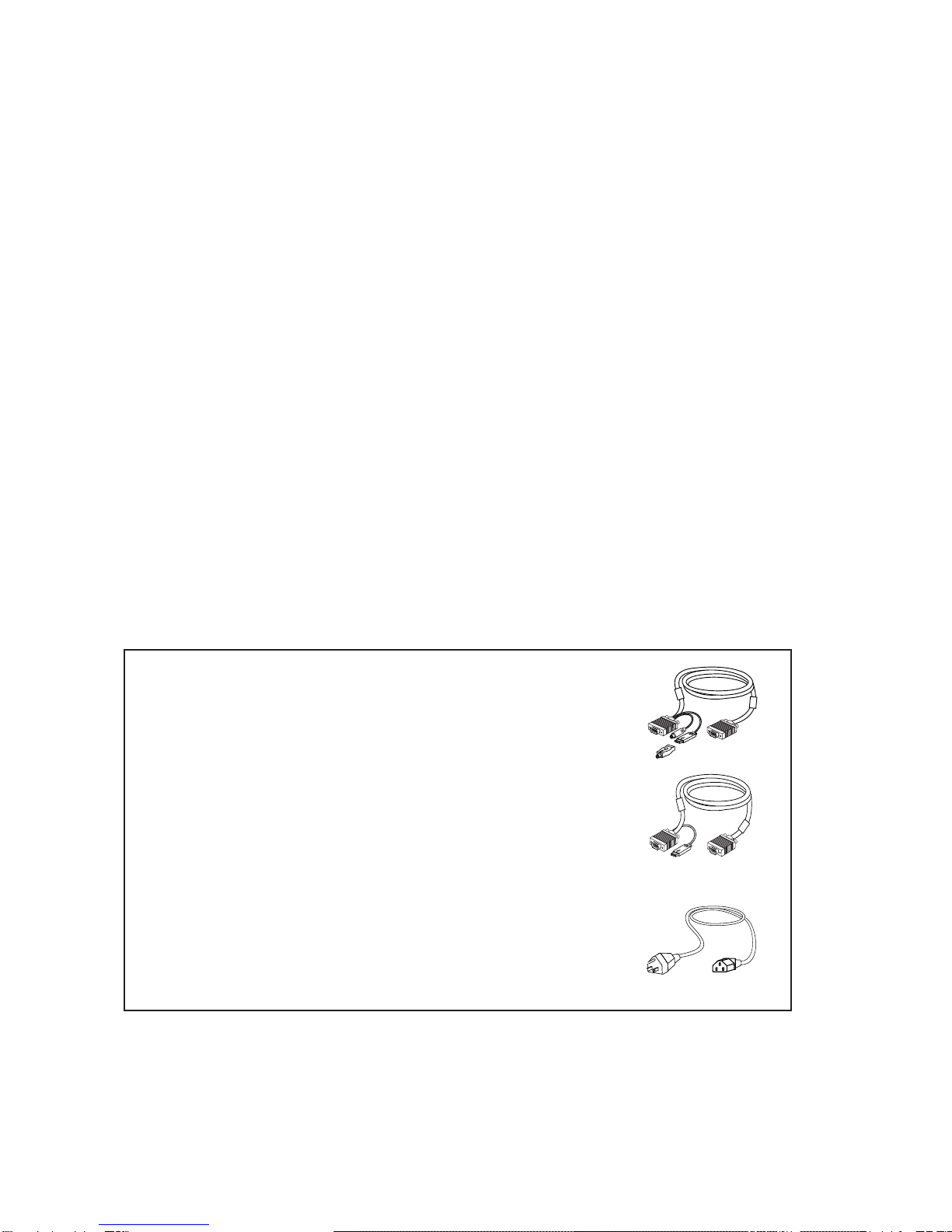

1. Combo 4-in-1 KVM cable

1.1 CE-6 6 feet

1.2 CE-10 10 feet

1.3 CE-15 15 feet

2. USB 2-in-1 KVM cable

2.1 CB-6 6 feet

2.2 CB-10 10 feet

2.3 CB-15 15 feet

3. Power Cord

3.1 IEC power cord

3.2 NEMA 5-15 power cord (US)

3.3 BS 1363 power cord (UK)

3.4 CEE 7/4 power cord (German)

3.5 AS 3112 power cord (Australia)

Remarks :

■CB-6 is for DS series only.

P. 5

1.7 Peripheral Products Chapter 1

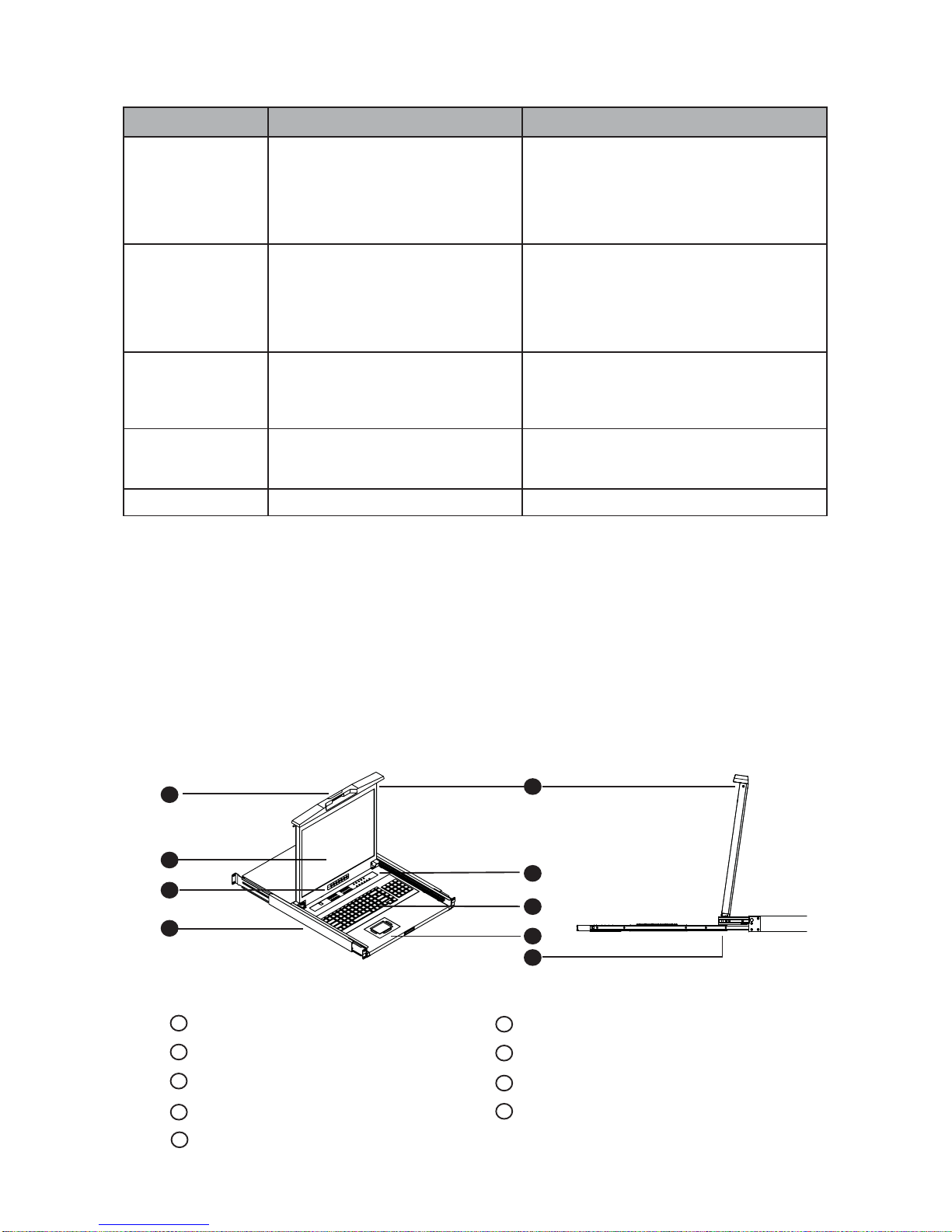

1.8 Structure Diagram

Remarks :

■“DS” Series is for Matrix & Combo KVM only.

Item Model No. Description

Matrix Cat6 KVM

MU-1602 / MU-1603 / MU-1604

MU-IP1613 / MU-IP1614 / MU-IP1624

MU-3202 / MU-3203 / MU-3204

MU-IP3213 / MU-IP3214 / MU-IP3224

Matrix Cat6 16 port KVM

Matrix IP Cat6 16 port KVM

Matrix Cat6 32 port KVM

Matrix IP Cat6 32 port KVM

Matrix DB-15 KVM

M-802 / M-803 / M-804

M-IP813 / M-IP814 / M-IP824

M-1602 / M-1603 / M-1604

M-IP1613 / M-IP1614 / M-IP1624

Matrix DB-15 8 port KVM

Matrix IP DB-15 8 port KVM

Matrix DB-15 16 port KVM

Matrix IP DB-15 16 port KVM

Combo Cat6 KVM

U-801 / U-802 / U-IP802

U-1601 / U-1602 / U-IP1602

U-3201 / U-3202 / U-IP3202

Combo Cat6 8 port KVM

Combo Cat6 16 port KVM

Combo Cat6 32 port KVM

Combo DB-15 KVM CV-S801 / CV-802 / IP-802

CV-S1601 / CV-1602 / IP-1602

Combo DB-15 8 port KVM

Combo DB-15 16 port KVM

PS/2 DB-15 KVM CV-401 / CV-801 / CV-1601 4 / 8 / 16 port PS/2 DB-15 KVM

Carry handle to release the 2-pt lock

2-point lock

LCD interchangeable module kit

LCD membrane

“One Man” Installation Slides

Membrane switch (KVM option)

Keyboard interchangeable module kit

Mouse interchangeable module kit

1U dual slide for LCD keyboard drawer

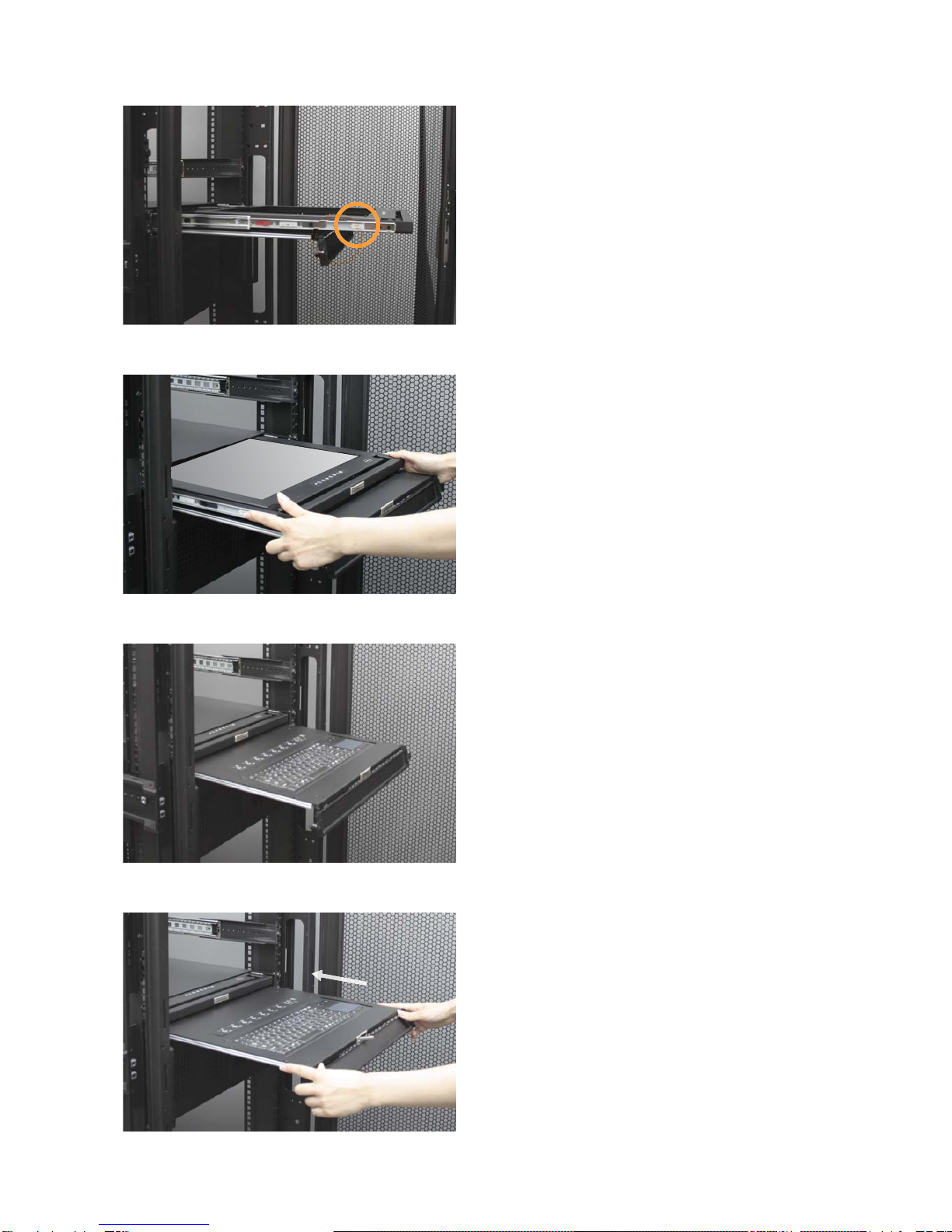

1.9 How to Use The Slides Chapter 1

P. 6

■Hold down the white arrow button until the upper LCD

drawer is located in the rack (shown in Figure 3).

Figure 3. Pushing the upper LCD drawer until it is located in the rack.

Figure 2. Pushing the white arrow button.

■Push the white arrow button on either side of the up-

per LCD drawer to unlock (shown in Figure 2). Avoid

pressing the red button located on either side.

■A white arrow release button is located on the outside

of each slide (shown in Figure 1).

Figure 1. White arrow button.

Figure 4. Pushing the lower keyboard drawer into the rack.

■Push the either side of the lower keyboard drawer

until it is located in the rack (shown in Figure 4).

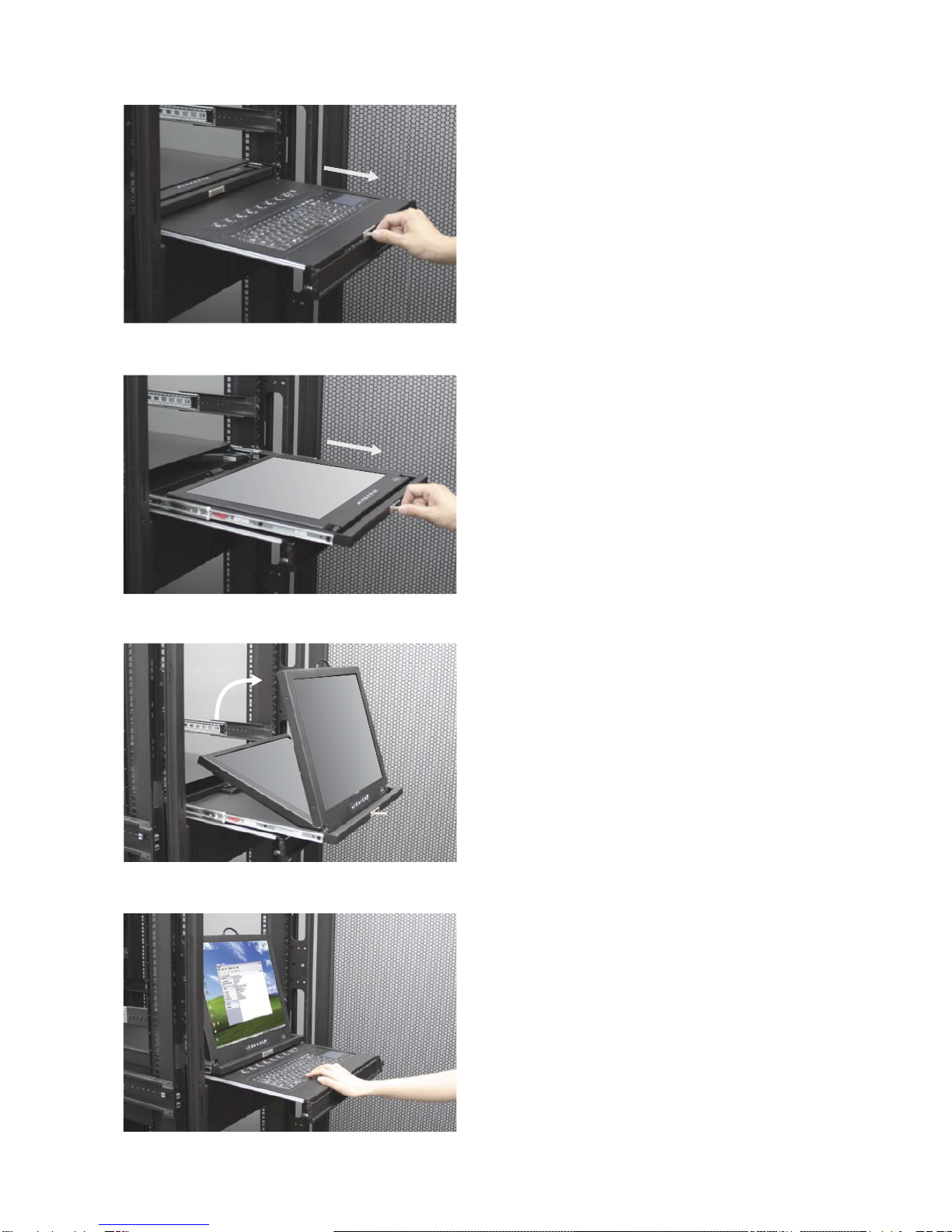

1.10 How to Use The Dual Slides Chapter 1

P. 7

■Flip up the LCD to a suitable angle shown in Figure 7.

Figure 7. Flipping up the LCD to a suitable angle.

Figure 6. Pulling the handle toward the front of LCD drawer.

■Push the handle toward the front of the upper LCD

drawer (shown in Figure 6).

■Gently pull the handle toward the front of the lower

keyboard drawer (shown in Figure 5).

Figure 5. Pulling the handle toward the front of keyboard drawer.

Figure 8. Operating the LCD keyboard drawer.

■Operate the LCD keyboard drawer shown in Figure 8.

Altri manuali per Cyberview D-117

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Austin Hughes Electronics Cassetto LCD

Austin Hughes Electronics

Austin Hughes Electronics CyberView RKP215-801 Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics CyberView W-119 series Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics Cyberview RKP-1015 Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics Cyberview RP-120 Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics Cyberview RKP115 Series Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics Cyberview S117 Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics Cyberview RKP215 Series Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics RKD-KVM-17-HDDV Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics Cyberview NCP-1716 Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics Cyberview L-120 Series Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics Cyberview NS117 Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics Cyberview LS-120 Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics CyberView RKP117 series Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics CyberView W-119 series Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics CyberView RP-1020QD Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics Cyberview S217 Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics CyberView RP-W119 Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics Cyberview WS-119 Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics Cyberview L-120 Series Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics Cyberview DS-117 Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics Cyberview RP-115 Series Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics Cyberview RP-115 Series Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics RK-1 Series Manuale utente

Austin Hughes Electronics

Austin Hughes Electronics Cyberview D-117 Manuale utente

Manuali Cassetto LCD popolari di altre marche

Acnodes

Acnodes KD 8228 Manuale utente

Ameriwood

Ameriwood 9524328PCOM Manuale utente

Kesseböhmer

Kesseböhmer TANDEM solo Manuale utente

Crystal Image Technologies

Crystal Image Technologies RMD-151-A Series Manuale utente

APW Wyott

APW Wyott Ease Extreme HDX-1-120 Manuale utente

NTI

NTI RACKMUX-V17-N Manuale utente

Austin Hughes

Austin Hughes CyberView L120 Manuale utente

Uplift Desk

Uplift Desk STR018 Manuale utente

Acnodes

Acnodes KDC 81932 Manuale utente

Acnodes

Acnodes RK1200T Manuale utente

StarTech.com

StarTech.com DuraView RACKCONS1501 Manuale utente

Mocka

Mocka Mischa Manuale utente

GRASS

GRASS DWD XP Manuale utente

StarTech.com

StarTech.com DuraView RACKCONS1701 Manuale utente

Fisher & Paykel

Fisher & Paykel IZONA CoolDrawer RB36S Manuale utente

Synergy Global Technology

Synergy Global Technology LCD1U17-44 Manuale utente

Fujitsu

Fujitsu RC25 Manuale utente

Acnodes

Acnodes RK 1000B Manuale utente
