Autel MaxiCharger AC Ultra Manuale utente

MaxiCharger AC Ultra

User Manual (EU)

Trademarks

Autel

and MaxiCharger

are trademarks of Autel Intelligent Technology Corp., Ltd., registered in China, the

United tates and other countries. All other marks are trademarks or registered trademarks of their respective

holders.

No part of this manual may be reproduced, stored in a retrieval system or transmitted, in any form or by any

means, electronic, mechanical, photocopying, recording, or otherwise without the prior written permission

of Autel.

Disclaimer of arranties and Limitation of Liabilities

All information, specifications and illustrations in this manual are based on the latest information available at

the time of printing.

Autel reserves the right to make changes at any time without notice. While information of this manual has

been carefully checked for accuracy, no guarantee is given for the completeness and correctness of the

contents, including but not limited to the product specifications, functions, and illustrations.

Autel will not be liable for any direct, special, incidental, indirect damages or any economic consequential

damages (including the loss of profits).

IMPORTANT

Before operating or maintaining this unit, please read this manual carefully, paying extra attention to the

safety warnings and precautions.

For Services and Support:

eb: www.autelenergy.eu

Tel: (844) 765-0150

Email: [email protected]

Address: Landsberger tr. 408/4. OG 81241 Munich, Germany

For technical assistance in all other markets, please contact your local selling agent.

CONTENTS

1 USING THIS MANUAL ........................................................................................................................... 1

1.1 C

ONVENTION

..................................................................................................................................................... 1

2 SAFETY ................................................................................................................................................. 2

2.1

AFETY

E AGE

................................................................................................................................................ 2

2.2

AFETY

N TRUCTION

........................................................................................................................................... 2

2.3 D

I PO AL

N TRUCTION

........................................................................................................................................ 3

3 GENERAL INTRODUCTION ..................................................................................................................... 4

3.1 P

RODUCT

VERVIEW

............................................................................................................................................ 5

3.2 I

N THE

......................................................................................................................................................... 6

3.3 R

ECOMMENDED

OOL

......................................................................................................................................... 7

4 INSTALLATION ...................................................................................................................................... 8

4.1 P

REPARE FOR

N TALLATION

................................................................................................................................... 8

4.2 U

NPACK

............................................................................................................................................................. 9

4.3 M

ECHANICAL

N TALLATION

................................................................................................................................. 10

4.4 P

OWER

UPPLY

IRING

...................................................................................................................................... 18

4.5 C

ONNECTING TO THE

NTERNET

............................................................................................................................. 19

4.6 C

OMPLETE

N TALLATION

..................................................................................................................................... 20

4.7 E

NERGIZE THE

HARGING

TATION

........................................................................................................................ 20

5 SETTINGS ........................................................................................................................................... 21

5.1 I

NITIAL

ETUP

................................................................................................................................................... 21

5.2 C

HANGE THE

EFAULT

ETTING

........................................................................................................................... 23

6 OPERATION ........................................................................................................................................ 26

6.1 C

HARGING

PERATION

...................................................................................................................................... 26

6.2 D

I PLAY

E CRIPTION

........................................................................................................................................ 27

7 TROUBLESHOOTING ........................................................................................................................... 30

7.1 T

ROUBLE HOOTING

ABLE

................................................................................................................................... 30

8 SPECIFICATIONS ................................................................................................................................. 31

8.1 P

RODUCT

PECIFICATION

.................................................................................................................................... 31

8.2 LED

E CRIPTION

............................................................................................................................................. 32

8.3 P

RODUCT

IMEN ION

........................................................................................................................................ 32

9 COMPLIANCE ..................................................................................................................................... 34

Using This Manual

This manual describes the installation and use of the MaxiCharger AC Ultra. Prior to installation, read through

this manual to be familiarized with the instructions of this MaxiCharger to ensure a successful installation and

smooth operations.

1.1 Conventions

The following conventions are used.

1.1.1 Bold Text

Bold text is used to highlight selectable items such as buttons and menu options.

1.1.2 Notes and Important Messages

Notes

A NOTE provides helpful information such as additional explanations, tips, and comments.

Important

IMPORTANT indicates a situation which, if not avoided, may result in damage to the test equipment or vehicle.

1.1.3 Hyperlink

Hyperlinks or links that take you to other related articles, procedures, and illustrations are available in

electronic documents.

1.1.4 Illustrations

Illustrations used in this manual are only examples; the actual product(s) or screens may vary.

1.1.5 Revision History

Version Date Descriptions

V1 Initial version

Safety

For your own safety and the safety of others, and to prevent damage to the charging station and vehicles upon

which it is used, it is important that the safety instructions presented throughout this manual be read and

understood by all persons operating or coming into contact with the charging station.

2.1 Safety Messages

afety messages are provided to help prevent personal injury and equipment damage. All safety messages are

introduced by a single word indicating the hazard level.

DANGER

Indicates an imminently hazardous situation with a high risk level which, if the danger is not avoided, will

cause death or serious injury.

ARNING

Indicates a potentially hazardous situation with moderate risk level which, if the warning is not obeyed, can

cause death or serious injury.

CAUTION

Indicates a potentially hazardous situation with a medium risk level which, if the caution is not obeyed, may

cause minor or moderate injury or damage to the equipment.

2.2 Safety Instructions

The safety messages herein cover situations Autel is aware of. Autel cannot know, evaluate or advise you as

to all of the possible hazards. You must be certain that any condition or service procedure encountered does

not jeopardize your personal safety.

SAFETY ARNINGS

 Read and follow all warnings and instructions before installing and operating the MaxiCharger.

 Only a qualified electrician is allowed to install, service, repair and relocate the MaxiCharger.

 The user must not attempt to service or repair the MaxiCharger as it does not contain user-serviceable

parts.

 witch off input power before installing the MaxiCharger. Keep the power off until it is fully installed and

secure.

 Do not use explosive or readily flammable substances near the MaxiCharger.

 Do not use the MaxiCharger if the charging cable is frayed, broken or otherwise damaged, or fails to

operate.

 Do not use the MaxiCharger if the enclosure or the EV connector is frayed, broken or otherwise damaged,

or fails to operate.

 In the event of danger and/or an accident, a qualified electrician must immediately disconnect the

electrical supply from the MaxiCharger.

 Refer to the vehicle user manual to check if the vehicle releases hazardous or explosive gases when

charging.

 Follow the instructions given in the vehicle user manual before choosing the charging location of the

MaxiCharger.

 Do not direct powerful water jets toward the MaxiCharger.

 Do not operate the MaxiCharger with wet hands.

 Do not put the charging handle into any liquid.

 Do not install or open the MaxiCharger in wet environment (such as rain or heavy fog).

 Ensure that the charging cable is positioned so that it will not be stepped on, tripped over, driven over or

otherwise subjected to excessive force or damage. Where applicable, ensure that the charging cable is

correctly stowed when not in use and that the charging handle does not touch the ground.

 Keep the charging handle away from heat sources, dirt or water.

 Use this MaxiCharger to charge compatible electric vehicles only. Refer to the technical specifications in

this manual. Refer to the vehicle manual to check if the vehicle is compatible.

 Only use the MaxiCharger under the specified operating conditions in this manual.

 Local regulations may be applicable and may vary depending on your region/country of use. The qualified

electrician must always ensure that the MaxiCharger is installed in accordance with the local regulations.

CAUTION

 Ensure that the charging cable is not damaged or tangled prior to use.

 Do not insert fingers into the charging port.

 Do not leave objects inside the charging port.

 Keep and use (electro) magnetic devices at a safe distance from the MaxiCharger.

2.3 Disposal Instructions

Handling waste incorrectly can have a negative effect on the environment and human health due to potential

hazardous substances. Discard the charging station correctly can facilitate the reuse and recycling the

materials and environmental protection.

 Obey the local rules when discarding parts, packaging materials or the charging station.

 Discard electrical and electronic equipment separately in compliance with the WEEE-2012/19/EU

Directive on waste of electrical and electronic equipment.

 Do not mix or dispose the charging station with the household waste.

General Introduction

This MaxiCharger AC Ultra is designed to charge an electric vehicle (hereinafter called “EV”). Tailored for

commercial use, it features fast and efficient charging experience while offering best-value design and smart

charging.

This manual will instruct you on how to install and use this charging station.

Intended Use

The MaxiCharger AC Ultra is intended for the AC charging of EVs. It is intended for both indoor and outdoor

use.

DANGER

 If you use the charging station in any way other than described in this manual or other related documents,

possible death, injury and damage to property can occur.

 Use the charging station only as intended.

NOTE

The images and illustrations depicted in this manual may differ slightly from the actual ones.

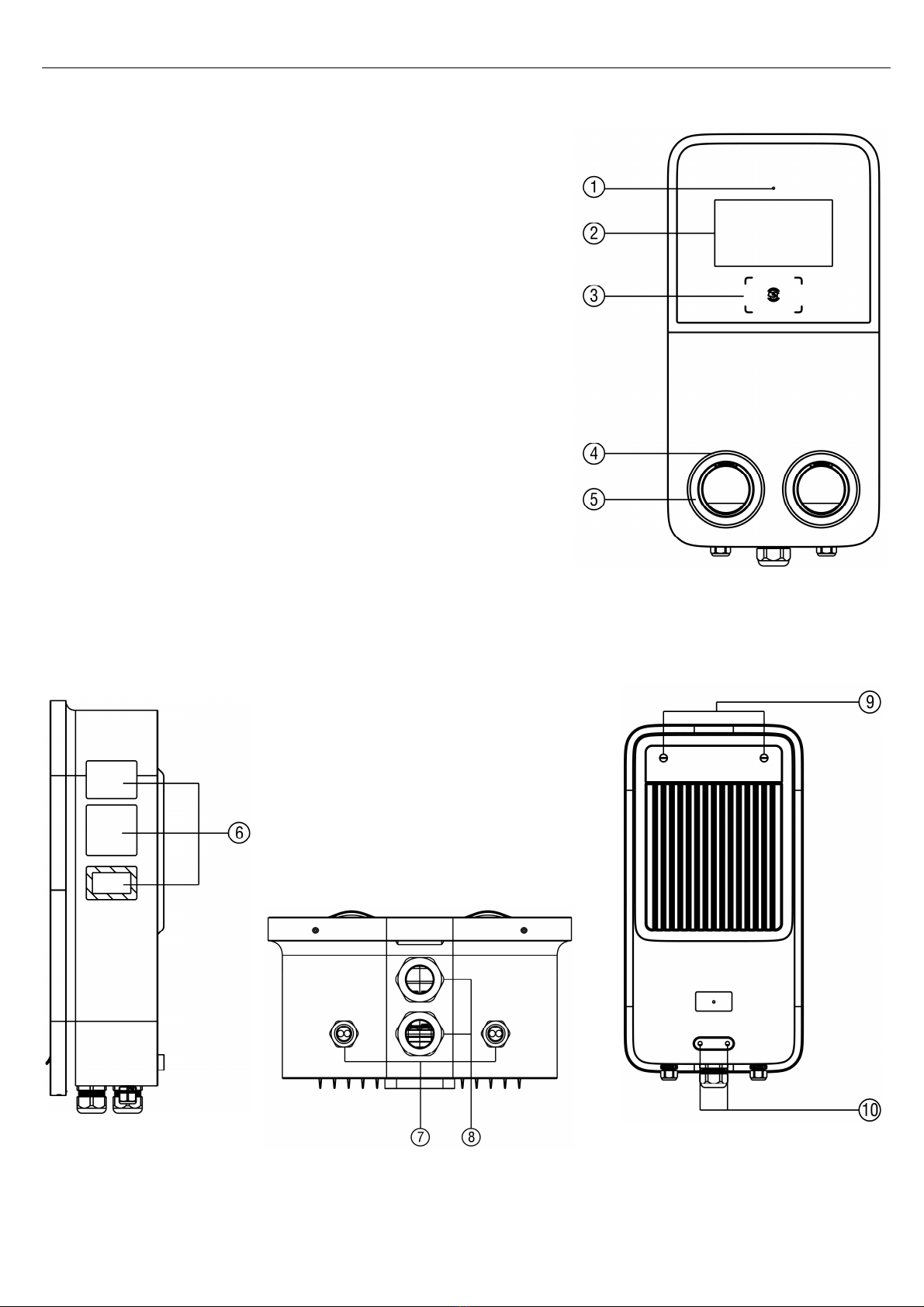

3.1 Product Overview

MaxiCharger AC Ultra

1. Ambient Light ensor — detects ambient brightness

2. Display

3. RFID Reader

4. tatus LED (Refer to 8.2 LED Descriptions for details)

5. ocket

6. Product Label

7. Ethernet Cable Port

8. AC Inlet Hole

9. Upper Mounting crew

10. Mounting Hole

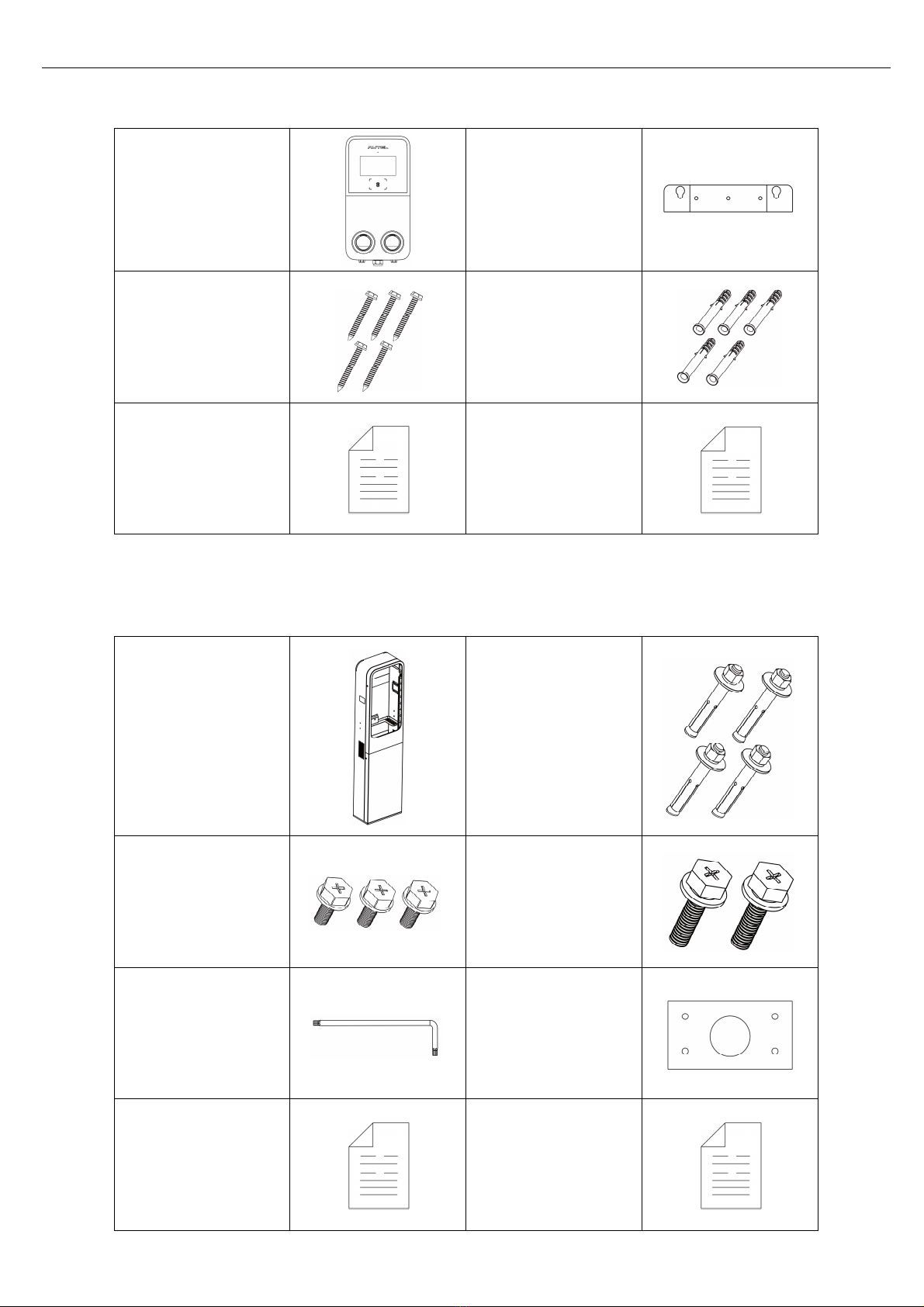

3.2 In the Box

Main Kit

Charging tation

1 PC

Wall Dock

1 PC

crew (M6 x 50)

(For wall-mounting

only)

5 PC

Wall Anchor

(For wall-mounting

only)

5 PC

Quick Reference

Guide

1 PC

Packing List

1 PC

Pedestal Kit

Pedestal

1 PC

Expansion Bolt

(M16 x 150)

4 PC

crew (M6 x 16)

3 PC

crew (M6 x 25)

2 PC

T25 crewdriver

1 PC

Drilling Template

1 PC

Quick Reference

Guide

1 PC

Packing List

1 PC

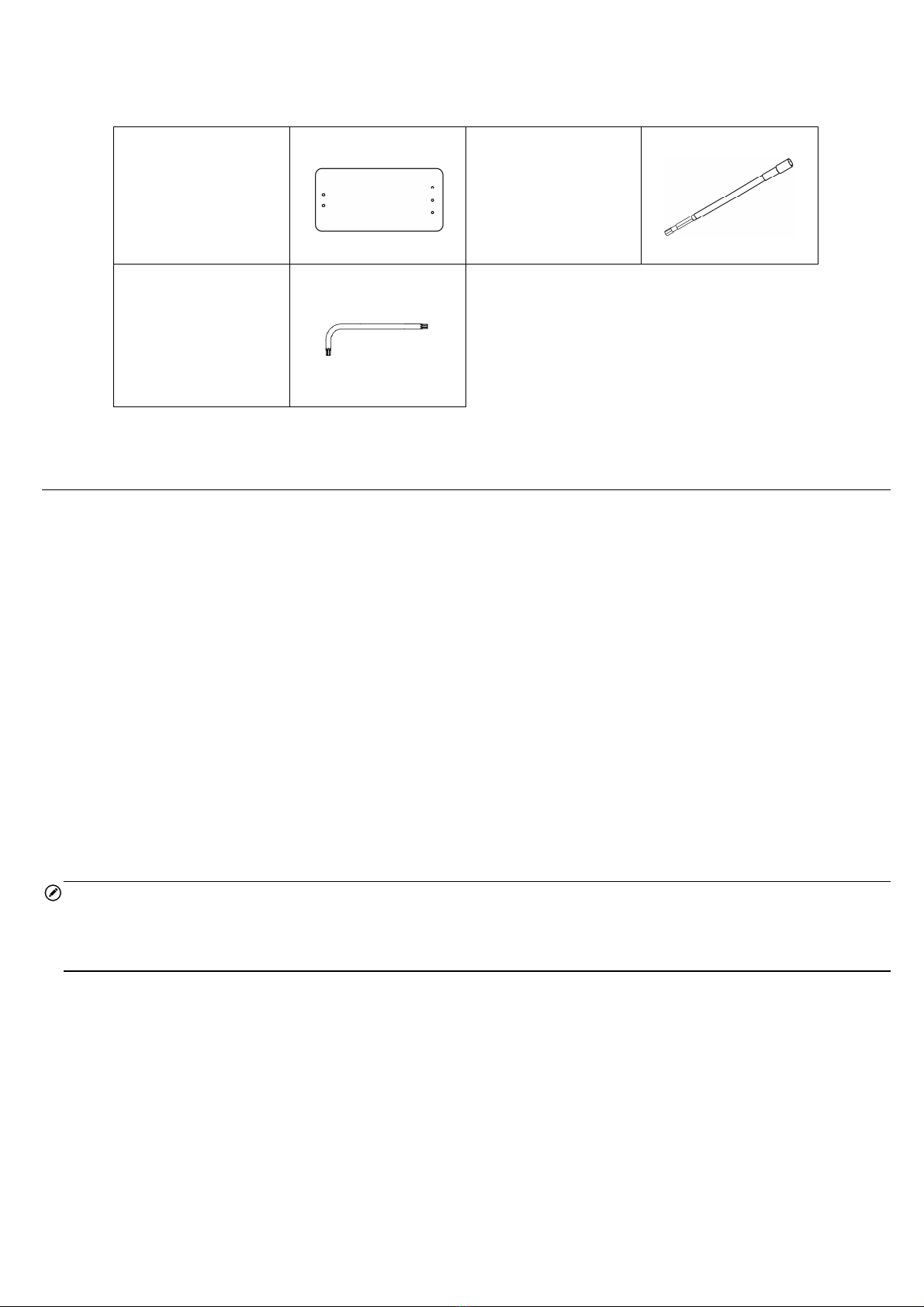

Tool Kit

Drilling Template

(For wall-mounting

only)

1 PC

ocket Wrench

1 PC

T10 crewdriver

1 PC

3.3 Recommended Tools

 Tape measure

 pirit level

 Pencil

 8 mm drilling bit

 Drill

 Wire stripper

 Crimp Connector

 Crimping plier

 Phillips screwdriver

NOTE

The tools mentioned above are not included in the package. Ensure they are readily available prior to

installation.
