Auto Page RF-505 Manuale utente

RF-505

PROFESSIONAL VEHICLE SECURITY

OPERATIONS MANUAL

THIS PRODUCT IS DESIGNED FOR PROFESSIONAL INSTALLATION ONLY

Congratulations on your purchase of the RF-505 vehicle security system.

AutoPage, Inc. is one of the companies with the longest history and

experience in vehicle security in the United States, and a wholly owned

subsidiary of Iwata Electric Co., Tokyo, Japan. Iwata has been an industry

leader for over 45 years, establishing a reputation for ingenuity in its

engineering capability and innovative communication products. AutoPage

and Iwata maintain the long tradition of providing the best value to their

customers.

We sincerely hope the purchase of the RF-505 vehicle security system

provides peace of mind to you.

Please take the time to read over this operation manual to thoroughly

familiarize yourself with the many features and options of the RF-505.

NOTICE!!

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION

IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,

INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

FEDERAL COMMUNICATION COMMISSION RULES AND REGULATIONS

PROHIBIT THE ADJUSTMENT OF THE TRANSMITTER PORTION OF THIS

SYSTEM BY UNLICENSED PERSONNEL.

RF-505 OPERATION INSTRUCTIONS

Remote Transmitter Operation—

Your Autopage Security comes with two 5-button Remote Control

Transmitters. The transmitters feature a sophisticated code hopping system

that will prevent illegal use of a code-grabbing device that may be used to

record and steal your transmitter codes.

ARM & LOCK—

To arm your security system, press the LOCK/UNLOCK button once. The

siren will chirp (1) time and the vehicle parking lights will flash (1) time

indicating that the security system is now armed. The vehicles doors will

lock upon arming when interfaced with the security system.

DISARM & UNLOCK—

To disarm your security system, press the LOCK/UNLOCK button once.

The siren will chirp (2) times and the vehicle parking lights flash (2) times

indicating that the security system is now disarmed. The vehicles door locks

will unlock upon disarming when interfaced with the security system.

DELETING THE ARM/DISARM CHIRP—

When attempting to arm or disarm your security system, you have the option

of temporarily muting the siren chirp sound. To perform this function,

simply press both the LOCK/UNLOCK & CAR buttons together on the

remote transmitter. No sound will be heard, arm / disarm confirmation will

be visual via the vehicle’s parking lights only.

CAR LOCATOR—

Your Autopage Vehicle Security System is equipped with a vehicle locator

function which chirps the siren (6) times and flashes the vehicles parking

lights (12) times to easily locate your vehicle. To access this function,

simply press the CAR button firmly twice on the remote transmitter.

REMOTE PANIC FUNCTION—

The remote transmitter may be used as a remote panic switch that will

activate the security system’s siren and vehicle parking lights in case of an

emergency. To activate the panic function, press and hold the

LOCK/UNLOCK button for 3 seconds. To cancel the panic function, press

the LOCK/UNLOCK button on the remote transmitter.

2ND CHANNEL AUXILIARY FUNCTION (OPTIONAL)—

You may use the CAR button on your remote transmitter for a separate

function. For example, if your vehicle is equipped with a factory electronic

trunk release. The security system can be interfaced with the factory switch

and electronically open your trunk by pressing the CAR button for 2 seconds

on the remote transmitter.

3RD CHANNEL AUXILIARY FUNCTION (OPTIONAL)—

You may use the AUX button on the remote transmitter for a separate

function. For example, if your vehicle is equipped with power windows or a

sunroof. The security system can be interfaced with an optional window

control module (Autopage AC68). To operate the 3rd channel function, press

the AUX button on the remote transmitter.

4TH CHANNEL AUXILIARY FUNCTION (OPTIONAL)—

You may use the 4th channel button on the remote transmitter to operate a

separate function. For example, if your wish to add a remote start to your

vehicle controlled by the security system. The security system can be

interfaced with an optional remote start module (Autopage RST2050KE). To

operate the 4th channel function, press the AUX & CAR buttons together on

the remote transmitter.

SENSOR BY-PASS—

The RF-505 can by-pass the SIS-5P shock sensor and the 2nd sensor port

from the transmitter. When arming the alarm with the “Lock/Unlock”

button, within 3 seconds press the “Lock/Unlock” button again. The siren

will give a long chirp confirming the shock sensors are turned off. The

sensors will reset the next time the alarm is armed.

PRIOITY DOOR UNLOCK (OPTIONAL)—

Your RF-505 security system is equipped with a priority door unlock feature

which will independently unlock the drivers door first when disarming the

security system. Pressing the LOCK/UNLOCK button a second time within

3seconds of disarming will unlock the rest of the vehicle.

This feature requires additional installation and is not a standard feature of

the security system.

PASSIVE ARMING BY-PASS—

The RF-505 security system can temporarily by-pass the passive arming

function via the remote transmitter. To temporarily by-pass passive arming,

exit the vehicle and close all doors. The LED will begin to fast flash the 30-

second timer for passive arming. Within the 30-second timing window press

the CAR button on the remote transmitter firmly twice, the security system

will respond with (1) chirp and the LED will turn ON. The security system

will remain in this temporary mode for as long as you wish. To exit passive

arming by-pass, press the LOCK/UNLOCK button and the system will

return to its normal status.

This feature is only available when the Passive Arming feature is

programmed ON in feature programming.

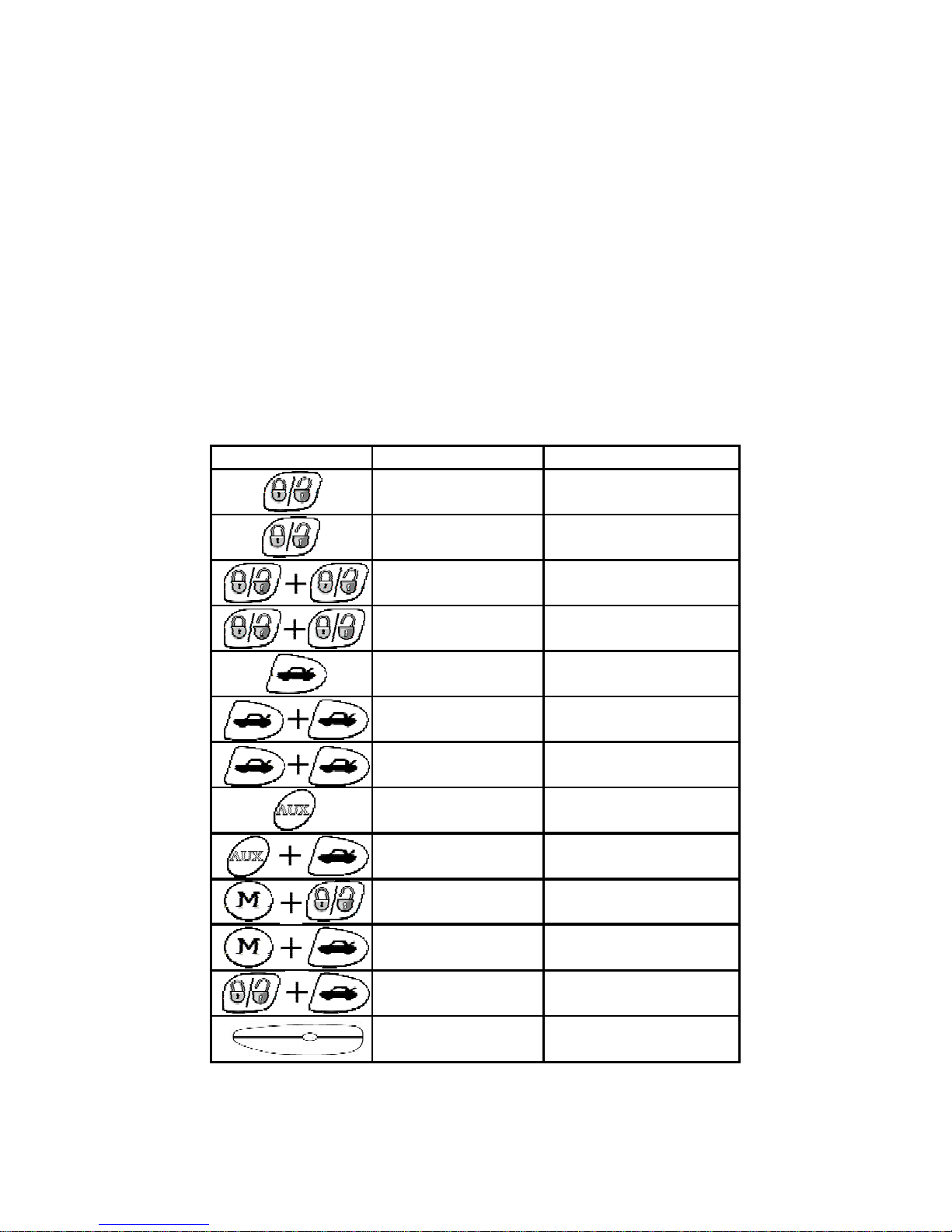

Transmitter Button Actions System Function

Press Lock Doors/Unlock Doors

Once Arm/Disarm System

Press & Hold Panic

3 Seconds Function

Press Twice Arm & Delete

When Arming Optional Sensor

Press Twice Disarm & Unlock

When Disarming 2 Step Door Locks

Press & Hold Channel Two

2 Seconds Trunk Control

Press Twice - Only Passive Arming

During Passive Arming By-Pass

Press Car

Twice Locator

Press Channel Three

Once AUX Control

Press Both Channel Four

Together AUX Control

Press Both SIS-5 Sensor Adjust Mode

Together 3 Seconds See Mode Operation

Press Both Passive/Manual Arming

Together 3 Seconds See Mode Operation

Press Both Together Silent

Ignition in OFF Position Arm /Disarm

2nd Car Operation Side Button

Garage Door Opener Switching Code

PASSIVE ARMING OPERATION—

The RF-505 provides a choice of arming capabilities. The alarm can be set

to automatically arm, or be manually armed. This selection can be done

using the remote transmitter. Follow these steps to turn ON or OFF passive

(automatic) arming and manual arming:

Press the “M” and “Car” buttons together for 5 seconds. The siren will chirp

3 times. Press the “Lock/Unlock” button, the siren will chirp 4 times to and

exit the program mode. To change back to Manual arming, press the “M”

and “Car” buttons together for 5 seconds. The siren will chirp 3 times. Press

the “Car” button, the siren will chirp 4 times and exit the program mode.

SHOCK SENSOR ADJUSTMENT FROM REMOTE TRANSMITTER

ADJUSTING THE SIS-5P SHOCK SENSOR

There are 15 sensor adjustment settings. To adjust the SIS-5P press the “M”

& “Lock/Unlock” buttons together for 5 seconds. The siren or horn will

respond with 3 chirps. Pressing the “Lock/Unlock” button will increase the

sensitivity and pressing the “Car” button will decrease the sensitivity. You

will hear a chirp from the siren after each setting adjustment and a double

chirp from the siren when you have reached setting No.1 or setting No.15.

While setting the sensitivity for the SIS-5P, you can test the shock sensor for

proper adjustment by applying impact to the vehicle during the adjustment

mode.

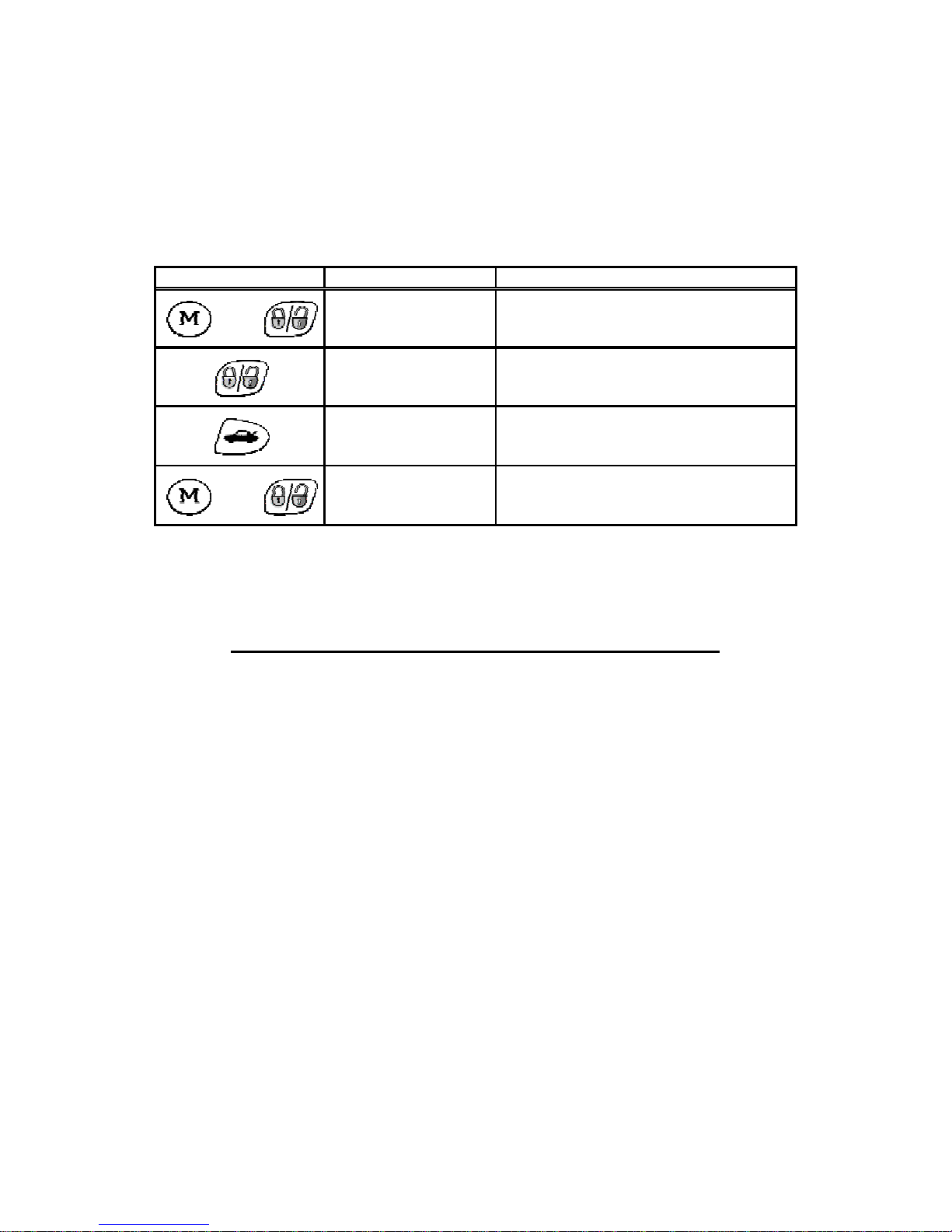

Actions System Function

+Press & Hold 3 sec. Passive / Manual Mode

Press 1 Time Passive ON

Press 1 Time Passive OFF

Transmitter Button

To Exit the SIS-5P adjustment mode, press the “M” & “Lock/Unlock”

buttons together. The siren or horn will sound 4 chirps confirming exit.

The sensor adjust mode will automatically exit in 30 seconds if no signal is

received.

REMOTE TRANSMITTER PROGRAMMING

Programming Transmitter—

The RF-505 can program up to 4 transmitters in memory. To enter

programming, follow these steps:

1. Turn the Ignition to the ON position.

2. Within 15 seconds push the valet switch 3 times the siren and/or horn

will sound 1 long chirp.

3. Press the “Lock/Unlock” button on the transmitter #1; there will be 1

short chirp. Repeat for transmitter #2, there will be 2 short chirps.

NOTE: If you are programming transmitters #3 & #4, repeat step 3

for both transmitters.

4. Turn the ignition OFF, there will be 3 long chirps to confirm exit of

transmitter programming mode.

Transmitter Button Actions System Function

+Press & Hold 5 sec. SIS - 5P Sensor Adjustment Mode

Press 1 Time Increase Sensor Sensitivity

Press 1 Time Decrease Sensor Sensitivity

+Press 1 Time Exit Sensor Adjustment Mode

Second Car Operation—

The transmitter for RF-505 has the capability to operate a second RF-505

alarm system. To program the transmitter to a second RF-505 follow these

steps:

1. Repeat steps 1 & 2 from transmitter programming.

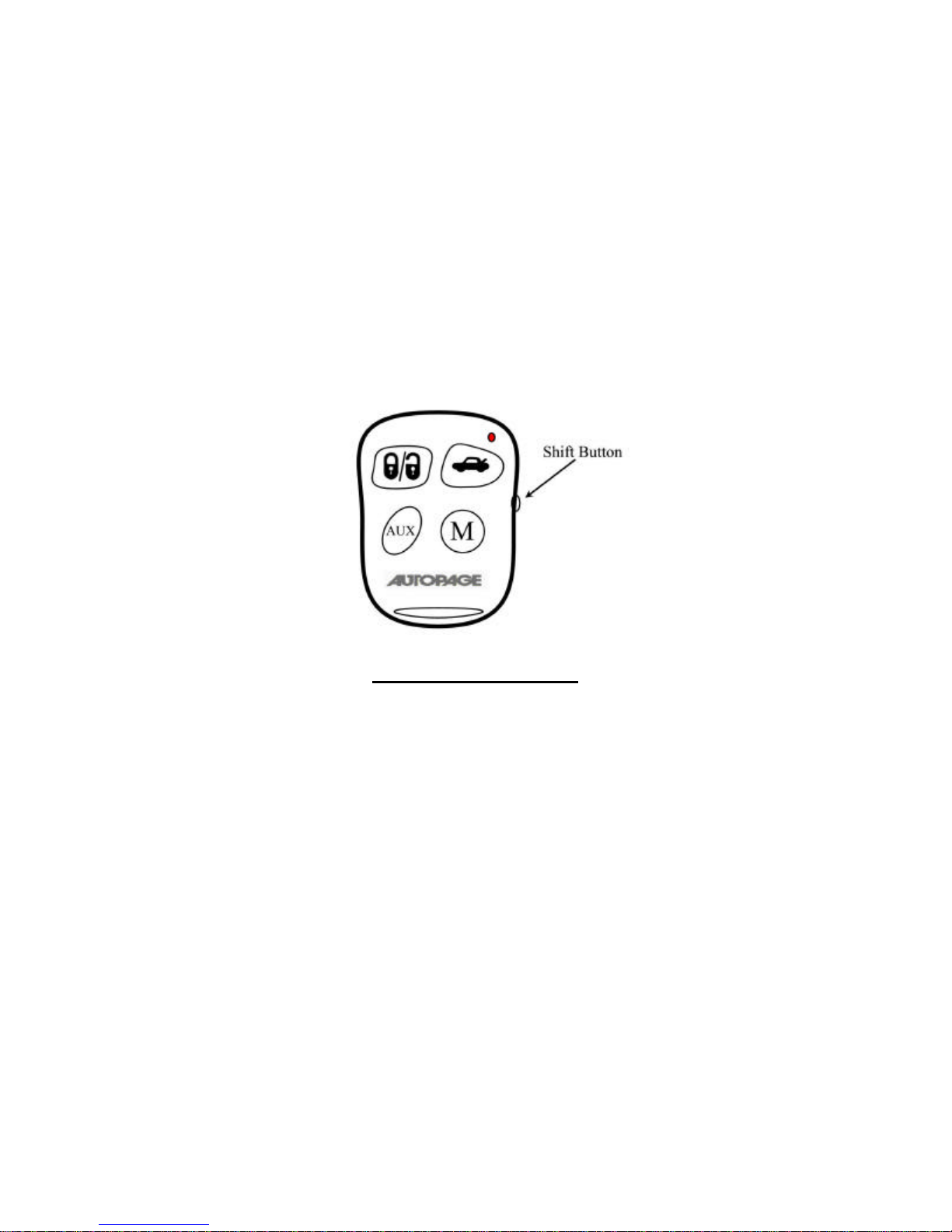

2. Press the side Shift button on the transmitter of the 2nd car.

3. While the LED light on the transmitter is ON, press the

“Lock/Unlock” button on the transmitter, there will be 1 short chirp.

4. Turn the ignition OFF, there will be 3 long chirps to confirm exit of

transmitter programming mode.

ALARM FEATURES

Override Function—

The override function may be used if the remote transmitter is lost or

inoperative. To operate, enter the vehicle (alarm will sound), turn the

vehicles ignition to the ON position and push the valet/override switch until

the security system stops sounding. The security system is disarmed & reset.

Have your remote transmitter serviced or replaced.

Valet Function—

The Security System has a valet or stand-by mode that can be used when the

vehicle is being serviced or valet parked. To activate the valet, turn the

vehicles ignition to the “ON” position, then push and hold the valet/override

switch for 2 seconds or until the Security Systems LED turns ON solid. Turn

the vehicles ignition to the “OFF” position; your vehicle is now in valet

mode. To reactivate, repeat the above procedure noting the Security Systems

LED will now turn OFF.

Note: If your vehicle has the Keyless Entry option installed, you can still

lock and unlock the vehicles doors with Remote Control Transmitter while in

the Valet Mode.

Automatic Rearm (Programmable)—

If this feature is selected, the Security System will automatically re-arm

itself 60 seconds after disarming with the Remote Control Transmitter.

Automatic rearm will restart if any door is opened before the 60-second

timer has elapsed.

Ignition Control Door Locks (Programmable)—

If the vehicles door locks have been interfaced to the Security System and

the ignition control door lock feature has been programmed ON. The

security System will automatically lock the doors 3 seconds after the ignition

is turned ON and unlock the doors when the ignition is turned OFF.

Note: If a door is open when the key is turned on, the doors will not lock.

Dome light Illuminated Entry (Optional)—

Your Autopage Vehicle Security System is equipped with a dome light

illuminated entry feature which will turn on the vehicles interior lights for 30

seconds after the Security System is disarmed / unlocked. This feature will

reset once the vehicles ignition is turned “ON” or if the Security System is

re-armed.

Pathway Illumination (Programmable)—

When disarming the security system, the vehicles parking lights will stay on

illuminating a pathway to the vehicle. The vehicles parking lights will stay

on for 30 seconds or until the vehicles ignition is turned to the ON position.

Headlight Illumination (Optional)—

When arming and disarming the Security System, the vehicles headlights

will stay on illuminating your pathway to the vehicle. The vehicles

headlights will stay on for 30 seconds when the system is armed and for 30

seconds after the system is disarmed.

Starter Disable—

The on-board starter disable relay operates when the alarm is active. The

relay will open when the alarm is triggered, to prevent a thief from starting

the vehicle.

LIMITED LIFETIME WARRANTY PROVISIONS

(U.S. and Continental U.S. Only)

1. AutoPage, Inc. WARRANTS that this new unit has been thoroughly inspected and tested at the factory

prior to delivery. Your AutoPage equipment is guaranteed for “life” to the original purchaser/user of the

equipment under the following conditions: If the product proves defective (according to AutoPage’s

testing) within the first year, the defective unit may be exchanged or repaired free of charge. “Proof of

Purchase” (dated sales receipt) must accompany all warranty returns; otherwise, your return will be

rejected and sent back. After one (1) year, the purchaser should ship the unit prepaid to AutoPage

with a money order in the amount of $20.00 to cover shipping and handling charges. Note: The

enclosed Warranty Card may be required to receive warranty services.

2. This WARRANTY will be considered void if the equipment has been misused, neglected, improperly

serviced, altered, dropped or damaged by water, contrary to the AutoPage OPERATIONS MANUAL.

Or, if used with accessories not approved by AutoPage, which may have contributed to the defect.

3. The purchaser’s remedies under this WARRANTY shall be limited to the repair or replacement of

electronic components only. THE FOLLOWING IS NOT COVERED: Damages or deterioration to

cases, batteries, covers and cabinets; the cost of repairs, replacement and labor of which shall be borne

by the purchaser even if occurring during the WARRANTY period.

4. Any equipment or parts which are claimed to be defective under this WARRANTY must be sent to the

AutoPage Service center with “proof of purchase” at the purchaser’s expense prior to such return, a

Return Authorization Number should be obtained. AutoPage will return the equipment, charges

prepaid. Warranty Service can be provided through the dealer where the equipment is originally

purchased.

5. Any unexpired WARRANTY shall be applicable to equipment and parts in the possession of the original

purchaser only.

6. THIS WARRANTY IS IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,

INCLUDING BUT NOT LIMITED TO ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE.

7. AutoPage shall not be liable, under the foregoing WARRANTIES or otherwise, for:

Any personal injury of any kind to the purchaser, its employees or agents or anyone

else whomsoever resulting directly or indirectly from the use or presence of the

equipment or parts; Consequential damages of any kind; Any inability of the

purchaser to use the equipment.

Indice

Altri manuali Auto Page Allarme auto

Auto Page

Auto Page C3-RS-730 LCD Manuale utente

Auto Page

Auto Page RF-520LCD Manuale utente

Auto Page

Auto Page RF-425LCD Manuale utente

Auto Page

Auto Page RF-350 rs Manuale di istruzioni

Auto Page

Auto Page CPX-2300 Istruzioni per l'installazione e il funzionamento

Auto Page

Auto Page C3-RS-665-2W Manuale utente

Auto Page

Auto Page RS-720LCD Manuale utente

Auto Page

Auto Page RF-502 Manuale utente

Auto Page

Auto Page RF-302 Manuale utente

Auto Page

Auto Page Car-Pro CPX-3600 Manuale utente

Auto Page

Auto Page Car-Pro CPX-2200 Manuale utente

Auto Page

Auto Page AutoPage RF-501 Manuale utente

Auto Page

Auto Page C3-RS-727A LCD Manuale utente

Auto Page

Auto Page RF-315 Manuale utente

Auto Page

Auto Page CAR-PRO CPX-2350 Manuale utente

Auto Page

Auto Page RF-305 Manuale utente

Auto Page

Auto Page RF420 Manuale utente

Auto Page

Auto Page C3-RS-900LCD Manuale utente

Auto Page

Auto Page RF-310 Manuale utente

Auto Page

Auto Page RF-425LCD Manuale utente

Auto Page

Auto Page RF-503 Manuale utente

Auto Page

Auto Page AP4000EX Scheda tecnica

Auto Page

Auto Page RF-503 Manuale utente

Auto Page

Auto Page C3-RS-915 LCD Manuale utente

Manuali Allarme auto popolari di altre marche

Clifford

Clifford 3606X Manuale utente

Ultra Start

Ultra Start 2500M SERIES Manuale utente

Ultra Start

Ultra Start 650 Series Manuale utente

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuale utente

Sparkrite

Sparkrite SRA8 Manuale utente

Viper

Viper 4708V Manuale utente

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuale

Falcon

Falcon Predator XL3 Guida utente

Audiovox

Audiovox Auto Security XR91 Istruzioni operative

Clifford

Clifford Sabre II Manuale utente

CrimeStopper

CrimeStopper CS-8717 Guida rapida

Ultra Start

Ultra Start 450 SERIES Manuale utente

Scytek electronic

Scytek electronic Vectra X3 Manuale utente

Excalibur

Excalibur AL-1860-EDPB Manuale utente

Clifford

Clifford CYBER 2 Manuale utente

Gemini

Gemini 7057 Manuale utente

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuale utente

Magicar

Magicar FAI-440 Manuale utente
