Introduction 3

Changing Battery XT-72S Standard Transmitter 3

Remote Transmitter Operation 4

LCD Transmitter Operation 5

Button Lock LCD Transmitter 5

LED Display 5

Chirp Indicators 5

Parking Light Flashes 5

Alarm Operation Condition 6

Active Arming 6

Ajar Warning 6

Silent Arming 6

Shock Sensor By-pass 6

Hidden Alarm 6

Passive Arming 7

Passive Arming By-pass 7

Active Disarming 7

Tamper Disarming 7

Pathway Illumination 7

2 Step Unlock 8

Automatic Rearm 8

Disarm without Transmitter 8

Valet 8

Enter & Exit Valet Mode 8

Car Locator 8

Panic Function 8

Trigger the System 9

System Status check 10

Driver Paging 10

Dome Light Supervision 10

Ignition Control Door Locks 10

Trunk Release Output 10

Channel 3 Auxiliary Control 10

Channel 4 Auxiliary Control 10

Channel 5 Auxiliary Control 11

Channel 6 Auxiliary Control 11

Second Vehicle Operation 11

LCD Remote Control 12

LCD Battery Replacement 12

LCD Icons 12

Programming LCD Transmitter 13

Timer Setting 15

Autopage Warranty 17

TABLE OF CONTENTS

Congratulations on your purchase of the RF520LCD vehicle security system. We

sincerely hope the purchase of the RF520 security systemgives peace of mind to

you.

The RF520 LCD is a state-of-the-art two-way communication system. Please take

the time to read over this manual to thoroughly familiarize your self with the many

features and options of the RF520.

Auto Page, Inc. has over 25 years of experience in the vehicle security industry in the

United States and is a wholly owned subsidiary of Iwata Electric Co., of Tokyo, Japan.

Iwata has been an industry leader for over 50 years, establishing a reputation for

ingenuity in its engineering capability and innovative communication products. Auto

Page and Iwata maintain a long tradition of providing the best value to their

customers.

TRANSMITTERS

The RF520 comes with two transmitters. The XT72LCD is a 2-way transmitter and

receiver, also referred to as a transceiver. The XT72s is a mini-size 1-way

transmitter. Both operate on the AM band with a code-rolling feature that will prevent

any illegal use of a code-grabber attempting to record and steal the codes of your

transmitter.

CHANGING THE BATTERY IN YOUR TRANSMITTERS

XT72LCD: This transmitter uses a standard 1.5-volt AAA battery. Information on

changing the battery can be found on page 12 of this manual.

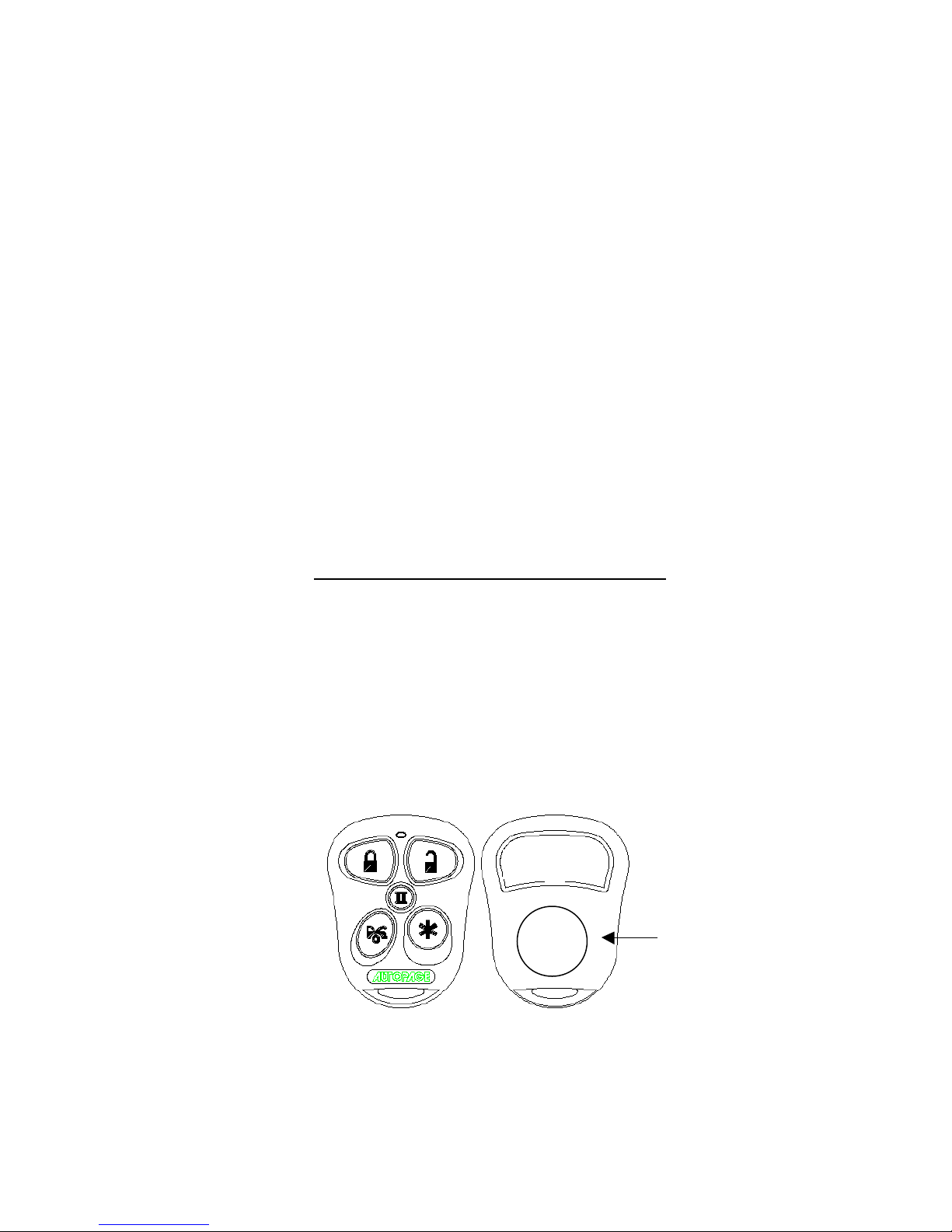

XT72S: This transmitter uses two (2) 3-volt lithium ion batteries (#CR2016) that are

sandwiched together with the (+) side facing upward. To replace the battery, you will

need to use a small flat blade screwdriver. Locate the small notch on the lower right

side of the transmitter case next to the key ring. Using the flat bladescrewdriver,

carefully pry the top case from the bottom case. It should snap apart after breaking

the seal. Before removing the batteries note the direction of the positive (+) terminal.

Place the new batteries in exactly the same manner, being careful not to bend or

damage the contact terminal. Snap the cases back together and then test the

transmitter to insure it arms and disarms the alarm.

(2) CR2016

3-Volt Batteries

72S

WARNINGS:

As with any product that performs automatic functions, there are certain safety

precautions that you must

practice and be aware of.

1. Keep the transmitter out of children’s reach.

2. Do not leave anyone in the vehicle while running on remote control.

3. Alert servicing personnel that the vehicle can be started automatically.

4. Do not start the vehicle by remote while it’s in an enclosed area or garage.

5. Always apply the parking brake and lock the vehicle as you exit the vehicle.

6. The vehicle windows must be rolled up.

7. Should the unit malfunction, disconnect the fuse until the problem is corrected.

8. The use and operations of this system is the sole responsibility of the operator.

9. Some areas may have local ordinances that prohibit leaving a vehicle running on

public streets.

10. Do not start the vehicle by remote while the standard transmission vehicle is

parked at a steep place

OPERATION:

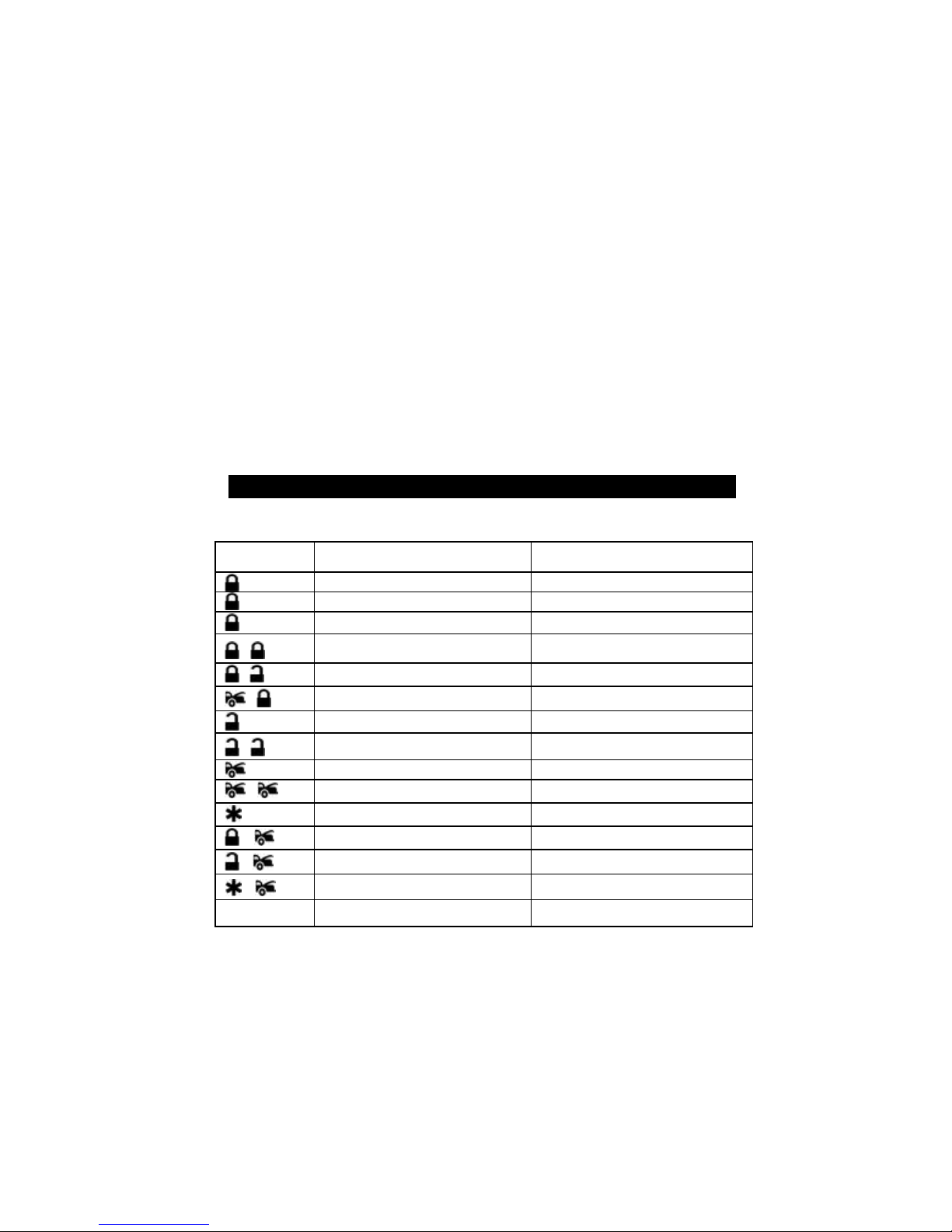

REMOTE TRANSMITTER OPERATION:

Transmitter

Button System Function Remark

Lock Doors & Arm System

Panic function Press and Hold for 3 seconds.

Car Locator Under armed mode

-Arm and Delete The 2 Stage Shock

Sensor. Presstwice within3 seconds

+ Silent Arming / Disarming Ignition in "off" position.

-Arm System and Hidden Alarm Presstwice within3 seconds.

Unlock Doors & Disarm System

-Two Steps Door Unlock & Disarm Presstwice within3 seconds.

Trunk Release (Channel 2) Press and Hold for 2 seconds

-Passive Arming By-pass While the system Disarmed.

Channel # 3 Auxiliary Output

+ Channel # 4 Auxiliary Output (4)

+ Channel # 5 Auxiliary Output (5)

+ Channel # 6 Auxiliary Output (6)

II.

Shifting Code for 2nd Car Operation Standard Transmitter ONLY

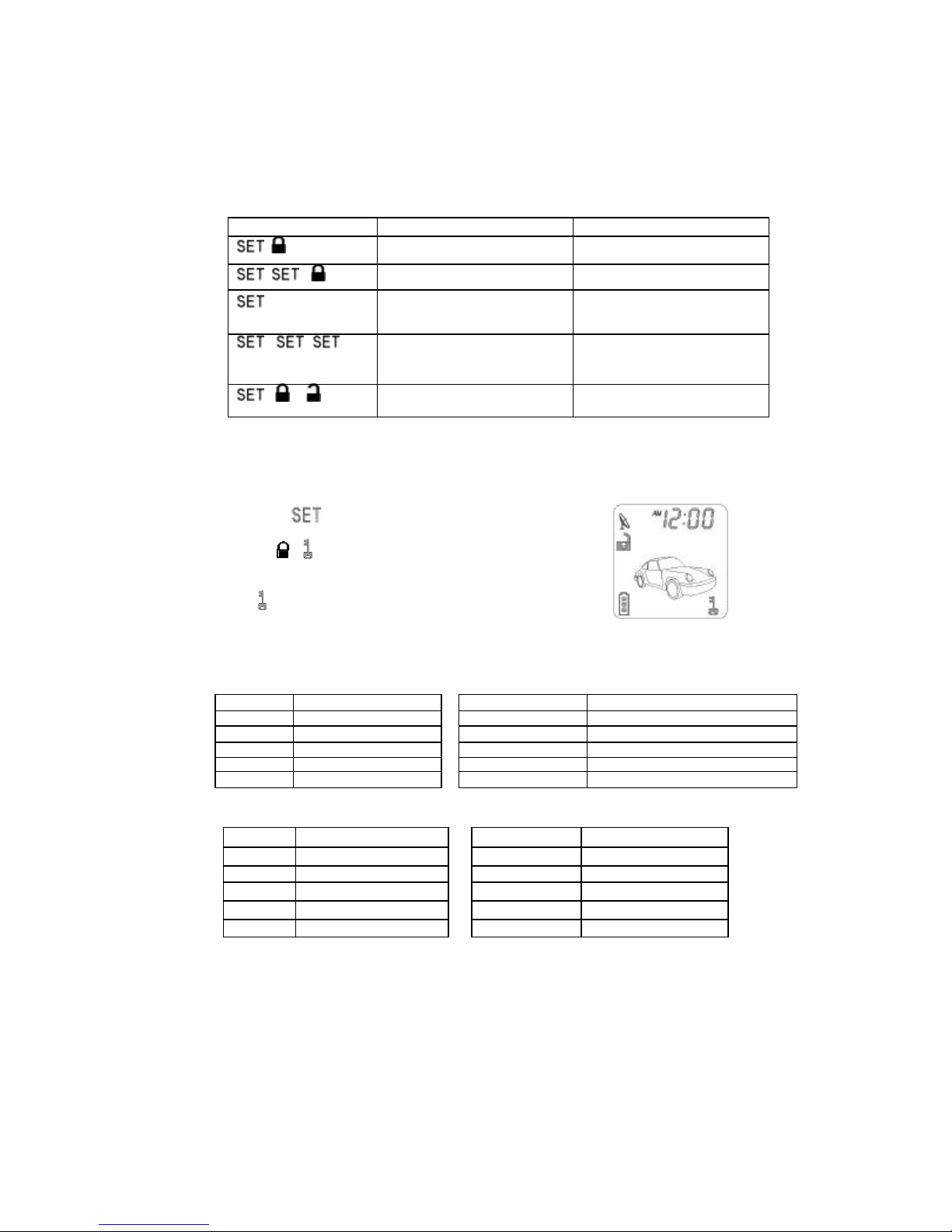

LCD DISPLAY TRANSMITTER OPERATION ONLY:

Transmitter Button System Function Remark

-(C) System’s Trigger Check Press within 3 seconds

--(C) System’s Status Check Press within 3 seconds

(1 second) LCD screen lamp turns on

for 5 seconds. Press and hold for 1 second

--Clear the Flash Icon and

Melody Sound on the LCD

Screen Transmitter Press within 3 seconds

-+ (2 sec) Switching code for 2nd /1st

Car Operation Press within 3 seconds

BUTTON LOCK:

It is useful if you want to disable the transmission function of the LCD remote control

to temporarily prevent from any inadvertent pressing of buttons by others.

The 2-way remote control transmitter:

Press the button first, within 3 seconds press and

hold the

()button for 2 seconds to activate or cancel

the button lock function.

The icon will be displayed on the LCD screen to

confirm that the LCD remote transmitter is in the “Button

Lock” mode.

LED display:

LED Function LED Function

Off Disarmed Zone 1 / Warn-Away Trigger

Slow Flash Armed 2 flashes... pause Zone 2 / Trigger on Trunk/Hood

Fast Flash PassiveArming 3 flashes... pause Zone 3 / Trigger on Door Switch

On (Solid) Valet Mode 4 flashes... pause Zone 4 / Trigger on Shock Sensor

5 flashes... pause Zone 5 / Trigger on Ignition Switch

CHIRP INDICATORS: PARKING LIGHT:

Chirp Function Parking light Function

1 chirp Arm 1 flash Arm

2 chirps Disarm 2 flashes Disarm

3 chirps Defective Reminder 3 flashes Disarm / Triggered

4 chirps Disarm / Triggered 12 flashes Car Locator

6 chirps Car Locator

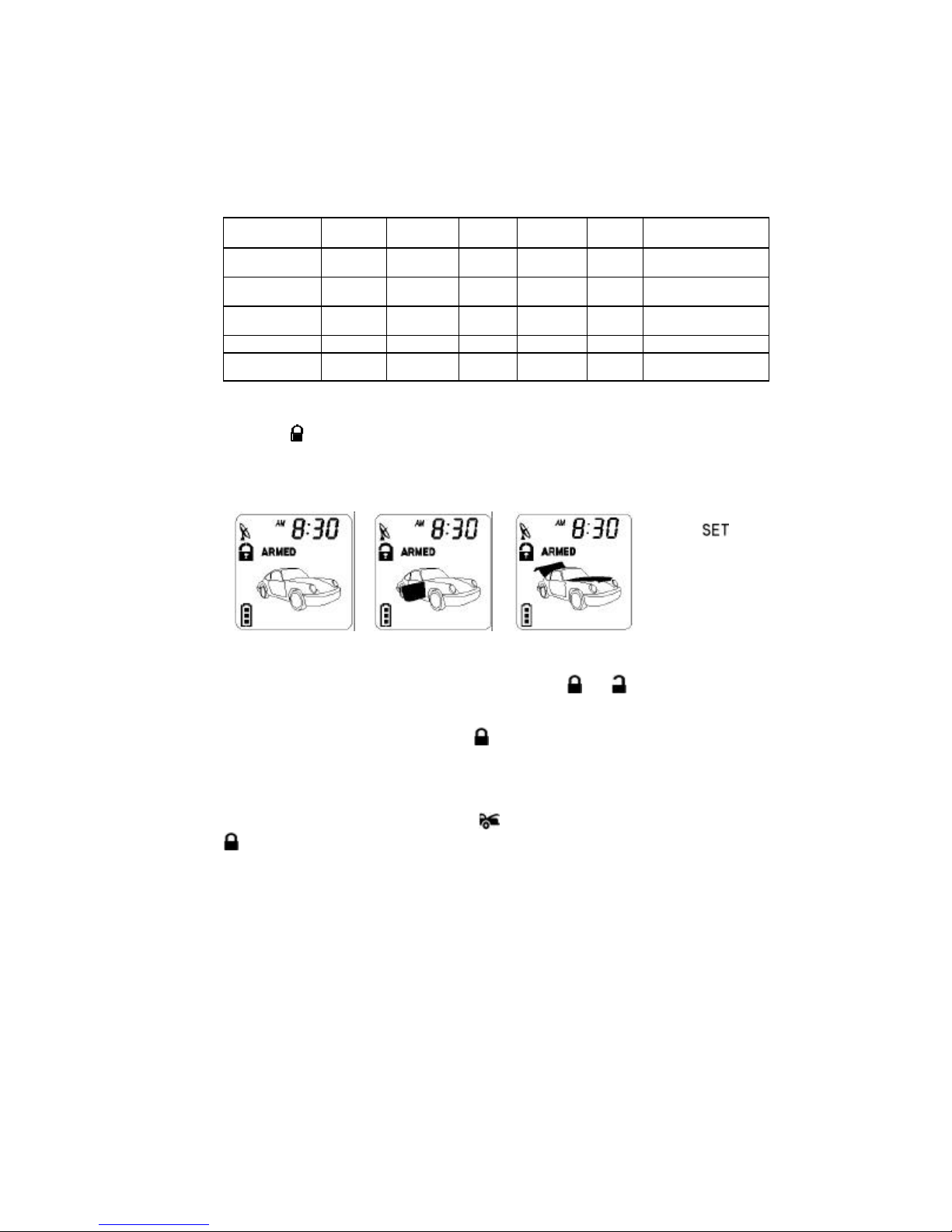

ALARM OPERATING CONDITION:

Siren /

Horn Parking

Light LED Doors Starter Dome Light

1. Arming 1 or 3

Chirps 1 Flash Slow

Flash Locking Disable

2. Disarming 2 or 4

Chirps 2 or 3

Flashes Unlocking Turns on for 30 -sec

3. Trigger Alarming Flashes Slow

Flash Disable

Flashes

4. Panic Alarming Flashes Flashes

5. Car Locator 6 Chirps 12 Flashes Locking

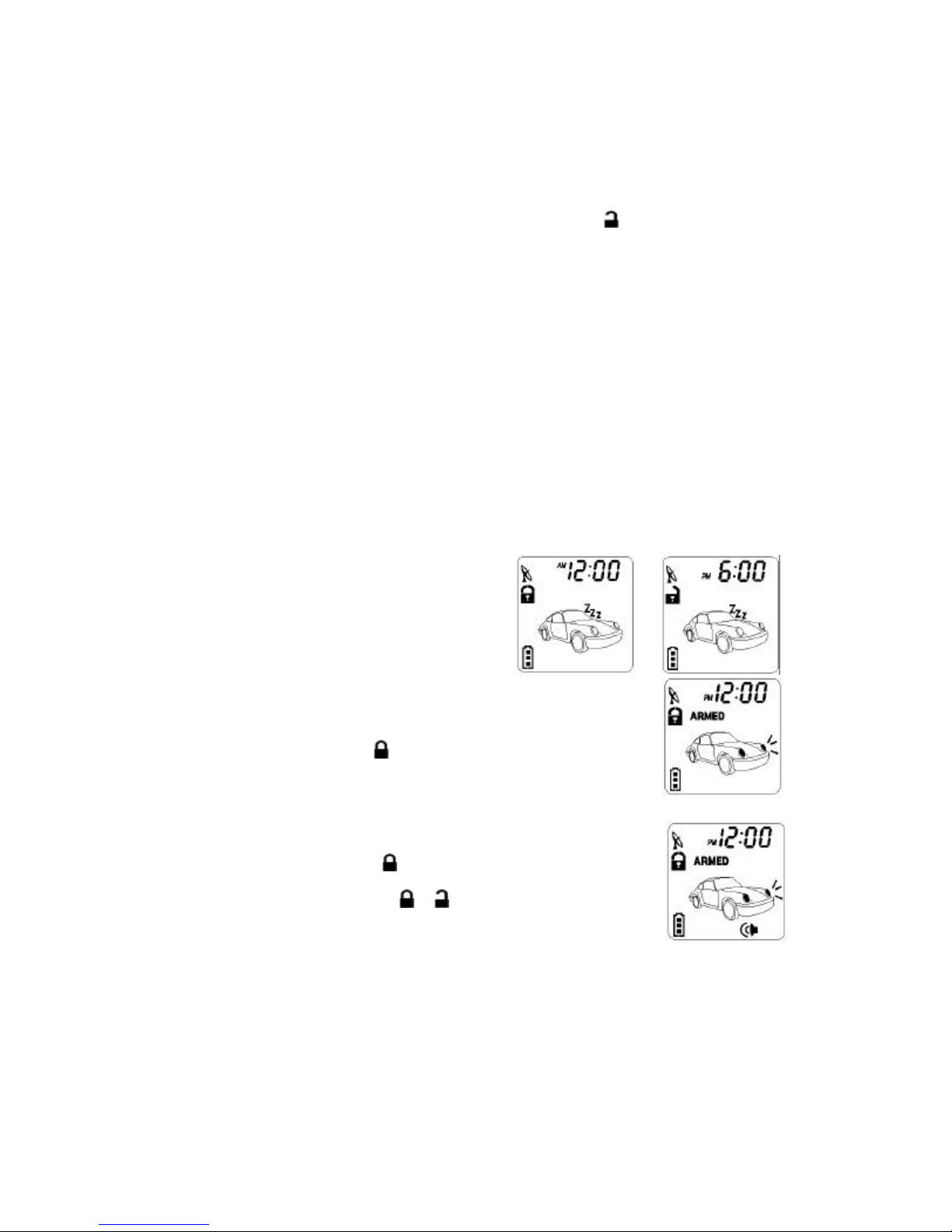

ACTIVE ARMING –LOCK & ARM:

1. Press

button on the transmitter.

2. The siren will chirp once and parking light will flash once indicating that the

system is now armed. The vehicle door will lock upon arming when interfaced

with the security system.

System Arm

Door Ajar

Trunk / Hood Ajar

Clear The Flashing Icon:

Press the button

3 times within 3 seconds

will clear the flash icon

on the LCD screen

transmitter.

AJAR WARNING: If the siren sounds 3 chirps, then you have left a door, or (optional)

trunk, and or hood lid ajar.

SILENT ARMING / DISARMING: Press the transmitter and buttons at the same

time will arm or disarm your security system, No chirp sound will be heard, arm /

disarm confirmation will be through the vehicles parking lights only.

SHOCK SENSOR BY-PASS: Press the button on the transmitter two times within

3 seconds will arm the security system and by-pass the shock sensor. The system

will chirp one additional time to confirm the sensor bypass mode was activated. The

sensor bypass feature is programmed to activate for one arming cycle only. The

security system will return to normal operation during the next arming cycle.

HIDDEN ALARM FUNCTION:Press the button first; within 3 seconds press the

button to activate the hidden alarm function. The security system will arm and with

“Hidden Alarm Function”. The siren / horn will be silenced even if the sensor is

triggered in the armed status.

PASSIVE ARMING

Active arming / disarming is controlling your security system via the remote

transmitter. This security system is equipped with an optional Passive Arming feature,

which allows the security system to arm 30 seconds after the last door is closed.

Operation is as follows.

1. Turn the ignition to the “OFF” position and exit the vehicle.

2. After all entrances are closed, the security system LED will flash fast for 30

seconds. If you reopenany door / hood / trunk, the security system LED will stop

flashing. It will begin flashing again once the vehicle all entrances are closed.

3. After 30-second timer has elapsed, the security system will automatically “ARM”.

The siren will chirp [1] time andthe parking lights will flash [1] time.

PASSIVE ARMING WITH PASSIVE DOOR LOCKING:

The vehicle doors will automatically lock after passive arming cycle has been

completed.

PASSIVE ARMING BY-PASS: While the system disarmed, Press the button

twice, the security will respond with [1] chirp and LED will turn “ON”. The security

system will remain in this temporally state for as long as you wish. To exit passive

by-pass, press the transmitter or button and the system will return to normal

status.

ACTIVE DISARMING –UNLOCK & DISARM:

Press button on the transmitter.

The siren will chirp twice and parking light flash twice to indicating that the security

system is now disarmed. The vehicle’s door will unlock and dome light turns on for

30 seconds upon disarming when interfaced with the security system.

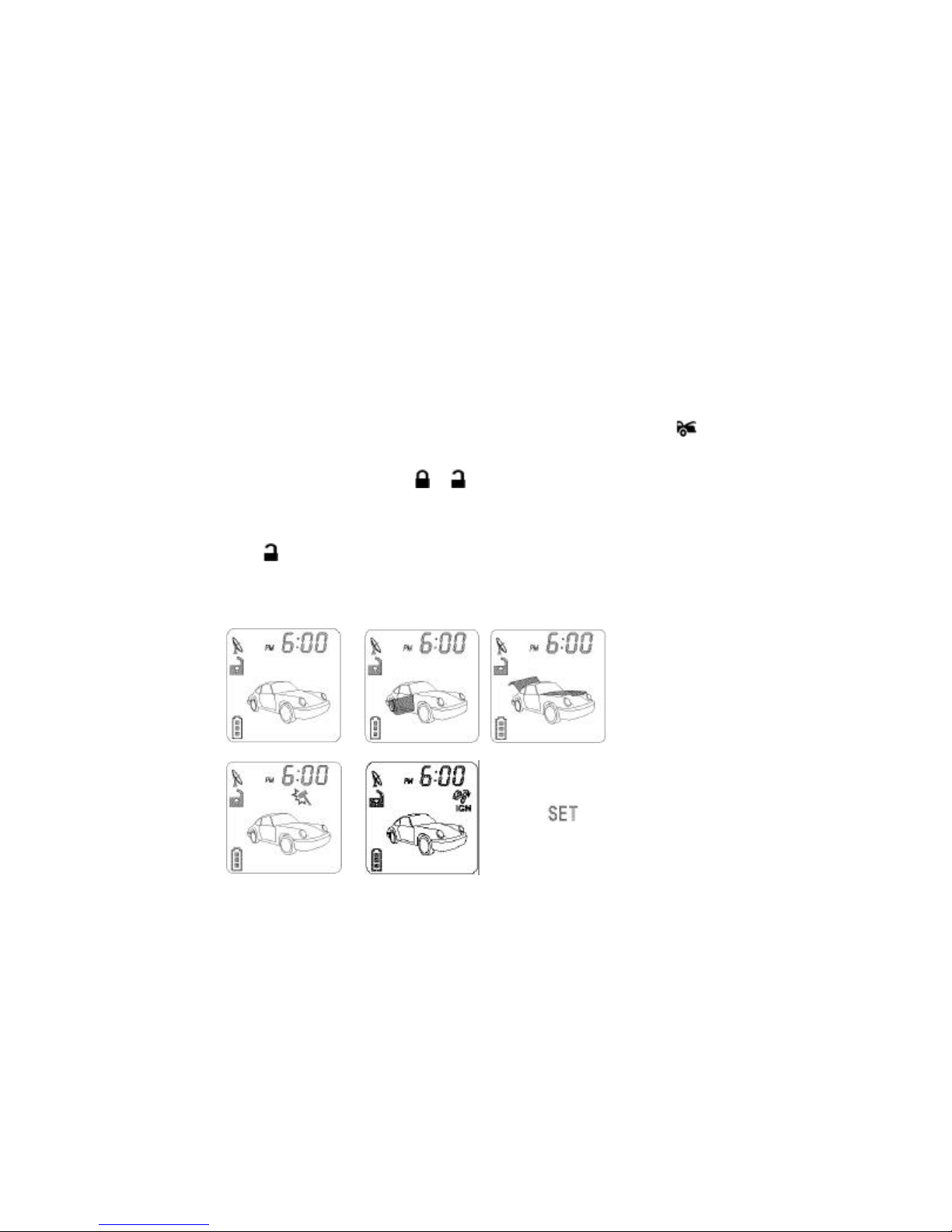

System Disarm

Doors Trigger

Trunk/HoodTrgr

Shock SensorTrgr

Ignition Trigger

Clear The Flash Icon:

Press the button 3

times within 3 seconds will

clear the flash icon on the

LCD screen transmitter.

TAMPER DISARMING: If alarm triggered, upon disarm the system, siren chirp 4

times, parking light flash 3 times.

PATHWAY ILLUMINATION: This feature turns the parking light “ON” for 30 seconds

upon a unlock signal and for 10 seconds upon the lock signal.

TWO STEPS DOOR UNLOCK: This feature will independently unlock the driver’s

door only when disarming the security system. Pushing the button a second time

within 3 seconds will unlock the other doors.

AUTOMATIC RE-ARM: If this feature is selected, the security system will

automatically re-arm itself in 60 seconds after disarming with remote transmitter.

Automatic rearm will cancel if any door is opened before the 60 seconds timer has

elapsed.

DISARMING WITHOUT A TRANSMITTER

The Override function may be used if the remote transmitter is lost or inoperative.

1.Enter the vehicle andturn the ignition switch to 'ON’ position. (Alarm will sound.)

2.Within 10 seconds press the valet switch.

The alarm will stop sounding and enter the disarm mode, release the valet switch.

You can now start and operate the vehicle normally.

VALET MODE: (System in Disarm or Valet mode)

The valet switch allows you to temporarily bypass all alarm function, eliminating the

need to hand your transmitter to parking attendants or garage mechanics. When the

system is in valet mode, all alarm function are bypassed, however the remote panic

feature and remote door locks will remain operational. To use the valet mode, the

system must first be disarmed either by using you remote transmitter, or by operating

the Manual override sequence.

Enter Valet Mode:

From the disarmed condition, turn the ignition

to “ON” position.

2. Push and hold valet switch for 3-

5 seconds

until the LED turns on. The LED will remain on as

long as the system is in'valet mode'.

Exit Valet Mode:

1. Return to normal operation, turn ignition 'on'

Remote Door Lock

Remote Door Unlock

2. Push and hold valet switch for 3-5 seconds, The LED

will turn off indicate the system are exiting the valet mode.

CAR LOCATOR

Upon armed, press the

button to active car locator

function. The siren will chirp 6 times. The parking light

will flash 12 times, for you to easily locate your car.

PANIC FUNCTION:

The transmitter can be used as a re

mote panic switch to manually

trigger the alarm in case emergency.

1. Press and hold the

button for 3 second. The alarm will

immediately sound.

2. To stop the alarm, press or

button, the panic mode will be

turned off immediately.

3. If the button is

not pressed, the alarm will automatically stop

after 30 seconds.

TRIGGER THE SYSTEM

When armed, your vehicle is protected as follows:

1. Light impact will trigger the warn-away signal.

2. Heavy impacts / Doors open / Hood open / Trunk open / Turn on the ignition key

will trigger the programmed sequence.

The starter disable relay (if installed) prevents the vehicle’s starter from cranking. The

siren, horn, parking lights, and dome light will turn on to alerting of an intrusion for 30

seconds. Then it will stop and automatic reset and re-arm. If the one of sensors or

detectors still active, the alarm system will sound a maximum of 3times of 30

second cycles.

NOISE ABATEMENT CIRCUIT: Your system has “Noise Abatement Circuit”. It

prevents annoying repetitive trigger sequences due to faulty door pin switches or

environmental condition such as thunder, jackhammers airport noise, etc.

Here’s how “Noise Abatement Circuit” works: The alarm triggers five times. Each

time, the same sensor or switch is triggering the alarm. “Noise Abatement Circuit” will

interpret this pattern of triggers as false alarm. After the third trigger, “Noise

Abatement Circuit” ignores, or bypasses, that sensor or switch until the other sensor

or switch is trigger. “Noise Abatement Circuit” covers doors (Hood/Trunk) differently: If

the alarm is triggered by an open door for three full cycles, the doors will be bypassed

until the trigger ceases.

SYSTEM’S TRIGGER CHECK

(For two-way transceiver operation only)

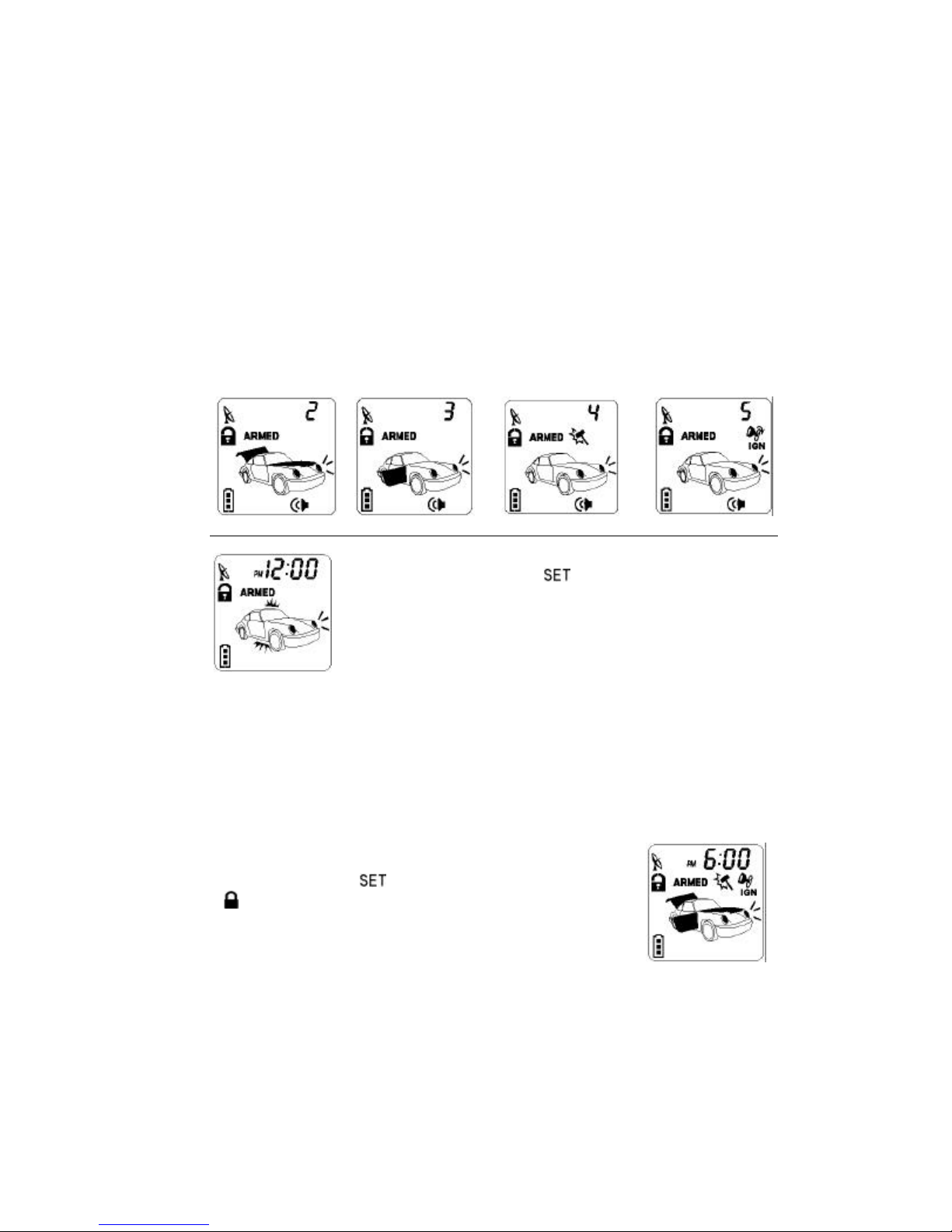

Press the transceiver button first, within 3 seconds press the

trigger’s records will immediately displayed on the LCD screen.

Note: If it has noresponds then you are out of range.

Trunk/Hood Trigger

Doors Trigger

Shock Sensor Trigger

Ignition Trigger

Warn-away Trigger

CLEAR THE FLASH ICON AND MELODY SOUND:

While triggering

the alarm the LCD screen will a

lert user through melody sound and

flashing trigger icon, press the

button 3 times within 3 seconds

will clear the flash icon and stop melody sound on the LCD screen

transceiver.

STOP THE MELODY SOUND ONLY:

While triggering the alarm the

LCD screen will

alert user through melody sound and flashing trigger

icon, press any button on the LCD remote transceiver to stop melody

sound only

SYSTEM’S STATUS CHECK

(For two-way transceiver operation only)

When you want to check the system’s present status through the

LCD screen, Press the transceiver

button twice, within 3

seconds press (C) button. It responds

with one melody sound,

the LCD screen should be illuminated.

Note: If it has noresponds then you are out of range.

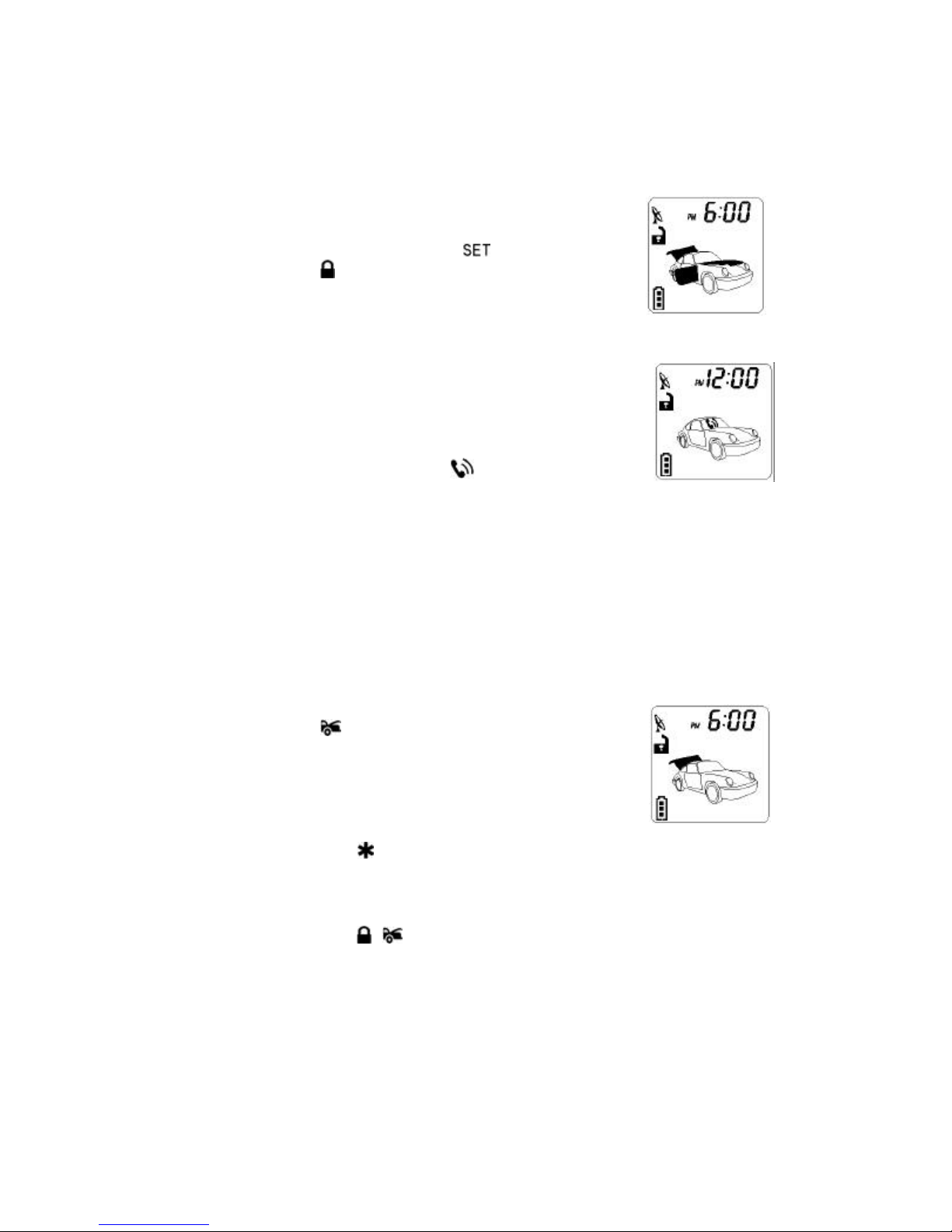

DRIVER PAGING

(For two-way transceiver operation only)

It is useful the event that someone wants to page the driver of the

parked vehicle.

Under the ignition switch “off” condition, press and hold the valet

switch for 2 seconds or press the pager button

once on the

transmitter antenna

to page the driver, one chirp sound shall be

emitted from the vehicle and the paging melody so

und continues

you Remote LCD transceiver and “

” indication flashes on the

LCDscreen.

DOME LIGHT CONVENIENCE DELAY & SUPERVISION

The alarm with a unique feature which will turn on your vehicle dome light as

following:

1.Upon disarming, the interior light will remain on for 30 seconds.

2.If the vehicle is intruded, the dome light will flash for the same duration as the siren.

Note: Turn on the ignition switch or arm the alarm will turn off the dome light.

IGNITION CONTROL DOOR LOCK/UNLOCK.

If the vehicles door locks have been interfaced to the security system, the system will

automatically lock the vehicle's doors when the ignition is turned “ON” and /or unlock

the vehicle’s doors when the ignition is turned “OFF”.

TRUNK RELEASE OUTPUT.

Press and hold button on the transmitter for 2seconds to

remote control the trunk release or other electric devices.

CHANNEL 3AUXILIARY CONTROL OUTPUT (Available Option)

Press the transmitter button to active Channel 3 function. Channel 3 is a

programmable output. This feature, when installed with optional accessories, may be

used to operate power windows, sunroofs, etc. from your remote transmitter.

CHANNEL 4 AUXILIARY CONTROL OUTPUT (Available Option)

Press the transmitter + button to active Channel 4 function. Channel 4 is a

programmable output. This feature, when installed with optional accessories, may be

used to operate power windows, sunroofs, etc. from your remote transmitter.

Indice

Altri manuali Auto Page Allarme auto

Auto Page

Auto Page RF-420LCD Manuale utente

Auto Page

Auto Page Car-Pro CPX3500 Manuale utente

Auto Page

Auto Page RF-310 Manuale utente

Auto Page

Auto Page CAR-PRO CPX-2350 Manuale utente

Auto Page

Auto Page C3-RS-900LCD Manuale utente

Auto Page

Auto Page AP4000EX Scheda tecnica

Auto Page

Auto Page RF-305 Manuale utente

Auto Page

Auto Page RF-700 Manuale utente

Auto Page

Auto Page RS-900LCD Manuale utente

Auto Page

Auto Page RF-303 Manuale utente

Auto Page

Auto Page Car-Pro CPX-2200 Manuale utente

Auto Page

Auto Page Professional Vehicle Security System RF-315 Manuale utente

Auto Page

Auto Page RS-727LCD Manuale utente

Auto Page

Auto Page RF-315 Manuale utente

Auto Page

Auto Page Telematics and Tracking Module Manuale utente

Auto Page

Auto Page C3-RS-727A LCD Manuale utente

Auto Page

Auto Page RF420 Manuale utente

Auto Page

Auto Page RS-655 Manuale utente

Auto Page

Auto Page C3-RS-915 LCD Manuale utente

Auto Page

Auto Page RF-503 Manuale utente

Auto Page

Auto Page MA-200 Manuale utente

Auto Page

Auto Page Professional Vehicle Security System RF-215 Manuale utente

Auto Page

Auto Page RF-425LCD Manuale utente

Auto Page

Auto Page Car-Pro CPX-3600 Manuale utente

Manuali Allarme auto popolari di altre marche

Clifford

Clifford 3606X Manuale utente

Ultra Start

Ultra Start 2500M SERIES Manuale utente

Ultra Start

Ultra Start 650 Series Manuale utente

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuale utente

Sparkrite

Sparkrite SRA8 Manuale utente

Viper

Viper 4708V Manuale utente

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuale

Falcon

Falcon Predator XL3 Guida utente

Audiovox

Audiovox Auto Security XR91 Istruzioni operative

Clifford

Clifford Sabre II Manuale utente

CrimeStopper

CrimeStopper CS-8717 Guida rapida

Ultra Start

Ultra Start 450 SERIES Manuale utente

Scytek electronic

Scytek electronic Vectra X3 Manuale utente

Excalibur

Excalibur AL-1860-EDPB Manuale utente

Clifford

Clifford CYBER 2 Manuale utente

Gemini

Gemini 7057 Manuale utente

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuale utente

Magicar

Magicar FAI-440 Manuale utente
