Auto Vox M2 Manuale utente

AUTD-VDX

User

Manual

PerfBct

All-in-one

Mirror

Car

DVR & Car Parking

Assist System

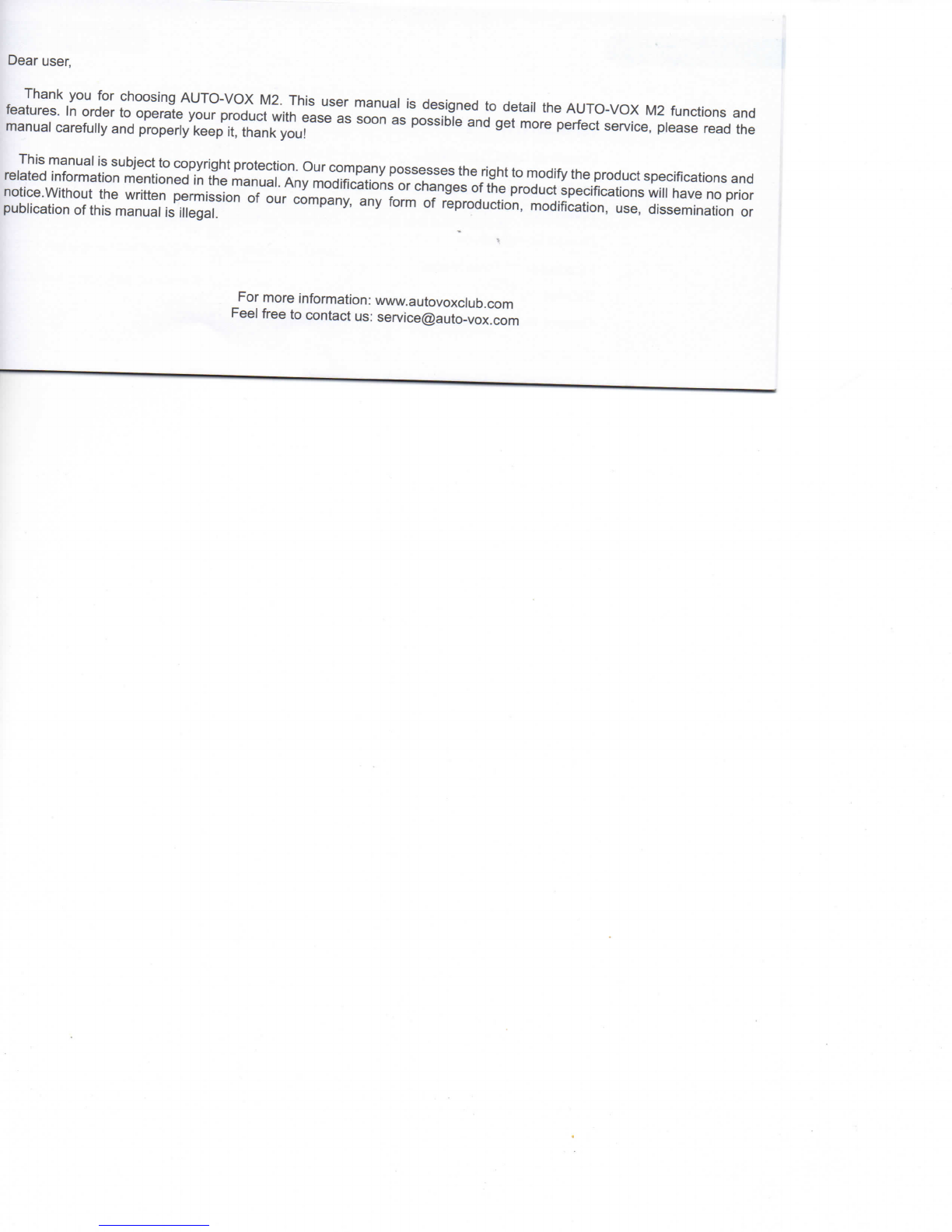

Dear

user,

Thank

youforchoosing

AUTO-VOX

M2.

This

user

manuaiisdesignedtodetailthe

AUTO-VOX

M2functionsand

features.

Inordertooperateyourproductwith

ease

assoonaspossibleandgetmoreperfect

service,

please

readthe

manual

carefullyandproperlykeepit,thankyou!

This

manuaiissubjecttocopyrightprotection.Ourcompany

possesses

the

right

tomodifytheproductspecificationsand

informationmentionedinthemanual.Anymodificationsorchangesoftheproductspecificationswiilhavenoprior

notice.Withoutthewrittenpermissionofourcompany,anyformofreproduction,modification,use,disseminationor

publicationofthismanuaiisiliegai.

For

moreinformation:www.autovoxclub.com

Feel

freetocontactus:[email protected]m

Contents

Caution01

InstaiiationWay02

FrequentlyUsedOperations06

Device

Layout08

Status

Icons09

ProductSpecifications10

Introduction

ofThreeModes11

Settings11

Generai

Troubleshooting14

Caution

Failure

tocomply

witti

safetycautionscancauseinjuryor

property

damage.

(1)

Foryourownsafety,donotoperatethecontrolsofthe

product

whiledriving.

(2)

Makesure

that

noobjectisblockingthecameraiensandnoreflectivematerialappearsnearthelens.

(3)

Usethemanufacturer-approvedbatteries,chargers,suppliesandaccessories.

(4)

Donotexposethedevicetoheavysmokeorfumes.• .

(5)

Donottouchyourdevice

with

wethands.

Installation

Way

Bind

the

rearview

mirror

Instaiiation

of the

backup

camera

Take

offthestrapsand

bind

ittotheexisting

mirror,

piug

thecarcharger

into

thecigarette

lighter,the

mirror

will

automaticallystartwhenyoustarttheengine.

foilow

thesteps

with

thebracketyoureceived.

(Details

seeatthenextpage.)

(1) (2)

Routing

the

wire

Run

the

long

videocabletothecardashboard,hidethe

cable

underthecarpetor

trim/from

theceilingasshownin

thefigureprevious.Ali

cars

varybutthisisgeneraiiyan

easy

task.

Examination

of ali

wires

connection

Put

thecar

into

reversegear,andseeiftherearimagecan

perfectlybeshownonthescreen.(guidelines

wili

showup

onlywhenyoucutoffthegreencableonthecamera)

(1)

ABC123

Step1

Loosethe

screws

onthelicenseplate

with

wrench.

(2)

yf'*ABC123

Step1

Take

offthelicenseplate

with

wrench.

Step2

Installthecamerabracketbehindthelicenseplate.

Step2

Finda bestlocationandmakea mark.

ABC123 ABC123

Step3

Tightenthe

screws

with

wrench.

Screw

thecameraonyouriicenseplate.Runthe

camera's

cableinsideofthe

car's

taiigate

through

the

existingholeusualiybehindthelicenseplatelights.

Step3

Tear

offthe

film

A ofthe3Madhesiveandfixittothe

marked-location.Tearoffthe

fiim

B ofthe3Madhesivethen

attachthelicenseplate.Then

tighten

the

screws

with

wrench.

Step4

Connectthewire.theredconnecttherear

light.the

blackconnecttheground.

Opentheinnerplasticpaneiandremoveitofthehatchortaiigate.Thepanelsareusuallyattachedonthetailgatebyclips

This

maytakea bitlongertimetoavoidclipdamages.Oncethispanelisremovedthework

wili

besomucheasiertodo

Find

thereverse

iight

powerwires.Oarefuilypeelthewireskinandsecurelyattachthepowerwires

from

theiongcable.

Note

(1)

Onceyouhavethecameradown,routethecamerawiring

into

thevehicie.Itisbestto

find

anexistinggrommetto

runthewiringthrough.if

necessary,

drill

a holetorunthewiring

into

thevehicle.Ifyouusethismethod,besuretousea

rubbergrommettoprotectthewiring.

(2)

Usingthetestpenciltotestwhichcabieisreverse

light.

Andconnecttheblackwiretoanymetalscrew.

(3)

Please

mind"+/-"ofthewires.Useelectricaitapeto

seai.

Frequently

Used

Operations

enter the

system

settings

Press

and hold theMENU

button

toenterthe

System

Settings.

Note:

Press

theOK

button

tostoprecordingfirstwhenthe

device

isrecording.

switch

into different

modes

Press

button

toswitch

into

thedifferentmodes:

Video

Mode/PhotoMode/

Playback

Mode.

Note: Ifthedeviceisrecording,youneedto

press

button

tostoptherecordingfirst.

iock

the current video whiie recording

Press

theMENU

button

toiockthecurrentvideosoitwiil

notbeoverwrittenbythenewestone.

mute audio whiie recording

Press

theDOWN

button

todisabieaudioand

press

again

tostartit.

Frequently

Used

Operations

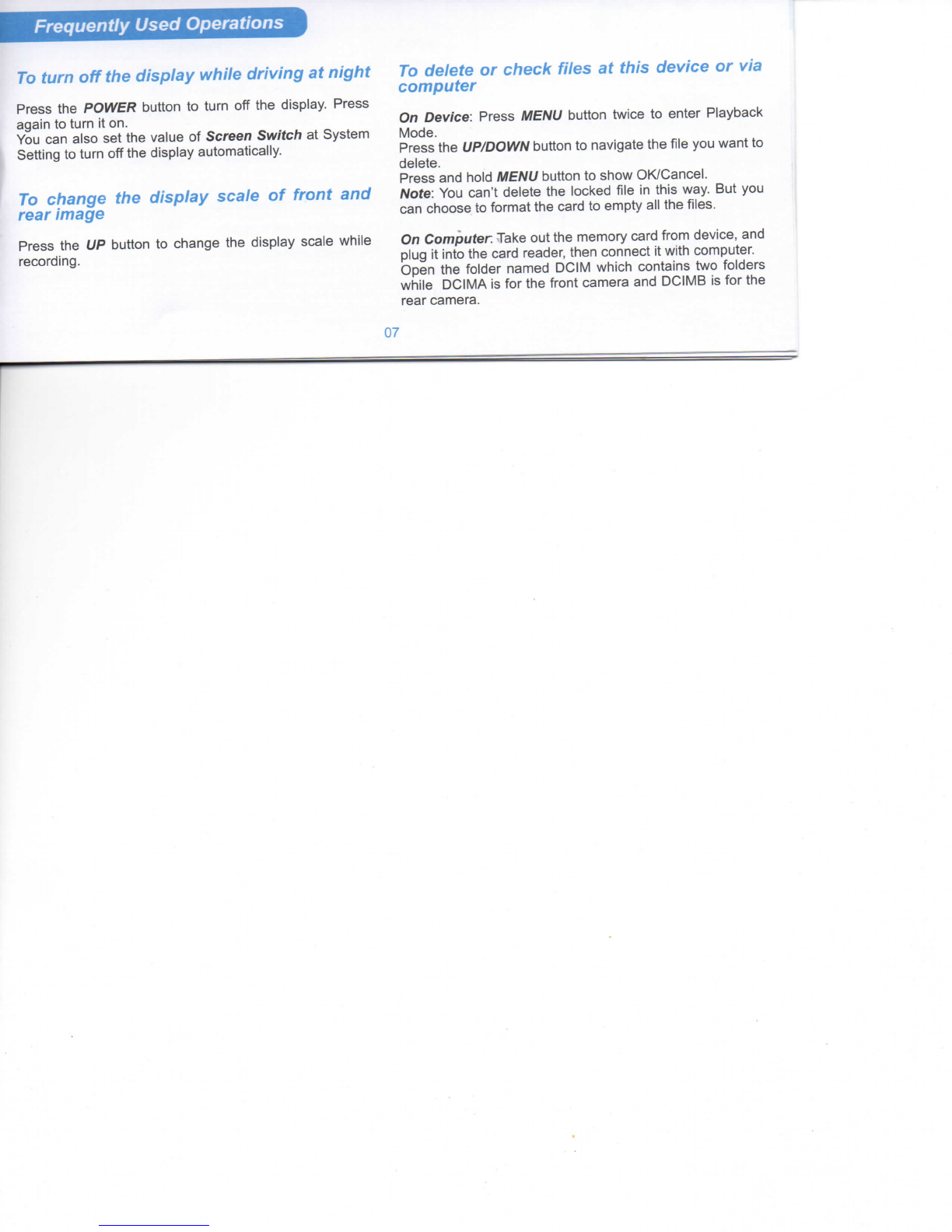

turn off the display whiie driving at night

Press

thePOWER

button

turn

offthedisplay.

Press

againto

turn

iton.

You

canalsosetthevalueof

Screen

Switch at System

Settingto

turn

offthedisplayautomatically.

change the display scale of front and

rear image

Press

theUP

button

tochangethedisplay

scale

while

recording.

delete or

check

files at this device or via

computer

Device:

Press

button

twicetoenterPlayback

Mode.

Press

theUP/DOWN

button

tonavigatethe

file

youwantto

delete.

Press

and

hold

button

toshow

OK/Cancel.

Note: Youcan'tdeletethelocked

file

inthisway.Butyou

can

chooseto

format

thecardtoemptyailthefiles.

Computer.

Take

outthememorycard

from

device,and

plug

into

thecardreader,thenconnectit

with

computer.

OpenthefoldernamedDCIMwhichcontainstwofolders

whileDCIMAisforthe

front

cameraandDCiMBisforthe

rear

camera.
