ADI-100

In-Car add-on DAB Receiver

User Manual

Contents

Introduction 3

Contents 4

INSTALLATION 4

OPERATIONAL CONTROLS 9

STARTING THE SYSTEM 12

USING REMOTE CONTROL KEYS 13

To Turn On or Off ADI-100 13

To Scan for the DAB Stations 13

To Listen to the DAB Stations 13

To Display Station’s Information 14

To Set a DAB Preset mode 15

To Save a DAB Memory Preset 15

To Recall a DAB Memory Preset 15

To Set the Auxiliary Input mode 16

To Recall the Last Listened DAB station 16

FM TRANSMITTING FREQUENCY SETTINGS 17

To Display the current FM Transmitting Frequency 17

To Set FM Transmitting Frequency in AFC mode 17

To Set FM Transmitting Frequency in AutoScan mode 17

To Set FM Transmitting Frequency Manually 18

To Save a Desired FM Transmitting Frequency in Memory 19

To Recall FM Transmitting Frequency Saved in Memory 19

To Force Immediate FM Trasnmitting Frequency Change 20

To Set FM Transmitting Frequency Setting to Preset F1 21

MENU SETTINGS 22

To Reset FM Transmitting Frequency Setting 22

To Enable DLS/DL+ Display 22

To Enable AFC (Automatic Frequency Change) 23

To Enable AutoScan 24

To Enable RC Beep Tone 25

To Set Antenna Power 25

To Perform DAB Reset 26

To Restore to Factory Settings 26

To Display Software Version 26

To Upgrade Software 27

Troubleshooting 27

Technical Specications 29

Information on Waste Disposal 29

Introduction

The ADI-100 is an in-car audio adapter that offers a exible and cost effective way to ap-

ply modern digital audio technology to your existing analogue in-car audio system.

The existing analogue system can be easily upgraded to receive DAB/DAB+ digital radio

services. ADI-100 uses FM-RDS micro-transmitter and no complex cabling to your car au-

dio system. The ADI-100 DAB receiver is operated using a remote controller, while all mes-

sages related to the system’s operations, such as service name, memory preset, etc., are

converted to RDS text and displayed on the LCD screen of your in-car audio system. The

exible conguration options of the ADI-100 makes it easy to install in different car makes

and models.

Furthermore, ADI-100 has an AFC (Automatic Frequency Change) function that allows

you to continuously listen to your favorite DAB programs through your car radio system

without the need to frequently change the FM frequency manually when you drive into

a metropolitan area where FM stations are highly crowded. Without AFC, the manual

frequency change can be hazardous and inconvenient as the driver will have to nd an

unused FM frequency by tuning the car radio, change FM transmitter to use the same

unused frequency, and repeat the process each time the FM transmit frequency is inter-

fered by an FM station. Consult your car radio manual or the car dealer if your car radio

has AF (alternative frequency) function, and how to enable AF function before using this

AFC function.

If AF function is not built in your car radio, you can use ADI-100 AutoScan function to au-

tomatically scan for 3 useable FM frequencies; you will need to choose a new frequency

from the scanned frequencies to set and synchronize it between the car radio and the

ADI-100 manually. Alternately, you can use ADI-100 to set a new FM transmitting frequen-

cy manually or set a frequency from one of the FM transmitting frequency presets which

have been previously saved, and then set the car radio’s FM frequency to match.

Note:

ADI-100 needs to operate with an RDS car radio in order to properly display the relevant

system message of ADI-100 via the in-car radio display.

This radio is future-ready because it contains

DAB, FM and DAB+ which is a future technology

standard being adopted across Europe

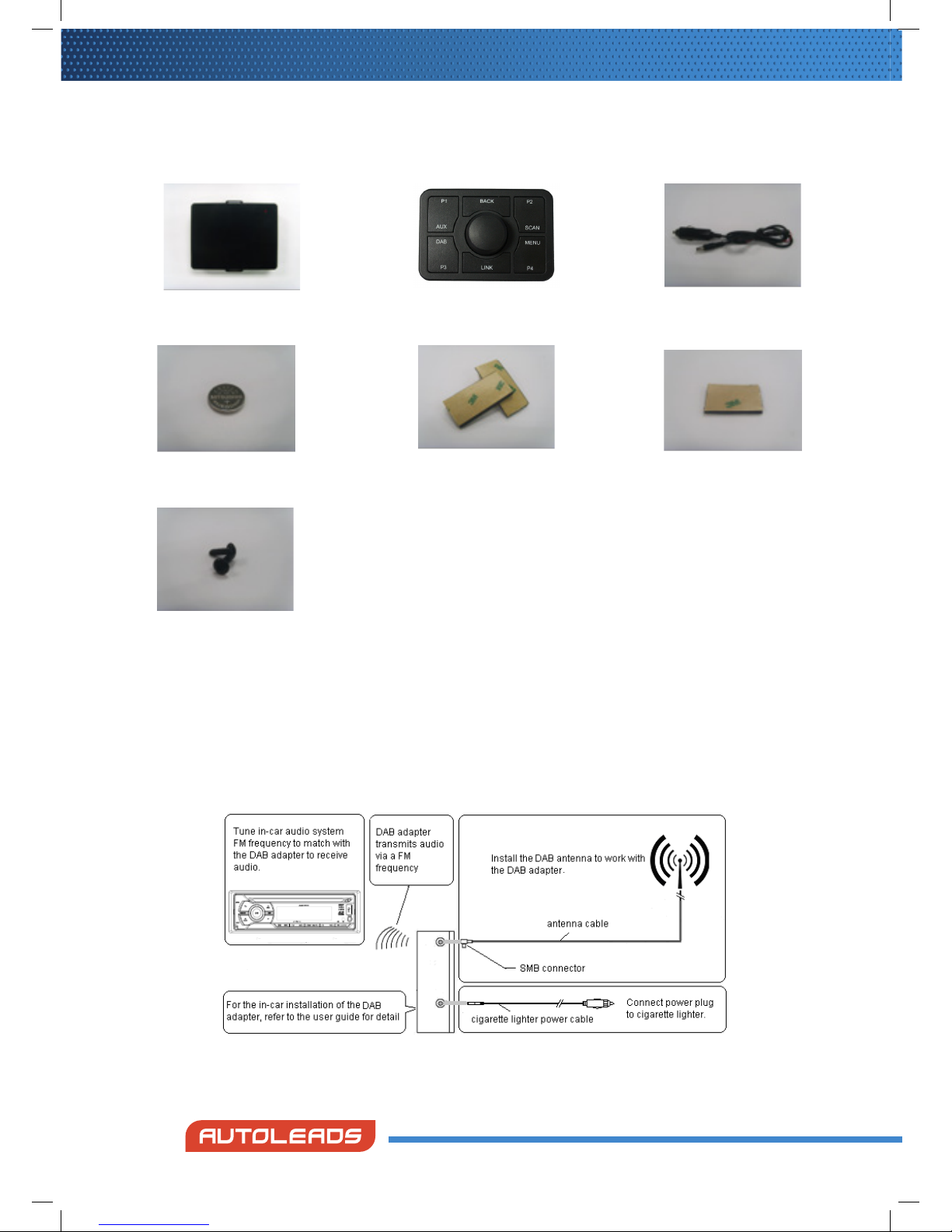

Contents

ADI-100 Control Unit Rotary Knob Remote Control Power Cable

(with Cigarette Lighter)

CR2032 Battery Dual Lock Tapes x2

25mm x 55mm

Dual Lock Tape x 1

25mm x 35mm

Screw x 2

INSTALLATION

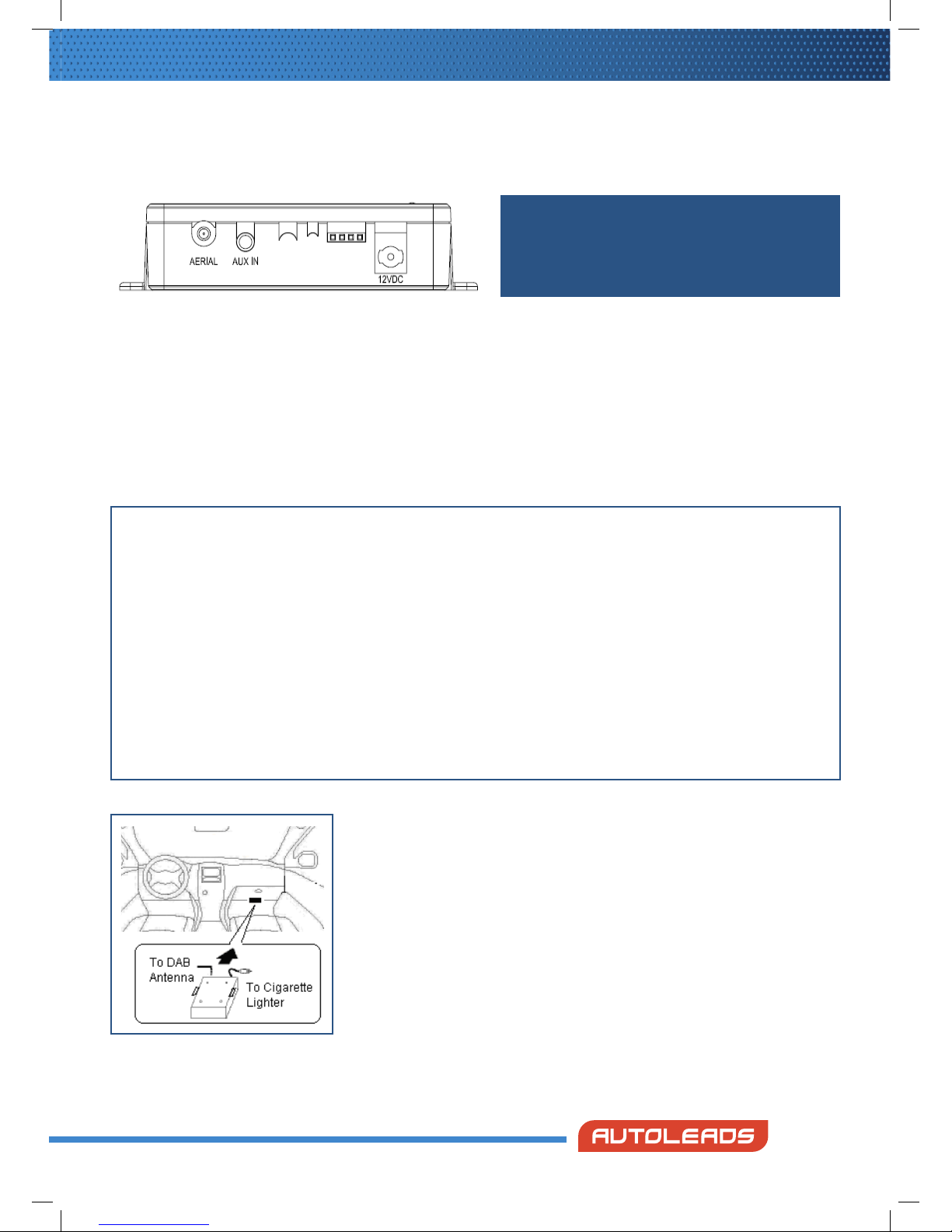

Connectors



❷

❶

➌

1. SMB Connector, for DAB antenna

2. 3.5mm stereo audio jack, for aux cable

3. Power jack, for power Cable

(with Cigarette Lighter Plug)

Installation Procedure

1. Please read the installation procedure carefully prior to the actual installation.

Consult a professional installer if you have any issues or concerns with the

installation.

Attention

1. We recommend that if you are going to use the cigarette lighter as the power

source for ADI-100, the lighter socket needs to connect to the ignition.

2. Otherwise, you may have the following condition, after the car engine is turned off:

u ADI-100 will continue to draw minimal power from the battery.

u For many intelligent new cars, ADI-100 may be detected as device not

disconnected.

u Car radio and ADI-100 may become out of sync when you resume to listening to

ADI-100. In this case, please read the troubleshooting section for the solution.

2. Select a location to store ADI-100. For the best

performance, please store it in the middle and under

the car’s glove compartment. For other locations,

please store it away from metal objects and in an

open area.

3. Store ADI-100 with the bottom cover up and

the cables and connectors to the back.

Installation Procedure (continued)

4. Secure ADI-100 with the supplied dual lock tapes and screws.

Please refer to the section on Securing ADI-100, Step by Step.

5. Minimize coiling loops of excessive power cable and antenna cable, and do not

secure them on ADI-100. Please refer to section on Installation do and don’t.

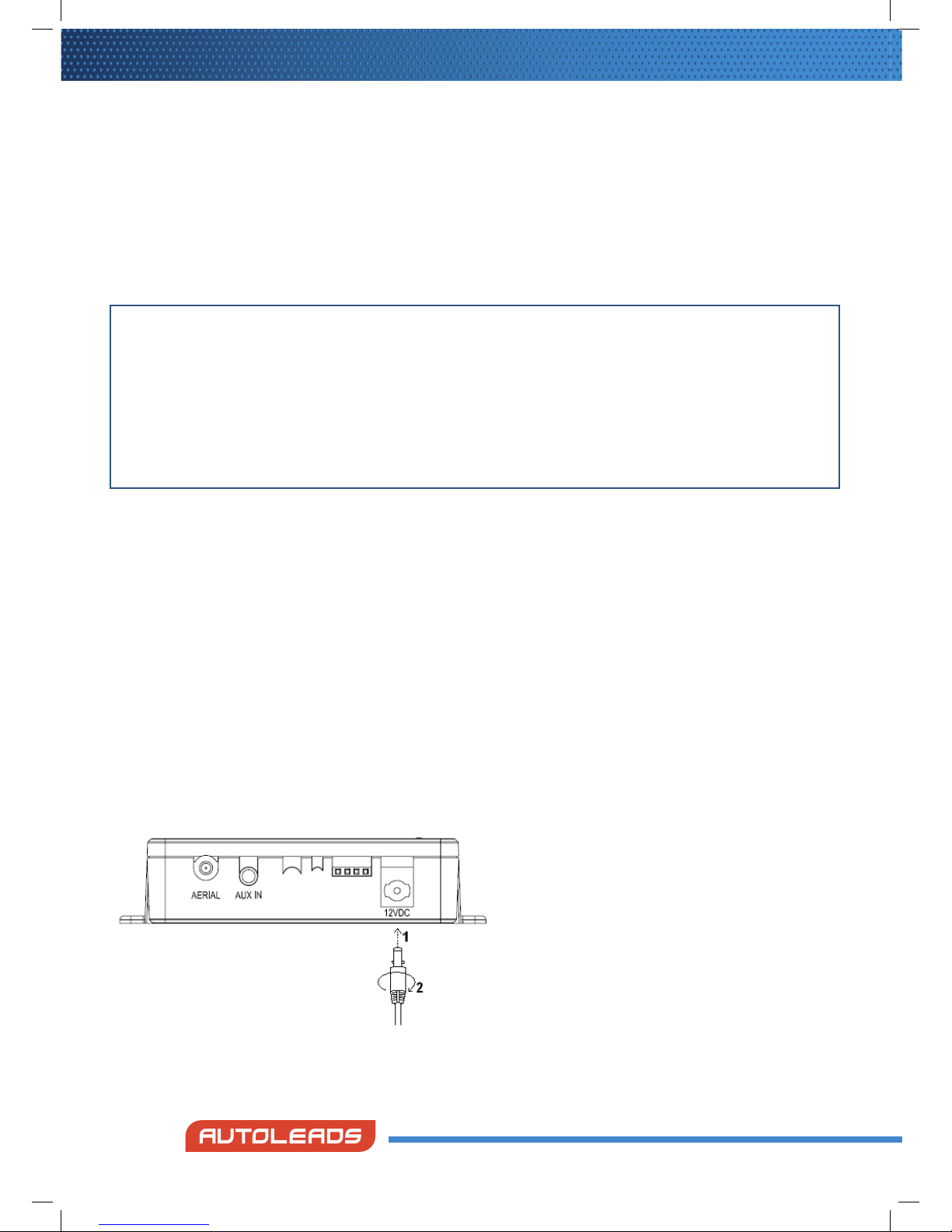

6. Plug one end of the power cable to ADI-100, and the cigarette-lighter plug into

car’s cigarette lighter. There is a lock mechanism on the plug of Power Cable

to ADI-100. First, plug the power cable into the 12V DC jack (1), and then you need

to turn the power plug 90 degree clockwise (2) as illustrated below. This is to ensure

that the power cable will be rmly connected to the ADI-100 at all time.

Attention

1. Anytime you need to disconnect/connect the antenna from ADI-100, please unplug

ADI-100 from the cigarette lighter rst to avoid possible damage to the antenna.

2. Damage resulted from incorrect installation of the antenna is not covered by the

warranty.

7. Start using ADI-100 with the remote

control, please refer to the sections

on OPERATION CONTROLS and

STARTING UP THE SYSTEM.

7. Start using ADI-100 with the remote

control, please refer to the sections

on OPERATION CONTROLS and

STARTING UP THE SYSTEM.

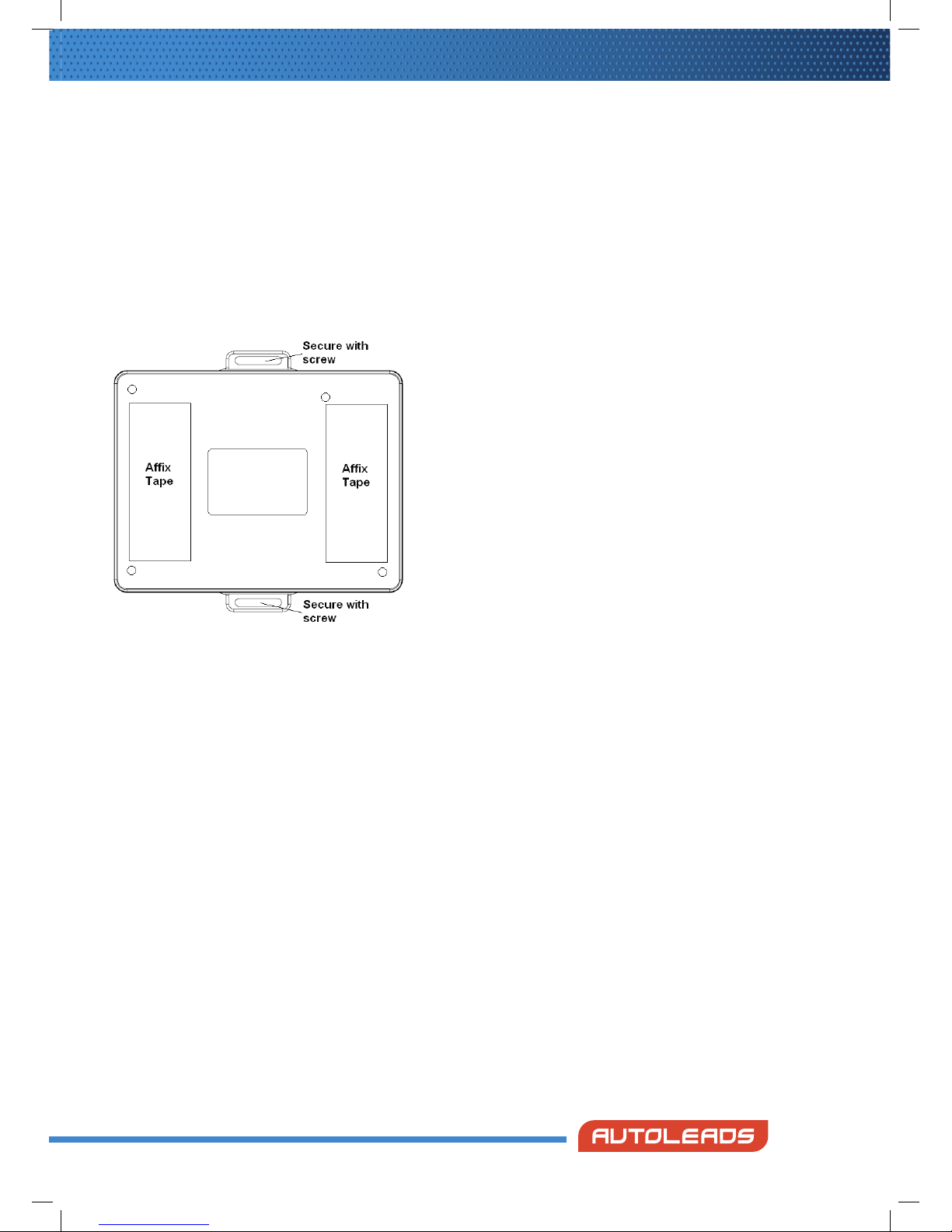

Securing ADI-100, Step by Step

To secure ADI-100 on a chosen store location using the supplied dual lock tapes and/or

screws, do the following:

1. Locate the positions on the back of ADI-100 and the chosen mounting location

(e.g. in the middle and under the car’s glove compartment) where you want to

apply the dual lock tapes.

2. Clean both surfaces with alcohol if

avaiable and wipe dry before you start.

Afx the tape on the ADI-100 and the

chose mounting location

3. Remove one side of the backing from

each of the two pieces of dual lock

tapes, and adhere the tapes onto the

back of ADI-100 on the marked positions

in 1.

4. Remove the other side of the backing

and adhere ADI-100 to the chosen store

location with ADI-100’s cables and

connectors to the back.

5. Carefully, remove ADI-100 from the store

location with dual lock tapes separated,

so that ADI-100 and store location each

has 2 half pieces of the tapes.

6. Apply the pressure evenly to all 4 half pieces on ADI-100 and the store location,

so that the tapes adhere to both surfaces securely.

7. Wait 8 hours, and then adhere ADI-100 to the mounting location by joining the 4

half pieces of the tapes together.

8. Alternatively, or in addition, secure ADI-100 with the supplied screws.

Installation ‘Do’s & Don’t’s’

As ADI-100 has internal antenna and FM Transmitter, it is important to avoid signal

interference from excessive cable coiling.

The next page illustrates the do’s and don’t when coiling and storing ADI-100’s excessive

antenna cable and power cable.

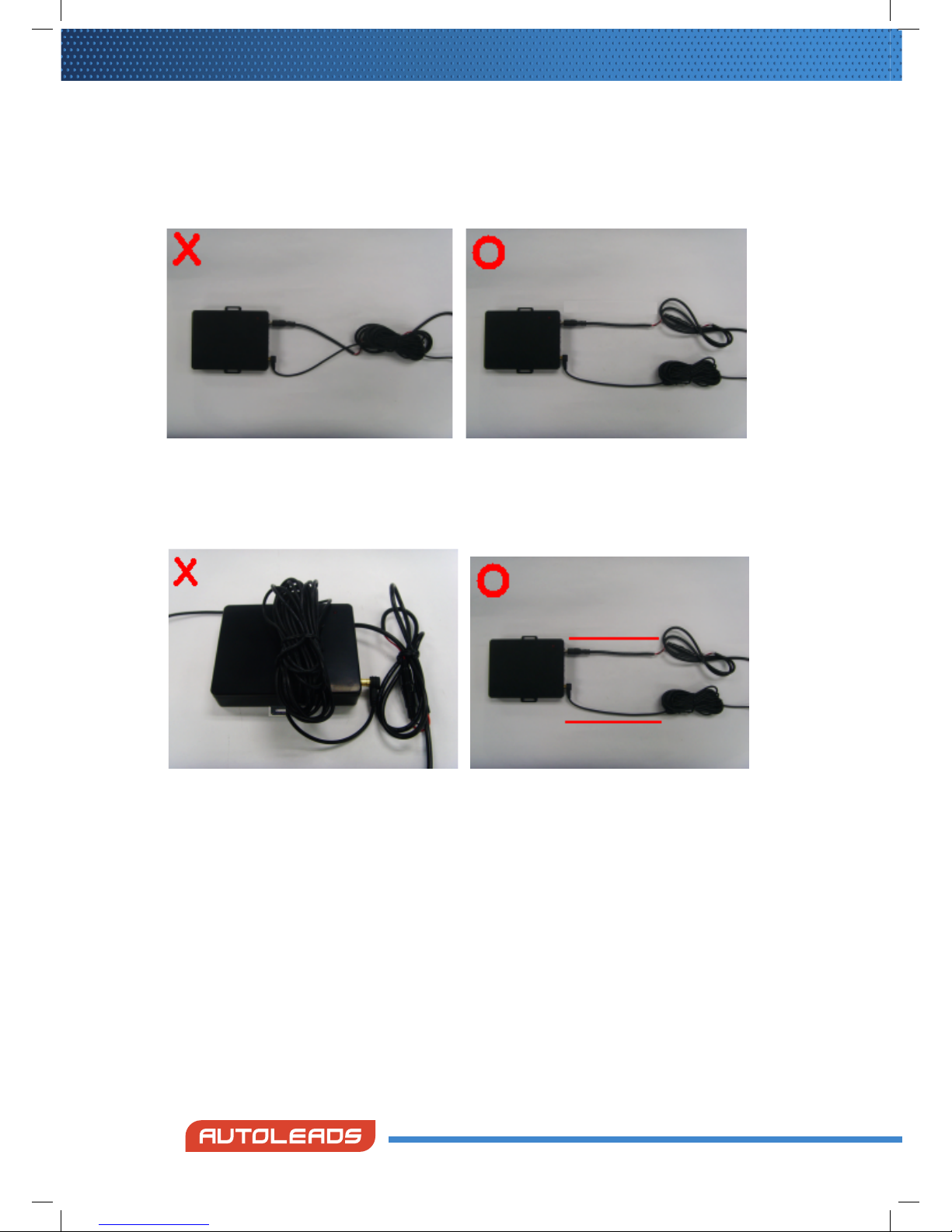

Installation ‘Do’s & Don’t’s’ - continued

1. Do not tangle the antenna and power cables together.

2. Minimize coiling loops of excessive power cable or antenna cable, and do not

secure them on or besides ADI-100. The coiling loops of excessive power or antenna

cables should start at about 10 cm away from the ADI-100



OPERATIONAL CONTROLS

In-Car Audio System LCD Display

The ADI-100 unit is operated by using a remote controller; the system messages from the

remote control operation are converted to RDS text and displayed as 8 characters display

on the LCD screen of your in-car audio system.

Below is a list of ADI-100 system messages displayed on the in-car audio system LCD

display, while operating with the remote control:

Messages Description

DABRADIO Display after ADI-100 is powered on.

DAB station. Display the 8-character short service name of the

DAB station.

TUNING Indicate tuning a DAB station is in progress.

RESETING Indicate performing a DAB reset or factory reset is in

progress.

DONE Conrm completion for certain system operation,

i.e., set a DAB preset mode.

RETUNING Indicate FM transmitting frequency is being retuned

to a new frequency.

TO frequency Indicate ADI-100 is changing FM transmitting fre-

quency to a new frequency from a manual setting.

Other than the power key, any remote control keys

pressed is ignored before the change is completed.

AF frequency Indicate ADI-100 is changing FM transmitting fre-

quency to a new frequency from the AFC function.

Other than the power key, any remote control keys

pressed is ignored before the change is completed.

POWEROFF Display after ADI-100 is turned off (into the standby

mode).

RC LOW Indicate remote control’s battery is low, battery

change is due.

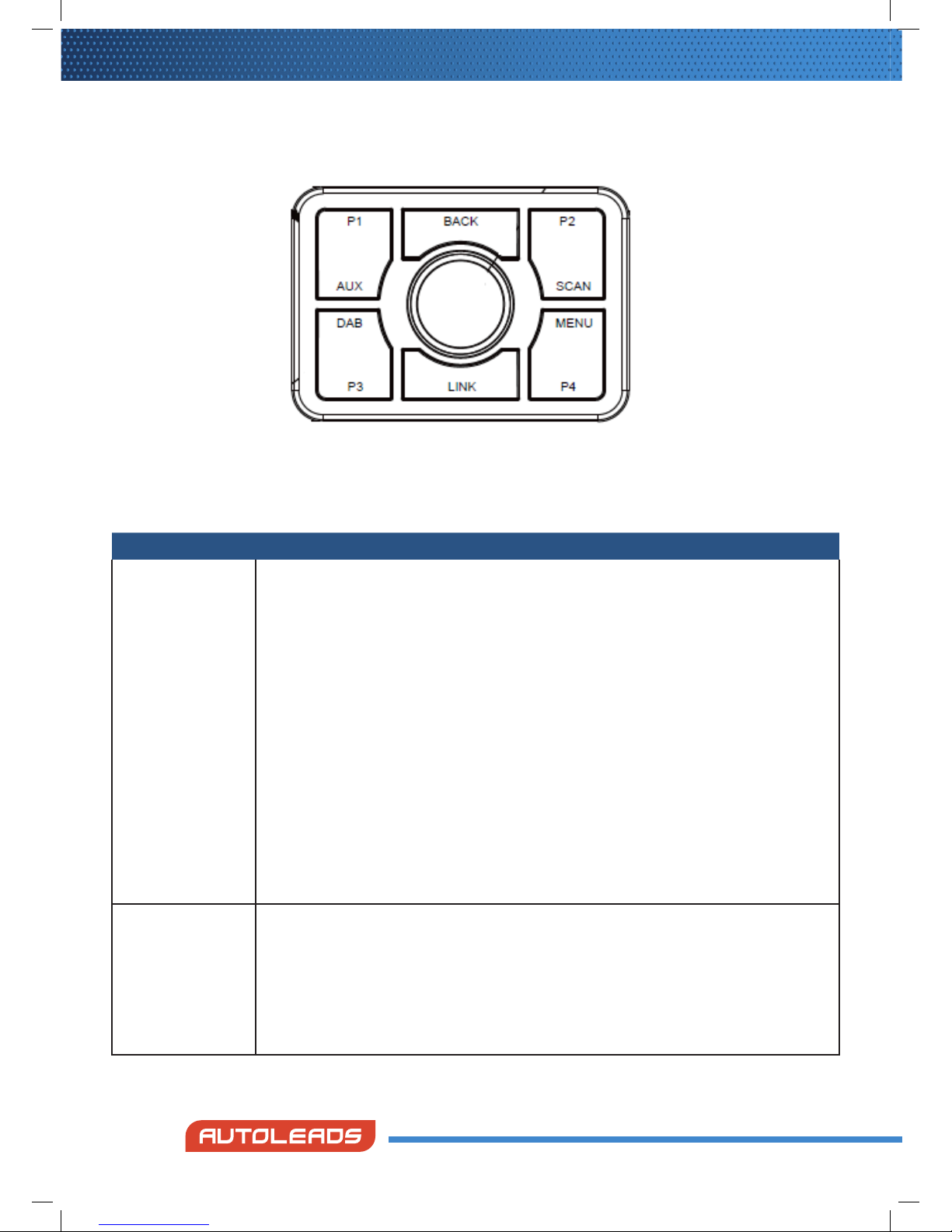

Remote Control

Please refer to next sections, USING REMOTE CONTROL KEYS, MENU SETTINGS, and FM

TRANSMITTING FREQUENCY SETTINGS for detail description of each operation.

Control Key General Operation

Rotary Knob

Press

u Turn on ADI-100 while it is off.

u Conrm a selection.

u Change station information while listening

to a DAB station.

u Press and followed by AUX, DAB, SCAN, or MENU to enter the selected function

mode.

Press and Hold

u Turn off ADI-100 while it is on.

Rotate (t)/ (u)

u Step tune to select a DAB station.

u Navigate to items, sub items, and settings after MENU is pressed.

u Adjust FM transmitting frequency by 100 KHz after LINK is pressed.

Accelerate Rotation (t)/ (u)

u Quick tune to select a DAB station.

u Adjust FM transmitting frequency by 2MHz after LINK is pressed

P1 AUX

Press

u Recall memory preset P1

Press and Hold

u Program memory preset P1 while listening to a DAB station

Function AUX

u Set ADI-100 to AUX mode to listen to an external audio source
