Automatic Technology GDO-11v1 SecuraLift Manuale utente

GDO-11v1 SecuraLift®

Overhead Garage Door Opener

Featuring TrioCode™Technology

Part # 13246 (Manual v1.02)

2GDO-11v1 SecuraLift® Owner Installation Instructions

WARNING: It is vital for the safety of persons to follow

all instructions. Failure to comply with the installation

instructions and the safety warnings may result in serious

personal injury and/or property damage.

Please save these instructions for future reference.

Automatic Technology (Australia) Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all

conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of an

Automatic Technology (Australia) Pty Ltd Garage Door Opener. Automatic Technology (Australia) Pty Ltd hereby further

expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any person

as a result whether directly or indirectly from failure to install the Automatic Technology (Australia) Pty Ltd Garage Door

Opener in accordance with these installation instructions.

Owner Installation Instructions GDO-11v1 SecuraLift®3

GDO-11v1 SecuraLift®

Overhead Garage Door Opener

Important Safety Instructions 4

Features 6

Operating Controls 8

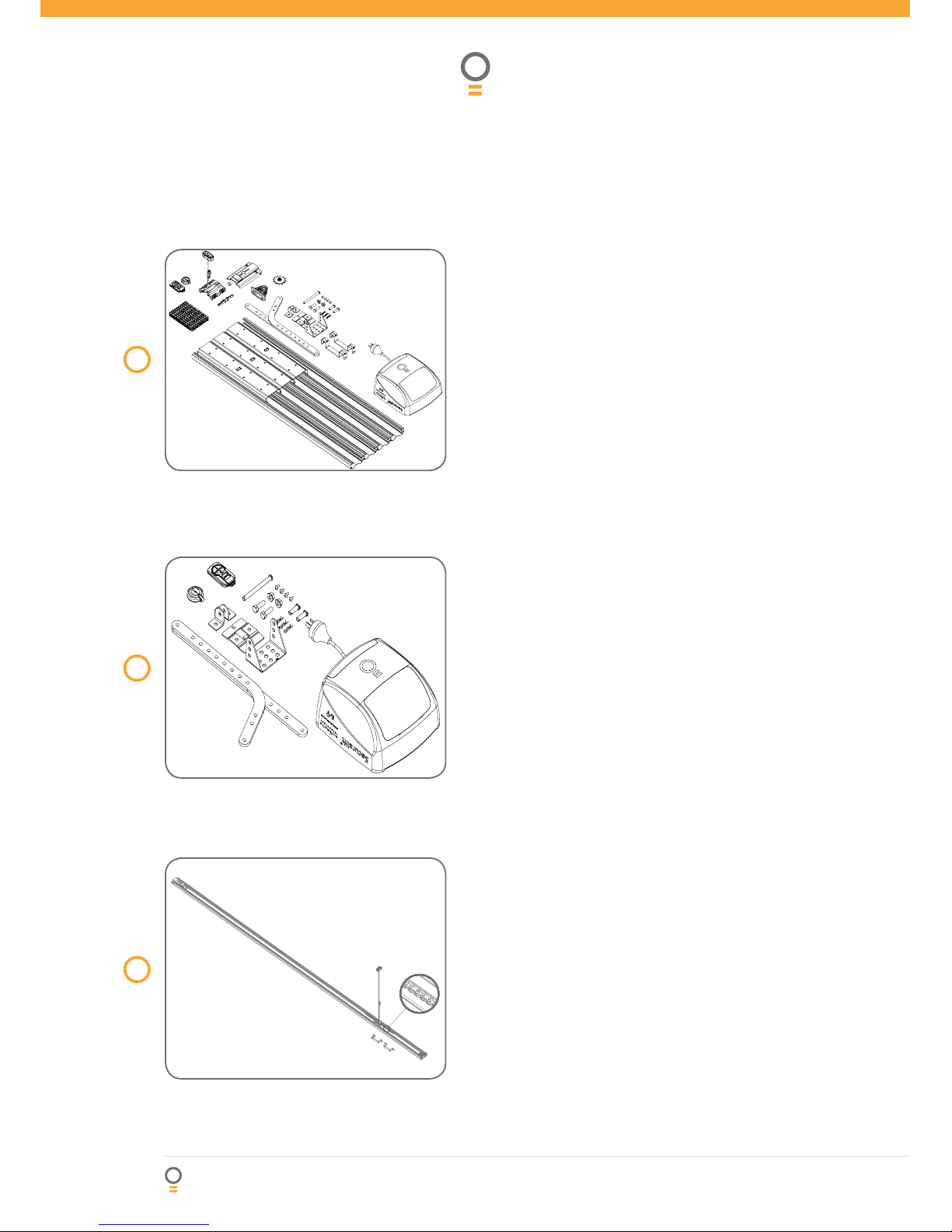

Kit Contents 10

Installation 11

Knockdown C-Rail Assembly 11

C-Rail Attachment 13

Determine Door Type 14

Mounting - Track Type Door 15

Mounting - Spring Loaded Door 16

Mounting Door Bracket & Arms 17

Programming the Opener 18

Setting Travel Limits - Control Panel 18

Setting Travel Limits - Transmitter 19

Safety Obstruction Forces 20

Safety Obstruction Force Test 20

Adjusting Safety Obstruction Forces 21

Coding Transmitters 22

Door 22

Vacation Mode 22

Auxiliary Out Put 22

Pet Mode 23

Courtesy Light 23

Remotely Coding Transmitters 24

Erasing Transmitter Codes 24

Accessories 25

Photo Electric Beam Installation 25

Key switch 25

Auxiliary output 25

Battery Back Up installation 26

SmartSolar™ Installation 27

Final Set Up 28

Pet Mode Door Height 28

Wall Mounted Transmitters 28

Re-Initialising 28

Default Settings & Speciﬁcations 29

Parameters 30

Door Status Indicators 30

Button functions 30

Troubleshooting Guide 31

Maintenance Record 32

Parts Listing 33

Warranty 34

4GDO-11v1 SecuraLift® Owner Installation Instructions

CAUTION: If your garage has no pedestrian entrance door, an emergency access device should be installed.

This accessory allows manual operation of the garage door from outside in case of power failure.

For ADDITIONAL ENTRAPMENT protection we STRONGLY recommend the ﬁtting of a Photo Electric

(P.E.) Beam. In most countries P.E. Beams are mandatory on all garage doors ﬁtted with automatic

openers. For a small additional outlay Automatic Technology recommends that Photo Electric Beams

be installed with the automatic opener ensuring additional safety and peace of mind.

DO NOT operate the opener unless the garage door is in full view and free from objects such

as cars and children/people. Make sure that the door has ﬁnished moving before entering or

leaving the garage.

DO NOT operate the opener when children/persons are near the door. Children must be

supervised at all times when the SecuraLift® is in use. Serious personal injury and/or

property damage can result from failure to follow this warning.

DO NOT allow children to operate the SecuraLift®. Serious personal injury and/or

property damage can result from failure to follow this warning.

Regularly check to make sure that the safety obstruction force is working

correctly, and is tested and set as per page 20 of this manual. Failure to

follow these instructions could result in serious personal injury and/or

property damage. This test must be repeated at regular intervals and the

necessary adjustments made as required.

Doors requiring over 400N of force to move must have P.E. Beams

installed.

DO NOT disengage the door opener to manual operation with

children/persons or any other objects including motor vehicles

within the doorway.

The door opener is not intended for use by young children

or inﬁrm persons without adequate supervision. Children

should be supervised to ensure that they do not play

with the remote transmitters or the opener.

Keep hands and loose clothing clear of the door

and door opener at all times.

WARNING: It is vital for the safety of persons to follow

all instructions. Failure to comply with the following

Safety Rules may result in serious personal injury and/or

property damage.

Important Safety Instructions

Owner Installation Instructions GDO-11v1 SecuraLift®5

The unit should be installed so that it is protected from the elements. It should not be exposed to water or rain.

It is not to be immersed in water or sprayed directly by a hose or other device.

The garage door must be well balanced. Sticking or binding doors must be repaired by a qualiﬁed garage

door installer prior to installation of the opener.

Frequently examine the installation, in particular cables, springs and mountings for signs of wear, damage

or imbalance. DO NOT use if repair or adjustment is needed since a fault in the installation or an

incorrectly balanced door may cause injury. DO NOT attempt to repair the door yourself as hardware

is under extreme tension.

Remove or disengage all garage door locks and mechanisms prior to installation of the opener.

Connect the opener to a properly earthed general purpose 240V mains power outlet installed

by a qualiﬁed electrical contractor.

Disconnect the power cord from mains power before making any repairs or removing

covers. Only experienced service personnel should remove covers from the opener.

In order for the SecuraLift® to sense an object obstructing the door way, some force

must be exerted on the object. As a result the object, door and/or person may

suffer damage or injury.

If the power supply cord is damaged, it must be replaced by an Automatic

Technology service agent or suitably qualiﬁed person.

Make sure that the door is fully open before driving in or out of the garage

and fully closed before leaving the driveway.

Make sure that remote controls are kept out of reach of children.

Install the (optional) wall switch or (optional) wall mounted

transmitter in a location where the garage door is visible, but

out of the reach of children at a height of at least 1.8 meters

from the ﬂoor.

Important Safety Instructions

6GDO-11v1 SecuraLift® Owner Installation Instructions

Operation

To open or close the door simply press a button on a TrioCode™ handheld

transmitter, or optional wall switch for two seconds. During open and close cycles

the door can be stopped by pressing the button again. The next actuation will

move the door in reverse direction.

TrioCode™ Code Hopping Technology

Every time a TrioCode™ transmitter is used a new security code is randomly

generated from over 4.29 billion possibilities. This greatly enhances the security

of the system and makes “code grabbing” a thing of the past

These transmitters also overcome interference issues by simultaneously sending a

signal over three different frequencies. Even if two of the three signals are jammed,

the system will still work.

S-ALPS (Semi Automatic Limits Positioning System)

The S-ALPS system does away with manual adjustment of the door’s limits position

using mechanical parts, such as cams and microswitches. During installation the

handheld transmitter can be programmed to set the limits positions.

ISS (intelligent safety obstruction system)

While the door is performing a close cycle, should it hit an obstacle or be restricted in some

manner, it will automatically reverse. The amount of force the door should encounter before

reversing is automatically adjusted by the doors control system during the initial installation of the

automatic door opener. The door will also stop if restricted whilst opening. The Safety Obstruction

Force should be checked monthly.

Auto courtesy light

The courtesy light comes on automatically for three minutes whenever the door is activated. The light can also

be operated independently of the door by coding a dedicated button on a transmitter.

Features

Thank you for purchasing the Automatic Technology

GDO-11v1 SecuraLift®Overhead Garage Door

Opener. Designed to suit sectional overhead and one

piece tilt up doors, the components and materials

used ensure this opener will provide years of

smart, simple and secure operation. Listed

below are some of the many features:

Owner Installation Instructions GDO-11v1 SecuraLift®7

SmartSolar™ and Battery Back Up Compatibility (optional)

The opener can be ﬁtted with a SmartSolar™ or Battery Back Up kit for operation in the

event of a power outage, or where mains power access is not available.

NOTE: If the door is the only entrance to the garage, and a battery back up kit is

not ﬁtted, a keyed cable release should be ﬁtted external to the garage.

Vacation mode

A hand held transmitter can be programmed to lock and unlock all other

transmitters that have been programmed into the openers’ memory. The vacation

mode can be used when the door is left idle for long periods of time.

Pet/Pedestrian mode

The transmitter can be programmed to open the door to an adjustable partial

height so that the family pet can enter and exit the garage at any time. You may also

wish to open the door to a height suitable only for pedestrian access.

Photo Electric (P.E.) Beam (optional)

The opener has an input to connect a P.E. Beam for extra safety.

Manual operation

The opener is equipped with a unique manual disengaging device. If the power to the opener

is disrupted the door can be put into manual mode by pulling down on the string handle on an

angle towards the door. This allows for manual operation of the door. To re-engage the opener pull

the string handle away from the door.

8GDO-11v1 SecuraLift® Owner Installation Instructions

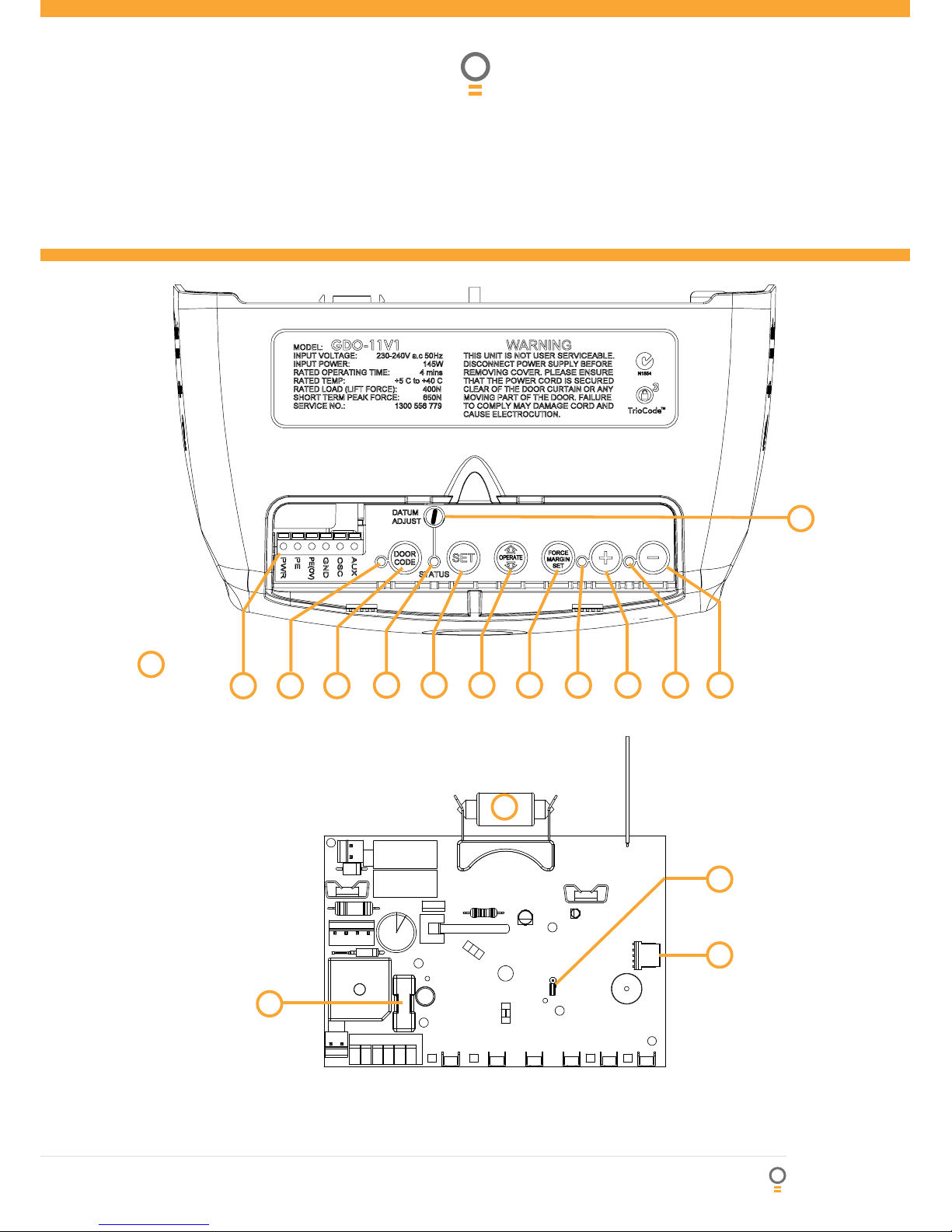

Operating controls

Terminal Block.

24V PWR is used to power photo electric beam.

PE (Input) for photo electric beam for safety.

PE (0v) is used to supply 0 volts to photo electric beam.

GND is used with OSC input or AUX out put

O/S/C INPUT is used for the connection of a wired switch (momentary contact). This switch

can then be used to open, stop or close the door. Install the wall switch in a location where

the switch is out of reach of children and the garage door is visible.

AUX (output) can be used to control alarm system .

CODING LED (red) light ﬂashes when a code is being stored or when a transmitter button is pressed.

DOOR CODE BUTTON is used for storing or erasing transmitter buttons for door operation

DOOR STATUS LED (Yellow)

SET button (Orange) is used during the installation phase together with the Open and MINUS (-) buttons

to set the door limit positions. The Set button is also used to re-initialize the Opener.

OPERATE button (Yellow) is used during installation to test the open, stop and close cycles for the

opener. The opener has to be initialised by the set button to make the OPERATE button operable.

FORCE MARGIN SET Button: The obstruction force margin is set automatically during installation. The

margin can be adjusted manually using the Force Margin Set button (White). Holding the Force Margin Set

button and pressing PLUS (+) or MINUS (-) buttons will increase or decrease the amount of force. The Force

Margin Set should only be used if environmental factors (wind, etc.) affect the door’s operation.

OPEN LIMIT LED (green) the LED is very helpful during installation. It illuminates and ﬂashes when the

door is opening and remains steady on when the open limit position has been reached.

PLUS (+) button (green) is used during installation to help set the open limit position. Pressing and holding

this button will move the door in the open direction, releasing stops the door.

NOTE: The safety obstruction detection is inoperable when the PLUS (+) button is used to move door.

CLOSE LIMIT LED (red) the LED is very helpful during installation. It illuminates and ﬂashes when the

door is closing and remains steady on when the close limit position has been reached.

MINUS (-) button (red) is used during installation to help set the close limit position. Pressing and holding

this button will move the door in the close direction. Movement stops when the button is released.

NOTE: The safety obstruction detection is inoperable when the CLOSE button is used to move door..

DATUM ADJUST SCREW is used during limits set up to indicate the mid point of the door’s travel.

10A FUSE

PROG INPUT is used to connect the Automatic Technology Handheld Programmer “PG-3” for editing

control and receiver functions, accessing diagnostic tools, and activating special features and operating

modes.

JP1 SOLAR CONNECTOR onto this the shunt must be ﬁtted for solar operation.

COURTESY LIGHT 15 watts 24 volts feston type globe is used for courtesy light

Owner Installation Instructions GDO-11v1 SecuraLift®9

01 02 03 04 05 06 07 08 09 10 11

ﬁg

10 GDO-11v1 SecuraLift® Owner Installation Instructions

Kit contents

ﬁg

GDO-11v1 Multipiece C Rail And Accessory

1 x GDO-11v1 SecuraLift® Ero drive unit (Fig. 02)

1 x TrioCode™ Transmitter pack (Fig. 02)

(Pack includes 1x four button keyring transmitter and

1x two button keyring transmitter with batteries)

2 x Door attachment arms (Fig. 02)

1 x Accessory and hardware pack (Fig. 02)

1 x Chain (Fig. 02)

1 x C rail track pack (Fig. 02)

(Pack includes three C rail sleeves and four C rail tracks)

1 x Shuttle assembly (Fig. 02)

1 x Installation Manual

Power Head And Accessory pack

1 x GDO-11v1 SecuraLift® Ero drive unit (Fig. 03)

1 x TrioCode™ Transmitter pack (Fig. 03)

(Pack includes 1x four button keyring transmitter and

1x two button keyring transmitter with batteries)

2 x Door attachment arms (Fig. 03)

1 x Accessory and hardware pack (Fig. 03)

1 x Chain (Fig. 03)

1 x Shuttle assembly (Fig. 03)

1 x Installation Manual

Pre-Assembled Single Piece C-Rail

Note: The chain or belt in the single piece rail has been

tensioned by the factory.

IMPORTANT NOTE: If modiﬁcation to the track length

is required, adjustment must be made to the drive end

side only.

ﬁg

PLUS

Indice

Altri manuali Automatic Technology Apriporta da garage

Automatic Technology

Automatic Technology iOpener RD40 Manuale utente

Automatic Technology

Automatic Technology GDO-8v1 EasyRoller II Manuale utente

Automatic Technology

Automatic Technology Axess Pro Series Manuale utente

Automatic Technology

Automatic Technology GDO-9 Dynamo Gen 2 Manuale utente

Automatic Technology

Automatic Technology GDO-6v3 EasyRoller Manuale utente

Automatic Technology

Automatic Technology GDO-6v4 EasyRoller Manuale utente

Automatic Technology

Automatic Technology Toro GDO-10v2 Manuale utente

Automatic Technology

Automatic Technology Axess Pro Series 1101 Guida rapida

Automatic Technology

Automatic Technology GDO-8 Shed Master Manuale utente

Automatic Technology

Automatic Technology GDO-4 EasyRoller Manuale utente

Automatic Technology

Automatic Technology GDO-9 ENDURO GEN2 Guida alla pianificazione

Automatic Technology

Automatic Technology GDO-10v1 Toro Manuale utente

Automatic Technology

Automatic Technology GDO-6 v2 Manuale utente

Automatic Technology

Automatic Technology GDO-7v2 SecuraLift Manuale utente

Automatic Technology

Automatic Technology GDO-2 SecuraLift Manuale utente

Automatic Technology

Automatic Technology GDO-2 SecuraLife Manuale utente

Automatic Technology

Automatic Technology GDO-9V1 SecuraLift Manuale utente

Automatic Technology

Automatic Technology 62717 Manuale utente

Automatic Technology

Automatic Technology GDO-8 Shed Master Manuale utente

Automatic Technology

Automatic Technology PA1000V1 Manuale utente

Automatic Technology

Automatic Technology Axess Pro Series 1101 Manuale utente

Automatic Technology

Automatic Technology ATS Series Manuale utente

Automatic Technology

Automatic Technology SecuraLift Trio Manuale utente

Automatic Technology

Automatic Technology GDO-9 Dynamo Gen 2 Manuale utente

Manuali Apriporta da garage popolari di altre marche

Dorma

Dorma ES 90 Manuale utente

Garaga

Garaga SECURITY+ 3265GCM 1HP Manuale utente

Chamberlain

Chamberlain Whisper Drive SECURITY+ WD822K Series Manuale utente

Chase Doors

Chase Doors DuraShield Manuale utente

CSI

CSI Classic Manuale utente

HATO

HATO 120 Manuale utente

Chamberlain

Chamberlain Elite 3575S Manuale utente

Richmond

Richmond GTR156 Manuale utente

Raynor

Raynor 1280RGD Manuale utente

CAME

CAME F4000 Series Manuale utente

B&D

B&D Controll-A-Door 5 Manuale utente

BFT

BFT PRV AA SL Manuale utente

Craftsman

Craftsman 139.53924 Manuale utente

Chamberlain

Chamberlain MyQ 940ESTD Manuale utente

Westfalia

Westfalia 19 36 07 Manuale utente

Chamberlain

Chamberlain HD520EVP Manuale utente

Cardin

Cardin BL Series Manuale utente

Chamberlain

Chamberlain 8355 - 1/2 hp Manuale utente
