Avalue Technology EPC Series Manuale utente

Part No. E20173711A9R

EPC Series

VIA Eden V4/ Intel® Core™Duo/ Intel® Atom™/

AMD Geode™ LX 800 / AMD eOntario T40E/T56N

Quick Reference Guide

10th Ed –9 August 2013

EPC-Series

2 EPC Series Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

One of the following:

- 1 x EPC-3711 VIA Eden Tiny Box PC (with ECM-3711-E10 inside) or

- 1 x EPC-CX700M VIA Eden Tiny Box PC (with ECM-CX700 inside)or

- 1 x EPC-945 Intel® Tiny Box PC (with ECM-945GME inside ) or

- 1x EPC-AT270 Inte® l Tiny Box PC (with ECM-945GSE inside) or

- 1 x EPC-LX800W AMD Geode™ LX 800 Tiny Box PC(with ECM-LX800W) or

- 1 x EPC-A50M AMD eOntario T40E/ or T56N Tiny Box PC with A50M Chipset(with

ECM-A50M)

1 x Quick Reference Guide

1 x DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Ethernet driver and utilities

—VGA drivers and utilities

—Audio drivers and utilities

Other major components include the followings:

—1 x PS/2 keyboard and mouse Y cable (6-pin, Mini-DIN)

—1 x SATA cable

—1 x AC to DC adapter

—1 x Protective Cover

Quick Reference Guide

EPC Series Quick Reference Guide

1.3 System Specifications

Model

EPC-3711

EPC-CX700

CPU

Onboard VIA Eden V4 1 GHz

Onboard VIA Eden V4 500 MHz

BIOS

Award 512 KB Flash BIOS

System Chipset

VIA CN700/VT8251

VIA CX700M

I/O Chipset

VIA VT1211

System Memory

One 200-pin SODIMM supports up to 1 GB DDR2 400/533 SDRAM

SSD

One CompactFlash Type I/II socket with ejector

Watchdog Timer

Reset: 1 sec.~255 min. and 1 sec. or 1 min./step

H/W Status Monitor

Monitoring system and CPU temperature, voltage,

Auto throttling control when CPU overheats

Display

VIA ProSavage CN700 integrated

2D/3D graphics engine

VIA CX700M with integrated 2D

and 3D Graphics engine

Audio

VIA VT1616 supports 5.1 CH

Audio

Realtek ALC883 supports 5.1 CH

Audio and 7.1 CH with SPDIF

Ethernet

Dual Realtek RTL8111B

1000Base-T Fast Ethernet

controllers

Dual Realtek RTL8101L

System Indicators

2 LED indicators show the power and HDD

COM Port

1 x RS-232, 1 x RS232/422/485, Setting by BIOS

Ethernet Port

2 x RJ-45

VGA / LCD Port

1 x DB-15

Audio Port

Mic-in, Line-in, Line-out

USB Port

3 x USB 2.0

Mouse & KB

1 x PS/2 mini DIN

Power Input

100 ~ 240 Vac / 50 ~ 60 Hz

Power Output

+5 Vdc / 8 A (40W)

Operating

Temperature

0~40°C (32~104°F)

Storage

Temperature

-20 to +75°C (-4~167°F)

Relative Humidity

5 to 90% @ 40°C (104°F), relative humidity, non-condensing

Dimension (W x D x

7.0" x 4.4" x 2.0" (178 x 112 x 50 mm)

Weight

2.65 lbs (1.2 Kgs)

EPC-Series

4 EPC Series Quick Reference Guide

Model

EPC-945

EPC-AT270

CPU

Supports 65nm Intel® µFC-PGA

478/µFC-BGA 479 Core™

Duo/Core™Duo/Celeron® M CPU

Onboard Intel® Atom™N270

1.6GHz CPU

BIOS

Award 4 MBit Flash BIOS

Award 8 MBit Flash BIOS

System Chipset

Intel® 945GME / ICH7-M

Intel® 945GSE/ICH7-M

I/O Chipset

Winbond W83627HF-AW

ITE 8712F

System Memory

One 200-pin SODIMM supports up

to 2 GB DDR2 400/533/667

SDRAM

One 200-pin SODIMM supports up

to 2 GB DDR2 400/533 SDRAM

SSD

One CompactFlash Type I/II socket

Watchdog Timer

Reset: 1 sec.~255 min. and 1 sec. or 1 min./step

Display

Intel® 945GME Integrated GMA

950 graphic

Intel® 945GSE Integrated

Audio

Realtek ALC883 supports 7.1-CH

Audio

Realtek ALC655 supports

5.1-CH Audio

Ethernet

Dual Realtek RTL8111C PCI-E

Gigabit Ethernet, supports wake

on LAN (RTL8111B for Rev. A1)

Dual Marvell 88E8053 Gigabit

Ethternet, supports Wake on LAN

System Indicators

2 LED indicators show the power and HDD

Drive Bay

Mounting kit for one 2.5” HDD(hidden)

Expansion

Interface

-------

1 x Mini PCIe

Serial Port

1 x RS-232

1x RS-232, 1xRS232/422/485

Ethernet Port

2 x RJ-45

WiFi

Optional (USB Module)

DVI

------

1 x DVI (Optional)

VGA / LCD Port

1 x DB-15

Audio Port

Mic-in, Line-in, Line-out

USB Port

3 x USB 2.0

5 x USB 2.0

Mouse & KB

1 x PS/2 mini DIN

1 x PS/2 mini DIN (Optional)

Power Input

100 ~ 240 Vac / 50 ~ 60 Hz

Power Output

+12 V

Operating

Temperature

0~40°C (32~104°F)

Storage

Temperature

-20 to +75°C (-4~167°F)

Relative Humidity

5 to 90% @ 40°C (104°F), relative humidity, non-condensing

Dimension (W x D x

7.0" x 5.6" x 2.0" (178 x 142 x 50

mm)

7.0" x 4.4" x 2.0" (178 x 112 x 50

mm)

Weight

2.7 lbs (1.2 Kgs)

Mounting

VESA Compliance

Quick Reference Guide

EPC Series Quick Reference Guide

Model

EPC-LX800W

CPU

Onboard AMD Geode™ LX 800 @ 500MHz CPU

BIOS

Award 4 MBit Flash BIOS

System Chipset

AMD Geode™ LX 800/ CS5536

I/O Chipset

NuvoTon W83627DHG

System Memory

One 200-pin SODIMM supports up to 1 GB DDR 333/400 SDRAM

SSD

One CompactFlash Type I/II socket

Watchdog Timer

Reset: 1 sec.~255 min. and 1 sec. or 1 min./step

Display

AMD Geode LX800 with Integrated Graphics Engine

Audio

Realtek ALC203 supports 2-CH Audio

Ethernet

Dual Realtek RTL8101L 10/100 Rthernet

System Indicators

2 LED indicators show the power and HDD

Drive Bay

Mounting kit for one 2.5” HDD(hidden)

Expansion Interface

N/A

Serial Port

2x RS-232

Ethernet Port

2 x RJ-45

WiFi

Optional (USB Module)

VGA

1 x DB-15

Audio Port

Line-out

USB Port

3 x USB 2.0

Mouse & KB

1 x PS/2 mini DIN

Power Input

100 ~ 240 Vac / 50 ~ 60 Hz

Power Output

+5V

Operating Temperature

-40 ~ 75°C (-40~167°F)

Storage Temperature

-20 to +75°C (-4~167°F)

Relative Humidity

5 to 90% @ 40°C (104°F), relative humidity, non-condensing

Dimension (W x D x H)

7.0" x 4.4" x 2.0" (178 x 112 x 50 mm)

Weight

2.7 lbs (1.2 Kgs)

Mounting

VESA Compliance

EPC-Series

6 EPC Series Quick Reference Guide

Model

EPC-A50M

CPU

AMD® eOntario T40E (1.0GHz) CPU

AMD® eOntario T56N （1.6GHz）CPU

BIOS

AMI 8 Mbit SPI BIOS

System Chipset

AMD A50M Chipset

I/O Chip

Winbond W83627DHG-P

System Memory

One 204-pin DDR3 SODIMM up to 4GB DDR3-1066 SDRAM

SSD

1 x CompactFlash

Hard Disk

1 x 2.5” SATA HDD

mSATA

1xMini PCIe Card

Watchdog Timer

Reset: 1 sec.~255 min. and 1 sec. or 1 min./step

H/W Status

Monitor

Monitoring system temperature, voltage. Auto trotting control when CPU

overheats

External I/O

COM Port

2 x RS232; COM2 support RS-422/485 setting by BIOS

LAN Port

2 x RJ45

VGA/HDMI Port

1 x VGA; 1 x HDMI

Audio Port

1 x Mic in, 1 x Line-in and 1 x Line out

USB Port

4 x USB 2.0

SSD

1 x Type I/II CompactFlash socket

Expansions

mSATA 1xMini PCIe Card (Internal)

Display

Chipset

AMD Radeon 6250

Resolution

VGA: 1920 x 1200 @ 60 Hz, HDMI: 1920 x 1200 @ 60 Hz

Multiple Display

Two independent display combination of CRT, HDMI

Audio

AC97 Codec

Realtek ALC892 supports 7.1-CH

Audio Interface

Min In, Line in, Line out

Ethernet

LAN Chip

2x Realtek 8111E GigaLAN, supports Wake on LAN

Ethernet Interface

10/100/1000Base-Tx Fast Ethernet compatible

Mechanical &

Environmental

Power Requirement

+12 ~ +26Vdc (Lockable DC Jack)

ACPI

Single power ATX Support S0~S5 ACPI 2.0B

Power Type

Single Power ATX

Operating Temp.

0 ~ 40°C (w/CF),ambient w/ air flow

Storage Temp.

-20 ~ 75°C (-4~167°F)

Quick Reference Guide

EPC Series Quick Reference Guide

Operating Humidity

0%~90% relative humidity, non-condensing

Size (L x W)

7” x 4.4” x 2.0” (178mm x 112mm x 50mm)

Weight

2.7lbs (1.2Kgs)

Mounting

VESA Compliance

EPC-Series

8 EPC Series Quick Reference Guide

1.4 System Overview

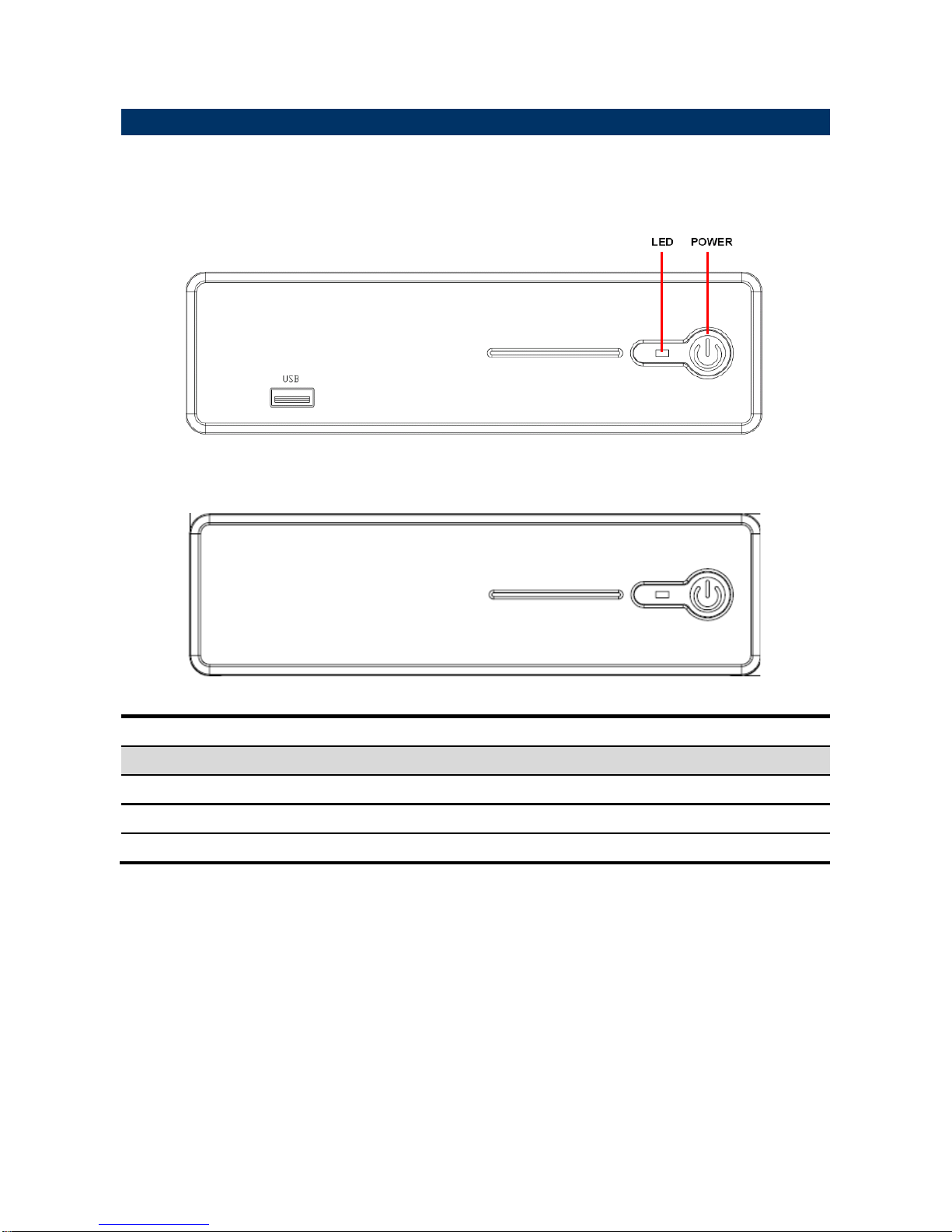

1.4.1 Front View

EPC-3711/EPC-CX700/EPC-AT270/ EPC-LX800W

EPC-A50M

Connectors

Label

Function

Note

POWER

Power on button

LED

System power indicator

USB

USB 2.0 connector

Quick Reference Guide

EPC Series Quick Reference Guide

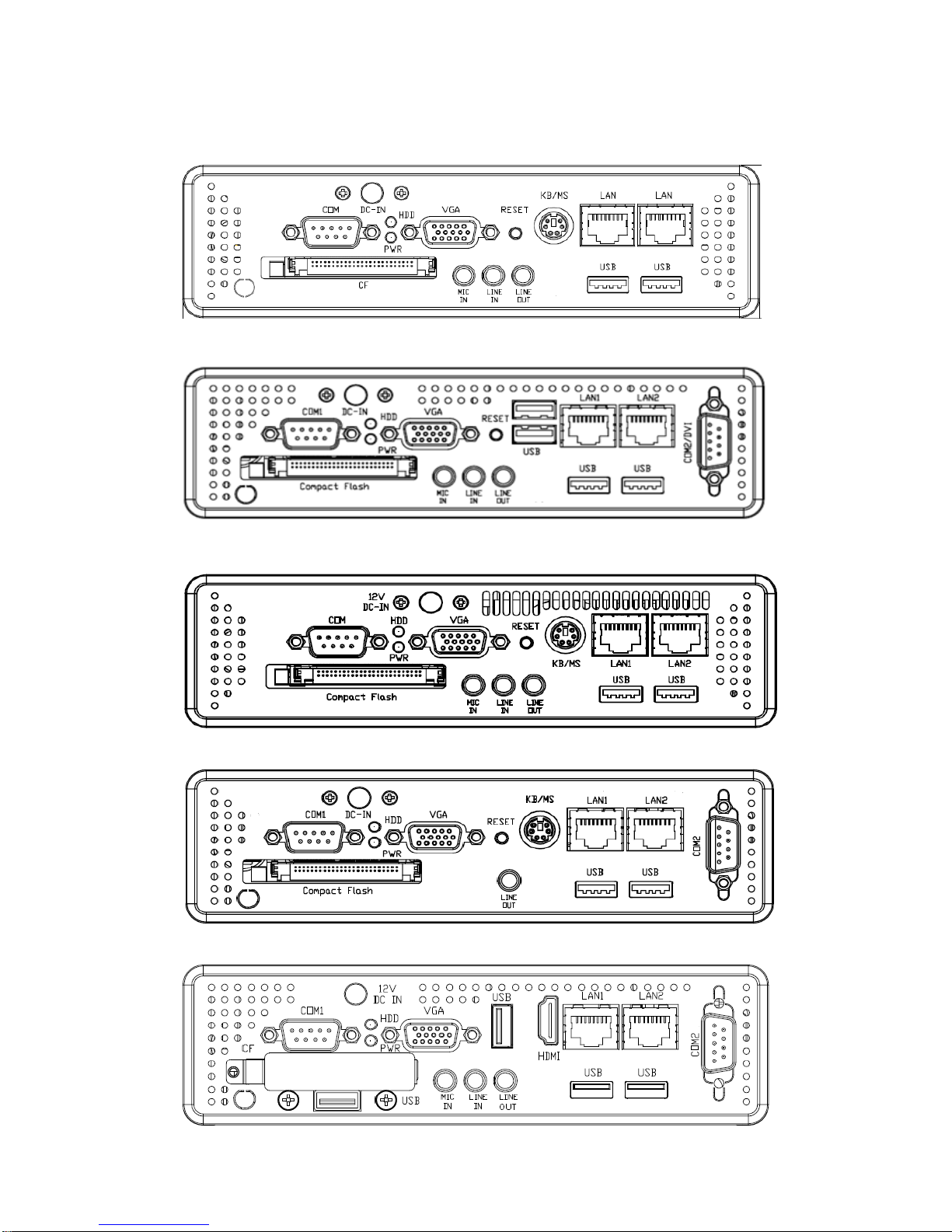

1.4.2 Rear View

EPC-3711/EPC-CX700

EPC-AT270

EPC-945

EPC-LX800W

EPC-A50M

EPC-Series

10 EPC Series Quick Reference Guide

Connectors

Label

Function

Note

COM

Serial port

DB-9 male connector

CF Type I/II Socket with Ejector

DC-IN

DC Power-in connector

DVI

DVI connector (EPC-AT270 only)

HDD

HDD indicator

HDMI

HDMI connector (EPC-A50M only)

K/B

Keyboard and PS/2 mouse connector

(EPC-LX800W only)

6-pin mini DIN

LAN1&2

2 x 10/100Base-Tx Ethernet connector

RJ-45

LINE IN

Line-in audio jack

LINE OUT

Line-out audio jack

(EPC-LX800W supported)

MIC IN

Mic-in audio jack

PWR

System power indicator

RESET

Reset button

USB

USB 2.0 connector

4 ports for EPC-A50M

5 ports for EPC-AT270

3 ports for EPC-945/LX800W

VGA

CRT connector

DB-15 female connector

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Avalue Technology Scrivania

Avalue Technology

Avalue Technology HPS-246U4A Manuale utente

Avalue Technology

Avalue Technology FPC-05R1 Manuale utente

Avalue Technology

Avalue Technology EPC-TGU Manuale utente

Avalue Technology

Avalue Technology BMX-T521-BYT Manuale utente

Avalue Technology

Avalue Technology ERS-A50M Manuale utente

Avalue Technology

Avalue Technology EPC-BYT2 Manuale utente

Avalue Technology

Avalue Technology LPC-1207 Manuale utente

Avalue Technology

Avalue Technology EPC-CDV Manuale utente

Avalue Technology

Avalue Technology EPS-ADS Manuale utente

Avalue Technology

Avalue Technology LX800 Manuale utente

Avalue Technology

Avalue Technology FPC-08WA1 Manuale utente

Avalue Technology

Avalue Technology LPC-1009 Series Manuale utente

Avalue Technology

Avalue Technology EPC-WHL Manuale utente

Avalue Technology

Avalue Technology SOPM-QM87 Manuale utente

Avalue Technology

Avalue Technology BMX-T521-BSW Manuale utente

Avalue Technology

Avalue Technology ECS-BSW Manuale utente

Avalue Technology

Avalue Technology HPS-SRSU4A Manuale utente

Avalue Technology

Avalue Technology HPS-621UTA Manuale utente

Avalue Technology

Avalue Technology UB-A200 Manuale utente

Avalue Technology

Avalue Technology OPC-15W6 Manuale utente

Avalue Technology

Avalue Technology BMX-T524 Manuale utente

Avalue Technology

Avalue Technology SID-21W9 Manuale utente

Avalue Technology

Avalue Technology EMS-SKLU Series Manuale utente

Avalue Technology

Avalue Technology HPS-621U4A Manuale utente

Manuali Scrivania popolari di altre marche

HP m9060n - Pavilion - Elite Scheda tecnica

Asus

Asus E210 Series Manuale utente

Dell

Dell Inspiron 600m Manuale utente

Dell

Dell Inspiron 3662 Manuale utente

TotalFlow

TotalFlow uFLO Manuale utente

HP Presario SV7000 - Desktop PC Manuale utente

HP ProDesk 400 G5 Manuale

Logitech

Logitech MK320 Manuale utente

Dell

Dell XPS 730 H2C Manuale utente

Sony

Sony Vaio Series Manuale utente

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuale utente

Alto

Alto MD 250 Manuale utente

Lenovo

Lenovo ThinkCentre Edge 72 Manuale

Lenovo

Lenovo ThinkStation D20 Manuale

Arbor Technology

Arbor Technology FPC-7800 Series Manuale utente

Sony

Sony VAIO VGX-TP1 Series Manuale utente

Asus

Asus Eee Box B204 Manuale utente

Dell

Dell Optiplex 9010 All In One Manuale utente
