Avalue Technology LPC-1503 Manuale utente

Part No. E2017L155A0R

LPC 15”Series

15”Multifunctional Touch Panel PC

Quick Reference Guide

1st Ed –9 Mar 2011

LPC 15”Series

2 LPC 15”Series Quick Reference Guide

Contents

1. Getting Started ........................................................................................................3

1.1 Safety Precautions....................................................................................................3

1.2 Packing List...............................................................................................................3

1.3 System Specifications...............................................................................................4

1.4 System Overview......................................................................................................6

1.4.1 Front View................................................................................................................................ 6

1.4.2 Rear View................................................................................................................................ 6

1.5 System Dimensions ..................................................................................................7

2. Hardware Configuration .........................................................................................8

2.1 COM port BIOS Setting.............................................................................................9

2.1.1 LPC-1503 RS232/422/485 setting by BIOS.......................................................................... 9

2.1.2 LPC-1505 RS232/422/485 setting by SW2 .......................................................................... 9

2.2 Installing Hard Disk & Memory................................................................................10

Quick Reference Guide

LPC 15”Series Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x LPC 15" Series Panel PC

1 x Quick Reference Guide

1 x DVD-ROM contains the followings:

—User’s Manual (this manual in PDF file)

—Ethernet driver and utilities

—VGA drivers and utilities

—Audio drivers and utilities

—WiFi drivers and utilities

—Touch controller drivers and utilities

1 x Power Adapter

LPC 15”Series

4 LPC 15”Series Quick Reference Guide

1.3 System Specifications

Panel

Model

LPC-1503

LPC-1505

LCD size

15”, 4:3

Display type

XGA

Resolution

1024 x 768

Color

262K

Pixel pitch

0.297mm(H) x 0.297mm(V)

Luminance

300 cd/m²

Contrast ratio

500

Viewing angle

65(U), 60(D), 70(L), 70(R)

Response time

8 ms

Backlight

CCFL

Touch type

5 Wires resistive

Touch interface

USB

System

Board

EBM-945GSE

EBM-PNV

CPU

Onboard Intel Atom N270 1.6GHz

Onboard Intel Pineview D525 1.8GHz

BIOS

Award 8 Mbit Flash BIOS

Award 512KB Flash BIOS

System Chipset

Intel 945GSE + ICH7-M

Intel ICH8-M

I/O Chipset

ITE 8712F

Nuvoton W83627DHG-P

System Memory

Onboard 1GB DDR2and one SODIMM

supports up to 2GB

Onboard 1GB DDR3 and one SODIMM

supports up to 3GB

SSD

One CF socket supports Type I / II Compact Flash Card.

HDD

Optional 2.5”SATA HDD

WiFi

Optional USB WiFi 802.11b/g

Watchdog Timer

Reset: 1 ~ 65535 sec./min. and 1 min./step

Audio

Realtek ALC 892 supports 5.1-CH Audio

Realtek ALC888 supports 5.1-CH Audio

Ethernet

Dual Realtek RTL8111C Gigabit LAN,

supports wake on LAN

Intel® 82574L Gigabit LAN, Optional

Dual LAN

Quick Reference Guide

LPC 15”Series Quick Reference Guide

External I/O Ports

COM Port

1 x RS-232/422/485 setting by BIOS*,

optional extra 1 x RS-232/422/485

1 x RS-232/422/485 setting by SW2*,

optional extra 1 x RS-232/422/485

Ethernet Port

Dual RTL8111C Giga LAN

Intel® 82574L Gigabit LAN

VGA / LCD Port

1 x DB-15

Audio Port

Line-out

USB Port

2 x USB 2.0

Power Supply Unit

Power Input

12V

Power Output

5A (60W)

Environment & Mechanical

Operating Temperature

0~40°C (32~104°F)

Storage Temperature

-20 to 60°C (-4~140°F)

Relative Humidity

5 to 90% @ 40°C (104°F), relative humidity, non-condensing

Dimension (W x D x H)

351.5 x 272 x 52 mm

Weight

4.2 Kgs

Mounting

Desktop (VESA Compliance)

Note: *To know more detail of RS232/422/485 setting, please refer to chapter 2.1.

LPC 15”Series

6 LPC 15”Series Quick Reference Guide

1.4 System Overview

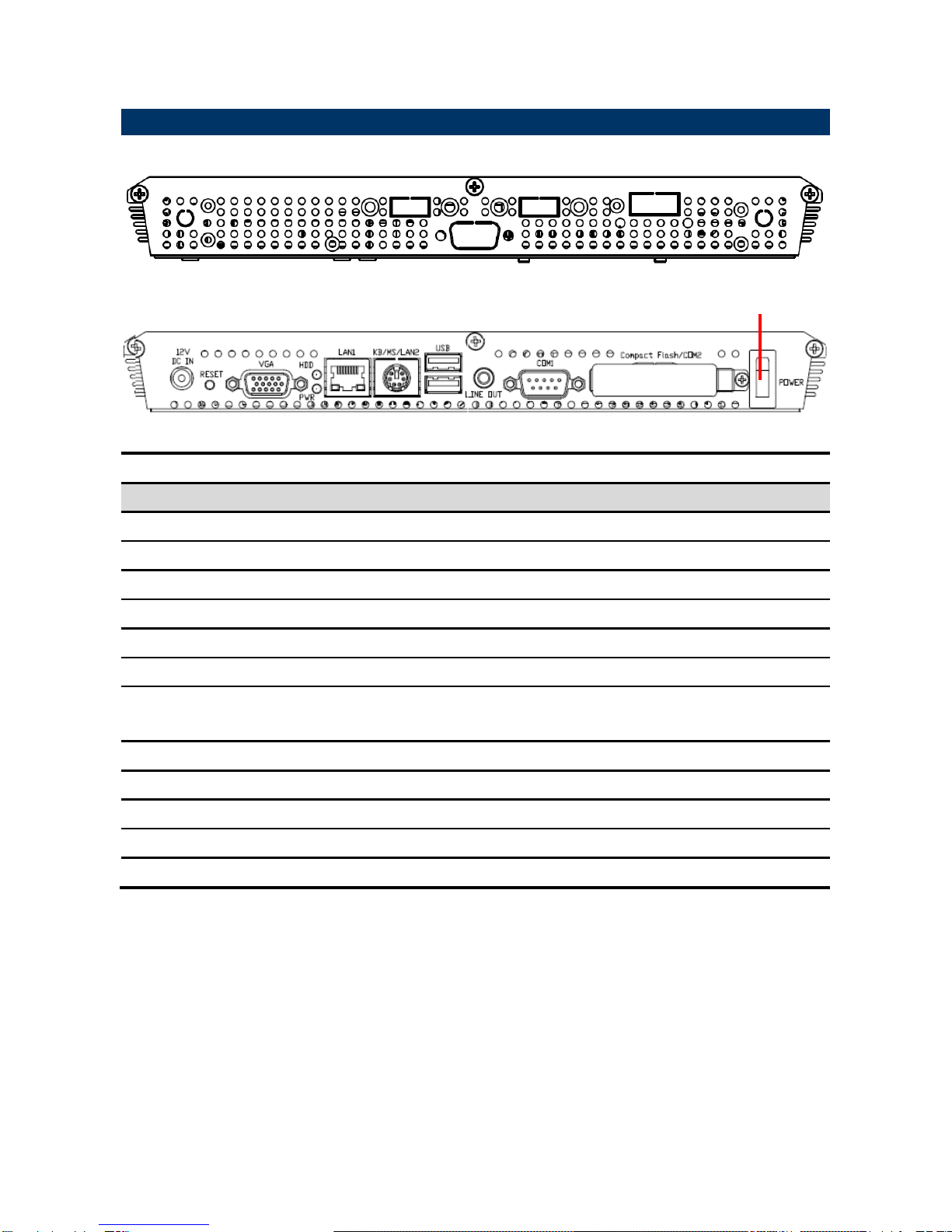

1.4.1 Front View

1.4.2 Rear View

Connectors

Label

Function

Note

POWER

Power on button

CF Type I/II Socket with Ejector

Optional for 2nd COM port

COM1

Serial port

DB-9 male connector

LINE OUT

Line-out audio jack

USB

2 x USB 2.0 connector

Dock USB

LAN1

RJ-45 Ethernet connector 1

LAN2

(KB/MS)

LPC-1505 -- PS/2 connector

LPC-1503 -- LAN2

HDD

HDD indicator

PWR

System power indicator

VGA

CRT connector

DB-15 female connector

RESET

Reset button

DC-IN

DC Power-in connector

POWER

Quick Reference Guide

LPC 15”Series Quick Reference Guide

1.5 System Dimensions

LPC 15”Series

8 LPC 15”Series Quick Reference Guide

2.Hardware

Configuration

Note: If you need more information, please visit our website:

http://www.avalue.com.tw

Quick Reference Guide

LPC 15”Series Quick Reference Guide

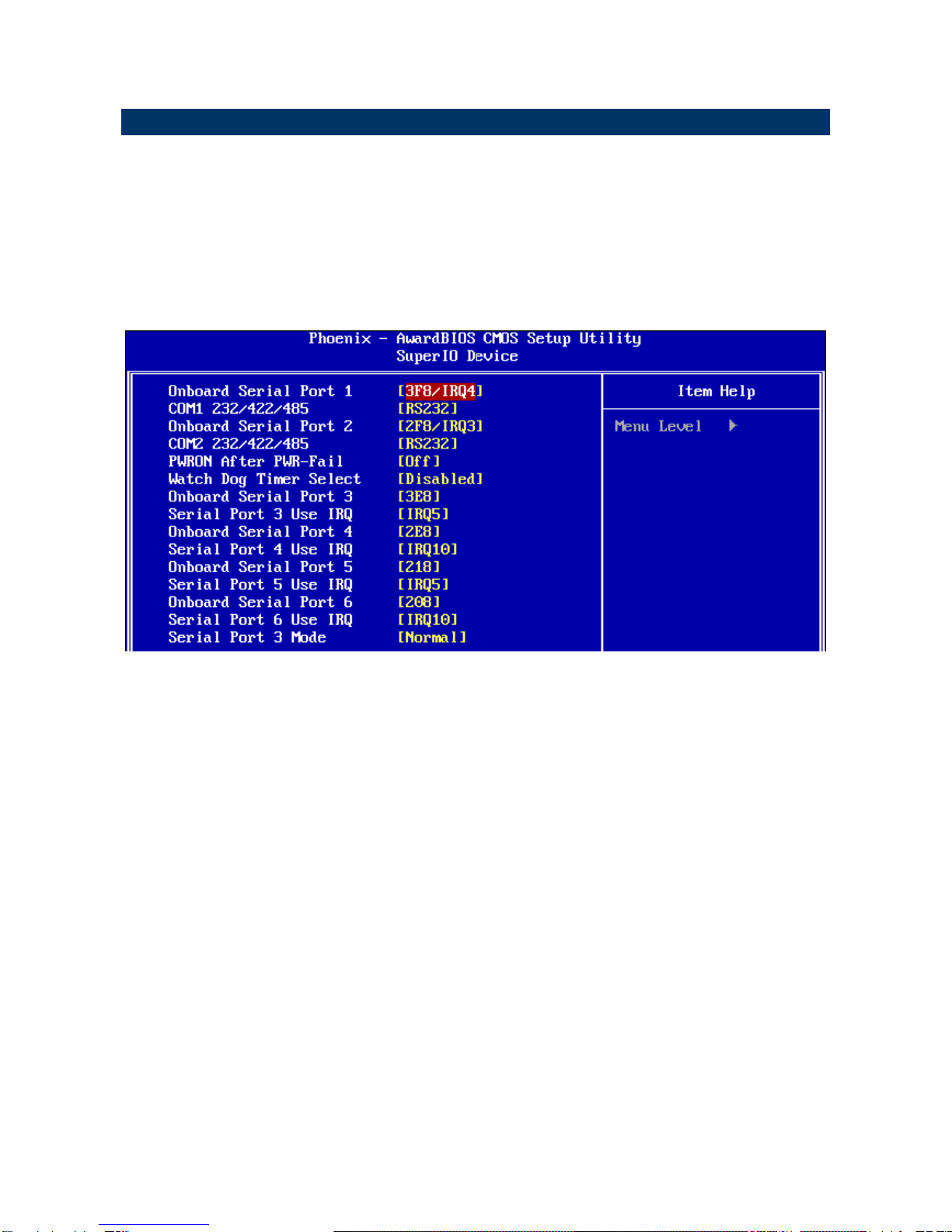

2.1 COM port BIOS Setting

2.1.1 LPC-1503 RS232/422/485 setting by BIOS

The COM port setting of LPC-1503, which applying EBM-945GSE M/B, can be configured

by BIOS. The path is shown as below.

[BIOS Menu] [Integrated Peripherals] [Super IO Device]

[COMPORT 232/422/485]

The panel backlight of LPC-1503, which applying EBM-945GSE M/B, can be configured by

BIOS as well. The path is shown as below.

[BIOS Menu] [Advanced Chipset Features] [LVDS Back Light]

To know more about other settings, please refer to EBM-945GSE Quick Installation Guide

or User’s Manual.

2.1.2 LPC-1505 RS232/422/485 setting by SW2

The COM port setting of LPC-1505, which applying EBM-PNV M/B, can be configured by

SW2. Please refer to EBM-945PNV Quick Installation Guide or User’s Manual.

LPC 15”Series

10 LPC 15”Series Quick Reference Guide

2.2 Installing Hard Disk & Memory

Step 1. Memory Installation: Unfasten 6 screws from the case to take off the top chassis.

Step 2. Insert the SODIMM into the memory socket.

Step 3-1. HDD Installation: Unfasten 2 screws of the HDD bracket and take it off.
