Avanti WBV21DZ Manuale utente
WINE CHILLER
Model Number: WBV21DZ
SERVICE MANUAL
CAUTION
Before servicing, make sure to unplug the appliance.
Replace all part before operating the appliance.
Failure to do so could result in death, electrical shock or personal injury.
Avanti Products, A Division of the mackle Co.,Inc INC.
P.O.Box 520604 – Miami, Florida 33152 USA
www.avantiproducts.com
2
TABLE OF CONTENTS
1. SPECIFICATIONS……………………………………………………………………3
2. NAME OF PARTS……………………………………………………………………4
3. REFRIGERANT CYCLE DIAGRAM……………………………………………….5
4. WIRING DIAGRAM…………………………………………………………………..6
5. COMPRESSOR ROOM VIEW AND PARTS LIST……………………………….7
6. HOW TO REMOVE THE SHELVES………………….……………………………8
7. HOW TO REPLACE THE BOTTOM GRILLE……………………………….…..8-9
8. HOW TO REMOVE THE DOOR….………………….…………………………..9-11
9. RELACING THE CONTROL PANEL……………………………………….....11-12
10. REPLACE THE MAIN PCB………………….…………………...…………..…13-14
11. REPLACE REAR AIR DUCT THE EVAPORATOR FAN MOTOR…………15-16
12. REPLACE THE LED LIGHT ASSEMBLY…………………………..………...16-17
13. REPLACE THE CONDENSER FAN MOTOR, COMPRESSOR STARTER&
PROTECTOR........................................................................................................18-19
14. REPLACE THE DOOR GASKE, CHARCOAL FILTRATION………………....20
15. TROUBLESHOOTING…………………………………………………………...21-22
16. EXPLOSION VIEW & PARTS LISTS……………………………….….……...23-25
3
1. SPECIFICATIONS
1.1 WBV21DZ
Model No. WBV21DZ
Type BUILT-IN OR RECESSED OR FREE STANDING
Capacity
No. of Wine Bottles 21
Capacity Zone One - L 75
Zone Two - L 75
Zone Three - L N.A
Performance & Features
Ambient Temp. Rang
e
°C 16 ~ 38
Setting Temp. Range °C/°F Left side 7 ~ 18 / 45 ~ 65
Ri
g
ht side 1 ~ 7
/
34 ~ 43
Power Source V/Hz 115/60
Rated Input W170
Rated Current A2.2
Noise Level dB(A) Less than 45
Defrost Type Automatic
Temp. Control Electronic
Blowing Agent Cyclopentane
Refrigerating System
Cooling System Wind cooling
Compressor
Model No. AE1350Y/HYE55Y42
Type Hermetic
LRA 13.1
RLA 2.0
Overload Protecto
r
B60-125
PTC Starter QP2-22/*
Oil /
Condenser Fan Motor Model No. YJF610A-610-RX
Rating 110-120V, 60Hz
Evaporator Fan Motor Model No. PL92B12H
Rating 12 V, 0.2A
Expansion device Capillary (Ø0.6 x 1800 mm)
Refrigerant / Charged Volume R134a / 90g
Dimensions & Weights
Net Dimensions Width - mm 624
Height - mm 856
Depth - mm 595
Packing Dimensions Width - mm 655
Height - mm 906
Depth - mm 705
Weight Net / Gross - KGS 51/58
* Specifications are subject to change without prior notice.
4
2. Name of Parts
2.1 WBV21DZ
1. WINE CHILLER TEMPERATURE CONTROL PANEL
2. INTERIOR FAN
3. INTERIOR LIGHT
4. CABINET
5. BEVERAGE CENTER TEMPERATURE CONTROL PANEL
6. WINE BOTTLE SHELVES
7. WINE BOTTLE STORAGE RACK / BASKET
8. BEVERAGE SHELVES
9. STORAGE BASKET
10. LEVELING LEGS
11. LOCK
12. CHARCOAL FILTER
15
6
12
89
10
11
7
234
5
3. REFRIGERANT CYCLE DIAGRAM
1. Compressor
2. Hot Pipe
3. Condenser (Internal)
4. Condenser Fan
5. Condenser (External)
6. Dry Filter
7. Capillary
8. Evaporator Fan
9. Evaporator
10. Accumulator
6
4. WIRING DIAGRAM
4.1 WBV21DZ
***********
7
5. COMPRESSOR VIEW AND PARTS LIST
1. Suction Pipe
2. Compressor
3. Process Pipe
Outlet Pipe of Condenser
4. Discharge Pipe
5. Condenser Fan Supporter
6. Condenser Fan Cover
7. Condenser Fan
8. Condenser Fan Motor
9. Power Supply Cord with Plug
10. Junction Box
11. Electrical Box of Compressor
12. Compressor Base
13. Compressor Junction Box
14. Compressor Junction Box supporter
8
6. HOW TO REMOVE THE SHELVES
The appliance is equipped with the wired shelves and beverage shelves. You can move the
shelves out and in smoothly.
•To prevent damaging the door gasket, make sure to have the door all the way opened when
pulling the bottom shelf out of the rail compartment.
•For easy access to the storage content, you must pull the shelf approximately 1/2 out of the rail
compartment, however this unit was designed with a plastic post on each sides of the shelf track
to prevent bottles from falling.
•When removing the shelf out of the inner rail, make sure to remove all items first. Then move the
shelf to the position where the notch of shelf is exactly under the plastic post and lift the shelf. In
order to replace the shelf, repeat steps described above in reverse.
Wire shelf Beverage shelf (glass shelf)
7 REPLACING THE BOTTOM GRILLE
1．Remove two screws that are used to fix the bottom grille with the cabinet.
9
1. The bottom grille is shown as below.
8. HOW TO REMOVE THE DOOR
Note: All parts removed must be saved to do the reinstatement of door.
1. Remove the bottom grille according to “Replacing the Bottom Grille”.
2. Pull out and remove the lower hinge cover.
10

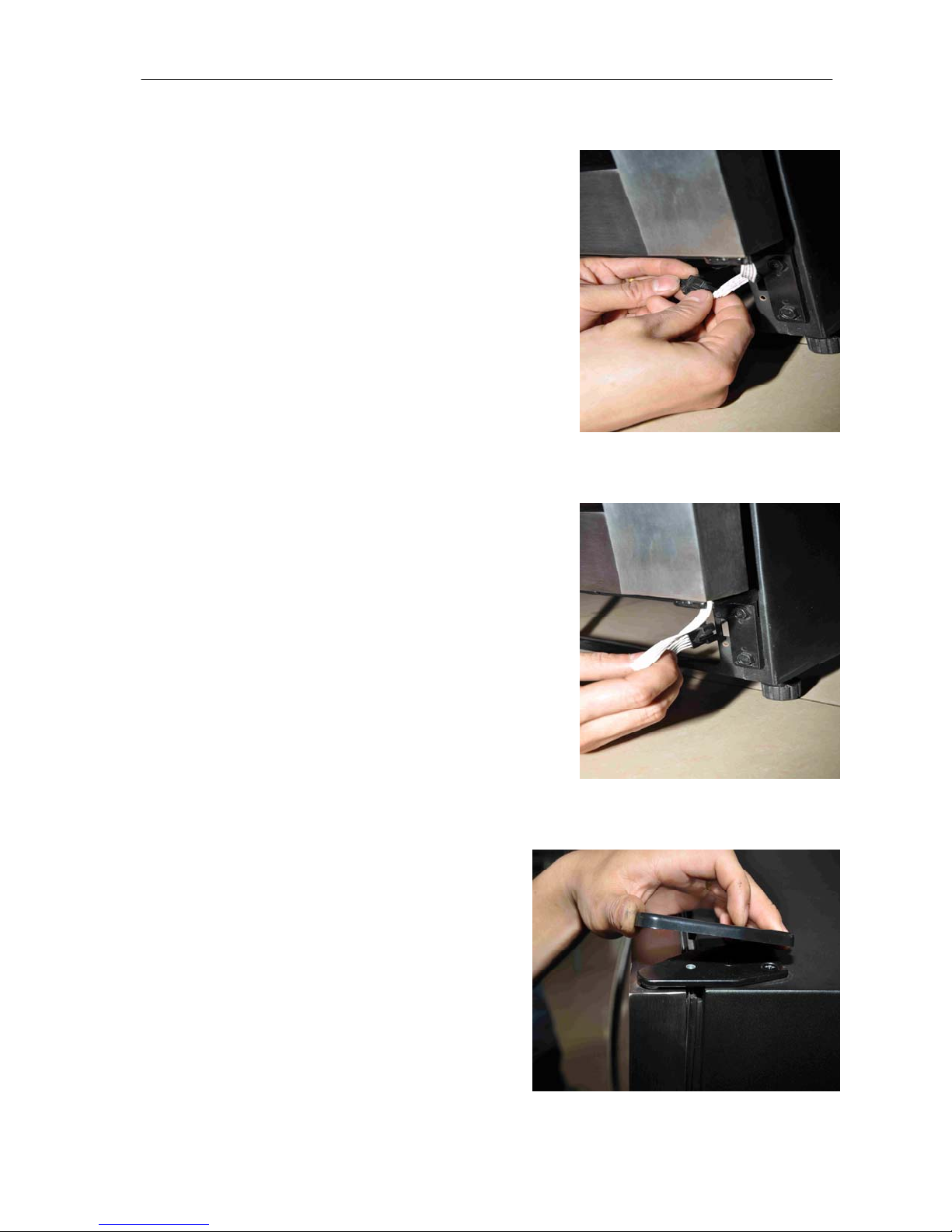

3. Disconnect the communication cable between the door and the cabinet.
4. Pull out the wire from the cabinet.
5. Remove the upper hinge cover from the top right of the door
