Avantree Joytune Manuale utente

1. Product overview

2. Accessories

USB car charger

USB charging cable

Visor clip

Note: All accessories are also available on avantree.com.

3. Pairing and connecting

Step 1 Ensure the car kit is off.

Step 2 Press and hold MFB button for 7-10s until LED indicator flashes blue and red alternately.

Step 3 Activate Bluetooth on your phone and select “Avantree Joytune”.

Step 4 Once successfully paired and connected, you will hear “Phone is ready for use”.

Auto power on (Built-in motion sensor)

Once paired and connected, Joytune will auto power on and reconnect to your phone when car door is open.

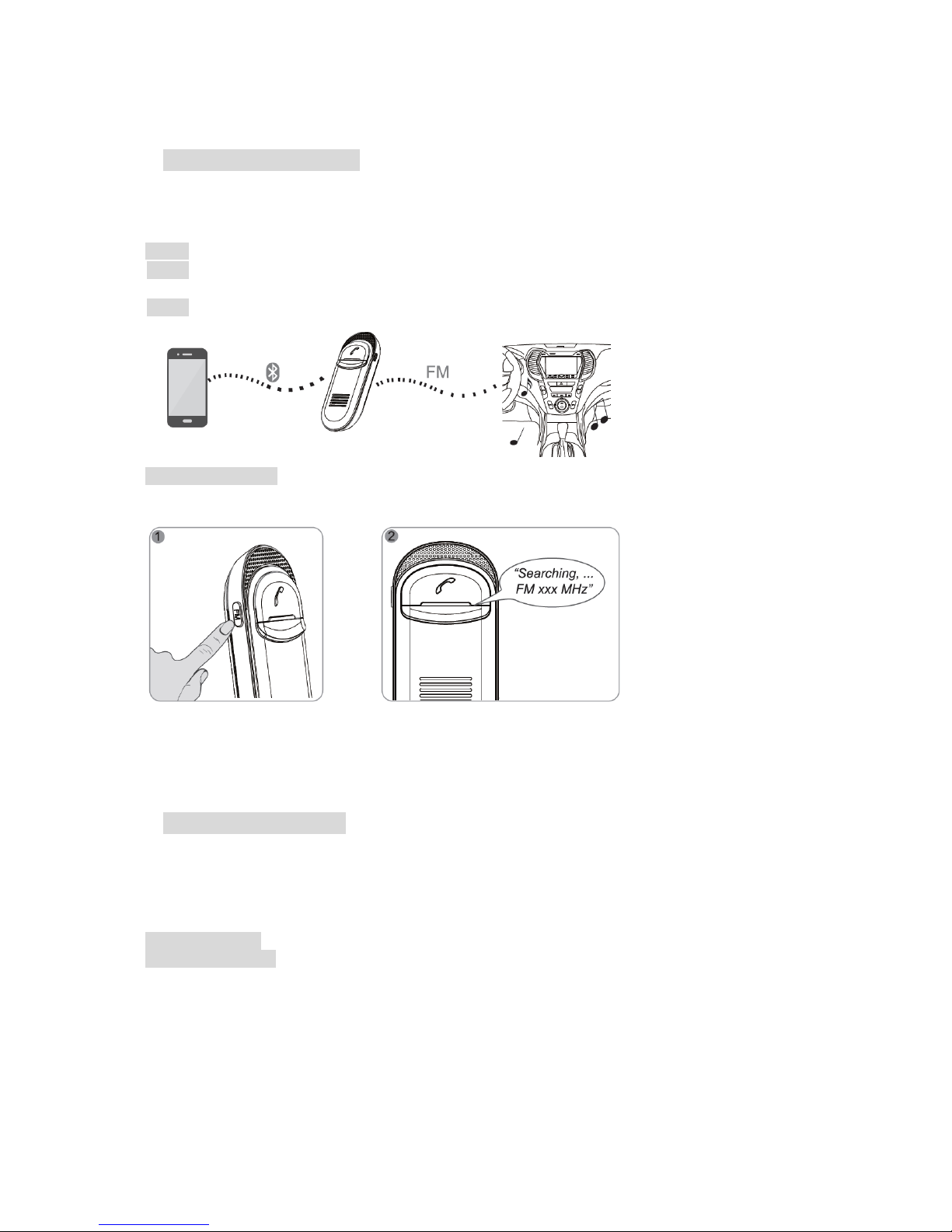

4. How to use FM transmitter

The FM transmitter of Joytune auto selects the clearest FM channel and transmits calls and music to the car

FM stereo.

Step 1 Pair and connect Joytune with your mobile phone as above.

Step 2 Turn on the FM function –press and hold FM button for 2s, Joytune will select and announce clearest

the channel.

Step 3 Tune your car radio to the announced FM frequency.

Change FM frequency

FM channels could get crowded in big city. Reselect by click on FM button once to chose the next clearest

channel.

Note:

In FM mode, volume can’t be adjusted by V+ and “V-“.

If there is no transmission (call or music) FM transmitter function will automatically turn off about 10 minutes

later.

5. Phonebook downloading

When Joytune is connected with a mobile phone first time, it would automatically download the phonebook. It

would announce “Loading phonebook, please wait” and the blue LED will be steady on when receiving the

phonebook.

Sometimes you may want to –

Update phonebook –Press and hold the V- button for 2s.

Removing phonebook –Hold on both V+ and V- buttons for 2s.

Note: the phonebook data saved in Joytune will be replaced automatically when it is paired with another

mobile phone.

6. Enable/disable voice prompts

Press and hold the V+ for 4s until you hear “Voice prompt on”or “Voice prompt off”.

7. Change voice prompt language

Press and hold the V+ button for about 2s until the blue LED flashes 3 times to enter the next language.

Repeat action to enter the next language. Five languages are available –English, French, Italian, German and

Spanish.

8. How to use

Button

Function

Operation

MFB

Power on/off

Press and hold MFB for 3s.

Answer a call

Press MFB once

Reject a call

Press and hold MFB for 3s.

Re-dialing

Press MFB once

End a call

Press MFB once

V+

Volume up

Press V+ once

V-

Volume down

Press V- once

MFB

Play/pause music

Press MFB once

V+

Previous track

In FM mode, press V+ once

V-

Next track

In FM mode, press V- once

V+ &

V-

Night driving mode (Turn LED

off/on)

Shortly press V- and V+ together

button

Voice dialing

Double click FM button

Note: some functions are mobile dependent and may not work with some phones. Contact us at

[email protected] for details.

9. Restore to default settings

You may need to reset Joytune if it is not working as expected. When Joytune is reset to factory default

settings, all the paired mobile phones information will be erased.

Step 1 Press and hold both V+ and V- for about 10s until the Blue LED flashes fast, then release the buttons.

Step 2 Press and hold both V+ and V- for about 2s, it would announce “Set factory default complete”, then

release the buttons.

10. How to charge

When the LED blinks red and Joytune prompt “Battery low”, you should recharge your Joytune. Please charge

the Joytune by the supplied car charger or PC USB port. It normally takes about 3 hours to fully charge the

battery. The LED will stay red when charging and will turn off when charging is complete.

Note: AC adapter requirement 5V / 500mA-2A.

11. Product specification

Bluetooth specification V2.1+EDR

Operating frequency band: 2.4GHz unlicensed ISM band

Operation range: Class 2 Power Output, up to 10 meters

Support profiles: HSP, HFP 1.5, A2DP and AVRCP Profiles

Language: English, French, Italian, German and Spanish.

Integrated phonebook: Stores up to 1000 contacts

FM band:

-BTCK-19T-EU: 87.5-108MHz

-BTCK-19T-US: 87.5-108.1MHz

-BTCK-19T-JP: 76-90MHz

Built in speaker and microphone

Standby time: up to 400 hours

Talk time: up to 8 hours

Charger voltage: DC 5.0V 500mA

Battery: Li-ion, 550mAh@3.7V.

The talk and standby time may vary when used with different mobile phones or other compatible Bluetooth

devices, usage settings, usage styles and environments.

For more FAQ information, please refer to support.avantree.com or contact us at support@avantree.com.

QD ID: B013929

FCC ID: WJ5BTCK181928T

IC ID: 8475A-BTCK19T

Z-PKMN-CK19T-0000V2
