4606 IP Telephone

Communication without boundaries

Features

• 6 programmable feature buttons — pro-

grammed for line appearances or features

• 5 fixed feature buttons — Speaker, Mute, Hold,

Volume Up & Down

• 3 fixed feature buttons under display —

Conference, Transfer & Redial

• Full Duplex Speakerphone with Echo

Cancellation

• 32 character LCD display (2 lines with

16 characters each)

• Message waiting indicator

• 10/100BaseT Ethernet connection

• Integrated Ethernet Repeater hub — connect

(optional) PC to telephone

• G.711, G.723.1, G.723.1A, G.729A, & G.729B

audio voice coders

• H.323 V2 & NetMeeting compatible (communi-

cates with other H.323 V2 products)

• IP Address assignment — DHCP client or stati-

cally configured

• Infrared port to support future applications

• Integrated RJ-11 Headset Jack

• Downloadable Firmware for future upgrades

• Hearing aid compatible

Specifications

• Size: 6.75” W x 8.5” D x 2.9” H

(169mm x 213mm x 73mm)

• Phone weight: (as shipped) 2.4 pounds (1.1 kg)

• Color: white and black

• 2 Standard 10/100BaseT RJ-45 interfaces — one

for network to telephone and one “hub port”

for connection from telephone to PC

• Operating Temperature: 40° to 120° F

(4° to 50° C)

The 4606 is an IP telephone with 6 programmable line and feature buttons,

a two line LCD display and a full duplex speakerphone. The display informs the

user of date, time, call timer, calling party information and access to state

dependent user features. Feature and line appearance buttons have a red and a

green LED associated with each to indicate line states and feature status. The

4606 works with DEFINITY® IP Solutions, part of the DEFINITY® Enterprise

Communications Server (ECS).

4612 IP Telephone

Communication without boundaries

Features

• 12 programmable feature buttons —

programmed for line appearances or features

• 8 fixed feature buttons — Speaker, Mute, Hold,

Transfer, Conference, Redial, Volume Up &

Down

• 4 fixed navigation buttons — Menu, Exit,

Left arrow (3) & Right arrow (4)

• Full Duplex Speakerphone with Echo

Cancellation

• 48 character LCD display (2 lines with

24 characters each)

• Soft keys under display for browser user

interface

• Message waiting indicator

• 10/100BaseT Ethernet connection

• Integrated Ethernet hub — connect (optional)

PC to telephone

• G.711, G.723.1, G.723.1A, G.729A, & G.729B

audio voice coders

• H.323 V2 & NetMeeting compatible

(communicates with other H.323 V2 products)

• IP Address assignment — DHCP client or

statically configured

• Infrared port to support future applications

• Integrated RJ-11 Headset Jack

• Downloadable Firmware for future upgrades

• Hearing aid compatible

Specifications

• Size: 9.4” W x 9” D x 2.9” H

(235mm x 225mm x 73mm)

• Phone weight: (as shipped) 3.1 pounds (1.4 kg)

• Color: white and black

• 2 Standard 10/100BaseT RJ-45 interfaces — one

for network to telephone and one “hub port”

for connection from telephone to PCOperating

Temperature: 40° to 120° F (4° to 50° C)

The 4612 is an IP telephone with 12 programmable line and feature buttons,

a two line LCD display and a full duplex speakerphone. The display informs the

user of date, time, call timer, calling party information and access to state

dependent user features. Feature and line appearance buttons have a red and a

green LED associated with each to indicate line states and feature status. The

4612 works with DEFINITY® IP Solutions, part of the DEFINITY® Enterprise

Communications Server (ECS).

4624 IP Telephone

Communication without boundaries

Features

• 24 programmable feature buttons —

programmed for line appearances or features

• 8 fixed feature buttons — Speaker, Mute,

Hold, Transfer, Conference, Redial, Volume Up

& Down

• 4 fixed navigation buttons — Menu, Exit,

Left arrow (3) & Right arrow (4)

• Full Duplex Speakerphone with Echo

Cancellation

• 48 character LCD display (2 lines with

24 characters each)

• Soft keys under display for browser user

interface

• Message waiting indicator

• 10/100BaseT Ethernet connection

• Integrated Ethernet hub — connect (optional)

PC to telephone

• G.711, G.723.1, G.723.1A, G.729A, & G.729B

audio voice coders

• H.323 V2 & NetMeeting compatible

(communicates with other H.323 V2 products)

• IP Address assignment — DHCP client or

statically configured

• Infrared & DSS ports to support future

applications

• Integrated RJ-11 Headset Jack

• Downloadable Firmware for future upgrades

• Hearing aid compatible

Specifications

• Size: 9.4” W x 9” D x 2.9” H

(235mm x 225mm x 73mm)

• Phone weight: (as shipped) 3.2 pounds (1.5 kg)

• Color: white and black

• 2 Standard 10/100BaseT RJ-45 interfaces — one

for network to telephone and one “hub port”

for connection from telephone to PC

• Operating Temperature: 40° to 120° F

(4° to 50° C)

The 4624 is an IP telephone with 24 programmable line and feature buttons,

a two line LCD display and a full duplex speakerphone. The display informs the

user of date, time, call timer, calling party information and access to state

dependent user features. Feature and line appearance buttons have a red and a

green LED associated with each to indicate line states and feature status. The

4624 works with DEFINITY® IP Solutions, part of the DEFINITY® Enterprise

Communications Server (ECS).

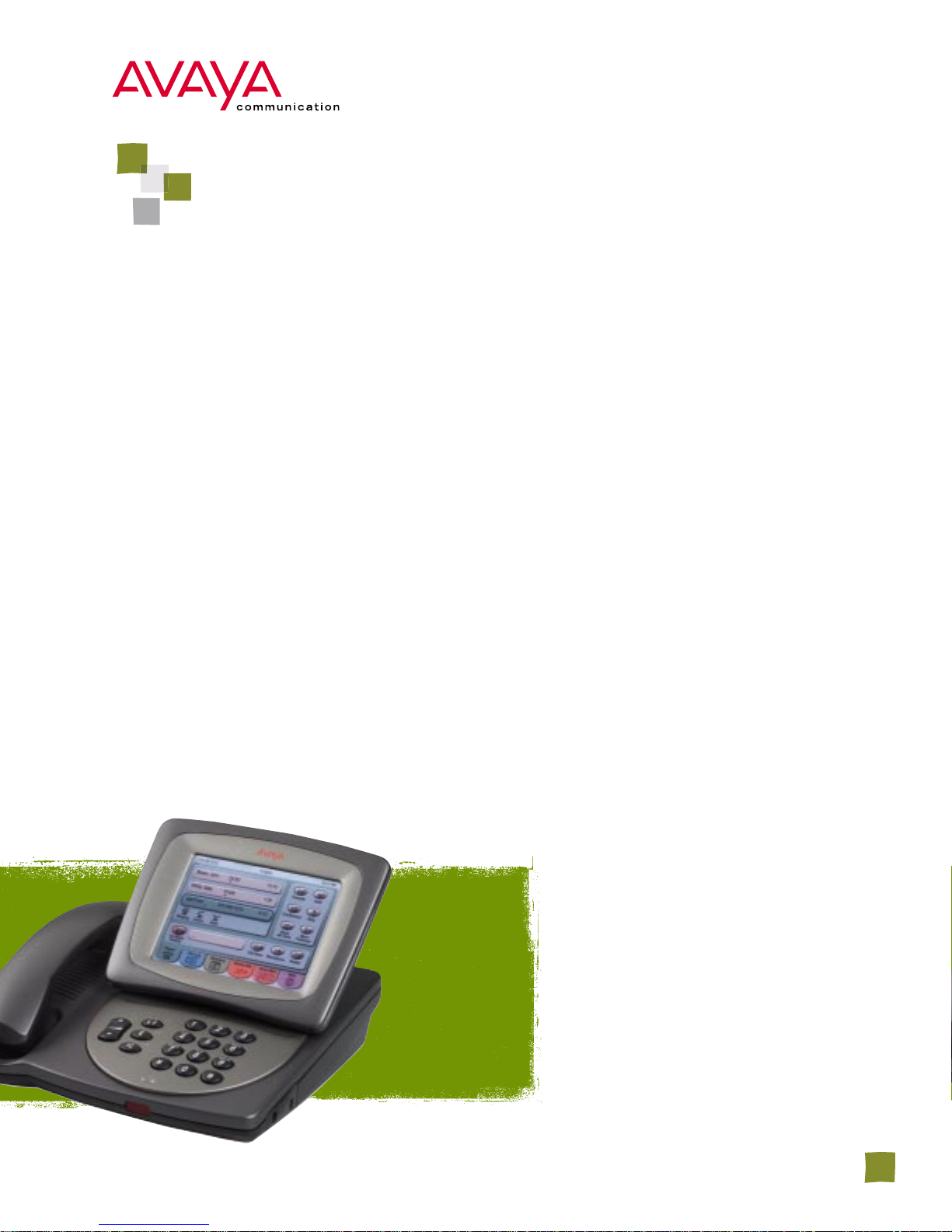

4630 IP Screenphone

Communication without boundaries

Specifications

• Size: 9.6” W x 9” D x 6.0” H

(245mm x 228mm x 152mm)

• Phone weight: (as shipped) 5 pounds (10.6 kg)

• Color: Multiple Gray tones

• 2 Standard 10/100BaseT RJ-45 interfaces — one

for network to telephone and one “hub port”

for connection from telephone to PC

• Operating Temperature:

40° to 120° F (4° to 50° C)

Features

• Six Telephony related applications

• Phone — multi-button business telephone

capabilities with DEFINITY ECS

• Speed Dial — approximately 100 speed dial

“buttons” organized into groups for easier

access

• Call Log — list of incoming and outgoing calls

• Directory — access to corporate telephone

directory information on an LDAP

(Lightweight Directory Access Protocol) server

• Voice Mail — access to voice mail messaging

capabilities of a DEFINITY_ AUDIX_ or an

INTUITY AUDIX

• Web access — provides “browsing” access to

web-based information, including support for

downloaded Java™ applets.

• 5 fixed feature buttons — Speaker, Mute,

Headset, Volume Up & Down

• Full Duplex Speakerphone with Echo

Cancellation

The 4630 Screenphone is an IP appliance that provides a user-friendly window

into new IP enabled applications, as well as the full suite of DEFINITY

Telephony, LDAP directory, and AUDIX voice mail features. Six telephony related

applications will be provided through a unique user interface, developed with

ease-of-use and minimal touch access in mind. All applications are enabled

through a 1/4 VGA color, touch-screen display. An Ethernet hub, headset jack,

and full duplex speakerphone are also provided. The 4630 works with DEFINITY®

IP Solutions, part of the DEFINITY® Enterprise Communications Server (ECS).

avaya.com

• 1/4 VGA color, touch screen display (320 dots

horizontal x 240 dots vertical)

• Soft keys under display for browser user inter-

face

• Message waiting indicator

• 10/100BaseT Ethernet connection

• Integrated Ethernet hub - connect (optional)

PC to telephone

• G.711, G.723.1, G.723.1A, G.729A, & G.729B

audio voice coders

• H.323 V2 & NetMeeting compatible (communi-

cates with other H.323 V2 products)

• IP Address assignment - DHCP client or stati-

cally configured

• Infrared & DSS ports to support future applica-

tions

• Integrated RJ-11 Headset Jack

• Downloadable Firmware for future upgrades

• Optional Desk Stand for higher display angle

• Hearing aid compatible

Printed in the U.S.A.

10/00 • 12345
