Avaya 5600 Series Manuale utente
Installation Job Aid (English) for Avaya
Ethernet Routing Switch 5600 Series
(NN47200-304, ver 01.01)
Before you begin
Ensure the area where you install and use the Avaya ERS 5600 Series switch meets the
following environmental requirements:
•Ambient temperature between 32° and 106° F (0° and 50° C)
• Relative humidity between 10% and 90% noncondensing
• No nearby heat sources such as hot air vents or direct sunlight
• No nearby sources of severe electromagnetic noise
• No excessive dust
• Adequate power source within six feet; one circuit required for each power supply (see
table, AC and DC power specifications)
• At least 2 inches (5.08 cm) on each side of the switch unit for ventilation
• Adequate space at the front and rear of the switch for access to cables
If you are installing a single Avaya Ethernet Routing Switch on a table or shelf, ensure the
surface can support at least 21 to 33 pounds (9.5 to 15 kilograms).
Installing the switch on a table or shelf
You can install a single Avaya Ethernet Routing Switch on any flat surface that can safely
support the weight of the switch and attached cables (21 to 33 pounds or 9.5 to 15
kilograms).
December 2013 1
The following figures provide instructions for installing the switch on a table or shelf.

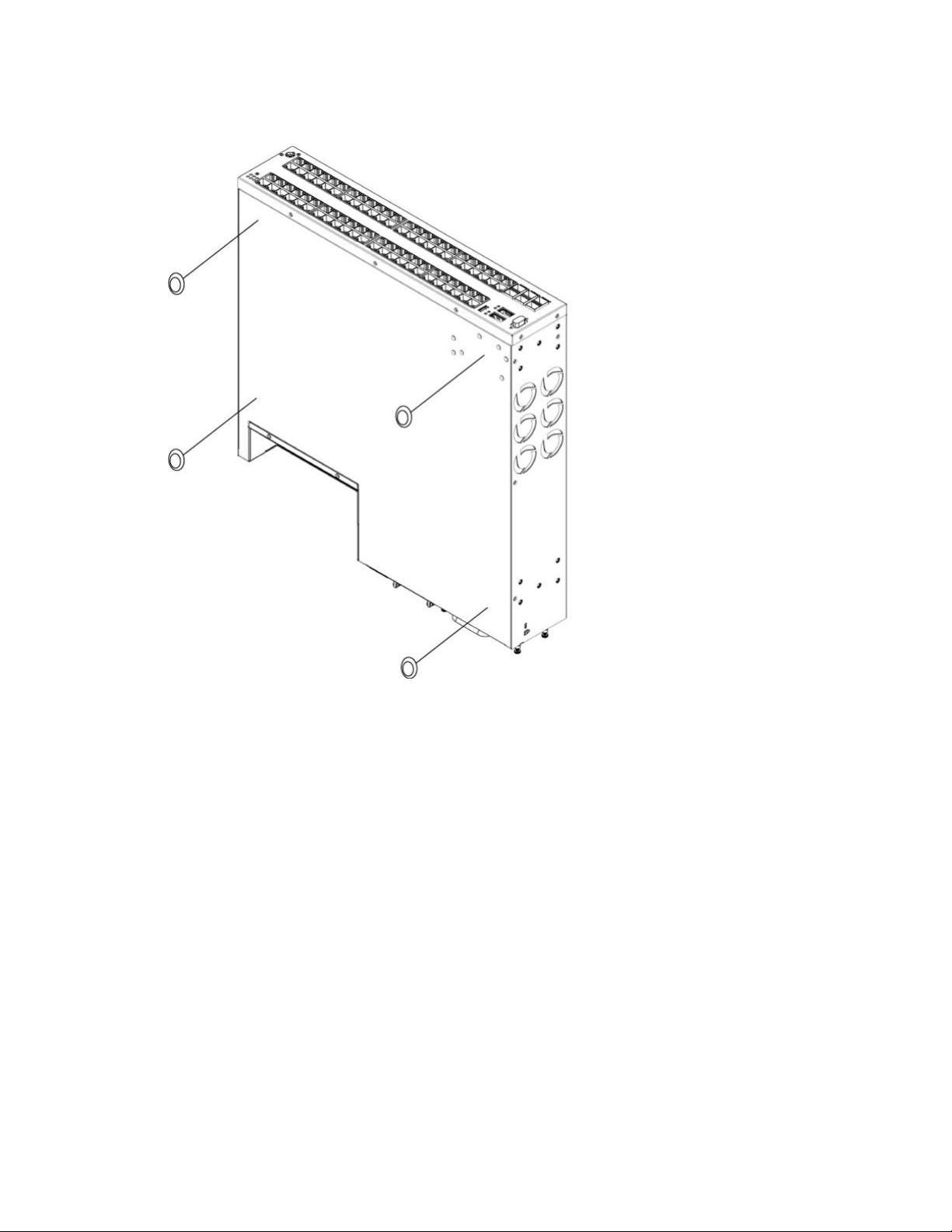

Attach the rubber feet at the marked locations.
Installing the switch on a table or shelf
2 December 2013
Set the switch on a table or shelf.
Note:
Allow at least 2 inches (5.1 cm) on each side for proper ventilation and at least 5 inches
(12.7 cm) at the back for power cord clearance.
Installing the switch on a table or shelf
December 2013 3
Installing the switch in an equipment rack
Required tool: Phillips screwdriver for attaching brackets to the switch.
Rack requirements:
•A space of 2.8 inches (71.1 centimeters) for each switch in an EIA or IEC standard 19
inch (48.2 centimeter) equipment rack and TIA 23 inch (58.5 centimeter) equipment
rack.
• Appropriate space to accommodate unit height:
- ERS 5650 models require one rack unit (1.75 inches, 44.45 millimeters)
- ERS 5632 models require 1.5 rack units (2.625 inches, 66.68 millimeters)
- ERS 5698 models require 2 rack units (3.5 inches, 88.90 millimeters)
• The rack must be bolted to the floor, and braced if necessary.
• The rack must be grounded to the same grounding electrode used by the power service
in the area. The ground path must be permanent and must not exceed 1 ohm of resistance
from the rack to the grounding electrode.
The following figures illustrate installing the switch in a rack.
Installing the switch in an equipment rack
4 December 2013
Figure 1: Front-mounted rack bracket installation
Attach a bracket to each side of the switch.
Installing the switch in an equipment rack
December 2013 5
Figure 2: Front-mounted rack installation
Slide the switch into the rack. Insert and tighten the rack mount screws.
Installing the switch in an equipment rack
6 December 2013
Figure 3: Rear-mounted rack bracket installation
Attach a bracket to each side of the switch.
Installing the switch in an equipment rack
December 2013 7
Figure 4: Rear-mounted rack installation
Slide the switch into the rack. Insert and tighten the rack mount screws.
AC and DC power specifications
The following table describes the AC and DC power specifications for the Ethernet Routing
Switch 5600 Series.
AC and DC power specifications
8 December 2013
Model
Input current Amps maximum
per power supply
Power
consum
ption
Thermal
rating
Power
supply
used
Power
over
Ethernet
(PoE)
100–120
VAC
48 VDC 200–240
VAC
Watts
maximu
m
BTU/h
maximu
m
Watts
AC/DC,
DC/DC
Power
per port
(Watts)
ERS
5632FD
1.8 0.9 190 650 300 n/a
ERS
5632FD
DC
4.2 190 650 300 n/a
ERS
5650TD
1.2 0.6 132 450 300 n/a
ERS
5650TD
DC
3.0 0.6 132 450 300 n/a
ERS
5650TD-
PWR
5.5 2.75 218 745 600 8.0
ERS
5650TD-
PWR DC
10.5 5.25 290 990 1000 15.4
ERS 5650
TD-PWR
(2 power
supplies)
5.3 * 2.65 * 290 990 600 * 15.4
ERS 5650
TD-PWR
DC
21 290 990 1000 15.4
ERS
5698TFD
2.0 1.0 215 735 300 n/a
ERS
5698TFD
DC
4.5 215 735 300 n/a
ERS
5698TFD-
PWR
10.5 5.25 400 1365 1000 8
ERS
5698TFD-
PWR (2
power
supplies)
9.5 * 4.75 * 545 1850 1000 * 15.4
AC and DC power specifications
December 2013 9
Model
Input current Amps maximum
per power supply
Power
consum
ption
Thermal
rating
Power
supply
used
Power
over
Ethernet
(PoE)
100–120
VAC
48 VDC 200–240
VAC
Watts
maximu
m
BTU/h
maximu
m
Watts
AC/DC,
DC/DC
Power
per port
(Watts)
ERS
5698TFD-
PWR DC
26 400 1365 1000 8
ERS
5698TFD-
PWR DC
(2 power
supplies)
21 * 545 1850 1000 * 15.4
* per power supply
Connecting AC power
Required cable: AC power cord that meets the requirements of your local electrical code. Refer
to the following table for plug specifications.
Table 1: International power cord specifications
Country and plug description Specifications Typical plug
Continental Europe
•CEE7 standard VII male plug
• Harmonized cord (HAR marking on
the outside of the cord jacket to
comply with the CENELEC
Harmonized Document HD-21)
220 or 230 VAC
50 Hz
Single phase
U.S./Canada/Japan
•NEMA5-15P male plug
• UL-recognized (UL stamped on
cord jacket)
• CSA-certified (CSA label secured
to the cord)
100 or 120 VAC
50-60 Hz
Single phase
Connecting AC power
10 December 2013
