Avaya P134G2 Manuale utente
Avaya P134G2
Quick Start Guide
Unpack
Rack mount (optional)
Connect the cables
Configure
Run Web-based
Manager (optional)
Power up
1
2
3
4
5
6
Unpack
Check the package contents for the following:
If any items are missing or damaged, contact your supplier.
Equipment
• One Avaya P130 Workgroup Switch
• One AC power cable
• One RJ-45 to DB-9 serial adapter cable
• Four rubber feet
• Four screws with washers for rack mounting
Ethernet connection cables are not supplied
Documentation
• Avaya P130 Quick Start Guide (this document)
• Avaya P130 Release Notes
• Avaya P130 Documentation and Utilities CD (see detail below)
• Avaya Warranty and License Agreement
Avaya P130 Documentation and Utilities CD
The CD contains the latest Technical Documentation for the Avaya P130 Workgroup switches
and files for use with the Embedded Web Manager.
Technical Documentation
You can view and print the Technical Documentation using Adobe® Acrobat® Reader.
• Avaya P130 User’s Guide
• Avaya P130 Device Manager
Auxiliary Files for use with the Embedded Web Manager
Please refer to the documentation for information on how to use these files.
• Java plug-in
• Help files
Adobe Acrobat Reader
Use this application to view and print the User's Guides on this CD.
1

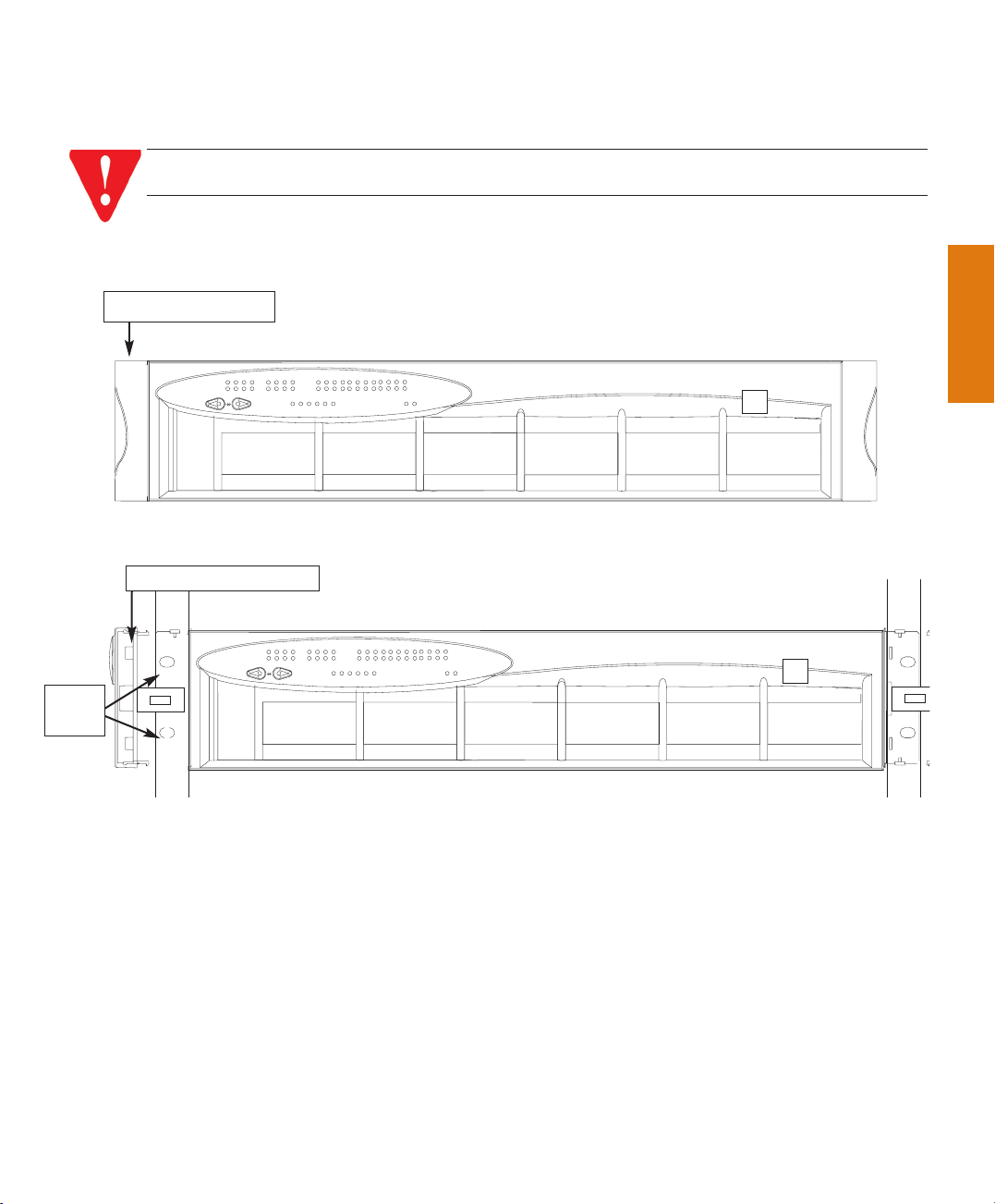

Rack mount (optional)
1. Snap open the hinged ends of the unit’s front panel to reveal the screw holes.
2. Position the unit in the rack.
3. Secure the unit to the rack, taking care not to overtighten the screws.
4. Snap closed the hinged ends of the front panel.
You can now safely connect the cables to the unit.
2
WARNING: Disconnect all cables from the unit before proceeding with the rack
installation.
CONSOLE
P134G2
51
FDX
15
52
COLLNK Tx Rx
1
13
23
14
8
20
5
17
100
4
16
6
18
7
19
10
22
9
21
OPR PWR
23
11 12
24
CONSOLE
P134G2
51
FDX
15
52
COLLNK Tx Rx
1
13
23
14
8
20
5
17
100
4
16
6
18
7
19
10
22
9
21
OPR PWR
23
11 12
24
Closed hinged end
Open hinged end
Screw
holes

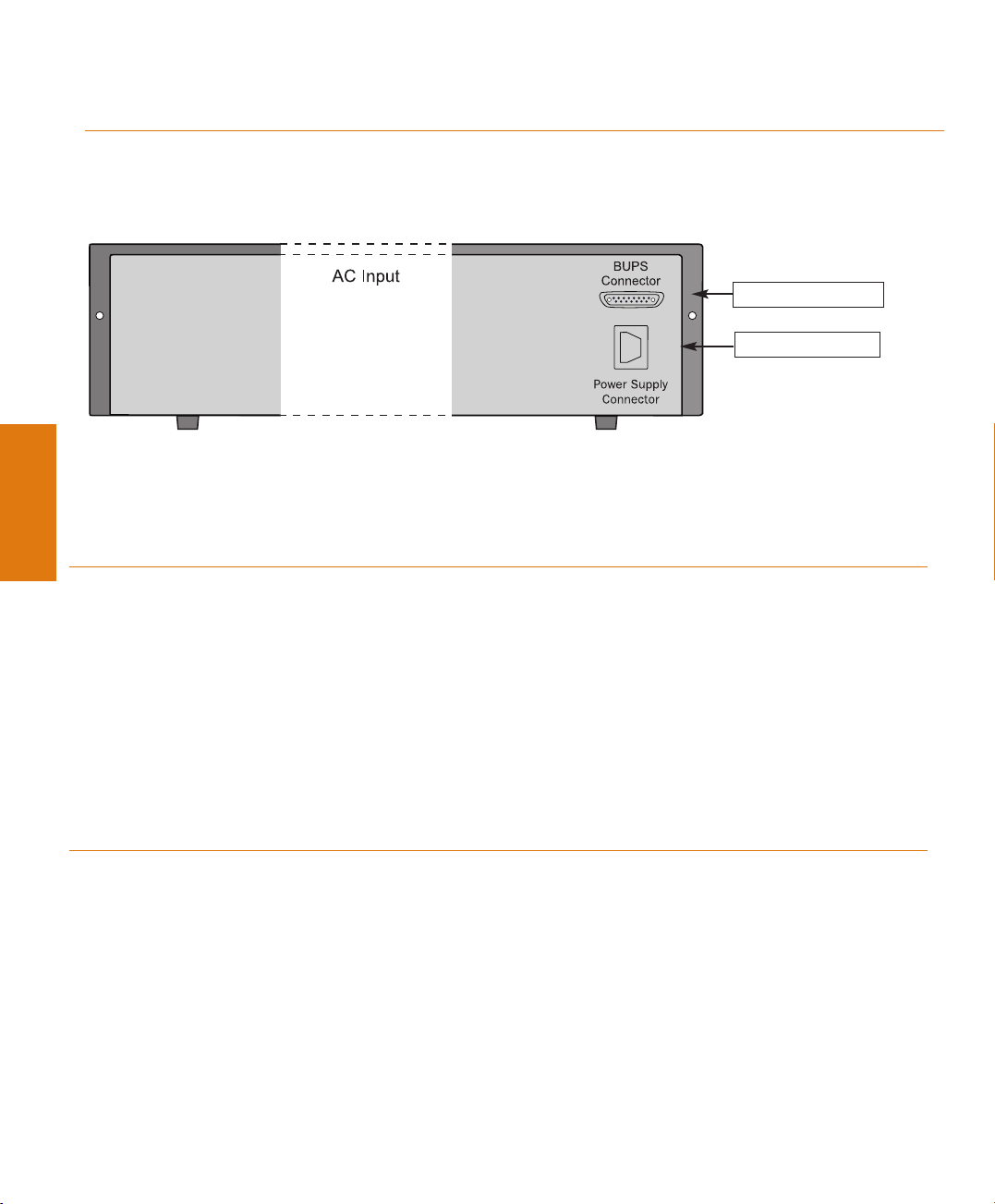

Power up
Avaya P130 AC Version
1. Insert the power cord into the power connector (BUPS or Power Supply) on the rear of the
unit.
2. Insert the other end of the power cord into the electricity supply or the BUPS connector.
The unit powers up and performs a self test procedure. The OPR AND PWR LEDs are
on after the self-test procedure is completed successfully.
Connect the cables
Connect PCs, servers, routers, workstations, and hubs
1. Connect the Ethernet connection cable (not supplied) to a 10/100 Mbps port on the front
panel of the P130.
You should use standard RJ-45 connections. You must use CAT-5 cable for 100 Mbps
operation.
2. Connect the other end of the cable to the Ethernet port of the PC, server, router, worksta-
tion, switch or hub.
Use a cross cable when connecting the P130 to a switch or hub.
3. Check that the appropriate link (LNK) LEDs light up.
Connect the console cable
1. Configure the serial port settings of the PC or terminal as follows: Baud Rate – 9600, Parity
– no, Data bits – 8, Stop bits – 1, Flow control – no.
2. Connect the supplied special RJ-45 connector to the port marked “Console” on the front
panel of the P130.
3. Connect the other end of the cable to a terminal or PC with terminal emulation software
installed.
3
BUPS connector
AC connector
12345678910 11 12
13 14 15 16 17 18 19 20 21 22 23 24
100M OPR
25-48 PWR
LNK COL Tx Rx FDX
51 52
4

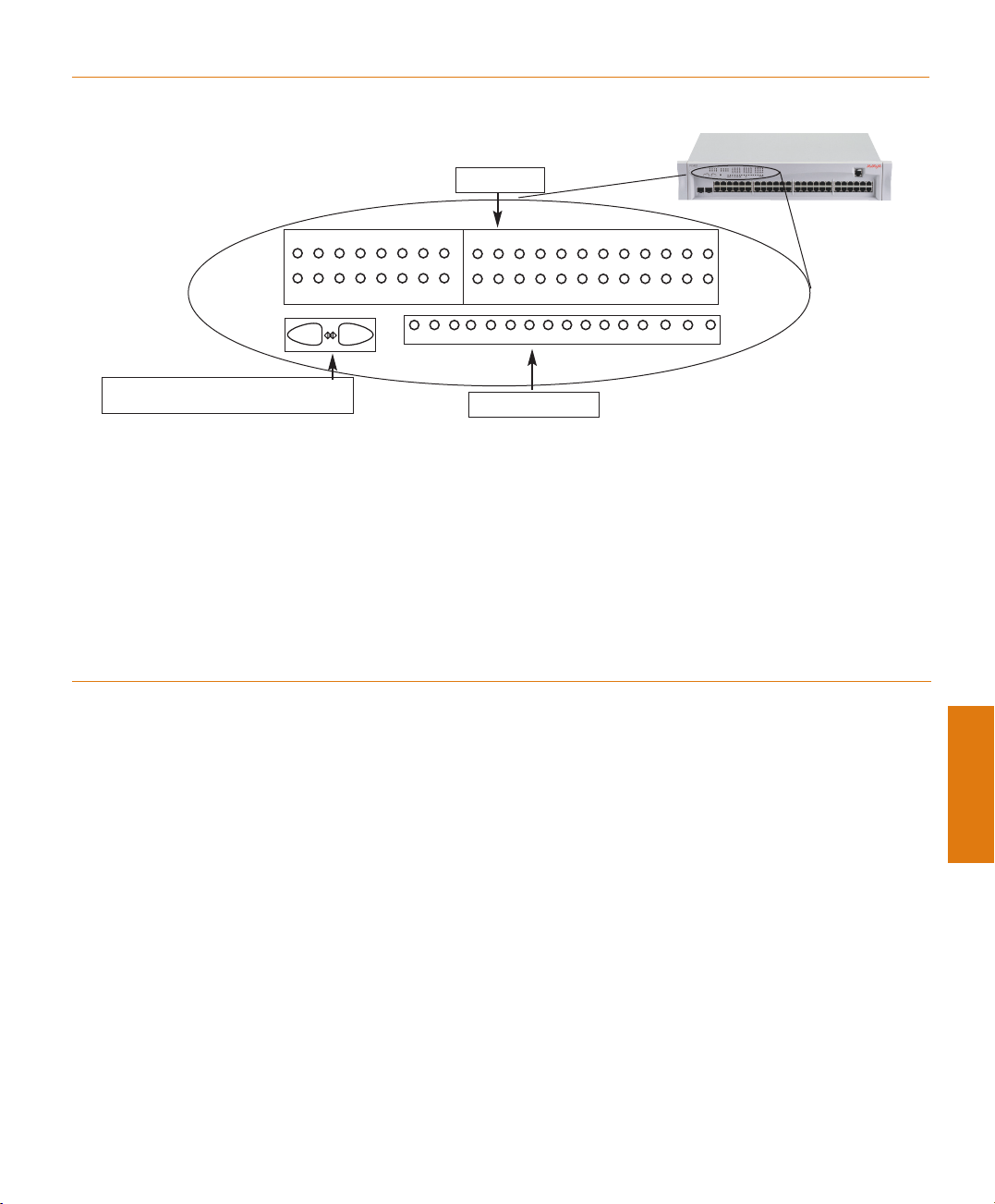

LNK – When ON, link is OK
COL – When ON, indicates a collision on the
line
Tx, Rx – Shows traffic activity for
transmitted and received packets
FDX – When ON, indicates Full Duplex mode.
When OFF, indicates Half Duplex mode.
100M – When ON, indicates port speed of
100 Mbps. When OFF, indicates port speed of
10/100 Mbps.
25-48 – When ON, the Port LEDs refer to
ports 25-48
OPR – Shows CPU boot and BIT status
Avaya P134G2 LEDs
Basic configuration
To connect a PC terminal or VT-100 terminal to the Avaya P130
1. If you are using a PC, initiate a VT-100 terminal emulation session using an application
such as Windows® HyperTerminal.
2. Press Enter.
The Welcome to Avaya P130 menu is displayed.
3. Type the User name root when prompted and press Enter.
4. Type the default password root when prompted and press Enter.
The P130-1(super)# prompt appears.
Left/Right & Reset Switches Function LEDs
Port LEDs
Setting the Parameters
If you wish to change the default parameters shown and configure the mandatory
parameters, we recommend that you use the Command Line Interface (CLI).
For further information, please refer to Chapter 6 of the Avaya P130 Documentation.
5
Assigning the Stack IP Address
Commands are shown as follows: set interface inband;
parameters which you need to enter are shown in
<>
as follows:
<vlan>
1. Type set interface inband
<vlan> <ip_address> <netmask>
replacing
<vlan>, <ip_address>
and
<netmask>
with the VLAN, IP address and net mask of
the stack and press Enter.
2. Type reset and press Enter to reset the stack.
3. After the Reset, perform login again as described above.
The P130-N(super)# prompt appears.
4. Type set ip route
<destination> <gateway>
, replacing
<destination>
and
<gateway>
with the destination and gateway IP addresses.
5. Press Enter to save the destination and gateway IP addresses.
Configuration Parameter Default Setting
Duplex Mode • 10/100BaseTX ports: Half duplex
• 100BaseFX ports/1000BaseF ports: Full duplex
Speed Mode • 10/100BaseTX ports: 10 M
• 100BaseFX ports: 100 M
• 1000BaseF ports: 1000M
Flow Control • Off
Flow Control Advertisement • 1000BaseF ports: Off
Autonegotiation • 10/100BaseTX ports/1000BaseF ports: Enabled
• 100BaseFX ports: Not applicable
Administration State Enabled
Port VLAN ID 1
Tagging Mode Clear
Port Priority 0
Spanning Tree Cost • 10/100BaseTX ports : 100
• 100BaseFX ports: 20
• 1000BaseF ports: 4
Spanning Tree Port Priority 80 Hex
5
Default Switch Parameters
Configuration Parameter Default Setting
P130 IP address 149.49.32.134
Default gateway 0.0.0.0
VLANs VLAN 1
Spanning tree Enabled
Bridge priority for Spanning Tree 32768
NTP server IP address 0.0.0.0
Timezone offset 0 hours
Read-only SNMP community string Public
Read-write SNMP community string Public
Trap SNMP community string Public
SNMP retries number 3
SNMP timeout 2000 Seconds
SNMP authentication trap Disabled
CLI timeout 15 Minutes
Default Port Parameters
Run the Web-Based Manager (optional)
To configure the Avaya P130 you can use the P130 Web-based Manager in addition to
using the CLI.
System Requirements
Minimum hardware and Operating System requirements are:
• Windows® 95 or NT® 4.0 or higher
• Pentium® 200 Mhz-based computer with 64 Mb of RAM (Pentium-II recommended)
• Minimum screen resolution of 1024 x 768 pixels
• Microsoft® Internet Explorer® 4 or higher or
Netscape Navigator® 4.xor higher
• Sun Microsystems Java™ plug-in (supplied on the “Documentation and Utilities” CD)
Refer to the Release Notes for the exact version of the Java plug-in
Running the Embedded Manager
Assign an IP address to the P130 before starting this procedure.
1. Open your browser.
2. Enter the URL of the switch in the format http://aaa.bbb.ccc.ddd
aaa.bbb.ccc.ddd is the IP address of the switch.
You are prompted to log into the switch.
The user name is “root”.
The default password for read-write access is “root”.
The Web management passwords are the same as those of the CLI. If you have created
additional CLI user names or changed the default passwords then you can use those
passwords for Web management as well.
The welcome page is displayed:
6
If you do not have the Java plug-in installed, follow the instructions on the Welcome
page that offers a variety of options to install the plug-in.
If the network manager has configured the system the plug-in should be installed auto-
matically.
If the plug-in is not installed automatically, there are three ways to install the plug-in
manually:
• Either install the plug-in from the “Documentation and Utilities” CD as follows:
1. Close all unnecessary applications on your PC.
2. Insert the “Avaya P130 Documentation and Utilities” CD in the CD drive.
3. Open Windows® Explorer.
4. Open the embweb-aux-files\ folder on the CD
5. Double click on the plugin_a_b_c.exe file (a, b and c are the version numbers of the
plug-in).
6. Follow the on-screen instructions.
• Or install the plug-in from the Web site by clicking on the link on the welcome page.
• Or, if the network manager has placed the files on the local site, install the plug-in from
there by clicking the link on the welcome page.
If you have the Java plug-in already installed or once you have successfully installed the
plug-in as described above, the Web-based manager opens in your browser.
6
Documentation and Online Help
Refer to the Avaya P130 Documentation and Utilities CD for full instructions
