Avenview HDM-SHAREPRO-IP Manuale utente
www.avenview.com
1
Remote Screen/Print Sharing Extender over
WIFI / LAN with KVM
Model #: HDM-SHAREPRO-IP
© 2012 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or warranties with
respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product deLCriptions at any
time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in
Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and diLClaims any express or implied warranty, relating to its
products including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.
Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.
www.avenview.com
2
Table of Contents
Section 1: Getting Started ...................................................................................................................... 3
1.1 Important Safeguards ............................................................................................................ 3
1.2 Safety Instructions ................................................................................................................. 3
1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4
1.4 Introduction ........................................................................................................................... 4
1.5 Package Contents................................................................................................................... 4
1.6 Before Installation.................................................................................................................. 5
1.7 Device Description & Layout.................................................................................................. 5
1.8 Installation A .......................................................................................................................... 6
1.9 Installation B .......................................................................................................................... 7
1.10 Installation of Driver and Control Software........................................................................... 8
1.11 Control Software.................................................................................................................... 9
1.12 Disconnect Software............................................................................................................ 10
Section 3: General Troubleshooting..................................................................................................... 11
Section 4: Specifications....................................................................................................................... 12
4.1 PIN & Wiring Standard Definition ........................................................................................ 13
www.avenview.com
3
Section 1: Getting Started
1.1 Important Safeguards
Please read all of these instructions carefully before you use the device. Save this manual for future
reference.
What the warranty does not cover
Any product, on which the serial number has been defaced, modified or removed.
Damage, deterioration or malfunction resulting from:
Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product
modification, or failure to follow instructions supplied with the product.
Repair or attempted repair by anyone not authorized by us.
Any damage of the product due to shipment.
Removal or installation of the product.
Causes external to the product, such as electric power fluctuation or failure.
Use of supplies or parts not meeting our specifications.
Normal wear and tear.
Any other causes which does not relate to a product defect.
Removal, installation, and set-up service charges.
1.2 Safety Instructions
The Avenview HDM-SHAREPRO-IP, RJ45 to HDMI Converter has been tested for conformity to safety
regulations and requirements, and has been certified for international use. However, like all electronic
equipment’s, the HDM-SHAREPRO-IP should be used with care. Read the following safety instructions to
protect yourself from possible injury and to minimize the risk of damage to the unit.
Do not dismantle the housing or modify the module.
Dismantling the housing or modifying the module may result in electrical shock or burn.
Refer all servicing to qualified service personnel.
Do not attempt to service this product yourself as opening or removing housing may expose you to
dangerous voltage or other hazards
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid
falls or spills on to the housing, unplug the module immediately.
Have the module checked by a qualified service engineer before using it again.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
www.avenview.com
4
1.3 Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this
equipment.
1.4 Introduction
HDM-SHAREPRO-IP is an ideal networking display solution; it allows multiple users on the same Ethernet
network to access the display without physically connect their computer directly to the display! The product
supports ONLY ONE connection at a time. Users can now enjoy their favorite multimedia content stored on
their computer from anywhere in their home or office. HDM-SHAREPRO-IP also act as a display extender that
supports up to 1920*1080 resolutions with primary display, mirror desktop and extended desktop video
modes!
Support 1080p Video over TCP/IP,LPR,DHCP,UPnP
Support USB Keyboard and Mouse Wired/Wireless
Supports 500mA electric current for every USB port;
Digital Video HDMI with Audio
Analog Video with VGA and Audio connection
Analog 3.5mm Audio out connection
Converts RJ45 to HDMI
Ethernet IEEE 802 3 10Base IEEE
Standards:802.3 10Base-T;802.3U 100Base-T
Network Interface:10/100/1000Mbps RJ45
Supports the resolution up to 1080p
Allows multiple users to share a Multi-Function Print (MFP) over a network to print, scan, and fax
from any networked computer;
Supports Windows 7,Vista and XP
1.5 Package Contents
Before you start the installation of HDM-SHAREPRO-IP, please check the STANDARD package contents.
-HDM-SHAREPRO-IP x 1
-Power Adapter (5VDC) x 1
-User Manual x 1
-Installation Disc x 1
www.avenview.com
5
1.6 Before Installation
Put the product in an even and stable location. If the product falls down or drops, it may cause an
injury or malfunction.
Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high
humidity.
Use the DC power adapter with correct specifications. If inappropriate power supply is used then it
may cause a fire.
1.7 Device Description & Layout
This product is composed of a Converter RJ45 to HDMI
FRONT PANEL & REAR PANEL (Transmitter, HDM-C6IP-S)
1. +5V DC: Connect to 5V DC power supply
3. USB INPUT: Connect ANY mouse/keyboard
wired/wireless adapter.
2. CAT/6: Plug in a CAT6 cable that is connected to
your router on the same IP Network
4. 3.5mm Jack: Stereo audio INPUT connection for
VGA connection.
5. 3.5mm Jack: Stereo audio OUTPUT connection for
VGA connection.
6. VGA: Connects to VGA Monitor with a male-male
cable.
7. HDMI OUT: Connects to a HDMI monitor with a
HDMI male-male cable
Note: Preferred CAT6 and Gigabit 10/1000 Router to ensure HD1080p resolution without delay in
transmission
Important Before starting the insulation please ensure that all devices are powered OFF
1
2
4
3
5
6
7
www.avenview.com
6
1.8 Installation A
Please ensure all the package contents are all received.
To setup Avenview HDM-SHAREPRO-IP follow these steps for connecting directly to a Monitor as a
CONVERTER:
1. Connect Converter to CPU with RJ45 cable; follow the standards of TIA-568BLAN
2. Connect your HDMI OR VGA display (such as a LCD TV/PLASMA) to the HDMI OR VGA Port on the
HDM-SHAREPRO-IP.
3. Make sure CAT-5E/6 LAN cable is tightly connected and not loose.
5. Plug in 5V DC power cord to the power jack of the transmitting unit HDM-SHAREPRO-IP.

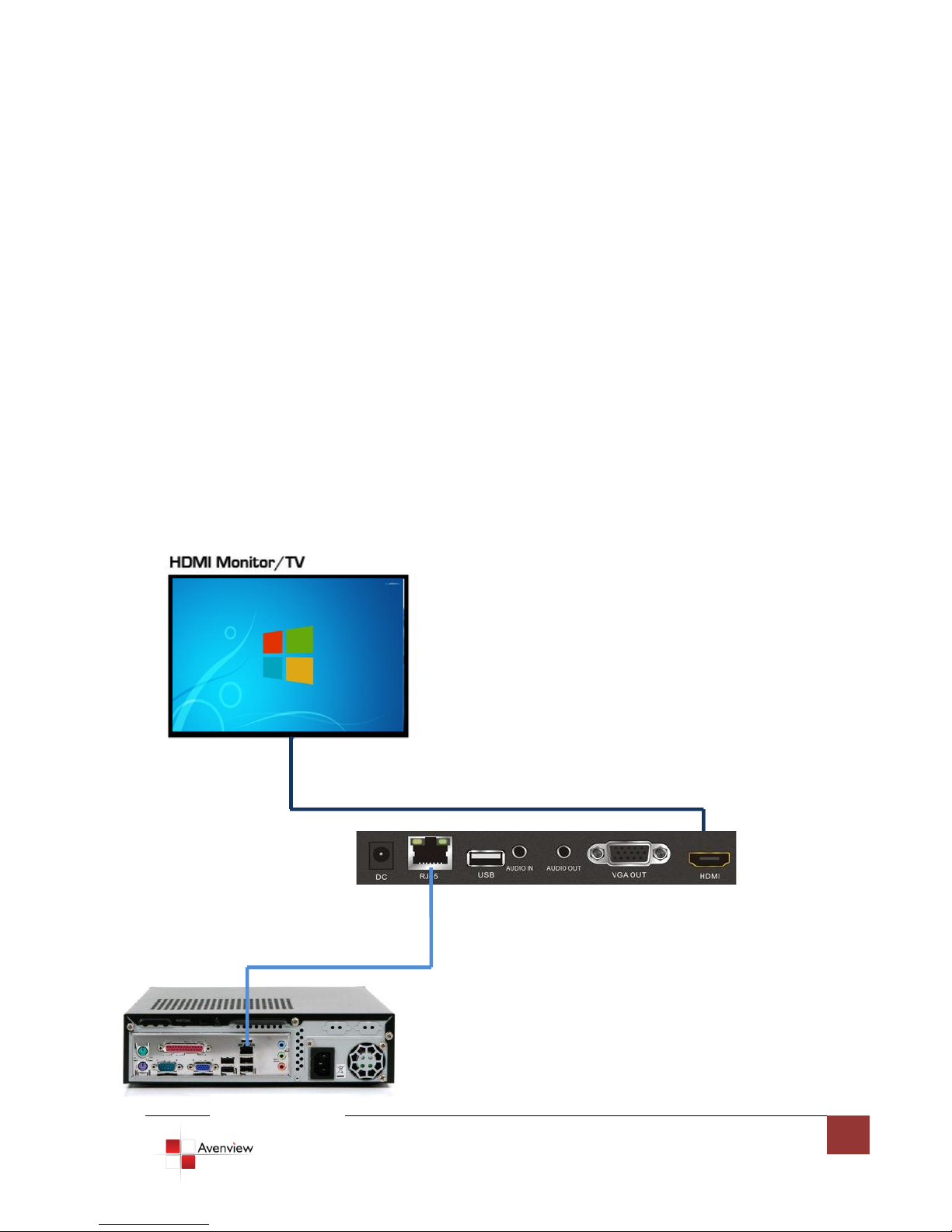

DIRECT CONNECTION
HDMI CABLE
CAT5E/6
COMPUTER
www.avenview.com
7
1.9 Installation B
Please ensure all the package contents are all received.
To setup Avenview HDM-SHAREPRO-IP follow these steps for connecting to a Remote Monitor.
1. Connect HDM-SHAREPRO-IP to Wireless or Wired Router with RJ45 cable at the desired Monitor; follow
the standards of TIA-568BLAN
2. Connect your HDMI OR VGA display (such as a LCD TV/PLASMA) to the HDMI OR VGA Port on the
HDM-SHAREPRO-IP.
3. Make sure CAT-5E/6 LAN cable is tightly connected and not loose.
5. Plug in 5V DC power cord to the power jack of the transmitting unit HDM-SHAREPRO-IP.
BOTH OFFICES CAN USE THIS PRODUCT ONCE THE SOFTWAR IS INSTALLED (NB: One at a Time)
ROUTER CONNECTION
BOARDROOM (IP10.0.1.105)
LAPTOP WIRELESS @ OFFICE 1 (IP10.0.1.107)
CPU WIRED @ OFFICE 2 (IP10.0.1.106)
www.avenview.com
8
1.10 Installation of Driver and Control Software.
Insert Disk and run the Driver.exe file
Select your preferred Language.
From Disk run the Software.exe file
Accept and wait for install to be completed automatically
When completed restart the computer.
You will experience brief periods of dark screens and /or resolution changes during this time.
www.avenview.com
9
1.11 Control Software
Step 1.
Double-click ICON USB Server file:
On first use, click search and then the software will search the HDM-SHAREPRO-IP automatically.
System will display video converter searched out
Click : (The preferred device to be connected-DISPLAY or MEDIA DEVICE)
Click B: (connect the device), the converter will be automatically connected.
Note :( The system will set up the driver automatically for the first connection) connect the required one by one.
Note :( It is normal if the display is black for seconds in this process.)
Step 2.
Open Control Panel/Display/Screen Resolution, the HDMI output resolution can be set.
Either or Both Selected
www.avenview.com
10
Take Windows 7 as example:
A. Select the display that needs to adapt. 1 Display is input computer and 2 Display is output device by default.
B. Set up the resolution
C. Set up the display direction
D. Set up the display mode
Note: Short-cut Function: Press”Win+P” to see the following images.
From left to right, Computer only, Duplicate, Extend and Projector only. You can easily switch display mode.
From left to right, Computer only, Duplicate, Extend and Projector only. You can easily switch display mode.
1.12 Disconnect Software
A. Select the device
B. Click the button to disconnect the chose device.
Short-cut function cannot be applied by some computers due to compatibility
