Avenview SPLIT-3GHDSDI-4RS Manuale utente

4 Port 3G/HD/SD-SDI

Splitter/DA with Reclocking

User’s Guide

makes no representations or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make

changes to specifications and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual

property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability

whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied warranty of merchantability,

fitness for a particular purpose, or infringement of any intellectual property right. Reproduction of this manual, or parts thereof, in any form, without the

express written permission of Avenview Inc. is strictly prohibited.

Model #: SPLIT-3GHDSDI-4RS

Page|2

www.avenview.com

TABLE OF CONTENTS

SECTION 1: GETTING STARTED........................................................................................................ 3

1.1 IMPORTANT SAFEGUARDS ................................................................................................ 3

1.2 SAFETY INSTRUCTIONS ..................................................................................................... 3

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC) .......... 4

1.4 INTRODUCTION................................................................................................................. 5

1.5 FEATURES ............................................................................................................................. 5

1.6 PACKAGE CONTENTS........................................................................................................ 5

1.7 BEFORE INSTALLATION ..................................................................................................... 6

SECTION 2: SPLIT-3GHDSDI-4RS ....................................................................................................... 6

2.1 PANEL DESCRIPTION.......................................................................................................... 6

2.2 INSTALLATION .................................................................................................................... 7

SECTION 3: SPECIFICATIONS ............................................................................................................ 8

SECTION 4: SIGNAL MEASUREMENTS ............................................................................................ 10

Page|3

www.avenview.com

SECTION 1: GETTING STARTED

1.1 IMPORTANT SAFEGUARDS

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product

modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 SAFETY INSTRUCTIONS

The SPLIT-3GHDSDI-4RS,

4 Port 3G/3G/HD/SD-SDI Splitter with Reclocking

have been tested for

conformance to safety regulations and requirements, and have been certified for international use. However, like

all electronic equipments, the SPLIT-3GHDSDI-4RSshould be used with care. Read the following safety

instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls

or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

Page|4

www.avenview.com

1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.

Warning symbols

Description

ONLY USE THE PROVIDED POWER CABLE OR

POWER ADAPTER SUPPLIED. DO NOT TAMPER

WITH THE ELECTRICAL PARTS. THIS MAY

RESULT IN ELECTRICAL SHOCK OR BURN.

DO NOT TAMPER WITH THE UNIT. DOING SO

WILL VOID THE WARRANTY AND CONTINUED

USE OF THE PRODUCT.

THE VIDEO BOARDS ARE VERY SENSITIVE TO

STATIC. PLEASE ENSURE IF RACK MOUNTED OR

INSTALLED ON A SURFACE, IT SHOULD BE IN A

GROUNDED ENVIROMENT.

Page|5

www.avenview.com

1.4 INTRODUCTION

The Avenview SPLIT-3GHDSDI-4RSreceives one SDI input, perfectly duplicates it, and re-transmits four SDI

outputs for real time multi-viewing. It is a reliable video device splitting a SDI, HD-SDI or 3G-SDI video source to

four SDI compliant displays at the same time.

1.5 FEATURES

-3G/HD/SD triple-rate distribution

-Four separately buffered and reclocked outputs

-Cable equalization (Belden 1694A) and signal retiming

-Dual color LED indication of input lock and rate

-Pass all ancillary data

-Provides automatic input cable equalization up to 300m (1000ft)@SD, 150m (500ft)@HD and

60m(190ft)

-Reclocking SDI signals for cascading and thus longer transmission

-Inter-locked power supply for better fixedness

1.6 PACKAGE CONTENTS

Before you start the installation of the converter, please check the package contents.

-SPLIT-3GHDSDI-4RS

-Power Adapter (+5V 4A DC)

USER’S MANUAL

Page|6

www.avenview.com

1.7 BEFORE INSTALLATION

Put the product in an even and stable location. If the product falls down or drops, it may cause an injury

or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high

humidity.

Use the DC power adapter with correct specifications. If inappropriate power supply is used then it may

cause a fire.

Do not twist or pull by force ends of the coaxial cable. It can cause malfunction.

SECTION 2: SPLIT-3GHDSDI-4RS

2.1 PANEL DESCRIPTION

FRONT PANEL

1. 3G/3G/HD/SD-SDI Input

2. LED –Reserved

3. LED –Power Indicator

4. 5V DC Power Jack

REAR PANEL

5. 3G/3G/HD/SD-SDI Output 1-4

Page|7

www.avenview.com

2.2 INSTALLATION

Follow these instructions for installation of SPLIT-3GHDSDI-4RS:

1. Ensure SPLIT-3GHDSDI-4RSand all other source devices are turned off

2. Connect a camera or other 3G/HD/SD-SDI device to Input of SPLIT-3G4HDSDI-4RS

3. Connect devices equipped with 3G/HD/SD-SDI inputs (e.g. monitors or video processors) to

SPLIT-3GHDSDI-4RSoutputs

4. Turn ON all devices connected to output of SPLIT-3GHDSDI-4

5. Plug power adapter to 5V DC power jack of SPLIT-3GHDSDI-4

Page|8

www.avenview.com

SECTION 3: SPECIFICATIONS

ITEM

DESCRIPTION

MODEL

SPLIT-3GHDSDI-4RS

SDI STANDARDS

SD/HD/3G-SDI

AUTO 3G/HD/SD-SDI

DETECTION

Yes

SUPPORTED PROTOCOLS

SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE425M

VIDEO BANDWIDTH

[2.97Gpbs & 2.97/1.001Gbps]

DATA RATES

270 / 1483 / 1485 / 2970 Mbps

SUPPORTED VIDEO

[HD] 720p50/59.94/60, 1035i50/59.94/60, 1080i50/59.94/60, 1080p24/30

[SD] [email protected], PAL@50Hz

SDI SIGNAL TYPE

SMPTE-292M, SMPTE-259M

OUTPUT IMPEDANCE

75

RECLOCKING FUNCTION

YES

CABLE EQUALIZATION

[3G] up to 60m (190ft) / [HD] up to 150m (500ft) / [SD] up to 300m (1000ft)

AUDIO SUPPORT

Yes

RP-918 PATHOLOGICAL

PATTERNS

Immune

PCB STACK UP

4-layer board [impedance control —differential 100; single 50]

INPUT CONNECTORS

1x BNC [SDI]

OUTPUT CONNECTORS

4x BNC [SDI]

BNC CONNECTOR

75inter-locked socket

EYE PATTERN

CHARACTERISTICS

Amplitude: Within 800mV ±3% (<10%)

Rise overshoot: Less than 2% (<10%)

Fall overshoot: Less than 2% (<10%)

Long time jitter: 0.195μ(<1.0μ)

Timing jitter: 0.195μ(<1.0μ)

Alignment jitter: 0.127μ(<0.2μ)

DIMENSIONS

5.7” x 3.2” x 1” (L x W x H)

WEIGHT

300g

POWER SUPPLY

5V 4A DC (Inter-locked power supply)

POWER CONSUMPTION

10 Watts (max)

OPERATING TEMPERATURE

0~40°C [32~104°F]

STORAGE TEMPERATURE

-20~60°C [-4~140°F]

RELATIVE HUMIDITY

20~90% RH [no condensation]

Page|9

www.avenview.com

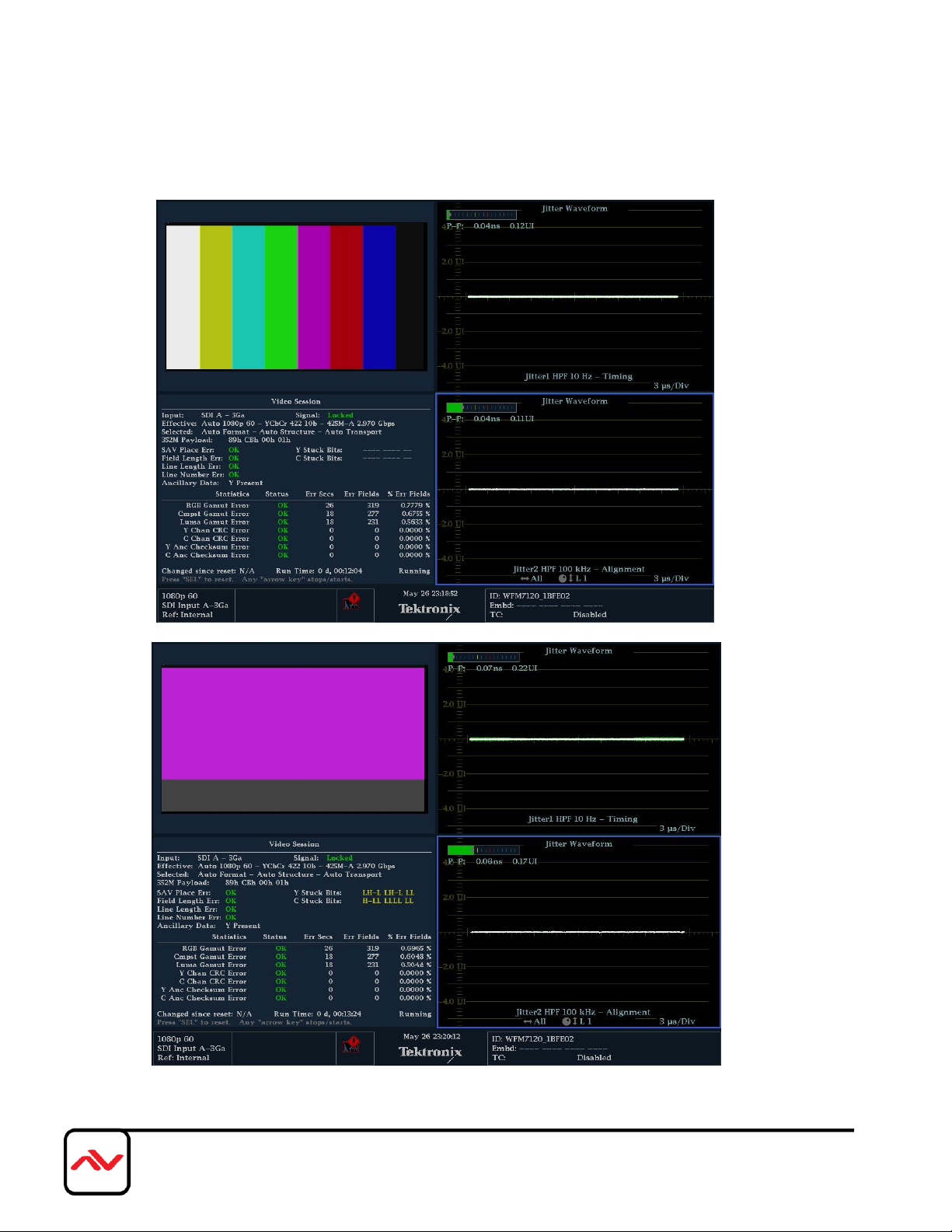

NOTE:

SIGNAL MEASUREMENTS RESULTS WAS TESTED BY TEKTRONIX

MEASUREMENT DEVICE USING BELBEN 1694A HD/SDI 18 AWG LOW LOSS

SERIES DIGITAL COAX CABLE.RG-6/U TYPE, 18 AWG SOLID .040" BARE COPPER

CONDUCTOR, GAS-INJECTED FOAM HDPE INSULATION, DUOFOIL®

+TINNED COPPER BRAID SHIELD (95% COVERAGE), PVC JACKET

Page|10

www.avenview.com

SECTION 4: SIGNAL MEASUREMENTS
