System 5 Installation Guide

Legal Notices

whole or in part without the written consent of Avid.

003, 96 I/O, 96i I/O, 192 Digital I/O, 192 I/O, 888|24 I/O, 882|20 I/O,

1622 I/O, 24-Bit ADAT Bridge I/O, AudioSuite, Avid, Avid DNA, Avid Mojo,

Avid Unity, Avid Unity ISIS, Avid Xpress, AVoption, Axiom, Beat Detective,

Bomb Factory, Bruno, C|24, Command|8, Control|24, D-Command, D-Control,

D-Fi, D-fx, D-Show, D-Verb, DAE, Digi 002, DigiBase, DigiDelivery, Digidesign,

Digidesign Audio Engine, Digidesign Intelligent Noise Reduction, Digidesign

TDM Bus, DigiDrive, DigiRack, DigiTest, DigiTranslator, DINR, DV Toolkit,

EditPack, Eleven, HD Core, HD I/O, HD MADI, HD OMNI, HD Process, Hybrid,

Impact, Interplay, LoFi, M-Audio, MachineControl, Maxim, Mbox,

MediaComposer, MIDI I/O, MIX, MultiShell, Nitris, OMF, OMF Interchange, PRE,

ProControl, Pro Tools, Pro Tools|HD, QuickPunch, Recti-Fi, Reel Tape, Reso,

Reverb One, ReVibe, RTAS, Sibelius, Smack!, SoundReplacer, Sound

Designer II, Strike, Structure, SYNC HD, SYNC I/O, Synchronic, TL Aggro,

TL AutoPan, TL Drum Rehab, TL Everyphase, TL Fauxlder, TL In Tune,

TL MasterMeter, TL Metro, TL Space, TL Utilities, Transfuser, Trillium Lane Labs,

Vari-Fi Velvet, X-Form, and XMON are trademarks or registered trademarks of Avid

Technology, Inc. Xpand! is Registered in the U.S. Patent and Trademark Office.

All other trademarks are the property of their respective owners.

Product features, specifications, system requirements, and availability are

subject to change without notice.

Guide Part Number 9329-65128-00 REV A 08/11

Documentation Feedback

We are always looking for ways to improve our documentation. If you have

comments, corrections, or suggestions regarding our documentation, email us

at [email protected].

Contents iii

Contents

Chapter 1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

System Requirements and Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

About This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

About www.avid.com . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Chapter 2. System 5 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

I/O Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

System Control Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Estimating System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

System 5 Module and Component Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Chapter 3. System 5 Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Console Component Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Console Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Chapter 4. Connecting System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Facility Power Quality Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Typical Room and Equipment Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Audio Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Synchronization Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

MADI Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Control Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

System 5 Console and Module Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Appendix A. Compliance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Environmental Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

EMC (Electromagnetic Compliance). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Safety Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

System 5 Installation Guideiv

Chapter 1: Introduction 5

Chapter 1: Introduction

System 5 is an elaborately featured digital audio mixing system that can be configured to meet the requirements of large-scale

film production, on-air broadcast, post-production, and music.

System 5 features and options include:

• Scalable control surface with application-specific controls, such as dual joysticks with a film monitor panel

• Scalable DSP mix engine

• Flexible I/O system

• Integrated MADI router

• Serial machine control interface

•GPIO

System Requirements and Compatibility

Avid can only assure compatibility and provide support for hardware and software it has tested and approved.

For complete system requirements and a list of qualified computers, operating systems, hard drives, and third-party devices, visit:

www.avid.com/compatibility

About This Guide

This guide provides a basic overview of System 5 features and functionality.

For complete instructions on connecting and configuring your system, see the System 5 Installation Guide.

Conventions Used in This Guide

All of our guides use the following conventions to indicate menu choices and key commands:

The names of Commands, Options, and Settings that appear on-screen are in a different font.

The following symbols are used to highlight important information:

Convention Action

File > Save Choose Save from the File menu

Control+N Hold down the Control key and press the N key

Control-click Hold down the Control key and click the mouse button

Right-click Click with the right mouse button

User Tips are helpful hints for getting the most from your system.

Important Notices include information that could affect your data or the performance of your system.

Shortcuts show you useful keyboard or mouse shortcuts.

Cross References point to related sections in this guide and other Avid guides.

System 5 Installation Guide6

About www.avid.com

The Avid website (www.avid.com) is your best online source for information to help you get the most out of your system.

The following are just a few of the services and features available.

Product Registration

Support and Downloads

Contact Avid Customer Success (technical support); download software updates and the latest online manuals; browse the

Compatibility documents for system requirements; search the online Knowledge Base or join the worldwide Avid user

community on the User Conference.

Training and Education

Study on your own using courses available online or find out how you can learn in a classroom setting at a certified Avid training

center.

Products and Developers

Learn about Avid products; download demo software or learn about our Development Partners and their plug-ins, applications,

and hardware.

News and Events

Get the latest news from Avid or sign up for a demo.

Chapter 2: System 5 Overview 7

Chapter 2: System 5 Overview

This chapter provides a basic overview of the System 5 theory of operation, I/O solutions, and system requirements.

Chapter 3, “System 5 Console” presents the console in detail, including physical and environmental specifications.

Chapter 4, “Connecting System Components” illustrates how to interconnect system modules and components.

Theory of Operation

The primary components of System 5 are the DF66 or DF70 SuperCore mix engine, control surface modules, the SC264 System

Computer, and the CO600 MADI Changeover Switch (used in broadcast redundancy configurations). These devices, along with

TCP/IP-controlled devices such as the Modular I/O Remote Preamps, communicate via a 100 Base-T star network.

The SC264 contains the GPIO and serial machine control interface. Secondary peripheral devices, such as the ML530 Mic-Line In-

terface and the MC524 Monitor Interface, connect to the SC264 System Computer and communicate via the System 5 TCC serial

protocol. All Avid I/O devices interface via MADI and connect directly to the DF66 or DF70 SuperCore, or to the CO600 MADI

Changeover Switch.

Digital Signal Processing

The DF66 or DF70 SuperCore performs all System 5 audio processing and routing (Dynamics, EQ, mix busses, aux sends, and

monitor busses). The DF66 can be fitted with up to six SP663 DSP Line cards, each of which provides four MADI I/Os. For systems

that demand more DSP, the DF70 has eight cards that supports up to 454 channels at 48 kHz or 222 channels at 96 kHz. The

actual DSP is allocated using factory-supplied Mixer Model files that provide different numbers of busses and channels.

The number of SP663 Line cards required in a system depends on the number of logical channels desired: a mono input uses one

logical channel, a stereo input uses two, and a 7.1 input uses eight.

The following devices can be used for non-redundant DSP configurations:

• SC264D (1–2 cards)

• SC264 + DF66 (1–6 cards)

• SC264 + DF70 (8 cards)

In broadcast redundancy configurations, two identical DF66s operate in parallel, one as primary and the other as backup. Each

connects to the CO600 MADI Changeover Switch, which monitors the performance of both. If the primary DF66 fails, the backup

is automatically placed online.

The following devices can be used for redundant DSP configurations:

• SC264D + DF66 + CO600 (1–2 cards)

• SC264 + DF66x2 + CO600 (1–6 cards)

SuperCores with six or more SP663 Line Cards require Avantech modules with 1 GB RAM.

All DSP card versions must run the most current firmware. See instructions with the update software.

System 5 Installation Guide8

TT002B

The TT002B is a single-port, RS422 (Sony 9-pin) USB device and MMC machine controller that ships with all System Computers.

The TT002B locks to a machine and reads LTC more quickly than the devices it replaced (TT002, TT007, MOTU Midi Interface,

and GP132). To control more than one machine, a Sound Master, Colin Broad RM6, or similar device is required.

The System 5 software can auto-sense the TT002B. The setup options are done from the Machines page on the CM401T, and the

System Preferences Page. The timecode source, frame rate, track arming length, and fast forward/rewind speeds can all be set from

the System Preferences page. The CM401T TFT displays the selected frame count and incoming frame rate.

A TT003 machine controller is available for dual-operator System 5 configurations. It is physically different from the TT002 and

requires different firmware. An additional USB port is provided to connect the two System Computers.

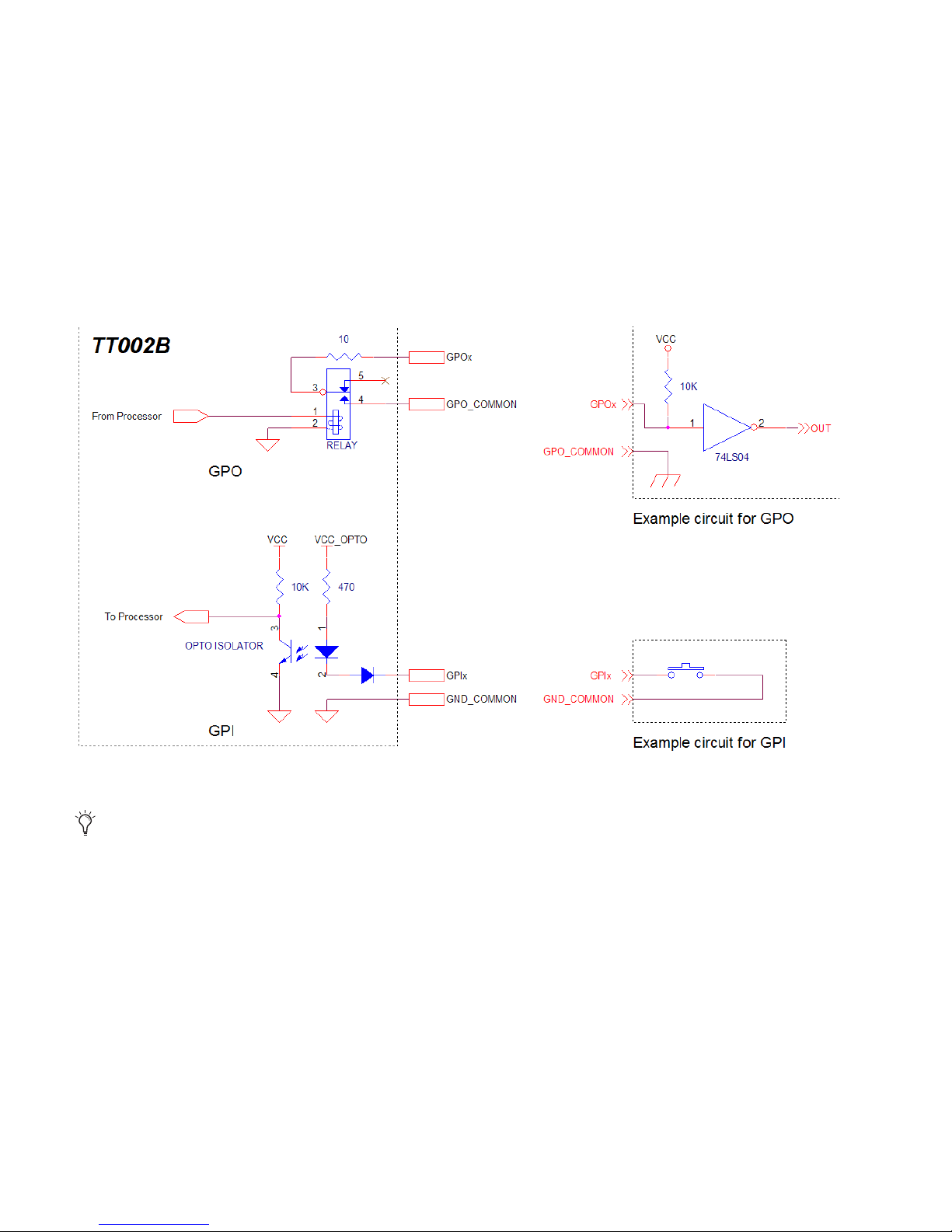

The following diagram shows the TT002B’s GPI circuit.

TT002B GPI input and output circuit diagrams

The TT002 is not a synchronizer.

Chapter 2: System 5 Overview 9

TT002B GPI input and output wiring chart

External

37 way

Female D-

Type

Internal

board

header

External

37 way

Female D-

Type

Internal

board

header

GPI 1

GPI 17

20 2 GPO 1 20 2 GPO 17

GPI 2

GPI 18

21 4 GPO 2 21 4 GPO 18

GPI 3

GPI 19

22 6 GPO 3 22 6 GPO 19

GPI 4

GPI 20

23 8 GPO 4 23 8 GPO 20

GPI 5

GPI 21

24 10 GPO 5 24 10 GPO 21

GPI 6

GPI 22

25 12 GPO 6 25 12 GPO 22

GPI 7

GPI 23

26 14 GPO 7 26 14 GPO 23

GPI 8

GPI 24

27 16 GPO 8 27 16 GPO 24

GPI 9

GPI 25

28 18 GPO 9 28 18 GPO 25

GPI 10

GPI 26

29 20 GPO 10 29 20 GPO 26

GPI 11

GPI 27

30 22 GPO 11 30 22 GPO 27

GPI 12

GPI 28

31 24 GPO 12 31 24 GPO 28

GPI 13

GPI 29

32 26 GPO 13 32 26 GPO 29

GPI 14

GPI 30

33 28 GPO 14 33 28 GPO 30

GPI 15

GPI 31

34 30 GPO 15 34 30 GPO 31

GPI 16

GPI 32

35 32 GPO 16 35 32 GPO 32

GND(for GPI1~16)

GND(for GPI17~32)

36 34 COM1 (for GPO1~4) 36 34 COM1 (for GPO17~20)

18 35 COM2 (for GPO5~8) 18 35 COM2 (for GPO21~24)

37 36 COM3 (for GPO9~12) 37 36 COM3 (for GPO25~28)

19 37 COM4 (for GPO13~16) 19 37 COM4 (for GPO29~32)

System 5 Installation Guide10

Control Surface

Each control surface must include one CM401T Master Module and at least one CM408T Eight-Fader Module. The System 5 control

surface modules are listed in the table below. Depending on the system configuration, the surface modules may have redundant

PSUs.

Sources

A System 5 fader can control one source at a time. Each source may be assigned a variety of formats, from mono to 7.1, and re-

quires one or more logical channels. For example, a mono source requires one channel, a stereo source requires two, and a

7.1-channel source requires eight. This means that a fader assigned to a 7.1-channel source is controlling eight logical channels

simultaneously.

Physical Faders

Each CM408T module has eight fader strips. Two sources in any format can be assigned to a fader strip, but only one can be con-

trolled at a time. The fader strip’s Swap button switches between the two sources: When the Swap button is lit, the fader controls

the Swap layer, otherwise it controls the Main layer.

Layouts

Source assignments to console faders can be saved using a Layout, which can map the entire console or just a selected number of

faders. Layouts can be named, stored, and recalled to instantly remap the console surface. Recalling a Layout that does not in-

clude all faders remaps only those in the Layout.

Consider two Layouts using a console with one CM408T with eight physical faders:

• Layout 1 could recall 16 stereo sources assigned to the faders (eight Main, eight Swap), resulting in 32 logical channels.

• Layout 2 could recall 16 5.1-channel sources assigned to the faders (eight Main, eight Swap), resulting in 96 logical channels.

System Configuration

The SC264 System Computer runs the eMix software, provides the primary console configuration interface, and performs file

management functions. The computer also houses the TCC serial interface for monitor control, GPIO, and serial machine control.

System 5 Control Surface Modules

CM401T Master control module with configuration interface

CM402T Expanded channel module with eight faders

CM403 Dual joystick and film monitor panel

CM408T Eight-fader module

CM409F* Blank section, same size as the CM408T

CM409H* Half-width blank section

CM409HTP Half-width section with a trackball panner

CM411 VGA input module with optional dual joysticks

Facilities often install a larger console frame than is required for the initial surface module configuration. This can support

future expansion or fulfill physical requirements for console access. Blank sections such as the CM409F and CM409H can

fill otherwise empty spaces in the frame.

Altri manuali per System 5

Indice

Altri manuali Avid Technology Mixer musicale

Avid Technology

Avid Technology S4 Manuale utente

Avid Technology

Avid Technology VENUE S6L Manuale utente

Avid Technology

Avid Technology S6L Control Surface Manuale utente

Avid Technology

Avid Technology S6L Control Surface Manuale per l'uso e la cura

Avid Technology

Avid Technology S3 Manuale utente

Avid Technology

Avid Technology VENUE E6L Manuale utente

Avid Technology

Avid Technology VENUE D-Show Manuale utente

Avid Technology

Avid Technology 9320-65044-00 Manuale utente

Avid Technology

Avid Technology Pro Tools S6 Master Post Module Manuale utente

Avid Technology

Avid Technology S6L Control Surface Manuale utente

Avid Technology

Avid Technology S6L Control Surface Manuale utente

Avid Technology

Avid Technology S6L Control Surface Manuale utente

Avid Technology

Avid Technology S6L Control Surface Manuale di istruzioni

Avid Technology

Avid Technology Mbox Pro Manuale utente

Avid Technology

Avid Technology S6L Control Surface Manuale utente

Avid Technology

Avid Technology S6L Control Surface Manuale utente

Avid Technology

Avid Technology Pro Tools S6 Master Post Module Manuale utente

Avid Technology

Avid Technology VENUE E6L Manuale utente

Avid Technology

Avid Technology VENUE SC48 Manuale utente

Avid Technology

Avid Technology S3 Manuale per l'uso e la cura

Avid Technology

Avid Technology System 5-MC Manuale utente

Avid Technology

Avid Technology S1 Manuale utente

Avid Technology

Avid Technology MC Pro Manuale utente

Avid Technology

Avid Technology VENUE D-Show Sidecar Manuale utente

Manuali Mixer musicale popolari di altre marche

Neve

Neve 8816 Manuale utente

Mackie

Mackie Onyx Analogue Mixer Manuale utente

Behringer

Behringer EUROPOWER PMP518M Manuale utente

Peavey

Peavey S-32 Sanctuary Series Manuale utente

Rane

Rane MP 4 Manuale utente

True

True T9 Touchscreen Console Manuale utente

Studiomaster

Studiomaster Air Pro 24 Manuale utente

Pioneer

Pioneer SVM 1000 - Audio/Video Mixer Manuale utente

Roland

Roland M-160 Manuale utente

Yamaha

Yamaha MR1642 Manuale utente

Ecler

Ecler MAC40v Manuale utente

Pioneer

Pioneer DJM 909 - Battle Mixer W/Effects Manuale utente

Veeder-Root

Veeder-Root TLS-350 Series Manuale utente

Alto

Alto APM80.QUAD Manuale utente

Omnitronic

Omnitronic PM-211 Manuale utente

SoundCraft

SoundCraft B400 Manuale utente

Roland

Roland SoundCanvas SC-8820 Manuale utente

CARVIN

CARVIN RX 1200 Manuale utente
