Avision DS610CF Manuale utente
DS610CF
User's Manual
(D/N: 250-0245-E Rev. 1.0)
Avision, Inc
-ii
Trademarks
Microsoft is a U.S. registered trademark of Microsoft Corporation.
Windows and MS-DOS are trademarks of Microsoft Corporation.
IBM, PC, AT, XT are registered trademarks of International
Business Machines Corp.
Other brands and product names herein are trademarks or registered
trademarks of their respective holders.
Copyright
All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated
into any language or computer language, in any form or by any
means, electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise, without the prior written permission of the
manufacturer.
Material scanned by this product may be protected by governmental
laws and other regulations, such as copyright laws, the customer is
solely responsible for complying with all such laws and regulations.
iii
Warranty
The information contained in this document is subject to change
without notice.
The manufacturer makes no warranty of any kind with regard to this
material, including, but not limited to, the implied warranties of fitness
for a particular purpose.
The manufacturer shall not be liable for errors contained herein or for
incidental or consequential damages in connection with the furnishing,
performance, or use of this material.
-iv
FCC Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communication. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance,(example- use only
shielded interface cables when connecting to computer or peripheral devices).
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Responsible Party: AVISION LABS INC.
6815 Mowry Ave. Newark CA 94560,
Telephone No.: USA
+1 (510) 739-2369
v
Table of Contents
1. INTRODUCTION................................................................................................1-1
2. DS610CF INSTALLATION..............................................................................2-1
2.1 PRECAUTIONS.............................................................................................2-1
2.2 UNLOCKING THE DS610CF.......................................................................2-2
2.3 CONNECTING THE CABLE........................................................................2-3
2.3.1 CONNECTING DS610CF TO WORK AS A COPIER....................2-3
2.3.2 CONNECTING DS610CF TO WORK AS A SCANNER.................2-4
2.4 DOCUMENT PLACEMENT........................................................................2-5
3.USING DS610CF AS A COPIER......................................................................3-1
3.1 THE CONTROL PANEL..............................................................................3-1
3.2 BEFORE MAKING COPIES.........................................................................3-5
3.3 MAKING SIMPLE COPIES .........................................................................3-6
3.4 MAKING COPIES WITH COPY FEATURES...........................................3-7
3.4.1 MIRROR FUNCTION ..........................................................................3-7
3.4.2 ENLARGING OR REDUCING YOUR ORIGINAL...........................3-8
3.4.3 AUTO ZOOMING YOUR ORIGINAL.................................................3-9
3.4.4 CHANGING YOUR COPY DENSITY..............................................3-10
3.4.5 CHANGING COLOR INTENSITY...................................................3-11
3.4.6 CHOOSING YOUR COPY QUANTITY...........................................3-12
3.4.7 ENHANCING YOUR COPY QUALITY...........................................3-13
3.4.8 FOCUS ON PHOTO COPY, TEXT COPY, OR MIXED PHOTO
& TEXT COPY.............................................................................................3-14
3.4.9 MAKING COPIES OF A 3D OBJECT............................................3-15
3.4.10 AUTOMATIC POWER SAVING....................................................3-16
4. USING DS610CF AS A SCANNER..............................................................4-17
4.1 INSTALLATION PROCEDURE................................................................4-17
4.2 DOWNLOADING PRINTER COLOR TABLE........................................4-19
4.3 UNINSTALLING THE DS610CF DRIVER................................................4-24
5. SCANNER OPERATION & DOCUMENT PRINTING..................................5-1
5.1 IMAGE TYPE.................................................................................................5-3
5.2 SCANNING PARAMETERS & IMAGE CONTROL................................5-5
-vi
5.3 SCANNING..................................................................................................5-11
5.4 PRINTING....................................................................................................5-12
6. MAINTENANCE..................................................................................................6-1
7. TROUBLESHOOTING......................................................................................7-1
7.1 QUESTIONS AND ANSWERS...................................................................7-1
7.2 TECHNICAL SERVICE.................................................................................7-4
8. SPECIFICATION................................................................................................8-1
9. DS610CF AUTOMATIC DOCUMENT FEEDER(ADF) USER’S GUIDE...9-1
9.1 INSTALLING THE ADF..............................................................................9-1
9.1.1 UNPACK THE ADF.............................................................................9-1
9.1.2 INSTALLING THE ADF.......................................................................9-2
9.1.3 UNLOCKING THE DS610CF............................................................9-4
9.1.4 CONNECTING THE CABLES............................................................9-5
9.2 USING THE ADF..........................................................................................9-6
9.2.1 FANNING PAPER BEFORE USAGE................................................9-6
9.2.2 LOADING THE PAPER.......................................................................9-7
9.2.3 STARTING YOUR FIRST COPY.........................................................9-7
9.2.4 STARTING YOUR FIRST SCAN.........................................................9-9
9.3 MAINTAINING THE ADF........................................................................9-13
9.3.1 CLEANING THE ADF......................................................................9-13
9.3.2 REPLACING THE ADF SNAP-IN PAD MODULE.......................9-15
9.4 HOW TO CLEAR THE PAPER JAM.......................................................9-17
1-1
1. INTRODUCTION
Congratulations on your purchase of DS610CF.
The DS610CF produces better printing quality and is free
from maintenance, compared with traditional copy machines.
Its high printing quality, maintenance-free operation and
affordability make DS610CF the best convenience copier
solution for office.
The following sections introduce the unpacking, hardware
and software installation, the operation, and maintenance
information to you. Please spend a few minutes reading
through them to keep quality scanning result possible.
Figure 1-1 shows how the DS610CF is packed. Please
check all the items against Figure 1-1. If there is any missing
or damaged, please contact your nearest dealer immediately
for the replacement.
-1-2
1. Software CD
2. Power Adapter
3. DS610CF Cable
4. Quick Installation Guide
5. DS610CF main unit
Figure 1-1 DS610CF packing
1
5
2
3
4
2-1
2. DS610CF INSTALLATION
2.1 PRECAUTIONS
Ÿ Keep the DS610CF out of direct sunlight. Direct
exposure to the sun or excessive heat may cause damage
to the unit.
Ÿ Do not install the DS610CF in a humid or dusty place.
Ÿ Be sure to use the proper AC power source.
Ÿ Place the DS610CF securely on an even, flat surface.
Tilted or uneven surfaces may cause mechanical or paper-
feeding problems.
Ÿ Retain the DS610CF box and packing materials for
shipping purposes.
-2-2
2.2 UNLOCKING THE DS610CF
To protect the scanning head from damage during shipment,
the DS610CF is designed with a lock switch beneath the
main unit. Therefore, before using the DS610CF, it is
required to unlock DS610CF by moving the lock switch to
the Use position.(See Figure 2-1)

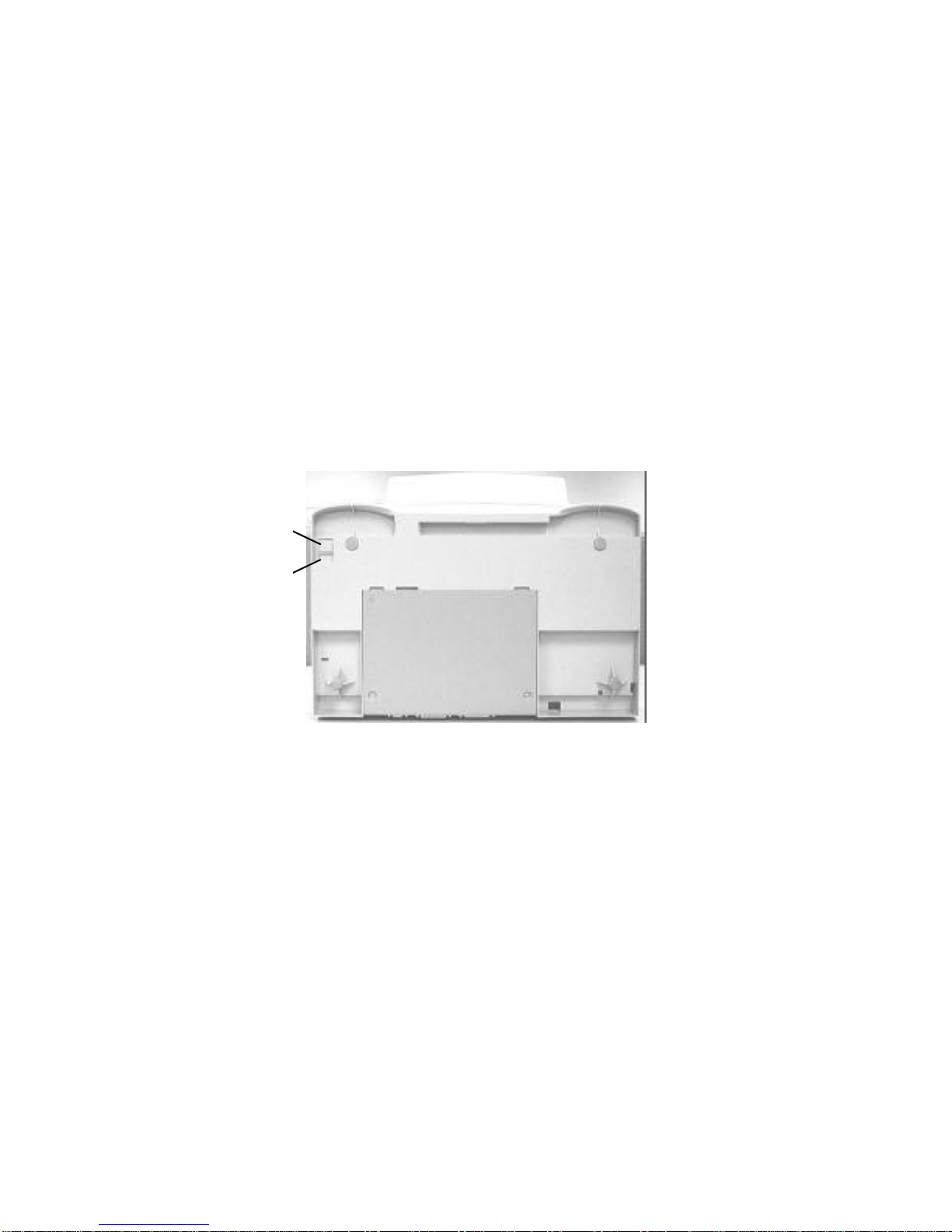

1. “Shipping” Position 2. “Use” Position
Figure 2-1 Unlocking the DS610CF
1
2
