Avision AV630C Manuale utente
AV630C
Color Image Scanner
User's Manual
Version 1.0
(D/N 250-0117-E)
Avision Inc. 1997
ii
Trademarks
Microsoft is a U.S. registered trademark of Microsoft Corporation.
Windows and MS-DOS are trademarks of Microsoft Corporation.
IBM, PC, AT, XT are registered trademarks of International
Business Machines Corp.
Other brands and product names herein are trademarks or
registered trademarks of their respective holders.
Copyright
All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language or computer language, in any
form or by any means, electronic, mechanical, magnetic, optical,
chemical, manual, or otherwise, without the prior written
permission ofAvision.
Material scanned by this product may be protected by
governmental laws and other regulations, such as copyright laws,
the customer is solely responsible for complying with all such
laws and regulations.
iii
Warranty
The information contained in this document is subject to change
without notice.
Avision makes no warranty of any kind with regard to this
material, including, but not limited to, the implied warranties of
fitness for a particular purpose.
Avision shall not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance, or use of this material.
iv
FCC Radio Frequency Interference Statement
This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communication. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the
following measures:
* Reorient or relocate the receiving antenna.
* Increasethe separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for
help.
CAUTION: Any changes or modifications not expressly
approved by the manufacture of this device could void the user's
authority to operate the equipment.
v
Table of Contents
1. INTRODUCTION.................................................................................1
2. SCANNER INSTALLATION........................................................... 2-1
2.1. PRECAUTIONS................................................................................ 2-1
2.2. UNLOCKING THESCANNER............................................................. 2-2
2.3. CONNECTING THE CABLE............................................................... 2-3
2.4. DOCUMENTPLACEMENT................................................................ 2-4
3. SCANNER DRIVER INSTALLATION............................................ 3-1
3.1. AUTO-INSTALLATIONPROGRAM..................................................... 3-1
3.2. UNINSTALL THESCANNER.............................................................. 3-4
4. SCANNER OPERATION & DOCUMENT PRINTING.................. 4-1
4.1. IMAGETYPE.................................................................................. 4-3
4.2. SCANNINGPARAMETERS& IMAGECONTROL.................................. 4-5
4.3. SCANNING................................................................................... 4-10
4.4. PRINTING .................................................................................... 4-12
5. MAINTENANCE............................................................................... 5-1
6. TROUBLESHOOTING.................................................................... 6-1
6.1. QUESTIONS ANDANSWERS............................................................. 6-1
6.2. TECHNICALSERVICE...................................................................... 6-4
7. SPECIFICATIONS............................................................................ 7-1
7.1. MODEL: AV630C.......................................................................... 7-1
1
1. Introduction
Congratulations on your purchase of Avision AV630C color
image scanner. The AV630C is especially designed to reach a
much higher resolution at 600 x 1200 dpi to present your image
in better quality and detail.
You can scan both normal printing material including
photographs as well as the transparency to store them into your
computer. Then you can modify them for your keen purpose on
your computer and enjoy the wonderful world of image.
The following sections introduce the unpack, hardware and
software installation, the operation, and maintenance information
to you. Please do take a few minutes to read through them to
keep quality scanning result possible.
Figure 1-1 shows how the scanner is packed. Please check all
the items against your checklist contained in the box or against
Figure 1-1. If there is any missing or damaged, please contact
your nearest dealer immediately for the replacement.
2
1.Manual, Power Adapter, Driver Kit CD D25P Cable,etc
2. Scanner 3. Cushion 4. Carton
Figure 1-1 Scanner packing
2-1
2. Scanner Installation
2.1. Precautions
Keep the scanner out of direct sunlight. Direct
exposure to the sun or excessive heat may cause
damage to the unit.
Do not install the scanner in a humid or dusty place.
Be sure to use the proper AC power source.
Place the scanner securely on an even, flat surface.
Tilted or uneven surfaces may cause mechanical or
paper-feeding problems.
Retain the scanner box and packing materials for
shipping purposes.
2-2
2.2. Unlocking the Scanner

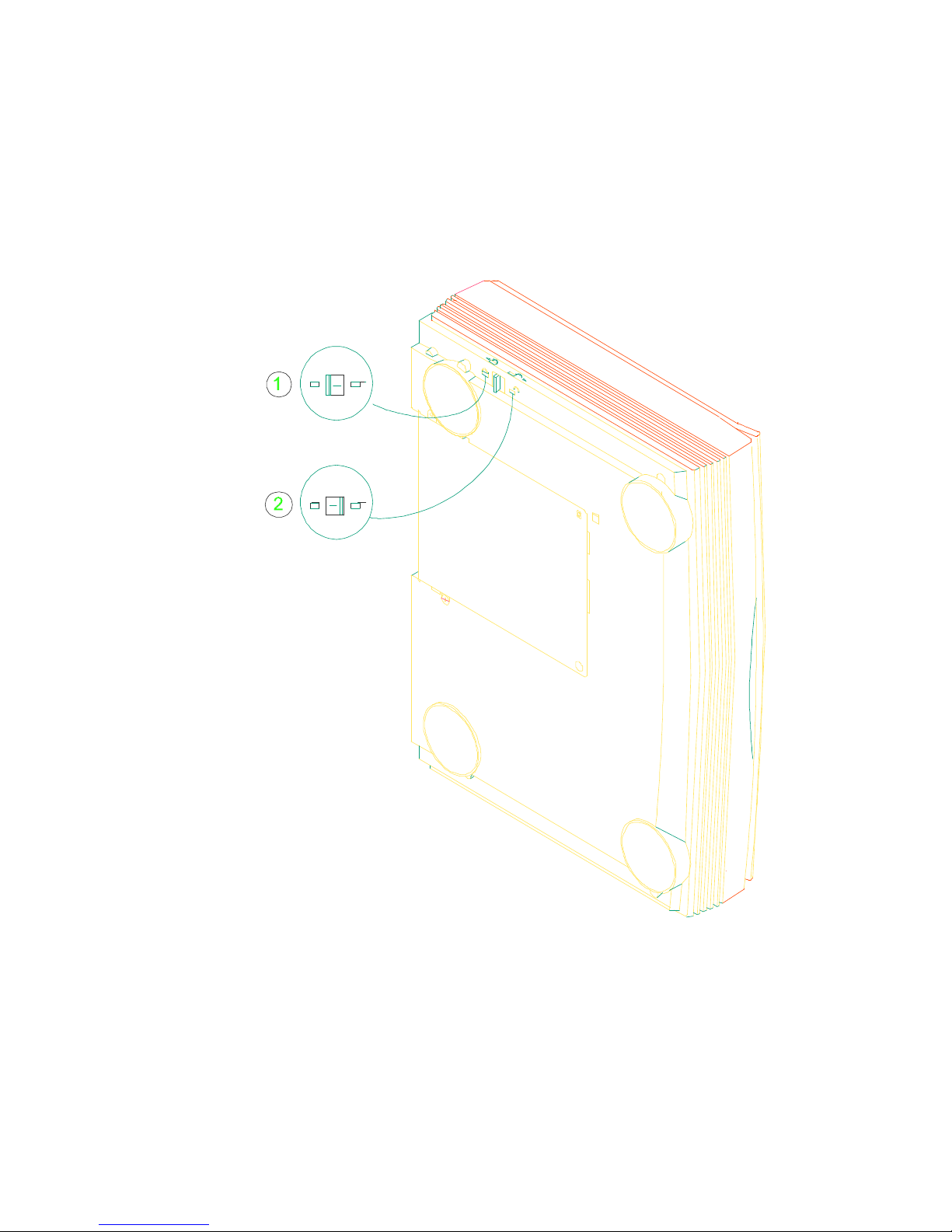

As shown below, unlock the scanner by turning the
scanner lock to theUse position.
1. “Shipping” Position 2. “Use” Position
Figure 2-1 Unlocking the Scanner
