AVIWEST PRO460 Manuale utente
PRO460
Quick Start Guide
Parc Edonia, Bat. X1
Rue de la Terre de Feu
35769 Saint Grégoire Cedex
France
Tel: +33 2 56 56 50 14
Email: [email protected]
Document Version: v1.0
3

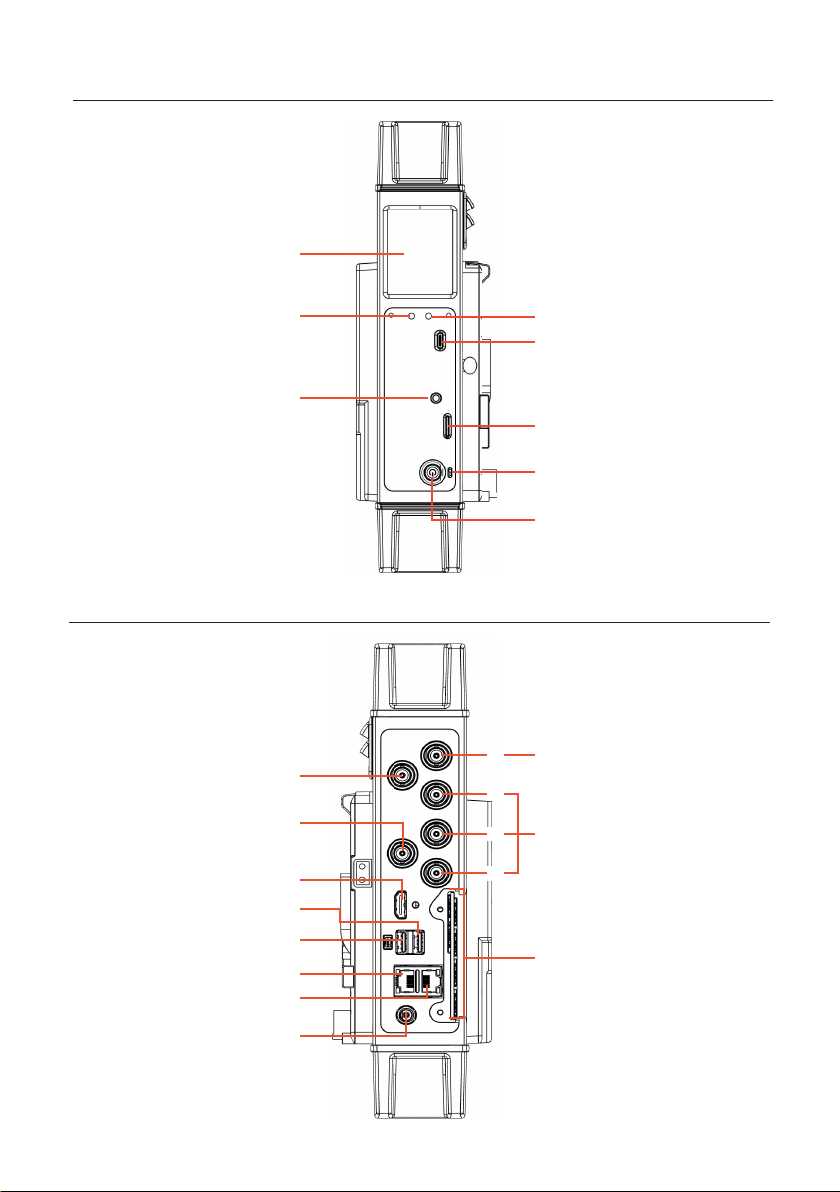

Front View
Touchscreen
Link Indicator Activity Indicator
Micro SD Card Slot
Intercom mini Jack
(headphone, micro)
USB C port
Power Button
Ethernet 2
Rear View
Ethernet 1
HDMI 1.4 Output
Auto-Start Switch
12G-SDI Output
12G-SDI Input
3G-SDI Inputs
DC IN (18 V nominal)
USB 1 (3.0 Type A)
USB 2 (3.0 Type A)
Genlock input
3
2
1
6 x Micro SIM Card Slots
4
4
Getting ready

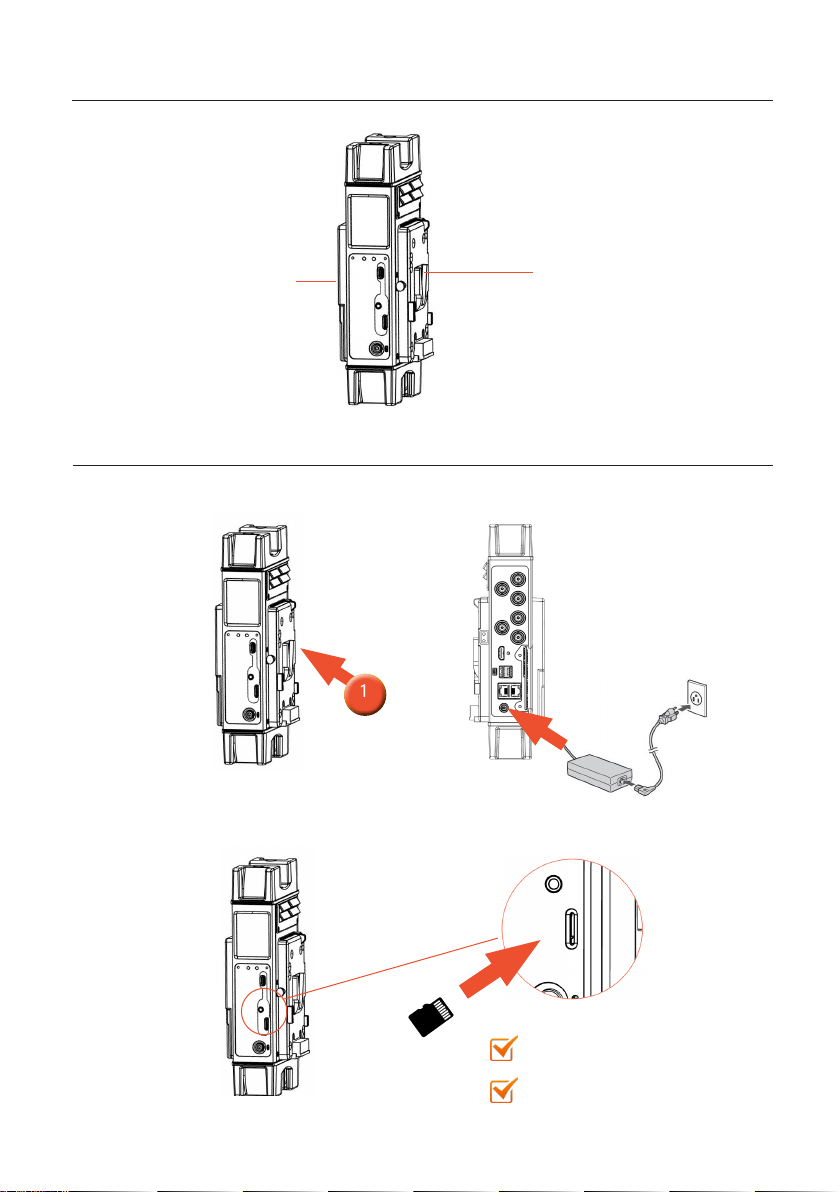

1. Install an external battery onto the unit or connect the AC/DC adapter to the unit.
Left and right sides
Camera Mounting plate
(Gold Mount, V-mount)
Battery Mounting plate
(Gold Mount, V-mount)
Class 10 recommended
FAT 32 or exFAT
2. Insert a micro SD card
11
5

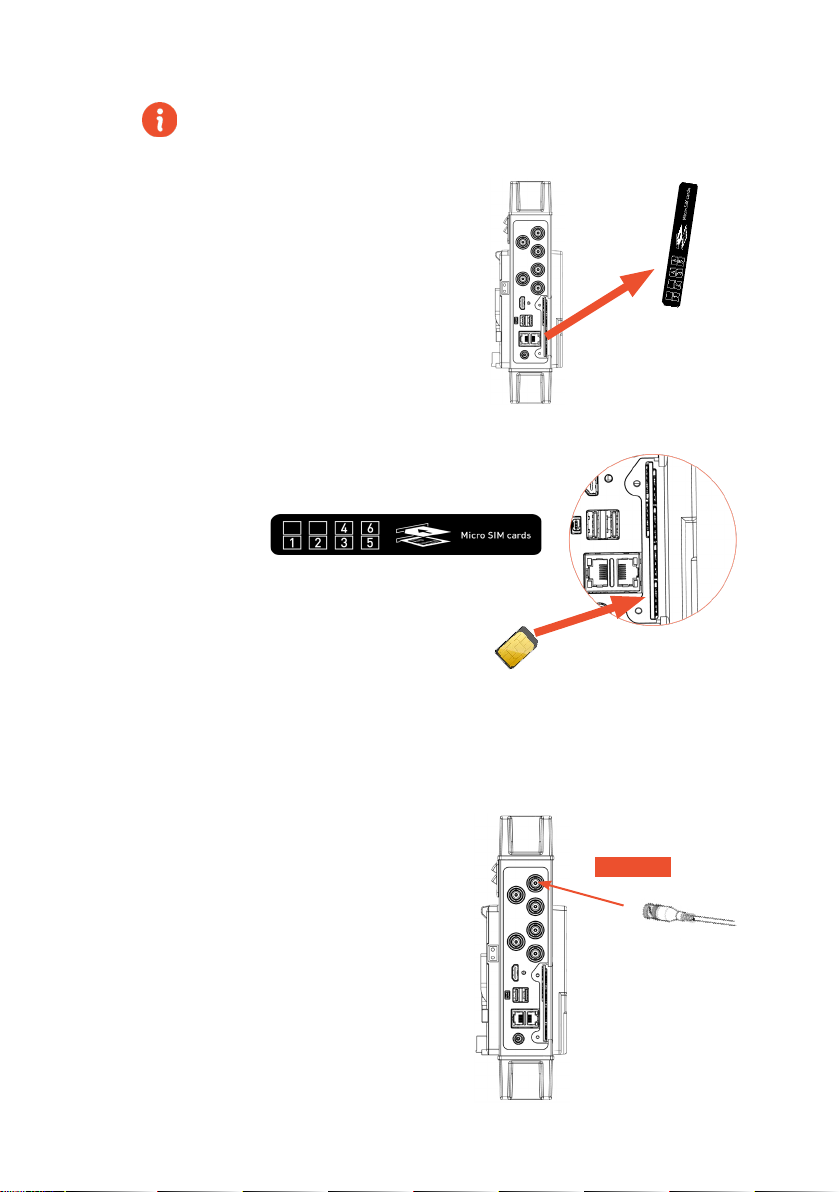

3. Insert SIM cards into slots.
a) Remove the SIM card cover.
c) Place the rear cover back.
b) Insert SIM cards according to indications on cover.
Micro SIM cards required.
4. Connect the video input cable on SDI 1.
SDI
6
By default, the unit is congured in Single encoding. The following steps
are therefore written for single encoding. For multi encoding, please refer
to the user guide.

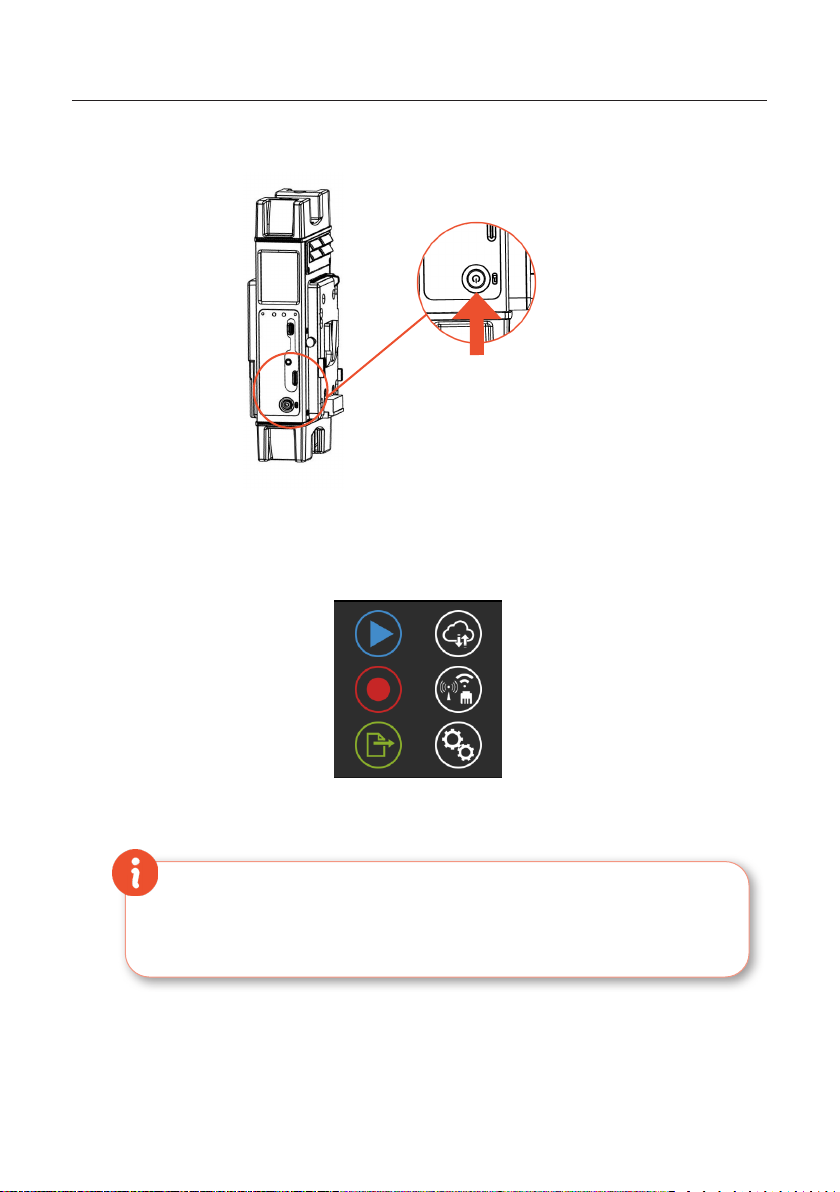

Press the power button to turn the unit on.
Turning on the unit
When the unit is ready, the Home screen appears:
7

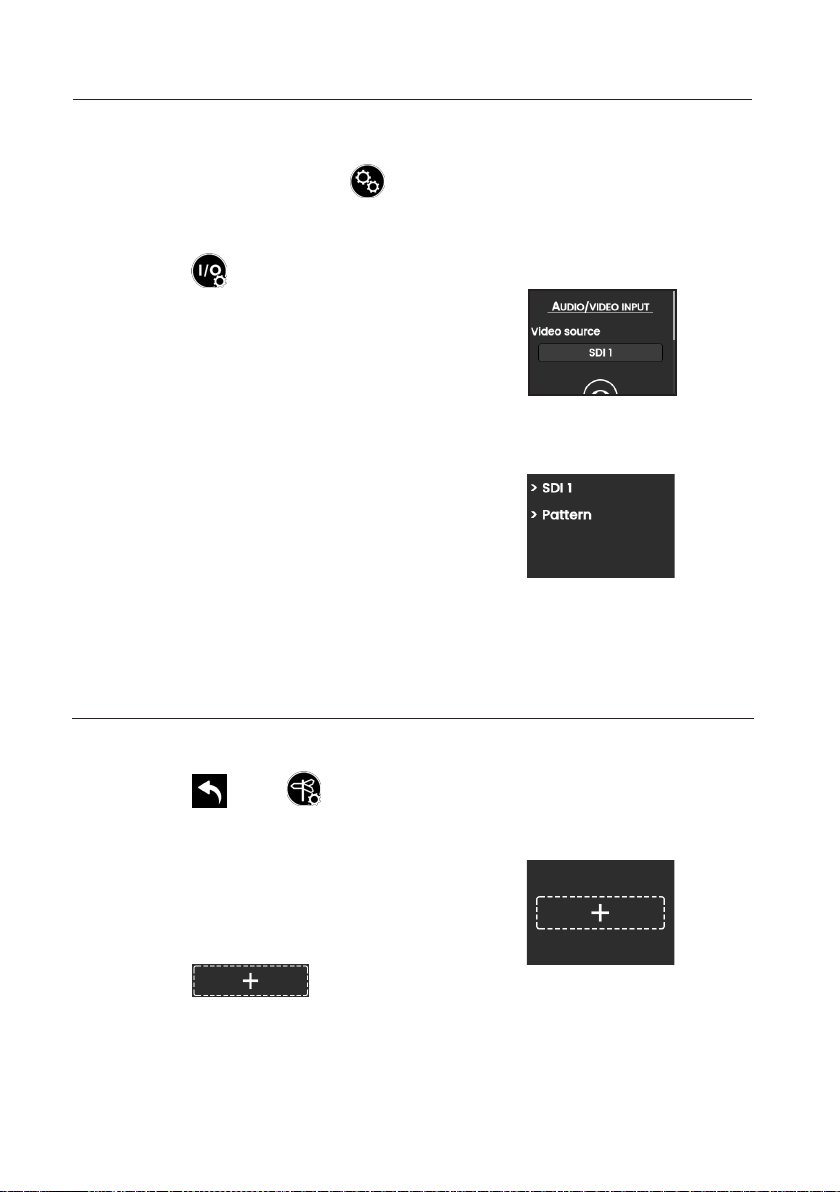

1. From the Home menu, click on .
2. Click on .
⇒The default source is SDI 1.
Selecting a Video Source
3. Check that video source is SDI 1.
4. If not, click on the Video source Field and select
the needed source.
1. Click on and on to access the
DESTINATION PROFILE CONFIG menu.
⇒ By default no prole exists.
2. Click on to create a Destination
Prole.
Conguring a Destination Prole
8
4. Use the keyboard to enter the new prole name.
5. Click on .
6. Click on to congure the Prole settings:
• StreamHub IP address or Hostname
• Input assignment on the StreamHub set to
Automatic
• Auto-connect function enabled
Make sure that Port number, Username or Password t
with settings entered from the StreamHub server.
7. Click on to save the new Destination Prole.
3. Click on the Prole Name eld.
9
Auto-record (ON/ OFF)
Selected Destination Prole
Starting a Live
1. From the Home menu, click on .
The LIVE menu displays information:
3. Click on and on to start a Live.

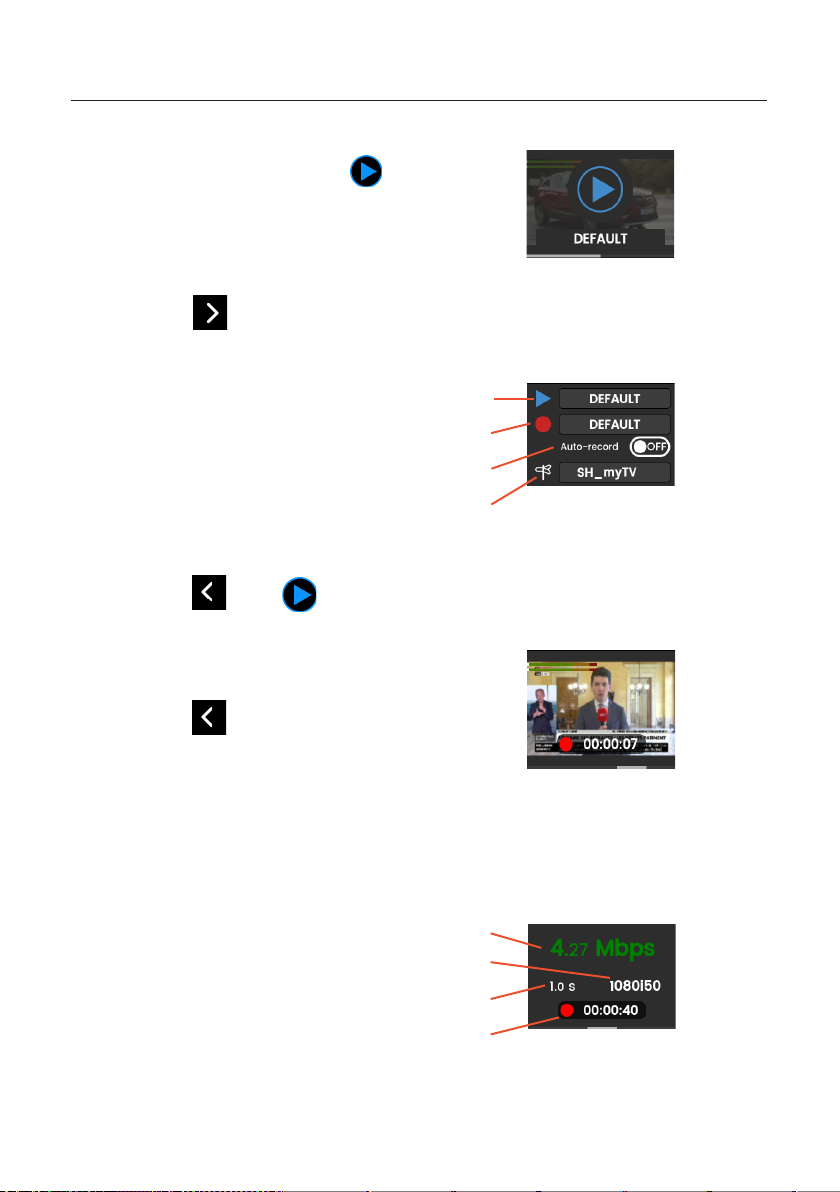

Some indications are displayed:
Network Bitrate
End to End Latency
Source Standard
Duration of Live
Selected Live prole
Selected Record prole
2. Click on to go to the LIVE menu.
4. Click on for more indications.
10
Stopping a Live

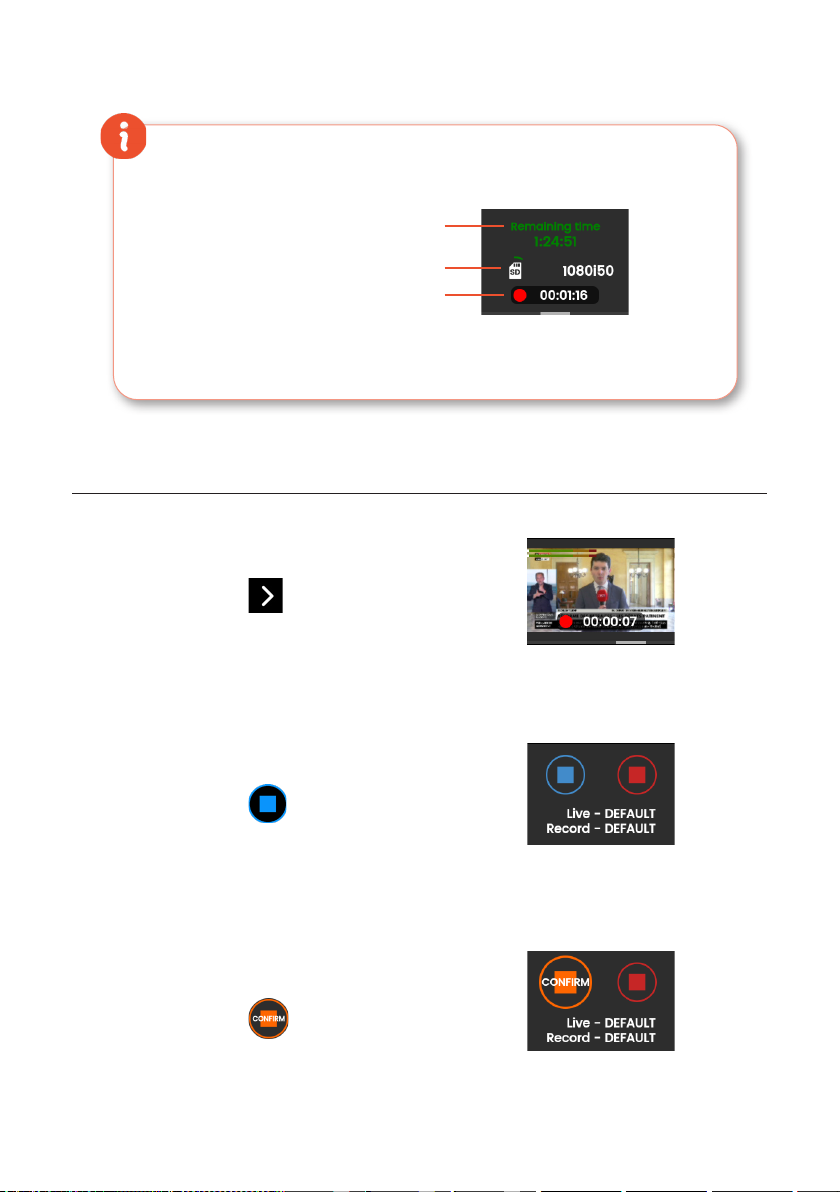

When Auto-record is enabled, additional indications appear:
Remaining Recording Time
possible on SD card
Space used on SD Card
1. Click on .
2. Click on .
3. Click on .
Duration of Live
