Avol ALT3200N Manuale utente
Model No.: ALT3200N
32" ATSC/NTSC System LCD TV
Contents
Contents
Caution
Safety Information
Accessories
Technical Specification

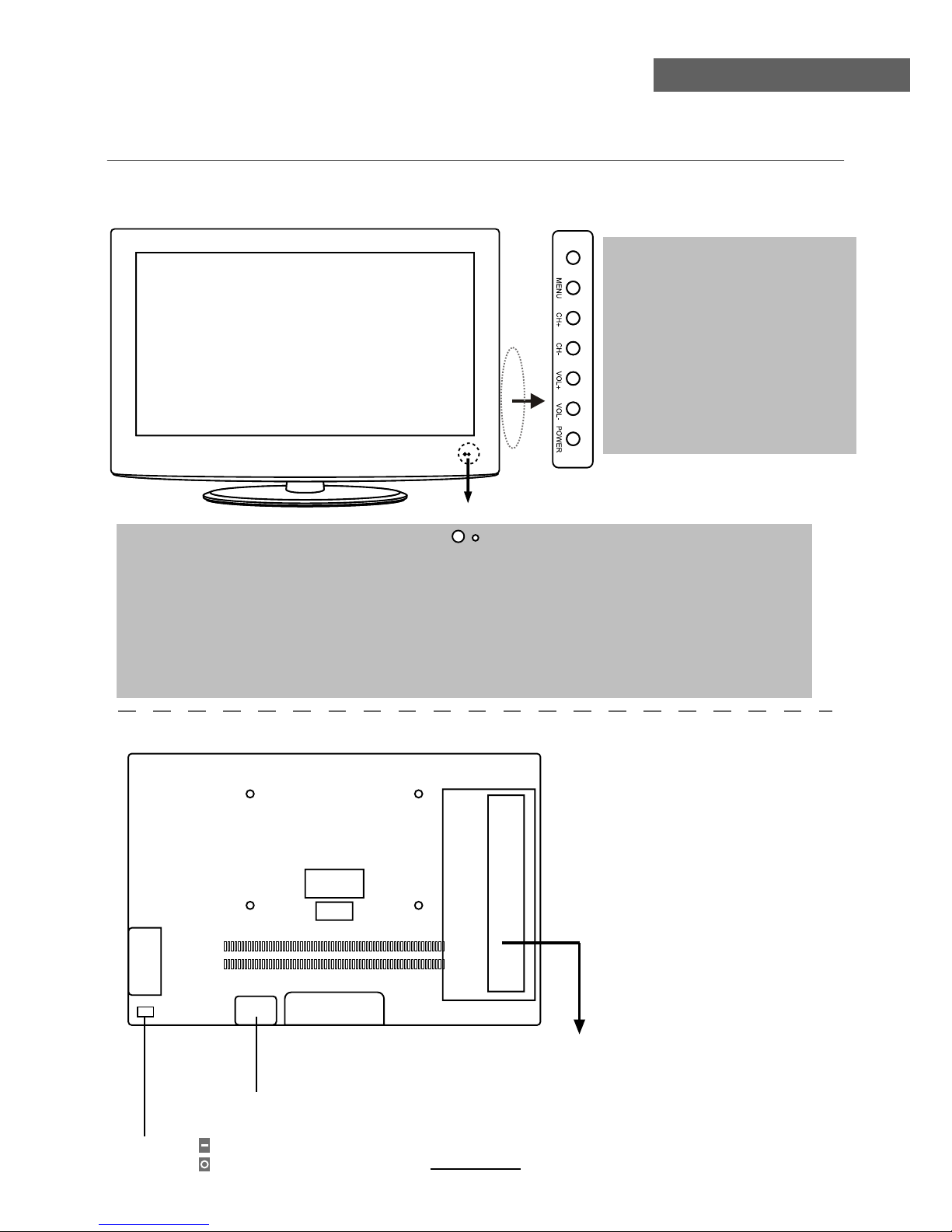

Product Introduction
Front View
Rear View
OSD Menu
1. Picture menu
2. Audio menu
3. Time menu
4. Setup menu
5. Lock menu
6. Channel menu
Simple Troubleshooting
1
2
3
3
4
5
4
4
9-15
9
10
11
12
13
14-15
16
Connections
6
7
Remote Control
First Time Installation
8
Basic Operation
Caution
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-
of-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling centre.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live in!
1

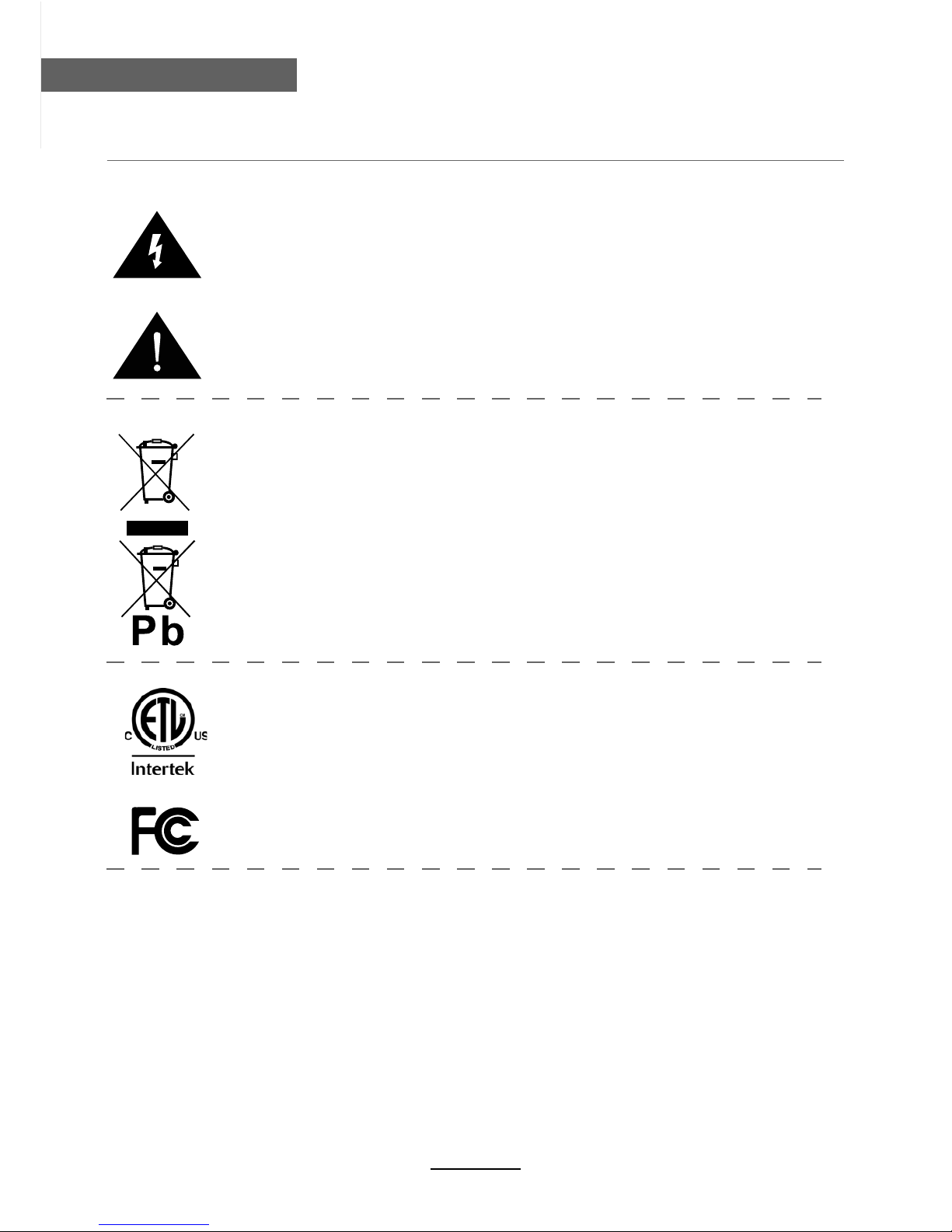

Caution
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
The lightening flash with arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of un-insulated “dangerous
voltage” within the products enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to the persons.
This unit complies with America Safety directives.
This unit complies with FCC directives.
Safety Information
To ensure reliable and safe operation of this equipment, please read carefully all the
instructions in this user guide, especially the safety information below.
Electrical safety
• The TV set should only be connected to a mains supply which matches that stated on
the label on the mains adaptor.
• To prevent overload, don't share the same mains supply socket with too many other
items of equipment.
- Do not place any connecting wires where they may be stepped on or tripped over.
- Do not place heavy items on the leads, which may damage them.
- Hold the Mains plug, not the wires, when removing from a socket.
- During a thunderstorm or while leaving the TV for long periods, disconnect the aerial
(if outdoor) and mains adaptor from the supply.
- Do not allow water or moisture to enter the TV or mains adaptor. Do NOT use in wet
or moist areas such as Bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if:
- the mains plug or cable is damaged.
- liquid is spilt onto the set, or if it is accidentally exposed to water or moisture.
- anything accidentally penetrates the ventilation slots.
- the set does not work normally.
- Do NOT remove the safety covers. There are no user serviceable parts inside.
You may invalidate the warranty. Qualified personnel only are permitted to service
this apparatus.
- To avoid battery leakage, remove exhausted batteries from the remote control
handset, or when not using for along period.
- Do NOT break open or throw exhausted batteries on a fire.
Physical safety
• Do NOT block ventilation slots in the back cover. You may place the TV in a cabinet,
but ensure at least 5cm (2") clearance all around the unit.
• Do NOT tap or shake the TV screen, you may damage the internal circuitry. Take good
care of the remote control, do not drop it or allow it to come into contact with liquids.
• To clean the TV use a soft dry cloth. Do NOT use solvents or petrol based fluids. For
stubborn stains, you may use a damp soft cloth with diluted detergent.
2
Safety Information

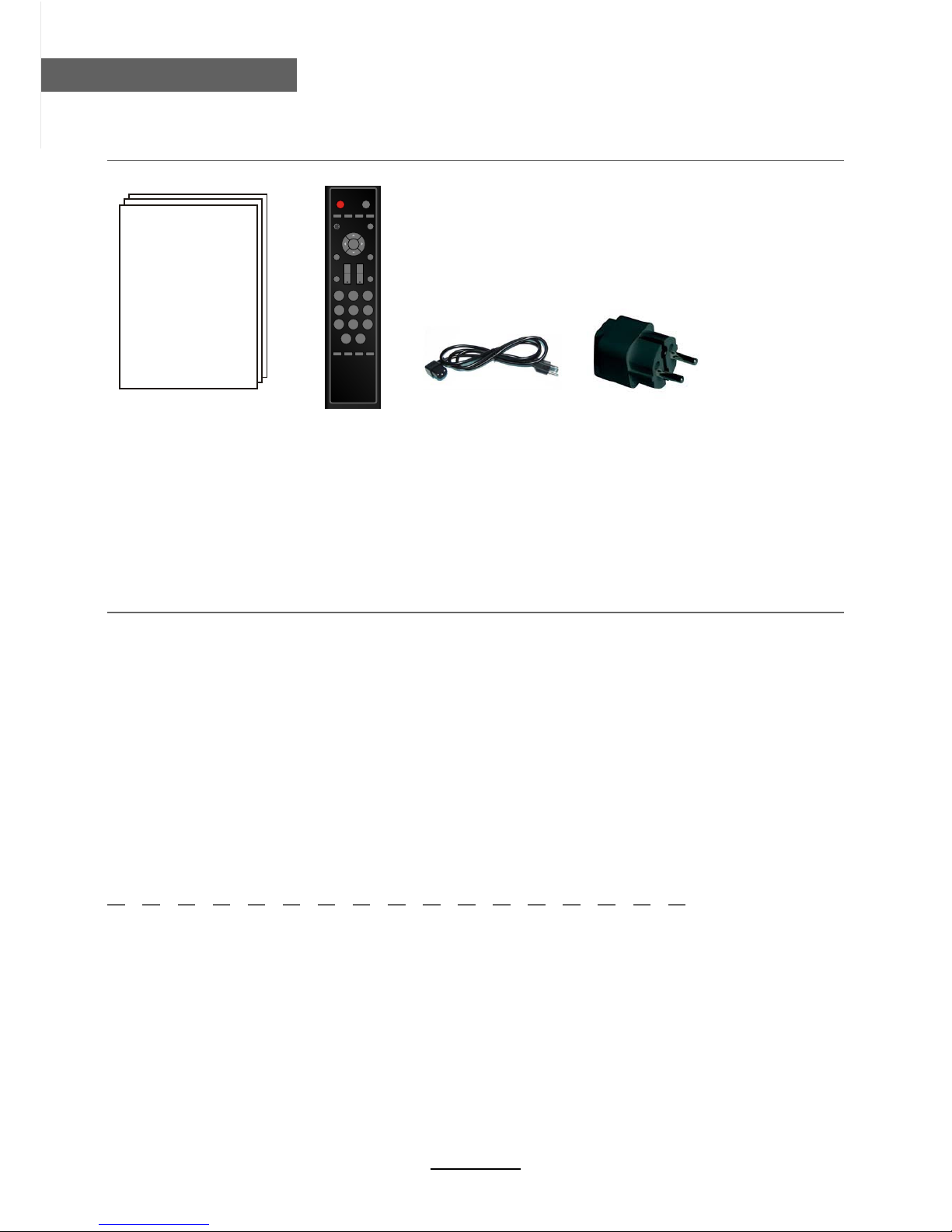

Accessories
3
Accessories & Technical Specification
- TV System
- Screen Size
- Resolution
- Aerial input
- Audio output powe
- Power Consumption
Remote Control
Type
Control distance
Control angle
Batteries
Technical Specification
User’s Manual Remote control Power cable
* Note: The configuration of the components may look different from the folltowing illustration
ATSC/NTSC
32 inch(diagonal)
1366x768
ȍXQEDODQFHG
2x8W
100-240V 50/60Hz 180W
0
infrared
5m
30 (horizontal)
2 x 1.5V, size AA
220V
Power Socket
OK
+ +
123
456
789
0-/--
POWER SOURCE
CC MTS FAV EPG
CH
VOL
MUTE
MENU EXIT
DISPLAY
PICTURE SOUND ASPECT FREEZE
RETURN TIMER
Product Introduction
4
Product Introduction
Front View
Rear View
SOURCE:
Display the input source menu.
SOURCE
MENU:
Display/exit the OSD menu.
CH+/-:
Scan through channels.
VOL+/-:
Adjust the volume.
POWER:
Turn on/standby the TV set.
Remote Control window(keep clear) LED indicator
(IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby) LED indicator: Press POWER to turn on and off.
The effective receiving range for the signal is 5-8 metres from the front of the remote
control window, and 30
0
to the left or right side and 20
0
above or below the control
window.
Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
Connections--See next page
POWER
SWITCH
AC POWER IN
on
off
Vesa standard (300x200mm)
Screw type: 4 x MB5x10
Connections
5
Connections
HDMI1
Only for upgrade.
HDMI3
USB IN
2134578 9 10116
Y Pb Pr R IN L IN 2 2
1
COAX Video R IN L IN
Video R IN L INS-VIDEOY Pb Pr R IN L IN 1
9/10.
11.
1.
2.
3.
4.
RF
USB˖
: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
7.
8.
YPbPr 2
COAX: Digital coaxial output.
: Connect them to the video output terminal of DVD.
6.
YPbPr 1
HDMI1/2/3
: Connect them to the video output terminal of DVD.
L/R in 1 : Connect them to the audio output terminal of DVD(with YPbPr 1).
L/R in 2 : Connect them to the audio output terminal of DVD(with YPbPr 2).
VIDEO : Connect it to video output terminal of DVD.
L/R in : Connect them to audio output terminal of DVD.
5.

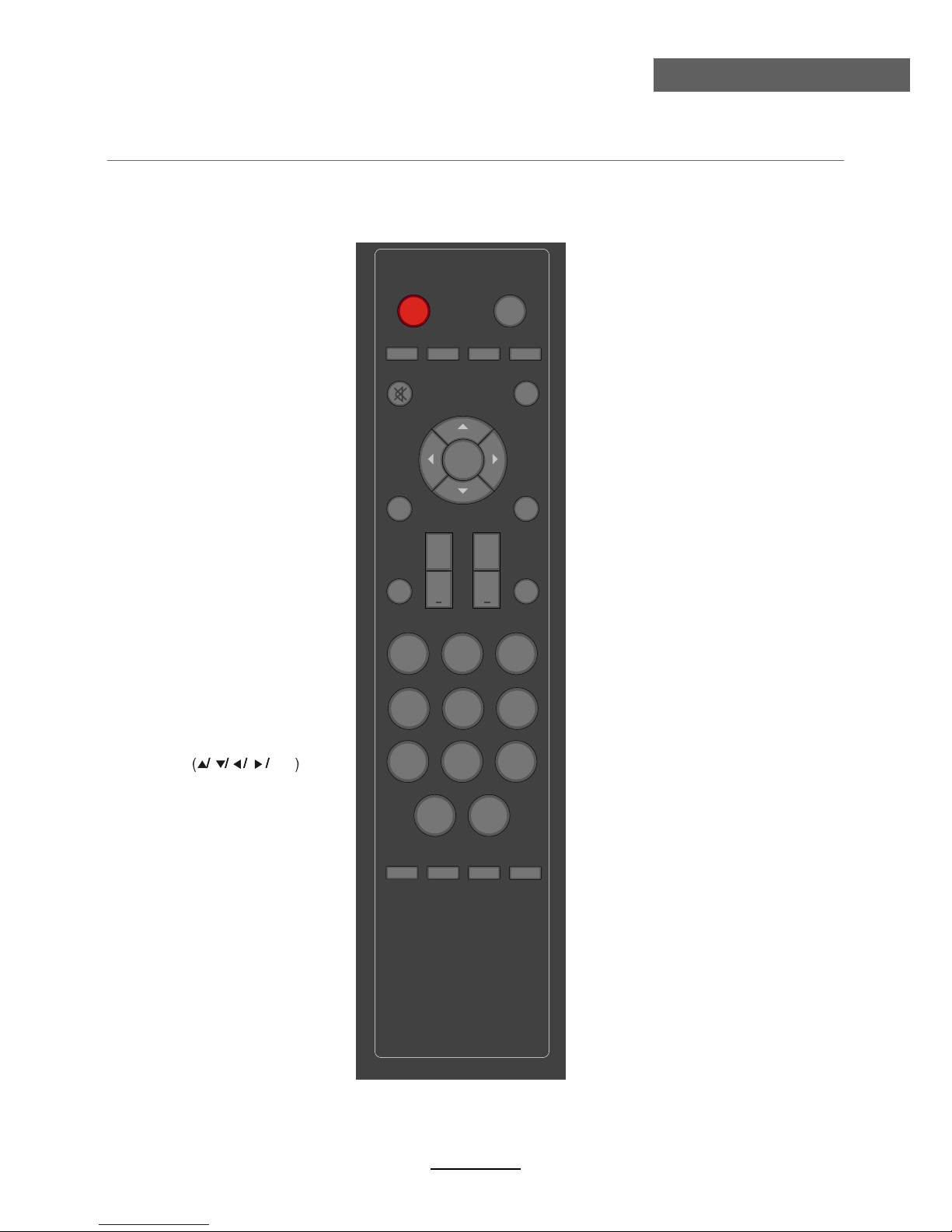

Remote Control
6
Remote Control
The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote
control may not work correctly if it is operated out of range or out of angle.
POWER
Press to turn the TV on/standby
SOURCE
Press to display the input source
menu
CC
Press to display the closed caption.
MTS
Press to select the audio channels.
FAV
Press to display teh favorite
channels list.
EPG
Press to enter the EPG menu
directly.
DISPLAY
Press to enter the EPG menu
directly.
123
456
789
0-/--
OK
SOURCEPOWER
CC MTS FAV EPG
CH
VOL
+ +
MUTE
MENU EXIT
DISPLAY
RETURN TIMER
MUTE
Press to mute the sound.
Press again or press VOL+ to unmute.
CH+/-
Channel/Program +/-
Press repeatedly to cycle
through the available video
picture modes.
SOUND
Press to cycle through the
different sound settings.
ASPECT
Press to cycle through the
different screen display mode.
FREEZE
Press to catch the current picture.
VOL+/-
Volume +/-
To select the program directly.
e.g.:
Select channel 5,
press “5” button.
Select channel 62
press “6” button, and press “2”
button in 2 seconds.
Select channel 152
press “1” button, and press “5”
button, then press “2” button
in 2 seconds.
select channel “5-1”,
press “5” then “-/--” and “1”.
NUMBER BUTTONS
FREEZE
ASPECT
SOUND
OK
+ +
123
456
789
0-/--
POWER SOURCE
CC MTS FAV EPG
CH
VOL
MUTE
MENU EXIT
DISPLAY
PICTURE SOUND ASPECT FREEZE
RETURN TIMER
Allows you to navigate the on-screen
menus and adjust the system settings
to your preference.
THUMBSTICK OK
MENU
Press to display the OSD menu.
EXIT
Press to exit form the OSD menu.
TIMER
Press to setup the sleep time
among: 5min, 10min, 15min, 30min,
45min, 60min, 90min, 120min,
180min, 240min and off.
RETURN
Press to Return to the previous
channel viewed.
7
First Time Installation
First Time Installation
1. Connect the mains lead to the AC power supply and the Aerial lead to the RF input socket.
2. Press the“Power Switch” on the right hand side of the TVset to turn on the power supply.
3. Make sure your Remote is in TV mode , switch on the TV by pressing .

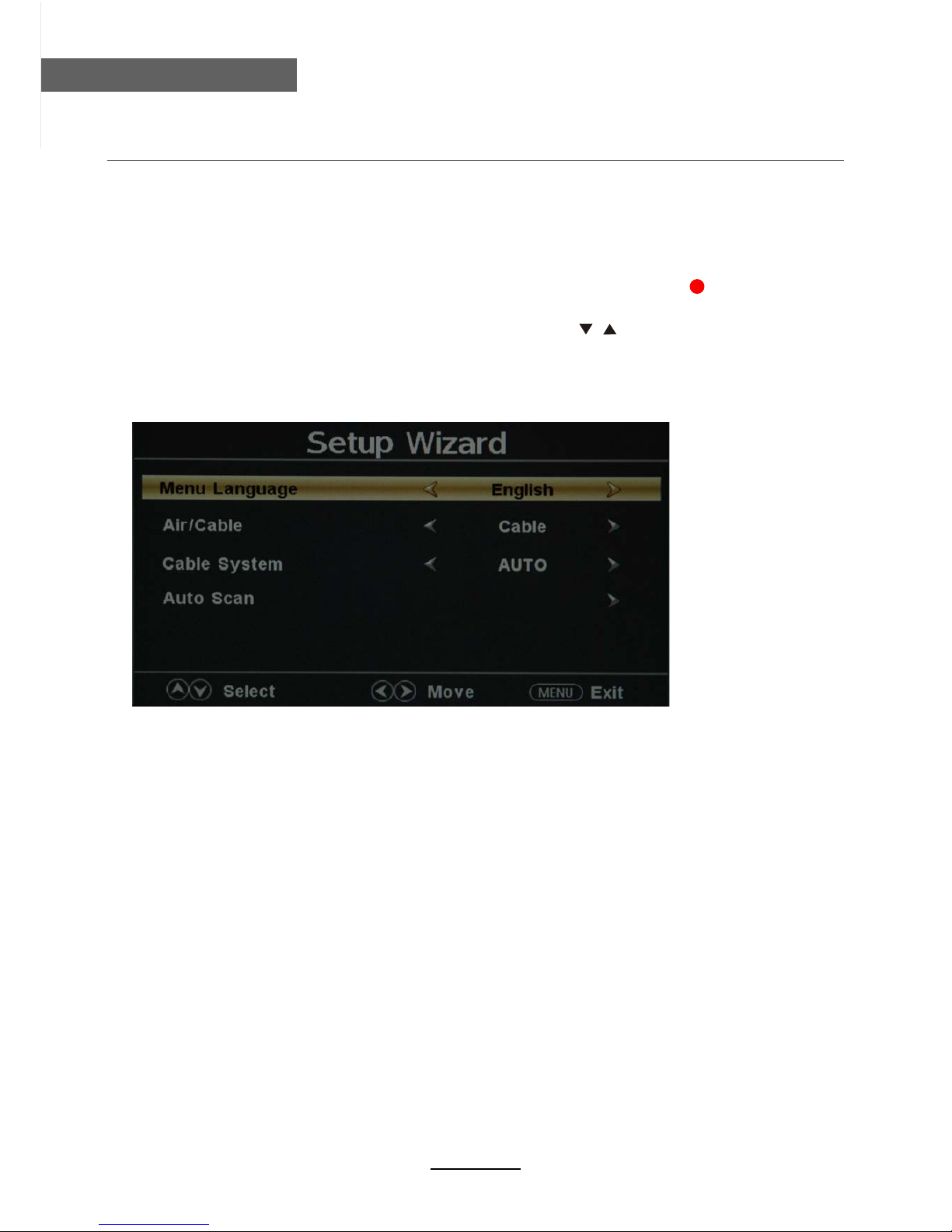

4. The “Setup Wizard "menu will appear on your screen.(Picture below)
5.Select the Menu Language and cable system,then press button to start ,the “ Auto Scan”
can be recalled.
POWER
